Used Fpt Industrie Dino for sale (5)

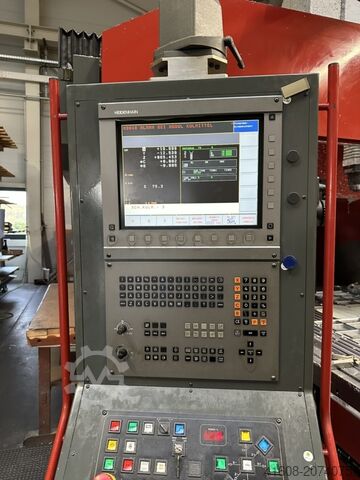

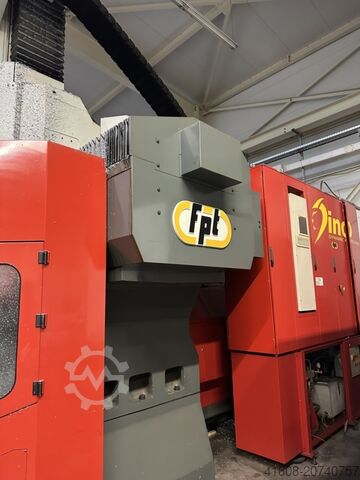

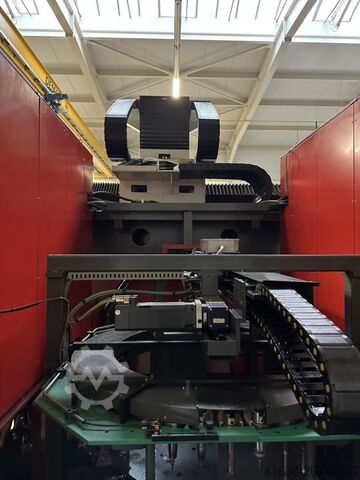

Condition: excellent (used), Year of construction: 2002, functionality: fully functional, Technical details x-travel 2800 mm y-travel 2200 mm z-travel 800 mm Control Heidenhain iTNC 530 table surface area 3000 x 1200 mm tool taper HSK-A-63 spindle turning speed range 18000 U/min power capacity 18 kW feed range 35000 mm/min total power requirement 68,7 kW dimensions of the machine ca. 12,4 x 3,5 x 4,6 m Additional information The FPT DINO is a 5-axis portal milling machine designed for the precise machining of large components. With a cross travel of 2200 mm and a high-speed spindle with 12,000 rpm, this machine combines high machining volume with outstanding dynamics in finishing. Heidenhain iTNC 530 CNC path control Number of controlled axes (simultaneously): X/Y/Z/C/B Travels: X-axis (longitudinal travel) 2800 mm Y-axis (cross travel) 2200 mm Z-axis (vertical travel) 800 mm Fgjdpfxjzr Nhfo Akhof Machine length: 12,434 mm Machine width: 3,597 mm Machine height: 4,622 mm Coolant equipment (no coolant through spindle) Chip conveyor

Condition: good (used), Year of construction: 2002, functionality: fully functional, Technical details x-travel 2800 mm y-travel 2200 mm z-travel 800 mm Control Heidenhain iTNC 530 table surface area 3000 x 1200 mm tool taper HSK-A-63 spindle turning speed range 18000 U/min power capacity 18 kW feed range 35000 mm/min total power requirement 68,7 kW dimensions of the machine ca. 12,4 x 3,5 x 4,6 m Additional information The FPT DINO is a 5-axis portal milling machine designed for the precise machining of large components. With a cross travel of 2200 mm and a high-speed spindle with 12,000 rpm, this machine combines high machining volume with outstanding dynamics in finishing. Fgodpfx Ajzruchokhef Heidenhain iTNC 530 CNC path control Number of controlled axes (simultaneously): X/Y/Z/C/B Travels: X-axis (longitudinal travel) 2800 mm Y-axis (cross travel) 2200 mm Z-axis (vertical travel) 800 mm Machine length: 12,434 mm Machine width: 3,597 mm Machine height: 4,622 mm Coolant equipment (no coolant through spindle) Chip conveyor

Condition: ready for operation (used), Year of construction: 2004, operating hours: 61,297 h, functionality: fully functional, travel distance X-axis: 2,800 mm, travel distance Y-axis: 2,200 mm, travel distance Z-axis: 800 mm, controller model: HEIDENHAIN TNC 426, Equipment: chip conveyor, No minimum price – guaranteed sale to the highest bidder! Fedpezb D Aqefx Akhogf In January 2025, a new spindle was installed by the manufacturer! The machine has been regularly maintained! Previous use: The machine was primarily used for precision machining. Roughing operations were only carried out to a limited extent. TECHNICAL DETAILS Travel range X-axis: 2,800 mm Travel range Y-axis: 2,200 mm Travel range Z-axis: 800 mm Feeds Rapid traverse: 35,000 mm/min Spindle speed S1 (continuous operation) Vertical: 10,000 rpm Spindle speed S1 (continuous operation) Universal swivel head 2-axis: 18,000 rpm Vertical milling head: TVS 10,000 Swivel milling head: TU 18,000 Tool holder: HSK 63 A Tool changer: 40 tool positions MACHINE DETAILS CNC control: HEIDENHAIN iTNC 530 Electrical data Supply voltage: 400 V (-15 %, +10 %) Frequency: 50 Hz Current consumption: 101.1 A Installed total power: 59.8 kW Operating hours Power-on hours: 99,222 h Program run time: 61,297 h EQUIPMENT High-rigidity gantry design Precise linear guides and ball screws Generous working area with 2.8 m X-axis travel High feed rates for efficient machining Ideal for tool, mold, and machine construction Documentation and acceptance certificate according to ISO standards Tool changer Coolant system Chip conveyor Swiveling milling head with 4th/5th axis Maintenance and service documentation

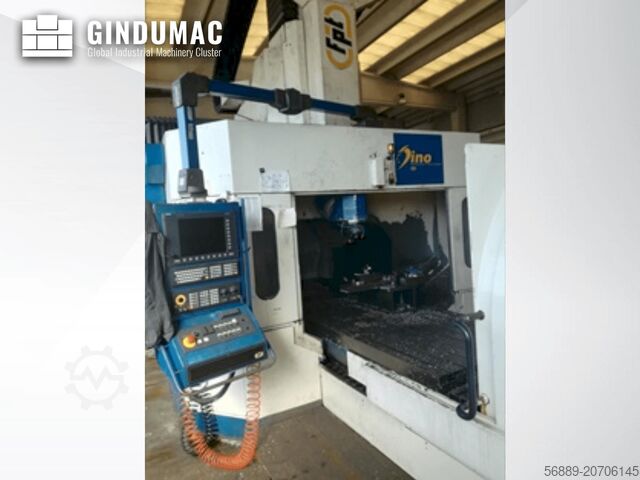

Year of construction: 2002, condition: ready for operation (used), travel distance X-axis: 2,800 mm, travel distance Y-axis: 1,600 mm, travel distance Z-axis: 800 mm, spindle speed (max.): 18,000 rpm, tool weight: 10,000 g, number of axes: 4, This 4-axis FPT DINO CNC Gantry Milling Machine was manufactured in 2002. It features an impressive X-axis travel of 2,800 mm, Y-axis travel of 1,600 mm, and Z-axis travel of 800 mm. The machine is equipped with an electrospindle capable of speeds up to 18,000 RPM and a robust gantry type cast-iron construction. If you are looking to get high-quality milling capabilities, consider the FPT DINO machine we have for sale. Contact us for further details. • Rapid feed rate: 35,000 mm/min • Total installed power: 68.7 kW / 93.4 HP • Power supply: 400 V, 50 Hz, 116.1 A • Machine structure: Gantry type cast-iron construction • Spindle: Electrospindle, 5,000 / 10,000 / 15,000 rpm • Spindle speed: 18,000 rpm • Spindle taper: HSK63 • Tool magazine capacity: 40 positions Fodpozbic Aefx Akhjgf • Max tool diameter: 70 mm • Max tool length: 300 mm

Condition: ready for operation (used), Year of construction: 2004, operating hours: 61,082 h, functionality: fully functional, travel distance X-axis: 2,800 mm, travel distance Y-axis: 2,200 mm, travel distance Z-axis: 800 mm, controller model: HEIDENHAIN TNC 426, Equipment: chip conveyor, Important information: Auction extended by 14 days. Controller has been subsequently identified as HEIDENHAIN iTNC 530. Previous specification: TNC 426. A new spindle was installed in January 2025! The machine has been regularly maintained! TECHNICAL DETAILS Travel X-axis: 2,800 mm Travel Y-axis: 2,200 mm Travel Z-axis: 800 mm Feeds Rapid traverse: 35,000 mm/min Spindle speed S1 (continuous operation) vertical: 10,000 rpm Spindle speed S1 (continuous operation) universal swivel head 2-axis: 18,000 rpm Fgsdpfx Asy Dgyfekhjf MACHINE DETAILS CNC control: HEIDENHAIN iTNC 530 Electrical data Supply voltage: 400 V (–15%, +10%) Frequency: 50 Hz Current consumption: 101.1 A Installed total power: 59.8 kW Operating hours Power-on hours: 98,755 h Program run time: 61,082 h EQUIPMENT High-rigidity gantry design Precision linear guides and ball screws Generous workspace with 2.8 m X-axis travel High feed rates for efficient machining Ideal for tool, die, and machine building Documentation and acceptance certificate according to ISO standards Tool changer Cooling system Chip conveyor Swiveling milling head with 4th/5th axis
