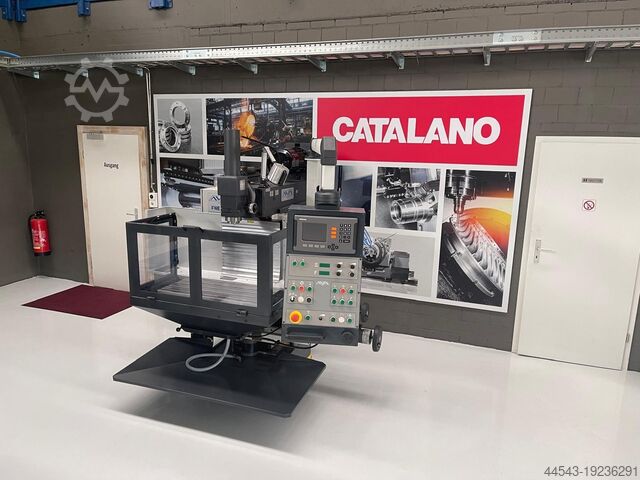

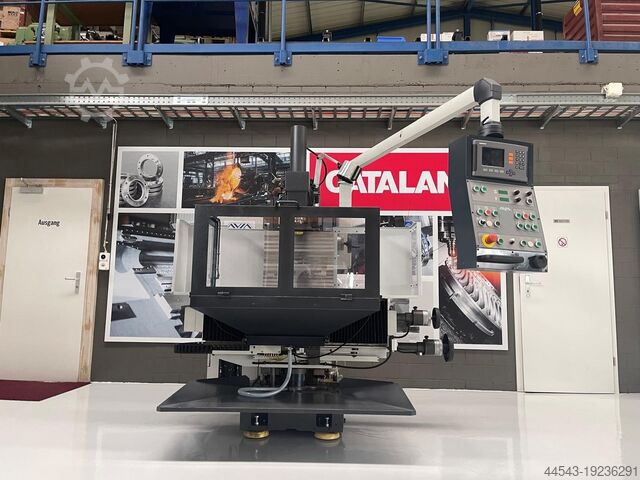

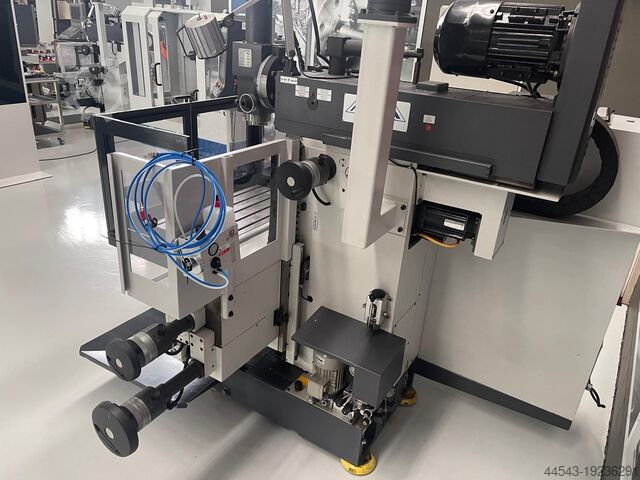

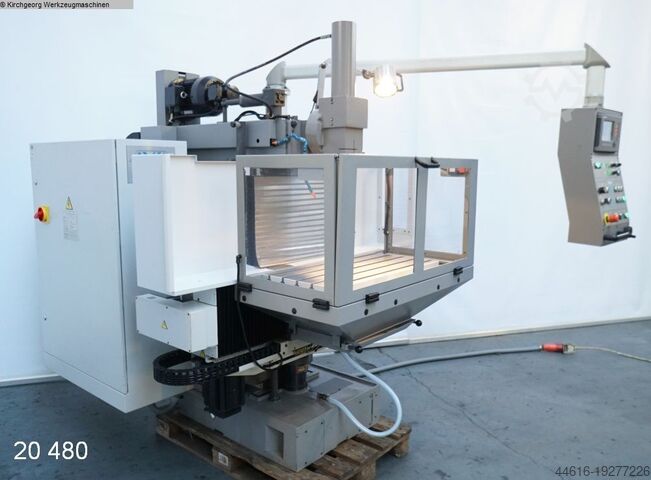

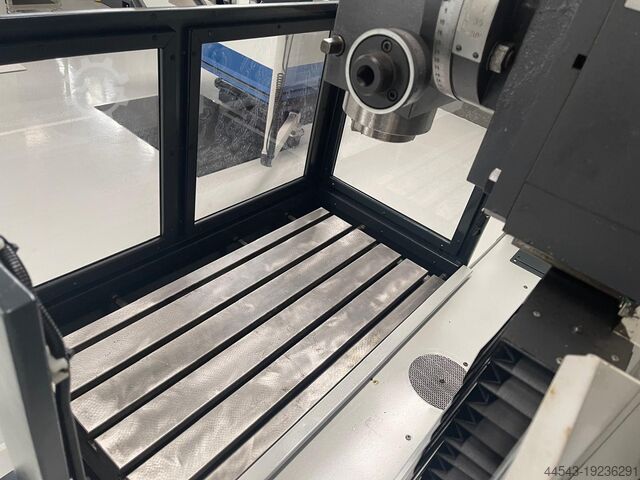

Used Avia Fne 40 P for sale (4)

Condition: used, Year of construction: 2014, x-travel 620 mm y-travel 420 mm z-travel 400 mm turning speeds 50- 4000 U/min total power requirement 17,5 kW weight of the machine ca. 1,9 t dimensions of the machine ca. 2,0 x 2,7 x 2 m Description: - excellent condition - Heidenhain ND780 digital readout - infinitely variable speed control - infinitely variable feed drives - hydraulic tool clamping - mechanical handwheels - electronic handwheel - drilling quill - horizontal milling spindle - coolant system X-travel 620 mm Y-travel 420 mm Z-travel 400 mm Spindle taper ISO 40 DIN 69871A Spindle speeds 50 - 4000 rpm Table size 800 x 400 mm Table load 400 kg Feed rates infinitely variable, max. 2000 mm/min Rapid traverse 5 / 4 m/min Hnjdez N Hwkspfx Akrou Drive power - milling spindle (S1) 10.5 kW Quill stroke 80 mm Coolant system Operating voltage 400 V Total power requirement 17.5 kW Machine weight approx. 1.9 t Space requirement approx. 2.00 x 2.76 x 2.05 m

Condition: excellent (used), Year of construction: 2011, Travel X 620 mm Travel Y 420 mm Travel Z 400 mm Table size 800 x 400 mm Mounting ISO 40 (DIN 69871A) Distance between table and spindle nose 500 Spindle speeds 4000/8000 rpm Quill stroke: 80 mm Ball screws on all axes Rapid traverse X,Y,Z 5,5,4 (m/min) Power KW 10.5 (13.7) Tool clamping: Hydraulic Hodpfx Aewnbrdskrsnu Dimensions LxWxH 2,000x2,760x2,050 Weight approx. 1900 kg

Condition: ready for operation (used), Year of construction: 1998, Table size: 400 x 800 mm Travel ranges x/y/z: 600/400/380 mm Quill stroke: 80 mm Hnodpfx Aozvm H Hskreu Spindle mount: SK 40 Vertical milling head, adjustable in 2 planes Spindle speeds, stepless: 63 - 3150 rpm Feeds, longitudinal/vertical, stepless: 4 - 1200 mm/min Electrical connection: 400 V, 4 kW Space requirement: 1800 x 1700 x 1900 mm Weight, approx.: 1.65 t

Condition: used, Year of construction: 2008, x-travel 620 mm y-travel 420 mm z-travel 400 mm digital readout 3 Achsen HEIDENHAIN spindle taper ISO 40 DIN 69871A spindle turning speed range 50 - 4000 U/min table-size 800 x 400 mm table load 400 kg feeds -stepless- max. 2000 mm/min rapid traverse 5 / 4 m/min power capacity - milling spindle (S1) 10,5 kW quill stroke 80 mm voltage 400 V total power requirement 17,5 kW weight of the machine ca. 1,9 t dimensions of the machine ca. 2,00 x 2,76 x 2,05 m - Serial-No.: 90395 - Digital display HEIDENHAIN ND780 - electr. handwheel - mechanical handwheels Hjdpfx Ajyxxymskrjnu - stepless speed control - stepless feed drives - horizontal milling spindle - coolant device
