Used Goetzinger Obm Plus for sale (2)

Condition: used, Tenoning spindle 1 St. Number of milling agregates 1 St. Spindle diameter 40 mm Small window production consisting of: W. ----- 1) Haberkorn FZS1 slotting machine 2) Okoma SF3F table milling machine 3) Oertli tool for the Haberkorn and Okoma machines Wooden windows 1 set IV 68/78/88 and 1 set wooden aluminium windows IV 68/78 built in 2011 4) Götzinger OBM Plus corner bearing and olive drilling machine, Maco MultiMatic fittings (fitting type can be changed with additonal costs on request!)!) ----- Technical manufacturer's description: - Haberkorn FZS1 slotting machine with automatic feed, -stepless height adjustment D 40 mm Cutting-to-length saw: -Spindle arrangement: top -Three-phase motor: 3 kW -Spindle diameter: 30 mm -Speed: 2800 rpm -Saw blade diameter: 400 mm -Automatic brake with speed monitoring -Horizontal pneumatic positioning, manually adjustable -Protective and extraction hood with extraction nozzle diameter: 100 mm Slotting spindle D 40 mm: -Power: 7.5 kW -Speed: 4200 rpm -Working length: 252 mm -Max. tool diameter: 340 mm -220 mm stroke, infinitely variable height adjustment via precision ball screws -Protective cover and extraction hood with extraction nozzle diameter: 180 mm -Automatic brake with speed monitoring Studio table: -Swivel range +/- 65 degrees -Automatically changing counter blade (programmable) -Pneumatic clamp -High-precision electric degree display -Automatic length compensation -Counter blade for every angle setting in the cutting plane Special equipment: -Laser for workpiece positioning -Pneumatic saw position -Length stop LA 2500 mm + 1850 extension Bcsdpfx Aoxa Hi Negpju ----- 2) Okoma SF3F table milling machine with lifting spindle, 3 tools -Suction connection nozzles 2 x 120 mm -Spindle length 270 mm -Counter stop ruler with fine adjustment and turret head -Triple stroke, cycle height max. 90 mm -Glass bead cutting saw with protective and extraction hood 80 mm diameter -8 roller feed device with stand and hold-down arm, required for glass bead cutting saw setup -Pneumatically controlled pouring device for edge gear, speed 6000 rpm -2x 3kW motor -Mounting diameter 30 mm ----- 3) Oertli tool for Haberkorn and Okoma machines -1 set of wooden windows IV 68/78/88 -1 set of wood-aluminium windows IV 68/78 Sale of tools in the condition, scope and with accessories as available in our warehouse. Note on window cuts, tool drawings, tool system listings: Engelfried does not guarantee that the tools actually available correspond to the systems mentioned and drawn. ----- 4) Götzinger OBM Plus corner bearing and olive drilling machine -Corner and shear bearings + handle olive drilling -Vertical drilling unit with: -Quick-change drill head device -Pneumatic feed via foot valve -1x olive drill head 24 mm -1x corner bearing double head -Maco MultiMatic fitting -1x adjustable folding stop on the left with 6 stops -1x adjustable folding stop on the right with 6 stops -1x machine stand complete with shelf -220/400 V, 60 Hz, 1.3 kW -1x roller conveyor approx. 1 m long with 2 rollers -1x roller conveyor approx. 1.5 m long with 3 rollers ----- Price of the above machines on request! Plus packaging and shipping -----...

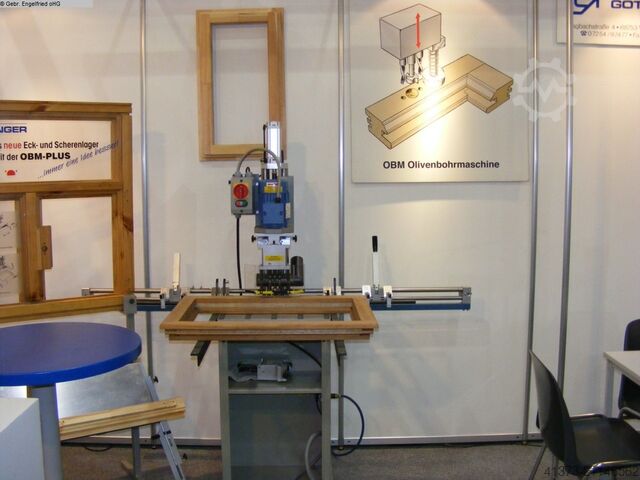

Condition: new, Number of boring motors 1 St. boring of corner bearing 1=yes, 0=no 1 ja boring of olive 1=yes, 0=no 1 ja Olive drilling machine type OBM-PLUS (corner and scissor bearing + handle olive drilling) Pos. 1 ----- Vertical drilling unit with drill head quick-change device Pneumatic feed via foot valve 1 adjustable back stop 2 swiveling workpiece supports 1 machine stand complete with shelf 220/400V, 50Hz, 1.1KW Pos. 2 ----- Drill head BKF 3, 21.5 mm pitch, quick-changeable Drill holder M 10, cyl. right/left complete with stop system 2200 mm long Total length with 10 folding stops adjusted to constant Grip size (olive drilling) Pos. 3 ----- 1 set of drills (for handle olives) consisting of: 2 dowel drills d = 10 left 1 artificial drill d = 25 (or according to your choice or manufacturer fittings) Pos. 4 ----- Drill head BKF 2/3 can be changed quickly 2/3 spindles for corner bearings drill on the loose frame part (Sigenia, Maco, Roto, Winkhaus, GU) complete with stop system with 2 folding stops Pos. 5 ----- Drill 2 cylinder head drills for corner bearings ----- Basic price in the above version Pos.1 - Pos.5 on request! ----- Special accessories with additional charge: -Folding stop per piece, EUR 110,00/piece -Stop system for central drilling, EUR 1,980.00 -chassis, EUR 920.00 -Roller conveyor right/left 1.5 m, 200 mm wide complete with 4 rollers each, EUR 1,940.00 -Conversion kit for PVC with steel insert Oil brake cylinder for uniform feed speed PVC support to prevent the profile from tipping over Reduction gear for low speed, EUR 1,790.00 -Drill set for PVC with steel insert, EUR 420.00 2 step drills d = 12 mm left 1 piece step drill d = 12 mm right -2 pieces of additional stops for the stop in the tilt window, EUR 180.00 -2 pieces of additional pneumatic stops for gripping the entire fighter groove, EUR 1,650.00 -2 pieces of additional pneumatic stops for gripping the dowel hole in the Bcedpfx Agoygm Tcopsu Fighter area complete, EUR 1,650.00 -4 additional pneumatic double stops for gripping the dowel hole in the fighter area complete, EUR 1,980.00 PS: If the dowel hole is in the middle, 1 stop on the right/left is sufficient. If the dowel hole is off center, you need 2 stops on the right/left. -Packaging 1 box Packaging 1 pallet with foil, on request ----- We will be happy to send you the price list with all options upon request. (Technical information according to manufacturer - no guarantee!)
