Used Holzkraft Kso 200 for sale (5)

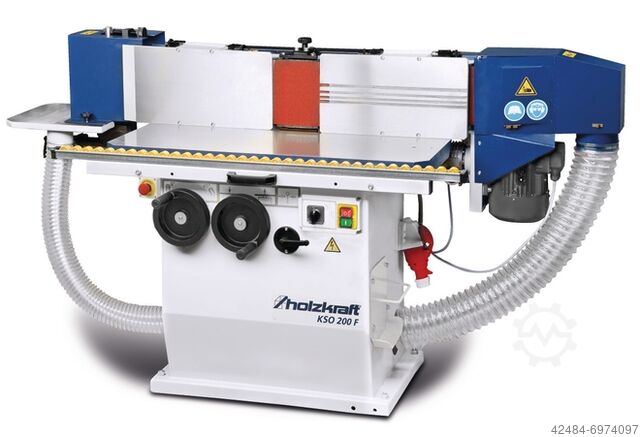

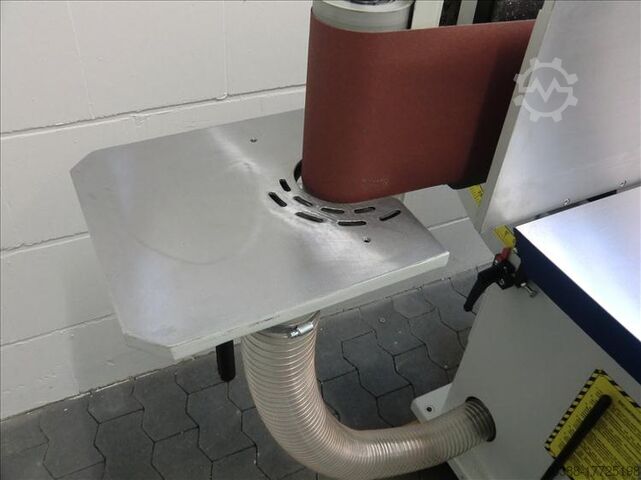

Condition: new, Edge sanding machine HOLZKRAFT KSO 200 F - Exhibition machine - Relief rollers on the fence rulers, with swiveling sanding unit, and oscillating sanding belt, Veneer sanding device, Oscillation with separate motor, height-adjustable sanding table, extendable roller table extension, rubberized sanding drum ----- Technical data ----- Sanding belt dimensions: 3,000 x 200 mm, Work table dimensions: 960 x 350 mm, Work table height adjustment: 230 mm, Sanding surface: 1,050 x 300 mm, Belt speed: 20 m/sec, Oscillation stroke: 20 mm, Suction nozzle Ø: 140 mm, Motor 400 V: 4.0 HP / 3.0 kW, Dimensions (LxWxH): 1,900 x 900 x 1,350 mm, Weight: 290 kg Blsdpfeu R S Erex Af Rjh - new exhibition machine -

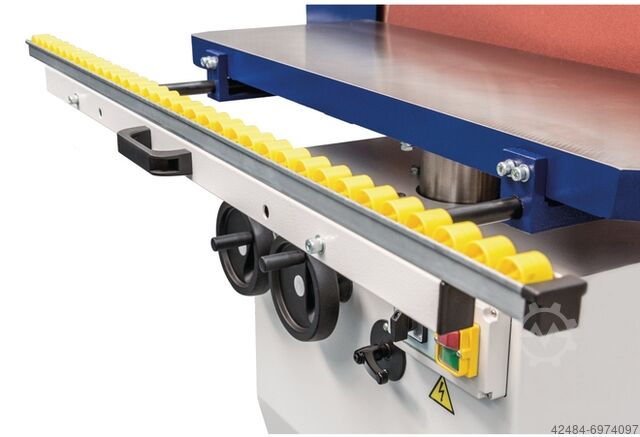

Condition: like new (used), Year of construction: 2025, Holzkraft Edge Sanding Machine Model: KSO 200 F with veneer sanding equipment Sanding unit tiltable up to 45° via lever The machine frame is made of welded steel, ensuring high torsional rigidity and vibration-free operation. Oscillating sanding belt with separate geared motor for improved sanding results Oscillation can be activated as needed Sanding shoe with graphite coating for extended belt life Bedoy Iu N Aopfx Af Relh Height-adjustable sanding table to utilize the entire sanding belt width Height-adjustable auxiliary table with extraction for sanding radii Spring-loaded belt tension automatically compensates for belt length variations Double extraction system Extendable roller table extension With rubber-coated sanding drum Veneer edge sanding device with fine-adjustable contact shoe, pressure rollers, and stop rulers Infeed ruler with groove for overlapping veneer Quick changeover from veneer edge to solid wood sanding possible Dimensions and Weights Length approx. 1900 mm Width/depth approx. 900 mm Height approx. 1350 mm Weight approx. 290 kg Dust Extraction Connection Suction nozzle diameter 140 / 100 mm Drive Power Oscillation motor 0.25 kW Working Tables Working table length 960 mm Working table width 350 mm Working table height adjustment 230 mm Height min. 735 mm Height max. 965 mm Longitudinal table height adjustment 230 mm Cross table length 330 mm Cross table width 330 mm Cross table height min. 720 mm Cross table height max. 900 mm Cross table height adjustment 180 mm Electrical Data Main drive motor power 3.0 kW Connection voltage 400 V Sanding Unit Abrasive belt length 3000 mm Abrasive belt width 200 mm Belt speed(s) 20 m/s Sanding surface length 1050 mm Sanding surface width 200 mm Oscillation stroke 20 mm Location: Ex stock 54634 Bitburg — Immediately available —

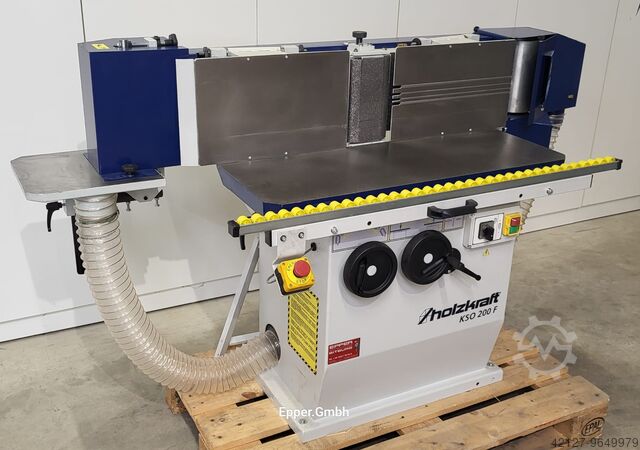

Condition: new, Year of construction: 2024, Holzkraft edge sanding machine Type: KSO 200 F with veneer sanding device Sanding unit can be swivelled up to 45° by means of a lever Machine stand made of welded steel guarantees high torsional stiffness and vibration-free operation. Oscillating sanding belt with separate gear motor for better sanding results Oscillation optionally switchable Sanding soleplate with graphite coating for a longer service life of the sanding belt Height-adjustable sanding table for utilization of the entire sanding belt width Height-adjustable additional table with suction for grinding radii Spring-loaded belt tension automatically compensates for belt length differences. With double suction Extendable roller table extension With rubberized sanding roller Veneer edge sanding device with contact shoe with fine adjustment, relief rollers and stop rulers With grooved infeed ruler for veneer overhangs Quick changeover from veneer edge sanding to solid wood sanding possible Dimensions and weights Length approx. 1900 mm Width/depth approx. 900 mm Height approx. 1350 mm Weight approx. 290 kg Connection dust extraction suction nozzle diameter 140 / 100 mm Drive power oscillation motor 0,25 kW Working table(s) working table length 960 mm working table width 350 mm Working table height adjustment 230 mm Height min. 735 mm Height max. 965 mm Bedpfxolht H Ne Af Relh Height adjustment longitudinal table 230 mm Cross table length 330 mm Cross table width 330 mm Cross table height min. 720 mm Cross table height max. 900 mm Cross table height adjustment 180 mm Electrical data Power drive motor 3,0 kW Supply voltage 400 V Grinding unit grinding belt length 3000 mm grinding belt width 200 mm Belt speed(s) 20 m/s Grinding surface length 1050 mm grinding surface width 200 mm Oscillation stroke 20 mm Location: Ex stock 54634 Bitburg - immediately available -

Condition: new, Year of construction: 2025, Bandwidth: 200mm Belt length: 3000mm Table size: 960mm x 352mm Additional table: 330mm x 330mm veneer sanding device: yes oscillation: yes sanding unit swiveling: yes suction connection: 120mm Bedpfjhy Iyvex Af Relh Motor power: 3 kW Machine length: 1900mm Machine width: 900mm Weight: 310kg

Condition: new, - New -with swiveling sanding unit andoscillating sanding belt F version forVeneer grindingDescription:- The grinding unit can be swiveled up to 45 ° using a lever- The machine stand made of welded steelguarantees high torsional rigidity andvibration-free work.- Oscillating sanding belt with separateGear motor for better grinding results- Oscillation can optionally be switched on- Sanding sole with graphite coating for a higherService life of the sanding belt- Height-adjustable sanding table for usethe entire width of the sanding belt- Height-adjustable additional table with suctionfor grinding radii- The spring-loaded belt tension is the sameTape length differences independently.- With double suction- Extendable roller table extension- With rubberized sanding roller- Veneer edge grinding device with contact shoewith fine adjustment, relief rollersand fence rulers- With grooved infeed ruler for veneer protrusions- Quick changeover of veneer edgespossible on solid wood sandingTechnical specifications:Dimensions and weightsLength approx. 1900 mmWidth / depth approx. 900 mmHeight approx. 1350 mmWeight approx. 290 kgConnection suctionExtraction nozzle diameter 140/100 mmDrive powerOscillation motor 0.25 kWWork table (s)Working table length 960 mmWorking table width 350 mmWork table height adjustment 230 mmHeight adjustment longitudinal table 230 mmCross table height min. 720 mmElectrical dataConnection voltage 400 VMains frequency 50 HzGrinding unitSanding belt length 3000 mmSanding belt width 200 mmBelt speed (s) 20 m / sSanding surface length 1050 mmSanding surface width 200 mmOscillation stroke 20 mmItem No. 5363001 Blsdpovwgbwefx Af Roh
