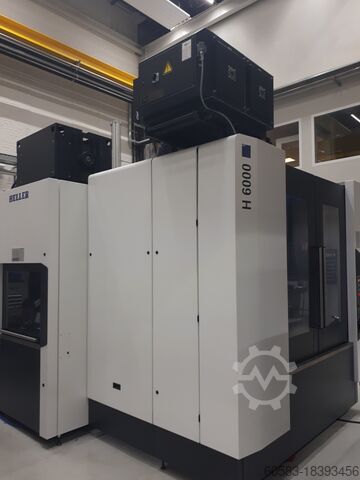

Used Heller H 6000 for sale (3)

Condition: like new (used), Year of construction: 2023, operating hours: 200 h, functionality: fully functional, travel distance X-axis: 1,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,000 mm, rapid traverse X-axis: 50 m/min, rapid traverse Y-axis: 50 m/min, rapid traverse Z-axis: 50 m/min, feed length X-axis: 1,000 mm, feed length Y-axis: 1,000 mm, feed length Z-axis: 1,000 mm, feed rate X-axis: 50 m/min, feed rate Y-axis: 50 m/min, feed rate Z-axis: 50 m/min, controller manufacturer: Siemens, controller model: Siemens 840d solution line SL, workpiece length (max.): 900 mm, workpiece width (max.): 900 mm, workpiece height (max.): 900 mm, workpiece diameter (max.): 900 mm, table width: 630 mm, table length: 630 mm, table load: 850 kg, overall weight: 16,000 kg, spindle speed (min.): 5,000 rpm, spindle speed (max.): 8,000 rpm, operating hours of spindle: 960 h, coolant supply: 70 bar, spindle motor power: 43,000 W, spindle nose: HSK100, number of spindles: 1, input voltage: 400 V, type of input current: AC, Equipment: chip conveyor, rotational speed infinitely variable, List price new: €749,000 HSK100, the machine is in like-new condition and has not yet produced any series parts. Hfsdpfjxzh Ebox Ah Ior So far, only one component has been sampled.

Condition: excellent (used), Year of construction: 2015, operating hours: 32,000 h, functionality: fully functional, travel distance X-axis: 1,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,000 mm, rapid traverse X-axis: 50 m/min, rapid traverse Y-axis: 50 m/min, rapid traverse Z-axis: 50 m/min, controller model: Sinumerik 840Dsl, input voltage: 400 V, type of input current: AC, Equipment: chip conveyor, rotational speed infinitely variable, 2x Heller H6000 + Fastems Container Automation Horizontal Machining Centers with Flexible Pallet Container Heller H6000 2 machines with identical specifications Travel ranges Feed force X 1000mm 15kN Y 1000mm 15kN Z 1000mm 20kN B 360°, 0.001° Direct linear measurement system on all axes Rapid traverse: Axis dynamics Power X/Y/Z 50 m/min, 5m/s² B 25 rpm Spindle – Power Cutting Interface: HSK100 Speed: 5–8000 rpm Power: 43kW (40% duty cycle) Torque: 822Nm (40% duty cycle) Last spindle replacement: 2020 Tool Magazine Type: Shelf magazine Magazine positions: 265 Max. tool length: 600mm Max. diameter: 280mm Tool coding: Balluf chip Second control panel at setup station Setup station with 7 exchange positions Pallet changer Pallet size: 630x630mm Max. interference circle: 1000mm Max. height: 1200mm Max. weight: 1000kg Hfedpfx Aexxx Dceh Ior Coolant system: Scraper belt chip conveyor Knoll coolant system Paper band filter Internal coolant supply (ICS) 50 bar, frequency controlled Work area rinsing Emulsion mist extraction Disc blow-off device for operator door Additional equipment: Facing slide device (auxiliary axis/U-axis) 4 facing slides per machine Tangential control incl. NC cycles Wireless measuring probe (Renishaw) Space requirements: 7100x3750x4300mm (LxWxH) Machine weight: 15,600kg Total power requirement: 44kVA Control: Sinumerik 840D sl Fast drill breakage monitoring Process-integrated tool monitoring Status lights 3D workspace model data Operating data acquisition (OPC/UA) Year of manufacture: 2015 Operating hours: approx. 32,000h (Machines still in operation) Fastems Pallet Automation FPC1500 Base container with 2 setup stations Extension container Total 20 pallet positions on 2 levels Control: MMS Space requirements: approx. 18x2.4x4.2m Total space requirement for the system (2x Heller + Fastems) approx. 18x10x4.5m Machines are still in ongoing production. Inspection possible by arrangement. Relocation of the machines can be organized.

Condition: good (used), Year of construction: 2019, operating hours: 1,994 h, functionality: fully functional, travel distance X-axis: 1,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,000 mm, controller manufacturer: Fanuc, controller model: Fanuc 31i-B, spindle speed (max.): 10,000 rpm, number of spindles: 1, mount diameter: 100 mm, Operating hours: 7194 / usage time: 1994 Year of construction: 2019 Control unit: Fanuc 31i-B Spindle: PC100i (10.000 1/min) Hfsdevvmnuspfx Ah Ior Tool clamping system: HSK 100 Tool magazine / places (Options): Chain/50 Rotary table: 360.000° X 0,001° Coolant unit: KNOLL, KF 400, IKZ 70 bar Positioning range XYZ (mm): 1000 / 1000 / 1000 Pallet size (mm): 630 X 630 Workpiece clamping: Hydraulic 80 bar Additonal options, Specifics: HELLER facing slide unit; Receiver for measuring probe (RENISHAW); Coolant temperature control; forward looking collision avoidance; Interface for exhaust system; 3 colour status lamp; work area flush; Scraping conveyor for wet machining; Fast drill fracture sensing (SBBK); multi-spindle-head support (MSK); Thermal growth compensation; Feed force display; Automatic loading sequence; Automatic unloading sequence; increased tool weight 35kg; tool codechip; Since response emails from Maschinensucher often end up in the spam folder, we kindly ask you to regularly check this folder or contact us directly.
