Used Homag Drillteq V-500 for sale (507)

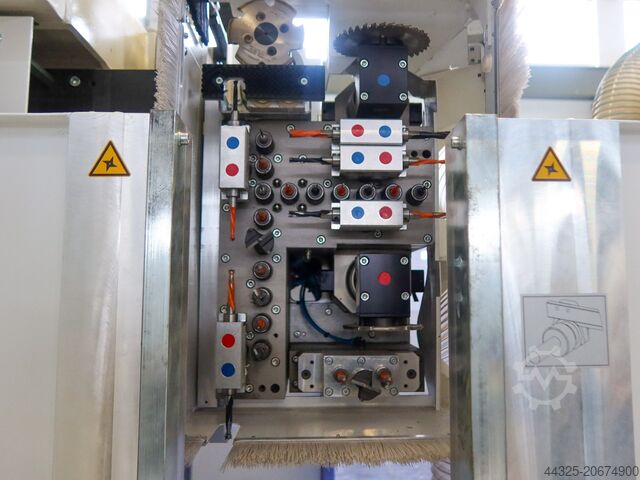

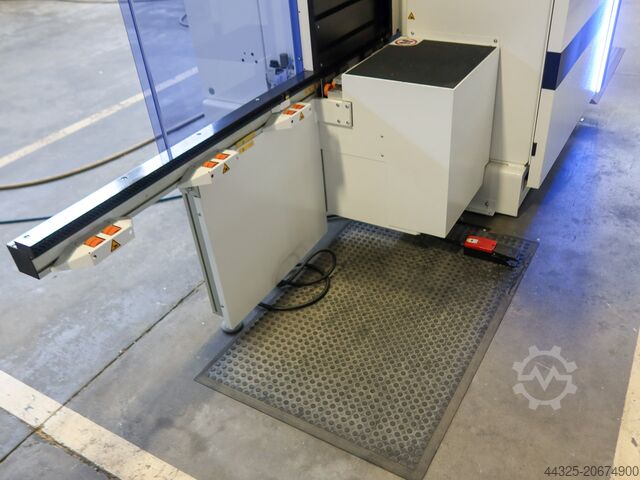

Condition: used, Year of construction: 2022, Working dimension X: 3.050 mm Working dimension Y: 1.250 mm Working dimension Z: 80 mm Number of milling spindles: 1 Main motor power: 10 kW Rotation speed max: 24.000 rpm Tool clamping system: HSK-F63 Tool changer positions: 4 Vertical drilling spindles: 15 Horizontal drilling spindles in X: 6 Horizontal drilling spindles in Y: 4 Vertical working surface: Yes Machine table: Feed-through technology Special workpiece clamping system: clamp gripper Barcode reader: Yes Dowel insertion: Yes Dowel diameter: 8 mm Dowel length max: 40 mm Safety device: enclosed cabin Milling for fittings: Lamello Clamex Control: Homag powerTouch, HOMAG POWER CONTROL Software: HOMAG WOODWOP, HOMAG tapio ready, HOMAG WOODWOP 8.0 Declaration of CE-conformity: Yes Conformity marking: CE mark Total connection: 18 kW Weight: 3.975 kg Njlhswa Skbeccqrjcr Space requirement Length: 4,8 m Space requirement Width: 2,4 m Space requirement Height: 2,5 m

Condition: excellent (used), Year of construction: 2019, Workpiece Length Max: 3050mm Workpiece Length Min: 200mm Workpiece Width Max: 1250mm Workpiece Width Min: 50mm Workpiece Thickness: 8-80mm X/Y: 50m/min Z: 15m/min Neljtq Atbehccqrocr 15 Vertical Drilling Spindles 6 Horizontal Drilling Spindles in the X Direction 4 Horizontal Drilling Spindles in the Y Direction Grooving Saw Swivelling 0/90 degrees Dowel Insertion Unit Plausibility Check (X/Y) 10Kw Tool Change Routing Spindle 4 Position Tool Changer 2 Workpiece Clamps Energy Saving Mode PowerControl with PowerTouch CE Marked

Condition: used, Year of construction: 2022, Working dimension X: 3.050 mm Working dimension Y: 850 mm Working dimension Z: 60 mm Number of milling spindles: 1 Main motor power: 5 kW Tool clamping system: ETP 25 Vertical drilling spindles: 8 Horizontal drilling spindles in X: 4 Horizontal drilling spindles in Y: 2 Nslhccsvn A D Noqrscr Groove saw: in X-direction Vertical working surface: Yes Machine table: Feed-through technology Special workpiece clamping system: clamp gripper Safety device: enclosed cabin

Condition: new, Year of construction: 2022, Functionality: fully functional, machine/vehicle number: 0-250-87-6869, Drilling head with 8 spindles (V8 SW/32) Horizontal drilling head with 4 spindles on X Horizontal drilling head with 2 spindles on Y Ncslhccqevtyc Hjrjr Grooving saw D=100 mm Stopping cylinder for workpiece positioning Workpiece clamping system Workpiece length 2500 mm Workpiece thickness 12-60 mm WOODWOP for machine WOODWOP IMPORT DXF BASIC (1 license)

Condition: used, Year of construction: 2022, Working dimension X: 3.050 mm Working dimension Y: 850 mm Working dimension Z: 56 mm Number of milling spindles: 1 Main motor power: 10 kW Rotation speed max: 24.000 rpm Tool clamping system: HSK-F63 Nslhcowab Sujcqrscr Tool changer positions: 4 Pickup tool changer: Yes Vertical drilling spindles: 13 Horizontal drilling spindles in X: 4 Horizontal drilling spindles in Y: 2 Groove saw: in X-direction Vertical working surface: Yes Machine table: Feed-through technology Special workpiece clamping system: clamp gripper Barcode reader: Yes Safety device: enclosed cabin HOMAG ecoPlus: Yes Control: HOMAG POWER CONTROL, Homag powerTouch Control cabinet cooling: Yes UPS - Uninterruptible Power Supply: Yes Software: HOMAG WOODWOP 8.0, HOMAG MMR BASIC, woodScan HOMAG Plausibility check: Yes HOMAG tapio ready: Yes Workpiece length dependent machining: Yes Conformity marking: CE mark

Condition: used, machine/vehicle number: 006643, X axis working area: 4175 mm Y axis working area: 1900 mm Working Table: Pod and Rail Main Electrospindle power: 10 KW Number of controlled axes: 5 axes Ncelhccerwgq Rsqrjr Total number of drilling spindles: 30 Total number of tool changer positions: 72

Condition: excellent (used), C.N.C. WORKING CENTER (POINT TO POINT) 4 axis (5 axis with DRIVE 5 C+) Ncolheu Td Stjccqrer Gantry-drive (axe X) machine Numerical Control PC 85 (IPC PowerPack) Software WoodWOP (Paket. Wizzard, Motion, ecc.) Safety cabin (enclosure) of the working head Working table with pods and rails Mod. AP . No. 12 Support rails (length mm 1300) Automatic deplacement by CNC (X axis) of the Supports rails Automatic deplacement by CNC (Y axis) of the vacuum pods/cups Automatic Tools Changing System (Chain) Tools storage plate (No. of folds-positions - 72) Max. useful working area (X - Y - Z) mm 7400 (7575) x mm 1100 (1325) x mm 600 No. 2 Working areas - Vacuum pump (capacity m3/h) 300 Motorized carpet to evacuate chips and wastes Separate electric and command cabinet WORKING GROUPS (TOP): No. 20 Independent vertical boring spindles (‘MPU’ head swivelling 185°) No. 10 Independent horizontal boring spindles (‘MPU’ head swivelling 185°) N° 1 Circular Saw diam. (mm) 200 (‘MPU’ head swivelling 185°) Drilling head motor-power (Kw) 2,3 No. 1 Vertical electro-spindle: DRIVE 5C+. Vertical electro-spindles motor power (KW 15) OPTIONAL: N° 1 ROBOT - KUKA KR 120 / 3900 / ULTRA K LIGMATEC RKT100 Panel infeed and outfeed system Crosshead aggregate (4 horizontal drilling spindles) Clamps for workpieces fixing

Condition: used, Profile scraper unit, profile scraper, flat scraper unit, finishing unit, modular unit, format processing unit, double-end tenoner, edge processing machine, scraper for edge processing machine -HOMAG finishing unit allows you to smooth the milled edges for optimal appearance of the edge overhang -with scanning of 2 sides each -scraping blade from above and below -Quantity: 1 piece available Ncjlhccsb Sc Steqrsr -Dimensions: 500/450/H650 mm -Weight: 60 kg

Condition: used, Unit carrier, clamping plate traversing table, for unit construction kit, format processing unit, cutting unit, milling unit, profile milling unit, jointing milling unit, trimming unit, double-end profiler, edge processing machine, scoring motor, chipper motor, milling motor for edge processing machine -HOMAG unit carrier for milling units Njlhccqeb Uhp Sorscr -with heavy leadership -laterally movable -with counter -Table height: 272 mm -Table surface: 1555 x 300 mm -Table thickness: 18 mm -Dimensions: 1555/500/H272 mm -Weight: 190 kg

Condition: used, Unit carrier, clamping plate traversing table, for unit construction kit, format processing unit, cutting unit, milling unit, profile milling unit, jointing milling unit, trimming unit, double-end profiler, edge processing machine, scoring motor, chipper motor, milling motor for edge processing machine -HOMAG unit carrier for milling units -with heavy leadership -laterally movable -with counter -Table height: 361 mm -Table surface: 1545 x 300 mm Ncsljb Uhn Sjhccqrer -Table thickness: 20 mm -Dimensions: 1545/500/H361 mm -Weight: 222 kg

Condition: used, Clamping plate, unit carrier, milled surface, welding table, welding table -Clamping surface width: 500 mm -Length of the table surface: 10930 mm -Height of table surface: 262 mm Nelhccqob Uhpijrocr -Working height: 262 mm -Price: per piece -Number: 1x available -Transport dimensions: 11370/510/H240 mm -Weight: 2020 kg

Condition: used, machine/vehicle number: 007911, Max. panel width: 4300 mm Max. panel length: 1600 mm Main saw blade projection: 170 mm No of Grippers: 10 Ncslhcjwduhdjcqrsr Panel Rotation Station: yes

Condition: good (used), Year of construction: 2020, I offer for sale CNC Nesting HOMAG CENTATEQ N-500 with chaotic warehouse Storeteq S 200 profi. Ncelswfgrwshccqrjr Machine on display at our client in Slovakia.

Year of construction: 2011, Condition: ready for operation (used), This profile bending machine was manufactured in 2011. It features an automatic transport system for semi-finished LVT panels, with processing capabilities ranging from 500 mm to 2000 mm in length and 140 mm to 600 mm in width. The system includes longitudinal and cross machines, each equipped with 6 milling motors, ensuring precise profiling. If you are looking to get high-quality profiling capabilities, consider the HOMAG PROFI FPL 525/6/04/PW/V LVT machine we have for sale. Contact us for further details. Application Types Ncelhevr I Tqoccqror Profiling

Condition: excellent (used), CNC-Gantry Flexible Automatic through-feed Boring Machine with Dowels inserting system Movable panel (horizontal position of workpiece/panel), movable working head Numerical Control Power Control, Software WoodWOP Overall integral safety cabin (enclosure) of the machine Panels (workpieces) feeding by motorized belts 3 Feeding speed (m/min) 1 - 90 (ca.) Minimum workpieces dimensions (X - Y - Z) mm 250 x 100 x 12 Maximum workpieces dimensions (X - Y - Z) mm 3000 x 1400 x 60 Maximum stroke of the axis (X - Y - Z) mm 3580 x 1838 x 125 Two panels simultaneously processables (in Y axe) mm 600 + mm 600 Total installed power (Kw) 38 WORKING GROUPS (TOP): Drilling heads with vertical spindles (No.) 1 Independent vertical boring spindles (No.) 38 + 3 special Independent horizontal boring spindles (No.) 6 Circular Grooving Saw (on X axis) dia. (mm) 100 Vertical electro-spindle (No.) 1 x SK 30 (Vertical electro-spindle motor power (Kw 6) Automatic Tools Changing System, Tools storage plate (No. 3 folds- positions) WORKING GROUPS (HORIZONTAL) Drilling heads with horizontal spindles (No.) 2 Horizontal drilling spindles - Right side (No.) 13 + Left side (No.) 13 Inserting nozzle and glue injectors (Right side) No. 2 + (Left side) No. 2 Ncjlhccqed Nvi Dersr Storage tanks for automatic feeding of the dowels (No.) 1

Condition: used, machine/vehicle number: 007851, X axis working area: 1200 mm Y axis working area: 2500 mm Working Table: Flat table Main Electrospindle power: 10 KW Number of controlled axes: 4 axes Total number of tool changer positions: 14 Ncslhccowayl Teqrjr

Condition: refurbished (used), Numerical Control Type Power Control Professional Software woodWOP / TopDrill BST Nolhsdz Uk Toccqrscr No. 2 Through-feed motorized conveyoring belts (4 x Kw ?) No. 2 Horizontal units/supports (with Digital quota/axes display) No. 1 Drilling head for each horizontal unit (1 x Kw 1,5) No. 21 Splindles for each horizontal drilling head Max. working width (mm) 2500 Min. working width (mm) 250 No. 4 Bottom vertical units/supports (with Digital quota/axes display) No. 2 Drilling heads/blocks for each bottom vertical unit (2 x Kw 1,5) Miscellanous Spindles for each drilling head of the bottom vertical supports No. 2 Top vertical units/supports (with Digital quota/axes display) No. 2 Drilling heads/blocks for each top vertical unit (2 x Kw 1,5) Miscellanous Spindles for each drilling head of the top vertical supports No. 4 Vertical top pressure clamps Motorized carpet to evacuate chips and wastes Total installed power (Kw) 36

Condition: used, machine/vehicle number: 007741, X axis working area: 6000 mm Y axis working area: 1600 mm Working Table: Pod and Rail Main Electrospindle power: 12 KW Number of controlled axes: 5 axes Nolhccovu Igvsqrscr Total number of drilling spindles: 18 Total number of tool changer positions: 22

Condition: excellent (used), AUTOMATIC MULTI-BORER "WEEKE" In line with another machine possible Numerical Control Power Control Software WoodWop (TOPDRILL BST 500) Through-feed motorized transport belts (No.) 2 (with adjustable speed) Horizontal units/supports (No.) 2 Nelhccsh Ryhneqrocr Drilling heads/Blocks for each horizontal unit (No.) 2 Spindles for each horizontal drilling head (No.) 11 Max. working width (mm) 3000 Min. working width (mm) 250 Bottom vertical units/supports (No.) 6 Drilling heads/blocks for each bottom vertical unit (No.) 2 Spindles for each drill head of the bottom vertical supports (No.) Various Top vertical units/supports (No.) 2 Drilling heads/block for each top vertical unit (No.) 2 Spindles for each drill head of the top vertical supports (No.) Vertical top pressure clamps (No.) 6 Transport belt to evacute chips (wastes) Quota (axes) digital display Total installed power (Kw) 26

Condition: excellent (used), FLEXIBLE C.N.C. WORKING CENTER 3 axes (X-Y-Z) Ncjlhccelkdpmjqrsr Movable panel (workpiece), static working head - Horizontal position of the panel (workpiece) Numerical Control PowerControl (Software woodWOP) Safety cabin (enclosure) of the working head Separate electric and command cabinet No. 2 Workpieces fixing clamps (for the panels introduction in the working area) WEEKE Prepositioning Unit - to position workpieces in machines with clamp grippers faster. In-feeding working table (panel support) and Out-feeding table (with motorized belts) With pushing system to automatically infeed the workpiece Minimum workpieces dimensions (X - Y - Z) mm 200 x 70 x 8 (2 x 4 mm) Maximum workpiece dimensions (X -Y- Z) mm 2500 x 1000 (option mm 1300) x 80 (2 x 40 mm) Two panels simultaneously processables (in Z axe) WORKING GROUPS (TOP): 2V32, 2H8X/Y2, N2 X-Y90,F2-ETP-6 KW No. 1 Vertical electro-spindle ETP-6 (power Kw 6) No. 1 Circular Grooving Saw (90° on X-Y axe) dia. mm 125 No. 23 Vertical drilling spindles (power Kw 2.3) No. 5 Horizontal drilling spindles (4 in X + 1 in y) WORKING GROUPS (BOTTOM) No. 1 Vertical electro-spindle ETP-6 (power Kw 6) No. 1 Circular Grooving Saw (90° on X-Y axe) dia. mm 125 No. 23 Vertical drilling spindles (power Kw 2.3) No. 5 Horizontal drilling spindles (4 in X + 1 in y)

Condition: refurbished (used), Numerical Control Type Power Control Software No. 2 Through-feed motorized conveyoring belts No. 2 Horizontal units/supports (with Digital quota/axes display) No. 2 Drilling heads for each horizontal unit (1 x Kw 1,5) No. 11 Splindles for each horizontal drilling head Max. working width (mm) 3000 Min. working width (mm) 250 No. 6 Bottom vertical units/supports (with Digital quota/axes display) No. 2 Drilling heads/blocks for each bottom vertical unit (2 x Kw 1,5) Ncolhcsvhcbzscqror N. 11 Spindles for each drilling head of the bottom vertical supports No. 2 Top vertical units/supports (with Digital quota/axes display) No. 2 Drilling heads/blocks for each top vertical unit (2 x Kw 1,5) N. 11 Spindles for each drilling head of the top vertical supports No. 6 Vertical top pressure clamps Motorized carpet to evacuate chips and wastes Total installed power (Kw) 50 / 60 (ca.)

Condition: excellent (used), FULL LINE of Double-side Sizing-Milling & Edge Banding, max working width mm 2500, with automatic handling. Composed of the following machines: X04004A) Double Loader "BARGSTEDT" TBH 500/D/30/14 with central motorised roller conveyor X04004B) Turning station (90°) lengthwise to crosswise "HOMAG" Mod. TDR31/25/12 X04004C) Splitter "HOMAG" Mod. FPR620/04/15/PS/LQ to split in two parts the unique panel X04004D) Seperation Station "BARGSTEDT" X04004E) Double-side Sizing & Edge Banding machine "HOMAG" Mod. KFR 620 / 19 / QA / 25 Njlelikvhshccqrecr X04004F) 1° Automatic (through-feed) Multi Borer "WEEKE" Mod. BST 500 D X04004G) 2° Automatic (through-feed) Multi Borer "WEEKE" Mod. BST 500 D X04004H) Turning station (90°) crosswise to lengthwise "HOMAG" Mod. TDR 51/25/12 X04004I) Motorized belt transfer "HOMAG" TR 10/70/12 X04004L) Splitter "HOMAG" Mod. FPR620/04/15/PS/LQ to split in two parts the unique panel X04004M) Double Stacker "BARGSTEDT" Mod. TSP 420/40/30/12 BA with central motorised roller conveyor

Condition: excellent (used), Numerical Control Type Power Control Software TOPDRILL BST 500 No. 2 Through-feed motorized conveyoring belts No. 2 Horizontal units/supports (with Digital quota/axes display) Nsleivawpjhccqrscr No. 1 Drilling head for each horizontal unit (1 x Kw 1,5) No. 21 Splindles for each horizontal drilling head Max. working width (mm) 2500 Min. working width (mm) 250 No. 4 Bottom vertical units/supports (with Digital quota/axes display) No. 2 Drilling heads/blocks for each bottom vertical unit (2 x Kw 1,5) N. 11 Spindles for each drilling head of the bottom vertical supports No. 4 Vertical top pressure clamps Motorized carpet to evacuate chips and wastes Total installed power (Kw) 20

Condition: used, Angular gear for heating basins for edge banders, edge banding machines, melting unit with granulate container -Manufacturer: Homag -Dimensions: 440/185/H240 mm -Weight: 30 kg Ncjlhceb Uht Uscqrer

Condition: ready for operation (used), Year of construction: 1992, Functionality: fully functional, machine/vehicle number: 21113/P/3, No reserve price - guaranteed sale at the highest bid! Edge bander with roller conveyor TECHNICAL DETAILS Working height: 870 mm Minimum working width (double-sided): 270 mm Minimum working width (single-sided): 70 mm Maximum working width (double-sided): 2,000 – 2,500 – 3,000 – 3,000 – 3,500 mm Maximum workpiece thickness: 60 mm Workpiece projection: 40 mm Edge dimensions: Max. thickness 30 mm, max. width 65 mm Infinitely variable feed rate: 8 – 30 m/min Air connection per side: 1/2" internal thread, 1" supply line per side Height from machine stand to workpiece support: 210 mm Sanding units Bevel belt sanding unit LOW.PN: reinforced, for workpiece treatment from below Radius sanding pad with air nozzles: Radius 3.0 Bevel belt sanding unit OB.PN: reinforced, for top workpiece treatment Radius sanding pad with air nozzles: radius 3.0 Top and bottom chamfering unit with oscillation: included Operation Operating tool: KL/R30 Sliding chain: KL/R70 Braking and measuring devices Njljwa Sdnehccqrocr Electronic braking: 0.2 – 3.74 kW WFL measuring head: R3, G1/4"×15 Tool change and milling device Change device for profile milling: radius / chamfer Finishing and scraping units Finishing device: pneumatic, manual Joinery scraper: R=3.0, indexable insert tool Belt grinding Belt grinding unit: KS10 Belt grinding unit adjustment device: pneumatic Cleaning and finishing Brush: length = 140 mm Finishing device on the left: pneumatic, for glue joints, manual operated Edge processing Rounding scraper: radius = 1.5, indexable insert tool Bargstedt rolling mill Workpiece length: 300 to 2,500 mm Workpiece width: 120 to 800 mm Thickness: 8 to 40 mm Workpiece type: flat material Working height: approx. 900 mm Feed rate: 7 – 42 m/min Orientation Fixed edge left: for TFU02/L/... Fixed edge right: for TFU02/R/... Air consumption: 0.5 l/min at 6 bar Electrical connection: 380 V – 3 Ph – 50 Hz (standard) Total weight: approx. 800 kg net MACHINE DETAILS Total length: 10,410 mm Total width: 1,950 mm Total height: 2020 mm Machine base length: 9,625 mm Weight: 6,450 kg Standard voltage: 380 V Heating and control voltage: 220 V Frequency converter: 300 Hz EQUIPMENT - Klöckner Moeller system - Top and bottom chamfer belt sanding units - Radius sanding shoes with air nozzles - Workpiece support - Transport device - Universal transformer - Braking device - Sliding chain - Electronic braking - Profile milling tool with changeover device - Noise protection cover - Extraction unit - Safety limit switch - Pneumatic finishing unit - Indexable blade scraper - KS10 belt sanding unit - Pneumatic adjustment for belt sander
