Used Netzsch Pump for sale (43)

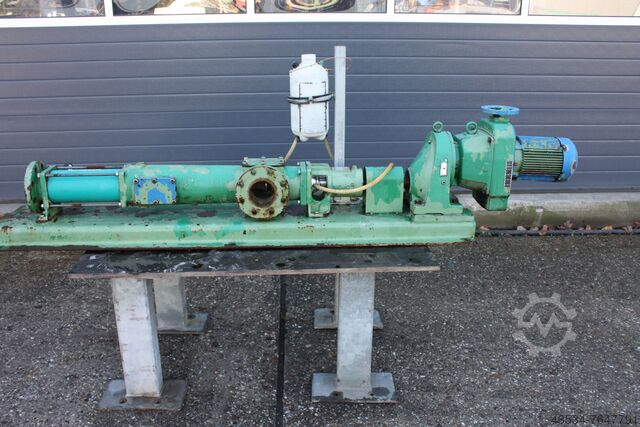

Year of construction: 1991, condition: good (used), Used progressing cavity pump Manufacturer: Netzsch Type: NE60B Machine number: 224898 Year of construction: 1991 Dimensions: L 2500xW 400xH600 mm Kedpfxsilpvte Ag Aodu

Year of construction: 2013, condition: good (used), Used progressing cavity pump Manufacturer Netzsch Type: NM063BY04S18B Machine number: 459933 Year of construction: 2013 Output: 3.50 // 18 m3/h Speed: 91/288 min1/rpm Kjdoillx Dspfx Ag Aedu Pressure: 16 // 0.10 bar Are you looking for a specific pump? We have other used pumps in stock - please ask us.

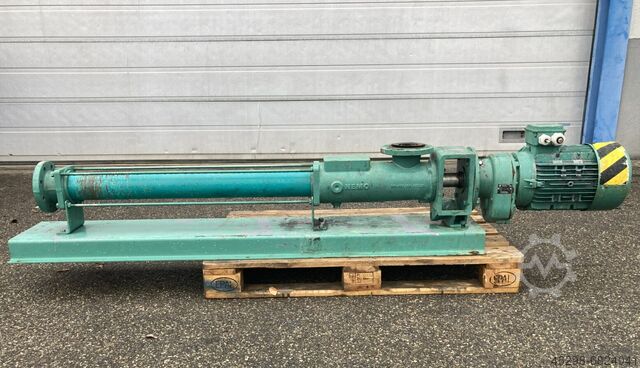

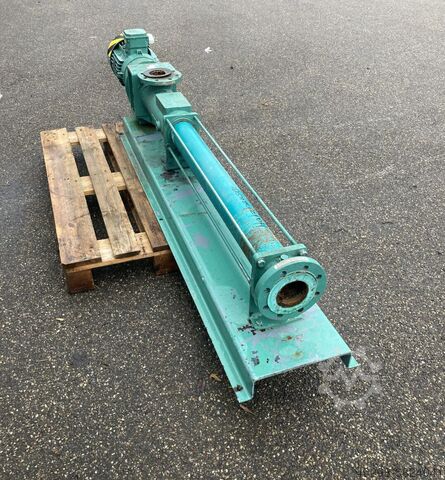

Year of construction: 2007, condition: used, Name: Eccentric Screw Pump Manufacturer: Netzsch Type: NMO45BY04S18B Kjdehukc Iopfx Ag Aedu Year built: 2007 Material: mild steel Driving force: 7,5 / 8,6 kW Max. operating temperature: 20 °C Dimensions: L 2350 x W 370 x H 400 mm Empty weight: approx. 100 kg Speed: 150 - 435 - 530 rpm Flow rate: 2 - 8-10 m3/h Operating pressure: 16 bar Operating voltage: 400 / 690 V Type of protection: IP 55 Condition: Used Technical documentation: no Price: on request

Condition: ready for operation (used), System: Netzsch 800 /80 sidebar Size of plate: 800 x 800 mm Chambers: 80 Filterplates: Polypropylene Filter cloths: as an option Outlet: open Filter surface: approx. 88,48 m² Volume of filtercake: approx. 1272 dm³ Working length: approx. 4656 mm Filter pressure: 15 bar Closing pressure: Min. 380 bar, max. 410 bar Plate closure: electro hydraulic Plate transport: manual Dimensions: LxBxH approx. 5300 x0900 x 1040 mm Weight filterpress: approx. 4 t Underframe: available from stock as optional accessories Dimensions: LxBxH 8000 x 1050 x 2020 mm Kjdsd E Dgkspfx Ag Asdu Weight: approx. 5 t Control cabinet: yes Pumps: as an option Accessories: mixing tank optionally available as a special accessory 3.00x1.50x2.20 m Special services: Refurbished service to customer optional. The system goes through a pre-delivery service check or a complete overhaul. Rent or Buy: Machine can be inspected at our factory We can offer Spare Parts, Accessories and Service for your Chamber Filter Press - Rittershaus & Blecher, Netzsch and more Filter Press Brands.

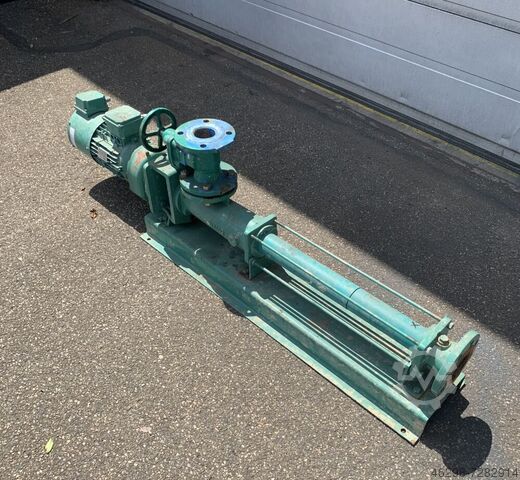

Year of construction: 2006, condition: used, Name: Eccentric Screw Pump Manufacturer: Netzsch Type: NM031BY04S24B Year built: 2006 Material: mild steel Driving force: 3 kW Max. operating temperature: 20 C Dimensions: L 1700 x W 300 x H 500mm Empty weight: 150 kg Speed: 79-262-719 rpm Flow rate: 0,2 - 1-3 m3/h Operating voltage: 400 / 690 V Type of protection: 55 Flanges: DN 65 Condition: Used Kodpeh Tkicofx Ag Ajdu Technical documentation: no Price: on request

Condition: reconditioned (used), Year of construction: 2018, functionality: fully functional, pressure: 6 bar, 3 units Netzsch Nemo progressive cavity pumps. Shaft stainless steel. Housing steel. These refurbished standby machines come from the spare parts warehouse. They were intended for the delivery of calcium hydroxide suspension. Images are in order from left to right: 1. Photos 1-9 Green pump on the left NM 038BY02S12B (new, unused) 2. Photos 10-18 Grey pump in the middle NM 045BY01S08B (refurbished) 3. Photos 19-26 Blue pump on the right NM 038 BY (refurbished) Kdsdpfx Aew I Hniog Aeu

Year of construction: 2019, condition: ready for operation (used), A hardly used Netzsch rotary lobe pump is available. Flow rate: 30m³/h, max. pressure: 2bar, max. temperature: 80°C, design: block design, number of poles: 6, operating hours: approx. 5h. Documentation available. On-site inspection is possible. Ksdpfswtg Hqex Ag Aedu

Condition: used, System: Membrane-mix filter press Type: Membran-Mix 1000/70 Design: Side beam guided Year of manufacture: 2012 Model No.: SE1000CRD Filter plate format: 1000x1000 mm Number of plates: 70 Filter plates: PP Cake thickness: 40 mm Filter cloths: optionally available, adaptable to the medium Kdsdpfx Agjwy H I Ie Aeu Pressing volume: approx. 1600 dm3 (unpressed) Filtration pressure: approx. 15 bar Closing pressure: approx. 380–410 bar Plate transport: automatic Pump technology: optional Hydraulic unit: yes Control cabinet: yes Purchase or rental: Inspection of the systems at our plant by prior arrangement.

Condition: used, Name: Filter press used Kedpfjzy Hyujx Ag Aedu Manufacturer: Netzsch Type: 800/80 Year built: 1998 Plate size: 800 x 800 mm Number plates: 81 Press content: Approx. 1.200 liters Filter area: Approx. 88 m2 Filter pressure: 15 bar Cake thickness: 30 mm Cycle: Closed Plate transport: Manually Plate material: Polypropylene Construction form: Side beam press Filter cloth washer: Yes Filter cloths: No Empty weight: Approx. 7.000 kg Technical doc.: Yes Accessories: A control cabinet, a hydraulic system, a light curtain, a filter cloth washing system, a high-pressure pump Condition: Second hand Price: By request

Condition: used, System: Chamber filter press mobile, used Type: Netzsch Application area: sludge dewatering Figur-No.: 012.73/319.73/665.73/TH Commission No.: 040.417 Filter plate size: 1200x1200 Number of plates: approx. 100 Filter plates: PP Filter cloths: optionally available in accordance with the medium Filter area: approx. 250 m2 Press volume: approx. 3540 dm3 Filter pressure: approx. 15 bar Pump 1: SEEPEX Type BN 35-12 Commission number 266222 Pump 2 SEEPEX Type BN 10-24 Commission number 266223 Pump 3 SEEPEX Type BN 75-6LT Ksdpowqydwefx Ag Aedu Commission number 266224 Washing system No Conveyor technology yes Polymer system yes Application: sludge treatment, dewatering system. Filter presses are discontinuously operating pressure filters for solid-liquid separation of suspensions. Purchase or rental Rental or purchase. Inspection of the systems by arrangement at our works.

Condition: used, NMNE 40 872 317 NMNE 40EA596 376 Stainless steel pump housing with screw Kdjdoz Rnzaepfx Ag Aeu Hygiene version with bearing housing Stator NEMO LASI S65l d11027327001 Motor 7.5 kW, 1425 rpm / 250 rpm Inlet DN50 (± 400mm) Outlet connection DN 30 (± 400mm) Dimensions: (L x W x H): ± 2.400 x 500 x 600 mm

Condition: good (used), in total 8 pieces available 1 x NETZSCH Nemo NM015BY01, year: 1998 2 x ALLWEILER SEP 380.1A11P01, year: 1990/1992 2 x ALLWEILER AE1N25-ID, GETRIEBEBAU NORD 0,75 kW, year: 1996 1 x ALLWEILER AE1E550-ID, GETRIEBEBAU NORD 4 kW, year: 1996 1 x unknown brand, LEROY SOMER gearbox, 5,5 kW Ksdolhr Hfepfx Ag Asdu 1 x SEEPEX BN025, HEW gearbox + motor 0,37 kW, year: 1992

Condition: used, Plant: Chamber filter press used Type: Netzsch Filter plate format: 1200x1200 Number of plates: 74 pieces Filter plates: PP Filter cloths: optionally available in coordination with the medium Filter area: approx. 204 m2 Press capacity: approx. 2719 dm3 Filter pressure: approx. 15 bar Kdedet Ay Svjpfx Ag Aeu Pump technology: optional Dimensions L 8933x W 2240 x H 1900 mm Purchase or hire: Viewing of the systems by arrangement at our factory.

Condition: refurbished (used), Year of construction: 1990, div. Chamber filter presses from Rittershaus & Blecher, Netzsch and Passavant to be handed over, plate format 1200 x 1200 and 1500 x 1500 mm, from 40 - 145 PP plates, content from 1000 - 4500 liters, length approx. 6 - 13.6 m, all presses have to be refurbished are then sold with a 1 year guarantee, a piston Membrane pump for loading can also be offered, location is 58762 Altena Kodpfxsgpxg Ss Ag Aodu

Year of construction: 1982, condition: used, mobile eccentric screw pump Additional title: Mobile moineau pump Kdodpfx Agszgcxme Aou Position: on a mobile frame with wheels Features: drive, electrical switch box, DN50 connections

Condition: reconditioned (used), Overhauled and newly painted. The images are example photos of similar machines and are intended to show the design and quality of the overhaul. All wear parts are replaced. Filter cloths are new. 1 year warranty on the filter press, excluding wear parts. Side channel with open outlet Plate size: 630 x 630 mm Dimensions: approx. 5000 x 1100 x 1500 mm Chamber depth: 25 mm Volume: 468 liters Operating pressure: 15 bar Inlet: flange DN 65 in PP Number of plates: 60 plates Plate material: polypropylene Cloth material: PP 5009 (white) Design: open filtration Closing pressure: approx. 385 bar via double-acting cylinder Paint: primed and painted blue, filtrate channel + drip tray (for sliding) in plastic Kdodpfjzn Irzsx Ag Aju Motor hydraulics in the control cabinet If the plate size, number of plates, or other features do not meet your requirements, we can offer corresponding modifications!

Year of construction: 2009, condition: ready for operation (used), Max. solids throughput: 5m³/h, suspension flow: 20-30m³/h, drive power: 45-75kW, speed range: 500-1800/min, delivery pressure: less than 3.5bar, batch volume: 300-15,000l. Equipment: solids feed via rotary valve, downstream solids disperser, acceleration chamber, cyclone with laminar flow section, conical compaction zone with housing cooling, solids feed tunnel with safety slide valve, mains-powered pump, batch tank with agitator, rotor as liquid ring pump, suspension outlet at the largest diameter. Suitable for resin dispersions, architectural paints, industrial coatings, filler pastes, pigment dispersions, automotive coatings, UV coatings, fire protection coatings, marine paints, gelcoats, gravure inks, newspaper rotary printing inks, heatset inks, coldset inks, sheetfed offset inks, flexographic inks, screen printing inks, inkjet inks, extenders, food and beverages, pharmaceutical and cosmetic products, pastes made from pyrogenic silica, aluminium oxide pastes, plastisols, foam-free aqueous suspensions, casting resins. The machine has been used very little, with control cabinet, powder container, pressure load cells and operating manual. An on-site inspection is possible. Kdjdpfxjzh Nhqj Ag Aeu

Year of construction: 2015, condition: ready for operation (used), A laboratory ball mill Netzsch is available. Drive power: 1.5kW, speed: 4200rpm, ball diameter range: 0.05mm-2mm, total ball volume: 140ml, max. product volume batch/circulation: 140ml/500ml, max. product viscosity: 5000mPas. Machine dimensions X/Y/Z: approx. 850mm/600mm/700mm, weight: approx. 100kg. Documentation available. An on-site inspection is possible. Ksdpfx Agsxvrt Se Ajdu

Condition: used, functionality: unexamined, Used Netzsch thermal analyzer set consisting of a computer with components and software, analyzer (STA 409 EP), controller (TASC 414/3), and power supply (Pu 1.851.405). Kdedpszv Snisfx Ag Aju Manufacturer: Netzsch Model: STA 409 EP | TASC 414/3 | Pu 1.851.405 Voltage: 230V (50/60Hz)

Condition: used, Year of construction: 1997, Used Netzsch model LME 20 stainless steel horizontal bead mill. Stainless steel jacketed milling chamer has capacity approx. 21,2 litre. Shaft is equipped with (12) griding discs and belt driven by el. motor 18.5 kW, adjustable speed 700 - 1400 rpm. Screen type of milling beads separation. Includes integrated contol panel and switchboard. Kdedpfx Agoxlb Hmo Aju

Condition: reconditioned (used), Overhauled and newly painted. The images are example photos of similar machines and are intended to show the design and quality of the overhaul. All wear parts are replaced. Filter cloths are new. 1 year warranty on the filter press, excluding wear parts. Plate size: 630 x 630 mm Dimensions: approx. 2900 x 1100 x 1500 mm Chamber depth: 25 mm Volume: 312 liters Operating pressure: 12 / 15 bar Feed inlet: flange 2”, center Number of plates: 40 plates Plate material: polypropylene Cloth material: PP 5009 (white) Design: open filtration Closing pressure: max. 385 bar Painting: primed and painted in RAL 5010, filtrate trough + drip tray in plastic Motor hydraulics with single-acting cylinder. Optional: double-acting cylinder, which retracts the heavy pressure plates. With the single-acting cylinder, the operator must push the pressure plates back manually. Kedponh Nr Ijfx Ag Aedu Optional: filling pump as a piston diaphragm pump or compressed air diaphragm pump. If the plate size, number of plates, or other features do not meet your requirements, we can offer corresponding modifications!

Condition: used, Cutting mill for high loads (heavy duty) Kodpfx Aoz Hxmweg Asdu Make NETZSCH CONDUX Type CS 500/600-4 Inlet opening approx. 600x600 mm Semi-open 5-knife rotor, 4 stator knives Drive motor 75 kw

Condition: used, Multiple knife mill / granulator with rotor with 16 knives Kedpfsz Hxdvjx Ag Aodu 6 stator knives Drive 90 kW With equipment

Condition: reconditioned (used), Overhauled and newly painted. The images are example photos of similar machines and are intended to show the design and quality of the overhaul. All wear parts are replaced. Filter cloths are new. 1-year warranty on the filter press, excluding wear parts. Plate size: 630 x 630 mm Dimensions: approx. 2000 x 1100 x 1500 mm Chamber depth: 25 mm Capacity: 210 liters Operating pressure: 12 / 15 bar Feed inlet: flange 2“, center Number of plates: 25 plates Plate material: polypropylene Cloth material: PP 5009 (white) Design: open filtration Closing pressure: max. 385 bar Kdsdpfx Agji Igi Io Aju Painting: primed and painted in RAL 5010, filtrate trough + drip tray in plastic. Motor hydraulics with single-acting cylinder. Optional: double-acting cylinder that retracts the heavy pressure plates. With the single-acting cylinder, the operator must manually push the pressure plates back. Optional: filling pump as a piston diaphragm pump or compressed air diaphragm pump. If the plate size, number of plates, or other features do not meet your requirements, we can offer corresponding modifications!

Condition: used, System: Chamber filter press mobile, used Type: Netzsch Application area: sludge dewatering Machine No.: 89040419 Year of construction: 1994 Filter plate size: 1200x1200 Number of plates: approx. 100 Filter plates: PP Filter cloths: optionally available in accordance with the medium Filter area: approx. 250 m2 Press volume: approx. 3540 dm3 Filter pressure: approx. 15 bar Washing system: No Ksdjwqydkopfx Ag Ajdu Conveyor technology: Conveyor belt underneath Discharge: Telescopic conveyor belt Kastner Polymer system: Alltech 3-chamber Application: sludge treatment, dewatering system. Filter presses are discontinuously operating pressure filters for solid-liquid separation of suspensions. Purchase or rental: Rental or purchase. Inspection of the systems by arrangement at our works.
