Condition: used, Technical details:
voltage: 380 V
total power requirement: 4,0 kW
machine weight approx.: 1270 kg
dimensions L x W x H: 1,4 x 1,0 x 1,9 m

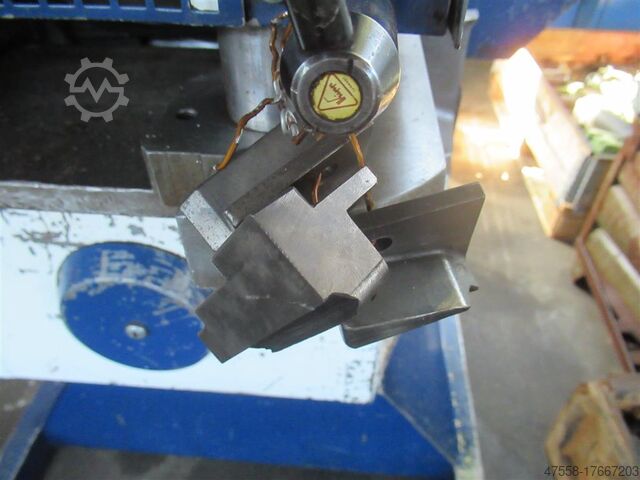

EDGE CHAMFERING MILLING MACHINE
Bodpfx Aju Ngfdeqwjwt
Application: Beveling of circular blanks and flat material
-smallest straight edge = 3mm
-max. breaking strength of the material = 70 kp/mm (690 N/mm²)
-max. feed rate:
at 10mm bevel width = 3,1 m/min.
at 15mm bevel width = 2,9 m/min.
at 20mm bevel width = 2,7 m/min.
at 25mm bevel width = 1,5 m/min.
with degree adjustment (bevel angle) 25° - 55°.
scale for setting the straight edge
downholder manual with handwheel
cutting wheel size Ø 200mm; teeth fine / medium / rough
Support block size: D:220 x W:620 x H:350mm; driving wheel approx. Ø 350 x 100mm; display via linear scale
*
Year of construction: 1988, condition: good (used), machine/vehicle number: 73480-08, Offer 22679
Technical data:
- Maximum sheet thickness: 50 mm
- Minimum straight edge: 3 mm
- Adjustable bevel angle: 25 - 55°
Bsdpskzhawjfx Aqwswt
- Working speed: 1.5 - 3.1 m/min
- Crane attachment bracket
- Drive: 400 V / 4 kW
- Approximate space requirement: W 1400 x D 1200 x H 1950 mm
- Approximate weight: 1500 kg
