Gurutzpe Super RT-API Lathe

Gurutzpe Super RT-API agujero brocha 360mm 8000

Condition: good (used), In good technical condition and fully functional. Built in 1974 and overhauled including comprehensive modernization (Retrofix) of the CNC control including automatic central lubrication of the axes + hydraulic systems, water cooling, conductive rollers with brushes for a system for possible welding of the workpiece and complete protection against flying chips Heidenhain manual plus 4110 control system Swing diameter over the bed 1250 mm and over the support 900 mm. Dwodpfx Ajvnb T Nsa Nod Max. workpiece weight: 14,000 kg. Max. workpiece length: 3000 mm. Machine weight: 16,350 kg. Machine power: 80 KW. Machine dimensions: width 3000 mm, height 2100 mm and length 8000 mm. Accessories: faceplate including handles, support (steady rest), raised cutter head, universal chuck. Complete technical documentation, service history and documents on revisions and maintenance.

Condition: used, Year of construction: 1963, Technical details: turning diameter over bed: 1000 mm turning diameter over support: 620 mm turning length: 3150 mm Dodsu Ix Arspfx Aa Nowd centre distance: 3150 mm turning diameter in the gap: 1200 mm length of gap: 800 mm weight of the machine ca.: 11,5 t dimension machine xH: 7,5 x 1,5 x 1,7 m incl. 2x steady rests and various tips *

Condition: used, Year of construction: 1971, hobbing length 1750 mm milling width 260 mm max. module 10 mm table size incl. water gutter 460 x 2100 mm table clamping surface: 250 x 1850 mm cutter width - max. 100 mm feed of the milling slide, stepless 0 - 500 mm/min. rapid traverse feeds 3000 mm/min milling head -swivable +/- 30 ° Rotation speed range of milling head, in 9 steps 29 - 178 rpm Milling head swivable 2 sides helical gearcutting 30 ° weight of the machine ca. 4 t dimensions of the machine ca. 4 x 1,85 x 1,85 m Equipment/accessories - 7 vices - change wheels Djdjvu E Spspfx Aa Nowd - Clamping devices - Documentation

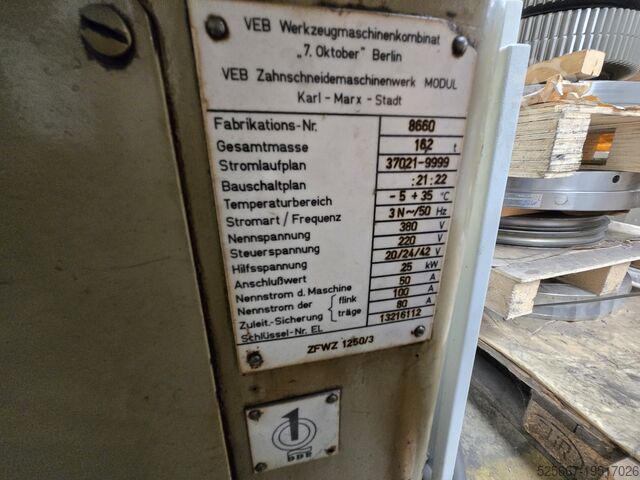

Condition: used, Horizontal Gear Hobbing Machine WMW MODUL ZFWZ 1250/3 Year of manufacture: 1982 Control: conventional Country of origin: Germany Dodpfowxxxcox Aa Nswd Max. gear diameter: 1250 mm Gear width: 600 mm Module – max.: 16 Module – min.: 2 Cutter diameter: 240 x 280 mm Table clamping surface: 1020 mm Speed range: 28 – 200 rpm Axial feeds: 0.28 – 8 mm/min Radial feeds: 0.1 – 2 mm/min Tangential feeds: 0.16 – 4 mm/min Swivel range of milling slide - L/R: +/- 45° Rapid traverse motor: 12.5 kW Voltage: 380 V Frequency: 50 Hz Total power requirement: 5/19.5 kW

Condition: good (used), turning diameter over bed slide: 1,250 mm, turning length: 8,000 mm, workpiece weight (max.): 12,500 kg, DBC Turning Length: 8000mm Swing over bed Ø: 1280mm Djdpfx Aswwtcmoa Njwd Swing over cross slide Ø:1000mm Length: 12500mm Width: 2100mm Height: 1800mm Weight: 35000kg

Condition: ready for operation (used), Year of construction: 1986, overall weight: 4,700 kg, Equipment: documentation/manual, Kesel Rack Milling Machine Type L79/2100 with Milling Head Type F55 Year of manufacture: 1986 Machine no.: 3031 Continuously variable milling head speed: 0–210 rpm, drive power: 18.5 kW Max. module 12, max. cutter diameter: 250 mm Clamping/milling length (X-axis): 2,100 mm, helix angle ±30°, milling feed stroke (Z-axis): 370 mm, infeed (Y-axis): 250 mm, milling head swivel ±30°, max. workpiece width (machining width): 280 mm Milling feed: 10–350 mm/min, rapid traverse: 5,000 mm/min, table feed: max. 3,000 mm/min Cam control, second increased feed speed via cam, hydraulic clamping system with 10 clamping jaws, max. clamping force: 7,500 daN, hydraulic clamping stroke: 7 mm, clamping width: 190 mm Coolant system with permanent magnet chip conveyor Heidenhain 2-axis linear measuring system Machine weight approx. 4,700 kg Milling machine – 2,100 mm milling length with F55 milling head Continuously adjustable speed from 0 to 210 rpm Drive power: 18.5 kW Max. feed rate 500 mm/min, specially controlled via cam for rapid indexing cycle with 2 shafts – second feed speed Magnetic chip conveyor with chip bin and coolant system Hydraulic clamping device with special clamping bars for clamping 2 shafts Milling head with 9-speed gearbox for cutter speeds from 44–296 rpm Height-adjustable and swiveling milling head Table guide with steel telescopic cover Automatic hydraulic table clamping Coolant system with chip collection trays Central lubrication system for oil supply to guides, spindles, and counter bearing, automatically adjustable by timer Swiveling control panel Swiveling feed slide for helical milling ±30° left or right Heidenhain TNC151 path control Inspections under power possible by appointment. All technical data subject to errors and omissions. Dwjdsw Rnz Nspfx Aa Nod Price on request Sale exclusively to EU countries.

Condition: used, Year of construction: 2001, tip circle diameter 1000 mm root circle diameter 50 mm max. module 18 mm min. module 1 mm max. wheel diameter 1000 mm gear width 630 mm Profile height max. 41 mm helical angle (left/right) max. 45 ° table diameter 720 mm max. table load 1500 kg Dsdpfx Aaowp S Thj Nowd grinding wheel diam. min/max. 180 / 400 mm grinding wheel width 60 (45/30) mm grinding spindle speed 0 - 3100 U/min total connected load 30 kVa

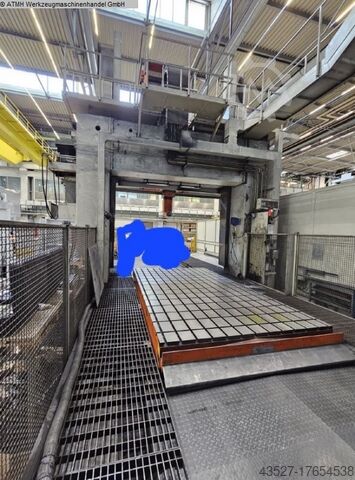

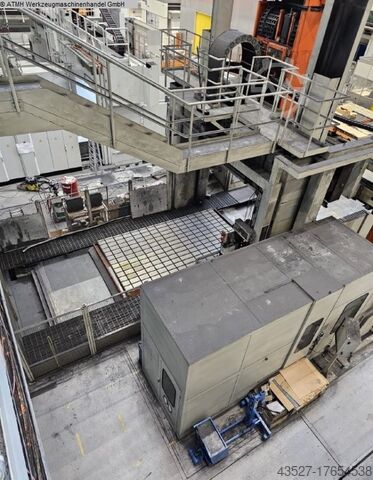

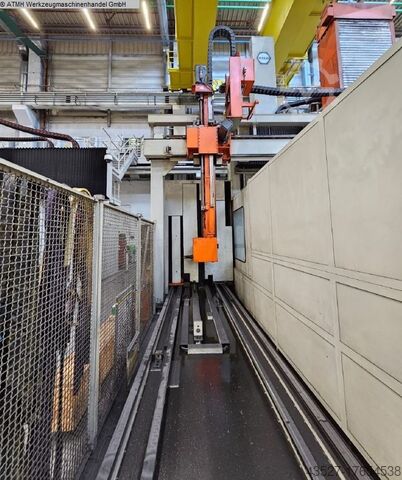

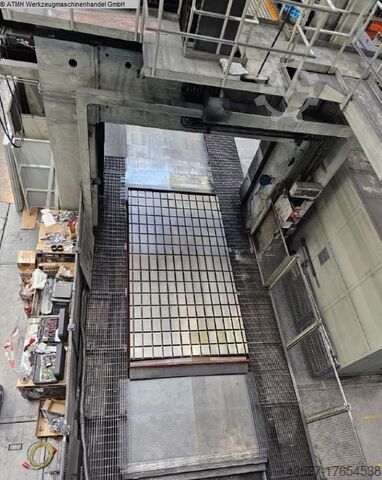

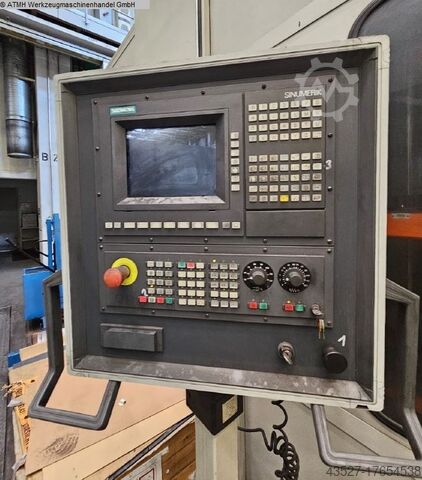

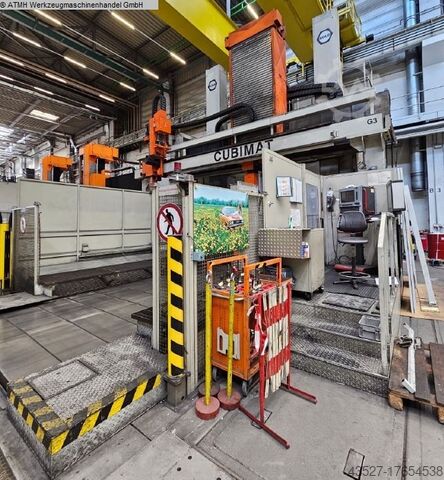

Condition: used, Year of construction: 1998, x-travel 6000 mm y-travel 4000 mm z-travel 1250 mm w-axis 1500 mm Control Fidia max. workpiece weight 60000 kg Control unit for tool magazine/tool changer Siemens Dwodpfeu I E Emjx Aa Ned turning speeds 6,3 - 4000 U/min surface area 2500 x 4500 mm 48 St. tool taper SK50 daylight between the side columns 3700 mm rapid traverse 30000 m/min total power requirement 63 kW weight of the machine ca. 150 t required space 16,8 x 10,3 x 7,9 m

Condition: used, functionality: fully functional, turning diameter over cross slide: 1,100 mm, spindle bore: 220 mm, turning diameter: 1,500 mm, turning length: 7,000 mm, Tacchi FTC Lathe with 7,000 mm between centers Description Manufacturer: Tacchi Model: FTC Capacities: Distance between centers: 7,000 mm Swing over bed: 1,500 mm Dwodpfjwulimsx Aa Nsd Swing over cross slide: 1,100 mm Swing over gap: 1,850 mm Spindle bore diameter: 220 mm Speeds: 8 speeds from 24 to 485 rpm Rapid feeds: Rapid traverse on both carriage axes Equipment: 3 fixed steadies and 1 movable steady 4-jaw chuck Ø 1,000 mm mounted on the lathe Additional heavy-duty 4-jaw chuck Ø 1,200 mm General condition: Lathe in good condition

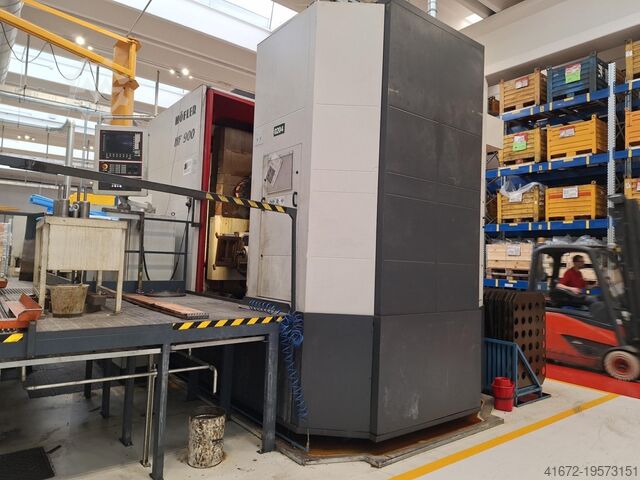

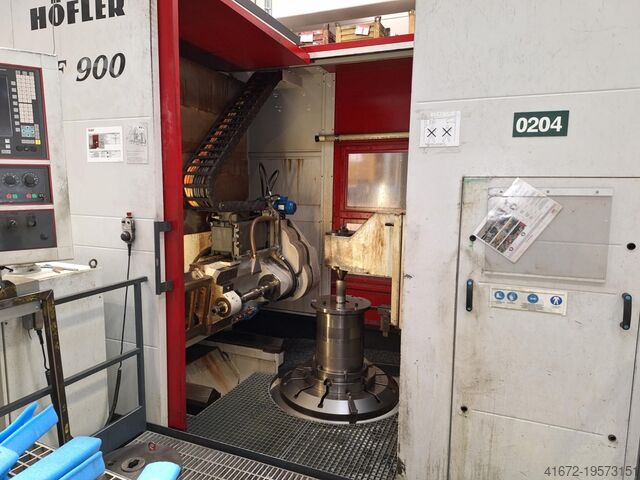

Condition: used, Year of construction: 2008, max. wheel diameter 900 mm gear width 450 mm max. module 10 min. module 1 min. number of teeth 8 milling cutter dia. x width 192 x 215 mm distance table / middle of spindle 910 / 630 mm distance bet. workpiece spdl. ctr-milling sp. 50 / 550 shifting 200 mm swivelling of milling head 240 Grad table diameter 700 mm table bore diameter 160 mm Dedpfxswzmp Uo Aa Nowd milling head speed 25 - 160 U/min total power requirement 21 kW change gears, arbors, shifting, 2-cut circle, chip conveyor, outer steady # with crowning device # in excellent working condition
