Machining center

HAAS EC-1600

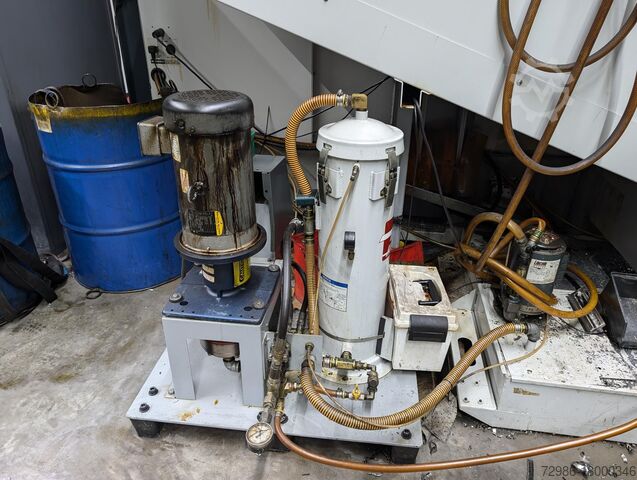

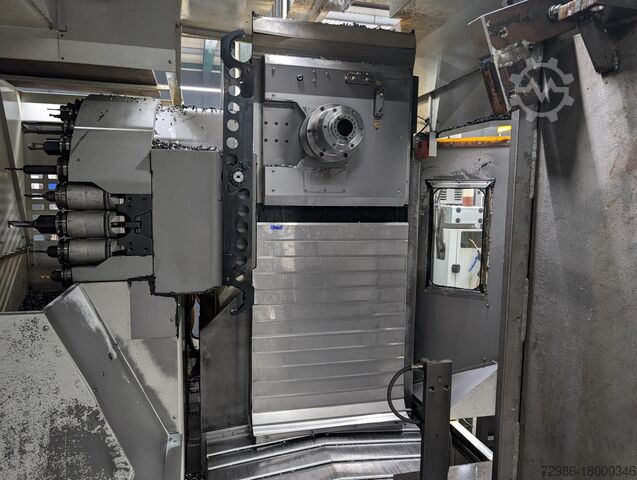

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, Machine type Travel distance X Horizontal CNC machining center 1,626 mm* Travel distance Y Travel distance Z 1,270 mm* 1,016 mm* Table size Max. table load approx. 1,626 × 914 mm* up to approx. 4,536 kg, evenly distributed* Spindle drive Tool holder Geared spindle; 7,500 rpm SK 50 Tool magazine Cooling through the spindle (internal coolant) 30 tools Available Measuring probe Axis equipment Available 4th axis or preparation for 4th/5th axis Control Older Haas control Previous approximate value approx. 16 t Psdpfe Aa Npiex Ai Tjgu

Condition: good (used), Year of construction: 2011, Maximum grinding diameter 290mm, maximum grinding length 800mm, grinding wheel size 290mm x 63mm bore. Control Fanuc 21i-TB, workhead speed 1,000rpm, spindle power 5Kw, table swivel +6/-3.5 degrees, workhead swivel angle 0-90 degrees. internal spindle motor 1.5kw. Pgjdpfstudfdox Ai Tou fitted with coolant.

Condition: ready for operation (used), Year of construction: 2014, travel distance X-axis: 1,626 mm, travel distance Y-axis: 1,270 mm, travel distance Z-axis: 813 mm, table width: 1,270 mm, table length: 1,400 mm, table load: 4,535 kg, overall weight: 20,800 kg, spindle speed (max.): 7,500 rpm, CNC Haas with 15-inch LCD screen Table size: 1400x1270 mm Maximum table load: 4,535 kg Spindle ISO 50, power 22.4 kW Psdpfx Ajypv T Rsi Togu Maximum spindle speed: 7,500 rpm Travels: 1626x1270x813 mm 50-position tool changer Chip conveyor Weight: 20,800 kg

Condition: ready for operation (used), Year of construction: 2008, operating hours: 1,752 h, functionality: fully functional, machine/vehicle number: 2052592, travel distance X-axis: 1,626 mm, travel distance Y-axis: 1,270 mm, travel distance Z-axis: 813 mm, table load: 4,536 kg, spindle speed (max.): 6,000 rpm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Travel range X-axis: 1,626 mm Travel range Y-axis: 1,270 mm Travel range Z-axis: 813 mm Table length: 1,626 mm Table width: 914 mm Table load: max. 4,536 kg Pgjdjzd Tcdepfx Ai Teu Spindle speed: 6,000 rpm Drive system: geared head Torque: max. 610 Nm at 500 rpm Power: max. 22.4 kW Thrust force X/Y axis: max. 24,910 N Thrust force Z axis: max. 33,362 N Rapid traverse: max. 13.7 m/min Cutting feed rate: max. 12.7 m/min Tool diameter with full tooling: max. 102 mm Tool diameter with free adjacent positions: max. 254 mm Tool-to-tool time: 10.3 s Chip-to-chip time: 12.6 s MACHINE DETAILS Dimensions (L x W x H): 3,660 x 3,880 x 3,190 mm Operating hours (see image) Spindle hours: 1,752 h Servo hours: 15,789 h

Condition: excellent (used), Year of construction: 2020, operating hours: 23,000 h, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 900 mm, travel distance Z-axis: 650 mm, rapid traverse X-axis: 120 m/min, rapid traverse Y-axis: 120 m/min, rapid traverse Z-axis: 120 m/min, torque: 80 Nm, controller manufacturer: Siemens, controller model: Sinumerik 840 D SL Solution Line mit NCU 730, workpiece diameter (max.): 1,830 mm, workpiece weight (max.): 800 kg, total height: 3,500 mm, total length: 5,900 mm, total width: 3,990 mm, overall weight: 24,500 kg, spindle speed (min.): 1 rpm, spindle speed (max.): 17,500 rpm, operating hours of spindle: 8,000 h, Equipment: chip conveyor, Horizontal double swivel-beam machining center with 2 spindles - Linear and torque motors in the feed axes - Gantry drive for the Y-axis - Independent Z-axes and X-axes - Double swivel beam with two integrated rotary axes for loading and unloading parallel to main processing time - Siemens Sinumerik 840 D SL Solution Line control with NCU 730 - Oil distributor for NC rotary table - 1 set of clamping bridge supports Pgedow Hgk Ajpfx Ai Tsu - Torsion compensation - 5th axis directly driven twice - Boring head indexing - Base module for clamping hydraulics - Pneumatic pressure intensifier - Scraper belt conveyor - Automatic loading door - Emulsion mist extraction unit - Automatic rinsing cycle for loading area - Tool flatness monitoring - Position monitoring, base module and extension - Grating/walk-on grid - 24 quick-release couplings SW-ID No. 413288 - Tool breakage monitoring, inductive etc.

Condition: ready for operation (used), Year of construction: 2014, travel distance X-axis: 1,400 mm, travel distance Y-axis: 1,050 mm, travel distance Z-axis: 1,200 mm, controller manufacturer: FANUC, controller model: 31i CNC, total height: 3,760 mm, total width: 4,325 mm, overall weight: 26,000 kg, spindle speed (max.): 6,000 rpm, spindle motor power: 35,000 W, number of slots in tool magazine: 60, tool weight: 30,000 g, product length (max.): 8,150 mm, number of axes: 4, This 4-axis DOOSAN HM 8000 horizontal machining center was manufactured in 2014. Equipped with Fanuc 31i CNC control, it features a maximum workpiece diameter of 1450 mm and weight capacity of 2000 Kg. It includes a high-pressure through-spindle coolant system, chip conveyor, and both workpiece and tool probes. If you are looking to get high-quality milling capabilities consider the DOOSAN HM 8000 machine we have for sale. Contact us for more information about this machine. Pedpfx Aezar Aioi Tegu • Max. workpiece diameter: 1450 mm • Max. workpiece weight: 2000 kg • Travel (X/Y/Z): 1400 x 1050 x 1200 mm • Pallet size: 800 x 800 mm • Spindle motor power: 22/35 kW • Max. torque: 1732 N·m • B-axis: indexable by degree • Max. tool diameter: 130/320 mm • Max. tool length: 630 mm Additional equipment • Belt-type oil skimmer • Triple light tower • Pallet centering device • Shower coolant • Through-spindle coolant 70 bar, 7.5 kW, with cyclone filtration • Automatic shutdown • Tool load monitoring • Chip conveyor • Workpiece probe OMP60 • Tool probe TS27R Dimensions Machine Depth 8150 mm Technical Specification Taper Size BT 50

Condition: good (used), Year of construction: 2007, Height of points 150 mm Pedperakimjfx Ai Tsgu Distance between points 1000 mm Grinding wheel dimensions (h x id x w) Ø400xØ127x50mm Internal head 4 pcs Center height 150mm Max. workpiece weight 80Kg X-axis travel (transverse) 350mm X axis speed 10 meters per minute Z axis travel (longitudinal) 1000mm Z-axis speed 12 meters per minute Z-axis resolution 0.00004" B-axis turning range 210° B-axis resolution 0.00004 B-axis resolution 0.0001° B-axis resolution 0.0001 Drive capacity 10 HP Grinding wheel diameter 400mm Max. width Grinding wheel width 63mm Spindle Speed Range 0-1000 RPM Spindle turning range 0° - 90° Tailstock stroke 30mm Tailstock stroke 30mm Equipped with Fanuc 21i-TB CNC Control Dimensions 3350x 2130x 2130 Weight 4535Kg Accessories: Steady rests, magnetic chuck, 3-jaw chuck, balancer, sensitron 6, coolant with paper and magnetic filter, fume extractor, etc.

Condition: reconditioned (used), Year of construction: 2011, functionality: fully functional, travel distance X-axis: 2,100 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 1,500 mm, rapid traverse X-axis: 24 m/min, rapid traverse Y-axis: 24 m/min, rapid traverse Z-axis: 24 m/min, controller manufacturer: FANUC, controller model: FANUC 31i-A, workpiece height (max.): 1,725 mm, workpiece diameter (max.): 2,300 mm, workpiece weight (max.): 3,000 kg, rotary table diameter: 1,250 mm, spindle speed (min.): 20 rpm, spindle speed (max.): 6,000 rpm, coolant supply: 70 bar, spindle motor power: 26 W, spindle nose: ISO 50, number of slots in tool magazine: 120, tool length: 650 mm, tool diameter: 300 mm, tool weight: 25,000 g, input voltage: 400 V, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, USED ​​horizontal machining center with pallet changer and 120 tools. Pedpfx Aisxlcive Togu

Condition: good (used), Year of construction: 2009, JOHNFORD CNC lathe Pgodpfx Aot E Nauoi Tou Type GT-80D-2S Year 2009 CNC Control Fanuc Series 18i-TB Country of origin Taiwan Turret amount of positions 12 Bar passage 165 mm Serial no. TDF9007 Turning Length 2000 mm Turning Diameter Over Bed 1550 mm Spindle Speeds 1000 RPM Swing Diameter Over Bed Slide 1270 mm Longitudinal Travel (Z-Axis) 2000 mm Spindle Diameter In Front Bearing 240 mm Spindle Bore 185 mm Spindle power 37/30 kW Cross Travel 685 mm Rapid Travel Speed X-Axis 10 m / min Rapid Travel Speed Z-Axis 12 m / min Turret head 12 positions Machine length 9800 mm Machine width 3695 mm Machine Height 5292 mm Weight of the Machine Ca. 40 t

Condition: as good as new (ex-display), Year of construction: 2024, functionality: fully functional, travel distance X-axis: 3,500 mm, travel distance Y-axis: 1,600 mm, travel distance Z-axis: 1,000 mm, The horizontal machining centers in the XpertK series are characterized by their outstanding modularity. Choose from a variety of table variants and matching milling heads, complemented by a wide selection of spindles. The XpertK machines are ideal for special requirements where standard machines are not sufficient and offer customized flexibility and individuality Xpert K 3512 - Horizontal machining center - Series: Xpert K - Travel X/Y/Z: 3500 x 1200 x 1000 mm - Optional Y-axis: 1600 mm Pgodpfx Aier H Hhnj Teu - Milling head: M-Series fork milling head - Spindle: 12,000 min-1 / 53 KW / 253 Nm - Tool holder: HSK-A100 - Control: Heidenhain TNC 640 - Clamping surface: 4,000 x 2,200 mm - Payload: 15,000 kg - Rapid traverse: 30 m/min - Acceleration: 3 m/s² Modularly expandable, further options: - Sliding table X-axis - Cross table X and W-axis - Rotary table X and C-axis (Ø 2,000 mm) - Table travel X-axis up to 6,000 mm - Table travel W-axis 1,200 mm - Movable work unit Y- (vertical), Z- (slide) and W-axis (1250 mm) - Milling and turning machining possible - 18 spindle variations - Clamping area can be extended up to 6,000 x 2,500 mm
