Vertical Turret Lathe - Single Column

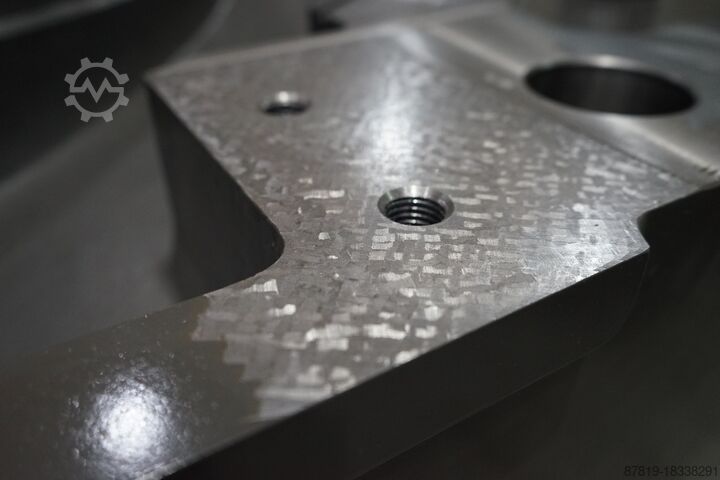

HANKOOK VTC 200 E

Condition: new, Year of construction: 2022, functionality: fully functional, turning height: 2,000 mm, workpiece weight (max.): 12,000 kg, turning diameter over cross slide: 2,500 mm, turning diameter: 2,500 mm, faceplate diameter: 2,000 mm, total height: 7,260 mm, total width: 6,280 mm, total length: 4,500 mm, rotational speed (max.): 200 rpm, rotational speed (min.): 1 rpm, torque: 40,400 Nm, spindle speed (min.): 1 rpm, warranty duration: 24 months, overall weight: 45,000 kg, faceplate torque: 40,400 Nm, Equipment: documentation/manual, rotational speed infinitely variable, Vertical turret lathe in flat-guided design with extensive full equipment: WITH MILLING FUNCTION - Milling spindle 2000rpm SK50 22 KW - C - axis 0.001 degrees - Complete housing - Chip conveyor Ksdpfevtytxex Aayedw - Internal coolant supply - Fanuc control - 24 tools - 12 milling tools - Manual Guide I - Tool holder package - Electronic handwheel - Signal light - Manual 3-jaw faceplate 2000mm - Renishaw tool measurement - Renishaw workpiece measurement - Glass scales in X and Z axes - 24 month guarantee

Condition: ready for operation (used), Schiess 80 DF Type: 80 DF 700/900-550/280 Originele CNC-machine van Schiess (geen ombouw van conventioneel naar CNC) Volledig hydrostatische machine Gelaste kolom Siemens-motor Uitgerust met een controlelift om de bovenkant van het werkstuk te bekijken Machine met zeer hoge tolerantie Tafeldiameter: 7000 mm Maximale diameter van het werkstuk: 9000 mm Maximale belasting: 315 ton Snelheid: 0,25 25 tpm Maximaal rotatiekoppel: 63.000 kgm Kdodpfx Aaev Rwdpeyew Maximale snijkracht met uitgeschoven ram tot 900 mm: 12.500 kg Gereedschapskop kan -40° tot +40° kantelen Vermogen: 125 kW gewicht van de tafel: 71 ton Ramsectie: 380 x 380 mm Horizontale verplaatsing van de ram vanaf het midden van de tafel: 5640 mm Verticale slag van de ram: 2800 mm Maximale hoogte onder dwarsbalk: 5547 mm Horizontale verplaatsing van de dwarsbalk: 4700 mm Uitgerust met 3-positie automatische gereedschapswisselaar Totaalgewicht van de machine: 260 ton! Unieke eigenschap er zijn 3 mogelijke configuraties van de hoofdkolom: 1 - voor maximale zwenking 9000 mm (zoals momenteel ingesteld) 2 - voor max. zwenkbereik 10.500 mm 3 - voor maximale swing 13 100 mm Dit kan worden bereikt door de hoofdkolom opnieuw op het fundament te positioneren.

Condition: like new (used), Year of construction: 2010, functionality: fully functional, travel distance X-axis: 9,000 mm, travel distance Y-axis: 4,000 mm, travel distance Z-axis: 1,000 mm, CME TRAVELING COLUMN MILLING / BORING MACHINE Kdodpfx Aou R Rk Hoaysw CME TECHNICAL FEATURES - VISIBLE IN OPERATION Brand: CME Model: MB 9000 Year: 2007 CNC: Siemens Sinumerik 840D X-axis: 9000 mm Y-axis (Vertical): 4000 mm Z-axis: 1000 mm W-axis (Ø 150 mm): 700 mm 2 rotary translation tables (linear travel: 2000 mm) 2500 x 2500 mm (25 TN) capacity Heidenhain optical scales on all axes Direct spindle 90-position tool change ZF range change Internal coolant Chip extractors

Year of construction: 2001, condition: ready for operation (used), Horizontal Machining Centre with boring spindle Giddings & Lewis type HMC 410 Pallet size: 1.250 x 1.600 mm Pallet load: 7.000 kg max. Pallet change time: 55 sec. Number of pallets 2 pcs Table indexing: B-Axis 0.001° Table cross travel (X) 3.000 mm Spindle vertical travel (Y) 2.100 mm Column longitudinal travel: Z 1.800 mm Feed: X/Y/Z 1 – 40.000 mm/min. Rapid: X/Y/Z 40 m/min Rotary table 6 rpm Max rotary diameter: Ø2.500 mm Spindle taper: ISO 50 Spindle drive motor: 30 KW Spindle speed: 20 – 5.000 rpm ATC 120 pots CNC controller: Siemens Sinumerik 840D Max workpiece height: 2.000 mm Kodpfxoguk Ics Aayedw Accessories Hexagon radio measuring probe Loading stations 2 PCS Build year 2001 (Siehe auch weitere Angebote des Inserenten.)

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, Vertical Turret Lathe - Double Column with 5 controlled axes - Brand: CKD Blansko / SKD / YOM: 2008 Overhaul and renewals were carried out on the machine in 2019 (completion January 2020), further work was carried out/followed ... The machine can be inspected by appointment under power. TECHNICAL SPECIFICATIONS: Workspace: - Faceplate diameter: 4.000 mm - Swing diameter max.: 5.000 mm - Workpiece height max.: 2.500 mm - Faceplate load max.: 50 tons C-axis: - Speed of the C-axis: 0,01 - 2 rpm - Torque on the faceplate max.: 35.000 Nm Machine: - Total power requirement: 160 kVA - Machine weight: approx. 74 tons Kdedjww H Ivopfx Aayow EQUIPMENT: - Control: SIEMENS SINUMERIK 840D - Automatic tool changer - Pick-up magazine: 1 Angular head - Angular milling head - Oil coolant equipment - Coolant system with paper filter - AC drive for rotary tools - AC drives for X/Z/C/U/W-axis - Full enclosure - Chip conveyor - Slat-band chain conveyor - Documentation - CE marking There is no guarantee for correctness and completeness of the technical details and accessories. - Subject to prior sale - Detailed technical data sheet and information on equipment available on request.

Condition: ready for operation (used), empty load weight: 22,000 kg, Type FTC75 Distance between centers: 8000 mm Swing over bed: 1500 mm Swing over cross-slide: 1100 mm Diametre of main spindle bore: 130 mm Number of speeds: 3,6 > 720 rpm Total power needed: 29,5 kW / 40 hp Kdjdpfx Aewkw Umjayjw Max weight between centers: 11 ton

Condition: good (used), turning diameter: 5,000 mm, travel distance Z-axis: 2,000 mm, turning length: 2,500 mm, The machine is in good technical condition, fully functional, modernized in 2008. It is equipped with a Siemens Sinumerik 802 D control system, a maximum turning diameter of 5000 mm and a clamping plate diameter of 2500 mm. The workpiece weight is 40 tons and the height is 2000 mm. Kodjv Dkykepfx Aayodw

Condition: excellent (used), TECHNICAL CHARACTERISTICS Capacity: Chuck diameter: 3.000 mm Maximum turning diameter: 3.110 mm Ksdpfx Aer Ddu Deaysdw Maximum piece weight: 20 Tn Revolutions: 1,5-39,5 Rpm Main motor power: 45 Kw Movable crossbeam: 1.200 mm Height under crossbeam: 1.800 mm Vertical lathe with two arms: Right carriage pentagonal turret 5 positions with automatic rotation X travel: 1,500 mm Z travel: 965 mm Left slide with RAM Travel X: 1.500 mm Travel Z: 1,200 mm Remarks: Independent control panel 2 x CNC Fagor 8055 for the control of the 2 slides from the same screen. Grinding head (optional) Year of manufacture/reconstruction: 1975/2001

Condition: good (used), Webster & Bennett CNC Ram Type VTL Year 1986/2005 Table 1500mm dia. 10 Station Automatic Tool Changer Max Turning Dia 54” Fanuc Oi-TC Control Fully Enclosed Guards Automatic Tool changer Tooling Kjdpfotv Nm Dsx Aayodw Table Jaws Swarf Conveyer

Condition: ready for operation (used), Year of construction: 2008, Fanuc 21ITB 16-tool changer BT50 1600 mm table, maximum rotation speed 250 rpm, maximum admissible weight 8000 kg maximum diameter 2000 mm, maximum machining height 1250 mm Kedpfx Ajwzyndeaysdw travel 250 x 250 mm, Z-axis travel 900 mm chip conveyor
