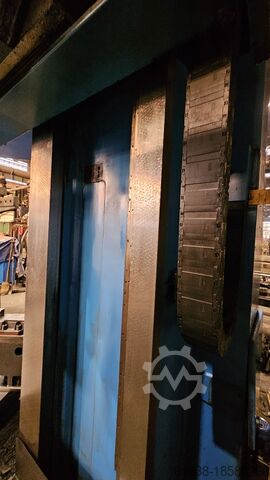

Vertical turret lathe

CKD Blansko SKJ 25/50 CNC

Condition: used, Technical details: faceplate diameter: 5000 mm swing diameter: 6100 mm turning height: 2400 mm Rsdpfx Agew Rz U Asijl ram stroke each side: 1490 mm ram head dimension: 340 x 340 mm max. workpiece weight: 100.000 kg total power requirement: 100 kW weight of the machine ca.: 155 t faceplate turning speed range: 0,4 - 50 U/min with 2 x 2 axes CNC SIEMENS 840 D *

Year of construction: 1998, condition: good (used), CHIRON FZ 18L 1998year Sinumerik 810 with 4 Axis Nikken Travels X 2000 mm Y 400 mm Z 425 mm table2280 x 450 mm spindle max 8000 Toolchanger ATC: 20 pos tools SK 40 weight 6,70 T manual books dimensions lenght 3,9m width 2,45m height 2,8m Rsdjhpq U Uspfx Agiol free loaded on truck EXW 01360 LOYETTES

Condition: used, Year of construction: 1984, x-travel 2500 mm y-travel 750 mm z-travel 1000 mm Redpfx Aetqqnwsgisl table surface area 2550 x 800 mm spindle taper SK 50 control HEIDENHAIN, TNC 150 B weight of the machine ca. 16 t

Condition: refurbished (used), Year of construction: 1974, functionality: fully functional, machine/vehicle number: 1276, CNC Hot Radial Forging GFM SX-13 New in 1974 / 2022 New control system PLC SIEMENS S7 Machine number: 1276 No. of Hammers: 4 Forging force each hummer: 160 Ton Hammer stroke / min: 700/min Hammer lenght: 240 mm Diameter setting range: 80 mm Maximum forging diameter: Structural steel, round-cross section: Ø 130 mm Rsdpfx Aoq U R T Nogiol square cross section: Ø 115 mm Smallest dimensions forged: Ø 25 mm Manipulator A max. displacement: 6820 mm Manipulator B max. displacement: 7150 mm Maximum workpiece length: 6000 mm Rapid speed manipulator: 400mm/sec Total connected power: 300 kW 380 V, 50 Hz Machine dimensions: Forging height over floor: 615 mm Total height pf the machinr over floor: 1665 mm Total machine lenght: 32670 mm Total foundation lenght: 33400 mm Tot. machine width (without auxliary equipments): approx 3885 mm Total foundation width: 16000 mm Total weight of the machine: 84.000 Kg

Condition: used, Year of construction: 1998, swing diameter 2000 mm table diameter 1800 mm turning height 1500 mm Control Siemens Sinumerik 840 C table turning speeds 0-280 U/min feed range 0-18000 mm/min workpiece weight max. 12000 kg total power requirement 177 kVA Feed drives: - Crossbeam support, vertical and horizontal mm/min - Crossbeam support, rapid traverse 18000 mm/min - Crossbeam adjustment speed 425 mm/min Milling drive: - Milling drive power 30 kW - Number of gear stages 2 stages - Stage jump 3.17 - Speed range of the 1st gear stage 10 - 224 - 950 rpm - Speed range of the 2nd gear stage 32 - 72 - rpm Tool system, cutting force: - Tool system 250.2 - Milling spindle holder according to 69871-A SK 50 - Cutting force on turning tool 50 kN Equipment/accessories: - Tool measuring probe - Various turning tool holders Rodjxap Eyopfx Agijl - Various clamping jaws - Various clamping devices - Various SK 50 mountings - Grinding spindle - Powered tools - Tool changer/head changer - Hydraulic unit - Chip conveyor - Technical documentation

Condition: excellent (used), Year of construction: 2016, functionality: fully functional, turning height: 1,020 mm, workpiece weight (max.): 10,000 kg, turning diameter: 1,560 mm, faceplate diameter: 1,480 mm, rotational speed (max.): 250 rpm, Titan VT 1700 Vertical Lathe with: - table diameter 1480 mm - maximum turning diameter 1560 mm Rsdpfewi Ufmox Agijl - maximum load allowed in the spindle 10000 kg - maximum turning height 1020 mm - 12-position tool magazine - Fagor 8055 CNC - Rotomors 4-jaw hydraulic chuck - chip conveyor - year 2016 Free extension in 12/24 months

Condition: excellent (used), Motor-driven NC rotary table Stepless rotary table (pitch 0.001°) Attached pallet station: pallet changing table (2 pallets) Manufacturer: Rückle Type: PKTF 1200 Table size: 1200 mm x 1200 mm Total height: 660 mm Centring hole: 100 H6 mm Clamping grooves: 7 pieces Slot dimension: 22 H7 mm Slot distance: 160 mm Rodjfk R Tdspfx Agijl The displacement is measured via a ROD 250 rotary encoder. Condition: Very good (used) Optionally with machine bed (travel = 2000 mm ) About us: MBM Maschinenservice & Gebrauchtmaschinen GmbH, is a free specialist for SHW machine tools. Our main focus lies in the field of tool milling machines. Our services include the supply of spare parts, on-site customer service, machine overhauls and control modernization. Services: - Used machines - spare parts - after-sales service - machine service - machine overhauls - control modernization

Year of construction: 1992, condition: good (used), Indoor crane, crane, electric wire rope hoist, hoist, motor winch, motor winch, tackle, traction winch, block and tackle -Manufacturer: steel, crane chassis with electric cable pull -Crane chassis: Type GO 24 20 16 -Traveling speed: 20 m/min -Roller pitch: 800mm -Cable: Type AS 2010 -Traction: 1000 kg / load capacity 4000 kg -Drum speed: 16 m/min / stroke 4 m/min -Lifting height: mm -Transport dimension: 1250/1180/H400 mm Rsdpel Tuvdjfx Agiel -Own weight: 356 kg

Condition: used, Year of construction: 1981, machine/vehicle number: 78.977, Equipment: documentation/manual, Year of manufacture: 1981 / Year of retrofit: 1996/1997 Rsdeqc Umgepfx Agiel Control: Siemens 840 C Siemens control for X/Y/Z/W/U/B/V axes Spindle diameter: 200 mm Main motor Siemens: 68 kW Spindle speeds: I gear: 3 - 202 rpm II gear: 180 - 808 rpm X travel: 12,000 mm Y travel: 4,500 mm Z travel: 2,400 mm (supporting sleeve □ 520 mm/travel 1200 mm + W axis 1200 mm) Mount: SK60 (SK50) Facing slide: yes Milling head: 2 units Prepared for CNC rotary table (4th axis) Without rotary table and clamping field (available separately) Full documentation Net weight: approx. 140 tons Video available!

Condition: used, Technical details: faceplate diameter: 1000 mm swing diameter: 1600 mm turning height: 1200 mm main drive: 75 kW faceplate speeds from - to: 7 - 800 U/min milling motor: 25 kW milling head speed: 7 - 3000 U/min milling spindle - taper: ISO 50 cross rail adjustment - vertical: 800 mm ram head dimension: 240 x 240 mm weight of the machine ca.: 40 to dimensions of the machine ca.: 9 x 7,8 x 6,0 m Machine general overhould in 2004 and equiped with Siemens 840 D control - tool changer rack magazine - C-axis, live tooling, - Transmit function electronical Y-axis Rodpfx Aovb Dcaogisl - angular milling head - complete splash housing - coolant device, chip conveyor *
