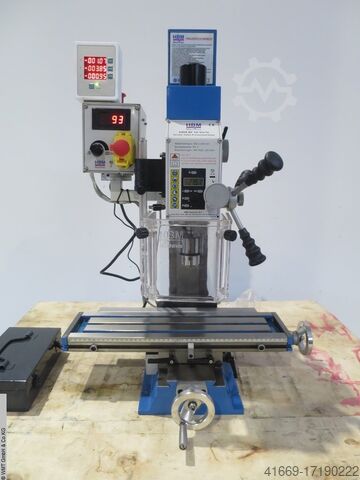

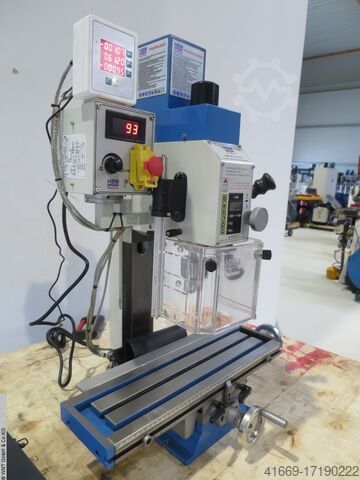

Drilling and Milling M/C

HBM BF 16

Condition: used, Year of construction: 1996, machine/vehicle number: 7/4986, Capacity: 250 - 400 ton V – Ring nominal force: 20 - 200 ton Counter ram nominal force: 10 - 100 ton Ram stroke: 30 - 200 mm V-Ring stroke: 40 mm Counter ram stroke: 40 mm Max. die size: 765 x 760 x 610 mm Number of strokes: 40 s.p.m. Approach speed: 120 mm / sec Return speed: 135 mm / sec Working speed: 5 - 50 mm / sec Die Weight total: 2400 kg Itsdpfx Asuqdxijhusb Standard configuration Automation roll-off try with leveller

Condition: new, Guide and pull spindle lathe Bernardo Standard 165 D Technical specifications Tip width: 1000 mm Tip height: 175 mm Circulation diameter over bed: 350 mm Circulation diameter over crumpling*: 450 mm Orbit diameter via flat slide: 190 mm Bed width: 180 mm Spindle bore: 40 mm Spindle holder: DIN 55029, D1-4 Speed range: (8) 70 - 2000 rpm Range of longitudinal feeds: (40) 0.053 - 1.29 mm/U Area of plan feeds: (40) 0.013 - 0.31 mm/U Metric threads: (32) 0.4 - 7 mm Inch Thread: (36) 4 - 60 Gg/1" Pinole path: 110 mm Pinole holder: MK 3 Engine power: S1 100% 1.5 kW (400 V) Motor recording power: S6 40% 2.2 kW (400 V) Machine dimensions (W x D x H) 1730 x 700 x 1340 mm Weight approx. 514 kg * Bed length removable Delivery • 3-axis i200 digital display with LCD display • 3-jaw chuck DK11-160 mm / D4 • Flat disc 200 mm / D4, according to DIN 55029 • Fixed bezel - pass diam. max. 60 mm • Running bezel - pass diam. max. 60 mm • Clamping disc 250 mm • Quadruple steel holder • Shaft fixing device • Protective device for steel holders • Slip clutch • Micrometer longitudinal stop • Coolant device • Extendable chip newfir • Motor with magnetic brake according to CE standard • Foot pedal with brake function according to CE • Spray wall • Threaded watch • LED machine light Itjdpfjd Ri Ezox Ahujb • Reducing sleeve • Interchangeable wheels • 2 centering tips • Base • Operating tool

Condition: new, range L-W-H 780x480x105 mm weight 79,5 kg 7 St. Tool trolley with 7 drawers. Tool trolley has two normal and two swivel castors with brakes. Tool trolley completely lockable with an integrated lock. Iodpfx Ahju Imigouetb Drawers can be locked per compartment. All drawers equipped with quick lock and soft-closing mechanism.

Condition: new, diameter 200 mm height 105/265 mm centre height 105 mm Itedpfeupxd Rjx Ahujb weight of the machine ca. 41 kg dimensions of the machine ca. 400 x 330 x 310 m

Condition: new, feed pressure 8 bar Effective free air delivery 200 / 175 L/min Receiver capacity 50 Liter weight of the machine ca. 77 kg. Number of cylinders 4 Stk. motor 230V / 1,5KW V / KW range L-W-H 580 x 780 x 820 mm Low-noise professional 50 liter compressor Noise level approx. 40 - 45 DB (A) This compressor comes standard with: Safety valve, pressure reducing valve, pressure gauge, coupling and Itjdpfsu Immxox Ahueb Drain valve at bottom.
