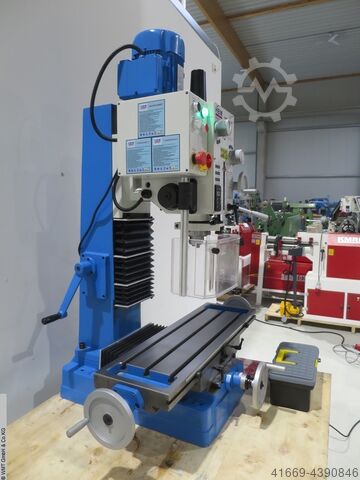

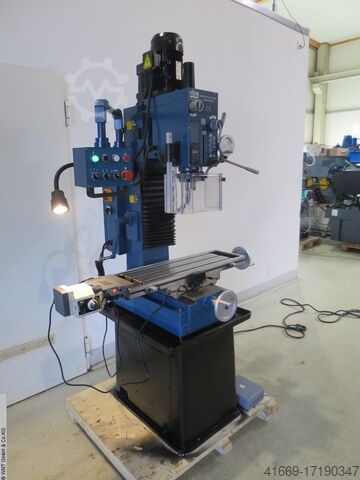

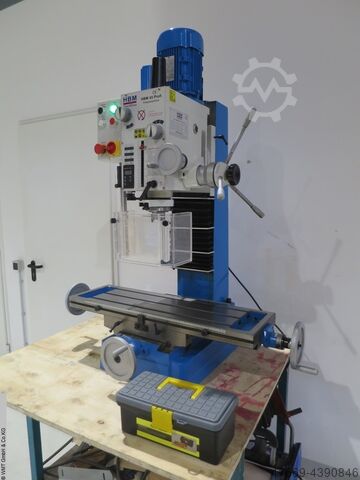

Drilling and Milling M/C

HBM BF 45 Profi

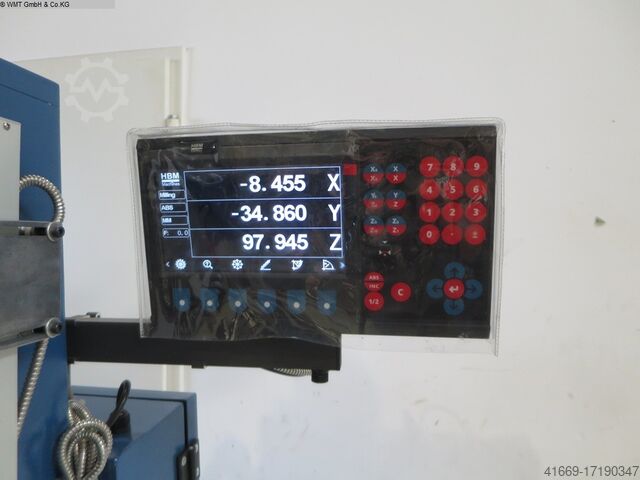

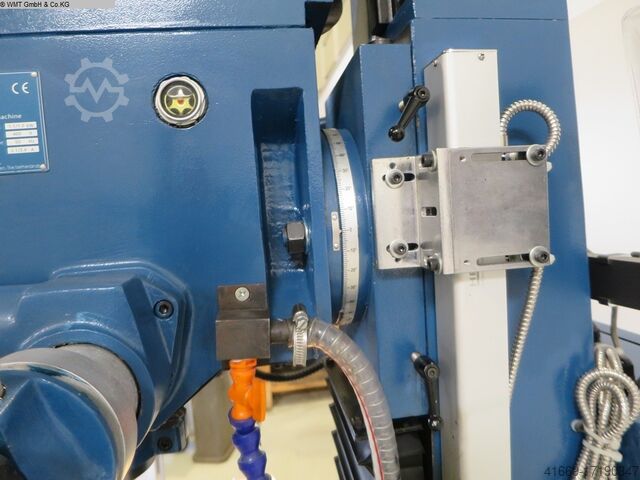

Condition: new, bore capacity in steel (diameter) 45 mm quill stroke 125 mm 560 mm 230 mm table surface area 800 x 240 mm spindle turning speed range 75 - 3200 U/min max. milling cutter diameter 80 mm spindle taper ISO 30 max. distance between table and spindle-nose 460 mm throat 230 mm connected load frequency 400 V total power requirement 1,5 kW weight of the machine ca. 580 Kg dimensions of the machine ca. 1,2 x 1,0 x 2,1 m Equipment: All axes with 3-digital display. Quill travel has separate digit display. Automatic feed in X-axis and quill. Motorized Z-axis. tapping device. coolant system. machine base. Collet set, SK tool holder. Itsdoupxrnopfx Ahusb Further machine accessories in box.

Condition: good (used), bore capacity in steel (diameter) 25,0/30,0 mm throat 260 mm bore stroke 120 mm number of spindle speeds 80-1400 min-1 Itodpfx Aouhhzhohuob table surface area 410 x 390 mm total power requirement 0,8/1,5 kW weight of the machine ca. 250 kg dimensions of the machine ca. 0,75 x 0,6 x 1,15 m

Condition: good (used), Acera F3 Top quality milling machine. Motor and gearbox sound perfect. There are no accessories other than what you see in the pictures. Ijdpsr Ixpdsfx Ahuetb Can be loaded into a Eurotrailer and transport organized throughout Europe.

Condition: excellent (used), Year of construction: 2002, functionality: fully functional, travel distance X-axis: 540 mm, travel distance Y-axis: 240 mm, spindle speed (max.): 1,650 rpm, spindle speed (min.): 45 rpm, spindle mount: MK 4, throat depth: 350 mm, quill stroke: 130 mm, total length: 1,250 mm, total height: 1,900 mm, table width: 225 mm, total width: 1,100 mm, table length: 800 mm, drilling capacity: 40 mm, spindle nose: MK-4, nominal power: 2.2 kW (2.99 HP), Milling-/Drilling Machine, drilling capacity Ø 40 mm, motor 1,9 /2,2 KW, table size 800x225 mm, spindle speed 45-1650 rpm stepless, MT-4, el. table arising device, automatic spindle feed, coolant device, dimensions 1250x1100x1900 mm, weight ca. 600 kg Ijdpfx Ahowt Swzeujtb

Condition: new, ELMAG Geared pillar drill GBM 3/30 SNA - Set Fast geared pillar drill 1,200 / 900 W The robust GBM 3/30 SNA pillar model is equipped with a powerful special gearbox, has a drilling capacity of 30 mm in steel and, with a quill spacing of 820 mm, offers plenty of space for holding tall workpieces. Helical gears made of steel and pressed material ensure high load capacity and smooth running. The GBM 3/30 SNA is therefore a perfect solution for medium-sized requirements in steel construction and metalworking stores, also for small batch processing. Standard equipment - Quick-action drill chuck B 16, 1 - 16 mm - Taper arbor MK 3 / B 16 - Reducing sleeve MK 3 / MK 2 - Reducing sleeve MK 3 / MK 1 - Drive-out wedge Itodpet Edzaofx Ahuob - Operating instructions / CE Set equipment - GBM 3/30 SNA geared pillar drill - Machine vice 120 or 150 mm - Two clamping screws 14 mm - 9-piece drill cartridge, 14.5 mm - 30 mm, MK 2 / MK 3 - Cutting oil spray ADVANTAGES Drilling capacity Ø 30 mm Automatic sleeve feed (0.1; 0.15; 0.22; 0.33 mm/rev) Cubature 500x350x870 mm Spindle projection 320 mm Powerful drive motor 400 V, 2-stage 1,200 / 900 W Smooth-running quality gearbox with heavy-duty helical gearing 8 speeds 75 - 3,010 rpm Drill spindle with precision bearing Clockwise and counter-clockwise rotation Drill spindle protection cover Drilling depth scale and stop Tool ejector Large, precise drill table with T-slots and coolant channel Heavy-duty, ground steel column with gear rack Rotatable and height-adjustable drill head Heavy-duty, ground steel column with toothed rack Emergency stop button / zero voltage release TECHNICAL DATA Drilling capacity in steel 30 mm Thread cutting capacity M22 Spindle holder (turning spindle) MK 3 Speed range 75 - 3010 rpm Speed steps 8 Quill stroke 150 mm Quill feed stages 4 Column diameter 105 mm T-slots, width 14 mm Drill head stroke 270 mm Drill table stroke 500 mm Spindle projection 320 mm Drill table rotatable ± 180 ° Drill head rotatable ± 180 ° Quill spacing table 50 - 820 mm Drilling table surface 500x350 mm Motor power (2-stage) 900 / 1200 W Mains connection 400/50 V/Hz Cubature 500x350x870 mm Base plate area (lxw) 400x670 mm Weight 210 kg

Condition: like new (used), Year of construction: 2020, functionality: fully functional, Equipment: lighting, rotational speed infinitely variable, type plate available, Out of insolvency: Erlo Iberdrill AZ 34 Year of construction 2020 Speeds infinitely variable via potentiometer 80-2010 rpm automatic feed 0,1--0,2--0,3 Digital speed display Coolant pump Thread cutting function with foot switch working light Pinol stroke 150mm throat depth 300mm Mounting MK 4 Ijdpfx Asrfxqlshuetb Röhm Supra 3-16mm drill chuck Table clamping surface 330x320mm Height of the machine 1930mm Weight approx. 350kg 3KW power 380 Volt

Condition: new, Year of construction: 2023, bore capacity in steel (diameter) 34 mm throat 300 mm bore stroke 150 mm bore capacity in cast iron (diameter) 40 mm thread capacity M 27 spindle taper MT 4 spindle speeds: Stufenlos 100 - 2000 U/min column diameter 125 mm automatic feeds 3 / 0,1 - 0,2 - 1,3 table: 400 x 420 mm Drive Keilriemen total power requirement 3 kW weight of the machine ca. 360 kg dimensions of the machine ca. 2,3 x 0,6x 1,1 m Column drilling machines - V-belt drive with foot switch - Drilling machine of circular column feed automaticmechanical - Drive by electronic wide V-belt - Spindle taper: CM 4 - Stepless speed adjustment with frequency converter - Potentiometer for speed adjustment - digital speed display - Automatic feed reversal when threading - Scale with adjustable drilling depth - automatic tool ejector - Push button for EMERGENCY STOP switch for right/left rotation - Electronic control integrated in the drill head - integrated coolant device - Machine light - height-adjustable chip protection disc with micro switch - fixed table - CE marking Itjdpjt U Sc Refx Ahusb

Condition: new, Year of construction: 2024, bore capacity in steel (diameter) 40 mm throat 360 mm bore stroke 200 mm Itjdewp Tpwspfx Ahujb thread capacity 33 M spindle taper MT 4 MK column diameter 175 mm bore spindle turning speed range 61-1169 U/min table-size 550x550 mm

Condition: new, PILLAR DRILLING MACHINE IBERDRILL AZ 34 TECHNICAL DATA - STANDARD max. drilling capacity for steel (St 60) at continuous power S1 Ø 34 mm max. drilling capacity for grey cast iron (GG 20) at continuous output S1 Ø 40 mm max. tapping capacity for steel (St 60) at continuous output S1 M 27 max. tapping capacity for grey cast iron (GG 20) at continuous output S1 M 33 tool holder in spindle MK 4 max. spindle stroke (drilling depth) 150 mm motor power spindle 3 kW Drive V-belt Speed adjustment stepless speed range for 50 Hz - motor, n = 1.500 rpm 100 - 2.000 rpm Feed automatic or manual Number of automatic feeds 3 gears range of automatic feeds 0,1 - 0,2 - 0,3 mm/rev Table dimensions (width x depth) 420 mm x 400 mm column diameter 125 mm distance spindle center / column 300 mm Machine weight (net) 360 Kg Gross weight 410 Kg Transport dimension (length x width x height) 2.3 m x 0.6 m x 1.1 m STANDARD EQUIPMENT / BASIC MACHINE V-belt drive with frequency converter infinitely variable speed adjustment via potentiometer digital speed display 3 automatic feeds mechanical clutch Iedpjgy E S Eefx Ahujtb scale with adjustable drilling depth automatic feed reversal during thread cutting automatic tool ejector movable fixed work table (type MF) machine base plate with machined support surface, T-slots and integrated coolant device integrated lighting EMERGENCY STOP button chip protection device with microswitch monitoring thermoma
