CNC Machining Center

Heller MCH 250

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 800 mm, controller model: Siemens 840D, spindle speed (max.): 12,500 rpm, TECHNICAL DETAILS Travel range, X-axis: 800 mm Travel range, Y-axis: 800 mm Travel range, Z-axis: 800 mm Spindle speed: 12,500 rpm Number of axes: 4 Lrjdpfjzncnkjx Agrst Pallet size: 630 × 630 mm Max. tool length: 600 mm MACHINE DETAILS Control system: Siemens 840D

Condition: ready for operation (used), Year of construction: 2011, operating hours: 41,376 h, machine/vehicle number: 302E110064, travel distance X-axis: 885 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 500 mm, controller model: HEIDENHAIN iTNC 530, workpiece diameter (max.): 640 mm, workpiece weight (max.): 500 kg, table width: 500 mm, table length: 600 mm, spindle speed (min.): 15,000 rpm, operating hours of spindle: 10,687 h, number of slots in tool magazine: 48, tool length: 280 mm, tool diameter: 125 mm, Equipment: documentation/manual, For sale: Quaser UX600 15C - Universal machining center - manufactured in Taiwan in 2011. Lredpfjwlpywox Agret - 5-axis machine with direct measurement on all axes - Control unit: Haidenhain iTNC 530 Operating hours: 41,376 Application: Milling Machine length: 3700mm Machine width: 4000mm Machine height: 3100mm Machine weight: 12,100 kg Number of spindles: 1; spindle speed range: 15,000 rpm Travel: X axis: 885mm; Z axis: 500mm; Y axis: 800mm Table External length: 600mm External width: 500mm Tooling Maximum tool length: 280mm Maximum tool weight: 7 kg Maximum tool diameter: 125mm Tool holder: SK 40 Internal cooling: Yes The machine operates in 3 shifts – every day! The machine comes with 20 SK40 tool holders!

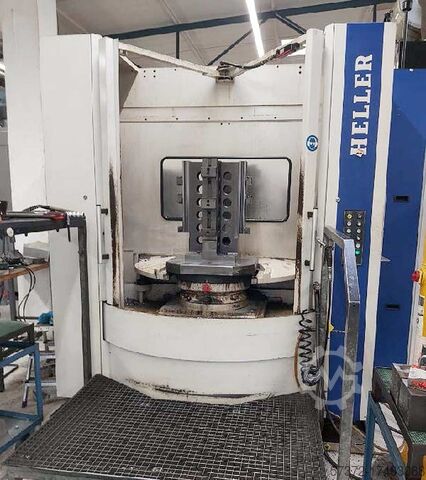

Condition: ready for operation (used), Year of construction: 2006, travel distance X-axis: 800 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 800 mm, controller manufacturer: SIEMENS, controller model: 840D, spindle speed (max.): 6,000 rpm, number of slots in tool magazine: 100, number of axes: 4, This 4-axis HELLER MCH 250 was manufactured in 2006. It features a maximum spindle speed of 6000 rpm and a robust tool capacity of 100 tools in the automatic tool changer. The machine is equipped with twin pallets, enhancing productivity and efficiency. If you are looking to get high-quality machining capabilities, consider the HELLER MCH 250 horizontal machining centre we have for sale. Contact us for further details. • Twin pallet Technical Specification Ledpfx Aoy H D T Ujgrort Taper Size SK 50

Condition: ready for operation (used), Year of construction: 2007, travel distance X-axis: 800 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 800 mm, controller manufacturer: SIEMENS, controller model: 840D, spindle speed (max.): 6,000 rpm, number of slots in tool magazine: 100, number of axes: 4, This 4-axis HELLER MCH 250 was manufactured in 2007. It features a spindle speed of 6000 rpm and a BT50 tool holder. The machine is equipped with an automatic tool changer that holds 100 tools, enhancing productivity. If you are looking to get high-quality machining capabilities, consider the HELLER MCH 250 horizontal machining centre we have for sale. Contact us for further details. • 4th axis rotary table, 1-degree indexing • Probe (workpiece/tool probing system) Technical Specification Lodpfxoy Epfvj Agrsrt Taper Size BT 50

Condition: used, Year of construction: 2002, Technical details: x-travel: 630 mm y-travel: 630 mm z-travel: 630 mm pallet size:: 400 x 500 mm spindle taper:: HSK 63 spindle turning speed - stepless: 10 - 16000 U/min total power requirement: 55 kW weight of the machine ca.: 11 t Machine with SIEMENS 840 D control for 4 axis - digital drives - palette changer 4-fold - tool changer 160-fold - coolant device with coolant through spindle - full B-axis - chip conveyor - hydr. workpiece clamping * Lsdpjvgmiyefx Agrsrt

Condition: used, Year of construction: 2013, Brand : GEMINIS Model : GT5 G2 1200x1000 Manufacture year : 2013 Cnc : SIEMENS 840D-SL Center height: 615 mm Swing over cross slide: 850 mm Swing over bed : 1200 mm Main spindle bore diameter: 104 mm Main spindle nose: DIN 55026-11 mm Spindle diameter on front bearing:150 mm Turning Speeds : 0-1400 rpm Spindle Ranges: 4 Headstock power: (S1/S6-60%) 30/37kw – (37/46kw Optional) Headstock torque: (S1/S6-60%) 4000/4850 Nm (4800/5950Nm) Guide width: 655 mm Lrjdpezn Axiofx Agrjt Height up to the plane guide: 800 mm

Condition: excellent (used), Year of construction: 2007, Control: Siemens 840D powerline Travel paths X/Y/Z: 630/630/630 mm 2-fold pallet changer Lodpfx Agszb R I Terert Spindle speed: 10,000 rpm Knoll coolant system with paper band filter Tool holder: SK40 Tool magazine with 80 stations

Year of construction: 1991, condition: used, max. wheel diameter 400 mm max. number of teeth 150 max. module 5 total power requirement 16 kW weight of the machine ca. 10 t Workpiece Ø, min./max. 30 - 400 mm Ljdpjt Hwylsfx Agrort Number of teeth 6 - 150 Module range, max. 5 Tool holder shaft Ø SK 30 / 20 Tool speeds 4,000 rpm Spindle drive max. infinitely variable 1.8 kW Feeds, longitudinal and cross 0.001 - 12 m/min Workpiece speed, max. (1.5 kW) C Axis 2,000 rpm Workspindle slide 400 mm Tool speed, max. 3,000 rpm Tool holder SK 30 Total electrical load, approx. 16 kW - 380 V - 50 Hz Weight, approx. 10,000 kg Accessories / Special Features * BWO (HECKLER & KOCH) CNC Control model 785 H for altogether 7 axes. Input via monitor. The control has all the supervision and fault diagnosis features necessary for fully automatic working process. * 2 workspindle units, left and right, which can be set at any angle. * CNC controlled: Z and W Axes for tool cross slide. X and U Axes for tool longitudinal slide. * L and O Axes for milling spindle. C Axis for workspindle rotation. * Manually controlled: Tool slide rotary table (B and E Axes). Tool slide vertical infeed (V and Y Axes). Tilt of tool head (A and D Axes). All axes have digital display in the control. * Hydraulically operated workpiece clamping device in conjunction with an automatic loading device using workpiece feed / conveyor belt and swivelling loading device, as well workpiece control by air. * Coolant equipment with chip conveyor. * Noise protection cabin. * Central lubrication. * Built-on hydraulic unit. * Pneumatically driven safety doors. * Deburring device, etc. The machine uses the hypocycloidal milling principal, with electronically synchronized tool and workpiece axes for working straight roof-formed teeth, symmetric as well as asymmetric forms. Advantages are high precision and productivity. Condition : Good to very good. Machine can soon be inspected under power. Delivery : Ex stock, as inspected Payment : Net, after conclusion of contract Thank you for your interest. We always have a good selection of gear machines available on stock.

Condition: used, Year of construction: 2000, x-travel 800 mm y-travel 500 mm z-travel 510 mm total power requirement 60 kW weight of the machine ca. 10 t Lsdpfst Hwyrex Agrort dimensions of the machine ca. m

Condition: used, Year of construction: 2002, x-travel 630 mm y-travel 630 mm z-travel 630 mm Control Siemens type 840 D size of pallet 400x500 mm numbers of pallets 4 360 ° turning speeds 10-16000 U/min Tool changer 160 Pos. spindle taper: HSK 63 total power requirement 55 kW weight of the machine ca. 11 t Machine with Siemens 840 D control for 4 axes - Digital drive technology, direct position measuring systems - 4-position pallet changer - Full B-axis Lodpfx Agsyqt Axorort - Coolant system with internal coolant supply - Hydraulic workpiece clamping - Filtration system The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team
