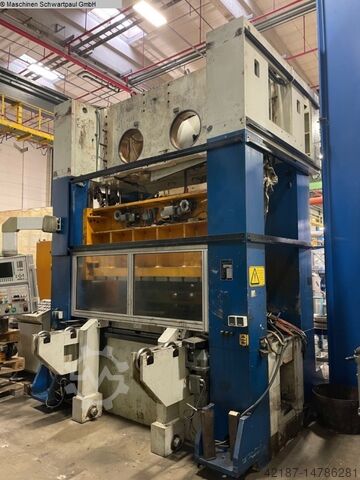

Double-sided high speed press

HELMERDING KDH315/2100/2

Year of construction: 1995, condition: used, pressure 125 t stroke 10-80 mm no. of strokes 240 Hub/min ram - range of adjustment 80 mm table surface area 850x600 mm Hnjdpslp U Nqefx Akrsu ram surface 760x550 mm hole in the table 850x130 verstellbar mm table height 1100 mm tool hole in ram Ø 50 mm total power requirement kW weight of the machine ca. 13 t dimensions of the machine ca. BxTxH: 3000x2000x3300 mm

Year of construction: 1981, condition: used, pressure 63 t stroke 6-60 mm no. of strokes 90-550 Hub/min Hodpfx Akjlp U R Iorenu 300 mm table surface area 780x600 mm ram surface 807x460 mm tool hole in ram Ø 40 mm ram - range of adjustment 80 mm total power requirement 15 kW weight of the machine ca. 8 t dimensions of the machine ca. BxTxH 2900x2000x3000 m

Condition: used, Year of construction: 1980, functionality: fully functional, Kohler straightening machine 30-400 - built in 1980 Hjdpfxov Hrlte Akrjnu Number of straightening rollers 9 Max. belt width 400 mm GSW decoiler AHM 1500 - built in 1999 Mounted together on a base frame Further data and pictures on request

Condition: used, Year of construction: 1990, Decoiler Coil weight: 2,5 ton Material width: 50 - 500 mm Coil exterior diameter: 1400 mm Expansion range: 420 - 520 mm Leveller / Straightener Material width : 500 mm Number of levelling rolls: 9 pcs. Diameter of the levelling rolls: 50 mm Number of pinch rolls: 2 pcs. Material thickness: 6 mm Cross section: 3000 sq mm Hnedpfx Ajuqdhkskreu Feeding speed: 6 - 24 m / min Standard configuration DREHER - Model WAV-MD-25, YOM 2000Electronic universal roller feedSheet width max. 510 mm Sheet thickness max. 6.5 mm Number of feed rollers 2 Diameter of feed rollers 125 mm Feed speed 137 m / min Feed length 0 - 9999.99 mm Feed accuracy +/- 0.05 Drive power 5.5 kW

Condition: used, Year of construction: 2006, functionality: fully functional, year of last overhaul: 2022, SCHULER GRÄBENER TMK 2-630 – 630 t Punching and Forming Press with Coil Feeding System Manufacturer: SCHULER / Gräbener Pressensysteme Type: TMK 2-630-3.0-50/210 S Year of Construction: 2006 Press Force: 6,300 kN / 630 t Design: Mechanical Punching and Forming Press / Single-Action Press For sale is a SCHULER GRÄBENER TMK 2-630 mechanical single-action press / punching and forming press with a press force of 6,300 kN, including a complete SCHULER automation strip guiding, straightening, and coil feeding system. The system was used for the mass production of punched and formed parts and is currently still fully assembled on site. Technical Data Press Rated Force: 6,300 kN Rated Stroke: 12 mm Stroke: 50–210 mm Stroke Rate: 15–60 strokes/min Hnedpfx Akjzv Utnjreu Max. Flywheel Speed: 960 1/min Ram Adjustment: 200 mm Max. Installation Height: 800 mm Table / Tooling Area: approx. 3,000 × 1,500 mm Max. Tool Dimensions: 3,000 × 1,500 × 800 mm Max. Tool Weight: 12,000 kg Drive Power: max. 280 kW Rated Current: 420 A Compressed Air: 6 bar Hydraulic System: 400 bar Clutch / Brake: 6 bar Permissible Switching Rate Clutch / Brake: 16/min Machine Weight without Accessories: approx. 138,000 kg Coil and Feeding System SCHULER Automation / Gräbener Pressensysteme, Year of Construction 2006. Coil / Uncoiling Unit: Type AC-LH-160-0650 Strip Width: 40–600 mm Coil Outer Diameter: 900–1,800 mm Spreading Range: 470–530 mm Coil Uptake / Uncoiling Strip Guiding and Straightening System Threading / Strip Guiding Devices Automated Material Feeding Roller Guides Conveying / Removal Technology Complete Protective Enclosure Control / Operation SCHULER System Control Siemens SIMATIC Operating Components Siemens SIMATIC OP17 Touch Panel Separate Operating Panel for the Feeding System Setup Operator Devices Unidor Process / System Monitoring Condition and Maintenance The system was overhauled in 2022 for approximately €85,000. The maintenance history has been regularly recorded. Current maintenance and repair records are also available for 2026. The system is fully assembled on site and can be inspected by appointment. Scope of Supply The press system is sold, including the associated SCHULER automation and the existing coil, strip guiding, straightening, feeding, and removal technology, as well as the associated protective enclosure and operating / control devices, according to the existing system scope. Complete Service from a Single Source Upon request, we offer a complete project management service for this system – from financing to installation and commissioning at the new location. Possible Services: Individual financing and leasing solutions Organization and support for disassembly Heavy-load loading and transport International transport and export processing Organization of crane and heavy-load operations Reconstruction and assembly at the new location Support during commissioning Coordination of required service and specialist companies This allows the system to be taken over not only at the current location, but also as a completely organized machine project, depending on the customer's requirements. Location: Germany Availability: by arrangement Inspection: by appointment Disassembly / Transport / Reconstruction: can be completely organized upon request Financing / Leasing: upon request Technical data based on available documents and nameplates, subject to change and prior sale.

Condition: used, Year of construction: 1994, table length: 1,780 mm, table width: 1,250 mm, pressing force: 320 t, High-performance mechanical punching press with coil line for strip material processing in series production. Manufacturer: Kaiser Pressen Model: KSTU 3150-15 R Machine type: Punching press Year of manufacture: 1994 Press force: 3150 kN Hnedpfsy Ndyaox Akrsu Drive type: Mechanical Stroke rate: 20 – 120 spm Ram stroke: 20 – 150 mm Ram adjustment: 150 mm Table area: 1780 x 1250 mm Ram area: 1500 x 1000 mm Shut height: 565 mm Max. tool weight: 3000 kg Strip width: 30 – 800 mm Strip thickness: 0.5 – 3 mm Max. strip thickness: 4 mm Strip entry height: 160 – 260 mm Strip speed: 4 – 30 m/min Straightening rolls: 9 pcs Feed accuracy: ± 0.1 mm Coil inner diameter: 508 mm Coil outer diameter: 1000 – 1500 mm Supply voltage: 3 x 400 V Air pressure: 5 bar Location: Radeberg

Condition: used, Year of construction: 1981, machine/vehicle number: 104680, Press capacity: 45 ton Ram stroke adjustable: 10 - 40 mm Slide adjustment: 50 mm Shut height (stroke down, adjustment up): 220 - 300 mm Free frontal opening L-R: 560 mm Table surface area : 550 x 450 mm Slide area: 550 x 360 mm Hnodpfx Akjuqcwderou Hole in table: 450 x 100 mm Number of strokes: 100 - 500 s.p.m. Required power: 7,5 kW Weight of machine approx.: 6,2 ton

Condition: used, Year of construction: 1985, Technical details: Hjdpfx Akou Icwgsronu Punching capacity: 40 kN air pressure - required: 8 bar ram stroke - adjustable min/max: 6 - 50 mm ram adjustment: 50 mm no. of strokes: 70 - 400 Hub/min Table dimensions: LxB: 480 x 445 mm hole in table: LxB: 250 x 112 mm slowing-down time: 80 ms bei 450 U/min. clamping surface ram: LxB: 420 x 345 mm ram hole: Ø 40 x 230 mm voltage: 380 V control voltage: 220 V frequency: 50 Hz total power requirement: ca. 19 kVA (ca. 7,5 KW) weight of switch cabinet: 0,3 t machine weight ab.: 4000 kg 40t punching press without roll feed/conveyor belt system Operation via control panel / two-hand operation Operation: manual / automatic *

Condition: used, Year of construction: 1980, machine/vehicle number: 130861, Press capacity: 50 ton Ram stroke: 54 mm Slide adjustment: 80 mm Shut height (stroke down, adjustment up): 303 mm Table surface area : 810 x 550 mm Number of strokes: 65 - 400 s.p.m. Weight of machine approx.: 7,5 ton Main Motor: 11 kW Hnodouqc Hlopfx Akreu Extended machine accessories IMCO Press force measurement Automation Grip Feeder, Type ZR18ZT1Max. Sheet width 180 mmFeeding length 150 mm
