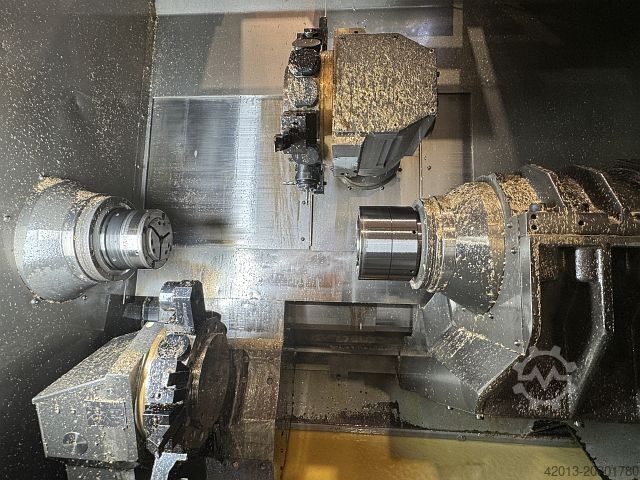

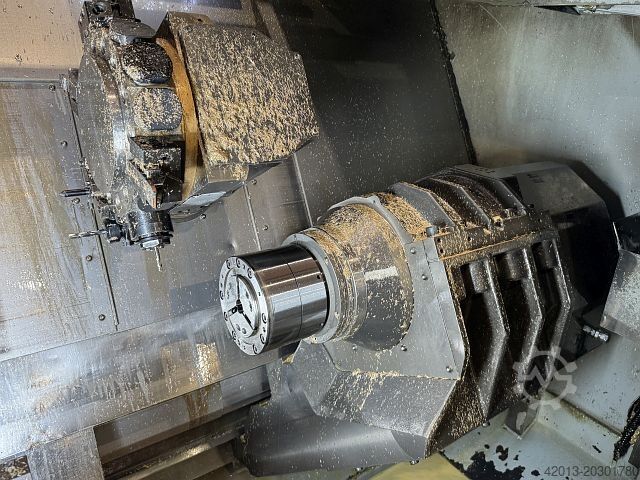

Turning and Milling Center

INDEX G 200

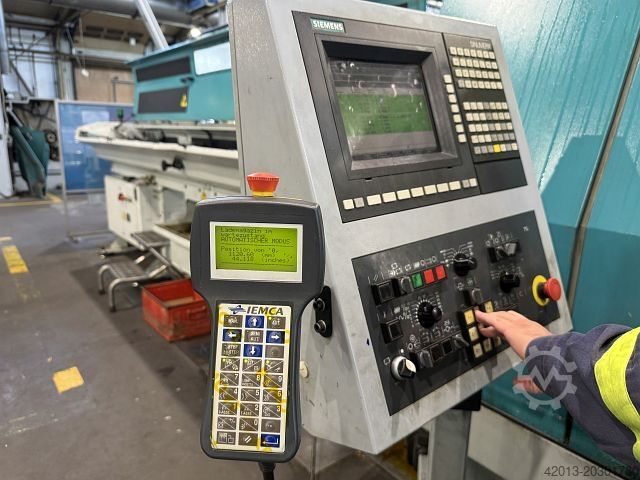

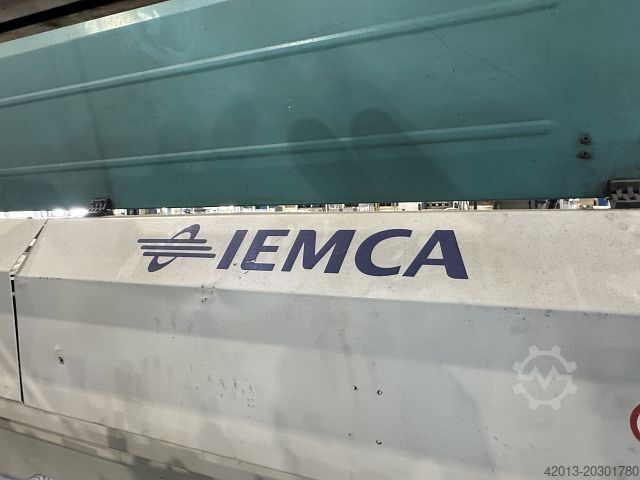

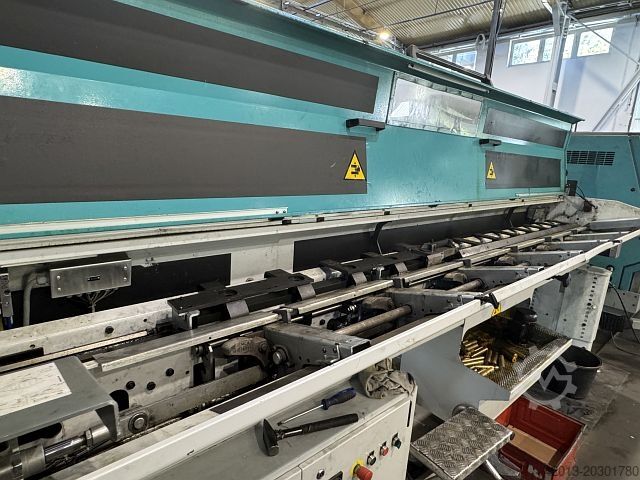

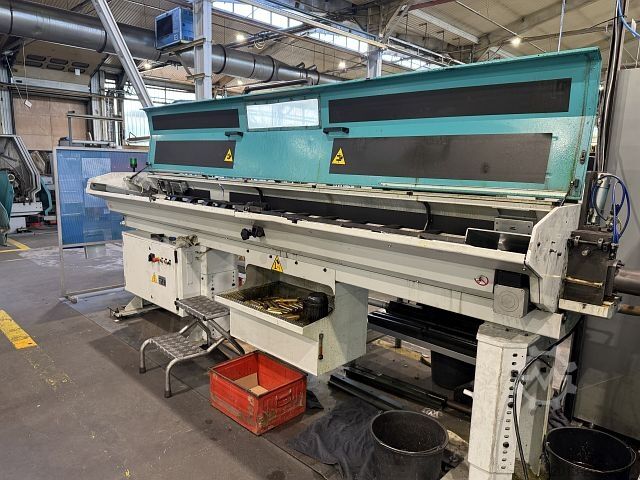

Condition: used, Year of construction: 2007, Technical Specifications: • Power supply: 3-phase / 50 Hz • Voltage: 400 V • Control voltage: 24 V • Rated current: 68 A Included Equipment: • Bar feeder IEMCA Master 880 MP/33 L Serial number: 020721SA07 Year of manufacture: 2007 Air pressure: 6 bar Voltage: 400 V / 3 ~ / 50 Hz Current: 6 A Weight: 1,360 kg Manufacturer: IGMI S.p.A. (BUCCI Industries), Faenza, Italy Godpfx Aoxnlv Rofpeuh

Condition: ready for operation (used), Year of construction: 2000, operating hours: 45,000 h, General Data Measurements width 1910 mm Measurements depth 3580 mm Gujdpfx Asxfwzmefpeh Measurements height 2050 mm Machine weight 4000 kg Control Unit Brand INDEX Model C200-4 / C200-8 Additional Equipment Synchronous device for counter spindle machining Tool carrier 3 for synchronous spindle (rear end machining) Additional milling spindle Thread milling and polygon turning device Gripperless tool changer (6 tools, HKS-50 B, KM40) Workpiece handling WHU100 This 5-axis Index G200 C turn-mill centre was manufactured in 2000. Consider the opportunity to buy this Index G200 C turn-mill centre. Contact us for more information. Application Types Turning

Condition: good (used), Year of construction: 1995, Automatic lathe INDEX G200, no. 510268, year 1995, control SIEMENS Sinumerik with filter system and bar feeder IEMCA TAL/Auto 65/32, no. 88071908 Gusdpfx Ajunwiijfpjh

Condition: refurbished (used), Year of construction: 2017, functionality: fully functional, machine/vehicle number: 510864, turning length: 200 mm, CNC lathe INDEX G200 Overhauled: 2017 Machine number: 510864 max. turning length: 200 mm Bar loading magazine INDEX MBL Main spindle Spindle passage collet clamping: 42mm Spindle diameter in front bearing: 85mm Spindle nose ISO702/1: 5 Chuck diameter: 140/160 Max. Nominal turning diameter: 200mm Max. Rotation diameter: 420mm Power Pmax 100%: 7.5/13/20 Torque Mdmax 100%: 35/61/95 Speed: 6300 Counter spindle Spindle passage collet clamping: 42mm Spindle diameter in front bearing: 85mm Spindle nose ISO702/1: 5 Chuck diameter: 140/160 Power Pmax 100%: 7.5/13 Torque Mdmax 100%: 35/61 Speed: 6300 Min. distance collet: 15mm Longitudinal travel: 445mm Rapid traverse: 22.5mm Cross slide 1 XZ (top) XZ: 120x400mm Feed force: 5000N Cross slide 2 (bottom) XZ: 105x400mm Feed force: 5000N Gsdpjulhinjfx Afpjuh Further information on request!

Condition: used, TECHNICAL DETAILS - Number of axes : 9 - Number of spindles : 2 - Number of turrets : 2 MAIN SPINDLE - Spindle nose : A2-5" - Spindle power : 20/29 [kW] Godpfsuhaf Esx Afpsuh - Spindle speeds : 5.000 [rpm] - Max. bar diameter : 65 [mm] - Max. turning diameter : 200 [mm] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Spindle nose : A2-5" - Spindle power : 13/22 [kW] - Spindle speeds : 5.000 [rpm] - Max. bar diameter : 60 [mm] - C axis indexing precision : 0,001 [°] - Travel : 445 [mm] TURRET - Number of positions : 14 - Number of motorized positions : 14 - X/Z stroke : 155/590 [mm] - Y stroke : 120 [mm] - B Axis stroke : 360 [°] - Tool holder type : VDI 25 - Live tools speed : 6.000 [rpm] MILLING SPINDLE - Spindle speeds : 6.000 [rpm] - Spindle power : 5,5 [kW] LOWER LEFT TURRET - Number of positions : 14 - Number of motorized positions : 14 - X/Z stroke : 105/400 [mm] - Tool holder type : VDI 25 - Live tools speed : 6.000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 39 [kW] WEIGHT & DIMENSIONS - Machine floor space : 3.450 x 2.520 [mm] - Machine height : 2.650 [mm] - Machine weight : 4.800 [kg] EQUIPMENT - CNC : INDEX C200-4 (Siemens 840D) - Tailstock option with counterspindle - Coolant tank - Chips conveyor : Droite KNOLL - Tool probe : Renishaw - Tool breakage detection - Parts catcher - Chuck 3 jaws : SMW 210BH - Collet chuck : HAINBUCH Spanntop 65 - Number of fixed tool holders : 28 - Number of turning tool holders : 5

Year of construction: 1995, condition: ready for operation (used), Max. speed range: 5000 rpm, bar capacity: 65 mm, max. turning diameter: 200 mm, max. turning length: 400 mm. Number of spindles: 2, tool changer: 2x 14, Siemens control. Including outfeed conveyor, KNOLL 400S-1 chip conveyor (year of manufacture: 2016), switch cabinet with cooling unit, CO2 extinguishing system and INDEX bar loader. General overhaul in 2016. Gusdpfx Afjtdwwmopjh

Condition: used, Year of construction: 2001, Technical Specifications: • Power supply: 3 Ph / 50 Hz • Voltage: 400 V • Control voltage: 24 V • Rated current: 76 A • Total power: 42 kW • Machine weight: 4,800 kg • Electrical cabinet weight: 440 kg Included Equipment: • Bar feeder IEMCA Master 880/33R P Serial number: 0200141S02 Year of manufacture: 2001 Supply voltage: 380 V / 3 Ph / 50 Hz Control voltage: 220 V / 24 V Power consumption: 6 A Machine weight: 120 kg Gsdpfx Aexnlk Ujfpjuh

Condition: used, TECHNICAL DETAILS - Number of axes : 7 - Number of spindles : 2 - Number of turrets : 1 MAIN SPINDLE - Spindle nose : A2-5 - Spindle power : 22 [kW] - Spindle speeds : 6000 [rpm] - Max. bar diameter : 60 [mm] - Max. turning diameter : 200 [mm] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Spindle nose : A2-5 - Spindle power : 22 [kW] - Spindle speeds : 6000 [rpm] - Max. bar diameter : 60 [mm] - C axis indexing precision : 0.001 [°] - Z stroke : 445 [mm] TURRET 1 - Number of positions : 14 - Number of motorized positions : 14 - X/Z stroke : 105/400 [mm] - Y stroke : 120 [mm] - B Axis stroke : +90/-270 [°] - Tool type : VDI 25 - Live tools speed : 6000 [rpm] - Live tools power : 5.5 [kW] POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 4.975 X 2.890 [mm] - Machine height : 2.050 [mm] - Machine weight : 4800 [kg] EQUIPMENT Guodpfxeu Hadhs Afpoh - CNC : Siemens 840C - Coolant tank * with high-pressure pump - Chips conveyor - Parts catcher - Parts conveying strip - Bar loader : LNS

Year of construction: 2003, condition: ready for operation (used), Max. turning diameter: 200mm, max. turning length: 400mm, spindle speed: 6000rpm, bar capacity: 42mm, weight: approx. 4300kg. Guedpstdwwqofx Afpjh

Year of construction: 1997, condition: ready for operation (used), Turning diameter: 200mm, turning length: 400mm, turning diameter: 420mm, bar diameter: 60mm, max. spindle chuck diameter: 160mm, speed: 5000rpm, turret: 2, positions: 2x14, rapid traverse X/Z: 20m/min/30m/min. Machine dimensions X/Y/Z: approx. 7500mm/2100mm/2100mm, weight: approx. 4500kg. Documentation available. On-site inspection is possible. Gsdpfou T Rgksx Afpouh
