Conveyor belt Italpresse

Italpresse

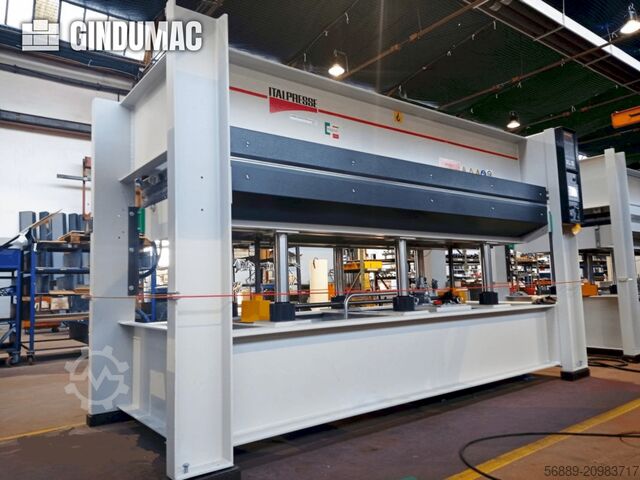

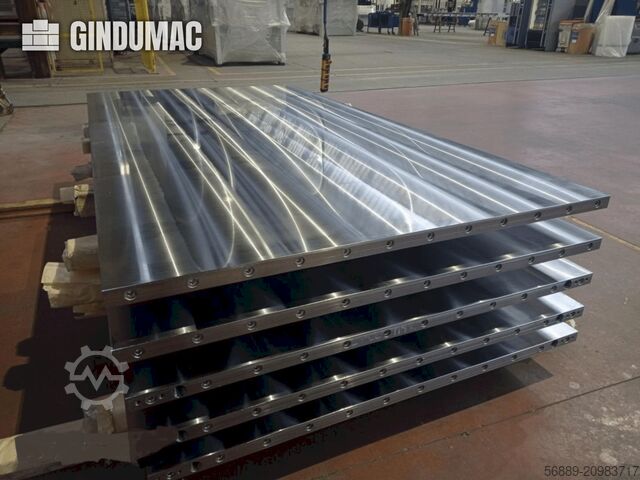

Condition: ready for operation (used), Year of construction: 2025, pressing force: 122 t, This ITALPRESSE XL/6 30-13 PM BO veneer press was manufactured in 2025. Consider the opportunity to buy this ITALPRESSE XL/6 30-13 PM BO veneer press. Contact us for more information. Additional equipment • Mylar Foil Attached to Upper and Lower Press Plates • Electronic Flatness Control (EFC) for Incorrect Loading Protection Machine Benefits Technical Machine Benefits • Dimensions of heating plates: 3000 x 1300 mm • Number of heating plates: 2 pcs • Number of levels: 1 • Level opening: 370 mm • Max temperature of heating medium: 120°c Iodpeyan Sgjfx Ahuotb • Working temperature: 70-90°c • Installed electrical heating power: 18 kw • Operating voltage: 400 v- 50hz- 3 ph Extra Information Features: Touch Screen SIEMENS 4.3 Inch TFT Digital Press Timer Digital Temperature Controller Digital Working Pressure Controller Day/Week Timer for Heating Switch-On Time Automatic Hydraulic Pressure Calculation Error Display and PLC Control Save and Recall up to 200 Work Programs Pre-Press Pressure and Time Settings Safety Devices: Two-Hand Release with Safety Circuit Safety Rip Cord around the Machine Safety Support for Lower Press Table Protective Plate for Rack/Gear Safety Instructions Sticker CE Standard Compliance CE Declaration of Conformity Special Processing of Solid Steel Heating Plate Surface Switching Off Left Cylinder Row

Condition: ready for operation (used), Year of construction: 1998, This ITALPRESSE DS 130 was manufactured in 1998. A robust veneer press featuring a motorized infeed table with a PVC belt and an automatic loading system for efficient panel handling. It boasts a maximum total lifting force of 110 tons and a heating plate size of 3500 x 1400 mm. Ideal for high-quality veneering processes. Contact us for more information about this machine. Additional equipment • Motorized infeed table with PVC belt • Motorized loading table for manual assembly of the panels and automatic loading into the press on the 3500 mm side • Heating plates made of solid steel, drilled and machined on all sides • Automatic loading and unloading of the panels on the 3500 mm side Machine Benefits Technical Machine Benefits • Maximum total lifting force: 110 tons Itedpfx Aeyall Rshusb • Opening: 140 mm • Power supply: 400 volt eu / 50 hz / 3 ph. + g • Electrical boiler for thermal oil: 18 kw • Devices for adjusting the working height for flatness on all uneven floors // devices for adjusting the belt tension and centering with foot switch • Construction made of assembled and welded fe430 steel beams • Cnc-machined structures for three-dimensional parallelism • Hydraulically controlled planarity with 4 racks and pinions • Protective nets and safety devices in accordance with ce regulations • Leveling devices at the base of columns for uneven floors Extra Information Refurbished - without warranty Control panel with electric pressure gauge, buttons, and control switches Lifting hooks for transport by crane

Condition: used, Capacity 350cm/130cm Opening 38cm Itjdpfsyac Dqsx Ahuob 8 cylinders Oil heating Weight kg

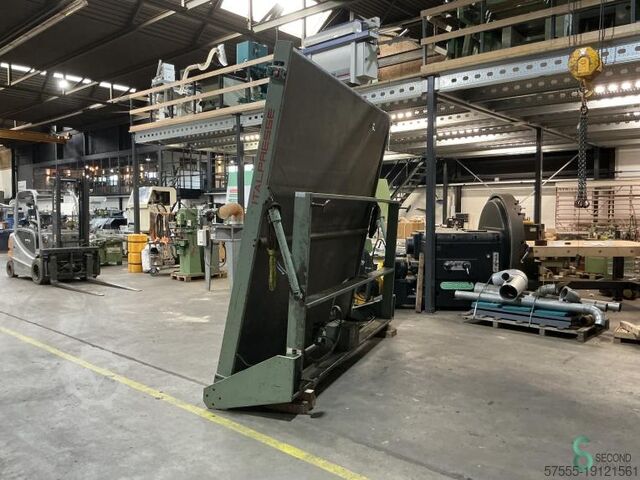

Condition: excellent (used), functionality: fully functional, VERTICAL CLAMP PRESS , HYDRAULIC , model ITALPRESSE PROGRAM 30 second hand machine operation in manual and/or automatic mode with automatic piston opening timer Itedeuxdprjpfx Ahuob volt. 380/50 technical data: max. useful working dimensions mm. 3000 x 1700 min. useful working dimensions mm. 250 x 340 hydraulic pump , motor power Hp 2 adjustable vertical pressure adjustable horizontal pressure movable control panel base with height adjustment overall dimensions mm 3600 x 1000 x 2340 (H)

Condition: excellent (used), Year of construction: 2002, plate length 3500mm plate width 1300mm Ijdpfx Ahox Sqlzouotb solid steel plates oil heating with included heater 8 hydraulic pistons pistons diameter 85mm total pressure 160 tons safety line switch year 2002

Condition: excellent (used), total width: 1,500 mm, total length: 3,000 mm, Panel press in very good working condition + Grecon finger jointing Itjdpjt Uduxsfx Ahuob

Condition: used, functionality: fully functional, VERTICAL CLAMP FOR WINDOWS ITALPRESSE Itodpfx Aex Rrp Eohuob

Condition: used, Year of construction: 2001, functionality: fully functional, working width: 1,600 mm, number of cylinders: 4, SECOND-HAND BENDING PRESS ITALPRESSE MOD. PHF 60 - CE RULES - Platens dim. mm. 1600X1100 - N. 4 cylinders - Max opening 1000 - Motors max 1.5 kw - Volt. 380/50 - Year 2001 Itsdpfxjx Rdkbo Ahujb

Condition: as good as new (ex-display), Year of construction: 2024, new heating plate press, hydraulic ITALPRESSE type XL/6 30-13 with gold anodized plates Touch display control - electric heating plates 3.000 x 1.300 mm - Total pressure 90 to. - Number of heating plates 2 pcs. - Number of shelves 1 pc. - Cylinder stroke 350 mm - Shelf opening 350 mm - Loading from all sides Itedpfxedx R Tfs Ahuob - Number of impression cylinders 6 pcs. - Diameter of pressure cylinders 85 mm - Power requirement of hydraulic unit 3 kW - Electric heating plates made of solid hard aluminum with built-in heating wires - Heating capacity 22 KW - High-pressure insulating plates - Working temperature 90° C. - max. temperature 120° C. - Operating voltage 400 V/50 Hz - Safety regulations according to CE standard Standard equipment: - Movement of the press table with rack and parallel guides at 2 corners of the press table made of self-lubricating material - Touch screen electronic control unit for controlling and monitoring the machine - Digital timer for setting the pressing time and automatic opening - Digital input and monitoring of the pressing pressure - Digital timer for setting the pressing time - Digital diagnosis and display of fault messages - Safety circuit with two-hand operation - Safety rip cord - Safety bracket for lower pressing table Integrated accessories: - Touch Screen TS/400 - EFC electronic flatness control - Gold anodized heating plates (Busse) Location: From stock 54634 Bitburg - immediately available-

Condition: excellent (used), Year of construction: 2020, New hydraulic heating platen press Manufacturer: ITALPRESSE, Type XL/6 30-13 with gold-anodized plates Touch display control system - Electric heating platens 3,000 x 1,300 mm - Total pressing force: 90 tons - Number of heating plates: 2 pcs. - Number of levels: 1 - Cylinder stroke: 350 mm - Daylight opening: 350 mm - All-around loading possible - Number of hydraulic cylinders: 6 pcs. - Cylinder diameter: 85 mm - Hydraulic unit power requirement: 3 kW - Electric heating plates made of solid hard aluminum with built-in heating wires - Heating capacity: 22 kW - High-pressure insulation plates - Working temperature: 90° C - Max. temperature: 120° C - Operating voltage: 400 V, 50 Hz - Safety specifications according to CE standard Standard equipment: - Movement of the press table with rack-and-pinion and parallel guides at 2 corners of the press table made from self-lubricating material - Electronic control unit with touch screen for machine control and monitoring - Digital timer for adjusting pressing time and automatic opening - Digital input and monitoring of pressing pressure - Digital timer for adjusting pressing time - Digital diagnostics and fault display - Safety circuit with two-hand operation - Safety pull cord - Safety support for lower press table Accessories included: - Touch Screen TS/400 - EFC electronic flatness control Itsdpfx Ajxgbxfehusb - Gold-anodized heating plates (Busse) Location: Ex stock - Immediately available -
