CNC vertical milling machine
JAFO FYN 50 NB

Name: JAFO FYN 50 NB
Brand: JAFO
Availability: InStock

Condition

Used

Location

Neubrandenburg Germany

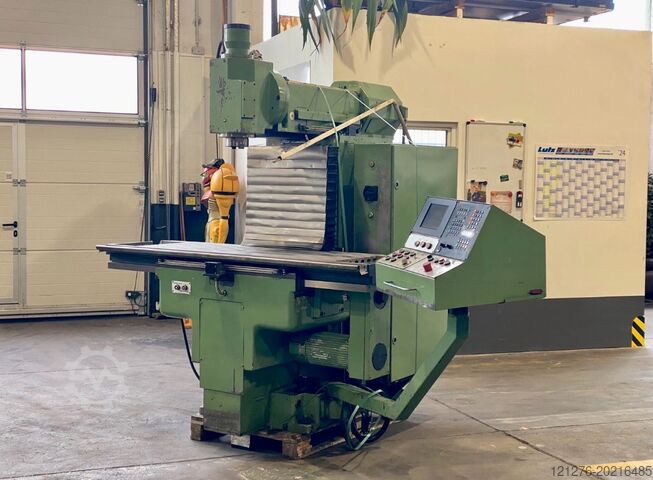

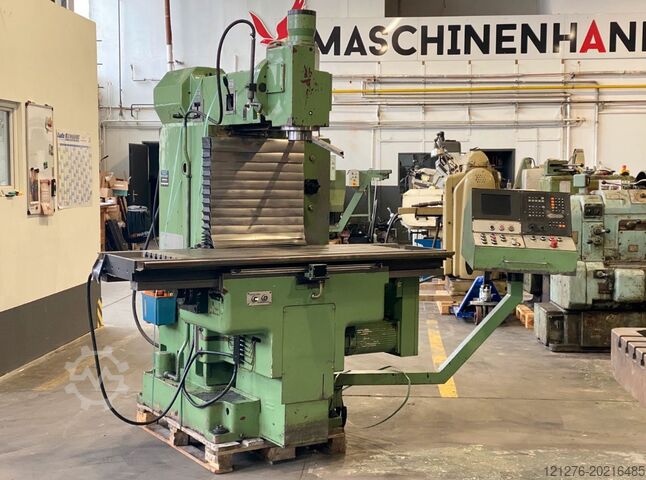

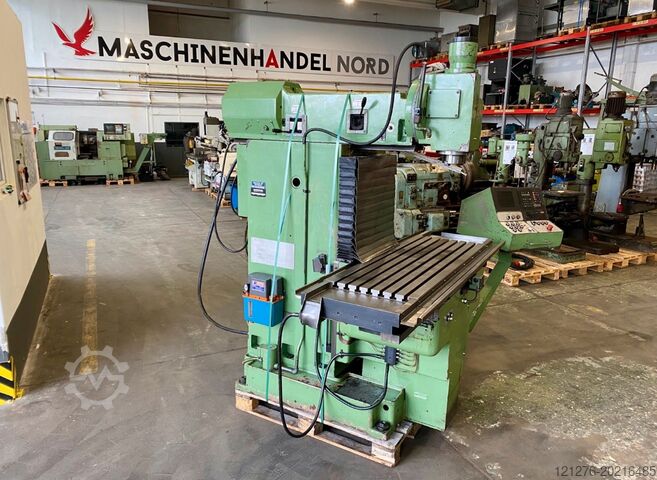

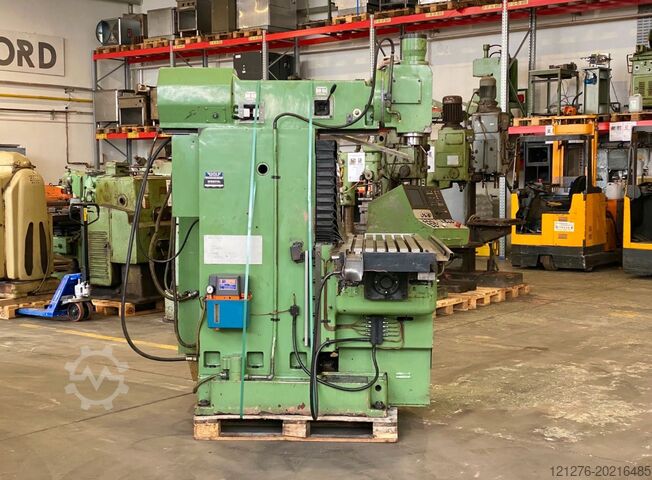

CNC vertical milling machine JAFO FYN 50 NB

Machine data

Machine type:: CNC vertical milling machine

Manufacturer:: JAFO

Model:: FYN 50 NB

Condition:: not inspected (used)

Price & Location

Seller location:: Gerstenstraße 2, 17034 Neubrandenburg, Germany

Call

Details about the offer

Listing ID:: A202-16485

Update:: 04.10.2025

Description

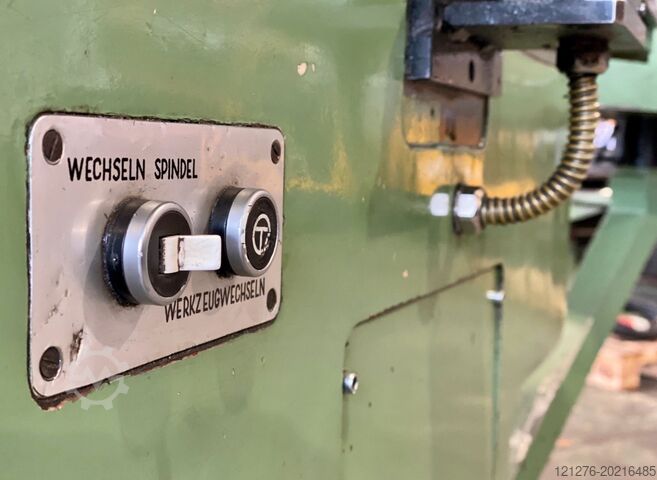

JAFO FYN 50 NB – CNC Vertical Milling Machine For sale is a CNC vertical milling machine from JAFO, model FYN 50 NB, year of manufacture 1988. The machine is fully operational and ideal for precise milling operations on workpieces up to 700 kg including clamping device. ⸻ Technical Data • Travel (X/Y/Z): 800 × 500 × 500 mm • Table working area: 500 × 1,400 mm • Number of T-slots: 7 • Slot width: 18 mm • Slot pitch: 63 mm • Max. longitudinal table travel: 800 mm • Max. vertical knee travel: 500 mm • Max. transverse spindle head travel: 500 mm • Feed rate: stepless 0–4,000 mm/min • Spindle taper: ISO 50 • Head swivel angle: ±45° • Distance spindle axis to vertical guides: max. 590/90 mm • Spindle speed: 56–1,800 rpm • Rapid traverse: 4,000 mm/min • Spindle drive motor power: 5.5 kW • Operating voltage: 380 V, control voltage 24 V • Total power consumption: 10 kW • Dimensions (L×W×H): 2,080 × 1,700 × 2,260 mm • Total weight incl. hydraulic unit: 4.5 t ⸻ Equipment & Features • Vertical, swivelling milling spindle on a transversely adjustable ram • Hydromechanical tool clamping system • Separate feed drives with DC motors and permanent magnets • Power transmission via toothed belt to preloaded ball screws • Automatic lubrication system for spindle drive and guideways • Hydraulic counterweight for the knee • Manual adjustment via electronic handwheel • Heidenhain control at the swivelling control panel, control cabinet mounted on the machine base • Documentation and operating manual included • Additional images and videos available upon request ⸻ The machine is immediately ready for operation. • Inspection possible at any time • Europe-wide transport available ⸻ Contact Maschinenhandel Nord Gerstenstraße 2 17034 Neubrandenburg 📞 All prices net plus VAT. Subject to modifications and errors.
Lsdpfx Aexk Tzgjmmoac

The listing was translated automatically. Translation errors are possible.

Seller

Registered since: 2022

24 listings online

Call

Send inquiry

Telephone & Fax

+49 395 4... show
