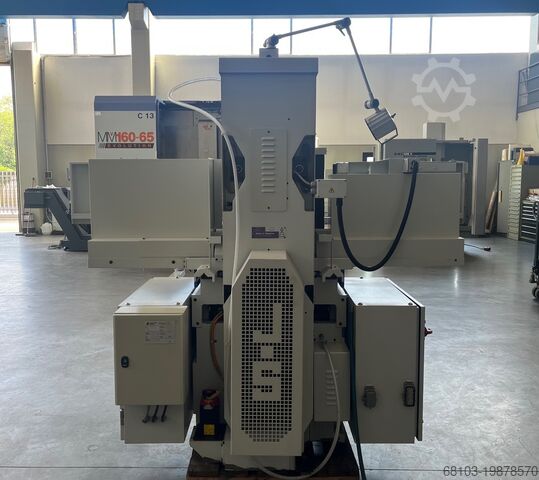

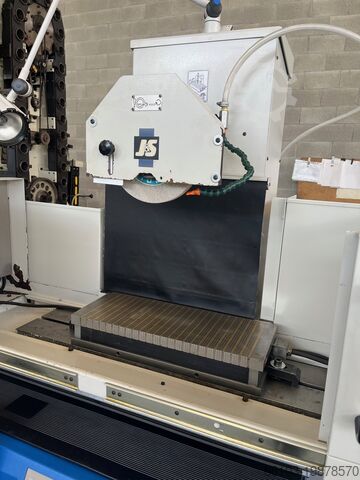

Surface grinder

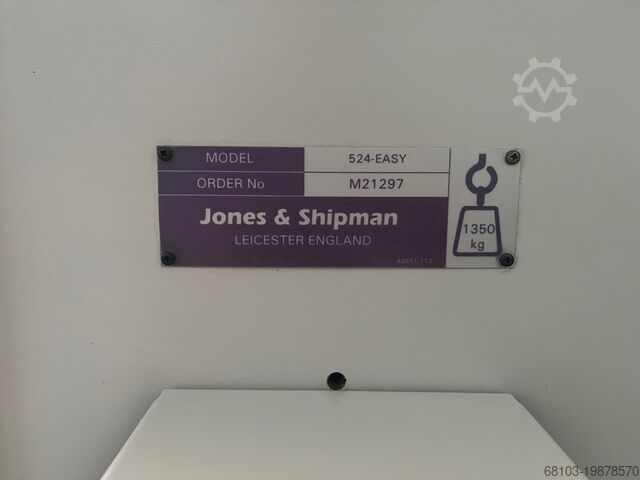

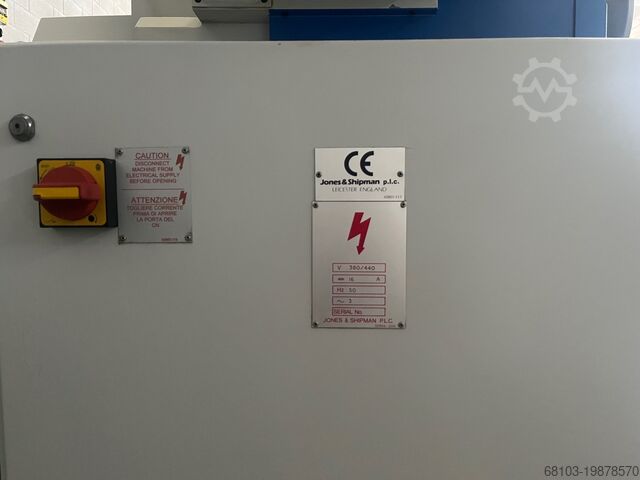

Jones & Shipman 524 EASY

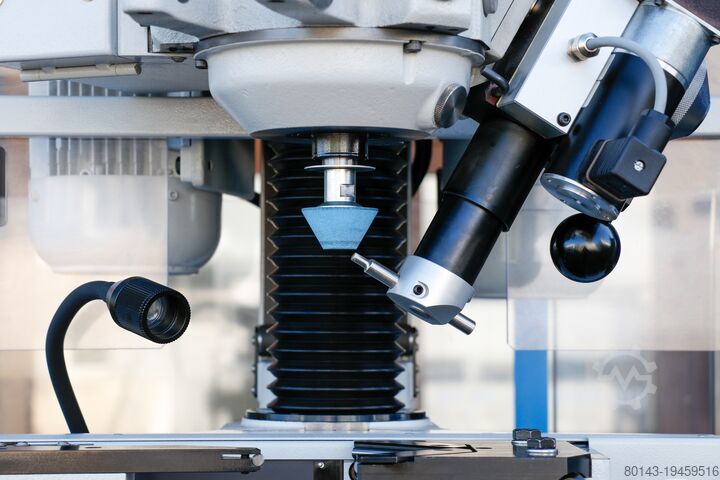

Condition: new, Year of construction: 2025, functionality: fully functional, workpiece weight (max.): 170 kg, grinding spindle speed: 45,000 rpm, spindle speed (min.): 5,000 rpm, spindle speed (max.): 45,000 rpm, clamping diameter: 140 mm, clamping length: 1,100 mm, Workpiece Clamping Diameter : ø 3 – 140 mm Workpiece Length : 50 – 1.100 mm Centre Hole Diameter : ø 1 – 100 mm Workpiece Weight : max. 170 kg Center Hole Angle : 60 ° Accuracy : < 1 µm (Submicron accuracy) Spindle Speed : 5.000 – 45.000 rpm Grinding Cone Movements : 3+1 Rotation Orbital rotation Stroke movement +1 Workpeice rotation Quirlig Grinding Technique : Included (Cross-hatched grinding pattern) Grinding Process : Semi-Automatic, CNC Control Panel : Beckhoff CNC Movements : Z-Axis Indurstry 4.0 Compatibility : Available Semi-Auto Grinding Cone Dressing : Included Workpiece Rotation : Available (as a option) Dust Extraction And Filtration : Available (as a option) Sectors : Precision Grinding, Aviation, Automotive, Machinery etc. Benefits: Sub-micron Precision: Achieve sub-micron (< 1 µm) precision in grinding thanks to Swiss engineering and a robust machine design. Sustainable Reliability: Ensure reliable and sustainable processing. Cost Efficiency & High Productivity: Benefit from lower production costs and high productivity due to a short grinding process and reduced production times for subsequent processes (cylindrical grinding). Quirlig Grinding Technique: Experience an optimized grinding process with the Quirlig Grinding Technique. Properly ground center holes that have cross-hatched grinding pattern. The cross-hatched grinding pattern ensures that oil is retained when the workpiece is placed between the centers during the cylindrical grinding process, creating a micro oil layer. The micro oil layer prevents unwanted "dry running" during cylindrical grinding. Easy to Use CNC Control Panel: Benefit from very simple operation and grinding program recording with the Beckhoff control panel and Z-axis servo movement. Industry 4.0: Fully compatible with Industry 4.0 applications, thanks to the Beckhoff control panel. Low Maintenance Costs: Enjoy low maintenance costs throughout the machine's service life, thanks to Swiss-quality construction. The Zentroflex SA-series center hole grinding machines are designed to deliver high-precision cylindrical grinding in the aviation, automotive, and machinery sectors. Additionally, the Zentroflex SA-series is the ideal solution for recovering parts distorted after heat treatment or for reducing cylindrical grinding costs. Kdjdpfx Adsgb Ec Ho Isw Z-Axis movement is provided by servo motor in CNC form. The part is loaded-unloaded and clamped manually. Settings are made from CNC control panel and grinding is started by pressing the start button. No other manual setting or control is made during grinding. Contact us for more details.

Condition: excellent (used), Year of construction: 1998, functionality: fully functional, travel distance X-axis: 1,200 mm, travel distance Y-axis: 660 mm, spindle speed (max.): 80,000 rpm, CNC GE FANUC 16 - M GRINDING HEAD WORKING AREA: Grinding spindle speeds, continuously variable -With electric motors: rpm 4,500 – 80,000 -With air turbines: up to 100,000 and 160,000 rpm Grinding head rotation speed, continuously variable -With planetary movements: rpm 5 - 300 -With CN / C axis: rpm 0 – 20 Z travel speed -With Z stroke control, continuous variation: mm/min 0.5 – 14,000 -Max stroke frequency: Hz 5 Grinding spindle sleeve -Z stroke length, continuously variable: 170 mm -Z stroke length (manual service): 180 mm -Diameter: 100 mm -Weight compensation: pneumatic Radial increment of the grinding wheel, NC / U: 5.5 mm Capacity Cylindrical grinding (with Ø 100 mm wheel) -Without intermediate plate: Ø 230 mm -With intermediate plate: Ø 360 mm -Grinding length Z: 125 mm WORK FIELD: X axis travel (table slide): 1,200 mm Kjdpjv Ay E Hofx Ad Iedw Y axis travel (grinding head): 660 mm In the W axis (movable crosspiece): 635 mm FORWARD SPEED: In the X and Y axis (CNC command) Processing speed: mm/min 0 – 2,000 Rapid feed: mm/min 4,000 In the W axis: mm/min 800 ODDS DISPLAY: X and Y axis: 0.0001 mm Z axis: 0.001 mm C axis: mm 0.001° U axis: 0.0001 mm Point of origin: your choice TABLE: Useful table surface: 1,320 x 860 mm Allowed table load: 800 kg T-slot width: 14 mm Number of T-slots: 7 Distance between T-slots: 100 mm TOOL WAREHOUSE: No. of warehouse spaces: 8 Max grinding wheel diameter: 50 mm Maximum complete length of the grinding wheel: 135 mm Conical seat: HSK 25 Machine complete with: • Tank with paper filter • MSS Multi – Sensoric – System • Fire prevention system • Oil mist extractor (oil separator) • Instruction manuals and CE declaration

Condition: good (used), Centre bore 2- 50 mm Diameter of workpiece 8 - 125 mm Lenght of workpiece 50 - 1000 mm Grinding wheel speeds 13'000 - 45'000 rpm Kdjdpfx Asrivlujd Ijw Misc.accessories MARCELS MASCHINEN AG

Condition: new, ROGI surface grinder type FSG-2050M Table size ----- 200 x 508 mm Longitudinal displacement of work table ----- 530 mm Cross displacement of worktable ----- 220 mm Unloading ----- 450 mm Max. permissible workpiece weight ----- 180 kg Kedpfx Adega T H Sj Iedw Grinding stone ----- 220 × 20 × 31.75 mm Motor ----- 2.2 KW Weight ----- 1600 kg Dimension machine ----- 2300 x 2150 mm

Condition: new, Year of construction: 2025, functionality: fully functional, workpiece weight (max.): 170 kg, grinding spindle speed: 45,000 rpm, spindle speed (max.): 45,000 rpm, clamping diameter: 140 mm, clamping length: 1,100 mm, warranty duration: 12 months, Workpiece Clamping Diameter : ø 3 – 140 mm Workpiece Length : 50 – 1.100 mm Centre Hole Diameter : ø 1 – 100 mm Workpiece Weight : max. 170 kg Center Hole Angle : 60 ° Accuracy : < 1 µm (Submicron accuracy) Spindle Speed : 5.000 – 45.000 rpm Grinding Cone Movements : 3+1 Rotation Orbital rotation Stroke movement +1 Workpeice rotation Quirlig Grinding Technique : Included (Cross-hatched grinding pattern) Semi-Auto Grinding Cone Dressing : Included Workpiece Rotation : Available (as a option) Dust Extraction And Filtration : Available (as a option) Kdsdpfewv Nq Rsx Ad Iew Grinding Process : Manual Sectors: : Precision Grinding, Aviation, Automotive, Machinery etc. Benefits: Sub-micron Precision: Achieve sub-micron (< 1 µm) precision in grinding thanks to Swiss engineering and a robust machine design. Sustainable Reliability: Ensure reliable and sustainable processing. Cost Efficiency & High Productivity: Benefit from lower production costs and high productivity due to a short grinding process and reduced production times for subsequent processes (cylindrical grinding). Quirlig Grinding Technique: Experience an optimized grinding process with the Quirlig Grinding Technique. Properly ground center holes that have cross-hatched grinding pattern. The cross-hatched grinding pattern ensures that oil is retained when the workpiece is placed between the centers during the cylindrical grinding process, creating a micro oil layer. The micro oil layer prevents unwanted "dry running" during cylindrical grinding. Low Maintenance Costs: Enjoy low maintenance costs throughout the machine's service life, thanks to Swiss-quality construction. The Zentroflex M-series center hole grinding machines are designed to deliver high-precision cylindrical grinding in the aviation, automotive, and machinery sectors. Additionally, the Zentroflex M-series is the ideal solution for recovering parts distorted after heat treatment or for reducing cylindrical grinding costs. Contact us for more details.

Condition: excellent (used), High frequency spindle Make Precise Type SC 60121 Speed 7500 - 30000 Hertz 250-1000 Volt 88-250 13 kw Diameter 120 mm Ksdpfx Adou Numvo Iedw Total length 420 mm Weight 22 kg
