Magnet plate

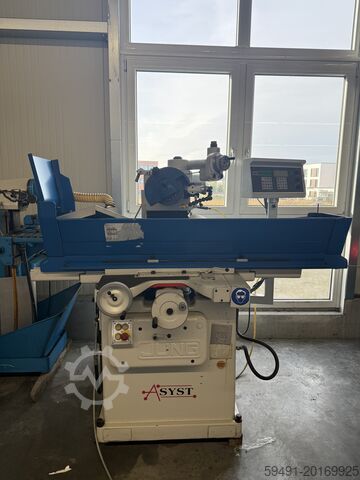

JUNG HF 50

Condition: used, total height: 1,700 mm, total length: 2,300 mm, total width: 1,500 mm, Empty weight: 2.000 kg - Documentation available: No - CE certificate present: No - Serial number: OF50-158 Bdodpfxewnings Afpea - Drive system: Conventional - Power [kW]: 2.6 - X-axis travel [mm]: 500 - Y-axis travel [mm]: 200 - Z-axis travel [mm]: 400 - Table width [mm]: 720 - Table depth [mm]: 200 - Magnet width [mm]: 400 - Magnet depth [mm]: 140 - Min. spindle speed [rpm]: 1000 - Max. spindle speed [rpm]: 4000 - Options: Digital readout - └ Type of digital readout: VisoData - Control: Conventional - Motor power: 2.0kW - Transport dimensions: 2300mm x 1500mm x 1700mm (l x w x h) - Transport weight [kg]: 2000kg Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: used, total height: 1,620 mm, total length: 1,750 mm, total width: 1,400 mm, Empty weight: 2.500 kg - Documentation available: No - CE certificate present: No - Drive system: Conventional - Number of axes [pcs]: 3 - X-axis travel [mm]: 500 - Y-axis travel [mm]: 230 - Z-axis travel [mm]: 330 Bdedpfx Afeyh Amlspoa - Table width [mm]: 720 - Table depth [mm]: 200 - Magnet width [mm]: 460 - Magnet depth [mm]: 180 - Options: External cooling - Transport dimensions: 1750mm x 1400mm x 1620mm (l x w x h) - Transport weight [kg]: 2500kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: excellent (used), grinding length 600 mm grinding width 300 mm workpiece height 350 mm magnetic clamping plate, electical 500 x 200 mm Bedpfx Afoyyqt Ispeda grinding wheel diameter 225 x 25 x 51 mm total power requirement 4 kW weight of the machine ca. 2,1 t dimensions of the machine ca. 1,5x1,5x1,8 m

Condition: used, Year of construction: 1970, surface area 600 x 200 mm Magnet size 500 x 200 mm dimensions of grinding wheel 225 x 25 x 51 mm Distance spindle/table max. 400 mm Table longitudinal feed 1 - 20 m/min creep feed 0 - 500 mm/min grinding wheel speeds 800 -4.200 U/min In our assessment, the machine is in good used condition and can be inspected under power by appointment. The machine was overhauled in 2002. Bdodpsyyqqmefx Afpja Accessories, tools, and clamping devices shown are only included in the scope of delivery if this is noted in the additional information. Technical data and specifications are subject to change without notice. Prior sale is reserved.

Condition: good (used), Manufacturer Jung Type HF 50 RD Control conf. Bdjdpfx Ajip Dnfjfpsa Axis displacement X axis 500 mm Y axis 200 mm Z axis 400 mm grinding spindle Speed variable 1000-4000 RPM To belong Cooling oil system with belt filter settings. Variable speed Sony digital 2-axis Magnetic plate

Condition: good (used), GR. Grinding length: 500mm GR. Grinding width: 200mm Table movement - longitudinal movement: approx. 600mm space requirement: 1800 x 1400 x 1650 mm approximate weight. 1500kg Bodpfxoin Np Eo Afpeda With cooling system

Condition: used, Year of construction: 1977, functionality: fully functional, machine/vehicle number: 7570, 1 used: JUNG Surface and Profile Grinding Machine • Model: HF 50-R(D) • Machine No.: 7570 • Year of manufacture: approx. 1977, overhauled 06-1998 • Grinding area: 500 x 200 mm • Grinding wheel: max. 250 x 25 x 51 mm EQUIPMENT: Electro-magnetic chuck 450 x 180 mm 1 straight dresser mounted on the side of the spindle head 1 grinding wheel holder with wheel 1 universal paper band filter 1 frequency converter for speed control Leveling feet Bdedpfxjw R Tqpj Afpoa

Condition: new, We can deliver all spare parts for JUNG JF- und HF-series. z.B. grinding flanges, switches, bellows, refurbished grinding and transvers spindles, hydraulic pistons etc. Also equipment like magnetic chucks (new oder refurbished), dressers, filtrtion units, lubrication pumps etc. Also used parts which are discontinued by the manufacturer. Bedpfx Afsgbt U Njpoda Please inquire wih the exact part name.

Condition: refurbished (used), Year of construction: 2025, grinding length: 600 mm, grinding width: 250 mm, grinding wheel diameter: 225 mm, JUNG HF50 mechanicaly, geometricaly und elektricaly rebuilt according JUNG acceptance protocoll for new machines 12 month warranty Bjdobwl Ubjpfx Afpeda in stock max. grinding range: 600 x 250 mm

Year of construction: 2023, condition: refurbished (used), JUNG HF50 SPM mechanically and geometrically overhauled according to JUNG new machine protocol Electrical overhaul approx. 2010 / function tested and wear parts replaced (in new control cabinet) Bdjdpfx Ajhcw U Usfpsa new painted - stepper motor infeed - 3 axis digital display - dressing mass compensation - adhesive force control - used magnetic clamping plate - paper band filter optional 12 months warranty on mechanics and geometry and 6 weeks parts warranty on electrical components max. magnet size: 600 x 200 mm (standard 500 x 200 mm) max. grinding area: 600 x 250 mm delivery time: by arrangement / subject to prior sale We will gladly take your used JUNG grinding machine in payment
