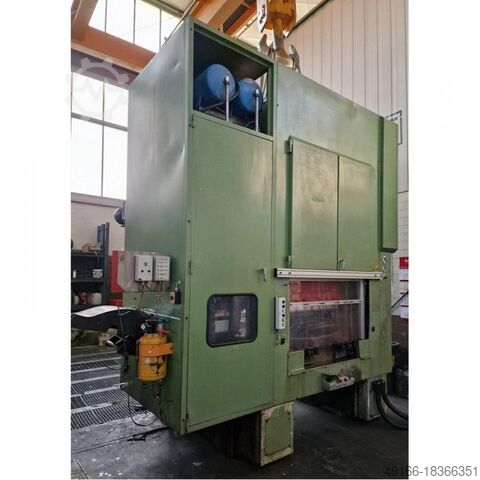

Double-sided high speed press

KAISER V 160 WR / 1300

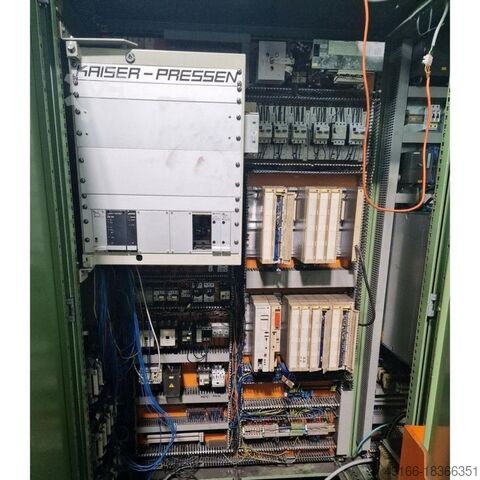

Condition: good (used), Year of construction: 1995, functionality: fully functional, machine/vehicle number: 0540/98, Manufacturing number: 0540/98. Year of manufacture: 1998 ,. Capacity: 400 tons. Stroke length: 300 mm. Stroke: 10-40 / min. Slide adjustment 300 mm. Installation height: 700 mm. The table measures 1600 x 1300 mm Net weight: 45 tons. Gable opening: 1600 mm. Ihedpoicbbzjfx Ahuot Exterior dimensions 2 x 3 x 6 meters. Control system MEAB. Coil feeder / straightener iRON RNE 50B / 11. Decoiler iRON SA6000 max 700 mm.

Condition: used, Year of construction: 1998, pressure 160 t stroke 30 - 90 mm no. of strokes 50 - 300 /min distance between columns 1270 mm dayligth (stroke and adjustment up) 590 mm column travel -side 440 mm table surface area 1250 x 900 mm hole in the table 950 x 300 mm ram surface 1250 x 800 mm ram adjustment 100 mm material width 200 mm material thickness - 6,0 mm feed length 0 - 120 mm power requirement 64,5 kW Weight 21,00 t dimensions of the machine ca. 3,0 x 2,2 x 3,9 mxmxm permitted for automatic mode according to the CE-Norm Iedpfx Ahovut Uxousht with infinitely variable drive, hydraulic clutch/brake combination (make Desch), automatic stroke adjustment, motoric ram adjustment, fix table, circular oil lubrication mechanical roll feed Bruderer BBV 205/120 with drive via main shaft / pivot shaft of the press consoles Guethle CK 01/0800

Condition: like new (used), Year of construction: 1991, functionality: fully functional, overall weight: 19,000 kg, pressing force: 160 t, type of input current: three-phase, power: 15 kW (20.39 HP), punching force: 160 t, input voltage: 200 V, Equipment: safety light barrier, Manufacturer: AIDA Type: NC2-160 Push force: 160t Year of manufacture: approx. 1991 Stroke length: 130mm Distance above table: (adjustable) 235-335mm Table size: 2030x600mm Bear size: 1500x600mm Ijdpfxeu D Ad Eo Ahueht Electric power: 3x200V(!!), 15kW - Japanese standard Net weight: 19000kg Size: 2140x2210x3175mm Automatic greasing system. Automatic cutting oil dosing - RAZIOL EST-02 Optionally with sheet feeder and straightener.

Condition: used, Year of construction: 1997, pressure 130 t distance between columns 1600 mm stroke 8 - 140 mm no. of strokes 50 - 200 Hub/min dayligth (stroke and adjustment up) 520 mm column travel -side 610 mm table surface area 1600 x 880 mm hole in the table 1000 x 350 mm Iodpfx Aovuugcshueht table height over floor 950 mm ram surface 1600 x 880 mm power requirement 24,2 kW weight of the machine ca. 28,00 t required space 4,3 x 2,2 x 3,8 m ram adjustment 100 mm permitted for automatic mode according to the German Safety Regulations (UVV) with infinitely variable drive, hydraulic clutch/brake combination, hydraulic overload protection in ram, pneumatic counterbalance in ram, motoric ram adjustment, automatic stroke adjustment, electronic roll feed (Hensel, EVX 500) with hydraulic intermittent lifting 2025 - in progress: new electrical (safety) control - Siemens S7-1500 F, easy operation via touch-panel Video at seller's site before dismantling available

Condition: used, Year of construction: 1997, Press capacity: 315 ton Ram stroke adjustable: 30 - 100 mm Slide adjustment: 100 mm Ihodjuqd Tmopfx Ahuet Shut height (stroke down, adjustment up): 370 mm Table surface area : 1600 x 1100 mm Slide area: 1600 x 1100 mm Hole in table: 600 x 180 mm Number of strokes: 15 - 180 s.p.m. Table height over floor: 1200 mm Required power: 170 kW Height over floor approx.: 4900 mm Dimensions L x W x H: 4900 x 1900 x 4900 mm Weight of machine approx.: 55 ton Standard configuration The press was converted to CE standard in press was converted to a SIEMENS S7 control conveyor system still has a SIEMENS S5 control system. Extended machine accessories Die lifters in the table Automation Feeding unit KEMMERICH consisting ofDecoiler levelling machine roll feeder Coil loading car

Condition: used, pressure 160 t distance between columns mm stroke 200 mm table surface area 2040 x 840 mm throat 450 mm no. of strokes 30 - 55 Hub/min dayligth 450 mm ram surface 1700 x 800 mm Ijdpfx Ahstqm Dgoueht ram adjustment 100 mm total power requirement 11 kW weight of the machine ca. 21,1 t dimensions of the machine ca. 2,2 x 1,94 x H 3,66 m - safe for hand inlay work - Conversion to West - Photoelectric barrier

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, table length: 2,000 mm, table width: 1,200 mm, pressing force: 200 t, stroke length: 100 mm, Raster punching machine with Desch compact drive 3-piece tie-rod cast construction Fixed stroke 100 mm Iodoxcbcvjpfx Ahusht Hydraulic overload protection Mechanically overhauled in 2021 Siemens S7 control system Optional with straightening machine and strip feeding line

Condition: used, Year of construction: 1997, Pressure total: 315 ton Ram stroke: 160 mm Slide adjustment: 100 mm Shut height (stroke down, adjustment up): 1.050 mm Free frontal opening L-R: 2.740 mm Free lateral opening F-B: 1.500 mm Distance between oil tray: 2.400 mm Table surface area : 2.740 x 1.800 mm Slide area: 2.400 x 1.700 mm Number of strokes: 10 - 60 s.p.m. Required power: 75,5 kW kW Working hours machine: 77.341 h Height over floor approx.: 5.500 mm Dimensions L x W x H: 5.400 x 3.300 x 5.700 mm Weight of machine approx.: 80 ton Ihodovmfzhspfx Ahuot Control: Siemens S5 Standard configuration hydraulic tool clamping device Extended machine accessories Tool changing cart

Condition: used, Year of construction: 1994, pressure 250 t distance between columns 1650 / 1400 mm stroke fix 150 mm no. of strokes 30 - 75 Hub/min dayligth (stroke and adjustment up) 665 mm column travel -side 550 mm table surface area 1600 x 900 mm hole in the table 1000 x 300 mm table height over floor 980 mm ram surface 1400 x 900 mm power requirement 42,0 kW weight of the machine ca. 33,00 t Iedpfx Ahovuucwsueht required space 2,8 x 2,5 x 4,4 m permitted for automatic mode according to the German Safety Regulations (UVV) with infinitely variable drive, pneumatic clutch/brake combination (Ortlinghaus), hydraulic overload protection in ram, pneumatic counterbalance in ram, FIX stroke, motoric ram adjustment, motoric centralized lubrication Werkzeugwechselsystem elektronischem Walzenvorschub (Normatic, AESL 500-2,8) electronic roll feed (Normatic, AESL 500-2,8) with motor (Indramat), motorised adjustable material guide, motorised height adjustment tool changing system distance table - ram without tool changing system approx. 765 mm can be offered without putting into operation or alternatively with new control Siemens S 7-1500 F

Condition: good (used), Year of construction: 1982, Table width 1.8 m Isdpfxsvi Iimo Ahusht Strokes per min. 30 - 150 Weight 47.000 KG
