Machine for profile drilling and sawingKaltenbach
kaltenbach KBS 1001 DG;no 121086
Machine for profile drilling and sawing
Kaltenbach
kaltenbach KBS 1001 DG;no 121086
EXW ONO VAT not applicable
€50,000
Year of construction
2000
Condition
Used
Location
Prokuplje

Show images
Show map
Machine data
- Machine type:
- Machine for profile drilling and sawing
- Manufacturer:
- Kaltenbach
- Year of construction:
- 2000
- Condition:
- good (used)
Price & Location
EXW ONO VAT not applicable
€50,000
- Location:
- Prokuplje, Serbia

Call
Details about the offer
- Listing ID:
- A656-0266
- Update:
- 26.01.2024
Description
Weight: 4600 kg
Dimensions LBH: 4350 x 1070 x 2690 mm
Saw blade dimensions: 8250 x 54 x 1.6 mm
Fright basis: EXW with disassembling
Price: on demand

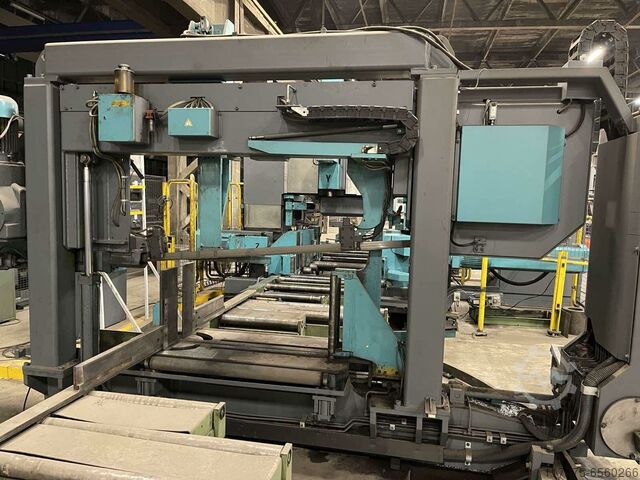

The 2000 Kaltenbach KBS 1001 DG band saw is a semi-automatic, high-performance band saw for cutting and drilling profiles.
The Kaltenbach band saw has a two-metal saw blade M42 measuring 8250 mm x 54 mm x 1.6 mm. The motor of the saw is frequency controlled and has a driving power of 7.5 kW. The cutting speed is continuously adjustable between 16 - 100 m / min.
-Working height is 450 mm, working width 1000mm.
-drill diameter:10- 40 mm
Hodpfxehkhumo Ahujfb
-material dimension max: 1000mmx450mm
-material dimension min:65mmx65mm
-3 drilling axes, one vertical and one horizontal
-drill feed rate of 20-200mm/min
-5 tool changer position per axis with an iso 40 tool holder
The machine can transmit data in different ways: 1. The operator is programmed directly on the control panel. 2. The data is entered into the job preparation via computer and then imported as a CSV file. Data transfer takes place via a floppy disk or network. 3. Data are entered using CAD programs. DSTV data is imported via a floppy disk or network.
Dimensions LBH: 4350 x 1070 x 2690 mm
Saw blade dimensions: 8250 x 54 x 1.6 mm
Fright basis: EXW with disassembling
Price: on demand
The 2000 Kaltenbach KBS 1001 DG band saw is a semi-automatic, high-performance band saw for cutting and drilling profiles.
The Kaltenbach band saw has a two-metal saw blade M42 measuring 8250 mm x 54 mm x 1.6 mm. The motor of the saw is frequency controlled and has a driving power of 7.5 kW. The cutting speed is continuously adjustable between 16 - 100 m / min.
-Working height is 450 mm, working width 1000mm.
-drill diameter:10- 40 mm
Hodpfxehkhumo Ahujfb
-material dimension max: 1000mmx450mm
-material dimension min:65mmx65mm
-3 drilling axes, one vertical and one horizontal
-drill feed rate of 20-200mm/min
-5 tool changer position per axis with an iso 40 tool holder
The machine can transmit data in different ways: 1. The operator is programmed directly on the control panel. 2. The data is entered into the job preparation via computer and then imported as a CSV file. Data transfer takes place via a floppy disk or network. 3. Data are entered using CAD programs. DSTV data is imported via a floppy disk or network.
