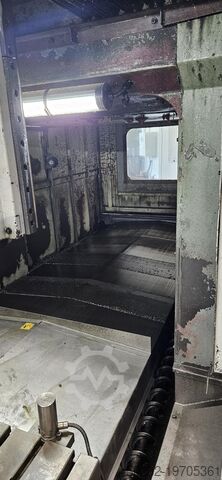

Vertical machining center

Kao Ming KMC-1800DV

Condition: good (used), Machine is in good working condition. Parts shown by hand not come. Bcjdpfsylxg Eox Afcew

Condition: used, Year of construction: 1990, Technical details: tube diameter: 42 mm wall strength: 25 mm round bar steel: max. Ø 20 mm square material: Rohr 25 x 25 mm bending radius max.: innen max: Ø 20 und außen max: Ø 170 mm bending speed: keine Angaben °/s tube pipe draw up length: 3000 mm control: Software RC 7000 weight of the machine ca.: 2,8 t dimensions electric cabinet: 800 x 700 x 2000 mm dimension machine xH: 5,1 x 0,7 x 2,0 m Application: Machining of deformable tubes, rectangular tubes and round bars and square tubes. Bedpfxeu Ibvus Afcscw Description of the software RC7000, programming manual rectangular tube 42 x 20 x 2,5mm bending direction to the left Operation via control panel with monitor Accessories: -div. bending tools for tube Ø 25mm -12 div. collets -div. auxiliary and clamping devices *

Condition: used, Year of construction: 2001, Technical details: tube diameter: 74 mm wall strength: 5 mm tube diameter min.: 10 mm tube diameter max.: 74 mm round material: Stahl max: 40 mm control: Trumpf-Rohrtechnik IsoBend 2.0 bending radius max.: max: 300 / min: 65 mm bending angle max.: max: 195 / min: 0,1 ° bending speed: (°/s): 90 / (°/s²): 190 °/s tube pipe draw up length: 3000 mm work pressure of hydraulic: Betriebsdruck max: 300 bar total power requirement: 43 kVA weight of the machine ca.: 8,5 t dimension machine xH: 6,5 x 1,6 x 1,6 m dimension control panel: 0,8 x 0,6 x 1,4 m It is a multi radius bending machine with bending head and swivel arm. (Cold bending machine) Bcodpfx Asu Ibvhofcow Possible applications: only for processing pipes, round steels and wires made of steel, stainless steel and non-ferrous metals. Due to the cross slide of the bending head, the following advantages can be listed: -free programmable X and Y axes -level change cross slide: tical travel = 300mm (vert. position freely programmable) and max. horizontal movement 350mm -Bending forms of different sizes within a stack of bending forms can be approached as required. The bending direction is to the right. Control software Trumpf-Rohrtechnik IsoBend 2.0 Hydraulic unit with high-pressure multi-flow pump Mandrel retraction unit Slide rail (speed max. 362mm/sec. and acceleration max. 1100 mm/sec.) i.D. *

Condition: used, Year of construction: 2007, control Siemens Sinumerik 840 D weight 57.000 kg voltage 400 V Gleason PFAUTER CNC gear hobbing machine P 2400/2800 Bcjdpfowzyp Iox Afcew for gear cutting of cylindrical and worm gears as well as all other regularly occurring rollable profiles and shapes on the cylindrical workpiece circumference. Large gear hobbing machines from Gleason offer maximum productivity for roughing and finishing cylindrical gears for many industries: wind turbines, industrial gearboxes, mining and shipbuilding, gear machining and many more. The power range of the drive takes future tool developments into account. Of course, the gear hobbing head drive is also backlash-free. These machines are particularly well suited for use with state-of-the-art, cutting materials, regardless of whether dry or wet machining is preferred. The machine can be used for dry or wet machining and is also equipped with the appropriate chip conveyor for both machining methods. The machine is equipped with an internal profile milling head as a motorised milling head. --> Working range and technical data Nominal workpiece diameter: 2.400 mm --> Largest millable diameter approx.: 2.800 mm --> Smallest/largest distance between cutter and workpiece axis: 100/1.200 mm --> Largest axial slide travel (special design): 1.300 mm --> Largest clampable cutter (internal milling head): --> Diameter max: 440 mm --> Max. cutter width: 90 mm --> Swivel range of the internal profile milling head/vertical axis: +/- 15° --> Milling mandrel taper: HSK-B160 --> Maximum milling cutter travel: 300 mm --> Table diameter: 2.500 mm --> Part wheel diameter: 2.200 mm --> Table bore --> Diameter: 800 mm --> Depth: 875 mm --> Maximum table load approx.: 40.000 kg --> Max. feed and rapid traverse speeds: --> axial (Z-axis): 4.000 mm/min --> radial (X-axis): 3.000 mm/min --> tangential (Y-axis): 3.000 mm/min --> Milling cutter cooling lubrication device/electric centrifugal pump: approx. 150 l/min --> Increased drop height of magnetic chip conveyor: 1,600 mm --> Increased main stand: 1,300 mm axial slide travel --> Internal profile milling head as motor milling head instead of standard motor milling head --> Max. millable profile depth in steel with approx. 600 N/mm² strength: approx. 65 mm --> Infinitely variable milling speed: 50 - 150 min?¹ --> Max. milling cutter diameter: 440 mm --> Min. milling cutter base circle diameter: 310 mm --> Max. milling cutter width: 90 mm --> Min. internal diameter at 0° bevel angle: 800 mm+) --> Max. workpiece height at 0° bevel angle: 600 mm --> Max. workpiece ring thickness (including clamping device): 500 mm

Condition: used, Year of construction: 2001, Technical details: x-travel: 2500 mm y-travel: 1000 mm z-travel: 750 mm table surface area: 3220 x 1000 mm Workpiece weight approx.: 3000 kg spindle taper ISO: 50 milling spindle turning speeds: 20 - 5000 U/min feed speeds: 1- 30000 mm/min rapid traverse: 30 m/min total power requirement: 40 kW Bsdevptmwspfx Afcjcw dimensions of the machine ca.: 6,9 x 4,1 x 3,7 m weight of the machine ca.: 21 t with CNC HEIDENHAIN TNC 426 30-pockets autom. toolchanger RENISHAW measuring probe coolant attachment with TSC and chip conveyor diverse toolholders *

Condition: good (used), Year of construction: 2000, machine/vehicle number: 7853, travel distance X-axis: 4,000 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 2,000 mm, table length: 6,000 mm, table width: 2,000 mm, table load: 17,000 kg, Travelling column milling machine | FPT Sirio-M50 - Heidenhain control system - 60-position automatic tool changer - Coolant treatment and filtration unit - Chip conveyor - Cooling unit, manufacturer Deerosdassi (Italy) - Electrical cabinet - Full machine enclosure (protective housing) An inspection is possible at any time by appointment. Bcedpfjxzzlhox Afcsw

Condition: used, Year of construction: 2017, pipe diameter (max.): 80 mm, mandrel length: 4,500 mm, Mandrel bending machine S8004 ----- For the production of dimensionally accurate pipe geometries with bending radii of up to 1.5XD → maximum bending performance pipe 76 x 4 mm (400 N/mm²) → maximum bending performance pipe 60 x 60 x 3 mm (400 N/mm²) → maximum bending performance pipe 76 x 2.9 mm (stainless steel) → total connected load 7 kW → pipe length 4.5 mtr Robust and durable steel construction in a force-locking connection - no construction susceptible to torsion due to, for example, the split construction of the bending head and mandrel carrier. Maintenance-free electromechanical drive of the bending axis. The touch display of the control enables simple and intuitive programming and use of the system. After the pipe has been pushed on, it is fixed in the carriage by the chuck. This enables the pipe to be positioned precisely and thus the creation of dimensionally accurate geometries. The standard also includes checking the pipe geometry before the bending process: If the bending process is started in the wrong position, the machine does not give permission for this. This prevents incorrect operation. Optional additional features provide more convenience and increase the output and thus the efficiency of the system. Data is exchanged from the optional pipe calculation program TBS-3D (PC version) via USB stick or via FTP access from the computer to the machine control system. USB or LAN connectors (RJ45) are available as standard. Existing pipe geometries can be converted quickly and easily, for example, using the STEP format. Standard equipment: → Electromechanical drive of the bending axis 4 kW → Speed 2.9 rpm (=17°/sec.) → Bending direction left → Bending angle resolution 0.1° → Max. bending radius 200 mm → Bending shaft diameter 50 mm → Electronic length measurement ±0.1mm → Electronic twist measurement ±0.1° → Manual stop system (overtravel stops in length) → Manual locking system (15° in twist) → Three-jaw chuck for locking the pipe in the carriage → External control panel PLC control: Bjdsttah Rjpfx Afcocw → Touchscreen 10.1" → ETH 10/100, X2X Link, USB → Foot switch operation → Data transfer via network (W)LAN or USB → Material database Unique graphic programming: Simple geometries can be calculated directly on the machine. The control calculates the feed values directly after entering the length and angle and the bending angles. Hydraulics: → Hydraulic power 3 kW → Hydraulic pipe clamping with adjustable clamping pressure → Programmable early mandrel retraction Options (can be ordered as additional equipment): → Variable bending speed using frequency converters or servo motors → Automatic tool retraction (manual or controlled) → Pneumatic chuck → Automatic mandrel lubrication → Pneumatic stop system (length + twist) → Mobile version (rollers) → Radius extension Pictures show new machine

Condition: refurbished (used), Year of construction: 2005, functionality: fully functional, travel distance X-axis: 6,800 mm, travel distance Y-axis: 3,000 mm, travel distance Z-axis: 1,200 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, 5-axis gantry machining center CYPORT CP 6830 Travels X/Y/Z: 6,800 / 3,000 / 1,200 mm Gantry passage Y/Z: 3,276 / 1,405 mm Rapid Traverse X/Y/Z 30/30/30m/min 2-axis-NC-swivel head M-Series of German manufacturer Cytec: Swivel range A-axis : +/-110° Swivel range C-axis +/- 360° Powerful milling spindle of German manufacturer Cytec: Tool taper: HSK-A100 Speed: 8,000 rpm Power: 50/64 kW (100%/40% DC) Torque: 240/300 Nm (100%/40% DC) Control: HEIDENHAIN TNC 530 (Heidenhain TNC 640 / 7 possible) 5-axis path control DXF-converter CAD-Viewer KinematicsOPT Energy efficiency certificate Remote Service Tool magazine: Number of pockets: 39 pcs. HSK-A63 max. tool diameter: 125/175 mm max. tool length: 300 mm max. tool weight: 15 kg Coolant system Manufacturer: KNOLL Tank volume: 1,600 L external coolant supply: 20 bar internal coolant supply: 50 bar Paper band filter, Spray gun Chip conveyor Bjdpfx Ajigrikofcscw Coolant-airblast-changeover Work piece measuring system: Touch probe BLUM TC 60 - radio controlled Working area coverage Safety light sensors Documentation CE-certification Made in Germany

Condition: excellent (used), Year of construction: 2014, operating hours: 11,200 h, functionality: fully functional, spindle motor power: 28 W, spindle speed (max.): 4,000 rpm, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,000 mm, rapid traverse X-axis: 25 m/min, rapid traverse Y-axis: 25 m/min, rapid traverse Z-axis: 25 m/min, type of input current: three-phase, torque: 479 Nm, workpiece weight (max.): 5,700 kg, total height: 3,155 mm, total length: 6,760 mm, total width: 4,060 mm, overall weight: 15,500 kg, tool length: 250 mm, Equipment: documentation/manual, Soraluce TAA25 milling machine from 2014 with HEIDENHAIN TNC530 CNC. In 2024: hydraulic unit replaced and complete retrofit of head and spindle. Travels X/Y/Z [mm]: 2,500 x 1,000 x 1,000. Table [mm]: 2,700 x 850. Head indexing [°]: 2.5 x 2.5. Spindle speed [rpm]: 4,000. Power and torque [kW - Nm] S1: 28 - 479. Tool magazine: 20 positions – ISO 50. Bcedoxwna Ropfx Afcsw

Condition: ready for operation (used), Year of construction: 2009, turning diameter over cross slide: 925 mm, turning length: 2,800 mm, turning diameter: 1,200 mm, spindle bore: 132 mm, spindle speed (max.): 2,000 rpm, CNC Siemens 840D 48-tool changer, Capto C8 tools Bodpfxjwzyn Re Afcscw chip conveyor Forkardt 400MM chuck, 2 hydraulic steady rests SMW Autoblok capacity 2800x1250MM, spindle bore 132MM weight 23,500 kg
