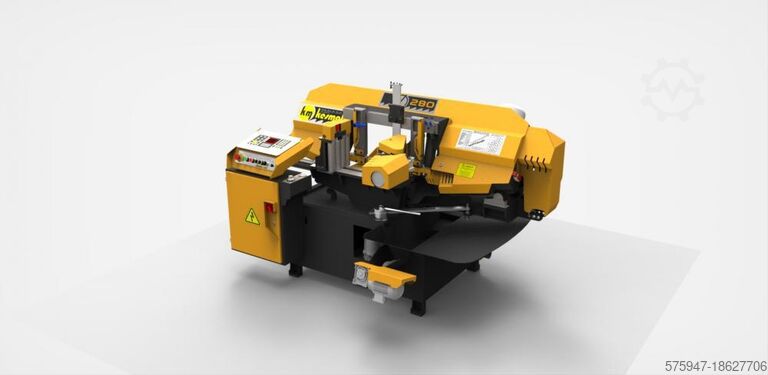

KESMAK KME 280 BAND SAW

KESMAK KME 280

Condition: new, Year of construction: 2025, saw band length: 3,660 mm, saw band width: 27 mm, cutting speed: 100 mm/min, cutting range round steel at 45°: 220 mm, cutting range round steel at 90°: 280 mm, cutting width (max.): 340 mm, cutting height (max.): 280 mm, cutting range square steel at 90°: 260 mm, cutting range square steel at 45°: 185 mm, saw band speed: 100 mm/s, warranty duration: 12 months, power: 1.5 kW (2.04 HP), - Swarf Brush - Speed Controller / Inverter - Hydraulic Vice - Hydro-Mechanic Blade Tension - Blade Breakage Detection - Stop System / Blade Breakage Switch - Stop System - 1 Piece 120 cm + 1 Piece 60 cm Roller Stand / 1 Pc. 120 cm + 1 Pc. 60 cm Roller Table - Swarf Conveyor - Audio Warning System - Encoder Drive System / Material Feeding System With Encoder - Automatic Feeding and Cutting System With 8 Programs - Lighting System / Led Lighting TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS KME DG 280 Fgjdpfx Aaev Etd Ie Noi Capacity 90° (mm) Capacity 90° (mm) Round Round Ø 280 Square Square 260 X 260 Rectangle Rectangle 220 X 340 Capacity 45° (mm) Capacity 45° (mm) Round Round Ø 220 Square Square 185 X 185 Rectangle Rectangle 210 X 150 Main Motor / Main Motor 1.5 kW /300 Nm Hydraulic Motor Hydraulic Motor 0.18 kW Coolant Motor Coolant Motor 0.12 kW Driver Motor Feeding Motor 0.37 kW Conveyor Motor Conveyor Motor 0.18 kW Band Saw Blade Size 3660 X 27 X 0.9 mm Material Feeding Height Feeding Height 760 mm Vice Maximum Opening Vice Maximum Opening 370 mm Vice Maximum Closing Vice Maximum Closing Zero Zero Vice Height Vice Height 210 mm Table Width Rolled Table Width 370 mm Height-Width-Length Height-Width-Length 1350 X 1500 X 2200 mm Weight Weight 1000 kg

Condition: new, capacity 90 degrees: round 255 mm capacity 90 degrees: square 240 mm 300 x 180 saw band length 2.765 x 27 x 0,9 mm mm table height 950 mm band speed 18 - 110 m/min total power requirement 1,5 kW weight of the machine ca. 0,42 t dimensions of the machine ca. 1,23 x 1,7 x 1,75 m SPECIAL PRICE!!! Double miter metal band saw, frequency converter hydraulic semi-automatic GBS 250 Super HA-I Easy • miter left 60° + right 45° • Material height sensor (automatic cut start detection) • Frame and gear made from one piece, very quiet cut and very low vibration • Hydraulic vice can be moved sideways a. • Guided, high quality industrial bearings • Solid vice + machine casting • Large machine bed • Machine base with tool compartment and chip drawer • Cut monitoring by ammeter Fgedefgyh Uopfx Aa Noi • Cutting pressure feed regulator • Support roller (infeed side) • Ball bearing turntable Semi-automatic function: 1. Clamp material 2. Saw starts 3. Rapid lowering to the start of the material or the same for series cutting cut 4. Saw band off 5. Raise the frame to just above the material 6. Open the vise

Condition: new, saw blade diameter 370 mm capacity 90 degrees: round 120 mm capacity 90 degrees: square 100 mm 180x100 mm Working height 925 mm saw blade turning speeds 15+30 oder 30+60 U/min total power requirement 1,8/2,2 kW weight of the machine ca. 0,44 t dimensions of the machine ca. 0,8 x 1,1 x 2,1 m Fgedpfx Aod Iin Iea Nsi SPECIAL PRICE!!! High-performance vertical circular saw Hydropneumatic semi-automatic. (20185/ 20188) · miter left 60° + right 45° · Vice with double clamping arm · Robust prism guide of the saw head, adjustable dovetail guide. · Chip brush · Automatic cooling · Metal tension wheel for high power transmission c. · Solid, strong cast iron table Semi-automatic function: 1. Clamp material 2. Saw starts 3. Rapid lowering to the beginning of the material or cut the same for series cutting 4. Saw band off 5. Raise the frame to just above the material 6. Open the vise MPS control: · Save cut start/end · Display of current consumption, number of pieces, cutting time... · Adjustable water cooling · Cutting pressure regulator ATTENTION: Price is without saw blade!!! (saw blade price EUR 204)

Condition: new, saw blade diameter 370 mm capacity 90 degrees: round 120 mm capacity 90 degrees: square 100 mm 180x100 mm Working height 925 mm saw blade turning speeds 17 - 70 U/min total power requirement 3,0 kW weight of the machine ca. t dimensions of the machine ca. 1,9 x 1,45 x 2,1 m SPECIAL PRICE!!! High-performance vertical circular saw Hydropneumatic fully automatic. (20195) · miter left 60° + right 45° · Hydro-pneumatic control of the saw unit · Electro-pneumatic material feed unit · Smooth-running, powerful worm drive with large Transmission ratio, integrated in a stable cast housing for Achieving optimal cutting results · Vice with double clamping arm for low-burr cuts Lateral quick shift when changing the miter · Precision prism guide of the gear head, laterally adjustable · Particularly stable base frame with built-in automatic cooling system · Large chip drawer Fedpfed Iin Esx Aa Nogi · Chip removal brush in the saw blade protective hood CNC control: · With button for over 90 different sawing programs with 99 sub-programs for length, quantity and angle · Automatic feed unit 2,000 mm via ball screw Incremental feed with automatic length compensation. Adjustable for cutting lengths from 25 - 9,999 mm. · Fully hydraulic control of saw frame and clamping devices · Pre-selection of 3 different material feed speeds · Visualization of the entire workflow with simple data entry ATTENTION: Price is without saw blade!!! (saw blade price EUR 204)

Condition: new, capacity 90 degrees: round 350 mm capacity 90 degrees: square 330 mm 500 x 310 band speed 15 - 100 m/min table height 844 mm dimensions of saw-band 4250 x 34 x 1,1 mm total power requirement 2,2 kW weight of the machine ca. 1,2 t Fgsdpfxsfg E Hle Aa Nji dimensions of the machine ca. 1,4 x 2,4 x 1,935 m ACTION PRICE!!! 2-column double miter band saw K-tech DG 50/33 HA-I • 2-column miter saw • Solid, yet easy to use • Material height sensor (automatic cut start detection) • Smooth running thanks to bevel cut, feed controller + cutting pressure controller • Massive material infeed roller • Removable chip tray (disinfection) • Energy-saving and low-vibration thanks to bevel cut • Ergonomic, safe and free-standing control panel • Frequency-controlled saw drive 15 -100 m/min. • Hydraulic cutting pressure control valve • Hydraulic control of saw frame and vice • LEDs for monitoring all safety functions • Large dimensioned wheels (520 mm) a. • Clear miter setting up to 60° Semi-automatic function: 1. Clamp material 2. Saw starts 3. Rapid lowering to the start of the material or the same for series cutting cut 4. Saw band off 5. Raise the frame to just above the material 6. Open the vise

Condition: new, Year of construction: 2025, Product information for metal bandsaw type: straight cutting bandsaw 90° sawing process: automatic automation: serial-cut max. cutting capacity Ø: 300 mm max. cutting capacity width: 300 mm max. cutting capacity: height: 300 mm Technical data: Motor [kW]: 3 Fgedpfodr Sbksx Aa Noi Saw blade [mm]: 4900 x 34 x 1,1 Dimensions [mm] (length x width x height): 2500 x 1650 x 1800 Weight [kg]: 2500 Material weight: max. 250 kg/m Highlights: Machine cover: secure and compact Saw blade guiding: accurate and reliable Saw frame speed: powerful and dynamic Vice system: innovative and smooth Operation and control: intelligent and ergonomic

Condition: new, saw blade diameter 300 mm capacity 90 degrees: round 102 mm capacity 90 degrees: square 90 mm capacity 90 degrees: flat 120x80 mm capacity 45 degrees: round 90/80 mm capacity 45 degrees: square 80/70 mm capacity 60 degrees: flat 90x70/85x70 mm total power requirement 1,5/2,0 kW weight of the machine ca. 0,135 t dimensions of the machine ca. 0,5 x 1,05 x 1,0 m The versatile professional metal circular saw. Convincing in performance and price. · For miter cuts left up to 45° · For sawing steel, stainless steel and, to a limited extent, aluminum profiles · Spindle vice with double clamping arm for low-burr cuts · Cone safety clutch to protect the saw blades. · 2 speeds 33 + 66 rpm · Automatic cooling directly on the saw blade Fgjdpfefg Rlasx Aa Nsi · Double bearing for saw head · 24 V safety switch in the handle with restart lock · Length stop, assembly tool · Closed cast, solid cast superstructures · Miter adjustment on operator side machine base (option) ATTENTION: Price is without saw blade!!! (saw blade price EUR 93 / EUR 123)

Condition: new, The SBS 355, a Horizontal Mitre Cutting Bandsaw from KNUTH, is a compact and efficient machine designed for semi-automatic operation. This universal workshop band saw features a robust one-piece cast-iron saw frame that swivels 60° to the right and 45° to the left, allowing for versatile cutting angles. Users benefit from a rigid vise with a long stroke, providing excellent stability for both small and large workpieces, and an infinitely variable saw blade speed that enhances performance across varied materials. The saw includes features such as a high-capacity coolant system, a hydraulic quick-action clamping fixture, and a well-designed feed system that accommodates sensitive machining characteristics. With a cutting capacity of 355 mm for round stock and dimensions of 300x490 mm for flat material, the SBS 355 is perfect for small batch processing in industrial environments. Experience increased productivity and precision with this reliable semi-auto bandsaw. Request a quote today to explore the capabilities of the Horizontal Mitre Cutting Bandsaw from KNUTH. Fsdpfeuy Ii Ejx Aa Nsgi

Condition: new, capacity 90 degrees: round 500 mm capacity 90 degrees: square 420 mm 600x400 saw band length 5320x34x1,1 mm band speed 15 - 100 m/min table height 805 mm total power requirement 3,0 kW weight of the machine ca. 1,45 t dimensions of the machine ca. 1,72 x 2,5 x 2,5 m Double miter band saw, hydraulic semi-automatic, DGS 500/600 HA-I • miter left + right 60° • Frequency-controlled saw drive • 34 mm saw band height • Wear-free material support turntable, ball-bearing • To position the saw blade guides using a very wide linear guide • Strong, robust gearbox • Large chipboards • 2 integrated support rollers left and right • Removable chip tray (disinfection) • Free-standing control panel, safe and ergonomic • Storage space for tapes, consumables • Hydraulic cutting pressure control valve • Material height sensor (automatic cut start detection) • Preload super fast (front loading) • Hydraulic control of saw frame and vice • LEDs for monitoring all safety functions • Minimum cutting range from around 10 mm Fgjdjupxupepfx Aa Nji Semi-automatic function: 1. Clamp material 2. Saw starts 3. Rapid lowering to the start of the material or the same for series cutting cut 4. Saw band off 5. Raise the frame to just above the material 6. Open the vise

Condition: new, capacity 90 degrees: round 305 mm capacity 90 degrees: square 260 mm 350x200 saw band length 3375x27x0,9 mm band speed 18 - 100 m/min table height 880 mm total power requirement 1,5/1,8 kW weight of the machine ca. 0,84 t dimensions of the machine ca. 1,85 x 1,9 x 2,0 m Demonstration system for a SPECIAL PRICE!! Fully automatic miter band saw • miter left 45° automatic operation • miter left 60° semi-automatic operation (cuts without programming) • Material height sensor (automatic cut start recognition) • Frame and gear made from one piece, very quiet cut and very low vibration Fodpfsupw R Aex Aa Negi • Removable chip tray (disinfection) • Shockproof and ergonomic control panel with oil-resistant EPDM cover • Top access to the saw, material and feed unit • Hinged safety cover • Fine feed adjustment • Semi-auto. Cut! • Optimize work processes with CNC control Possibility to enter various parameters such as quantities and material lengths, automatic calculation of the cutting channel • CNC control for 10 different saw programs with 99 sub-programs for different lengths and quantities, e.g. 1 cutting program with various section lengths • Automatic feed unit (CNC) via ball roller spindle incremental feed with automatic length compensation. Adjustable for section lengths of 2 mm to 9,999 mm, remainder length 170 mm. Inclusive: - Micro-spray device - Leveling elements
