Vertical Machining Centre

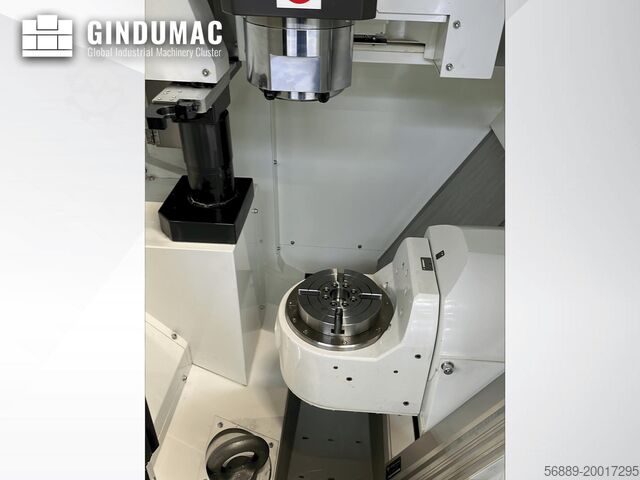

Kitamura Medcenter 5AX

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, travel distance X-axis: 250 mm, travel distance Y-axis: 200 mm, travel distance Z-axis: 300 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, controller manufacturer: FANUC, workpiece diameter (max.): 32 mm, rotational speed (min.): 500 rpm, rotational speed (max.): 30,000 rpm, overall weight: 1,700 kg, spindle nose: HSK-E40, number of slots in tool magazine: 48, tool length: 95 mm, tool diameter: 63 mm, input voltage: 400 V, type of input current: three-phase, Equipment: documentation/manual, WILLEMIN MACODEL W408 MT TECHNICAL CHARACTERISTICS : Year : 2007 CNC control : FANUC 16i-MB Number of axes : 5 Stroke X axis : 250 [mm] Stroke Y axis : 200 [mm] Stroke Z axis : 300 [mm] Traversing feeds X, Y and Z axes : 30000 [mm/min] Max. bar diameter in turning spindle : 32 [mm] Kjdpfswu Ruhsx Aayodw Main spindle max. speed : 6000 [rpm] Main spindle max. power : 3.7 [kW] Angular C axis stroke : 360 [°] B axis swivelling stroke : 115 [°] Spindle type : HSK-E40 Min. spindle speed : 500 [rpm] Max. spindle speed : 30000 [rpm] Spindle power : 10 [kW] Tool changer magazin number of stations : 48 Max. tool lenght : 95 [mm] Max. tool diameter : 63 [mm] Lubrication tank capacity : 80 [l] Collant pump flow rate : 40 [l/min] Rated current : 25 [A] Supply voltage : 400 [V] Weight : 1700 [Kg] EQUIPMENT INCLUDED : x1 0-90° pivoting backworking unit (6th side machining) x1 backworking vice x1 RENISHAW TS27R tool probe x1 RENISHAW NC4 TX laser system for tool setting and tool breakage detection x68 type F35 turning collets x9 HSK-40E milling/turning attachments x1 IEMCA BOSS 332 E bar feeder x1 spindle chiller x1 cutting fluid chiller x1 ELBARON mist extractor x1 3-colour status lamp x1 CO2 automatic fire extinguishing system (to be checked by the purchaser with a competent body) x1 set of technical manuals Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. HERMLE , DMU , monoblock , variaxis , chiron

Condition: used, TECHNICAL DETAILS - maxi module to be cut : 1.5 [mm] - maxi diameter to be cut: 70 [mm] - maxi length to be cut: 100 [mm] - part maxi length: 200 [mm] - number of tooth mini to be cut: 3 - number of endless screw threads (special accessories): 1 - helix angle: 0-90[°] - milling tool maxi diameter: 50 [mm] - 11 milling tool normal speeds Kjdeuhbplepfx Aaysdw - speed normal machine: 226 – 2100 [rpm] - power: 1.5 [kW] - net weight: 1035 [kg].

Condition: ready for operation (used), Year of construction: 2016, General Data Measurements height 2390.1 mm Machine weight 2636 kg Control Unit Brand HURCO Model WinMax Main Drive Spindle speed range 8000 rpm Kdedsv S Nbpjpfx Aaysw Number of axis 3 Movement X-Axis Movement 457 mm X-Axis Rapid Traverse 19 m/min Y-Axis Movement 356 mm Y-Axis Rapid Traverse 19 m/min Z-Axis Movement 356 mm Z-Axis Rapid Traverse 19 m/min Table Table load 250 kg Tools Number of index 16 Max weight 7 kg Max tool diameter 90 mm Max tool length 200 mm Type of tool holder CAT/BT 40 This 3-axis Hurco VM5i vertical machining center was manufactured in 2016. It offers robust construction and precision engineering, ideal for a variety of machining tasks. Consider the opportunity to buy this Hurco VM5i vertical machining center. Contact us for more information about this machine. Application Types Milling

Condition: good (used), Year of construction: 2008, travel distance X-axis: 450 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 380 mm, controller manufacturer: Siemens, controller model: Shopmill, total height: 22,000 mm, total length: 24,500 mm, total width: 15,500 mm, table width: 700 mm, table length: 320 mm, rotational speed (max.): 10,000 rpm, overall weight: 2,000 kg, number of slots in tool magazine: 12, power: 8.5 kW (11.56 HP), X-axis: 450 mm Y-axis: 350 mm Z-axis: 380 mm Table size: 700 x 320 mm Spindle speeds: 10.000 rpm Spindle nose: ISO40 Toolchanger: 12 pockets Controller: Siemens Shopmill Featured with: - Cooling unit - ISO40 tools - Milling vice Country of origin: Taiwan Motor power: 8,5 kW Machine LxWxH: 2450 x 1550 x 2200 mm Machine weight: 2000 kg Kdsdjtrhahopfx Aayow

Condition: used, Year of construction: 2023, controller manufacturer: Siemens, controller model: 828D - ShopMill, _____ Kdsdpfsxthpwjx Aayow Description: Year of manuf. : 2023 Control : Siemens 828D - ShopMill Speed : 10000 rpm Movement X/Y/Z : 350/250/300 mm Spindle: Technology:Directdrive Speed:10.000 rpm Power (max.):7 kW Torque (max.):41 Nm Taper:SK30 Workingtable: Clampingsurface:520 x 300 mm Tabeloading (max.):100 kg In general: Toolmagazine:20 Stations Rapid travers in X/Y/Z:24 m/min Equipment/Accessory: Positionsensor:Direct Scales in X/Y Chipmanagement:Chip conveyor Coolingmanagement:Coolant pump with 8 bar Workpiecemeasurement:Touch probe, Marposs WRP 45 Toolmeasurement:Probe, Marposs TS30 4.-Axis:Walter TANI 100 NEG with 3-Jaw chuck and Tailstock Oilmistseparation:Mechanical extraction, Reven Setup operations:Electronic Handwheel Further Equipment:Rinsing pistol Further Accessory:Misc. used Toolholders

Condition: ready for operation (used), Year of construction: 2013, General Data Machine weight 680 kg Kodoxvtymjpfx Aaysdw Movement X-Axis Movement 304 mm Z-Axis Movement 305 mm Y-Axis Movement 254 mm Main Drive Number of axis 5 Spindle Speed 30000 RPM Spindle motor power 3.7 kW Table Table load 68 kg This 5-axis HAAS OM-2A was manufactured in 2013 and features a 3+2 configuration, with a spindle speed of 30,000 RPM and a motor power of 3.7 kW. It includes a 20-tool automatic tool changer and can handle a maximum table load of 68 kg. If you are looking to get high-quality milling capabilities, consider the HAAS OM-2A machine we have for sale. Contact us for more information. Application Types Milling

Condition: used, TECHNICAL DETAILS - Number of axes : 3 MILLING SPINDLE - Tool holder type : ISO25 - Spindle power : 0.27 [kVA] - Spindle speeds : 30000 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 250/200/300 [mm] TOOL CHANGER - Tool magazine capacity : 50 POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 1500X1860 [mm] - Machine height : 2100 [mm] - Machine weight : 1900 [kg] EQUIPMENT Kdsdpfxeuhbrmo Aayjw - CNC : Num 1050 - 3 colors status lamp - Coolant tank - Spindle cooling unit - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.

Condition: used, TECHNICAL DETAILS - Number of axes : 5 - Number of spindles : 1 MAIN SPINDLE - Max. bar diameter : 23 [mm] - C axis indexing precision : 0.001 [°] TURNING-MILLING SPINDLE - X/Z stroke : 250/300 [mm] - Y stroke : 200 [mm] - B Axis stroke : -15/+100 [°] - B axis indexing precision : 0.001 [°] - Tool type : HSK E40 - Spindle speeds : 30000 [rpm] - Spindle power : 10 [kW] TOOL CHANGER - Auto. Tool Changer type : Parapluie - Tool magazine capacity : 24 POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine weight : 1700 [kg] Kjdpfsvh I Ugex Aayjdw EQUIPMENT - CNC : NUM 1050 - Coolant tank * Coolant through spindle - Oil mist extractor : Elbaron RON/A 60 - Cooling unit : MARKSA CSW100 - Unit for 6th face machining - Bar loader : Willemin - Collet chuck

Condition: used, Year of construction: 2003, Technical details: Kdedpfx Aajw Udyieysw x-travel: 250 mm y-travel: 200 mm z-travel: 300 mm weight of the machine ca.: 1500 t dimensions of the machine ca.: 2,7 x 1,95 x 2,2 m B-axis (table): 180 mm rotary table diameter: 180 mm indexing device - swivable: 360 °

Condition: used, Year of construction: 2015, functionality: fully functional, machine/vehicle number: 346-09, This machine is equipped with a 2m LNS bar feeder, allowing it to fully automate the production of milled and turned parts directly from the bar stock. On the main spindle, there is an E162 power chuck with a bar capacity of Ø10mm. The bar feeder itself is designed for material up to Ø65mm. Additionally, the machine is fitted with a pneumatically operated two-jaw chuck to allow complete secondary machining of components on the back side. Finished parts can then be removed by an integrated gripper and placed onto the conveyor belt. Kedow U Tbcopfx Aayodw The machine was retrofitted by CHIRON specifically for precious metal machining. This mainly means that seals within the machine have been reinforced, and the standard chip conveyor was replaced by a drawer unit with a fabric filter. Other features: - High-speed spindle with HSK 40 interface and high-pressure coolant (max. 40,000 rpm and up to 80 bar) - Oil cooler and chip filtration system - Kraft und Bauer fire suppression system with optical sensor - Oil extraction system - Renishaw probe - Integrated tool breakage control/measurement - Tool changer with 64 positions Location: Medical device manufacturer >>>> Collets and tool holders are included in the sale and are part of the listed price.
