Injection molding machine

KraussMaffei KM 110-520 C1

Condition: used, Year of construction: 1989, operating hours: 74,900 h, clamping force: 850 kN, screw diameter: 40 mm, overall weight: 3,700 kg, Machine no. 145464 Year of construction 1989 Machine weight 3700 kg (without oil filling) Clamping force 850kN Heating 8,31KW Motor 18,5KW Total power 27,2KW Bodpfx Afor Hrqrecjcw Machine cycles 7,112,306 Operating hours 74,900h Interfaces: Master computer, handling, blow-out, selector switch, core pull 1 hydraulic, mold temperature control 3 pcs. The following accessories etc. are included with the machine: Complete 50 injection unit thermoplastic , Selecting diverter , Hydraulic infeed conveyor (height adjustable 3 levels) (integrated in control) , Diskette drive external (Arburg original) , Documentation and work reports from the machine by Arburg Service , Machine setting course CMD documents (folder) , E-plan , Documents also in digital form , Oil filling (must be pumped into a container before transport (pump is available)) , Electronic water battery

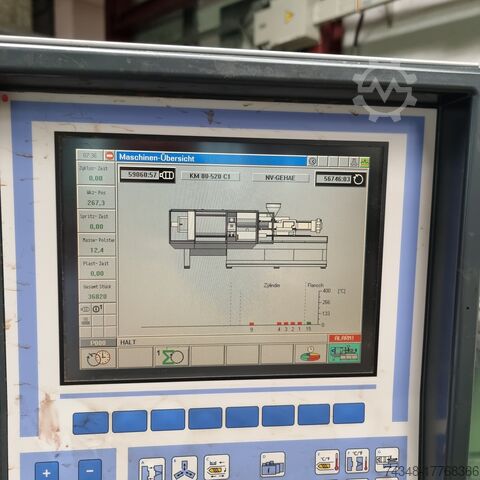

Condition: ready for operation (used), Used Machine Injection Moulding Machine Manufacturer: Krauss Maffei KM 80 C1 Year of manufacture: 2000 Only 1 machine left in stock No delivery time, immediately available Inspection possible by appointment The machine is no longer powered / No coolant connection Bsdpfx Afsu Ti Srscscw The machine is professionally stored Technical Data: Clamping force (kN): 800 kN Platen size (mm): 610×610 Tie bar spacing (mm): Daylight opening (mm): 250 Max. (mould) open daylight (mm): 750 Control unit: MC4 Screen text language: German (cannot be changed to other languages) Injection unit: Screw diameter (mm): 45 Injection pressure (bar): 1878 Shot volume (cm³): 275 Pump drive power (kW): 18.5 Heating capacity (kW): 13 Oil tank capacity (l): 270 Dimensions (m): 4.3 x 1.4 x 2.1 Total weight: 3.2 t Further photos available on request.

Condition: excellent (used), Year of construction: 2016, operating hours: 28,600 h, functionality: fully functional, clamping force: 2,000 kN, screw diameter: 55 mm, displacement volume: 570 cm³, Clamping force 2000 kN Mould opening force, max. 101 kN Bodpfxexz Tq Ns Afcjcw Travel force movable platen opening 50 kN Travel force movable platen closing 42 kN Size of mould platens (h x v) 915 x 915 mm Distance between tie bars (h x v) 560 x 560 mm Mould opening stroke 700 mm Mould height min 550 mm Max. daylight 1250 mm Hydraulic ejector - stroke 200 mm Ejector force 58/28 kN Injection unit: Screw diameter 55 mm Ls/D ratio 23 Injection pressure 2387 bar Stroke volume 570 ccm Shot weight (PS) 519 gr. Injection rate 261 ccm/s Screw speed 260 1/min Plasticising rate max. 49 g/s Nozzle pressure 87 kN Electric and Hydraulic Equipment: Nominal capacity of pump motor 45 kW Installed heating capacity 23 kW Adjustable barrel heating zones 6 Reservoir capacity 525 ltr. Dimensions and weights: Dimensions of the machine ca. 6,00 x 2,10 x 2,10 m Total machine weight 11500 kg Max. mould weight 2535 kg Accessories: - Anti vibration pads Additional Options: - Electrical plasticizing motor - Accumulator - 2 x Air valves - 2 x core pulls on movable plate - 1 x core pull on fix plate - 8 x hotrunner controller - Robot interface according to Euromap 67

Condition: like new (used), Year of construction: 2010, operating hours: 65,850 h, functionality: fully functional, machine/vehicle number: 61013689, clamping force: 2,500 kN, screw diameter: 50 mm, clearance between the columns: 630 mm, displacement volume: 432 cm³, injection pressure: 2,304 bar, injection weight: 393 g, Equipment: documentation/manual, Here, as a specialist dealer in injection moulding machines, we offer the following well-maintained used injection moulding machine for sale. Of course, we also purchase well-maintained injection moulding machines currently in use. Year of manufacture: 2010. We have been wholesalers of used injection moulding machines for over 25 years. Current tax notice – Advantage for buying used machines: From 01/07/2025, used machines will also qualify for special tax depreciation of 30% per annum. In addition to the lower price compared to new machines, you can claim the same depreciation amounts as for a new machine. Keyword: growth booster (§ 7 paragraph 2 EStG-E). Currently in stock at our Hannover warehouse and tested. Manufacturer: Krauss Maffei Model: KM 250 1000 CX Control unit: MC5 Year: 2010 Operating hours: 65,850 h Machine number: 61013689 Processed material: PE and PP thermoplastics Extras: 2 additional robots: Linear robots LRX 100 and LRX 50 can also be purchased separately - 2 x core pull (movable and fixed WAP) - Pneumatic valve 1 on fixed WAP - Accumulator for increased injection performance - Rapid SK removal CX Midrange - Ejection of cooled nozzle plug - Start handling during mould movement - Mould approach control - Cycle time analysis - External USB keyboard - Graphic analysis – maintenance instructions - Electronic coding of injection unit - Pneumatic valve on moving WAP for blowing out - 12 temperature control zones - Potential-free BDE contact - Process monitoring - Cycle storage - Trend graphic – target/actual diagram - PV control - Active back pressure control - Single-owner machine – sourced in Germany Regular maintenance by manufacturer and previous owner Clamping Unit Clamping force: 2500 kN / 250 t Tie bar distance: 630 x 630 mm Platen size: 995 x 1050 mm Max. opening stroke: 820 mm Min. mould height: 330 mm Max. opening: 1150 mm Ejector stroke: 200 mm Ejector force: max. 57 kN / return 26.3 kN Injection Unit Screw diameter: 50 mm Injection volume: 432 ccm Shot weight: 393 g / PS Injection pressure: 2304 bar Robot LRX S50 - 3 gripper circuits – 4 vacuum circuits Robot LRX 100 - 1 gripper circuit – 4 vacuum circuits Electrical Equipment Pump: 45 kW Heating: 5 zones, 18.7 kW Weight: 13,900 kg Dimensions: 5.7 x 2.3 x 2.3 m Complete documentation and software manual Available immediately ex our Hannover warehouse or delivered to your location (delivery at cost). The machine is functionally tested and in our sole ownership. The requested machine is immediately available from our Hannover warehouse, functionally tested, and can be inspected under power. About our machines and company: – We only sell machines owned by us, purchased from ongoing production, from our Hannover warehouse Bcjdpfxsxqhuue Afcow – All machines are inspected and tested before disassembly – We do NOT sell insolvency stock – we are NOT brokers dealing with third-party property – All machines come from successful companies where maintenance and care are taken as a matter of course – All listed machines are available for viewing in our warehouse

Condition: good (used), Year of construction: 1993, Netstal 1750 /870 HP Closing 175 TO Year 1993 Bjdeg U Arxspfx Afcjcw

Condition: good (used), Year of construction: 1997, Krauss-Maffei KM 110-520 C1 Year: 1997 Screw diameter: 45 mm Clamping force: 110 tons Tie bar distance: 47x47 cm Shot weight: 234 g Bjdpfx Afsyh Rymococw
