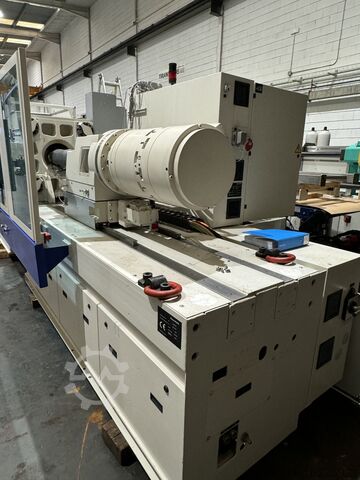

Injection molding machine

KraussMaffei KM 120-380 EX

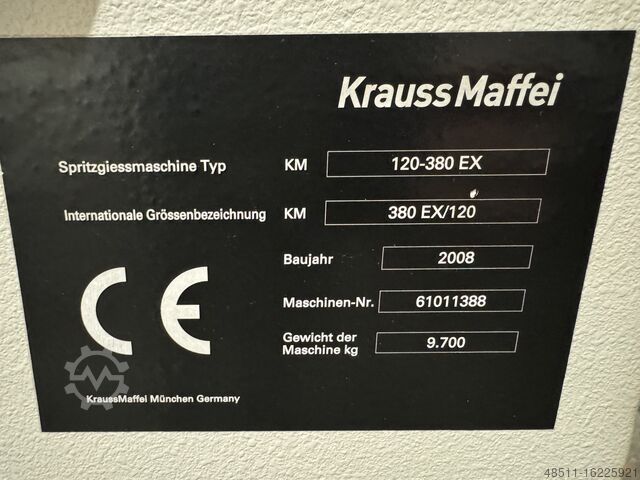

Condition: excellent (used), Manufacturer: KRAUSS MAFFEI Type: KM 120-380 EX Control: MC5 Year of manufacture: 2008 Operating hours: 10113 h Technical data, clamping unit Clamping force: 1200 kN Tie bar spacing h x v: 470 x 470 mm Platen size h x v: 780 x 735 mm Minimum mold height: 200 mm Nledpjzyn Igefx Agrsg Maximum mold height: 450 mm Maximum mold thickness: 850 mm Opening stroke: 400 mm Ejector stroke: 150 mm Ejector force: 22 kN Centering of moving platen D: 160 mm Centering of fixed platen D: 125 mm Tool weight: 1485 kg Technical data, injection unit Screw diameter: 35 mm Injection volume: 156 cc Injection pressure: 2429 bar Screw length: 23 l/d Screw speed: 289 rpm Plasticizing rate: 27 g/s PS Injection rate into free air: 477 g/s PS Number of heating zones: 5 Dimensions & Weight Machine dimensions L x W x H: 6 m x 1.7 m x 2.19 m Total weight: 9700 kg Equipment • Screen display in German • Screen display in English • CEE socket 16A • Hydraulic core pull, 2x • Machine with water manifold • Machine without material hopper • Leveling elements • EUROMAP 12 interface • Schuko socket 10A

Condition: like new (used), Year of construction: 2016, Wittmann Battenfeld Eco Power 110/130 Unilog B6P electric (2016) Clamping force: 110 t Screw diameter: 22 mm Shot volume: 41 cm3 Screw L/D ratio: 20 Calculated stroke volume : 41,8 cm3 Correct injection pressure : 2,864 bar Max. screw speed : 500 min Screw tongue : 150 Nm Nozzle path contact force : 250/40 mm/kN Injection flow outside : 76 cm3/s Cylinder heating capacity : 6,3 kW Number of heating zones : 4 Working hours: 35.953 hours Nedou Eki Sspfx Agrelg Type: Horizontal Drive: Electric

Condition: like new (used), Year of construction: 2008, operating hours: 61,300 h, functionality: fully functional, clamping force: 1,200 kN, screw diameter: 35 mm, clearance between the columns: 470 mm, pressure: 2,429 bar, Here we are offering the following well-maintained used injection moulding machine as part of our injection moulding machinery trading business. Of course, we are also actively purchasing well-maintained injection moulding machines from model year 2010 onward. We have been a wholesale dealer of injection moulding machines for over 25 years. ++++From Pharmaceutical Cleanroom Production++++ Manufacturer: KraussMaffei Machine type: KM 120-380 EX International size designation: 380 EX / 120 Machine no.: 61011287 Year of manufacture: 2008 Machine hours: 61,300 h Control system: MC5 Technical data - Clamping unit Clamping force: 1,200 kN Tie bar spacing H x V: 470 x 470 mm Platen size H x V: 780 x 735 mm Min. mould height: 200 mm Max. mould height: 450 mm Max. platen distance: 850 mm Opening stroke: 400 mm Ejector stroke: 150 mm Ejector force: 22 kN Centric ring for moving platen D: 160 mm Centric ring for fixed platen D: 125 mm Mould weight: 1,485 kg Technical data - Injection unit Screw diameter: 35 mm Stroke volume: 156 ccm Injection pressure: 2,429 bar Screw length: 23 l/d Screw speed: 289 rpm Plasticising rate: 27 g/s PS Free shot weight: 477 g/s PS Number of heating zones: 5 Dimensions & Weight Machine dimensions LxWxH: 6 m x 1.7 m x 2.19 m Total weight: 9,700 kg Equipment Display language German Display language English +++Extras++++ Automation: Handling unit / extraction robot included – Handling: LR 100-2300 Conveying equipment: roller conveyor included CE marking: available Complete maintenance and inspection history Full latest test report Incl. conveyor belt, incl. cage Machine with water battery Machine without material hopper Levelling elements EUROMAP 12 interface Electrics Schuko socket 10A CEE socket 16A Voltage: 400 V Frequency: 50 Hz Motor current: 80 A Warranty Warranty up to first commissioning Loading / Shipping Free loading onto buyer's truck or free delivery within Germany subject to freight reimbursement Nlsdpfxjy D Adte Agreg Available ex stock Hanover, Germany

Condition: new, Year of construction: 2023, functionality: fully functional, machine/vehicle number: 61036721, clamping force: 6,500 kN, screw diameter: 70 mm, clearance between the columns: 1,110 mm, displacement volume: 1,078 cm³, injection pressure: 1,877 bar, injection weight: 981 g, opening stroke: 3,200 mm, plate height: 1,540 mm, drive type: Hydraulisch, clear span: 3,200 mm, tool weight: 2,200,000 g, Injection Moulding Machines Directly from the Manufacturer! As the manufacturer KraussMaffei, we offer you our certified and flexible stock machines: The hydromechanical two-platen clamping unit of the GXW machine sets new standards in terms of quality and productivity. With the sophisticated GuideX sliding shoe, forces are ideally absorbed and the service life of the moulds is extended. The innovative GearX locking system engages instantly and reliably. Powerful, user-friendly and value-retaining. TECHNICAL DATA: KM 650 / 2000 / 2000 GXW G06 (Order 38618339) CONTROL SYSTEM - MC 6 with 24'' TFT color screen with multitouch functions CLAMPING UNIT - Clamping force: 6500 kN - Max. mould opening force: 455 kN - Daylight opening (h x v): 1110 x 960 mm - Platen size (h x v): 1540 x 1440 mm - Mould installation height min. - max.: 1550 mm (without centre platen) - Opening stroke: 3200 mm - Max. mould opening distance: 1650 mm - Max. mould weight: 22,000 kg INJECTION UNIT 1 SP2000 - Screw diameter / type: 60 mm / thermoplastics - Effective L/D ratio: 23.3 - Injection pressure: 2420 bar - Shot volume: 792 cm³ - Shot weight at max. stroke for PS: 720 g - Injection speed: 140 mm/s - Injection throughput: 396 cm³/s - Screw drive speed: 285 rpm - Plasticizing throughput: 72.2 g/s - Nozzle contact force: 82 kN Nlodpfx Agow U N Ixereg INJECTION UNIT 2 SP2000 - Screw diameter / type: 70 mm / thermoplastics - Effective L/D ratio: 20 - Injection pressure: 1877 bar - Shot volume: 1078 cm³ - Shot weight at max. stroke for PS: 981 g - Injection speed: 140 mm/s - Injection throughput: 539 cm³/s - Screw drive speed: 285 rpm - Plasticizing throughput: 98.3 g/s - Nozzle contact force: 82 kN ELECTRICAL PARAMETERS - Connected load: 341 kW - Power supply: 400 V / 50 Hz, 3 phases with neutral conductor WEIGHT & DIMENSIONS - Net weight: 43.5 t - L x W x H: 11.89 x 3.22 x 2.77 m ADDITIONAL EQUIPMENT - Wear-resistant plasticizing unit - BluePower full insulation for plasticizing cylinder - Open nozzle - BluePower ServoDrive - Pneumatic valve: 1-fold (BWAP), 1-fold (FWAP) - Pneumatic cascade valves: 6-fold (BWAP), 6-fold (FWAP) - Hydraulic core pull: 2-fold (BWAP), 2-fold (FWAP) - Mould heating: 96 zones (3.5 kW each) - Euromap interface for handling: E18 - Euromap central computer interfaces: E67, E77, E78, E63, E82.1 - Adaptive Process Control (APC+) - Graphic analysis package - Sliding table with turning unit, servo-driven - Vertical centre platen - Parallel clamping & opening during injection process with bar parallelism control between FWAP and centre platen or BWAP and centre platen - ColorForm interface signal interface for connecting an RPM unit - Electrical interface for HRS-Flexflow system - Electrical interface and hydraulic valves for "1-K dummy operation" - Interface for connecting a CoMo-Kistler Injection Basic System with good/bad part separation The machine is located at our plant in Parsdorf and is available at short notice. Further additional options can be offered on request. We look forward to your enquiry.

Year of construction: 2014, condition: repair required (used), functionality: fully functional, The machine has been idle unused for a few years now, so it needs maintenance before commissioning, which should be the responsibility of the buyer. Nsdpstu U Ebefx Agrslg

Condition: used, TECHNICAL DETAILS - Number of axes : 8 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 25.4 [mm] - Max. machining length : 200 [mm] - Spindle speeds : 10000 [rpm] - C axis indexing precision : 0.1 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] Nlsdpfxsuhaycj Agrjg - Spindle speeds : 10000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 0.1 [°] - Number of guide bush holders : 2 GUIDE BUSH HOLDER 1 - Number of positions : 5 GUIDE BUSH HOLDER 2 - Number of positions : 5 - Number of motorized positions : 4 - Live tools speed : 8000 [rpm] SECONDARY OPERATION - Number of positions : 7 - Number of motorized positions : 3 - Live tools speed : 8000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 14 [kW] WEIGHT & DIMENSIONS - Machine floor space : 2270 x 1650 [mm] - Machine height : 2200 [mm] - Machine weight : 3500 [kg] MACHINE HOURS - Number of hours under power : 46571 [h] EQUIPMENT - CNC : Fanuc - Rotating tool motor on : S2 - Rotating guide bush - Parts catcher - Ejection of workpiece - Chips conveyor : KNOLL - Coolant tank * with high-pressure pump : 100 [bars] - Bar loader : TORNOS ROBOBAR SSF - Oil mist extractor : Elbaron - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.

Condition: excellent (used), Year of construction: 2005, Vertical blockmold: KURTZ mod. MFV (4920 x 1274/1000 x 1240mm) Basic data: -Year of manufacture: 2005 -Block dimensions (HxWxL): 4920 x 1274/1000 x 1240mm -Operating voltage: 3×400 V, 50 Hz -Power consumption: 77 kW -Blockmold with movable side wall -Complete vacuum system (GARDNER DENVER / SIEMENS) -Hydraulic system: REXROTH–BOSCH -Operational pre-loading silo for the blockmold with dedusting system -Siemens PLC controller and Siemens touch-screen HMI control panel replaced with NEW units in 2019, including a control software upgrade -Siemens TOUCH SCREEN panel (replaced with a NEW one with a larger display) -MATTHEWS printer for block labeling/date marking -Block evacuation system with block storage Nsdoucvq Hopfx Agrolg -Complete set of documentation -Condition: EXCELLENT It is possible to adjust the maximum block height to, for example, 4550–4600 mm. TAG: Block mold, block mould, block-form, styrofoam, EPS, VIRO, Kurtz, Erlenbach, EREMA, Teubert, Lauscha, Autefa, HIRSCH, EPPINGER, Mert Makina

Condition: good (used), Code: 0749 Brand: TAGLIABUE - COSTA LEVIGATRICI Model: TT 3 1300 Njdpfx Aeh T Dzqogrelg Automatic sanding machine for worktops, furniture, panels, tables Technical data: Working width mm 1300 Max working thickness mm 130 Min working thickness mm 1 Composition: 1° Transversal belt - Motor Hp 15 - Electronic speed variator with display 2° Transversal belt - Motor Hp 15 - Electronic speed variator with display Transversal sanding belt size mm 1350 x 150 Chevron belt size mm 5510 x 140 Belt blowers Belt feed speed mt/min 5/25 Fixed table and mobile head for on-line set-up Panel cleaning rotary blowers Vacuum table Belt cleaning brush Infeed roller conveyor Installed power Kw 32 Compressed air 7 Atm Suction inlets: n° 2 diameter mm 200 - n° 2 diameter mm 150 - n° 2 diameter mm 100 Overall dimensions mmm 4400 x 2500 x 1600 h Weight kg 5000

Condition: good (used), Year of construction: 2008, Ref. no.: 18643 Manufacturer: ARBURG Type: 470 C 1500-400 Golden Editions Year of construction: 2008 Clamping unit Clamping force: 150 ton Opening stroke: 500 mm Distance between tie bars: 470 x 470 mm Mould height min.: 250 mm Opening width: 750 mm Injection unit Screw diameter: 35 mm Nljdexvy Rlepfx Agrjg Injection volume: 154 cm³ Shot weight: 141 g Injection pressure: 2500 bar Measurements and weight Dimensions: 4,6 x 1,6 x 2,1 m Machine weight: 4850 kg Additional information & extras Core pull: 1 pcs Further information: Communication card for ProSeS interface is available (OPC-UA). Robot interface is available (EUROMAP 67). he Golden Edition is a special version of the well-established ALLROUNDER C series, known for its optimized hydraulic performance, stable production process, and high reliability. The machine has a clamping force of 150 tons and is ideally suited for the production of technical plastic parts as well as applications requiring high quality standards. Key advantages of this series include: * Robust and durable construction * High process stability and repeatability * Reliable ARBURG control system * Good availability of spare parts * Suitable for continuous industrial operation The Golden Edition version also stands out with its enhanced performance and excellent price-performance ratio in the used machinery market. Thanks to its versatility, this machine is widely used in industries such as automotive supply, technical plastic parts, and serial production.

Condition: like new (used), Year of construction: 2016, overall weight: 8,200 kg, fuel type: electric, color: white, Type HX426 Blade diameter (mm) 650 Number of hammers (pcs) 30 Inlet size (mm) 1250 x 250 Njdpfeqmi Irjx Agrolg Screen mesh size (millimeter) 80 Length of chips (mm) 50 -80 Capacity (t / h) 8- 10 Main power (kW) 132 Feeder motor (kw) 7.5 +5.5 Discharge motor (kw) 5.5 +5.5 Oil pump motor (kw) 1.5 Length of conveyor (mm) 4000 Conveyor length (mm) 10000 Weight (t) 8.2 Note: capacity depends on the physical characteristics of the raw material, feeding method, feeding speed and production volume.
