Milling machine

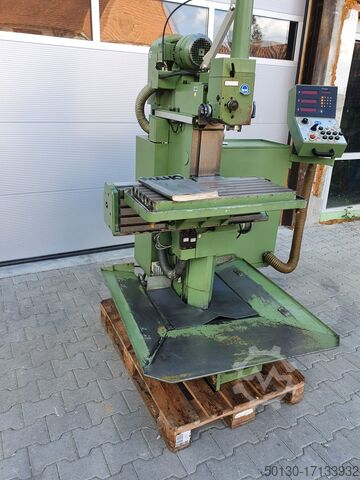

MAHO MH400

Condition: good (used), x-travel 400 mm y-travel 375 mm z-travel 250 mm table-size 205 x 800 mm T-slots 4 x 45 14 H7 speeds 50 - 3150 U/min tool taper 40 ISO quill stroke 50,0 mm Feeds X + Z Axis 5.0 - 1000 mm/min Feeds Y Axis 5.0 - 670 mm/min Hjdpfx Ajxl E Syofpsfn rapid traverse 2.4 / 1.6 m/min control Heidenhain total power requirement 5.1 kW weight 950 kg range L-W-H 1860 x 1790 x 1750 mm Machine from a vocational training center In good condition (!!) Equipment: - MAHO universal tool milling/drilling machine - HEIDENHAIN "TNC 135" positioning/path control * 3-axis manual data input control * Programmable by the machine operator * Convenient and easy operation - Electric motor-driven feed rates in all axes (X/Z/Y) * X and Z axis: 5.0 - 1000 mm/min with rapid traverse of 2.4 m/min * Y axis: 5.0 - 670 mm/min with rapid traverse of 1.6 m/min - Tiltable milling head to both sides - Tiltable T-slot universal table - Vertical clamping range - Continuously variable speed adjustment - Manually extendable spindle sleeve - Hardened and ground guideways - Electro-hydraulic tool clamp - Coolant system - Front coolant tank - operating instructions

Condition: used, Year of construction: 1984, travel distance X-axis: 400 mm, travel distance Y-axis: 375 mm, travel distance Z-axis: 250 mm, Maho MH400P Milling Machine Year of manufacture: 1984 The Heidenhain path control is inactive. The machine has been converted to conventional operation – all functions except for the path control work flawlessly. Equipped with SINO digital readout on 3 axes. The spindle runs very smoothly, guides show minimal wear. X travel: 400 mm Y travel: 375 mm Z travel: 250 mm Hfedpfx Afsxltwwopen Table size: 205 x 800 mm T-slots: 4 x 45 14 H7 Spindle speeds: 50 – 3150 rpm Tool holder: SK40 Quill stroke: 50 mm Hydraulic tool clamping Hydraulic axis clamping Feeds X + Z axis: 5.0 – 1000 mm/min Feed Y axis: 5.0 – 670 mm/min Rapid traverse: 2.4 / 1.6 m/min Inching feed: 1/100 Central lubrication Spindle drive: 2.2 kW Electrical documentation available Weight: 950 kg Dimensions: approx. 1.20 x 2.00 x 1.85 m (LxWxH)

Condition: ready for operation (used), Year of construction: 1990, Immediately available from university: Tool milling machine Maho Model MH 400 P Year of manufacture: 1990 Heidenhain TNC 135 Table 690 x 270 mm Hodsxldypjpfx Afpefn Travel with feed 360/200/375 mm Travel with handwheel 400/250/375 mm SK 40 Hydraulic tool clamping Spindle speed 40 – 2500 rpm, stepless Feed X and Z axis 5 – 1000 mm/min, stepless Feed Y axis 5 – 670 mm/min, stepless Rapid traverse 1.2 m/min Drive 2.2 kW Conventional handwheels for X/Y/Z axis Coolant system Tool holders Vice Weight 1,000 kg Price: EUR 4,500 plus VAT ex location

Condition: used, Vertical milling head, milling head, angle milling head MAHO suitable for MH300 or MH400. Year of manufacture approx. 1990. Tool holder: SK 40. Quill stroke: 60 mm. Centering diameter on the flange plate: 102 mm. Outer diameter of flange: 180 mm. Bolt circle on flange plate: Ø 150 mm. Mounting holes on flange plate: 4x Ø 11 mm. - Quill feed: 0.015 / 0.03 / 0.06 / 0.12 mm/rev. - Head drive via shaft Ø 32 with 10 mm keyway. - Knurled wheel with scale for quill stroke. - Angle scale on angle milling head 2x 90°. Dimensions L x W x H: 300 x 280 x 300 mm. Total weight: 31.4 kg. In good condition. Hfodpfx Afexf Ur Nepon

Condition: used, Year of construction: 1986, x-travel 400 mm y-travel 375 mm z-travel 250 mm table-size 600 x 300 mm quill stroke 50 mm spindle taper ISO 40 spindle turning speed range 50-400 , 400 - 3150 U/min CNC-control TNC 135 voltage 380 V / 50 Hz feeds X+Z = 5 -1000 mm/min rapid traverse X+Z = 2,4 m/min feeds Y = 5 -670 mm/min rapid traverse feeds Y = 1,6 m/min measuring system resolution capability 0,005 mm Hfsdoxc Nwnopfx Afpsn total power requirement 3,7 kW weight of the machine ca. 0,9 t dimensions of the machine ca. 1,9 x 1,8 x 1,70 m • HEIDENHAIN TNC 135 control,

Condition: good (used), For sale: very well-maintained machine from a training workshop CNC Universal Milling Machine MAHO Type MH 400 E Machine No. 42544 Year of manufacture: 1989 Travel X: 400 mm, Y: 250 mm, Z: 375 mm Table size: 700 x 270 mm Distance spindle nose / table max.: 410 mm Tool holder: ISO 40 with drawbar Type B Spindle speed: 80 - 4000 rpm, 18 steps Hfedpew A Ratefx Afpen Feed rate: 1-1500 mm/min, stepless Rapid traverse (X, Z, and Y): 2.5 m/min Vertical quill travel: 50 mm Spindle drive: 2.2 kW Power supply: 400 Volt, 50 Hz, 19 kVA - Swiveling control panel with CNC path control PHILIPS 432 - LCD monitor VISCOTECH - Hydro-mechanical tool clamping - Swing-out device for vertical milling head - Splash guard enclosure around the table with 3 folding doors - Electrical control cabinet fixed to the machine - V24 interface (RS 232) for data transfer - 52,470 operating hours, main switch on - Rigid angle table - Coolant system with coolant pump mounted next to the machine - Central lubrication system Vogel - Operator manual, electrical wiring diagram Kedbheh Ic Ufsh Nzgjlw Space requirements (L x W x H): 2250 x 1800 x 1850 mm Weight: approx. 1.5 tons Good condition

Condition: used, x-travel 400 mm y-travel 375 mm z-travel 250 mm table-size 205 x 800 mm T-slots 4 x 45 14 H7 speeds 50 - 3150 U/min tool taper 40 ISO quill stroke 50,0 mm Feeds X + Z Axis 5.0 - 1000 mm/min Feeds Y Axis 5.0 - 670 mm/min rapid traverse 2.4 / 1.6 m/min control Heidenhain total power requirement 5.1 kW weight 950 kg range L-W-H 1860 x 1790 x 1750 mm Machine from a vocational training center In good condition (!!) Equipment: Hsdpfsxab Rzsx Afpjfn - MAHO universal tool milling/drilling machine - HEIDENHAIN "TNC 135" positioning/path control * 3-axis manual data input control * Programmable by the machine operator * Convenient and easy operation - Electric motor-driven feed rates in all axes (X/Z/Y) * X and Z axis: 5.0 - 1000 mm/min with rapid traverse of 2.4 m/min * Y axis: 5.0 - 670 mm/min with rapid traverse of 1.6 m/min - Tiltable milling head to both sides - Tiltable T-slot universal table - Vertical clamping range - Continuously variable speed adjustment - Manually extendable spindle sleeve - Hardened and ground guideways - Electro-hydraulic tool clamp - Coolant system - Front coolant tank - Original operating instructions * Special accessories included: - 1x RÖHM "RB 110" hydraulic vise - 1x WALTER "UTA 150 E" dividing head - 1x drawer cabinet with numerous accessories (!)

Condition: good (used), Year of construction: 1987, Travel X/Y/Z 400/250/375 mm, 18 speed 80 - 4000 U/min, motor 2,2 KW, spindle SK 40, control MAHO CNC 232, table size 700x270 mm, hydraulic tool clamping, coolant device, spash guard, 20 tool holders with tools, tool setter, machine vice GOODJ 125 N, clamping set, machine feet, several tools, manual Hsdpfx Afjlu Hpgspsfn

Condition: used, CNC tool milling machine MAHO type MH 400 E Machine No. 43072 Year of construction 1989 travel X: 400 mm Y: 250 mm Z: 375 mm table size 700 x 270 mm distance spindle nose / table max. 410 mm tool holder ISO 40 with draw pin type B spindle speed 80 - 4000 rpm. 18 steps Hfsdjh Ic Ufepfx Afpsn feed speed 1-1500 mm/min. infinitely variable Rapid traverse (X, Z and Y) 2,5 m/min. Pinol shift vertical 50 mm spindle drive 2,2 kW mains connection 400 Volt, 50 Hz, 19 kVA - swivelling control panel with CNC path control PHILIPS 432 - LCD monitor VISCOTECH - hydro-mechanical tool clamping - swiveling device for the vertical milling head - Splash guard cabin as table enclosure with 3 folding doors - Electrical control cabinet fixed to the machine - Interface V24 (RS 232) for data transmission - 52470 operating hours, main switch on - rigid angular table - coolant unit with coolant pump adjacent under the machine - central oil lubrication Vogel - operator's manual, electrical circuit diagram space requirement L x W x H 2250 x 1800 x 1850 mm weight approx. 1,5 ton. good condition

Condition: used, Universal tool milling machine, milling machine MAHO type MH 400 P Mach. No. 41364, year of manufacture 1981 Control Heidenhain TNC 125 (active digital) Travel paths with feed X: 360 mm, Y: 200 mm, Z: 375 mm Travel paths with handwheel X: 400 mm, Y: 250 mm, Z: 375 mm Table size 690 x 270 mm Spindle mount ISO 40 Tool clamp hydraulic Spindle speed 40 - 2500 rpm, continuously variable Feed X and Z axis 5 - 1000 mm/min, continuously variable Feed Y axis 5 - 670 mm/min, continuously variable Rapid traverse X + Z = 1.2 m/min., Z = 0.8 m/min. Spindle displacement vertical 50 mm Spindle drive 2.2 kW Power supply 380 volts, 50 Hz - conventional handwheels for X, Y, Z - electrical control cabinet fixed to the machine - coolant system in the machine base - vertical milling head with drilling spindle - counter bearing for horizontal milling - operating instructions Space requirement L x W x H 1700 x 1100 x 1820 mm Weight approx. 900 kg Hsdpfx Afsf A Srzjpjfn good condition
