Used Challenger Cnc Lathe for sale (11,849)

Condition: excellent (used), turning diameter over cross slide: 300 mm, turning length: 510 mm, Model: 2100 LYB Control: Fanuc i Series Year: 2019 Turning Diameter: 300mm Turning Length: 510mm ‘X’ Axis Travel: 205mm ‘Y’ Axis Travel: 105mm ‘Z’ Axis Travel: 560mm Iaedpfx Abjy N Uqis Nst Spindle Speed: 4500 RPM Spindle Power: 15KW Spindle Torque: 169N-M Machine With: 200mm Power Chuck Driven Tools (1-AxiaL -1- Radial) Tool Eye Parts Catcher Filtermist Dimensions: 2880 x 1711 x 1921 High Weight: 3900 Kgs

Condition: excellent (used), turning length: 635 mm, turning diameter: 330 mm, spindle bore: 38 mm, spindle speed (max.): 2,400 rpm, spindle speed (min.): 40 rpm, turning diameter over bed slide: 210 mm, Model: M300 Swing Over Bed: 330mm Swing Over Top Slide: 210mm Swing In Gap: 480mm Distance Between Centres: 635mm Spindle Speeds: 40-2400 RPM Spindle Bore: 38mm Motor: 2.2 KW Machine with: 3 Jaw Chuck 4 Jaw Chuck 2 Axis Digital Readout Coolant Light Chuck Guard Iodsy N Unnepfx Ab Neat Quick Change Toolpost with Holders Dimensions: 1700 x 900 x 1470mm High Weight: 600 KGS

Condition: excellent (used), Year of construction: 1998, turning diameter over cross slide: 270 mm, turning length: 1,500 mm, turning diameter: 460 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 20 rpm, Model: Alpha 460 Plus Year: 1998 Control: Fanuc GE Swing Over Bed: 460mm (18 ½ ”) Distance between Centres: 1500mm (60”) Swing Over Top Slide: 270mm (10.8”) Spindle Speeds: 20 – 2000 RPM Iajdoy N Ulmjpfx Ab Not Machine With: 3 – Jaw Chuck 4 – jaw Chuck Fixed Steady Quick change Toolpost Coolant Pump and Fittings

Condition: ready for operation (used), Year of construction: 2007, machine/vehicle number: L705226, functionality: fully functional, TECHNICAL DATA Manufacturer: Baron Max Model: KL-2680 Year: 2007 Serial Number: L705226 Iajdpfevai Swjx Ab Not Control Unit: Fagor 8055TC WORKING CAPACITY Swing over bed: 670 mm. Center height to bed: 335 mm. Center height to top cross slide: 205 mm. Swing over cross slide: 400 mm. Dis. Between centers: 2100 mm. Width of bed: 450 mm. HEADSTOCK Spindle nose: A1-11 Spindle bore: 305 mm. Bar capacity: Ø 105 mm. Range of spindle speeds: 3 rang Gears Auto Shifting Spindle speeds range: H: 1500-331 rpm M: 330-93 rpm L: 92-24 rpm Taper in spindle: MT#6 SADDLE Longitudinal travel (Z-axis): 2000 mm. Cross-slider travel: 450 mm. Size of tool holder: Boring Tool: Ø 40 mm. O.D. Tool & Facing Tool: 25 mm. Ball screw (Dia x pitch): X-Axis: Ø25 mm. x P 5 mm. Z-Axis: Ø50 mm. x P 10 mm. TAIL STOCK Quill diameter: Ø105 mm. Quill travel: 220 mm. Quill taper: MT#5 ENGINE Spindle motor: 20HP Z-axis drive motor: 12 Nm. (FKM 44.3) X-axis drive motor: 6.3 Nm (FKM 42.3) Coolant pump motor: 1/4 HP X, Z-AXES FEED X axis rapid travel: 6 M/min. Z axis rapid travel: 8 M/min. GENERAL Power Required: 20 KVA. Floor space (L x M x H): 4090x1950x1820 mm. Approx, machine weight: 4700 Kgs. EQUIPMENT Coolant system Manual 4-way tool post 4 Jaws Self-centering scrolling chuck Ø 12". Steady rest

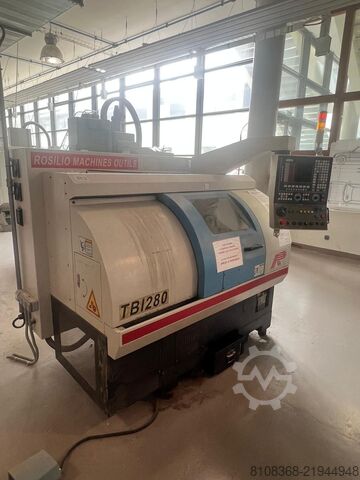

Condition: excellent (used), ROSILIO TBI 280 CNC Lathe Numerical control: FAGOR 8055TC-A Year: 2006 Power supply: 400 V Installed power: 15 kVA Weight: 2200 kg Iedpey S Axyefx Ab Noat Machine in good overall condition.

Condition: used, Year of construction: 2001, turning diameter 660 mm turning length 2000 mm control Fagor 8050 Iasdsyuqhgjpfx Ab Nst turning diameter over bed slide 370 spindle diameter 104 mm total power requirement 18 kW

Condition: good (used), Year of construction: 2019, operating hours: 2,900 h, functionality: fully functional, spindle motor power: 11,000 W, type of input current: three-phase, overall weight: 4,500 kg, Equipment: documentation/manual, rotational speed infinitely variable, We are offering this well-maintained ARIX TMD 60CL CNC lathe, year of manufacture 2019. Manufacturer: ARIX Model: TMD 60CL Date of manufacture: 10.2019 Serial number: 19102063 Spindle power: 11 kW Weight: 4,500 kg Iedsyu U Anopfx Ab Neat with sub-spindle and Y-axis including short bar feeder Fedek DH65S2 collet chuck 173E, and collet chuck 163E on the sub-spindle If you have any questions or need further information, please feel free to send us a message or call us.

Condition: ready for operation (used), Year of construction: 2001, operating hours: 27,752 h, functionality: fully functional, Equipment: documentation/manual, We are offering this ready-to-use GILDEMEISTER CTX 200 series 2 CNC turning and milling center, year of manufacture 2001. Manufacturer: GILDEMEISTER Type/Model: CTX 200 series 2 Contrary to the photo, the machine is sold with a three-jaw chuck and not a collet chuck; various VDI20 toolholders are included as well. The short bar feeder has not been in operation for a long time, so its condition is unknown. Iaodpfx Aoyu Uytsb Net If you have any questions or need more information, feel free to send us a message or give us a call.

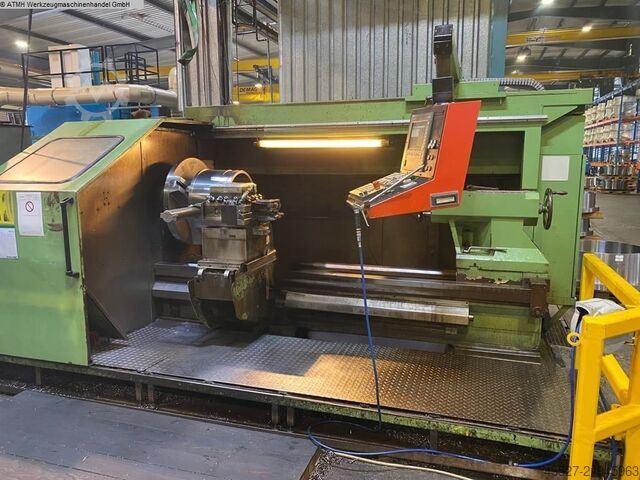

Condition: used, Year of construction: 1982, turning length / mm turning diameter / mm centre height / mm control / Very good condition CNC lathe WEISSER Heilbronn, type Gigant. From precision operation, precision machining only. Type Gigant Machine no. 27 Year of manufacture 1982 Hydraulically self-clamping Forkart chuck with power clamping cylinder 4-fold Sauter turret, size 400 mm2 Isdpfx Ajy S Dxnob Neat Siemens SINUMERIK 840D fully functional Commissioning Traverse paths X 725 mm (stroke), Z 1,480 mm Main spindle drive direct current 45 kW (rated power) Speeds in 3 stages up to max. 1,120 rpm One set of base jaws inside/outside without lynette (but can be provided for customisation) incl. documentation

Condition: used, Year of construction: 1994, functionality: fully functional, machine/vehicle number: 0607.1447, turning diameter over cross slide: 340 mm, turning length: 520 mm, turning diameter: 530 mm, spindle bore: 62 mm, spindle speed (max.): 4,500 rpm, spindle speed (min.): 45 rpm, travel distance Y-axis: 260 mm, travel distance Z-axis: 520 mm, spindle motor power: 15,000 W, rapid traverse Y-axis: 15 m/min, rapid traverse Z-axis: 20 m/min, total height: 1,750 mm, total length: 3,000 mm, total width: 1,700 mm, type of input current: three-phase, overall weight: 5,000 kg, Equipment: documentation/manual, Control: OKUMA OSP5020L 12 tools Iajdpfx Aoy Stxqsb Net Automatic chip conveyor

Condition: good (used), Year of construction: 2016, FOR SALE CNC Lathe TOP TURN S20C – Year 2016 Brand: TOP TURN (Distributed by major machine tool networks) Model: S20C Year: 2016 CNC Control: FAGOR (User-friendly interface for teaching cycles and ISO programming) Iasdpfx Absy Sltts Nst Technical Description This 2016 CNC lathe is a versatile machine, ideal for precision work in small to medium production batches. Its modern design offers excellent rigidity and very quick set-up, thanks to the Fagor control system. Capacity: - Swing over bed: 400 mm - Swing over carriage: 210 mm - Distance between centers: 1,000 mm - Bed width: 300 mm Spindle: - Spindle bore: 52 mm (Comfortable bar capacity) - Spindle speed: Up to 2,500 rpm - Spindle nose: Camlock D1-6 Included Equipment - FAGOR CNC: Color screen, cycle-assisted programming (ideal for operators used to conventional machines) - Turret: Automatic turret (electric/hydraulic) for fast and programmable tool changes - Chuck: Precision 3-jaw chuck (approx. 200 mm diameter) - Tailstock: CM4, robust - Safety: Fully enclosed machine with interlocked sliding doors, compliant with CE standards - Coolant system: Centralized with integrated chip tray Highlights - Recent (2016): Modern electronic and mechanical components, easy to source spare parts - Precision: High-precision ball screws on both axes - Compact: Small footprint relative to its machining capacity Weight and Dimensions - Dimensions: Approx. 2,400 x 1,400 x 1,700 mm - Weight: Approx. 1,800 kg

Condition: used, Year of construction: 1999, total height: 1,800 mm, total length: 2,200 mm, total width: 1,600 mm, Empty weight: 2.150 kg Price: On request Iodpfx Abewfpaks Njat - Year: 1999 - Documentation available: Yes - CE marking present: Yes - CE certificate present: No - Serial number: 39 - Drive system: Teach-in - Power [kW]: 7.5 - Centre height [mm]: 160 - Swing over bed [mm]: 320 - Distance between centres [mm]: 800 - Spindle bore [mm]: 50 - Max. spindle speed [rpm]: 4000 - Transport dimensions: 2200mm x 1600mm x 1800mm (l x w x h) - Transport weight [kg]: 2150kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: repair required (used), Year of construction: 2009, functionality: not functional, turning diameter over cross slide: 830 mm, turning length: 1,250 mm, turning diameter: 580 mm, spindle bore: 103 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 8 rpm, Equipment: rotational speed infinitely variable, Complete Siemens 802 D CNC Component Set – Ground Slides & Bed Description: CNC component set / machine kit featuring Siemens Sinumerik 802D control system. The machine is currently disassembled into functional subassemblies and is being sold as-is, making it an ideal project for hobbyists, machine rebuilding shops, system integrators, or for complete restoration. All components are included. Key Highlights: • Mechanics: The machine bed and support have been freshly ground and painted in RAL 5015. • Geometry: The mechanical alignment has already been professionally restored, providing the optimal basis for high precision. • Control: Includes a fully functional Siemens Sinumerik 802D CNC control system. • Feed drives: SIEMENS; Main spindle drive regulator manufactured by Siemens. • Completeness: All associated parts and assemblies are in stock and included. Perfect for refurbishing a precise CNC machine. Sold as inspected from stock, without warranty. Technical data of the MEXPOL TUB 830 C metal lathe as configured prior to disassembly: • Max turning diameter over bed: 830 mm • Max turning diameter over slide: 580 mm • Max bar diameter: 103 mm • Max turning length between centers: 1250 mm • Rapid traverse in X-/Z-axis: 10 m/min • Spindle speed range: 8–2000 rpm • Number of spindle speed steps: 3 • Diameter of front spindle bearing: 140 mm • Spindle drive power: 15 kW • Max spindle torque: 2100 Nm • Bed width: 520 mm • Center height over bedways: 420 mm • Tailstock quill diameter: 105 mm Iasdpfx Abjy Sub He Net • Tailstock quill stroke: 200 mm • Tailstock quill taper: Morse 6 • X-axis drive: SIEMENS motor (X-axis torque: 11 Nm) • Z-axis drive: SIEMENS motor (Z-axis torque: 18 Nm) • Coolant pump capacity: 25 l/min • Coolant pump motor power: 0.18 kW • Coolant pump motor speed (50 Hz): 2800 rpm • Installed power: 22 kW • Power supply: 3 x 400 V; 50 Hz Equipment of TUB 830C lathe: • CNC control: SIEMENS SINUMERIK 802D Sales and Delivery Conditions: • Loading: Loading onto your transport vehicle is included in the price. • Delivery: Ex stock Hilden. • Validity: Offer is non-binding – subject to prior sale (only while stocks last).

Condition: new, Year of construction: 2022, functionality: fully functional, HYUNDAI-WIA HD3100M FANUC 0IT PLUS CNC HIGH POWER TURNING CENTRE WITH HARDENED & GROUND BOX GUIDEWAYS, HIGH SPEED SERVO TURRET, C-AXIS & DRIVEN TOOLS & 12" STD CHUCK Swing Over the Bed Ø 750 MM Swing Over the Carriage Ø 500 MM Maximum Turning Diameter Ø 420 MM Maximum Turning Length 740 MM Bar Capacity - Main Ø 102 MM MAIN SPINDLE Chuck Size Ø 12” – 305 MM Spindle Bore Ø 115 MM Spindle Speed (Rpm) 2,800 RPM Motor (Max. / Cont.) 26.0 / 18.5 KW Torque (Max. / Cont.) 1,123 / 657 NM Spindle Type BELT [GEARLESS] Spindle Nose A2-11 C-Axis Indexing 360° (0.001°) Travel X 265 MM Travel Z 830 MM Rapid Speed X 24 M / MIN Rapid Speed Z 30 M / MIN Slide Type HARDENED & GROUND BOX GUIDEWAYS TURRET Number of Tools 12 Tool Size - OD 25 MM² Tool Size - ID Ø 40 MM Indexing Time 0.15 SEC / STEP LIVE TOOLS Motor (Max / Cont.) 5.5 / 3.7 KW Milling Tool Speed 5,000 RPM Torque (Max. / Cont.) 70.0 / 35.4 NM Collet Size ER32 - Ø 25 Type BMT65P QUILL TYPE TAILSTOCK [PROGRAMMABLE BUILT IN TAILSTOCK] Taper MT5 [MT4] Quill Diameter Ø 100 MM Quill Travel 120 MM Tailstock Travel 830 MM TANK CAPACITY Coolant Tank200 L Lubricating Tank 1.8 L POWER SUPPLY Electrical Power Supply 27 [30 GEARLESS] KVA Voltage 415V / 50HZ / 3PH MACHINE Floor Space (L x W) 3,885 x 1,800 MM Height 1,850 MM Weight 6,050 KGS STANDARD FEATURES SPINDLE POSITIONING MAIN - 0.001 DEG INDEX (C1-AXIS) Ijdpfx Asx Thzvjb Noat CHUCK CLAMP FOOT SWITCH MAIN SPINDLE 12 INCH 3 JAW HYDRAULIC CHUCK STD INC SET SOFT JAWS - MAIN SPINDLE CHUCK OPEN / CLOSE CONFIRMATION DEVICE MAIN SPINDLE STANDARD HYDRAULIC CHUCKING CYLINDER - HOLLOW 15" TOUCH SCREEN MONITOR FOR FANUC (SMART GUIDE i) HW ENERGY SAVING SYSTEM (HW-ESS) MACHINE GUIDANCE (HW-MCG) PART PROGRAM STORAGE - 2MB (1,000 REGISTERABLE PROGRAMS) SMART GUIDE-I (CONVERSATIONAL PROGRAMMING) COOLANT TANK (SIDE TYPE) STANDARD COOLANT SYSTEM (NOZZLE) STANDARD COOLANT SYSTEM 0.5 BAR FULL SPLASH GUARDING SYSTEM STANDARD HYDRAULIC UNIT 35 BAR (30 LITRES) CALL LIGHT (1 COLOUR) TOOLBOX MAIN SPINDLE - 2,800 RPM, 26.0 / 18.5 KW, 1123 NM BELT DRIVEN TOOLING PACKAGE QUILL TYPE TAILSTOCK WITH STD LIVE CENTER 12 STATION BMT65P SERVO TURRET, LIVE TOOLS 5,000 RPM, 5.5 KW, 47.0 NM FACTORY FITTED MACHINE OPTIONS CHIP BUCKET STANDARD CHIP CONVEYOR SIDE HINGED HIGH PRESSURE COOLANT SYSTEM 20 BAR IN LIEU OF STD (RATED AT 60HZ SUPPLY) BARFEED INTERFACE - MAIN SPINDLE PARTS CATCHER - MAIN SPINDLE 30 KVA TRANSFORMER AND CABLE QUICK TOOL SETTER - MANUAL PROGRAMMABLE TAILSTOCK IN LIEU OF STDMACHINE CONSTRUCTION & FEATURES 12” STANDARD CHUCK SIZE. 30° SLANT BED ONE PIECE HEAVY DUTY CAST IRON CONSTRUCTION FOR HIGH ACCURACY & RIGIDITY. HARDENED & GROUND BOX GUIDEWAYS FOR HEAVY DUTY CUTTING. 12 STATION HIGH SPEED RIGID SERVO DRIVEN TOOL TURRET – BMT65P. 2,800 RPM 26.0 / 18.5 [35.0 / 25.0 GEARLESS] KW HIGH POWER MAIN SPINDLE. 24 X 30 M/MIN RAPID TRAVERSE RATES – X & Z AXES. C-AXIS MAIN SPINDLE. ERGONOMIC DESIGN FOR EASY ACCESS TO CHUCK & TURRET.

Condition: new, Year of construction: 2023, functionality: fully functional, HYUNDAI-WIA HD2200 FANUC 0IT PLUS CNC LATHE Iasdpfxox Tqppe Ab Njt MACHINE CONSTRUCTION & FEATURES ▪ 8” STANDARD CHUCK SIZE. ▪ 45° SLANT BED ONE PIECE HEAVY DUTY CAST IRON CONSTRUCTION FOR HIGH ACCURACY & RIGIDITY. ▪ HARDENED & GROUND BOX GUIDEWAYS FOR HEAVY DUTY CUTTING. ▪ 12 STATION HIGH SPEED RIGID SERVO TURRET. ▪ 4,500 RPM HIGH POWER MAIN SPINDLE. ▪ 24 X 30 M/MIN RAPID TRAVERSE RATES – X & Z AXES. ▪ ERGONOMIC DESIGN FOR EASY ACCESS TO CHUCK & TURRET. Swing Over the Bed Ø 550 MM Swing Over the Carriage Ø 390 MM Maximum Turning Diameter Ø 380 MM Maximum Turning Length 565 MM Bar Capacity Ø 65 MM MAIN SPINDLE Chuck Size Ø 8” – 203 MM 10” - [254] MM Spindle Bore Ø 76 MM Spindle Speed (rpm) 4,500 RPM Motor (Max/Cont.) 18.5 / 15.0 KW Torque (Max/Cont.) 206 / 125.3 NM Spindle Type BELT Spindle Nose A2-6 FEED Travel X 215 MM Travel Z 580 MM Rapid Speed X 24 M/MIN Rapid Speed Z 30 M/MIN Slide Type HARDENED & GROUND BOX GUIDEWAYS TURRET Number of Tools 12 Tool Size - OD 25 MM² Tool Size - ID Ø 40 MM Indexing Time 0.12 SEC / STEP TAILSTOCK Taper MT 4 Quill Diameter Ø 65 MM Quill Travel 80 MM Travel 513.7 MM TANK CAPACITY Coolant Tank 150 L Lubricating Tank 1.8 L POWER SUPPLY Electric Power Supply 23 KVA Thickness of Power Cable Over 16 MM² Voltage 415V / 50Hz / 3Ph MACHINE Floor Space (L x W) 2,925 x 1,650 MM Height 1,820 MM Weight 4,100 KGS INCLUDED MACHINE OPTIONS CONVEYOR SIDE HINGED WITH CHIP BOX COOLANT GUN HIGH PRESSURE COOLANT SYSTEM 20 BAR IN LIEU OF STD OIL SKIMMER BARFEED INTERFACE - MAIN SPINDLE PARTS CATCHER - MAIN SPINDLE TRANSFORMER - 415V 3PH 50HZ QUICK TOOL SETTER - AUTO PROGRAMMABLE TAILSTOCK IN LIEU OF STD STANDARD FACTORY FITTED MACHINE OPTIONS CHUCK CLAMP FOOT SWITCH MAIN SPINDLE 8 INCH 3 JAW HYDRAULIC CHUCK STD INC SET SOFT JAWS - MAIN SPINDLE CHUCK OPEN / CLOSE CONFIRMATION DEVICE MAIN SPINDLE STANDARD HYDRAULIC CHUCKING CYLINDER - HOLLOW 15" TOUCH SCREEN MONITOR FOR FANUC (SMART GUIDE i) HW ENERGY SAVING SYSTEM (HW-ESS) MACHINE GUIDANCE (HW-MCG) SMART GUIDE-I (CONVERSATIONAL PROGRAMMING) STANDARD COOLANT SYSTEM (NOZZLE) STANDARD COOLANT SYSTEM 0.5 BAR STANDARD COOLANT TANK 150 LITRES FULL SPLASH GUARDING SYSTEM STANDARD HYDRAULIC UNIT 35 BAR (15 LITRES) CALL LIGHT (1 COLOUR) MACHINE MANUALS & OPERATOR HANDBOOKS TOOLBOX STANDARD TOOLING PACKAGE QUILL TYPE TAILSTOCK - 4MT WITH STD LIVE CENTER

Condition: new, Year of construction: 2022, functionality: fully functional, HYUNDAI-WIA HD3100L FANUC 0IT PLUS CNC LATHE MACHINE CONSTRUCTION & FEATURES 12” STANDARD CHUCK SIZE. 30° SLANT BED ONE PIECE HEAVY DUTY CAST IRON CONSTRUCTION FOR HIGH ACCURACY & RIGIDITY. HARDENED & GROUND BOX GUIDEWAYS FOR HEAVY DUTY CUTTING. 10 STATION HIGH SPEED RIGID SERVO TURRET. 2,800 RPM 26.0 /18.5 KW HIGH POWER MAIN SPINDLE. 24 X 30 M/MIN RAPID TRAVERSE RATES – X & Z AXES. ERGONOMIC DESIGN FOR EASY ACCESS TO CHUCK & TURRET. MACHINE CAPACITIES Swing Over the Bed Ø 750 MM Swing Over the Carriage Ø 500 MM Maximum Turning Diameter Ø 500 MM Maximum Turning Length 1,300 MM Bar Capacity Ø 102 MM MAIN SPINDLE Chuck Size Ø 12” – 305 MM Spindle Bore Ø 115 MM Spindle Speed (rpm) 2,800 RPM Motor (Max/Cont.) 26.0 / 18.5 KW Torque (Max/Cont.) 1,123 / 657 NM Spindle Nose A2-11 FEED Travel X 265 MM Travel Z 1,350 MM Rapid Speed X 24 M/MIN Rapid Speed Z 30 M/MIN Slide Type HARDENED & GROUND BOX GUIDEWAYS TURRET Number of Tools 10 Tool Size - OD 25 MM² Tool Size - ID Ø 50 MM Indexing Time 0.15 SEC / STEP TAILSTOCK Type QUILL TYPE TAILSTOCK [PROGRAMMABLE TAILSTOCK] Taper MT5 [MT4] Quill Diameter Ø 100 MM Quill Travel 120 MM TANK CAPACITY Coolant Tank 220 L Lubricating Tank 1.8 L POWER SUPPLY Electric Power Supply 27 KVA Thickness of Power Cable Over 16 MM² Voltage 415V / 50Hz / 3Ph MACHINE Floor Space (L x W)4,405 x 1,978 MM Height 1,850 MM Weight 7,200 KGS Isdpfxex Tiggj Ab Noat INCLUDED FACTORY FITTED MACHINE OPTIONS CONVEYOR SIDE HINGED WITH CHIP BOX SMART GUIDE-I (CONVERSATIONAL PROGRAMMING) COOLANT GUN HIGH PRESSURE COOLANT SYSTEM 20 BAR IN LIEU OF STD BARFEED INTERFACE - MAIN SPINDLE PARTS CATCHER - MAIN SPINDLE TRANSFORMER - 415V 3PH 50HZ QUICK TOOL SETTER - AUTO STEADY REST PREPARATION - PROGRAMMABLE CLAMPING & TRAVEL PROGRAMMABLE TAILSTOCK IN LIEU OF STD QUILL TYPE TAILSTOCK - MANUAL TYPE MT#5 100 MM DIA QUILL, 120 MM QUILL TRAV STANDARD FACTORY FITTED OPTIONS CHUCK CLAMP FOOT SWITCH MAIN SPINDLE 12 INCH 3 JAW HYDRAULIC CHUCK STD INC SET SOFT JAWS - MAIN SPINDLE STANDARD HYDRAULIC CHUCKING CYLINDER - HOLLOW 15" MONITOR FOR FANUC FOR STANDARD CNC SPECIFICATION - SEE MANUFACTURER'S BROCHURE HW ENERGY SAVING SYSTEM (HW-ESS) MACHINE GUIDANCE (HW-MCG) COOLANT TANK (SIDE TYPE) STANDARD COOLANT SYSTEM (NOZZLE) STANDARD COOLANT SYSTEM 0.5 BAR FULL SPLASH GUARDING SYSTEM STANDARD HYDRAULIC UNIT 35 BAR (30 LITRES) CALL LIGHT (1 COLOUR) TOOLBOX STANDARD TOOLING PACKAGE - SEE MANUFACTURER'S BROCHURE STANDARD LIVE CENTER

Condition: good (used), Year of construction: 2006, FOR SALE: 2-Axis CNC Lathe COLCHESTER TORNADO T8 High-performance precision lathe, robust and reliable, ideal for series production of mechanical parts. Identification and Brand Brand: COLCHESTER / 600 LATHES. Manufacturer: 600 LATHES (600 Group), England. Model: TORNADO T8. Iaedpfx Absy Sg N No Net Year of manufacture: 2006. Serial number: R40039. Technical Specifications Bar capacity (Spindle): 65 mm. Maximum spindle speed: 5,000 rpm. CNC Control system: GE Fanuc Series 21i-TB. Axes: 2 axes (X and Z). Equipment: Automatic turret, chuck, and tailstock. Electrical Data Voltage: 380 Volts. Phase: 3 phases. Frequency: 50 Hertz. Current: 58 Amps. Main Advantages Fanuc Reliability: The CNC is renowned for its accuracy and ease of maintenance. Productivity: High-speed spindle enables high-quality finishes and short cycle times. European Design: Robust construction by Colchester group ensures excellent stability.

Condition: good (used), Year of construction: 2000, FOR SALE: CNC Lathe IKEGAI TUR15Y (with Y Axis) High-performance Japanese machine, renowned for its exceptional rigidity and versatile milling capabilities. Technical Specifications & Dimensions Machine Type: CNC Turning Center. Turning diameter: approx. 320 mm (swing over bed up to 450 mm). Y Axis: Available (model TUR15Y), allowing off-center milling, drilling, and tapping without the need for part repositioning. Turret: High-performance automatic turret, visible inside the working area. Electrical Specifications (Source: IMG_8358_2.jpeg) Main spindle motor power (AC): 9 / 11 kW. Power supply: 200 V / 50 Hz / 3-phase. Full load current: 82 A. Interrupt capacity: 26 KVA. Protection rating: IP 54. Control System & Build CNC control: FANUC Series 18i-T. Manufacturer: IKEGAI Corporation (Tokyo, Japan). Features: Hydraulic chuck and full operator control panel. Iodpfjy Sgrdsx Ab Noat BT MACHINES PURCHASE AND SALE ALL TYPES OF INDUSTRIAL EQUIPMENT ALL TYPES OF MACHINE TOOLS CNC lathe CNC milling machine fanuc grinders boring machine plate roller press brake shear bandsaw grinder notcher plasma cutting laser cutting 5-axis 4-axis 3-axis 2-axis dual-spindle dual-turret chuck multi-axis gear hobbing gear cutting screw machining turning milling fitting sharpening bending welding aerospace metalworking boilermaking

Condition: good (used), Year of construction: 2002, functionality: fully functional, FOR SALE: DAEWOO Lynx 210L CNC Lathe Compact and robust machine, ideal for the production of precision components. Technical Specifications Control System: FANUC Series 21i-T. Turret: 12 tool stations. Clamping Device: Hydraulic 3-jaw chuck. Workpiece Support: Hydraulic tailstock included. Machining Dimensions (standard Lynx 210L): Max. turning diameter: ~280 mm. Max. turning length: ~500 mm. Iodpfx Ajy Sgnfsb Neat Manufacturer Data (Source: IMG_8345.jpeg) Model: Lynx 210L (Lynx 200 Series). Serial No.: L2002339. Total Weight: 4,240 kg.

Condition: excellent (used), XYZ SLX 555 x 3M CNC Lathe (2016) Iaedpfx Ajx Hp I Reb Net Stock Number 2851 Protrak SLX CNC Swing over bed 560mm Swing in gap 935mm Swing over cross slides 350mm Distance between centres 3000mm Spindle bore 104mm Additional Features Protrack SLX Control Drilling Attachment 4 Way Toolpost 3 Jaw Chuck 3 Point Steady

Condition: reconditioned (used), Year of construction: 2009, MAZAK QUICK TURN NEXUS 100-II MSY Max. machining diameter: 280 mm Max. machining length: 400 mm Max. milling speed: 4,500 rpm Max. spindle speed: 6,000 rpm Max. bar diameter: 42 mm Machine is equipped with: - CNC control: Mazatrol Matrix - SMW collet chuck 173E for main spindle - KITAGAWA 3-jaw chuck B-205 for 2nd spindle - Tool Eye - C-axis Iaodpfjy S A Risx Ab Nst - C-axis counter-spindle, input accuracy 0.0001 - Y-axis - Interface for bar loader magazine - Automatic parts catcher - Reinforced coolant pump - 8 pcs. fixed tool holders - 2 pcs. driven tool holders

Condition: used, Year of construction: 2003, turning diameter 430 mm Iasdpfx Aoy Sblxob Not turning length 519-525 mm control Mori seiki MSX-805 x-axis 230 mm z-axis 520 mm weight of the machine ca. 4100 kg

Condition: used, Year of construction: 2014, turning diameter 376 mm turning length 760 mm control Fanuc x-axis 260 mm z-axis 830 mm Iasdpfsy Sblrex Ab Njt weight of the machine ca. 6000 kg

Condition: used, Year of construction: 1999, turning diameter 1100 mm turning length 6000 mm control Siemens 840D turning diameter over slide 740 mm Ijdpfoyqvphex Ab Neat total power requirement 22 kW Year of manufacture 1999 Control: Siemens 840D Turning length (mm) 6000 Max. turning diameter (mm) 1100 Max. turning diameter over slide (mm) 740 Spindle diameter (mm) 105 Speed ??16 - 1800 (18x) kW 22 Voltage 380V Hz 50 3-jaw chuck ø (mm) ¦ 4-jaw chuck ø (mm) ¦ Fixed steady rest ø (mm) 2x Through-spindle cooling ¦ Multifix tool post The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: good (used), Year of construction: 2007, functionality: fully functional, Control: SIEMENS 840D PL ManualTurn turning diameter: 1.140 mm turning lenght: 4.200 mm turning diameter over slide: 800 mm faceplate diameter max.: 1.000 mm Support Length of the bed slide: 1.000 mm Travel of the cross slide: 650 mm Width of the cross slide: 425 mm bed width: 710 mm Iajdpjy Snkzjfx Ab Njt Main Spindle spindle bore: 120 mm spindle diameter in front bearing: 190 mm Accessories 1 piece fix steady rest 10 pieces Multifix quick-change steel holder Typ D The machine has been general overhauled in 2007.
