Used Oerlikon Stick Blade Bevel Gear Cutting Machines for sale (73,698)

Condition: ready for operation (used), Year of construction: 2008, Fells axial forming machine with automated part feeding. The machine was used to apply splines to tripod joints. CV joint splines, etc. The manufacturer specifies a maximum diameter of 50 mm for the spline working area. Further technical data can be found in the images. Codpfez Dnt Usx Adrjrh

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, grinding wheel diameter: 200 mm, workpiece length (max.): 200 mm, TECHNICAL DETAILS Grinding wheel diameter: 100–200 mm Csdpfxoya Dy Hs Adrsrh Maximum workpiece length: 200 mm MACHINE DETAILS Control: Siemens 840D or equivalent CNC axes: 3–5 axes Drive power: 5–10 kW Coolant tank: 100–200 litres EQUIPMENT Coolant filtration system Universal applicability for different tool types and geometries High flexibility through CNC programming and adaptable clamping devices Process reliability thanks to integrated cooling and filtration system Easy maintenance due to modular design and central supply units

Condition: used, Year of construction: 2003, max. wheel diameter 275 mm gear width 58 mm max. module 13 min. module 2 Control SINUMERIK 840 D number of teeth 5 - 200 ratio of transmission 10:1 cutter diameter max. 228 mm x-axis 25 - 350 mm y-axis +/- 175 mm z-axis 125 - 600 mm b-axis -5 / +90 ° total power requirement 75 kW weight of the machine ca. 11,7 t dimensions of the machine ca. 12,5 x 3,0 x 3,0 m Both Spindles retrofitted in 07/2026 Equipped for dry milling Pressure deburrer Crjdpsx R U E Nsfx Adreh Deburring device with driven brush Integrated magnetic chip conveyor Promot Cellmaster Cartridge pulse filter system User interface control works with Gleason Summary

Condition: ready for operation (used), Year of construction: 1990, functionality: fully functional, machine/vehicle number: 018.0402, gear diameter: 300 mm, controller model: Optronic CNC D140, workpiece width (max.): 2,300 mm, workpiece height (max.): 500 mm, center height: 250 mm, No minimum price – guaranteed sale to the highest bidder! Crsdezzba Sspfx Adreh TECHNICAL DETAILS Gear diameter: 300 mm Module range: 0.5–8 mm Pressure angle: 35° Max. workpiece width: 2,300 mm Max. workpiece height: 500 mm Max. workpiece weight: 100 kg Center height: 250 mm Table length: 2,300 mm Grinding spindle travel: 200 mm MACHINE DETAILS Control system: Optronic CNC D140 Dimensions & Weight Dimensions (L x W x H): 5,900 x 1,300 x 2,000 mm Net weight: 7,500 kg Shipping packages: 5 units

Condition: ready for operation (used), Wheel width: 600mm, module range: 2-16, cutter dimensions X/Y: 240mm/280mm, table diameter: 1020mm, speed: 200rpm, swiveling: +/-45°, max. wheel diameter with/without counterholder: 1250mm/800mm. Machine dimensions X/Y/Z: approx. 4500mm/2100mm/3300mm, weight: approx. 16200kg. An on-site inspection is possible. Crodoy Hk T Iopfx Adrsh

Condition: used, The Klingelnberg GKP 90 bevel gear testing machine was designed as a universal machine and is used by manufacturers of gears and transmission technologies for noise and contact pattern testing on bevel and hypoid gears. Technical Data • Diameter: 540 (400) mm • Hypoid: ±50 mm • Pinion spindle diameter: 90 mm • Dimensions (LxWxH): 1,800 x 1,800 x 1,600 mm • Machine weight: approx. 2,800 kg *Information and data are provided without obligation. Subject to prior sale. Special Features: The machine is intended for noise and contact pattern testing on bevel and hypoid gears of all gear types. By simulating operational conditions, applying various rotational speeds, and switching load states between drive and coast, the optimal installation distance for standstill can be determined. • Digital actual value display for 2 axes • Infinitely variable speed adjustment via frequency inverter • Electrically secured and removable safety guard • Accessories: Large number of workpiece holders • Condition: Very good Crsdpfoxpq Nlox Adreh

Condition: good (used), Year of construction: 2002, Clampable cutter head type (max.) 460 mm Cutter head weight (max.) 150 kg Mounting disc diameter for cutter heads (Ø) 360 mm Mounting cone for cutter heads Nominal diameter Ø 58,227 mm travel -z axis 200 mm diagram-drawing enlargement ±10 - ± 500 µm weight of the machine ca. 2,3 t dimensions of the machine ca. 2 x 1,5 x 2,03 m Codpjw N S E Asfx Adrjrh In the manufacturing process for spiral-toothed bevel gears, the quality of the gear cutting gear cutting tools used plays a decisive role. Particularly in high gear cutting quality and a long service life can only be achieved with precisely can only be achieved with precisely adjusted cutterheads. The Oerlikon cutterhead setting and testing device CS 200 enables quick and easy setting of the individual knives and simple adjustment of the individual knives, it checks the position and documents the measurement results. The measuring sequence on the CNC-controlled testing device is partially automated: The individual actions for carrying out the actions for carrying out the sequence are displayed on the screen via the operator guidance. The positioning of the individual knives in the cutter head and the height of the knife tips is largely automatic thanks to a special sequence and is simultaneously documented by means of a run-out diagram. A subsequent measuring sequence checks the radial position of the inner and outer cutting edges of all knives in the cutterhead. If individual test parameters on the knives do not correspond to the the tolerance specifications, this can be individually repositioned. The combination of semi-automated setting sequence, operator-guided set-up actions and automatic operator-guided set-up actions and automatic measuring sequence, cutterheads can be can be set conveniently, quickly and with high precision. Operator-guided setting and test sequence - Graphic display of the cutter head design and the measurement results with tolerance check - Instructions for the operator in plain text Instructions for the operator in plain text (without coded information) - Simple assignment of the measurement results to the knives - Documentation of the setting and measurement results via printer- Setting and test sequence suitable for ARCON®, RSR, Spirapid, SPIRON®, TRI-AC® types - Interface for neutral data

Condition: used, MONNIER + ZAHNER MZ 120 is a Worm gear cutting machine, built for precision, high accuracy and reliable operation. Capacities: workpiece diameter 2–40 mm, module max 1.5 mm, workpiece length max 250 mm, max cutting length 150 mm, cutter diameter 16–32 mm. Specs: milling spindle speed max 8000 t/min, work piece spindle speed 770 t/min, milling spindle drive 1 kW, max milling head inclination 45°. Accessories: sprinkle cooling device, lamp, switch cabinet air conditioner. Achieves tight tolerances; typical sectors: automotive, watchmaking, machine tools, aerospace, medical. Codoza Ukiepfx Adrjrh

Condition: excellent (used), Replacement blades for cutting machines -Brand: Stumabo Crsdpfx Asv Tm Tfjdroh -Blade size: 190x50x5 mm -Type: 2114662 -Number: 162x available -Price: per piece -Minimum order: 3 pieces -Dimensions: 190/50/H5 mm -Weight: 0.27 kg

Condition: used, Replacement blades for cutting machines -Knife size: 127x25.4x1.1mm -Urschel: 46097 -Number: 33x available -Price: per piece Credpfx Adedki Rgjreh -Weight: 25 g/piece

Condition: used, Year of construction: 1997, max. wheel diameter 215 mm gear width 40,65 mm max. module total power requirement 20 kW weight of the machine ca. 10 t Max. external Ø of workpiece 215 mm Tooth profile, height x width 16 x 40.65 mm No. of teeth 5 - 200 Max. tooth ratio 1 : 10 Grinding wheel Ø 51 - 190 mm Grinding wheel speeds 1,000 - 6,000 rpm X Axis (horizontal) 152 mm Y Axis (vertical) 178 mm Z Axis (slide base plate) 304 mm Distance from middle of machine to middle of workspindle 115 mm Axial speed 125 mm/sec Workpiece speeds 0 - 30 rpm Workspindle bore, conical 3 29/32 inch Total electrical load 20 kW - 380 V - 50 Hz Crodpfst Hwxhex Adrjh Weight, approx. 10,000 kg Accessories / Special Features * FANUC CNC Control, Model 150 MB, for 7 axes, with monitor and direct input. Automatic calculation of all workpiece and grinding parameters. * Extensive coolant equipment with filter system, band filter, etc. * Driven grinding wheel dressing device with CNC dressing control for automatic compensation of form and diameter after every dressing. * Gear grinding is effected either in single component operation using a conical cup wheel (Gleason 30°), or with a cylindrical cup wheel. These grinding wheels can be made of CBN, or of traditional "dressable" aluminium oxide material (question of cost). Grinding with a conical grinding wheel is of advantage with regard to heat build-up and quality of tooth contact pattern. Therefore these pairs of bevel gears (for automotive industry) can be generated in high quality with consistent accuracy, economically, and with short set-up times. Condition : Very good - machine can be inspected here under power Delivery : Ex stock, as inspected Payment : Net, after conclusion of contract Thank you for your interest. We always have a good selection of gear machines available. Please let us know what you need.

Condition: used, Year of construction: 2006, ratio of transmission 10:1 min. number of teeth 3 max. number of teeth 200 range of tooth size 20 mm tooth width max. 58 mm spindle speeds (infinitely variable) 6000 U/min work piece spindle speed 1200 U/min diameter of tools max. 230 mm diameter of tools min 69,85 mm x-axis 325 mm y-axis 350 mm z-axis 470 mm b-axis + 90,1 / - 1 ° work piece table - Ø 212,71 mm Control SIN 840 D SIEMENS total power requirement 75 kW Codpfx Adevxwr Asrsrh weight of the machine ca. 10,00 to dimensions of the machine ca. 6,10 x 4,40 x 3,30 m coolant filtering unit Hoffmann HSF 100 V

Condition: repair required (used), Year of construction: 1987, functionality: unexamined, Max. diameter with counter support: 1450 mm Max. diameter without counter support: 2100 mm Crjdpfjz Df A Tjx Adreh Diameter of the clamping table: 1800 mm Total weight: 38 tons The clamping table has been disassembled and overhauled.

Condition: good (used), Year of construction: 1972, max. wheel diameter 80 mm gear width 60 mm max. module 3 Crodpew N S D Ssfx Adroh min. module 0,1 total power requirement 0,4 kW weight of the machine ca. 120 kg dimensions of the machine ca. 0,6x0,6x0,75 m

Condition: used, functionality: fully functional, Year of construction: 2007, machine/vehicle number: A0100A0637, laser type: CO₂ laser, laser source manufacturer: trumpf, laser power: 2,000 W, input voltage: 24 V, input current: 100 A, input frequency: 4,000 Hz, type of input current: three-phase, type of cooling: water, year of last overhaul: 2025, Equipment: CE marking, centralized greasing system, cooling unit, documentation/manual, dust extraction, emergency stop, fume extraction, nozzle changer, safety light barrier, Trumpf Trumatic 6000, manufactured in 2007 – still in use and fully operational (used for stainless steel sheets, 0.8 – 2 mm thick). Codpfx Adez Iwvgorjrh

Condition: new, functionality: fully functional, Year of construction: 2025, degree of automation: semi-automatic, laser type: fiber laser, Equipment: CE marking, centralized greasing system, documentation/manual, dust extraction, emergency stop, fume extraction, safety light barrier, # Eckert Diamond Tube Laser – CNC Tube Laser Cutting Machine for Tubes and Profiles The Diamond Tube Laser from Eckert Cutting is a CNC laser tube cutting machine for the precise machining of tubes and profiles. It is suitable for companies in the metalworking, steel construction, and mechanical engineering industries that want to cut tubes and profiles efficiently and with high repeatability. ## Tube Diameters and Profile Shapes The Diamond Tube series processes round tubes with a minimum diameter of 20 mm. The maximum tube diameter is 240 mm, 360 mm, or 540 mm, depending on the model. In addition to round tubes, square tubes, rectangular tubes, oval and elliptical tubes, as well as various special profiles can be machined. Open profiles such as L-, C-, I- and H-profiles also fall within the range of applications. ## Stable Tube Clamping for Precise Laser Cuts Codpfxof Ak Swe Adrsrh The robust gantry design with an inclined rack and pinion drive ensures high rigidity and stable machine movements. A pneumatic clamping system, CNC-controlled self-centering, and a floating tube support assist in the secure fixing of the workpieces – even with long tubes and profiles. The 360° machining capability enables flexible cutting contours for demanding components and structures. ## Optional Chamfer Cutting up to 45° With an optional 4-, 5- or 6-axis cutting head, the Diamond Tube Laser enables chamfer and bevel cuts up to 45°. This allows tubes and profiles to be specifically prepared for welding joints and complex assemblies. ## Automation for Series Production An optional automatic loading system supports continuous material feed and reduces manual effort. This makes the tube laser cutting machine suitable for both flexible production tasks and series production. The Eckert Diamond Tube Laser combines precise laser cutting with versatile profile machining and optional automation – for efficient manufacturing processes in industrial metalworking.

Condition: used, Year of construction: 1977, machine/vehicle number: 19909, Equipped with: Index Plate Geneva Cam Cutter Body Hydraulic Work Clamping Coolant Pump & Tank Chip Conveyor Additional Cutter Bodies, Index Plates & Geneva Cams Available Specifications: Minimum Outside Cone Distance: 2.75" Maximum Cone Distance: 10" Maximum Gear Pitch Dia.: 20" Cutter Diameters Utilized: 9 - 18" Root Angle: 55 - 80 Deg. Face Width: 3" Number of Teeth: 20 -75 Diameter of Taper Hole at Large End: 3-27/64" Taper Per Foot: .50" Depth of Taper: .625" Cutter Speeds: 15.6 to 87.7 RPM Feeds (seconds/tooth): 5 to 34.3 Main Motor: 10hp, 1800 rpm Hydraulic Motor: 7.5hp, 1800 rpm Approximate Floor Space: 118" x 86.5" Needed Overall Height: 70" Approximate Net Weight: 18,820 lbs Shipping Weight Boxed for Export: 20,500 lbs Cedpjxdfazsfx Adrjrh

Condition: excellent (used), max. wheel diameter 250 mm gear width 40 mm max. module 6 min. module 1 number of teeth 8 - 100 cone distance 310 mm Cedpfx Adez Dbzrjrjrh pressure angle 15 - 30 ° blade cutter head diameter 450 mm pivoting angle 0 - 90 Grad total power requirement 16 kW weight of the machine ca. 8,5 t dimensions of the machine ca. 2,2 x 1,7 x 1,7 m Change gears, chip conveyor, cutting heads, knifes,...

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, rotary table diameter: 450 mm, position of the milling head: Schwenkbar (45°), table diameter: 450 mm, total length: 5,600 mm, gear diameter: 500 mm, total height: 3,100 mm, total width: 3,600 mm, input frequency: 50 Hz, type of input current: three-phase, spindle speed (max.): 340 rpm, table bore: 125 mm, spindle speed (min.): 80 rpm, travel distance X-axis: 325 mm, travel distance Y-axis: 200 mm, travel distance Z-axis: 400 mm, overall weight: 14,800 kg, distance table to spindle center: 350 mm, tool diameter: 200 mm, controller manufacturer: Siemens Sinumerik 840D sl, drive type: Sinamics S120, control type: CNC control, Equipment: documentation/manual, rotational speed infinitely variable, A Pfauter PE 500 for the economical production of straight and helical spur gears up to module 12 and 500 mm in diameter – completely overhauled by SerWeMa with Siemens Sinumerik 840D sl, equipped with a gripper unit and a 32-position workpiece storage for unmanned operation. The machine is ready for operation in our hall in Chemnitz: you can inspect it under power, and if desired, we will mill your own sample part and you can take delivery of the machine here. No delivery time, no risk. Sold by Serwema Retrofit Solutions, the company that carried out the overhaul and knows the machine inside out. The general overhaul included complete geometric overhaul by grinding and scraping, new roller bearings in the main drive and in the milling head, measuring and reconditioning the worm gear, overhauled or new ball screw drives, overhaul of hydraulics, lubrication and coolant system, and new electrical equipment with Sinumerik 840D sl, Sinamics S120 and new axis motors. An electronic generating gear controls all generating and single-part machining processes, and an NC-controlled crash recovery protects the tool and workpiece in the event of a power or phase failure. New paint in RAL 7035/5015 with oil and coolant resistant two-component paint, acceptance of geometry according to SerWeMa protocol based on DIN ISO 6545. The machine controls six CNC axes: X radial, Y tangential, Z axial, A milling head swivel, B milling cutter drive and C table drive. The SerWeMa gear cutting software guides you through workpiece and tool data via masks, without the need for programming: up to three position-oriented gearings per workpiece, each with its own tool, up to three cuts per gearing with simultaneous or counter-rotating movement, form corrections for convex, conical and convex-conical profiles, lead-in and lead-out phase correction, chamfer milling, dimension correction via tooth width, two-roll or two-ball gauge, measuring stop, shift strategy with defect management per generating cutter and cutting force monitoring with automatic retraction. Technologies: generating milling, single-part milling and worm gear milling both radially and tangentially. A hand-held device with a handwheel allows setup directly in the working area. Cjdpjz Et E Eofx Adrorh Technical data: max. workpiece Ø 500 mm, max. module 12, max. milling cutter Ø 200 mm, max. milling cutter length 240 mm, shift travel 200 mm, milling cutter speed 100–450 rpm, swivel angle +25°/−45°, travel radial 325 mm (axis distance 25–350 mm), travel axial 400 mm (310–710 mm), table diameter 450 mm, table bore 125 mm, connection power approx. 60 kVA. Installation dimensions incl. automation approx. 7.2 × 4.5 × 3.3 m, weight approx. 16.8 t. Equipment: machine enclosure, chip conveyor, gripper unit with two grippers, workpiece storage with 32 positions, preparation for emission extraction (150 mm nozzle, Harting connector on the machine roof). Documentation complete in German: operating manual, electrical diagrams with parts lists, hydraulic and lubrication diagrams. Serwema optionally offers: trial part milling in our factory, additional milling arbors, assembly and commissioning at your location, operator training and a control system upgrade to Sinumerik ONE. Spare parts and service come from a single source, worldwide, even after the purchase.

Condition: new, functionality: fully functional, Year of construction: 2025, machine/vehicle number: 250506-mxa-03, control type: CNC control, degree of automation: automatic, actuation type: electric, controller manufacturer: Raytools, laser type: fiber laser, laser source manufacturer: MAX Photonics, laser power: 1,500 W, sheet thickness steel (max.): 15 mm, sheet thickness stainless steel (max.): 6 mm, sheet thickness aluminum (max.): 6 mm, sheet thickness brass (max.): 4 mm, table length: 3,000 mm, table width: 1,500 mm, table height: 600 mm, working length: 3,000 mm, working width: 1,500 mm, cutting speed: 5,000 mm/min, input voltage: 380 V, input current: 45 A, input frequency: 50 Hz, type of input current: three-phase, type of cooling: water, overall weight: 2,400 kg, total length: 4 mm, total width: 3 mm, total height: 2 mm, warranty duration: 3 months, air pressure: 16 bar, Equipment: CE marking, centralized greasing system, cooling unit, emergency stop, Fiber laser metal cutting machine — 1500 W MAX Photonics (Senke SKL-1530F) Brand new, unused — still sealed in original factory export packaging (0 operating hours). Immediately available. High-precision, long-term stable and affordable fiber laser cutting for professional sheet-metal work. Ideal for metal fabrication shops and repair workshops. Delivered as a complete, ready-to-run package. Complete package — key features: ● MAX Photonics fiber laser source, 1500 W ● DELTA servo motors & drives (1500 W X/Y, 400 W Z) ● Raytools control system with RayTools BM110 cutting head ● Large 1500 x 3000 mm working area (fits a full standard sheet) ● Open-frame design — easy access and loading of oversized plates ● Reinforced, stress-relieved welded steel bed for lasting dimensional stability ● Taiwan YYC gear rack + HIWIN 25 square rails + TBI ball screw (Z) ● Positioning speed up to 150 m/min · cutting speed up to 7 m/min (material/thickness dependent) ● S&A industrial water chiller ● France Schneider electrics · SMC pneumatics · France Motoreducer · automatic central lubrication ● Included air compressor (15 kW, 1.6 MPa, 340 L tank) — enables low-cost cutting with compressed air, so bottled nitrogen/oxygen is reserved only for jobs that require it. Lower running costs and greater gas autonomy from day one. ● Included 30 kVA voltage stabiliser — stable power supply, protects the electronics ● Included spare consumables: 100 protective lenses + 100 copper nozzles — full starter set of wear parts Csdpfjztn N Dox Adrerh Materials: carbon steel, stainless steel, aluminium, brass and other sheet metals — sheet-metal processing, auto parts, metal crafts, chassis/cabinets, kitchenware and similar industries. Sales exclusively to commercial businesses. Machine located in Jõhvi, Estonia — viewing by appointment; INCOTERMS: EXW

Condition: excellent (used), Year of construction: 1996, functionality: fully functional, machine/vehicle number: 25734, wheel diameter: 700 mm, gear diameter: 1,000 mm, wheel width: 152 mm, workpiece spindle speed (max.): 67 rpm, feed length X-axis: 610 mm, feed length Y-axis: 610 mm, feed length Z-axis: 725 mm, pivoting range: 95 °, spindle bore: 203 mm, travel distance X-axis: 610 mm, travel distance Z-axis: 725 mm, Equipment: rotational speed infinitely variable, Equipped with: Fanuc 150MB Control Hydraulic Chucking Work Spindle Large Bore Work Spindle #80 Taper Stock Divider Helical Motion Modified Roll Cedsxaqa Sspfx Adrorh Hansen Coolant Chiller & Filtration Coolant Tank & Pumps Chip Conveyor Chip Hopper Reven Mist Collector Hydraulic System Transformer Cutter Bolt Work Light Operator Platform Hand Tools Documentation Specifications: Extreme Ratio: Face Milling: 10:1, Face Hobbing: 10:1 Full Depth: Maximum: Face Milling:1.25" (31.75mm), Face Hobbing: 0.93" (23.50mm) Face Width: Maximum: Face Milling:6.00" (152.00mm),Face Hobbing: 3.00" (76.20mm) Range of Tooth Numbers: 1-300 Inclusive Gear Pitch Diameter, Maximum: 1000 mm (39.37") Cutter Size, Maximum: 18" (diameter) Face Milling Cutter Size, Maximum: 350 mm (radius) Face Hobbing Root Angle Range (B-Axis) 5 deg.to 90 deg., Face Hobbing:5 deg. to 90 deg. Machine Center to Work Spindle Face:9.00"Fixed, 229mm (Fixed) A-Work Spindle: 0 to 67 RPM, 0 to 333 RPM B-Swinging Base: 0 to 30 deg./sec, N/A C-Cutter: 0 to 500 deg., Same X-Horizontal: +/-305mm (+/-12") Y-Vertical: +/-305 mm (+/-12") Z-Sliding Base: -25/+700mm (-1/+28") B-Root Angle: -5 Degree/+90 Degree Diameter of Taper Hole at Large End: 8" (#80 Taper) to 6" (#60 Taper) Taper Per Foot:3/4", Same Depth of Taper Front:6", 152.40 mm Depth of Bore: 678 mm (26.7") Diameter of Taper Bore: 140 mm (5.5") Diameter Through Spindle of Hole:7.125", 180.98 mm MACHINE DIMENSIONS: Length x Width:233"x 209", 5920 mm x 5310 mm Height: 129", 3280 mm Weight: 65,000 lbs., 29,484 kg

Condition: refurbished (used), Year of construction: 2027, functionality: fully functional, gear diameter: 250 mm, spindle speed (max.): 71 rpm, spindle speed (min.): 35 rpm, total height: 1,800 mm, total length: 2,200 mm, total width: 1,800 mm, controller manufacturer: Siemens Sinumerik ONE, drive type: Sinamics S120, control type: CNC control, Equipment: rotational speed infinitely variable, Economical production of straight-toothed bevel gears – both in single units and in series: The SW KF 250 is based on the proven cast iron bed of the Chemnitzer Modul ZFTK 250 and is completely rebuilt by Serwema Retrofit Solutions, with Siemens Sinumerik ONE, digital Sinamics S120 drives, and an electronic worm gear between the workpiece and weighing drive. The machine mills using the convoid process, a universal and highly economical process for straight-toothed bevel gears, as well as producing herringbone gears and spur couplings. Application areas: agricultural machinery, gearbox construction, drive technology, railways and mining – anywhere where straight-toothed bevel gears up to 250 mm are required and new machines are hardly offered. Delivery time is five to six months from order, with acceptance testing in Chemnitz together with you. The SerWeMa gear cutting software guides the operator through workpiece and tool data using masks, without the need for programming. Integrated technology cycles: plunging, rolling, plunging and rolling, and plunging with double rollers. Engagement angles from 14 to 28° can be freely selected, and the number of teeth can range from 6 to 100. The stiff, ribbed cast iron bed provides the static and dynamic rigidity for bevel gears up to module 7 with a tooth width of 40 mm; the hydraulic and coolant unit is integrated into the bed, with components from Rexroth, Parker and Hydac, and pulse lubrication from Bielomatik. All worm gears are newly manufactured in bronze. Technical data: max. bevel gear diameter 250 mm, max. module 7, number of teeth 6–100, max. tooth width 40 mm, engagement angle 14–28°, distance between workpiece spindle and bevel tip 40–280 mm, workpiece spindle mount 80 mm metric, cutter head diameter 355 mm with 22 cutters per side, cutter head speed 35–71 rpm, connection value 30 kVA. Installation dimensions approx. 2.5 × 2.1 × 1.9 m, weight approx. 6 t. Scope of supply: complete electrical equipment with Siemens Sinumerik ONE and Sinamics S120, climate-controlled control cabinet manufactured in-house, dialog software, all worm gears in bronze, magnetic chip conveyor, circulation and pulse lubrication, hydraulic unit, coolant system, new paint RAL 5015/7035, geometric acceptance test according to SerWeMa protocol based on DIN standards, documentation (operating manual, electrical diagrams with parts lists, hydraulic and lubrication diagram), CE marking. Optional: installation, commissioning and operator training at your site. Credpfx Adjz E H Dboroh

Condition: used, Year of construction: 2008, ratio of transmission 10:1 min. number of teeth 3 max. number of teeth 200 range of tooth size 20 mm tooth width max. 58 mm spindle speeds (infinitely variable) 6000 U/min work piece spindle speed 1200 U/min diameter of tools max. 230 mm diameter of tools min 69,85 mm x-axis 325 mm y-axis 350 mm z-axis 470 mm b-axis + 90,1 / - 1 ° work piece table - Ø 212,71 mm Control SIN 840 D SIEMENS total power requirement 75 kW weight of the machine ca. 10.000 Kg dimensions of the machine ca. 6,10 x 4,40 x 3,30 m Internal probe Renishaw LP2 (axis X2;Y2) Cjdpfx Adsvxwmtsrorh Hoffmann coolant filter system HSF 100SE/K (built in 2008) Tank capacity 2500L VT oil mist filter system

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2007, operating hours: 11,800 h, laser power: 3,200 W, sheet thickness steel (max.): 8 mm, sheet thickness stainless steel (max.): 8 mm, sheet thickness aluminum (max.): 4 mm, No minimum price – guaranteed sale to the highest bidder! Includes SheetMaster, ToolMaster, GripMaster! TECHNICAL DETAILS Laser power: 3,200 W Laser type: CO₂ laser TruFlow 3200 Combined punching/laser working area: 3,000 × 1,500 mm Punching mode working area: 3,000 × 1,500 mm Laser mode working area: 3,000 × 1,500 mm Max. sheet thickness, structural steel: max. 8 mm Max. sheet thickness, stainless steel: max. 8 mm Max. sheet thickness, aluminum: max. 4 mm Max. punching force: max. 220 kN Max. punching stroke rate at E = 1 mm: max. 900/min Max. marking stroke rate: max. approx. 2,800/min Max. number of multi-tools with 3 clamping units: max. 18 Tool capacity: 180 tools Max. axis speed X/Y simultaneously: max. 108 m/min MACHINE DETAILS Operating hours: 11,800 h Laser on time: 42,100 h EQUIPMENT SheetMaster ToolMaster GripMaster Large-format working area without repositioning Crsdpfxsz Izu To Adroh Linear magazine with multi-tools SheetMaster with two large-format tables Automatic scrap sheet removal to lifting table

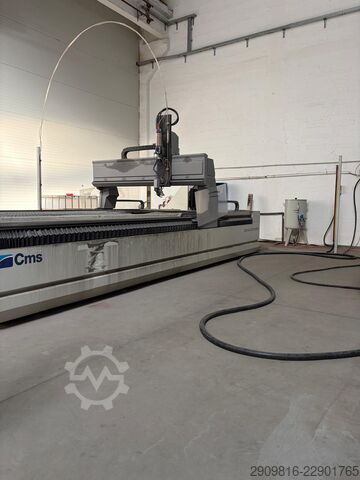

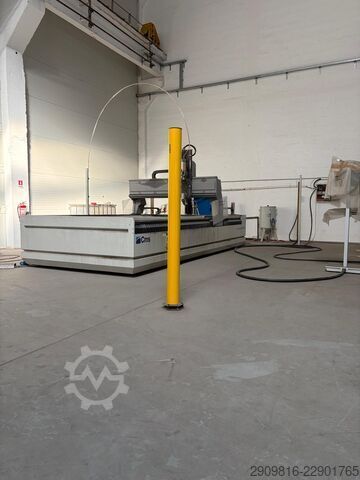

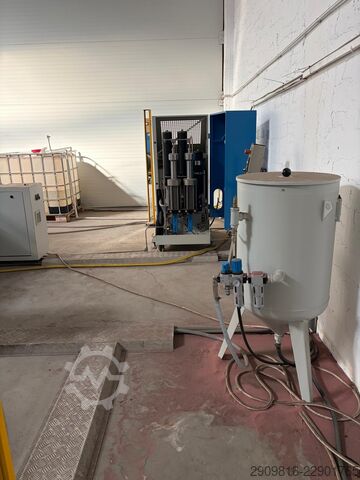

Condition: like new (used), Year of construction: 2023, operating hours: 127 h, functionality: fully functional, travel distance X-axis: 4,000 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 250 mm, workpiece weight (max.): 400 kg, sheet thickness aluminum (max.): 200 mm, table length: 4,000 mm, table width: 2,000 mm, total height: 4,100 mm, total length: 5,800 mm, total width: 2,100 mm, overall weight: 2,100 kg, product height (max.): 200 mm, Equipment: safety light barrier, 3-axis waterjet cutting machine, CMS Smartline 2040 model, manufactured in 2023. It has a travel range of 4,000 mm on the X-axis, 2,000 mm on the Y-axis, and a maximum cutting thickness of up to 220 mm. The machine features a robust work table with dimensions of approximately 4,150 × 2,080 mm and is equipped with a high-pressure pump. If you are looking for cutting performance to high standards, we recommend our offer for the CMS Smartline 2040. Contact us for more details. • Maximum work table size: approx. 4,150 × 2,080 mm • Cutting system • Technology: abrasive waterjet • Cutting head: 3-axis waterjet cutting head (CMS Tecnoucut) • Maximum cutting thickness: up to 220 mm (depending on the material) • CNC interpolated cutting for complex shapes • Automatic height adjustment on the Z-axis • Axes and movement • CNC-controlled axes: X, Y, Z • Motors: brushless • Guides: linear guides with ball recirculation • Drive system: rack and pinion (X/Y), ball screw (Z) • Positioning accuracy: ±0.05 mm • Repeatability accuracy: ±0.03 mm • Waterjet pressure system • Maximum operating pressure: approx. 4,150 bar (60,000 psi) • Pump power: approx. 22.5 kW • Note: 30 HP high-pressure pump included; see additional options • Control and software • CNC: OSAI Open • HMI interface: CMS Active • CAD/CAM: compatible with EasyCut / EasyPump • Control panel with touchscreen on a mobile stand • Work table and loading • Support surface: steel grid table • Max. load on table: approx. 400 kg/m² • Electricity and connections Credpfx Ajz I Sagedroh • Power supply: 400 V / 50 Hz / 3 phases • Installed power: approx. 35–40 kVA (depending on configuration) • Protection rating: IP54 (electrical cabinet) Csblf Hjzh Itxjhm Derh • Safety and equipment • Safety systems and optical barriers • Automatic lubrication system (X, Y, Z) • Collision detection system for the cutting head • Laser pointer for setting the zero point • Electrical cabinet and control panel Additional equipment • High-pressure pump (30 HP) • Abrasive feeding system (capacity 270 kg)
