Used Production Press Stenhof for sale (26,998)

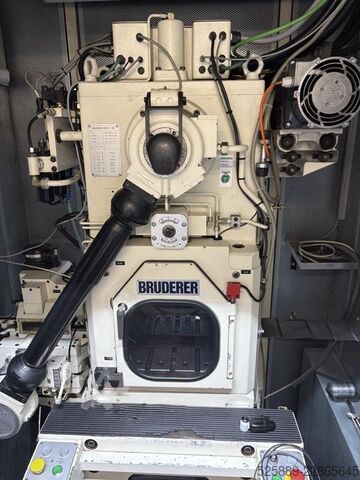

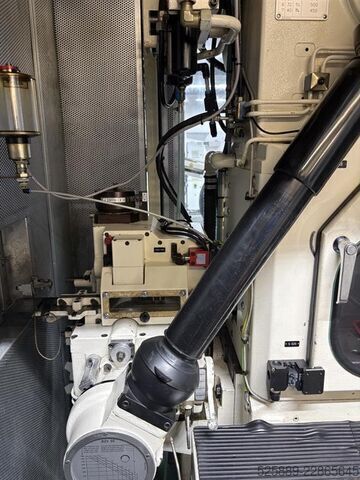

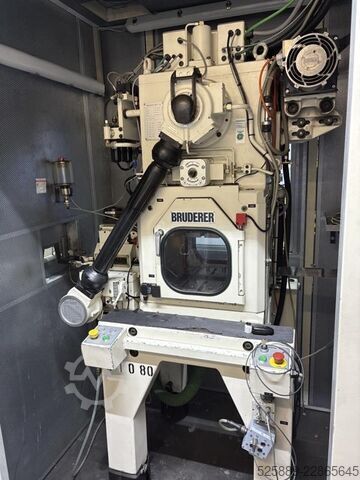

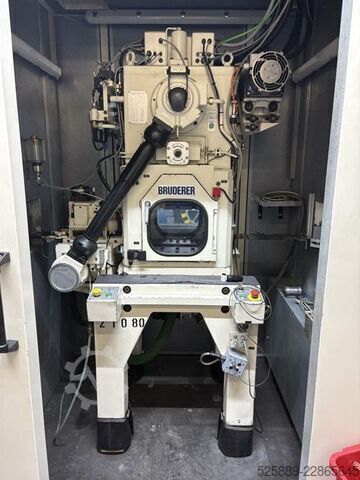

Condition: used, Year of construction: 2001, machine/vehicle number: 11572, operating hours: 47,262 h, overall weight: 1,950 kg, The BTSA 180 is a Bruderer high-speed precision stamping press with a nominal force of 180kN (18 tons). It is designed for continuous production using progressive dies with variable stroke rates of 100 to 1300 strokes per minute. The press is equipped with a Bruderer BZV 60 strip feed system that processes strip widths up to 60mm and material thicknesses up to 2mm. The stroke is adjustable between 8 and 40 mm, and the strip insertion height is adjustable between 50 and 100 mm to accommodate different tools and material profiles. In addition, a Siemens-made Bruderer U control system is installed. The machine is partially functional: The buttons that control the two-hand operation sometimes react with a delay or not at all in setup mode when feeding the material, which makes the material feeding process time-consuming. The machine's spring dampers are worn out, causing the machine to vibrate significantly during continuous operation. The rubber mounts for the dies are brittle and breaking off. The UVV inspection for 2025 has been carried out, as well as the annual maintenance for 2025. Nominal force: 180kN (18 tons) Stroke rate: 100-1300 strokes per minute (variable) Strip feed: Bruderer BZA 60 Adjustable stroke: 8-40 mm Main drive: 16 KVA Power supply: 400V / 50Hz Table area: 300x400 mm Strip insertion height (adjustable): 50-100 mm Max. strip width: 60 mm Bdodpjz H H Dqefx Ahmsh Max. material thickness: 2 mm Machine dimensions: approx. 1300x1000x2300 mm Weight: 1950 Kg Operating hours: approx. 47262

Condition: ready for operation (used), machine/vehicle number: B1507I0168, functionality: fully functional, operating hours: 5,687 h, input voltage: 400 V, input current: 51 A, input frequency: 50 Hz, pressing force: 230 t, stroke length: 445 mm, overall weight: 17,200 kg, Equipment: CE marking, CNC hydraulic press brake TRUMPF TruBend 5230 (type B23), year 09/2019 – available immediately. Machine currently in production, very little use for its age: Bdedjz E R U Djpfx Ahmsh – Machine operating hours: 5,687 h – Slide cycles: 229,247 (recorded on the control panel on 09/28/2026) Features: – 5-axis machine, CNC crowning – Bending force: 2,300 kN (230 tons) – Stroke: 445 mm – TRUMPF TouchPoint TruBend control panel – Weight: 17,200 kg – Connection: 400 V / 50 Hz, 33 kVA – CE marking TRUMPF tooling (upper and lower tools) available as an option. Location: Replonges (01), France. Inspection under power possible by appointment. Price upon request. Dismantling and transport can be arranged upon request.

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, 2006 Mitsubishi D 16 Max, a 4-unit single web offset press with a 22.750” (578 mm) cutoff and 38” web width, featuring heat-set capabilities. Bdodez Ezqcjpfx Ahmjh Semi-automatic plate changers with a plate positioning system for all 4 printing units. Folder type: Combination folder with a single cutter and digest fold. Mitsubishi Diamond 16 pinless combination folder with a single cutter and digest fold, capable of producing tabloid, magazine, and digest-folded products. Cutoff: 578 mm.

Condition: excellent (used), Year of construction: 2017, Ref:11156 . 2017 Schmedt Präleg XL Casing-in Pressing Machine For casing-in a variety of thin to thick books into flexible or hard cases. Special features: • Programme selection via touch-screen monitor Bdodpsz Hbuqsfx Ahmeh • Very short set-up and strip down times • Auto wash-up of glue rollers after each book Vertical wing action Twin PVA cold glue tanks. Specification, Praleg 18-60: Block height: 80 – 450 mm Block width: 110 – 450 mm Block thickness: 2 – 80 mm Production rate: approx. 200 – 300 pcs/h Power supply: 230 V + compressed air.

Condition: used, Year of construction: 2018, Colour: Grey Empty weight: 400 kg Dimensions (LxBxH): 160 x 130 x 130 cm - Details: - └ Description: Includes tank and dryer - Year: 2018 - Documentation available: No - CE certificate present: No - Transport dimensions: 1600mm x 1300mm x 1300mm (l x w x h) - Transport weight [kg]: 400kg - Transport packages [pcs.]: 1 Bodpfeyuga Eex Ahmedh Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: like new (used), Year of construction: 2023, functionality: fully functional, PLEASE READ CAREFULLY!!! THIS OFFER IS EXCLUSIVELY FOR EUROPEAN END CUSTOMERS, AND THE FIRST INQUIRY MUST INCLUDE COMPLETE CONTACT INFORMATION. THANK YOU. The forging line consists of a hydraulic 1500-ton forging press, an induction unit with 1200 kW, and a robot with a load capacity of 300 kg. So far, prototypes have been manufactured; however, the line was actually designed for series production, which has not yet taken place. The line was built and installed in 2023. The technical specifications are as follows: Hydraulic press 1500 tons (year of manufacture 2023) SIEMENS control system - Pressing force: 1500 tons - Retraction force: 120 tons - Downward stroke: 300 mm/s - Pressing stroke: 100 mm/s - Upward stroke: 300 mm/s - Installation height: 3,000 mm - Ram stroke: 1,500 mm (!) - Ram size: 1,600 x 1,600 mm - Table size: 1,600 x 1,600 mm - Ejection force / 1 position: 40 tons - Stroke: 600 mm - Ejection speed: 250 mm/s - Return speed: 250 mm/s - Stroke: 400 + 400 mm - Traverse speed: 200 mm/s - Ram positions: 3 positions Including a 1200 kW induction unit (year of manufacture 2023) MITSUBISHI control system - 1200 kW / 450 Hz induction unit for billets - Coil size: Ø 215 / Ø 150 mm, two sets of coils - Material feeding system Including a Kawasaki robot (6 axes) – Model: ZX300S-D- (year of manufacture 2023) - Max. load capacity: 300 kg - Max. reach: 2500 mm Bsdpfxszvnpij Ahmjdh Sample images of the machines are attached.

Condition: excellent (used), Year of construction: 2022, functionality: fully functional, power: 15 kW (20.39 HP), input voltage: 400 V, input frequency: 50 Hz, type of input current: three-phase, pressing force: 175 t, stroke length: 275 mm, operating speed: 12 mm/s, reverse speed: 190 mm/s, table length: 3,100 mm, table height: 900 mm, throat depth: 410 mm, distance table to ram: 550 mm, clearance between the columns: 2,600 mm, oil tank capacity: 300 l, total length: 5,025 mm, total width: 2,150 mm, total height: 2,680 mm, overall weight: 9,086 kg, Equipment: CE marking, documentation/manual, safety light barrier, 2022 Ermaksan Speed-Bend PRO 3100x175 CNC Press Brake 2022 Ermaksan Speed-Bend PRO 3100x175 CNC press brake in very good condition. 175T x 3100mm, 6 axis, Delem DA66TX, CNC crowning, laser guards, generous tooling package included. Machine Manufacturer: Ermaksan Model: Speed Bend Pro 3100 x 175T Machine Type: 6 Axis CNC Pressbrake Capacity: 3100 x 175T Year: 2022 Control: Delem DA66TX Condition: Very Good Description Ermaksan Speed-Bend Pro 6 Axis CNC Hydraulic Press Brake with Delem DA66TX Control. Available now, this 2022 Ermaksan Speed-Bend PRO 3100x175 CNC Press Brake is a high-quality, modern hydraulic press brake in very good condition. This is a 6 axis machine with Y1, Y2, X, R, Z1 and Z2 axes, fitted with a Delem DA66TX CNC control, pneumatic top tool clamping, CNC crowning, laser guards, wanderer type foot pedal, and supplied with generous selection of top and bottom tooling. Ideal for sheet metal fabrication, precision bending, stainless steel work, mild steel fabrication, aluminium bending, agricultural fabrication, general engineering and production workshops. Key Features 2022 Ermaksan Speed-Bend PRO 3100x175 175 tonne bending capacity 3100mm bending length 6 axis CNC press brake Y1, Y2, X, R, Z1 & Z2 axes Delem DA66TX CNC control Pneumatic top tool clamping Package of Top and bottom tooling included CNC / motorised crowning Laser safety guards Wanderer type foot pedal Very good condition Excellent machine for fabrication and production bending work Capacity & Main Machine Data Manufacturer: Ermaksan Model: Speed-Bend PRO 3100x175 Year: 2022 Machine Type: CNC hydraulic press brake Bending Length: 3100mm Bending Force: 175 tonnes Distance Between Columns: 2600mm Axes: Y1, Y2, X, R, Z1, Z2 Crowning: Motorised / CNC crowning Backgauge Finger Blocks: 2 Speeds & Axis Travel Y Rapid Speed: 180mm/s Y Working Speed: 12mm/s Y Return Speed: 190mm/s X Axis Travel: 800mm X Axis Speed: 500mm/s R Axis Travel: 250mm R Axis Speed: 350mm/s Z1 / Z2 Axis Travel Speed: 1000mm/s Stroke, Daylight & Frame Stroke: 275mm Daylight: 550mm Throat Depth: 410mm Table Height: 900mm Table Width: 90mm Power, Size & Weight Oil Capacity: 300 litres Motor Power: 15kW Approx. Length: 5025mm Approx. Height: 2680mm Approx. Width: 2150mm Approx. Weight: 9086kg Delem DA66TX CNC Control Control Features Include 2D graphical touch-screen programming High-resolution colour TFT display Automatic bend sequence calculation Collision detection 3D machine setup with multiple tool stations USB / peripheral interfacing Product and tool memory Profile-TL offline software support User-friendly Delem touch navigation Delem’s DA-66T platform is listed by Delem as a 2D graphical press brake control with automatic bend sequence calculation, collision detection, full 3D machine setup, USB interfacing, 17" high-resolution colour TFT display and Profile-TL offline software support. Included Equipment Pneumatic top tool clamping Lots of Top tooling Lots of Bottom tooling CNC crowning Laser guards Wanderer type foot pedal 6 axis CNC backgauge system Delem DA66TX control Typical Applications Sheet metal fabrication CNC press brake bending Mild steel bending Stainless steel bending Aluminium bending Box and pan type components Bdedpfsz Dn Husx Ahmeh Architectural metalwork Agricultural fabrication General engineering workshops Production bending work

Condition: good (used), WF HHP 625 – Horizontal Press Year: 2006 Manufacturer: WF Maschinenbau u. Blechformtechnik GmbH & Co KG Germany Machine Model: WF HHP 625 Machine Type: Horizontal Hydraulic Press Technical Specifications: Maximum workpiece diameter: 625 mm Minimum workpiece diameter: 350 mm Maximum workpiece length: 325 mm Maximum press stroke: 750 mm Maximum press force: 2000 kN Siemens 840D control system Parker hydraulic components Hydraulic oil tank capacity: approx. 800 liters Required cooling water for hydraulic system: approx. 1000 l/h Cooling water inlet temperature: max. 25°C Air supply connection: 6 bar / ½” Ambient operating temperature: 10°C – 40°C Hydraulic Equipment: Main Hydraulic Motor: Manufacturer: Blumenbecker Type: 14BG 207-4AA 200L Power: 30 kW Voltage: 400V / 50Hz Speed: 1465 rpm Secondary Hydraulic Motor: Manufacturer: Blumenbecker Type: 7AA 132 S-4 Power: 5.5 kW Voltage: 400V / 50Hz Speed: 1450 rpm Hydraulic Pump: Manufacturer: Parker Type: PV080R1K1T1NSLD Internal Gear Pump: Manufacturer: Denison / Parker Type: T6CMYR20-1-R_00C1 Flow rate: 93 l/min at 1450 rpm Central Lubrication Unit: Manufacturer: Vogel Type: MFE5-BW7+299 Bdjdpfx Ahszb Il Njmjh Oil Spray Unit: Manufacturer: Vogel Type: MFE5-BW7+299 Machine Dimensions (Transport Position): Width: approx. 2600 mm Length: approx. 5800 mm Height: approx. 2400 mm Weight: approx. 20,000 kg Additional Information: Hydraulic horizontal press with automated loading/unloading preparation Robot loading interface prepared (robot not included) Transport and lifting drawings available Original manuals and technical documentation included

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, pressing force: 86 t, stroke length: 215 mm, overall weight: 7,300 kg, TECHNICAL DETAILS Pressing force: max. 850 kN Stroke: max. 215 mm Operating pressure: max. 300 bar Follow-up time: max. 95 ms Follow-up travel at 220 mm/s: max. 10 mm Follow-up travel at 160 mm/s: max. 8.5 mm Safety distance: min. 190 mm MACHINE DETAILS Voltage: 3 × 400 V Rated current: 24.0 A Frequency: 50 Hz Connected power: 17.0 kVA Control voltage: 24 V DC Compressed air connection: 6 bar Bsdpfoz Hvgzjx Ahmsdh Weight of the press: 7,300 kg

Condition: used, machine/vehicle number: 008708, Position 1: Continuous Cycle Presses BIELE-FRAME ASSEMBLY + PRESSING LINE Bjdpfxeztaufj Ahmsdh

Condition: used, machine/vehicle number: 008341, Max working length: 2480 mm Bedpfxox A Tf Ao Ahmsdh Max working width: 880 mm No of Pressing cylinders: 4 No of Daylights: 1

Condition: used, Type Production Line Radiator production line Further information can be found in the attached PDF document. Accessories, tools, and clamping devices shown are included in the scope of delivery only if specified in the additional information. Bedpfx Ahszpbl Dsmodh Subject to change, errors in technical data and specifications, and prior sale.

Condition: good (used), Year of construction: 1989, BESSER paving block machine - VIBROBLOCK Year: 1989 Pallet dimensions: 1450x1100mm. 5 molds for paving blocks. Specially equipped for color production, with 3 hoppers for the main mixture and 1 hopper for the facing mixture. Double Power Trainer 40 ft container for controlling the mixers. 2 elevators with a height of 26 ft. 1 pallet truck. Belt conveyor for double paving blocks. Device for loosening the stones. Bjdpjz H Ib Djfx Ahmsdh Set of feeders for the line, entry for wooden pallets. 2 mixers for mixtures with a container, 3000/2500, mixer 750 / 0.5m3 ltr. Concrete bucket for the BESSER machine with a rail. Operational condition.

Condition: good (used), Year of construction: 2005, functionality: fully functional, Clamping force: 4,900 kN Operating pressure: 206 bar Heating plate dimensions: 700 x 700 mm Piston diameter: 558.8 mm Stroke: 250 mm Daylight opening: 300 mm Max. weight of the heating plates: 560 kg Oil tank: 1,100 L Rated power: 82 kW Heating power: 56 kW Vacuum motor power: 4.0 kW Light curtain, distance to the tool area: 810 mm Stroke of the vacuum cover: 200 mm Machine dimensions: 3,975 x 2,935 x 2,555 mm Equipped with an overhead crane (monorail) with three chain hoists Manufacturer: STAHL Year of manufacture: 2011 Lifting capacity: 3 x 400 kg Length of the overhead crane: approx. 3,500 mm Bedpfsz Etacjx Ahmjdh Mobile carriage Lifting capacity: 400 kg Lifting height: 3,000 mm Lifting speed, main lift: 4 m/min Lifting speed, fine lift: 1 m/min The vulcanizing press from the manufacturer PAN STONE was used by a renowned German company in the sealing technology sector. This company is known for its high quality and innovation in sealing production. It has always been professionally maintained and is in good condition.

Condition: excellent (used), Year of construction: 2005, functionality: fully functional, WE OFFER AN VERY NICE DUNKES PRESS MACHINE IS READY FOR OPERATION. Bdodpfx Ahsvldx Nemeh

Condition: like new (used), Year of construction: 2024, functionality: fully functional, wall material: stainless steel, Equipment: cooling unit, PRODUCTION REACTORS, COLLECTION TANKS, CONTROL PANELS WITH DRIVES, PLATFORMS, AND EQUIPMENT—SUITABLE FOR SYNTHETIC THICKENER PRODUCTION (AND OTHER CHEMICALS SUCH AS POLYMERS, ETC.)—MADE FROM HIGH-GRADE STAINLESS STEEL, ARE FOR SALE AND IN OPERATIONAL CONDITION. CONSULTANCY SERVICES CAN ALSO BE PROVIDED FOR THICKENER PRODUCTION UPON REQUEST. Acrylic thickeners, binders, alkyd resins can be produced, and formulations can be supplied with the sale. The machines are available as a complete set or can be sold separately. Suitable for chemical production in all industrial sectors including textiles, food, cosmetics, construction, etc. 1. REACTOR - 17-ton capacity reactor - Barely used - 316 stainless steel (tank wall 10-12mm, domes 10-12mm thickness) - 37kW ATEX-rated motor with gearbox - Electrical control panel with Delta inverter - External coil for heating and cooling - Currently heated by thermal oil, cooled by chiller cold water - Equipped with load cells, calibrated for accurate measurement - All flanges and fittings included, fully connected - Platform included 2. REACTOR Bdsdpjy Aggpjfx Ahmsh - 22.5-ton capacity reactor - Made from 304 stainless steel / 8mm tank wall, 10mm dome thickness - Unused - 22kW motor and reducer - Electrical control panel with Delta inverter - External coil and jacket for heating and cooling - Equipped with load cells, calibrated for accurate measurement - All flanges and fittings included, fully connected - Platform included 3. STORAGE/FEED TANK - 10-ton capacity 304 stainless steel storage/feed tank - Unused - 8mm dome, 6mm wall thickness - Full-length sight glass system to monitor product level inside - All flanges and fittings included, fully connected *Can be converted to a mixer/stirrer by adding a motor and shaft. 4. HOMOGENIZER/DISPERSING/MIXING TURRAX - IKA brand - ATEX certified - 17 L/hour, 30 kW/10 bar Note: These systems are designed for the production of thickeners used in printing and many other industries. All parts have been manufactured and supplied by experts in the field, meticulously engineered with no compromise on quality. Motor selection, sheet thickness, inverters, and other systems are of top quality and will operate problem-free for the buyer. For more detailed information, please contact us.

Condition: new, Year of construction: 2025, machine/vehicle number: P773, functionality: fully functional, power: 3 kW (4.08 HP), input voltage: 400 V, pressing force: 30 t, stroke length: 165 mm, operating speed: 250 mm/s, reverse speed: 160 mm/s, table length: 1,020 mm, throat depth: 255 mm, distance table to ram: 350 mm, clearance between the columns: 850 mm, oil tank capacity: 90 l, overall weight: 3,800 kg, Equipment: CE marking, documentation/manual, safety light barrier, Fast, efficient, and quiet! Ideal for small parts! The single-cylinder Quality Press Brake, or EQPB for short, is the smallest model in the Placke press brake series. It is a very fast, robust, and quiet machine that has been specifically developed for the production of small parts. All manufacturing processes, from the hydraulic cylinder to the control cabinet construction, take place in-house. Through the use of state-of-the-art technology, combined with many years of experience in the field of forming technology, the EQPB series enables you to bend at a high level. Even the standard basic version is a fully functional press brake. Thanks to this combination of safety, reliability, and efficiency, coupled with uncomplicated operation, we can meet the highest demands and precision in the bending process. Press force: 300 kN (30 t) Working length: 1,020 mm Throat between uprights: 850 mm Bsdsz Hnudspfx Ahmjdh Installation height: 350 mm Overhang: 255 mm Ram stroke: 165 mm Height of lower bed above floor: 947 mm Rapid traverse max.: 250 mm/s Pressing speed max.: 9.8 mm/s Return speed max.: 160 mm/s Positioning accuracy of ram: ± 0.01 mm Motor power: 3.0 kW Hydraulic oil tank capacity: 90 l Operating voltage: 400 V / 3 Ph / 50 Hz Machine weight: approx. 3.8 t Description: > Machine body Steel S 355 N, FEM-based design Torsionally rigid welded construction, floor-standing 2-component structural paint, RAL 7004 / 7016 > Hydraulics & Upper beam Proportional control valve Low-noise internal gear pump Roller guide, Heidenhain scale > Tooling Top: WILA hydraulic, NSCL-II-HC Bottom: narrow table, single V-shape (13 × 20) Y1/Y2 correction, sitting or standing > Rear back gauge CNC X-axis 950 mm, 800 mm/s, ± 0.01 mm R-axis 215 mm, 150 mm/s, ± 0.01 mm Z-axis manual, 2 stop fingers > Control system Delem DA 66S 24″ touchscreen on swivel arm 2D programming, 3D visualization DXF import, tandem operation > Safety & Efficiency CE-compliant, Pilz safety PLC TFS laser light curtain, moving with the ram eco-MODE start-stop automatic

Condition: good (used), Year of construction: 1999, functionality: fully functional, Description LVD PPI 55/25 CNC PRESS BRAKE Force 55 tons - bending length 2500 mm - CNC MNC 95/C - distance between frame 2050 mm - motor 10 HP Bdsdpfx Ahevk Ncqomeh - weight 4200 kg INCLUDED A LOT TOLIINGS Specifications Manufacturer LVD Model PPI55/25

Condition: good (used), Proofing press 55x65cm Antique Bdedpfx Aheztn Slemeh The machine is in very good condition, can be used as an exhibit or as a printing machine. Max. format 550×650 mm Weight 650 kg Flow table, system of claws holding the sheet. Electrically driven spreading roller.

Condition: excellent (used), Year of construction: 1979, functionality: fully functional, Description 100 TON C FRAME PRESS WITH BOTTOM FORCE BACK UP 40 TON Machine is great working condition, was overhauled cilinder, sealings. AWAILIBLE 3 MACHINES BOTTOM FORCE 40 TON Specifications Manufacturer MULLER 100T Model CEZ 100 Year 1979 Condition Used Press force 100 TON Travel up doen 0-560mm Bdodpfx Ahsvldxijmoh Travel bottom up 0-200mm Power 15Kw

Condition: excellent (used), Year of construction: 1978, functionality: fully functional, WE OFFER AN VERY NICE CONDITION EXCENTRIC PRESS MAX FORCE: 63TON Bodevlduqopfx Ahmedh HEIGHT 10 - 110 mm number of stroke: 140/71 weight 4500kg MACHINE WILL BE AWAILIBLE AFTER NEW YEAR

Condition: good (used), Letterpress printing press, foot operated Made in Germany Fully original machine. A brilliant looking exhibit to put in a company lobby. Bsdpfsztn Srox Ahmjdh A manually added piston. Rollers Format of the pressure 35x24cm

Condition: used, HYDRAULIC PRESS SMG PRESSURE 300t LENGHT OF STROKE 700mm POWER 30kw UP TABLE DIMENSIONS 1500(1600)x1300mm DOWN TABLE DIMENSIONS 1500(1600)x1300mm CUSHION 100t CUSHION LENGTH OF STROKE 280mm Bdsdpfxstndu Ue Ahmeh WEIGHT 28.000kgr FULL RECONDITION LIKE NEW CHANGE EVERYTHING (SEALS PUMPS etc)

Condition: ready for operation (used), Burger D05 Pneumatic Press Weight: 230 kg Pressing force: 6000 kg Stroke: 39 mm Operating pressure: 6 bar You are welcome to visit us for an inspection. We would be happy to arrange cost-effective shipping for you! You will receive a proper invoice. For international customers, a net invoice can also be issued, provided a valid VAT identification number is available. Subject to prior sale. Visit our shop and view our other offers as well. The company names and trademarks mentioned are the property of their respective owners and are used solely for identification and description of the products. Bdodsz Hya Ejpfx Ahmoh Deviations in technical data as well as errors in the description of the item may occur and are subject to change.

Condition: new, Year of construction: 2026, machine/vehicle number: P781, functionality: fully functional, power: 3 kW (4.08 HP), input voltage: 400 V, pressing force: 30 t, stroke length: 165 mm, operating speed: 250 mm/s, reverse speed: 160 mm/s, table length: 1,020 mm, throat depth: 255 mm, distance table to ram: 350 mm, clearance between the columns: 850 mm, oil tank capacity: 90 l, overall weight: 3,800 kg, Equipment: CE marking, documentation/manual, safety light barrier, Prepared for automated operation! The single-cylinder Quality Press Brake, or EQPB for short, is the smallest model in the Placke range of press brakes. It is a very fast, robust, and quiet machine specifically designed for the production of small parts. All manufacturing processes, from the hydraulic cylinder to the control cabinet construction, take place in-house. Through the use of state-of-the-art technology, combined with many years of experience in the field of forming technology, the EQPB series enables you to perform bending operations at a high level. Even the standard basic model is a fully functional press brake. Thanks to this combination of safety, reliability, and efficiency, coupled with user-friendly operation, we can meet the highest demands and achieve the greatest precision in the bending process. Press force: 300 kN (30 t) Working length: 1,020 mm Distance between uprights: 850 mm Installed height: 350 mm Overhang: 255 mm Ram stroke: 165 mm Height of lower bed above the floor: 947 mm Rapid traverse max.: 250 mm/s Pressing traverse max.: 9.8 mm/s Retraction max.: 160 mm/s Ram positioning accuracy: ± 0.01 mm Motor power: 3.0 kW Hydraulic oil tank capacity: 90 l Operating voltage: 400 V / 3 Ph / 50 Hz Machine weight: approx. 3.8 t Description: > Machine body Steel S 355 N, design based on FEM analysis Torsionally rigid welded construction, floor-standing Bjdpfx Ahjz Hnymsmedh 2-component structural paint, RAL 7004 / 7016 > Hydraulics & Upper Beam Proportional control valve Low-noise internal gear pump Roller guide, Heidenhain scale > Tooling WILA pneumatic, top NSCL-II-SL-STL, bottom OB-II-SL-STL Smart Tool Locator: LED display of tool position Y1/Y2 correction, sitting or standing > Backgauge 4-axis X-axis 950 mm, 800 mm/s, ± 0.01 mm R-axis 215 mm, 150 mm/s, ± 0.01 mm Z1 + Z2 CNC, 850 mm/s, ± 0.02 mm, finger spacing min. 50 mm > Angle correction VCA Fully automatic camera-laser system Measures the outer angle on the sheet metal Two force sensors for springback measurement > Control Delem DA 66S 24″ touchscreen on the swivel arm 2D programming, 3D visualization DXF import, tandem operation > Robot preparation Large control cabinet, Modbus interface press-robot Modular PLC PSS 4000 Stop finger with workpiece detection > Safety & Efficiency CE-compliant, Pilz safety PLC TFS laser light curtain, rear light curtain eco-MODE start-stop automatic With this equipment, the machine is prepared for automated operation.
