Used Tos Svitavy Pwr 422 for sale (823)

Condition: ready for operation (used), Year of construction: 1983, operating hours: 8,529 h, functionality: fully functional, travel distance X-axis: 1,200 mm, travel distance Y-axis: 1,120 mm, travel distance Z-axis: 950 mm, table load: 3,000 kg, spindle diameter: 100 mm, The machine was modernised and overhauled in 2002! TECHNICAL DETAILS Working spindle diameter: 100 mm Spindle speed range: 1,800 rpm Taper: ISO 50 Spindle travel (W): 630 mm Travel X-axis: 1,200 mm Travel Y-axis: 1,120 mm Travel Z-axis: 950 mm Table clamping surface: 1,000 mm x 1,120 mm Table load capacity: 3,000 kg MACHINE DETAILS Control system: HEIDENHAIN TNC426 Lsdpfx Aey Edgfskyjhf Motors and drives: SIEMENS Operating hours (as displayed): Control system on-time: 37,038 h Machine operating time: 30,987 h Program run time: 8,529 h Spindle run time: 12,156 h EQUIPMENT Handwheel: HR410

Condition: good (used), functionality: fully functional, turning diameter over cross slide: 420 mm, spindle bore: 71 mm, turning diameter: 710 mm, turning diameter over bed slide: 710 mm, turning diameter over top slide: 420 mm, turning length: 3,000 mm, Model: SN 71 B Serial No: 071300780049 Swing Over Bed: 710mm Swing Over Top Slide: 420mm Swing In Gap: 960 x 300mm Spindle Speeds: 10-1000 RPM Spindle Bore: 71mm Motor: 7.5 KW Machine With: 625mm 4 Jaw Chuck Fixed Steady Ledoy Duc Ispfx Akyohf Quick Change Toolpost Dimensions: 5000 x 1500 x 1750mm Weight: 3250 Kgs

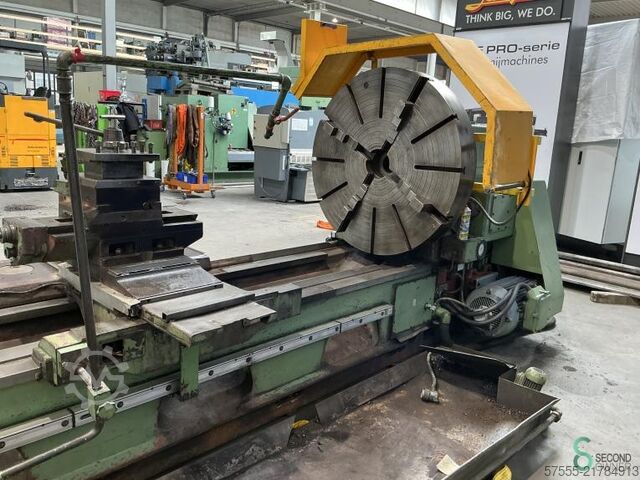

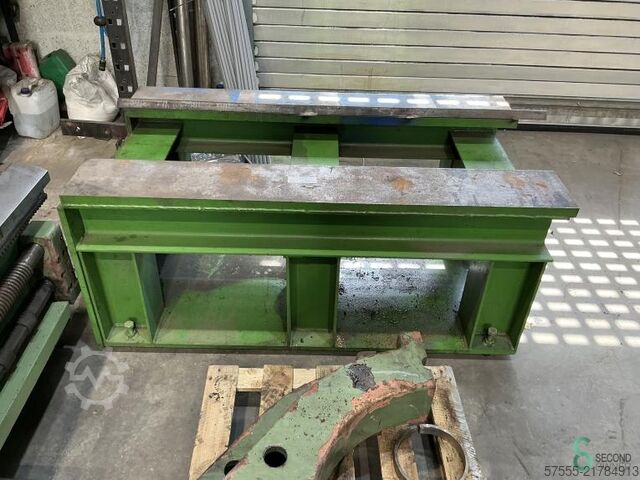

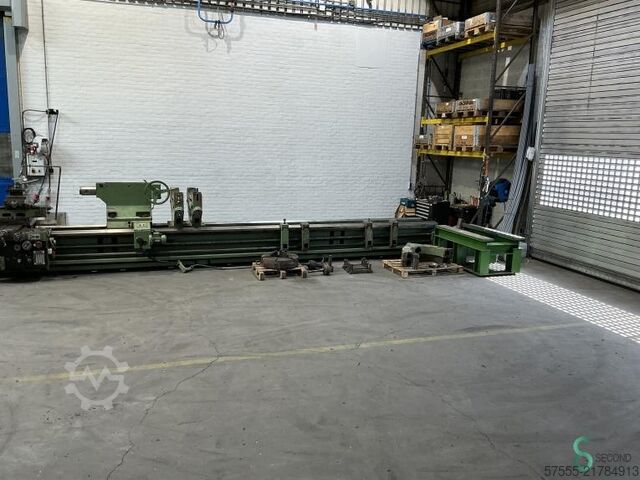

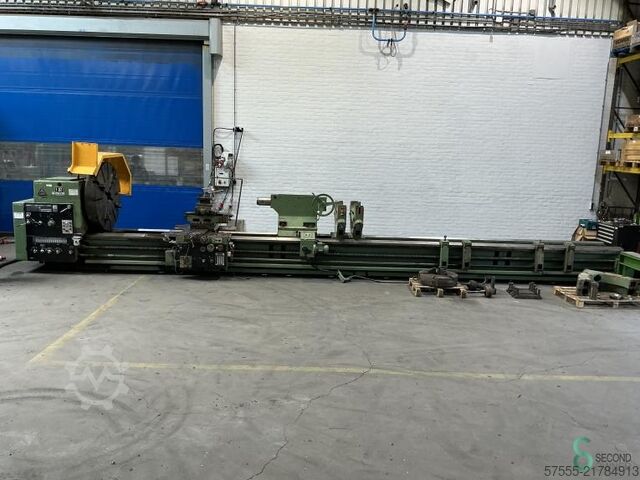

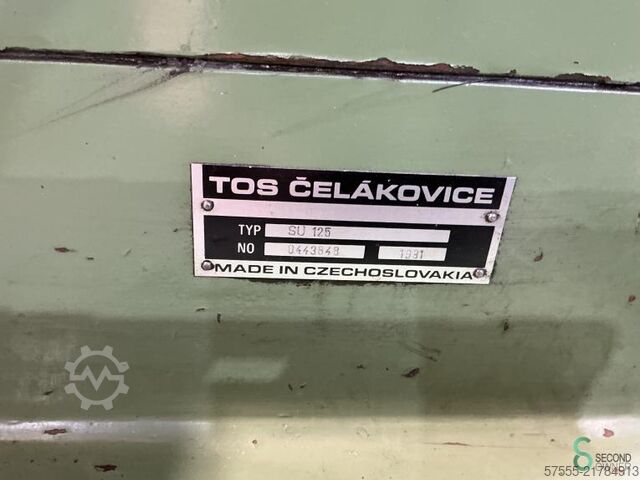

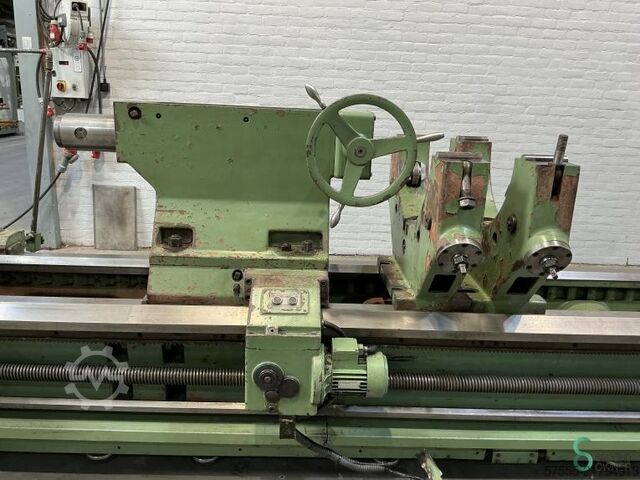

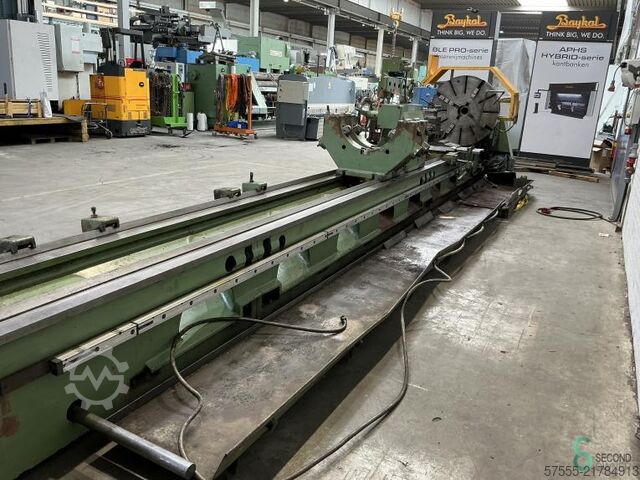

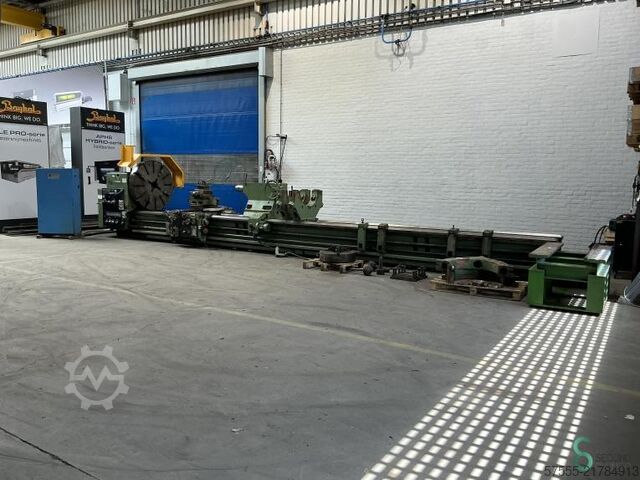

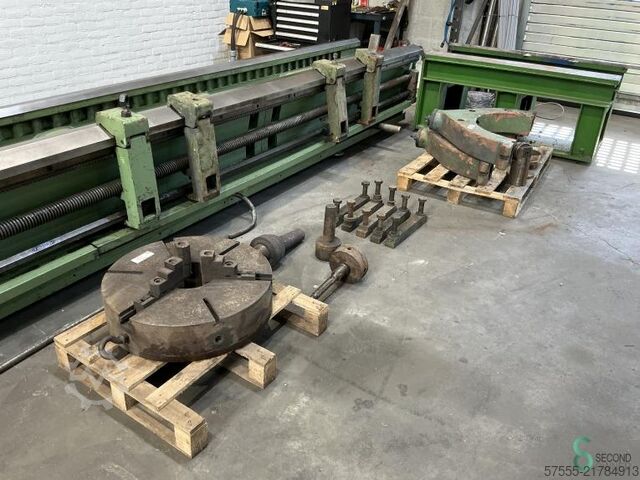

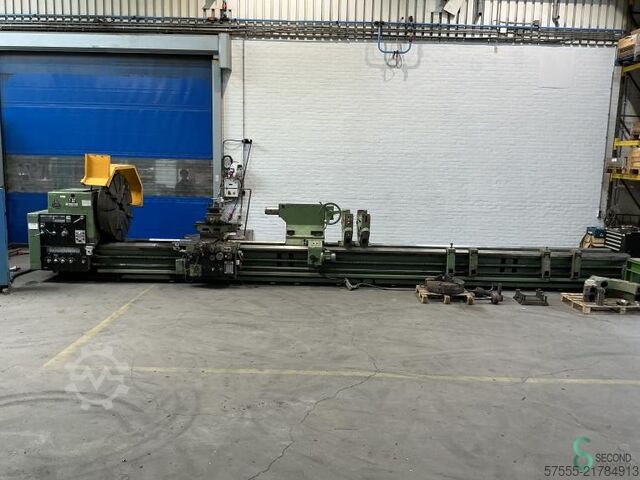

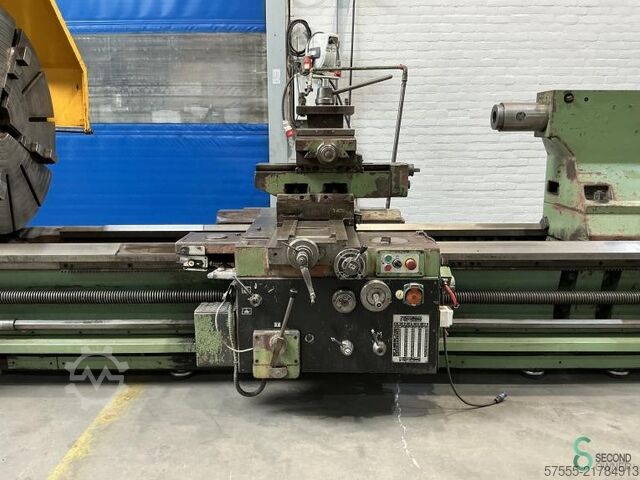

Condition: used, Year of construction: 1991, total length: 10,730 mm, total width: 1,600 mm, total height: 2,400 mm, Colour: Green Empty weight: 12.000 kg Price: On request - Year: 1991 - Documentation available: No - CE certificate present: No - Serial number: 0443848 - Drive system: Conventional - Power [kW]: 30.0 - Centre height [mm]: 625 - Swing over bed [mm]: 1250 - Carriage turning diameter [mm]: 1100 - Distance between centres [mm]: 8000 - Bed width [mm]: 800 - Spindle bore [mm]: 1100 - Min. spindle speed [rpm]: 1.8 - Max. spindle speed [rpm]: 355 - Options: Fixed steady, Four-jaw chuck, Three-jaw chuck - Transport dimensions: 10730mm x 1600mm x 2400mm (l x w x h) - Transport weight [kg]: 12000kg Lhjdpey E Imvjfx Akysf - Transport packages [pcs.]: 3 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: ready for operation (used), Year of construction: 2005, Immediate availability ex site: CNC cylindrical grinding machine TOS HOL – MONTA Model UN 63 / 750 / 2000 Year of manufacture: 2005 CNC control: Sinumerik 840 Di Centre height: 375 mm Lhsdpfx Ajy Ev R Njkyef Grinding diameter: 750 mm Grinding length: 2000 mm Grinding wheel dimensions: 750 x 100 x 305 mm Swing diameter with open steady rest: 40 – 250 mm Tailstock: Morse taper 6 Table swivelling: 4 degrees Workpiece spindle speed range: infinitely variable 1 – 50 rpm Grinding wheel speed: 20 – 33 m/sec Grinding spindle motor: 19 kW Total power requirement: 41 kW Workpiece diameter control Full enclosure Mist extraction system Weight: 20 tons Complete accessories Price: EUR 19,500.— plus VAT, ex site

Condition: good (used), Year of construction: 2010, functionality: fully functional, turning diameter: 3,600 mm, Table diameter: 3000 mm Max. turning diameter: 3600 mm Lsdsy Ep Dyspfx Akyjhf Max. distance from table to tool holder: 2640 mm Ram cross-section: 240 x 240 mm Ram vertical travel: 1500 mm Slide horizontal travel left/right from table axis: 1930 / 2250 mm (+920 mm for tool change) Cross-slide travel: 1800 mm Table rotation speed: 200 rpm (2-speed gearbox) Main spindle power: 80 kW Feed rate: up to 4000 mm/min Rapid traverse: 10,000 mm/min Max. workpiece weight: 30 tons Tool changer: 45 stations, 20 of which for Capto-C8 holders High-pressure coolant Overall dimensions: 10,570 x 8,445 x 7,375 mm Machine weight: 72,000 kg

Condition: excellent (used), Year of construction: 2000, turning diameter over bed 20 mm Ljdpsy Ezy Asfx Akyshf turning diameter over slide rest 1200 mm turning length 3.000 mm centre distance 3000 mm digital readout 4 - Achsen bed width 800 mm spindle bore 122 mm turning speed range 1,80 - 355 U/min power requirement 22 kW taper in tailstock-quill 100 (1:20) dia. of quill 150 mm quill stroke 350 mm voltage 400 V total power requirement 31 kW spindle nose Gr. 11, DIN 55027 weight of the machine ca. 10 t dimensions of the machine ca. 8,20 x 2,20 x 2,20 m - Serial No.: 75.217 - Rapid feed for carriage - 4-Axis DRO-System SINO

Condition: good (used), TOS SUI 50/2000 lathe - Max. turning diameter: 560 mm - Distance between centers: 2000 mm Lhedsy D Ecljpfx Akyef - Spindle bore: 58 mm - Year of manufacture: 1990 Rapid traverse on longitudinal and cross slide

Condition: good (used), Year of construction: 2004, Ref. -No.: 10520 Manufacturer: TOS VARNSDORF Ljdpfsw Nmw Hsx Akyshf Type: WHNQ 13 CNC Year of construction: 2004 Type of control: CNC-Steuerung Control: HEIDENHAIN TNC 430 Storage location: Halberstadt Country of origin: Czech Republic Machine-No.: 23XX X-Travel: 3500 mm Y-Travel: 2500 mm Z-Travel: 1250 mm W-Axis: 800 mm Table Load: 12.500 kg Clamping Area: 1800 x 2500 mm Tool Taper: SK 50 Tool Piece Magazine With: 60 Pcs./pcs. Spindle Speed: 3.000 RPM Max. Torque: 3323 Nm Rapid Travel X/Y/Z: 10000 mm / min Drive Capacity - Spindle Motor: 37 / 1500 kW Weight Of The Machine Ca.: 40 t Further information: - Tools + accessories - Angle head - Angle up to 2.5m - Chip conveyor - 3D measuring probe - Clamping device Machine is still in production and can be inspected under power by arrangement.

Condition: good (used), Year of construction: 2013, Ref. -No.: 10484 Ledpfxjw Iu Nhj Akyehf Manufacturer: TOS VARNSDORF Type: WHN 13 CNC Year of construction: 2013 Type of control: CNC-Steuerung Control: HEIDENHAIN 530 Storage location: Halberstadt Country of origin: Czech Republic X-Travel: 3500 mm Y-Travel: 2000 mm Z-Travel: 1250 mm W-Axis: 800 mm B-Axis: 360 ° Table Load: 15.000 kg Tool Taper: SK 50 Turning Speeds: 1.400 RPM Spindle Speed: 2000 RPM Further information: The control system was converted to a HEIDENHAIN 530i in 2013. All drives were upgraded to digital. The thrust bearing tower was also replaced in 2013. Accessories: 3D probe - Heidenhain, large spindle support Additional table dimensions: 3850 x 900mm 1x axis module Heidenhain (overhauled), 1 new axis module is installed in the machine. Newly packed spare parts, covers from the machine. All bearings have been replaced by the machine in recent years. Tools and milling cutter heads are available. Machine is from 1st hand. The machine is still under power and in production. The machine can be viewed by appointment.

Condition: good (used), Year of construction: 1999, Ref. -No.: 10638 Manufacturer: TOS HULIN Type: SKA 12 CNC Year of construction: 1999 Type of control: CNC Control: Sinumerik 840 C Storage location: Halberstadt Country of origin: Czech Republic Turning Diameter: 1450 mm Turning Height: 1450 mm Tool Taper: SK50 Power Capacity: 60 kW Planar disk: 630 RPM Planar disk: Ø 1250 mm Head Magazine: 30 academic subject Plate magazine: 24 academic subject Further information: - Hydraulically operated power chuck - Drive for rotary tools - Third controlled C-axis - Heidenhain linear scales in X and Z - Chip conveyor and extraction system - Renishaw for tool control The machine can be viewed under power by arrangement. Ljdpoy Ed Sujfx Akyjhf

Year of construction: 2013, condition: ready for operation (used), travel distance X-axis: 5,000 mm, travel distance Y-axis: 2,500 mm, travel distance Z-axis: 2,200 mm, controller manufacturer: HEIDENHAIN, controller model: iTNC530, spindle speed (max.): 3,000 rpm, table load: 16,000 kg, number of axes: 5, This 5-axis TOS WHQ 13 CNC boring machine was manufactured in 2013. It features a working spindle diameter of 130 mm, a transverse table travel of 5000 mm, and a table load capacity of 16,000 kg. The machine is equipped with a HEIDENHAIN iTNC530 control system and includes an automatic tool change system. If you are looking to get high-quality boring capabilities, consider the TOS WHQ 13 CNC machine we have for sale. Contact us for further details. • Working spindle diameter: 130 mm • Clamping: ISO 50 • Spindle extension (W): 800 mm • Table clamping surface: 2500 x 3000 mm • Control: HEIDENHAIN iTNC530 + handwheel • Motors and drives: SIEMENS • Scope of repair 2026: • Cleaning the machine • Checking and adjusting machine geometry • Checking machine functionality • Revision of electrical equipment • Revision of hydraulics and lubrication • Adjustment of clearances and optimization of drives • Replacement of guide surface wipers • Repair of telescopic machine cover • Replacement of balancing ropes • Repair of the platform • Revision of CHOV-K 20 bar cooling Lsdsy D R D Iopfx Akyohf • Revision of automatic tool changer AVN60 • Machine with guarantee – please contact us for more information Additional equipment • CNC table – fully controlled B axis • CHOV-K 20 bar spindle axis cooling (emulsion / through-spindle coolant) • AVN60 automatic tool changer • CE platform and fence (guarding) • Chip conveyor

Year of construction: 2007, condition: ready for operation (used), travel distance X-axis: 3,500 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 1,220 mm, number of axes: 5, This 5-axis TOS Varnsdorf WHN130 was manufactured in 2007. It features a horizontal boring and milling machine with a table size of 1600 × 1800 mm and a spindle diameter of 130 mm. The machine includes a rotary table and is controlled by an NCT-104 system. Consider the opportunity to buy this TOS Varnsdorf WHN130 boring machine. Contact us for more information. • Control system: NCT-104 Spindle • Spindle diameter: 130 mm • Taper: ISO 50 (7:24) • Spindle speed range: 10 – 1500 rpm • Max spindle torque: approx. 2350 Nm • Main motor power: 37 kW Axis Travels • X-axis travel: 3500 mm • Y-axis travel: 2000 mm • Z-axis travel: 1220 mm • W-axis (spindle quill travel): 570 mm Lhjdpfex Imtasx Akyjf Table • Rotary table size: 1600 x 1800 mm • Max workpiece weight: 12,000 kg • T-slots: 22 x 9 x 160 mm • B-axis table feed: 0.03 – 1.5 rpm Feed Rates • Rapid traverse (X / Y / Z / W): 2000 mm/min Power • Total power requirement: approx. 80 – 83 kVA

Condition: excellent (used), Year of construction: 2001, x travel 1600 mm y travel 1000 mm Lhsdpfxoy Ez Elj Akysf z travel 780 mm - number of processing axes (excl parallel axes) 5 - X-axis travel 1600 mm - Y-axis travel 1000 mm - Z-axis travel 780 mm - table surface (left-right) 1000 mm - table surface (front-back) 1000 mm - workpiece load (max) 6000 kg - - positioning/indexing 0.001 ° - - positioning/indexing 2.5 ° - - positioning/indexing 2.5 ° - spindle revolutions (max) 2500 /min - drive power 22 kW - number of positions 60 - number of store positions 2 - pallet length 1000 mm - pallet width 1000 mm - number of pallets 2 - space requirements -left/right- 6400 mm - space requirements -front/back- 6900 mm - total height 4000 mm - total weight approx. 26000 kg control HEIDENHAIN TNC 426 The machine is in very good condition and available immediately.

Condition: excellent (used), TOS SN500 SA, 1500 mm, Digital, Tooling Lhodpfx Aey Auydokysf

Condition: used, travel distance X-axis: 2,000 mm, travel distance Y-axis: 1,400 mm, travel distance Z-axis: 1,250 mm, spindle diameter: 110 mm, X-AXIS TRAVEL 2000 MM Y-STROKE VERTICAL 1400 MM Z-AXIS TRAVEL COLUMN: 1250 MM W-AXIS SPINDLE TRAVEL 710 MM TABLE 1400 X 1600 MM WORKPIECE LOAD 8000 KG SPINDLE SPEED 10 - 2000 RPM ISO 50 RAPID FEED X Y Z 10000 MM/MIN CNC HEIDENHAIN TNC 426 Lsdpfx Aox Da Sljkyohf ATC 60 PLACES

Condition: excellent (used), Year of construction: 1979, functionality: fully functional, Swing over bed mm 500 Swing over cross slide mm 270 Distance between centres mm 1000 Spindle mm 50,8 Lhsdpfx Aoy Eyz Sekyef Main motor output kW Machine dimensions: length mm 2575 width mm 1100 height mm Machine weight kg 1615 - 1715 - 1815

Condition: ready for operation (used), Year of construction: 1988, travel distance X-axis: 1,400 mm, travel distance Y-axis: 630 mm, travel distance Z-axis: 500 mm, total height: 2,500 mm, total width: 3,350 mm, total length: 3,060 mm, table width: 630 mm, table length: 1,800 mm, overall weight: 6,500 kg, Manufacturer: TOS Kuřim Total power requirement: 23 kVA Spindle: Taper bore in spindle: ISO 50 Number of speeds / speed range: 18 / 35.5 – 1800 rpm Spindle drive motor power: 15 kW Max. spindle torque: 2500 Nm Lodpfx Akjy E Igijyohf Feed range X–Y / Z: Number of steps / range: 16 / 10 – 1800 / 2.5 – 450 mm/min Rapid traverse: 4000 / 1000 mm/min

Condition: excellent (used), Year of construction: 1991, functionality: fully functional, Clamping table area mm 250 x 1130 Lodpsy Enumsfx Akyehf Working stroke: longitudinal mm 800 cross mm 350 vertical mm 450 Taper in spindle ISO 40 Range of revolutions r.p.m. 45 - 4500 Number of revolutions steps 16 Main motor output kW 2,2/3,0 Total machine input kVA 4,0 Machine dimensions mm 2650 x 1980 x 2260 Machine weight kg 1760

Condition: used, grinding diameter 630 mm grinding length 3000 mm 2500 kg grinding wheel: grinding stand diameter x wid 750x100x305 mm grinding head swivellable +/- +30, -10 ° Lhedpfoy A S U Ejx Akyjf 840,970 1/min 1 mm 3450 mm table speed -stepless- 0.05-3.6 m/min table swivelabel +/- +/- 5 ° Rotation speed of the work piece spindle area 1 8 - 50 Rotation speed of the work piece spindle area 2 50 - 315 1/min workpiece-spindle swiveling 90 ° Motor of the grinding spindle head 15 kW total power requirement 31 kVA weight of the machine ca. 15 t Equipment/Accessories: -4 flanges -Balancing stand -Various tips -Various spare parts -Paper belt filter -Technical documentation

Condition: used, Year of construction: 2009, greates pass round over bed 1050 mm dist. between centers 6000 mm centre height 520 mm turning length 4810 mm workpiece weight max. (main spindle) 6000 kg Maximum workpiece weight with steady rests 8000 kg max. torque on the spindle 12500 Nm number of spindle speeds 2,8-560 1/min feed per revolution 0,08-56 mm chuck diameter 630 mm Maximum travel distance of the longitudinal slide 4810 mm Maximum travel distance of the cross slide (suppor 530 mm Maximum travel distance of the tool slide (support 340 mm Tailstock quill diameter 150 mm total power requirement 31 kVA weight of the machine ca. 10500 kg dimensions of the machine ca. 7860 x 1970 x 1480 mm Equipment/accessories: -2 x face plates -3 jaw chucks Lhedpfx Asygxy Uokyef -2 x steady rests -Multifix holder -Turning tools -Various tips -Technical documentation

Condition: used, Year of construction: 2000, Horizontal Boring Mill Manufacturer: TOS Model: VARNSDORF WHQ 13.8 CNC Year of manufacture: 2000 CNC control: Heidenhain 426 Completely overhauled in 2022 Inspection report available Travel (X/Y/Z): 3,500 x 2,500 x 1,250 x B800 mm Number of axes: 5 Table length: 2,200 mm Table width: 1,800 mm Clamping area: 1,800 x 1,600 mm Table load: 12 t Number of tool positions: 60 Spindle taper: SK 50 Ledpox A Ayiofx Akyshf Spindle diameter: 130 mm Spindle speed: 2,500 rpm Power: 90 kW Heidenhain handwheel Telescopic cover completely overhauled with new wiper Dimensions (LxWxH) approx.: 7,500 x 6,950 x 4,000 mm Weight: 40 t 16426ä

Condition: good (used), functionality: fully functional, Universal grinder BU 28/1000 Ledsy D A N Aspfx Akyehf

Year of construction: 2008, condition: ready for operation (used), travel distance X-axis: 1,600 mm, travel distance Y-axis: 920 mm, travel distance Z-axis: 950 mm, controller manufacturer: HEIDENHAIN, controller model: TNC426, spindle speed (max.): 3,500 rpm, table length: 850 mm, table load: 3,000 kg, table width: 850 mm, This 4-axis TOS WFQ 80 CNC boring machine was manufactured in 2008. It features a working spindle diameter of 128 mm, a clamping taper of 50 ISO, and a spindle speed of 3500 rpm. The table can handle loads up to 5000 kg with additional supports and includes a chip conveyor and SIEMENS motors and drives. A great opportunity to buy this TOS WFQ 80 CNC boring machine. Contact us for further details regarding this boring machine. Machine Benefits Qualitative Machine Benefits • Precision control, very good condition Technical Machine Benefits • Diameter of the working spindle: 128 mm • Retrofitted in 2008 • Robust table design Extra Information Machine still under power // Lhsdsy Altuspfx Akysf Machine was checked and refurbished in 2024: ■ cleaning, technical inspection of the machine ■ replacement of the Heidenhain TNC426 control system ■ complete inspection of the electrical cabinet ■ replacement of damaged cables ■ repair of the control panel ■ repair of the complete geometry of the machine (geometric accuracy protocol on request) ■ inspection of the drives (new bearings for the X+Z ball screw bearings) ■ inspection of the headstock ■ inspection of the hydraulic unit ■ inspection of lubrication and reinforcement ■ new telescopic covers

Year of construction: 1980, condition: ready for operation (used), travel distance X-axis: 3,500 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 1,250 mm, controller manufacturer: HEIDENHAIN, controller model: 426, spindle speed (max.): 2,500 rpm, table length: 1,800 mm, table load: 12,000 kg, table width: 1,800 mm, number of axes: 4, This 4-axis TOS WHN 13.8 CNC boring machine was manufactured in 1980 and retrofitted in 2001. It features a working spindle diameter of 130 mm, a clamping cone 50 ISO, and a spindle speed of 2500 rpm. The machine supports a table load capacity of 12000 kg and includes SIEMENS motors and drives. If you are looking to get high-quality boring capabilities, consider the TOS WHN 13.8 CNC machine we have for sale. Contact us for more information. Machine Benefits Qualitative Machine Benefits • Retrofitted in 2001 • Refurbished in 2024 • 6-month warranty on mechanical parts Technical Machine Benefits • Working spindle diameter: 130 mm • Clamping cone: 50 iso Lhjdpey Althsfx Akyjf Extra Information Machine still under power / 6-month warranty on mechanical parts // Scope of refurbishment (2024): ■ Cleaning the machine ■ Checking and adjusting the machine geometry ■ Regrinding the spindle cone ■ ...possibility of replacing the spindle for an additional fee ■ Checking the machine's functionality ■ Revision of the electrical equipment ■ Revision of the hydraulics and lubrication ■ Adjustment of clearances and optimization of drives ■ Replacement of the guide surface wipers ■ Repair of the telescopic machine cover ■ Replacement of the balancing ropes ■ Repair of the platform ■ Revision of the cooling CHZ13

Condition: used, Technical details: grinding diameter: 250 mm grinding length: 1000 mm max. workpiece weight: 300 kg grinding wheel width: 150 mm Grinding wheel/diameter x bore x width: 600 x 305 x 80 mm folded disc width: 200 mm spindle taper: MK 5 tailstock taper MT: 5 sanding headstock rotation: 45° speeds:: 1050/1240 U/min longitudinal feed of the table: mind. 1 mm table speeds: 0,05-5 m/min traverse movement of the grinding headstock : 415 mm traverse movement of the grinding headstock with aut. infeed: 2 mm For grinding : 0,15 mm aut. infeed at table dead center: 0,005-0,05 mm for grinding : 0,0005-0,01 Self-infeed at grooving : 0,01-5 mm/min Quick adjustment of the grinding headstock : 60 mm grinding wheel motor: 19 kW total power requirement: 22 kW Ljdpeyzptijfx Akyehf weight of the machine ca.: 5 t
