Used Hidrobrasil Tool Carriage for sale (38,886)

Condition: good (used), Maximum turning diameter with top carriage 1350 mm Maximum turning diameter with side carriage 1100 mm Maximum turning height 1000 to 1250 mm Table diameter 1100 mm Maximum table load 4000 kg Power of main motor 30 kW Table speeds 6.3 - 200 rpm Number of table speeds 16 Distance between floor and table surface 955 mm TOP CART: Vertical travel of the ram with tool holder (Z axis) 600 mm Longitudinal travel of the slide (X axis) 700 mm Number of tool holes in the tool holder 5 Diameter of tool hole 60 mm Working feeds 12; 0,21 - 10 mm/min Fast feed rate 1880 mm/min SIDE CARRIER: Ksdstn S D Aepfx Ai Rjdr Vertical slide travel (R axis) 800 mm Slide travel (P axis) 630 mm CROSS BEAM: Vertical travel 1000 mm Feed rate 500 mm/min

Condition: excellent (used), Year of construction: 2012, functionality: fully functional, overall weight: 16,500 kg, total width: 2,185 mm, total length: 5,563 mm, total height: 2,195 mm, Specification: Maximum sheet size: 740 x 1060 mm Minimum sheet size: 330 x 400 mm Maximum cutting force: 300 tons Mechanical speed, up to 8,000 sheets/hour Materials processed: Paper and cardboard: 0.1 - 1.5 mm Corrugated cardboard up to B-flute Equipment: - Steel feeding plate - Lifting suction cups - Transport suction cups - Adjustment of brush and roller position on the delivery table, using a single knob Ksdozt Nbzopfx Ai Rjdr - Touchscreen monitor mounted on the machine - Pneumatic stops at the front guides - Laser sensors on the front guides - Modification of sensors for transparent materials - Pneumatic closing of the frame and die plate - APC System – Automatic Pressure Control System APC1 - automatic control of cutting pressure, allowing for maintaining the same pressure during the die-cutting/punching process. Possibility to set tonnage tolerance and control the sheet count after a certain number of pieces. - Programmable safety clutch for exceeding cutting force - pneumatic - Stabilizing air blast in the cutting section, increasing precision and cutting speed for thin papers - Quick-change tool system in the stripping section – Punching Metal (upper and lower stripping fingers) - Europing Centering System – die-cutting and stripping zone - Automatic non-stop stacking system, with a curtain and programmable number of sheets per stack - Upper curtain air blast in the stacking zone - Slip sheet inserter with batch counter, located in the stacking zone - Spare gripper carriage – 1 unit - Power transformer Delivery time: immediately after acceptance of the commercial terms and payment of the financial amount. This announcement has been automatically translated. Translation errors are possible.

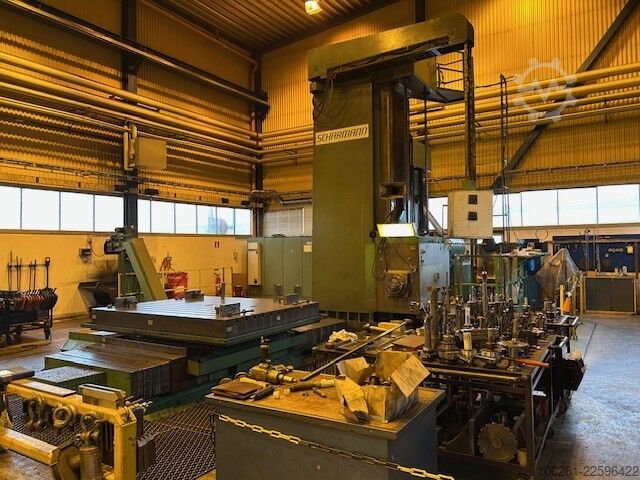

Condition: excellent (used), Year of construction: 1974, travel distance X-axis: 4,600 mm, travel distance Y-axis: 3,000 mm, feed length W-axis: 2,000 mm, spindle diameter: 160 mm, table load: 25,000 kg, CNC boring and milling machine – Scharmann Manufacturer: Scharmann Model: WFT 160 (early 1970s) Kdedpfxjzvw Ihj Ai Rer Control system: Bosch CC300 Work table: 2000 x 2500 mm Longitudinal travel of the table: 4600 mm Transverse travel of the table: 2000 mm Vertical travel of the spindle: 3000 mm Maximum table load: 25 tons

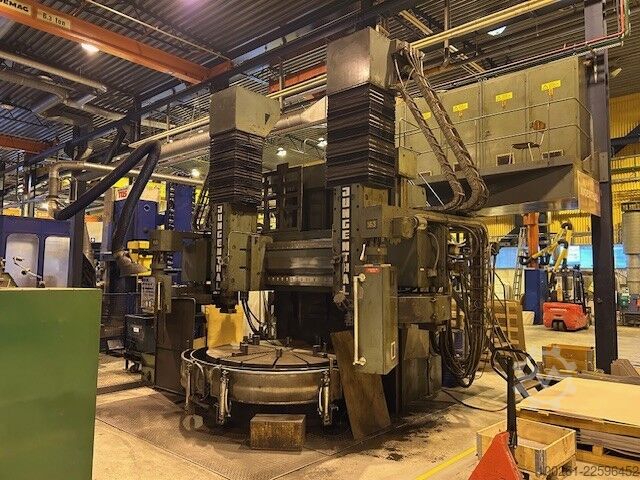

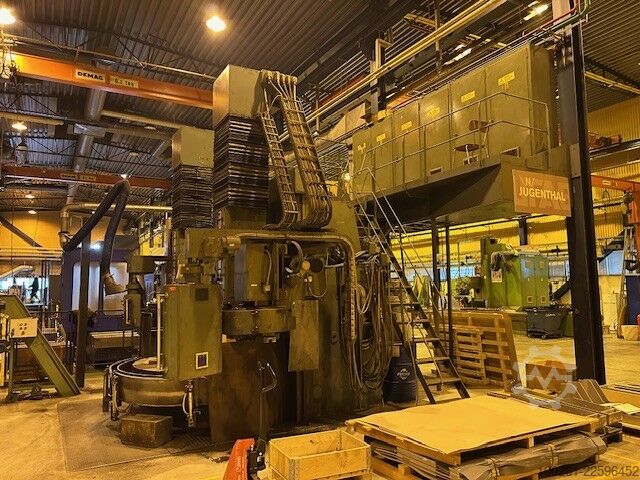

Condition: excellent (used), Year of construction: 1974, turning diameter: 2,550 mm, faceplate diameter: 2,000 mm, rotary table diameter: 2,000 mm, Vertical turning lathe – Jungenthal Manufacturer: Jungenthal Model: DS 20 (early 1970s) CNC control: FANUC Swing diameter: 2,550 mm Ksdpfxszvw Nfo Ai Redr Table diameter: 2,000 mm Maximum turning diameter: 2,100 mm Maximum workpiece height: 1,230 mm Maximum table load: 16 tons

Condition: ready for operation (used), Year of construction: 1990, Immediately available from prototype construction: Coordinate measuring machine, Zett Mess Plates and 4 measuring beams, manufactured in 1990 Electronics and measuring system newly installed in 2020 Plate dimensions: 12,000 x 3,100 mm Measuring range X/Y/Z: 12,000 / 3,100 / 2,500 mm Service from the successor company, Zett Mess, is available All accessories included Kedpezvv Rzjfx Ai Rjdr Price: Euro 27,500.00 plus VAT, ex works

Condition: used, Year of construction: 2014, Mazatrol Smart Control Serial Number 249154 30 Tool Magazine EIA & Mazatrol Programming USB Ports No swarf conveyor No thru coolant UK Buyers - Price £32,000 +VAT Kdjdpfszillhjx Ai Rsr Carriage/delivery is additional

Condition: used, Year of construction: 1988, Immediately available from prototype construction: Table drilling machine Pfeifer Year of manufacture 1988, in absolute top condition Type F 105 Spindle diameter 105 mm Milling spindle mounting SK 50 Drilling spindle mounting SK 40 Travel distances X/Y/Z 1000/1000/1500 mm Kedpfxszvwawe Ai Rsdr Table 1000 x 850 mm Table load capacity 4 tons Spindle speeds 14 – 1500 rpm Spindle stroke 500 mm Rapid traverse 2500 mm/min Spindle drive 7.5 kW, total 12 kW Weight 9 tons Stop block Digital display Cabinet with many tools Price: Euro 8,500.00 plus VAT, ex works

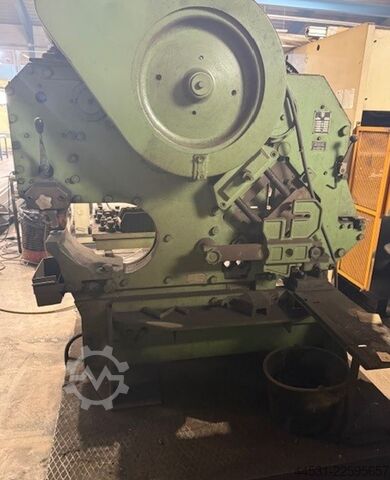

Condition: ready for operation (used), Year of construction: 1977, Immediately available from site: Universal profile steel shear with punching unit Peddinghaus Model 210 / 16 Kjdpfx Ajzvwclji Rodr Year of manufacture: 1977 Pressing force: 60 t Punching: 27 x 19 mm Round steel: 50 mm Square: 45 x 45 mm Flat steel: 150 x 19 mm Punching: 27 x 19 mm L profile 90 degrees: 130 x 13 mm L profile 45 degrees: 100 x 11 mm T profile 90 degrees: 130 x 15 mm T profile 45 degrees: 100 x 11 mm Drive: 5.5 kW Weight: 3 t Many punching tools included Price: €1,500 plus VAT, ex site

Condition: excellent (used), Year of construction: 1981, Center height: 130 mm Swing diameter over bed: 260 mm Swing diameter over carriage: 140 mm Distance between centers: 600 mm Spindle bore: 30 mm Bed width: 255 mm Spindle mount: DIN 55027 size 5 Speed range: 35.5 - 3,150 rpm Longitudinal feed range: 0.04 – 0.4 mm/rev Transverse feed range: 0.02 – 0.2 mm/rev Metric threads: 0.2 – 18 mm Inch threads: 2 – 76 TPI Module threads: 0.4 – 13.5 module Diametral pitch threads: 2.6 – 36 DP Tailstock taper: MT 4 Drive power: 3 kW Dimensions (L x W x H): 2,140 x 850 x 1,400 mm Weight: 1,100 kg Accessories / Special features: • 3-jaw wedge bar chuck FORKARDT F 160 with jaw safety, Ø 160 mm • Quick-change tool post system "Multifix" size B Ksdpfxsxz Rfks Ai Rjdr • Coolant system with chip guard • Chuck guard • Hardened bedways • Lighting • Bed stop • Emergency stop switch New brake discs, new drive clutch, new V-belts, and new gearbox and V-belt bearing in 2026. Repair costs: €3,950.00 net. Options: New 2- or 3-axis digital readout K+C, fully installed – upon request Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel / Germany

Condition: ready for operation (used), Year of construction: 1992, Available immediately from our location: Hydraulic single-column press, Edelhoff Type HEP 45 Year of manufacture 1992 Machine complies with the latest UVV regulations Pressing force 45 tons Table 1000 x 1000 mm Stroke 300 mm Drive power 7.5 kW Kodpfx Aezvv Ruoi Redr Weight 6 tons 4 guide pins of the upper ram are broken. These need to be unscrewed and replaced. Apart from that, the machine is in perfect working order. Price: EUR 3,000.00 plus VAT, ex works.

Condition: repair required (used), Year of construction: 1998, functionality: limited functionality, turning length: 330 mm, turning diameter: 248 mm, spindle speed (max.): 6,000 rpm, travel distance X-axis: 190 mm, travel distance Z-axis: 370 mm, The machine’s control system is defective. TECHNICAL DETAILS Turning diameter: 248 mm Turning length: 330 mm Travel distance X-axis: 370 mm Travel distance Z-axis: 190 mm Spindle bore: 45 mm Spindle speed: 6,000 rpm Tailstock quill travel: 120 mm MACHINE DETAILS Transformer: 400 V / 200 V EQUIPMENT Integrated CNC control Machine and control as a closed transport unit Linear guides in the X and Z axes Continuously variable AC main spindle drive Programming for constant cutting speed Integrated cold light Power meter for the main spindle drive Controls for automatic, manual operation and CNC programming Central control panel on the right side of the machine High-dynamic three-phase servo motors for the X and Z axes Backlash-free, pre-tensioned precision lead screws for the X and Z axes Automatic central lubrication with electrical monitoring for bed, cross slide and ball screw drives Coolant system with tank, pump, lines and nozzle Electric 12-station turret system MORI SEIKI with automatic direction logic Direct coolant supply through the turret Fixed hydraulic unit for the power chuck Full enclosure of the working area Front sliding door with large viewing window Electrical connection for chip conveyor prepared Data interface V.24 / RS-232-C Control cabinet Freestanding transformer 400 V / 200 V Kodpfx Aiozul Uts Rodr

Condition: good (used), Year of construction: 2010, functionality: fully functional, Unisign Uniport 6000, Year of manufacture 2010 / Commissioned 2011, Siemens 840 D control system, Travel distances X 10,000 mm, Y 1,500 mm, Increased spindle carriage stroke: Z 1,000 mm, Increased through-height 1,000 mm, Through-width 1,500 mm, Main drive 36 kW, n = 6,000 rpm, 720 Nm 2-stage gearbox 1:4 SK 50 tool holder Machining performance in C45: Full drilling D=120mm, threading M55, milling 100cm³/min Gantry design with movable portal bridge and stationary machine table. Machine table with clamping bars in the transverse direction, each with 750 mm spacing. The standard plate fields are omitted. Gantry-style machine Kdjdpfx Aiszua N Sj Rjr Hydraulic clamping device with clamping bridges for machining shafts, including hydraulic system Angle drilling & milling head, n = 4,000 rpm, SK50 High accuracy and stability due to Hirth gearing Automatic tool change in the angle head Measuring probe RWP20.50-M Swinging operation Safety fence with light curtains, manufacturer Sick Machine table with clamping bars in the transverse direction, each 750 mm Tool chain magazine on the portal stand with 30 positions Machine coolant system Water-air heat exchanger integrated in the control cabinet Unisign remote diagnostics for Siemens Sinumerik 840 D Makrolon curtains on both sides of the portal bridge, adjustable in height by motor Partition wall with viewing panel Chip conveyor with hinged belt design Installation and alignment elements

Condition: repair required (used), Year of construction: 1985, functionality: limited functionality, machine/vehicle number: 11710519, spindle bore: 1,250 mm, spindle motor power: 56,000 W, quill travel distance: 1,000 mm, workpiece weight (max.): 1,600 kg, Equipment: documentation/manual, Basic machine information Machine type: CNC vertical lathe Manufacturer and model: Schiess AG - Schiess Moweg GmbH; Type 12DS100 Schiess Year of manufacture: 1985 Serial number: 11710519 Technical condition: Machine is operational; used, requires repair Technical specifications Working range: Table dimensions - Pallet D=1000 [mm], max. turning height H=800 [mm], max. turning diameter D=1250 [mm] Tailstock stroke S=1000 [mm]; adjustable cross slide - positioning every P=500 [mm] Table load capacity: 1600 kg Control system type: Siemens - Sinumerik 840 D Main drive power - 56 kW; Maximum spindle speed: 500 rpm Axis positioning accuracy: 0.02 [mm] - axis measuring system: optical scales Axis feed rate - "rapid": 6000 mm/min Axis feed rate - "working": 0.1 - 2000 mm/min Coolant - yes - through the tool Number of axes: 2-axis lathe Drive type: servo drives Additional equipment Tool magazine: 12 positions Material feeding system: loading station at the pallet magazine Palletizing system - 2-pallet magazine; pallet loading station; machine table - total of 2 pallets Chip transport system - yes Cooling system - control cabinet air conditioning - yes Operating manual - paper version in Polish and German, digital version in German Kdodpfjzvnbxex Ai Ror

Condition: used, machine/vehicle number: 008700, X axis working area: 3050 mm Y axis working area: 1300 mm Kdjdpfx Aozq Ur Hsi Rjr Main Electrospindle power: 7.5 KW Number of controlled axes: 3 axes Total number of drilling spindles: 52 Total number of tool changer positions: 6

Condition: like new (used), Year of construction: 2025, functionality: fully functional, pressing force: 40 t, table width: 1,000 mm, table length: 600 mm, Hidrobrasil Double Column Press – 40 t – 1,000 × 600 mm – Stroke 500 mm For sale is a hydraulic double column press (H-frame) manufactured by Hidrobrasil, featuring an adjustable pressing force from 6 to 40 t. This machine is designed for calibration, assembly, and small series applications, and stands out thanks to its compact design, robust guidance system, and precise control. Ideal for flexible production processes with changing requirements. ==== Technical data & information: Hydraulic Double Column Press – 40 t ==== General information - Manufacturer: Hidrobrasil - Model: Double Column Press - Design: H-frame / Double Column Press - Designation: Small Batch Press / Calibration Press - Pressing force: 6–40 t (adjustable) - Machine weight: approx. 3,500 kg - Dimensions (L × W × H): approx. 2,100 × 1,600 × 3,500 mm ==== Working area - Max. installation height: 700 mm - Stroke: 0–500 mm (adjustable) - Table height above floor: 800 mm ==== Table & Slide - Table size: 1,000 × 600 mm - Slide area: 1,000 × 600 mm - Guide columns: Ø 100 mm (4 units) - T-slots and holes: as per customer specification ==== Speeds - Rapid traverse speed: 80 mm/s - Pressing speed: 9 mm/s - Return speed: 90 mm/s ==== Hydraulics & drive - Hydraulic pump: ASC, 67 + 8 l/min - Motor power: 4 kW - Total connected load: approx. 6 kW - Operating pressure: max. 260 bar - Pressure accuracy: ± 5 bar - Hydraulic manifold and valves: Duplomatic - Air and oil filters: Filtrec - Electronic oil level switch - Air cooling for hydraulic system - Pressure adjustment via pressure switch - Hydraulic unit mounted at top rear ==== Control & Safety - Control via sensors - Safety light sensors - Safety cover (door) at rear - Work area interior lighting - Pressure display via manometer ==== Electrical - Main supply: 400 V AC - Control voltage: 24 V DC - Frequency: 50 Hz - Components: Siemens, Allen Bradley, SICK ==== Electrical cabinet - Protection class: IP54 - Spare capacity: approx. 30% - Cooling: air cooling - Interior lighting: fitted - Operating mode selector: lockable Kdjdpfxjxrby Hs Ai Rjr ===== Calibration, assembly work, small batch production, forming technology, flexible production Hydraulic press, double column press, H-frame press, calibration press, assembly press, industrial press Looking for a hydraulic press tailored to your application? Contact us for a customised offer. Our hydraulic presses are manufactured in accordance with German machinery directives, as well as European machinery directives (Directive 2006/42/EC), EC standards, and EU safety regulations. Furthermore, our presses exceed Canadian and European safety requirements as they fully comply with the Brazilian national safety standard NR 12, which builds upon these. Our key strength lies in special-purpose machine engineering and press automation. We supply customised hydraulic presses at surprisingly competitive prices. All presses are equipped with hydraulic components primarily from leading European manufacturers.

Year of construction: 2026, condition: new, functionality: fully functional, machine/vehicle number: 066 404 601, An extrusion tool for the production of PE or PP pipes is offered. Pipe diameter range (min.): Ø90 mm Pipe diameter range (max.): Ø250 mm Output: approx. 1100 kg/h Design: Spiral distributor system, completely made of 42CrMo4 Flow contour polished Equipped with cylinder heaters and M14x1.5 type “J” thermocouples Incl. 3 m connection cable, without plug connector for the extruder Kodpfx Aiszhnd Rs Rsdr Technical data: 230V, 50Hz for max. 3600W per zone, 16A Number of heating zones: 7 2 copies of the operating manual in German or English are included in the scope of delivery. The offer includes the following items: - Basic tool PO G 250 - Sheathing package for a max. 10% outer layer - Flex nozzle insert for Ø250/180, with this nozzle insert, all dimensions from Ø250 to Ø180 can be produced in SDR17 + SDR11. - Tool mounting carriage, swiveling by 90° - Internal cooling for oil or water in the spiral distributor - Pipes for a pipe head air cooling system are installed in the tool.

Condition: refurbished (used), Year of construction: 1988, - Refurbished in 2022 - Heidenhain TNC320 CNC control - CNC or manual control possible - Movable vertical milling head with extendable spindle - Counter bearing for long milling arbors - Hydraulic tool clamping - Automatic gearshift - Automatic clamping in the X, Y, and Z axes - Automatic central lubrication - Coolant system - Direct position measurement - Collision protection coupling in the Y and Z axes - Built in 1988 - Including tool holders, drilling/milling tools, and tool carriage Specifications Working area: - X-axis (longitudinal): 485 mm - Y-axis (transverse): 385 mm - Z-axis (vertical): 380 mm - Quill stroke (vertical): 80 mm - Vertical milling head manually movable on spindle block: 150 mm Main drive: - Pole-changing Three-phase brake motor: Manual gearbox with forward/reverse rotation - Power: 3.7 / 4.4 kW - Work spindle speeds: 63 - 3150 rpm (18 steps) - Step increment: 1.25 - Tool holder: SK40 (M16) Kdjdpfx Aswhk Ubji Ror - Tool clamping: Disc spring package - Tool release: Hydraulic Feed drive: - X-axis: 1 DC motor - Y & Z-axis: 1 DC motor - Ball screws: all axes - Feed rate: 2 - 3000 mm/min (programmable) - Rapid traverse X/Y/Z-axis: 3000 mm/min Table slide: - Number of T-slots: 4 - T-slot width: 14H7 mm - T-slot spacing: 63 mm - Permissible load: approx. 600 kg Installation: - Space requirement (including safety area): approx. 2300 x 2500 mm - Machine weight including vertical milling head and angle table: approx. 1830 kg - Operating voltage: 400 V - Total connected load: 12.5 kVA - Floor load: 3000 kg/m²

Year of construction: 1965, condition: good (used), functionality: fully functional, machine/vehicle number: 2549, General / technical data: used horizontal hydraulic internal broaching machine in a good condition according to age with manual tool feeder in heavy design clearing stroke: 2.000mm Tractive force: 25,000 kg (250KN) Mounting in the drawbridge: Ø 105mm Cylindrical Through-hole in the clamping table: Ø 125mm Workpiece clamping surface: 440mm x 440mm Workpiece diameter: max. approx. 800mm (due to the tool trough of the tool feeder) Cutting speed: hydraulically infinitely variable from 1.5 m/min to 7 m/min Return speed: hydraulically infinitely variable from 7 m/min to 25 m/min Oil volume: hydraulics approx. 450L / coolant approx. 100L Space requirement of the machine: (w x d x h) approx. 8,400 mm x 1,350 mm x 1,800 mm (without working area) Power supply: 380Volt 50 HZ Connected load: 19kw Equipment: - the machine has a mechanical hydraulic control for the clearing & return stroke - the machine has an integrated coolant system - the machine has a manually operated tool feed system - The broaching carriage with the pulling head holder is guided flat on both sides. - The machine has an adjustable tractive force limiter - Tractive force display Accessories - 1 universal pulling head for flat shafts up to a maximum width of approx. 40 mm - dividing head (see pictures) - Various special fixtures and clamping devices - Machine documentation Kedjtuuvzjpfx Ai Redr Remarks: The machine can be used for the production of keyways with flat broaching tools, as well as for profile broaching. In combination with the machine bed of the machine and the stable broaching tool feeder, the machine is very well suited for heavy profile broaching tools. The machine is used and is in good condition for its age. The machine is available for inspection in our warehouse. The machine is new in our stock and is currently not technically or visually refurbished. Pulling heads for profile broaching are available on request, depending on DIN standard, dimensions and stock.

Condition: excellent (used), Year of construction: 2010, Tool-Temp Type: TT-180 Kjdpfx Aieyzg Sve Rodr Year of manufacture: 2010

Year of construction: 2019, operating hours: 4,525 h, condition: ready for operation (used), functionality: fully functional, machine/vehicle number: 12, BAR PEELING MACHINE AND BAR STRAIGHTENING MACHINE IN SET The equipment is in perfect working condition and can be inspected under power. Fully retrofitted in 2019 (completely new mechanics and electronics) Working range: Ø 20 – Ø 80 mm Bars length: 2.5 – 6.0 m Processing tolerance: ISO h9 (possible h8) Peeling depth: up to 3.5 mm, depends on the steel type Kdsdpfx Aiewqb Sco Rjr Steel types: carbon steel, bearing steel, spring steel, etc. Feeding speed: digitally adjustable 0.5 – 12 m/min Cutting head revolutions: up to 1700 RPM Cutting tools: two sets of 4 knives each with automatic digital positioning (triangular and long knifes) Automotive loading table with bar counter Feeding roller with motorized height adjustment Infeed pressure rolls – 4 vertical rolls with inverted DC motor Peeling machine, consists of: - Front guiding system - Peeling head with 4 knifes - Rear guiding system Bar extraction carriage Main motor and transmission Output pressing rolls - tween Unloading table with motorized height adjustment Collector with counter and automatic collection of finished bars Hydraulic unit – completely new Electric cabinet – new of two modules.

Condition: used, Year of construction: 2021, machine/vehicle number: HB 2022-A-073, pressing force: 300 t, Portal straightening press with 300 T capacity a) idle and pressing speed up to 17 mm/sec. Kodjh Agnujpfx Ai Rsdr b) opening speed up to 55 mm/sec c) table size 2500x1600mm d) open height 700 mm e) total size approx. LBH 4500 x 2300 x 3700 mm f) Oil temperature indicator on the tank g) Lubrication via grease nipple h) table in grid construction,with T grooves according to customer's request, otherwise 22mm i) operation on swivel arm, mounted on the bridge j) pressure adjustment from 50 T to 300 T via MONITOR k) bridge moves by two gear motors, via racks l) Cylinder moves to the left and to the right via toothed racks m) Machine body double painted n) Cylinder induction hardened Type of construction Press design PORTAL PRESS Thermally neutral 80 - 120 °C Number of operating sides 3 side Forces Pressing force max. 3,000 kN Free ripping force max. 500 kN Pressure build-up time Closed die Steel to steel Max. 3 sec. Dimensions Max. Opening width 700 mm Stroke and min. opening 700 mm/ 0 mm Table height above floor approx. 9ß0 mm Height above floor (headroom) approx. 3700 mm Hall height min. 5.000 mm Deflection Determined at max. clamping force with 70% occupancy < = 0.8 mm/m Weight Total weight of press without operating materials and table plate approx. 22 T Speeds Fast closing with 17 mm sec. Pressing speed 8 mm sec. Opening 55 mm sec. Sound pressure Sound pressure level, measured at 1.5m height at the control panel after max. 78 db(A) DIN 45635-T16-KL3 Hydraulics Number of pressing cylinders 1 pc. Operating pressure max. 350 bar Pressing pressure build-up time 02. mz sec. Pressure accuracy during pressing stroke +/- 5 bar Main pump BOSCHREXROTH approx. 93 L/min Oil volume approx. HLPD 46 MW 900 liters Ambient temperature max. 45 °C Oil temperature max. 55 °C Electrical system Main supply 400 V AC Control voltage 24 V DC Frequency 50 Hz Hydraulic connection Main motor IE3 22 kW Total connection Approx. 30 kW

Condition: good (used), functionality: fully functional, turning diameter over cross slide: 630 mm, LATHE TECHNICAL SPECIFICATION – PERFORMANCE OVERVIEW Workpiece Capacity Turning diameter over bed (nominal / max): 630 mm / 660 mm Turning diameter over carriage: - Short slides: 400 mm - Long slides: 320 mm Max. swing in front of faceplate notch: 720 mm Notch length: 265 mm Over bed: 305 mm Over floor: 1125 mm Machine Construction & Spindle System Bed width: 550 mm Spindle bore: 72 mm Faceplate: - Diameter: 630 mm - Width: 120 mm Tooling & Setup Tool cross-section (cutter): 40 × 40 mm Tool holder side length: 200 mm Spindle & Drive Performance Main motor speed: 1400 rpm Spindle speed steps: 18 Max. permitted faceplate speed: 560 rpm Feed Ranges Longitudinal feeds: - Steps: 68 - Range: 0.035–10 mm/rev Cross feeds: - Steps: 68 - Range: 0.014–4 mm/rev Rapid Traverse Rates Longitudinal: 5000 mm/min Cross travel: 2000 mm/min Thread Cutting Capability Metric threads: - 84 types, 0.2–224 mm Inch threads: - 94 types, 140–1/8 TPI Module threads: - 72 types, 0.1–112 Pitch range: - 94 types, 280–1/4 Machine Dimensions Overall length: 2300 mm + distance between centers Width: 1850 mm Height: 1725 mm Kdsdpfx Aijx Acpdj Ror Ask for a testing video! Robust and precise heavy-duty lathe featuring wide turning capacity, extensive thread cutting options, and high feed/rapid traverse performance. Ideal for demanding workshops requiring versatility, power, and reliability.

Condition: repair required (used), Year of construction: 2011, functionality: not functional, machine/vehicle number: 102920, Technical Characteristics: Work Area - Maximum diameter of clamping plate: 250 mm - Maximum turning diameter: 270 mm - Maximum machining diameter: 220 mm - Maximum workpiece length: 175 mm - X-axis travel: 660 mm / Rapid traverse in X: 60 m/min - Z-axis travel: 300 mm / Rapid traverse in Z: 30 m/min - Standard enclosed automation (number of loading stations by workpiece diameter: 14/(80...200 mm), 18/(30...160 mm), 30/(30...85 mm)) Main Spindle - Spindle according to DIN 55026: Size 6 - Max. speed: 4,500 rpm - Power at 100% / 40% duty cycle: 18 / 27 kW - Torque at 100% / 40% duty cycle: 202 / 303 Nm Kodpfx Aiexxiwyj Redr Turret with Driven Tools - Tool holders per DIN 69880: 12 x VDI40 - Number of positions: 12 - Max. tool length (including holder): 190 mm - Max. speed: 6,000 rpm - Max. torque at 10% duty cycle: 37 Nm, at 25%: 26 Nm, at 100%: 14 Nm Electrical Equipment - Operating voltage: 400 V - Connected load: 36 kW / 80 A Dimensions - Total dimensions: Length: 3,120 mm (4,185 mm with chip conveyor), Width: 2,266 mm, Height: 3,200 mm - Weight: 7,500 kg Main Features and Capabilities: - Vertical design: Enables optimal chip evacuation as well as easy loading and unloading - Control: Siemens 840D - High precision: Positioning accuracy in X, Z, and Y axes ±0.001 mm, Heidenhain linear scales - Main spindle: High power and broad speed range - Automated loading/unloading: Automated workpiece loading and removal via integrated system - Driven (live) tools: Supports live tooling for extended machining range, including drilling and milling - Part detection sensor with compressed air gauge through spindle: SMW Autoblock Linear Position Sensor LPS-X - In-process control: Marposs T25 - Chip conveyor - Coolant chiller: Texa TCW55PMSBXMF000, max. 30 bar input - Coolant filtration with paper belt filter: Micron filter EVO500Pro+KMT150, 550 liters, 80 l/min - Documentation: Digital & hard copy manuals available Machine Status: NOT WORKING - Lifetool motor - Slideways & carriages (X & Z axes) - Hydraulic pressure compensation block

Condition: excellent (used), Year of construction: 2015, Miter and crosscut saw with a maximum cutting height of 170 mm sturdy gray cast iron construction precise ball bearing guide for the tool carriage on hardened and ground steel shafts manual feed quick miter adjustment up to 65° horizontally adjustable fixed stops lower saw blade guard, connectable to dust extraction Model-----Motor-----Speed-----Cutting length ZS 170: 400 V / 2.0 kW--3500 rpm---410 mm (at 90 degrees) Model-----Cutting height----Miter range horizontal ZS 170 ----- 170 mm----- 45 degrees - 90 degrees Machine stand - Main switch with locking mechanism - Infeed roller conveyor Ro-St60, 3 meters, right-hand - Roller conveyor RLK-ST60 L 3.0 meters, measuring length Kjdpfjzhx Adox Ai Rodr Heavy-duty length stop/roller conveyor mm - Scale on the rear upright, measuring gauge with magnifying glass and stop flap - Saw blade 420 x 3.5 x 40 Z 84 Neg Location: In stock, 54634 Bitburg - free loading - - immediately available -

Condition: good (used), Year of construction: 1998, operating hours: 97,487 h, functionality: fully functional, Polishing robots used for water fittings, control system by C & B Electronic, Kdedpfxezvnfkj Ai Rsr ongoing maintenance until 2026, extensive accessories.
