Used Broaching Machine – Vertical for sale (66,429)

Condition: used, Vertical Milling Machine Droop & Rein type FS130 Travel X: 2000 mm Travel Y: 1000 mm Travel Z: 1000 mm Spindle SA 50 Sensitive spindle exit: 200 mm Rotation: from 31,5 to 1600 RPM Table size: 2400 x 1070 mm Throat depth: 950 mm Tilt head Spindle motor: 22 kW Scale HEIDENHAIN 3 axes Nwjdpfszw D R Sjx Aa Hek Year of construction: 1976 New electrical panel in 2006 Voltage : 380 V Width : 3500 mm Depth : 4700 mm Total height : 4500 mm Weight : 26 T

Condition: used, Vertical milling machine CINCINNATI 2 MI Travel X: 700 mm Travel Y: 250 mm Travel Z: 330 mm Spindle: SA 50 Spindle speed: from 25 to 1500 RPM Table size: 1380 x 250 mm Slide spindle travel 100 mm Motor 5 CV Feeds auto X - Y Nodpjzw D Ecefx Aa Hswk Manual head descent (auto not working) Voltage: 380 V Width: 1800 mm Depth: 1800 mm Total height: 2000 mm Weight: approx 2,5 T

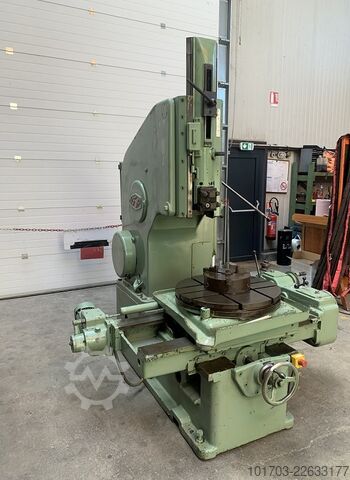

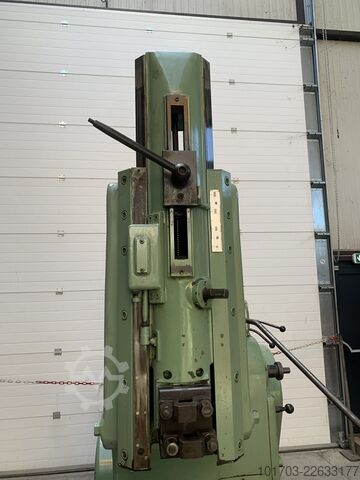

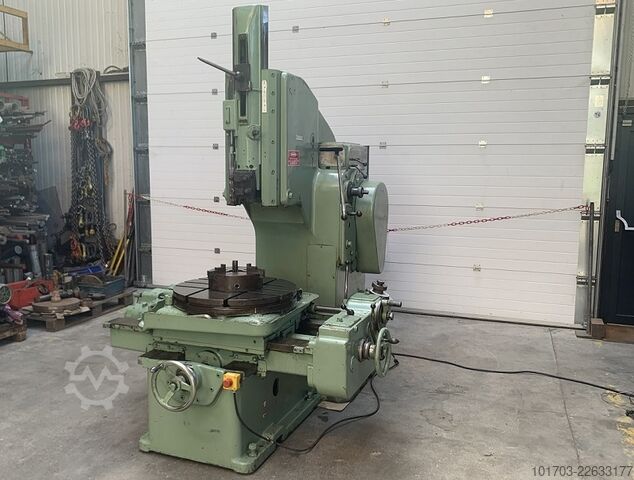

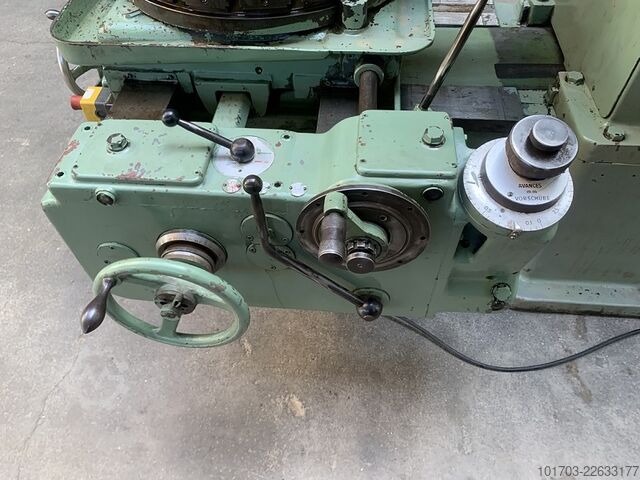

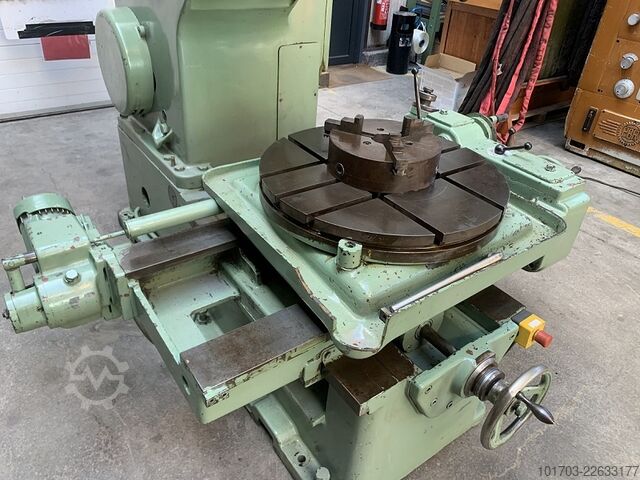

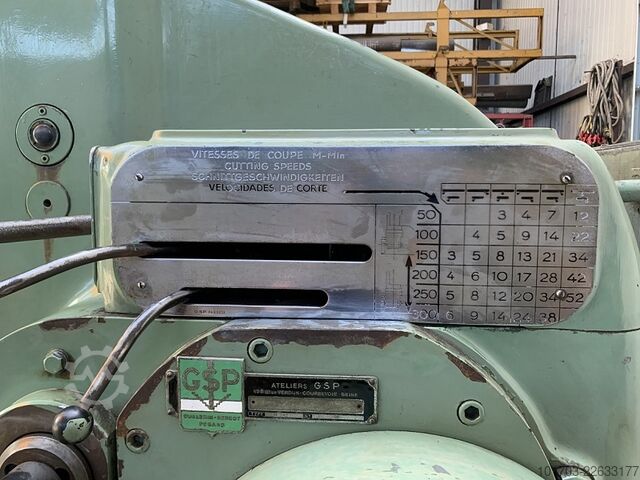

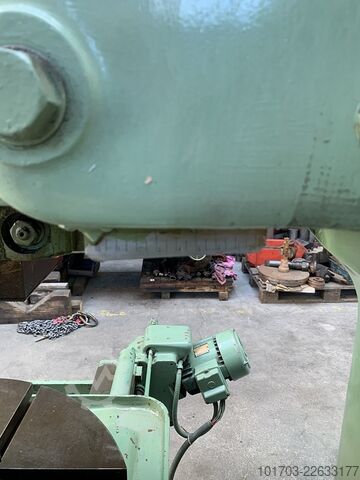

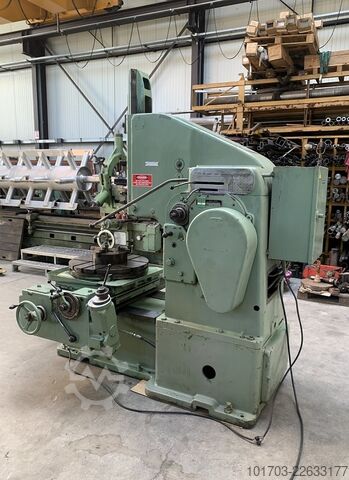

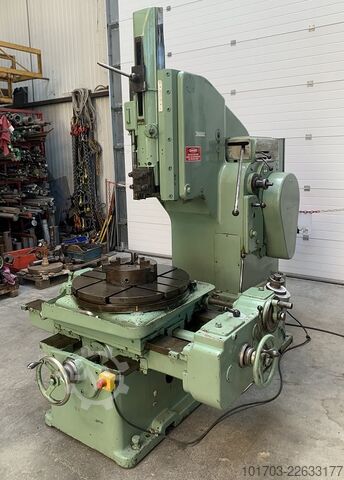

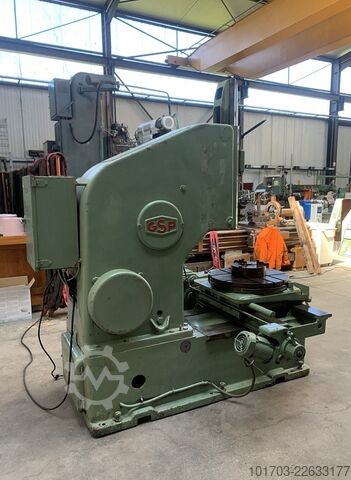

Condition: used, Vertical Slotting Machine GSP M 743 3-jaws chuck Ø 360 mm Table travel: X = 500 mm / Y = 450 mm Slide travel: 300 mm Throat depth: 500 mm Rotary table: Ø 690 mm Slide tilting: + 8° Rotative table/slide maxi height: 450 mm Motor power: 8 CV Rapid feeds on X - Y - W axes Strokes/min.: from 3 to 300 strokes/min. Equipped with one tool removal system upon lifting Nwsdpezw A A Hjfx Aa Hsk Voltage: 380 V Length: 2000 mm Depth: 2500 mm Total height: 2200 mm Weight: approx 4 T

Condition: used, Vertical Slotting Machine GSP M 743 3-jaws chuck Ø 360 mm Table travel: X = 500 mm / Y = 450 mm Slide travel: 300 mm Throat depth: 500 mm Nsdpfozw A Aajx Aa Howk Rotary table: Ø 690 mm Slide tilting: + 8° Rotative table/slide maxi height: 450 mm Motor power: 8 CV Strokes/min.: from 3 to 300 strokes/min. Equipped with one tool removal system upon lifting Voltage: 380 V Length: 2000 mm Depth: 2500 mm Total height: 2200 mm Weight: approx 4 T

Condition: used, Year of construction: 2008, control Siemens 840D Hobbing Machines for Large Gears Flexible and Versatile Gear Hobbing Gleason’s large hobbing machines offer maximum productivity for roughing and finishing operations on cylindrical gears for many industries: wind turbines, industrial gearboxes, mining, and shipbuilding, gear machining, and many more. The guideways are wide and feature hydraulically preloaded guides, which are used in combination with a separate linear guide and backlash- free rollers. This ensures precise slide movements with every feed. The design of the worktable ensures optimal conditions for absorbing and transferring cutting forces to the machine base. The use hydrostatic table bearings, combined with the proven backlash-free double-worm gear, guarantees precise table movements and the highest flatness and concentricity accuracies of the worktable. This holds true regardless of significant fluctuations in workpiece weight and/or high machining forces. The motorized gear hobbing heads for external and internal gear cutting are designed to meet the Njdpfx Ajwzypnsa Hswk requirements of modern cutting tools. All machine sizes can be equipped with both external and internal gear hobbing heads. The power range of the drive takes future tool developments into account. Naturally, the gear hobbing head drive is also backlash-free. These machines are particularly well-suited for use with state-of-the-art cutting materials.

Condition: used, Year of construction: 2018, workpiece weight (max.): 35,000 kg, total length: 15,600 mm, total height: 6,000 mm, total width: 6,000 mm, overall weight: 155,000 kg, The Pittler WMZ PV4000 / 1-2 is a heavy CNC vertical turning machine with a portal design, featuring one workpiece spindle and two independently movable tool carriers. The machine enables turning, drilling, milling, and grooving. The right tool carrier is designed as a swiveling multifunction head with a B-axis and driven tools. Two separate chain magazines provide a total of 94 tool positions. Technical Data Machine Number: ZV029 Machine Concept: Portal machine with one workpiece spindle and two tool carriers Machining Processes: Turning, drilling, milling, and grooving Maximum Swing Diameter: 3800 mm Maximum Workpiece Diameter: 3800 mm Maximum Workpiece Speed: 100 min-1 Rated Speed: 36.7 min-1 Workpiece Clamping: Manual Chuck: Röhm Tool Holder: Capto C8 Tool Magazines: 2 chain magazines Tool Positions: 2 x 47 Total Number of Tool Positions: 94 Maximum Tool Diameter: 120 mm according to the operating manual Maximum Tool Diameter: 150 mm according to the order confirmation with appropriate magazine loading Maximum Tool Length: 400 mm Maximum Tool Weight: 20 kg Travel Paths X1-Axis Right Tool Carrier: 3200 mm X2-Axis Left Tool Carrier: 2800 mm Z1-Axis Right Tool Carrier: 1000 mm Z2-Axis Left Tool Carrier: 1000 mm Rapid Traverse X-Axes: up to 32 m/min Rapid Traverse Z-Axes: up to 20 m/min Workpiece Spindle Gear Reduction: 1 to 30 Maximum Speed: 100 min-1 Rated Speed: 36.7 min-1 Rated Power: 67.4 kW Short-Term Total Power: 202.2 kW Rated Torque: 52.65 kNm Maximum Drive Torque: 71.55 kNm Torque according to Order Confirmation: 67000 Nm at 40% duty cycle Motor Spindle Power according to Order Confirmation: 200 kW at 100% duty cycle Maximum Spindle Load Capacity including Chuck, Clamping Jaws, and Workpiece: 35000 kg Spindle Flange Diameter: 1900 mm Thrust Bearing Diameter: 1400 mm The workpiece spindle is designed as a water-cooled motor spindle with precision axial deep groove ball bearings. Tool Carrier and Multifunction Head The right tool carrier features a swiveling multifunction head with two Capto C8 holders for turning tools as well as drilling and milling tools. B-Axis for Stepless Positioning Swivel Range: 180 degrees Speed of Driven Tools: up to 6000 min-1 Tool Spindle Torque: approx. 120 Nm at 100% duty cycle Hydraulic Clamping Direct Measurement System Direct Coolant Supply High-Pressure Coolant Supply: up to 70 bar Tool Magazines Two chain magazines with 47 tool positions each Tool Holder: Capto C8 Maximum Tool Diameter: 120 mm Up to 150 mm with appropriate magazine loading Maximum Tool Length: 400 mm Maximum Tool Weight: 20 kg Tool Cleaning with Blowing Air Manual Magazine Loading Coolant and Chip Disposal Two Knoll Chip Conveyors Type 600 S-2/120 Knoll Band Filter Type KF400-2300 Additional Equipment Röhm Chuck Spindle Cooling Hydac FLKS-4S Hydraulic Unit Hydac TBM20 Electrical Data Operating Voltage: 3 x 400 VAC Protection Class: IP55 Maximum Power Consumption: 280 kVA Component weight max.: 35,000 kg Swing: 3,800 mm Rotation height max.: 2,100 mm Nedpfezwa Rbox Aa Hswk Weight approx.: 155,000 kg Dimensions (LxWxH) approx.: 15600 x 6000 x 6000 mm Table diameter: 3,800 mm Control: Siemens SINUMERIK 840D sl Year of construction: 2,018 Condition: good Terms of payment: 100% prepayment before pick-up Terms of delivery: EXW EX Works under power: Yes

Condition: used, Year of construction: 1997, Bridgeport VMC 800/22 CNC Vertical Machining Centre With Heidenhein TNC 426 Control Table Dimension 1,000 x 490mm (5 'T' Slots). Maximum Table Load 750kg. Axis Travel 'X'=800mm, 'Y'=510mm, 'Z'=500mm. Maximum Spindle Speed 6,000rpm (11kW Motor). Spindle Taper BT40. 22 Position ATC. S/No. 720971 (1997). With Coolant System, Spindle Probe Interface, 2 Heavy Duty Machine Vices (Jaw Width 200mm) & Quantity Of Toolholders. Weight 3,600kg. Nwodpjzt N Rpjfx Aa Hsk

Condition: good (used), Year of construction: 2010, 2010 Hermle C50 U MT Dynamic 5 Axis Vertical Machining Centre With Turning Capability & Dual Siemens 840D Controls Nwjdpfxozt Nywo Aa Hsk Table Dimension Ø1,000mm (16 16mm H7 'T' Slots). Maximum Table Load 2,000kg (1,000kg Turning). Maximum Component Dimension Ø1,000 x 810mm High. Axis Travel 'X'=1,000mm, 'Y'=1,100mm, 'Z'=750mm , 'A'=+100°/-130°, 'C'=360°. Rapid Traverse 'X'60m/min, 'Y'=60m/min, 'Z'=65m/min. Maximum Spindle Speed 12,000rpm (56kW Motor). Maximum Turning Spindle Speed 500rpm. Spindle Taper HSK A100. 84 Position ATC (Additional ZM 42 Magazine). Maximum Tool Ø250mm, Maximum Tool Length 430mm, Maximum Tool Weight 30kg. Chip To Chip Tool Change Time 7s. S/No. 19871 (2010). Machine Hours 89,860.9 , Drive Hours = 74,916.2, Spindle Hours 10,585.7, Work Spindle Hours 566.0 (New Spindle Installed 2023). With Knoll KF 400 Through Coolant Paper Filtration System, Knoll S-1 Chip Conveyor, Swarf Bin, Handte Mist Extraction Unit, Hyfra Pedia VWK70-DE-S Chiller Unit, Brand New Blum Laser Toolsetter, Quantity Of Tooling In ATC, Renishaw MP40-2 Spindle Probe, Visiport TK2 Spin Window, Blum Reference Tool In Carry Case, Heidenhain Calibration Kit In Carry Case, Automatic Doors, Retractable roof For Loading & Technical Manuals. Weight 21,500kg. Technical Agreement/Specifications Are Located In A Folder Inside Control Panel. Machine Is A Clean & Very Good Condition, Only Issues Are Internal Lights Not Working (No Faults As They Were Repaired Last Month Through Kingsbury). We Run Fusion 360 Through The Machine.

Condition: used, Year of construction: 1984, x-travel 1000 mm y-travel 508 mm z-travel 460 mm size of pallet 1240 x 550 mm numbers of pallets 2 workpiece weight 800 kg spindle taper ISO 40 spindle motor 5,5 kW turning speed range 28 - 4000 U/min no. of tools in magazin 30 control MAZATROL M 1 weight of the machine ca. 5,6 t dimensions of the machine ca. 4,50 x 3,00 x 2,65 m Nwsdstqqk Ispfx Aa Hsk acc.: chip conveyor

Condition: used, Year of construction: 2007, x-travel 1100 mm y-travel 600 mm z-travel 500 mm table surface area 1300 x 600 mm Nodpfet D N A Hox Aa Hswk spindle taper SK 40 spindle turning speed - stepless 10.000 U/min ATC 40 Pos control HEIDENHAIN, TNC 530 weight of the machine ca. 8,8 t dimensions of machine L x W x H 2,58 x 3,04 x 2,35 m Accessories: 2 hydr. vices make HILMA, model NC 160, width of jaws 160 mm; various tool holders, chip conveyor, coolant

Condition: used, Year of construction: 1993, turning diameter ca. 500 mm swing diameter ca. 600 mm travel -x axis ca. 400 mm travel -z axis ca. 600 mm spindle turning speed range 2000 U/min spindle drive 63 kW control SIEMENS Nsdpfetyp Susx Aa Hjwk control SINUMERIK System 3 tool turret 1 x 12 Pos weight of the machine ca. 9,3 t - R-version, turret right hand side of 3-jaw chuck - Accessories: hydr. 3-jaw chuck 400 mmø, various toolholders for turret, chip conveyor, coolant

Condition: used, Year of construction: 2008, x-travel 1500 mm y-travel 800 mm z-travel 700 mm table surface area 1760 x 700 mm spindle taper SK 40 spindle turning speed - stepless 8000 U/min spindle drive 15 kW feeds 1 - 8000 mm/min rapid traverse X/Y/Z axis 15 / 15 / 12 m/min table load max. 2500 kg spindle throat 760 mm ATC 40 Pos control HEIDENHAIN, TNC 530 weight of the machine ca. 12,5 t dimensions of machine L x W x H 4,23 x 2,98 x 2,74 m - with coolant through spindle Accessories: NC-dividing unit (=4th Axis) with tailstock, center height 250 mm; Nedpfxjux Agve Aa Hswk 2 hydr. vices make HILMA, model NC 160, width of jaws 160 mm; various tool holders, chip conveyor, coolant - geometrical overhauled in 2022 - - new ball bearing spindle installed on Y-axis in NOV. 2022 - - the magnetic plates shown on the photo are not included -

Condition: good (used), Year of construction: 1996, functionality: fully functional, Work area: 800x600x500 Rapid traverse rate: 30 m/min Spindle speed: 15000 RPM, SK40 NC rotary table, diameter = 280 mm Electronic handwheel module Electrical thermal expansion compensation Nwsdpfxezv Syfe Aa Hjk Ethernet interface, TNC 426/430 Measuring probe system, SK40, Renishaw Chip conveyor without chip cart Enclosed cabin roof section Air blow-off device, C800 The spindle was replaced in May 2018 with a total operating time of 25,185 hours. The current operating time is 31,083 hours. This means that the spindle has been in operation for 5,898 hours since its replacement.

Condition: used, Year of construction: 2006, x-travel 750 mm y-travel 600 mm z-travel 560 mm Control SIN840D pl table-size 950 x 650 mm workpiece weight max. 1.000 kg feed X/Y/Z/-axis 1 - 90.000 mm/min rapid traverse X/Y/Z 90,00 m/min spindle turning speed - stepless 1 - 18.000 U/min power capacity at 100 % load 25,00 kW power capacity at 40 % load 35,00 KW tool taper HSK-A63 tool magazin: 30 tool diameter 80 mm tool diameter with 2 vacant positions 140 mm tool length - max. 300 mm weight of tools max. 10,00 kg total power requirement 58,00 kW weight of the machine ca. 11,00 t Nwsdpevxwxijfx Aa Hjk dimensions of the machine ca. 7,00 x 4,00 x H3,50 m Control SIEMENS Sinumerik 840D powerline with ShopMill, EROWA pallet system MTS500, tool breakage control, coolant-unit, coolant through the spindle (23 l/min at 40 bar), chip conveyor, electronic handwheel

Condition: used, Year of construction: 1991, Mori Seiki MV-40B Year of manufacture: 1991 Control system: Fanuc/Mitsubishi Nsdjzwt Elopfx Aa Hjwk Travel distances X/Y/Z: 800x400x500 Machine weight: 6050 kg Condition: Still connected to power, fully functional.

Condition: used, Year of construction: 2012, machine/vehicle number: 12030320, travel distance X-axis: 810 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 500 mm, controller manufacturer: Heidenhain, controller model: TNC 620, table width: 900 mm, table length: 400 mm, overall weight: 3,500 kg, spindle speed (max.): 10,000 rpm, number of spindles: 1, number of slots in tool magazine: 23, input voltage: 400 V, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, This vertical machining center, a Saeilo Contur MMV 810 S, was manufactured in 2012 and is equipped with a Heidenhain TNC 620 control unit featuring an electronic handwheel for precise operation. Travel ranges are X = 810 mm, Y = 400 mm, Z = 500 mm, with a table measuring 900 x 400 mm and fitted with 3 T-slots (size 14 mm). The machine includes a double-arm tool changer with 23 positions, BT40 tool holder, and a high-performance spindle capable of up to 10,000 rpm, oil cooling, and an internal coolant supply system with 20 bar pressure. Spindle speed: 0-10,000 rpm Axis travels: X: 810 mm Y: 400 mm Z: 500 mm Double-arm tool changer with 20 positions Tool holder: BT40 Spindle oil cooling // Internal coolant supply 20 bar Disc-type scraper in coolant tank Air blast cooling through or around the spindle External coolant gun Chip conveyor (spiral type) Central lubrication system Nedjx N E Acspfx Aa Hjwk Table clamping surface: 900 x 400 mm with 3 x 14 mm T-slots Machine weight: 3,500 kg Includes documentation.

Condition: excellent (used), FANUC 21-M Control With NC dividing head Working travels 1020 x 510 x 575 mm Table size 1200 x 550 mm Spindle taper SK40 Spindle speeds 60-8'000 rpm Tool changer 24 Pos. Coolant through spindle Misc. accessories Nedpfx Aaoy Hqyhj Hewk MARCELS MASCHINEN CH

Condition: excellent (used), Year of construction: 2002, Working travels 600 x 450 x 450 mm Table size 850 x 530 mm Spindle taper HSK 63 Spindle speeds -20'000 rpm Tool changer 30 Pos. Control HEIDENHAIN iTNC 530 3D Measuring tracer Tool measurement RENISHAW TS27R Tool breakage control device Njdpfszwt Hcex Aa Howk Tool lenght and diameter measuring device Misc. accessories MARCELS MASCHINEN CH

Condition: good (used), Year of construction: 2011, operating hours: 18,400 h, travel distance X-axis: 860 mm, travel distance Y-axis: 630 mm, travel distance Z-axis: 550 mm, total height: 2,721 mm, total length: 3,420 mm, total width: 2,200 mm, overall weight: 6,800 kg, spindle speed (max.): 12,000 rpm, operating hours of spindle: 6,550 h, number of spindles: 1, number of slots in tool magazine: 30, Equipment: chip conveyor, documentation/manual, Control system: Fanuc 0i-MD Travel range X / Y / Z: 860 / 630 / 550 mm Rapid traverse rate X / Y / Z: 36 / 36 / 36 m/min Spindle taper: SK40 Spindle speed: 12,000 rpm Spindle power: 15 kW (S1) Max. spindle torque: 127 Nm Coolant through the spindle: 20 bar Main spindle cooler: Yes Nwsdpozwf T Usfx Aa Hsk Tool magazine: 30 tools Tool change time: 2 s Chip conveyor: Double auger + chip conveyor Cabin flushing: Rear and sides Rotary table on the table: Ø 400 mm Max. diameter on the table: Ø 630 mm Max. table load: 200 kg Clamping system length: 96 mm 3D measuring probe: Renishaw OMP Mist extraction: Losma Darwin 1200 Handwheel / manual pulse generator: Yes Interfaces: Ethernet, CF card, serial Machine weight: 6,800 kg Machine dimensions L x W x H: 3,420 x 2,200 x 2,721 mm

Condition: used, Year of construction: 1999, Travel X/Y/Z: 610mm/406mm/508mm, max. spindle speed: 8000rpm, spindle power: approx. 7.5kW, rapid traverse X/Y: 24m/min, rapid traverse Z: 15m/min, spindle taper: SK40, tool capacity: 24, table dimensions X/Y: 750mm/400mm, max. table load: approx. 350kg, control: Hurco Ultimax 4 Dual Screen. Weight: approx. 4000kg. An on-site inspection is possible. Nodpfx Aozwfrqea Hswk

Condition: used, Year of construction: 2004, travel distance X-axis: 1,600 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 500 mm, controller manufacturer: Fanuc, overall weight: 9,000 kg, table length: 825 mm, table width: 625 mm, controller model: 21i MB, Travelling Bridge CNC Vertical Machining Centre Table size (2) 1100x600 + 850x600 mm. Number of pallets: 2 Movement x-Axis 1600 mm. Movement y-Axis 600 mm. Movement z-Axis 500 mm. 4th Axis (Rotary table) NC Nwodpfxszavluj Aa Hek Max table load 1200 kg Number of tools in magazine 51 pieces. Maximum spindle speed 12.000 R/pm. Tool taper DIN 69871A CNC control Fanuc 21i MB If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

Condition: used, Year of construction: 2007, Technical details: x-travel: 635 mm y-travel: 460 mm z-travel: 510 mm control: 3D Heidenhain i TNC 530 table-size: 790 x 560 mm table load capacity: 600 kg Nedpfew A I Uuex Aa Hewk tool taper: SK 40 Revolution per minute: 20 - 10.000 U/min. tool changer with: 20 place spindle hours: 36.050 h operating hours - idle run: 91.000 h total power requirement: 13,9 kW Weight approx.: 3,6 t tool taper: SK 40 Tool changer: 20-fach dimension machine approx.LxWxH: 3,0 x 2,0 x 2,15 m

Condition: used, Year of construction: 2003, Technical details: x-travel: 3600 mm y-travel: 900 mm z-travel: 820 mm b-axis: -100 - +100 ° control: Siemens 840 D tool changer with: 30 Plätze rapid traverse:: 100 m/min rapid traverse:: 60 m/min. table-size: 4200 x 900 mm table load capacity: 4200 kg total power requirement: 92 kW Weight approx.: 30 t dimension machine xH: 4,6 x 8,7 x 3,3 m The DECKEL MAHO DMF 360 Linear is a highly dynamic 5-axis travelling-column machining center designed for the complete machining of large and heavy workpieces. Thanks to the linear drive in the X-axis, the machine achieves very high rapid traverse speeds and reduced non-productive times, making it particularly suitable for toolmaking, mold making, and general mechanical engineering. Travelling-column design for high stability when machining long workpieces Linear drive in the X-axis with rapid traverse speeds up to 100 m/min Nodpjzi Nc Rsfx Aa Howk 5-axis machining with NC swivelling milling head (B-axis) Large travels for machining components longer than 4 meters High precision through direct measuring systems and thermally symmetrical machine design *

Condition: used, Year of construction: 2008, Article: Vertical turning and grinding centre Manufacturer: EMAG Type: VSC 250 DS Yob: 2008 Control: SIEMENS 840D Grinding spindle speed: 30,000 rpm Rotation spindle speed: 3,000 rpm Tool places turret: 12 Cooler for spindle and machine bed cooling Cooling lubricant - lifting station (no independent cooling lubricant supply) Chip conveyor Parts handling Air through the spindle Two clamping circuits through the spindle (air and oil) Nwodpfxsia Rtde Aa Hok Unfortunately, the grinding spindle is defective. However, this can be overhauled in a spindle factory. Otherwise the machine is in a very good condition and fully functional. Please, contact us for getting more information and pictures on mail(at) or *

Condition: used, Year of construction: 1999, vertical broaching machine vertical internal broaching machine Nedpszv Ecaefx Aa Hewk swald Forst GmbH & Co. KG RISH 6.3x1000x320 M Year of Manufacture 1999
