Used Drilling Jig for sale (4,954)

Condition: new, Year of construction: 2024, neu 2024 3983 prompt, Zwischenverkauf v Spanien 7400 € 142.82 € 1 1 32 mm MK 3 250 mm 65 - 125 - 185 - 365 - 54 U/min 1,8 / 2,6 kW M24 600 mm 640 mm 2020 mm 260 kg 100 mm 85 - 635 mm 1.170 mm 300 x 270 mm 600 x 380 mm 120 mm ERLO (MADE IN SPAIN) FOR DEMANDING WORKSHOP USE geardrive machine manual feed left-right drilling table with t-slots depth adustable end tool ejector drill guard CE norms user manual in GERMAN (sample photo) OPTIONS (PRICES ON REQUEST): lighting equipment coolant equipment and machine base with T-slots reverse for tapping Bedpfx Aowirzred Ajlg DELIVERY TIME WITH OPTIONS APPROX. 6 WEEKS.

Condition: new, neu ca. 8 Wochen ab Auftragse Spanien 12910 € 247.87 € 40 mm MK 4 350 mm 132-194-277-319-466-666-8 U/min 2.2 kW M33 755 mm 480 mm 2280 mm 490 kg 0,1 - 0,2 - 0,3 mm/U 150 mm 80 - 880 mm 1225 mm 480 x 480 mm 175 mm Automatic feed with mechanical clutch Geared drive Hardened and ground high quality steel gears Speed plate and selecting levers on head front. Bsdpfowiq Tmox Ad Ajlg Depth scale and adjustable depth stop Automatic tool ejector Emergency STOP push button Spindle reversing switch Electric equipment integrated on machine’s head Machined base with coolant tank Worklight MGI: Rotating and tilting table for model 40 Safety drill guard with microswitch CE mark ALTERNATIVE: VERSION BX.40MIT ELEKTROMAGNETIC CLUTCH PRICE ON REQUEST OPTIONS (PRICES ON REQUEST): Electronic speed variato with speed digital reader(VE+TAK) A) 66-211 B) 97-310 C) 138-443 D) 160-510 E) 233-746 F) 333-1066 G) 440-1413 H) 648-2074 I) 926-2963 Depth digital reader (LBC) Manual tapping system (IR/RS) Manual tapping system for models with variator(IR/RS-VE)

Condition: new, neu ca. 8 Wochen ab Auftragse Spanien 7160 € 138.19 € 30 mm MK 3 250 mm 245 - 4000 U/min M25 400 mm 655 mm 1185 mm 280 kg 120 mm 100 mm 85 - 635 mm 1.195 mm 300 x 270 mm 600 x 380 mm ERLO(MADE IN SPAIN) FOR MANUFACTURING USE V-belt drive Blodpfxjwiq N Ue Ad Aog manual feed left-right drilling automatic tool ejector adjustable depth stop table with T-slots drill guard with micro switch lightening equipment user manual in English or GERMAN CE OPTIONS (PRICES ON REQUEST): Variable speed incl. digital display (VE+TAK) Tapping device (IR/RS) Coolant equipment incl. T-slots in the ground plate (ERB)

Condition: new, neu ca. 8 Wochen ab Auftragse Spanien 12570 € 241.34 € 50 mm MK 4 350 mm 93 - 152 - 204 - 298 - 44 U/min 3 kW M35 480 mm 755 mm 2265 mm 435 kg 0,1 / 0,18 / 0,24 mm/U 180 mm 150 mm ERLO (MADE IN SPAIN) FOR DEMANDING WORKSHOP USE Blsdpfxewiq Hye Ad Aeg Gear drive 3 aut. feeds sliding machine table solid drill head tiltable turntable front wheel for sensitive fine feed (sample photo) OPTIONS (PRICES ON REQUEST): lighting equipment L coolant equipment and machine base with T-slots ERB Reverse for tapping IR/RS

Condition: new, neu ca. 8 Wochen ab Auftragse Spanien 11530 € 221.38 € 40 mm MK 4 300 mm 75 - 150 - 235 - 325 - 47 U/min 1.3 kW Stahl: M 30; Guss: M 32 600 mm 640 mm 2020 mm 305 kg 0,1 — 0,2 — 0,3 mm/U 160 mm 125 mm 420 x 400 mm ERLO (MADE IN SPAIN) FOR DEMANDING WORKSHOP USE geardrive machine Bodpfx Adowiqzwj Ajlg 2 aut. feeds left-right drilling drill guard CE norms user manual in GERMAN OPTIONS (PRICES ON REQUEST): lighting equipment coolant equipment and machine base with T-slots Reverse for Tapping

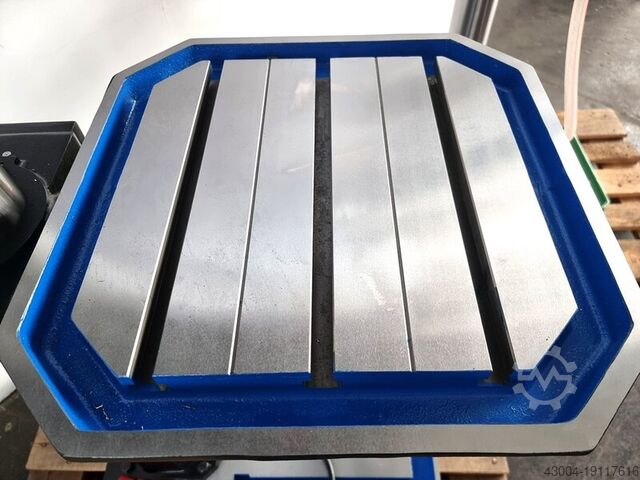

Condition: new, Year of construction: 2024, neu 2024 3982 prompt, Zwischenverkauf v Spanien 10830 € 207.94 € 1 Bsdpfxowiqvus Ad Aslg 35 mm MK 4 300 mm stufenlos 100 - 2.000 U/min 3 kW bis M 27 1100 mm 600 mm 1950 mm 360 kg 0,10 / 0,20 / 0,30 (3) mm/U 150 mm 125 mm 90-890 mm 1250 mm 480 x 480 mm ERLO (MADE IN SPAIN) FOR DEMANDING WORKSHOP USE column drilling machine with vario gear 1-stage V-belt drive with stepless variable speed with a frequency converter and digital speed display 3 automatic feeds chuck guard left-right drilling T-Slots and integrated coolant equipment in base stand integrated lighting drill guard HEIGHT ADJUSTABLE, ROTATING AND TILTING TABLE WITH T-SLOTS reverse for tapping fast and precise setting and control of the speed without switching operations and without defined levels more particularly robust parts for wear resistant operation and smooth running compact design with high performance CE norms user manual in GERMAN

Condition: new, neu ca. 8 Wochen ab Auftragse Spanien 6840 € 132.01 € 25 mm MK 3 250 mm 245 - 4000 U/min Bedpfx Aswiqrpod Aolg 0,7 / 1,3 kW kW M18 400 mm 655 mm 1900 mm 280 kg 120 mm 100 mm 85 - 635 mm 1.195 mm 300 x 270 mm 600 x 380 mm ERLO(MADE IN SPAIN) FOR MANUFACTURING USE V-belt drive manual feed left-right drilling tool ejector adjustable depth stop table with T-slots drill guard with micro switch lightening equipment user manual in English or GERMAN CE OPTIONS (PRICES ON REQUEST): Variable speed incl. digital display (VE+TAK) Tapping device (IR/RS) Coolant equipment incl. T-slots in the ground plate (ERB)

Condition: new, neu ca. 8 Wochen ab Auftragse Spanien 10930 € 209.86 € 35 mm MK 4 300 mm 132-194-277-319-466-666-8 U/min 1.5 kW M27 755 mm 480 mm 2205 mm 385 kg 125 mm 90 - 890 mm 1250 mm 400 x 420 mm 150 mm Manual feed Geared drive Hardened and ground high quality steel gears Speed plate and selecting levers on head front Depth scale and adjustable depth stop Thermomagnetic switch Emergency STOP push button Spindle reversing switch Worklight Fixed table Safety drill guard with microswitch CE mark OPTIONS (PRICES ON REQUEST): Electronic speed variator with speed digial reader (VE+TAK) A) 66-211 B) 97-310 C) 138-443 D) 160-510 E) 233-746 F) 333-1066 G) 440-1413 H) 648-2074 I) 926-2963 Depth digital reader(LBC) Manual tapping system (IR/RS) Manual tapping system for models with variator(IR/RS-VE) Blodpfxewiqpne Ad Aeg Rotating and tilting table(MGI) Coolant equipment with T-slots in the base plate (ERB) ERLO BX-35 VERSION WITH ELECTROMAGNETIC CLUTCH PRICE ON REQUEST

Condition: used, Year of construction: 2013, operating hours: 9,462 h, Horizontal drilling and flushing rig, Tracto Technik, Grundodrill 18 ACS * Grundodrill * Model 18 ACS * Year of manufacture: 2013 * 9,462 hours (as per meter reading) * Driven by 4-cylinder Cummins diesel engine with 123 kW / 167 HP * 2 speed ranges * Single cab with 1 seat * Transport dimensions (L x W x H): 6450 x 2350 x 2650 mm * Weight: 15,110 kg * Crawler chassis with 34-37 mm rubber tracks * Undercarriage length x width: 2650 x 460 mm * Rod magazine (holds 50 drill rods? Diameter: 60 mm) * 1 x drill head, see pictures * Remote control, air conditioning, locating system This description does not represent a binding offer and may contain errors. No guarantee on all information provided. Bjdpfx Aoyq Aqlod Ajlg Please also visit our homepage.

Condition: excellent (used), Boring bar Bar diameter: 180 mm Overall length: 2500 mm Weight: 920 kg Siegfried Volz Machine Tools Rüschebrinkstr. 151-153 Bjdpfx Asum Uzgsd Ajlg DE - 44143 Dortmund - Wambel

Condition: new, spindle mount: MK 4, Equipment: documentation/manual, – Capacity: MK4 Drilling capacity in steel: 32 mm Drilling capacity in cast iron: 40 mm Thread cutting capacity in steel: M24 Thread cutting capacity in cast iron: M32 – 95/1600 rpm – Automatic feed Bodpfjy Emqmox Ad Aolg – Thread cutting function – Table 540 × 470 mm – Coolant system – Gear drive – Safety guard – Emergency stop – Thread cutting head with collets – Documentation – 400V

Condition: ready for operation (used), functionality: fully functional, input voltage: 380 V, type of input current: three-phase, spindle mount: MK 3, drilling depth: 120 mm, rotational speed (max.): 2,000 rpm, rotational speed (min.): 200 rpm, total width: 400 mm, total length: 600 mm, total height: 1,820 mm, table width: 320 mm, table length: 400 mm, Flott SB M3 ST 3-phase 380V motor runs smoothly. Stepless speed adjustment via variomatic spindle drive. Spindle speed adjustable from 200 to 2000 RPM. Bodpsy D Uihsfx Ad Ajlg MT3 spindle taper. Röhm Supra 3-16mm drill chuck included. Machine vice included. Spindle safety guard. Emergency-off switch. Drilling depth adjustable. Maximum drilling depth: 120mm Table size: 400x320mm Table height adjustable. Overall dimensions: 60x40x182cm Year of manufacture: 1987 Made in Germany Overall good condition. Contact us for shipping options! € 2,350.00

Condition: good (used), Code: 0342 Brand: VITAP Model: ALFA 35 - CE Standard Semi-automatic multiple boring machine with 35 spindles for furniture, kitchens, bathroom furniture, custom-made furniture, panels - CE Standard Technical data N° 35 spindles with quick coupling Centre distance between each spindle mm 32 Centre distance between first and last spindle mm 1088 Max depth of hole mm 70 Board dimensions mm 1330 x 500 Spindle rotations per minute 2800 Motor power Hp 3 Turret with 6 different depth positions Side fence Bsdpfxeywm A He Ad Aolg Horizontal/vertical 45 degree pneumatic tilting head Metric bar 3000 mm with stops Operating pressure 6- 8 atm Overall dimensions mm 1590 x 860 x 1250 h Weight kg 454

Condition: new, Year of construction: 2020, bore capacity in steel (diameter) 40 mm throat 220 mm bore stroke 120 mm spindle taper MT 4 spindle turning speed range 105 - 1257 U/min no. of turning speeds 8 Stufen table surface area 400 x 320 mm base plate 390 x 650 mm voltage 400 V / 50 Hz total power requirement 1,1 / 1,8 kW weight of the machine ca. 0,3 t Bedpfxoy Erwlo Ad Aslg range L-W-H 2,1 x 1,0 x 0,7 mm with quick-action drill chuck 3-16 mm, drill chuck protection, work table can be rotated, swiveled and height-adjusted, coolant device, lighting, right/left spindle rotation, mechanical depth stop,

Condition: excellent (used), Year of construction: 1987, functionality: fully functional, travel distance X-axis: 7,500 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 750 mm, spindle speed (max.): 3,000 rpm, spindle diameter: 150 mm, travel distance W-axis: 900 mm, table length: 3,000 mm, table width: 1,600 mm, workpiece weight (max.): 14,000 kg, CNC TOSNUC Bledpfx Aevutqaod Ajg The machine is in excellent condition and is equipped with 3 rotary tables: 2 x 1600 x 1600 mm and one 1600 x 3000 mm. Tool magazine with 120 slots.

Condition: good (used), DRILLING CAPACITY STEEL E335 (ST 60) [MM]: 14 TAPPING PERFORMANCE STEEL E335 (ST 60) [MM]: M 14 SPINDLE, SHORT: MT 2 DISTANCE SPINDLE TO COLUMN [MM]: 250 TABLE CLAMPING AREA [MM]: 370 x 300 DISTANCE SPINDLE - TABLE MIN./MAX. [MM]: 125 / 455 COLUMN DIAMETER [MM]: 90 Z-TRAVEL OF SPINDLE [MM]: 100 FEED: manual POWER [KW]: 0.6 / 0.95 POWER 2 [RPM]: 0.6 / 0.95 MOTOR 1 [RPM]: 750 / 1500 MOTOR 2 [RPM]: 750 / 1500 Bljdpfxjy D Ebne Ad Aog SPINDLE RPM RANGE | OPTION 1 [RPM]: 125 – 2,400 SPINDLE RPM RANGE | OPTION 2 [RPM]: 225 – 4,300

Condition: excellent (used), Year of construction: 1996, Overhauled in 2005 Number of spindles: 2 Drilling capacity per spindle, steel: 1-6 mm Drilling depth: max. 350 mm Travel distance Z: 350 mm Travel distance W: 350 mm Drive power per spindle - 100% duty cycle: 3.7 kW - 50% duty cycle: 5.5 kW Spindle speed: 3,000 - 27,000 rpm Spindle mounting: Ø 10 - 60 mm Coolant pressure: max. 150 bar Coolant flow rate: 48 l/min Blodpfx Aoy Eykgod Ajg Coolant volume: 1,000 l

Condition: good (used), machine/vehicle number: M4137-1280, functionality: fully functional, rotational speed (max.): 960 rpm, For sale is a Snow TA-3-S tapping machine. The item is in good condition. Two units available. Technical data: Manufacturer: Snow Manufacturing Model: TA-3-S Serial number: M4137-1280 Motor power: 0.55 kW Speed: 960 rpm Voltage: 380 Volt Frequency/phase: 50 Hz / 3 phase Control voltage: 110 Volt Transport and loading can be organized Europe-wide for an additional fee, upon request. Prices are subject to VAT. Viewing by appointment possible. Please contact us—our team will be happy to assist you. Trade-in or exchange possible! Machinery purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MORE. Blsdpfx Adoy Hihko Aeg Gjbn N Ay Dowza Dxogoil Do you need a high-quality yet affordable metalworking machine for your production? Or are you looking to sell yours? For further info or contact options, please visit our website.

Condition: used, Year of construction: 2016, TECHNICAL DATA AXES Max. workpiece dimensions X-Y-Z mm 3050 x 800 x 50 Min. workpiece dimensions X-Y-Z mm 300 x 90 x 10 Drilling/slotting working area mm 0 x 800/0 x 800 X axis stroke mm 750 Max. travel speed of X-Y axes m/min 25 DRILLING UNIT Vertical spindles Number 7 (4X-4Y one common) Horizontal spindles (along the Y axis) Number 2 (1+1) Horizontal spindles (along the X axis) Number 1 Fixed grooving saw (direction) X Grooving saw diameter mm 100 Max. grooving saw thickness mm 5 Motor power kW (HP) 1.5 (2) Spindle speed rpm 3350 Grooving saw speed rpm 4300 INSTALLATION Power supply V (Hz) 380 / 400 (50 / 60) Installed power KVA 4.5 Compressed air requirement bar 6 Compressed air consumption Nl/cycle 90 Extraction requirement m3 / h 1200 Extraction air speed m / sec 20 Extraction nozzle diameter mm 80+80 F10L Drilling unit Includes: - 7 independent vertical spindles - Drill chuck D10 mm - Distance between spindles 32 mm - 2 horizontal drilling heads, 1 in X direction with one drill, 1 double drilling head in Y direction (1 + 1 drill chuck D10 mm) - Speed 3350 rpm - 1 integrated sawing unit in X (max. Diameter 100 mm) - Saw blade speed 4300 rpm - Motor power 1.5 kW - Vertical pneumatic travel per spindle 70 mm - Horizontal pneumatic travel of the drilling unit. Positioning of the workpiece and drive of the work unit: A CNC-controlled suction cup clamps the workpiece and positions it sequentially under the work unit during machining. Movement in the X and Y axes takes place on THK guides with transmission to reinforced toothed rails. Movement in the Z axis is pneumatically controlled on ball-bushing guides with adjustable stop positioning. The positioning of the work units is carried out using technology and drives with DC motors. CNC CONTROL The control system was specially developed for use in drilling and milling machines. CN - 7" color screen with touchscreen function - Alphanumeric keyboard - Self-diagnosis and any error messages or malfunctions that may occur, in the operator's language Programming - Programming via the CN - Automatic optimization of drilling operations - Option of plate zero point shift - Option of saving and importing drilling programs via USB dongle - Option of importing drilling programs from CAD-CAM external software Configuration - User interface in the same language as the instruction manual Graphic representation of the unit configuration Vacuum suction cups "B-Power Vacuum suction cups with double vacuum connection, recommended for particularly porous panels (e.g. MDF light). Machine user interface software Xilog Maestro USB Hardware and software requirements: - Operating system: Windows XP Professional (SP2), Windows Vista or Windows 7 - Processor: Intel compatible, 2GHz min; Multicore processor recommended - Memory capacity: 1GB min., recommended 2GB - Free disk space: 5GB - Graphic card: Compatible OpenGL (The code includes a DVD for installation and a USB key) Xilog Maestro Features Programming - Parametric, graphic programming - Assisted programming with graphic and syntax help for drilling operations - Possibility to create and save machining macros Integrated additional functions - Self-diagnosis and possible error messages or malfunctions, in the operator's language - User interface in Bljdpfx Asvvi I Red Asg

Condition: used, Year of construction: 2002, Drilling capacity: 25 mm, spindle mount: MK 3 Storage location: Nattheim Bjdpfx Adovvi Aue Ajlg

Condition: used, machine/vehicle number: 005836, X axis working area: 3000 mm Bsdpowuckuefx Ad Aslg Y axis working area: 1000 mm Main Electrospindle power: 3.5 KW Number of controlled axes: 3 axes Total number of drilling spindles: 82

Condition: used, Year of construction: 1999, bore capacity in steel (diameter) 50 mm arm length 1250 mm bore capacity in cast iron 60 mm quill stroke 300 mm Bsdpfxoy Ehxro Ad Aslg tool taper MK 5 speeds 25 - 1440 U/min feeds 0,08 bis 0,58 mm/U thread cutting attachment ja Boring motor 4,0 kw weight of the machine ca. 2,4 t dimensions of the machine ca. 2,0 x 0,75 x 2,15 m Radial drilling machine - Mounting cube 800 x 600 x 500mm - Coolant system - Good condition

Condition: new, bore capacity in steel 40 mm Bedpsfg U Tqsfx Ad Aelg threading cutting capacity: M30 throat 310 mm bore stroke 175 mm spindle taper MK 4 feed range - spindle 20 - 400 mm/U spindle turning speed range 60 - 1250 / 120 -2500 U/min transmission ratio 2 Stufen column diameter 120 mm table surface area 550 x 400 mm total power requirement 1,5 / 3,0 kW weight of the machine ca. 0,45 t dimensions of the machine ca. 0,7 x 1,4 x 2,0 m Equipment: - Gears made of hardened and ground steel - Front speed selector lever - Gear lubrication by automatic oil pump - Integrated coolant device - Machine lamp - Rotatable and tiltable table - Automatic feed with electromagnetic clutch - Handwheel for manual fine feed - automatic tool ejector - Integrated electrical controls in the drill head - Pushbutton for EMERGENCY STOP - Switch for right / left rotation - Height-adjustable chip protection hood with microswitch - CE mark

Condition: new, bore capacity in steel 30 mm threading cutting capacity: M20 throat 260 mm bore stroke 125 mm spindle taper MK 3 spindle turning speed range 80 - 1440 / 180 -3200 U/min transmission ratio 2 Stufen column diameter 110 mm table surface area 500 x 365 mm total power requirement 0,8 / 1,4 kW Bledpfefg U Tpex Ad Aeg weight of the machine ca. 0,27 t dimensions of the machine ca. 0,4 x 1,2 x 1,9 m Equipment: - Gears made of hardened and ground steel - Front speed selector lever - Gear lubrication by automatic oil pump - Integrated coolant device - Machine lamp - Rotatable and tiltable table - Automatic feed with electromagnetic clutch - Handwheel for manual fine feed - automatic tool ejector - Integrated electrical controls in the drill head - Pushbutton for EMERGENCY STOP - Switch for right / left rotation - Height-adjustable chip protection hood with microswitch - CE mark

Condition: new, bore capacity in steel (diameter) 15 / 18 mm throat 180 mm bore stroke 80 mm turning speeds 200 - 4000 U/min 250 x 220 mm distance drilling head - clamping area max. 380 mm total power requirement 1,1 / 400 kW / Volt column diameter 65 mm tool taper MK 2 weight of the machine ca. 0,08 t dimensions 0,4 x 0,5 x 0,9 m precise bench drill: - Large speed range - Programmable thread cutting - high accuracy and quality Bedpfefg U Tisx Ad Aslg - Drill table adjustable via rack and swiveling around the column - Full engine protection - Star grip - 230 volt mains connection
