Used Cnc Vertical Lathe for sale (17,025)

Condition: good (used), Year of construction: 2005, functionality: fully functional, Fanuc control system, Spindle bore 26 mm, Counter-spindle, Hfsdpfjyyxkzsx Ahzei 4 driven tools axially for the counter-spindle, 3 driven tools radially for the main spindle and counter-spindle, FMB tool magazine, Fire extinguishing system, High-pressure pump. No guarantee for the accessories shown in the photograph.

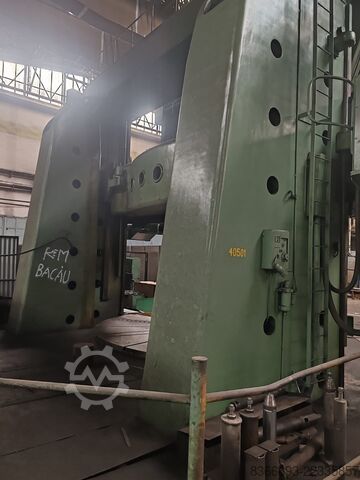

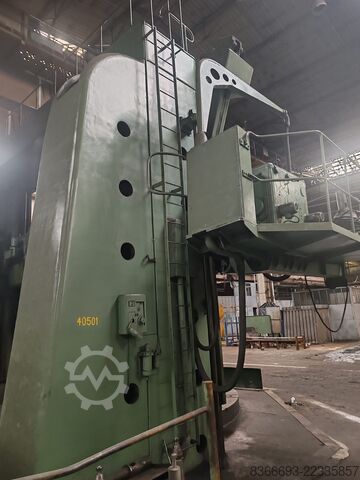

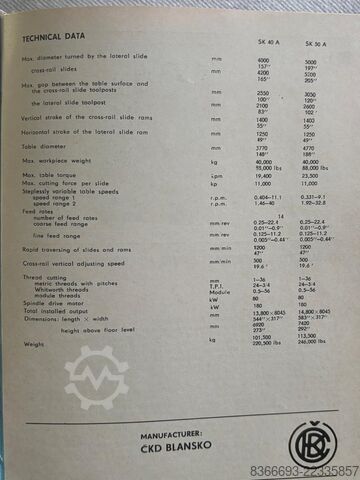

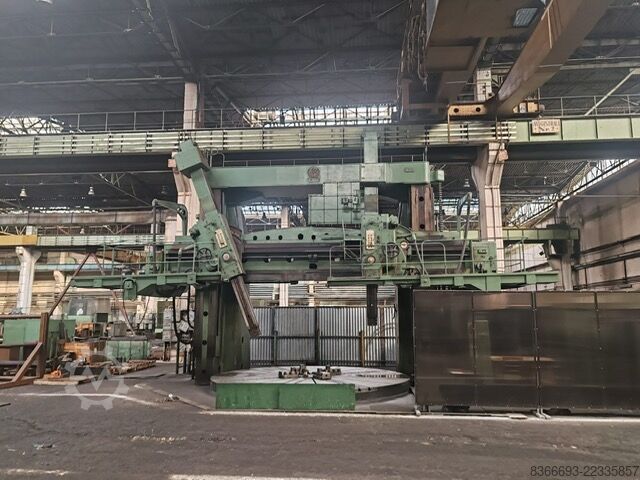

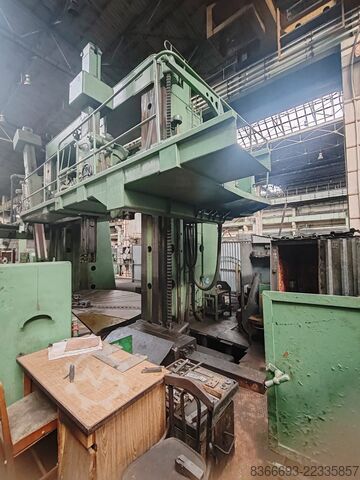

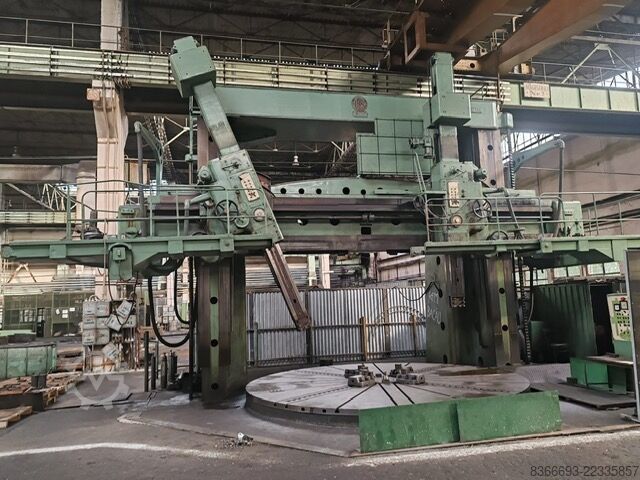

Condition: used, Year of construction: 1980, turning height: 3,050 mm, workpiece weight (max.): 40,000 kg, turning diameter: 5,200 mm, Technical specifications Faceplate diameter: 4750 mm Swing diameter: 5200 mm Max. height under cross rail: 3250 mm Hfsdpfxezlynve Ahzji Max. height under tool post: 3050 mm Chuck speed: up to 32 rpm Max. table load capacity: 40,000 kg Ram travel (vertical): 1400 mm Machine weight: approx. 110 tons

Condition: ready for operation (used), Year of construction: 2022, operating hours: 6,000 h, functionality: fully functional, spindle speed (max.): 4,000 rpm, rapid traverse X-axis: 75 m/min, rapid traverse Y-axis: 30 m/min, turning diameter: 450 mm, total length: 8,720 mm, total height: 3,888 mm, total width: 4,325 mm, type of input current: three-phase, torque: 585 Nm, overall weight: 18,000 kg, controller model: Siemens 840 D sl, For sale: a Hessapp DVT400, manufactured in 2022. Equipped with a Siemens 840 D sl control system. Features: Hfsdpow D Apcofx Ahzji - Powered tools on the left turret - Infeed and outfeed conveyor - Chip conveyor (discharge on the right) - 2x tool holders, 12x VDI50 The machine is operational and can be inspected.

Condition: excellent (used), Year of construction: 2015, operating hours: 2,400 h, CNC LATHE - 4 AXES Brand: SMEC (SAMSUNG) Type: PL-45LY Hfjdpfxezg U Exo Ahzei Year: 2015 - 2400 operating hours CNC: FANUC oi-TD + manual guide Equipped with: C-axis with 360,000 positions Y-axis +/- 60 mm Automatic turret with 12 positions, BMT 75 1 hydraulic chuck, 3 jaws, concentric, ø 450mm Coolant pump, 30 Bar SMW AUTOBLOC steady rest, 30 to 240 mm Tool probe Programmable tailstock Set of tool holders Chip conveyor Specifications: Maximum swing over bed: 775 mm Maximum turning diameter: 690 mm Distance between centers: 2,255 mm Spindle bore: 118 mm Maximum spindle speed: 2,000 rpm Maximum speed of powered tool: 4,000 rpm Main motor power: 37 kW Dimensions: 5,570 x 2,300 mm Weight: 17,000 kg

Condition: good (used), Year of construction: 2011, 850mm Swing, 525mm Max Cutting Diameter, 1310mm max turning length, 10 Station Turret, Hfsdjzhwghepfx Ahzsi 102mm bar capacity, 2800rpm 22kW Spindle, Fanuc I series, 3 jaw chuck, Low Volt Light, Tailstock,

Condition: excellent (used), Year of construction: 2003, functionality: fully functional, machine/vehicle number: T40065, MACHINE SPECIFICATION Maximum swing 510mm Maximum turned diameter 290mm Maximum turning length 540mm Bed inclination 60 degrees Spindle centre height (from floor) 960mm Spindle nose A2-6 Power chucking system Hydraulic Spindle bore 77.5mm Bar capacity - collet 66mm Maximum spindle speed 5000rpm Spindle motor power 22kW Rapid travers : Z/X Axis 30/25m/min Turret: Tooling type VDI 40 Number of tooling stations 12 Hjdpsq Atxysfx Ahzefi Number of driven tool stations 6 Maximum rpm of driven tool 4000rpm Maximum power of driven tool 3.7kW Maximum collet size of driven tool 20mm C axis increment: Fully programmable 0.001 degrees Approximate net weight 4550Kg Machine Equipped with Fanuc 21i-T CNC Control System Hydraulic 3 jaw chuck 3 off Radial driven toolholders 3 off Axial driven toolholders 30 off Static toolholders Coolant system Lighting Interlocked guarding  

Condition: used, Year of construction: 2004, Mazak Integrex E-650H x 2000 CNC Multi-Tasking CNC Lathe. S/No. 168658 (2004) with Mazatrol Fusion 640MT Pro Control, Max Swing 920mm, Spindle Motor 45kW, Rotary Spindle Motor 37 kW, Max Spindle Speed 1600rpm, Spindle Bore 260mm Dia, X/Y/Z Travels 1025/650/2106mm, B-Axis -30deg/+210deg, C-Axis 360deg, Rapids X/Y/Z 40/40/40m/min, Max Rotary Tool Spindle Speed 10,000rpm, Tailstock Travel 1858mm, Tailstock Quill Stroke 160mm, Tailstock Centre MT6, Automatic 80 Position Toolchanger, Spindle Taper Capto C8, Cromar Swarf Conveyor. Country of Origin: Japan Please Note: There are no loading facilities on site, dismantling and loading will be at the cost of the purchaser. Location: This lots is located in Birmingham, UK. Please see individual lot for loading information and charges. All/Any tooling is being offered as specifically described. Hfedpozhmt Djfx Ahzji

Condition: used, functionality: fully functional, Swing diameter over bed: Ø 450 mm Swing diameter over carriage: Ø 280 mm Max. swing diameter: Ø 280 mm Turning length: 450 mm Distance between centers: 450 mm Speed range: stepless variable, approx. 50 – 5000 rpm Turret: 1x 8 tool positions 1x 12 tool positions Tool system: VDI-30 Travels: X-axis travel: 120 + 25 mm Z-axis travel: 450 mm Rapid traverse: 12 m/min Motors & Electrical: Spindle motor: approx. 5.5 / 7.5 kW (continuous / 30 min) Total connected load: 29 kVA Power supply: 380V, 3-phase, 50 Hz Full load current: 44 A Weight & Dimensions: Hsdpfx Ajzi Hh Dehzefi Machine weight: approx. 4,800 kg Dimensions (L×W×H): 2,985 × 1,720 × 1,850 mm

Condition: used, Year of construction: 2015, turning diameter 210 mm turning length 1000 mm control Fanuc 31i max. turning speeds 5.000 min/-1 drive capacity - main spindle 15 kW max. torque 476 Nm bar passage 65 mm x-axis 250 mm z-axis 1050 mm x2-axis 150 mm z2-axis 1030 mm spindle hours ca. 700 h accessories: Lünette, Späneförderer In our opinion, the machine is in very good used condition and can be inspected Hsdpfsxq R Evjx Ahzsfi under power by appointment. Technical details: - approx. 500 spindle hours Accessories: - Steady rest - Chip conveyor Accessories, tools and clamping devices shown are only included in the scope of delivery if this is noted in the additional information. Subject to changes and errors in the technical data and information as well as prior sale!

Condition: good (used), Year of construction: 2018, rated current 60 A voltage 3 - 400 V control voltage 24 V DC Turning and Grinding Machine for Hard Precision Machining | Grinding Machines with Additional Machining Capabilities (Grinding Centers) DVS U-Grind – Incredibly Impressive. - Efficient complete machining with grinding, turning, and measuring tools on a single multifunction head - Ideal for small to medium batch sizes of shafts and chuck components with a center-to- center distance of up to 1,800 mm - Machine bed made of naturalgranite for high dynamic and thermal rigidity - Consistently precise machining results thanks to a hydrostatically supported tailstock - Faster achievement of targetdimensions thanks to the intuitive DVS UCee operating system - Only 7 or 8.5 m² of floorspace,including coolant system --> BUDERUS, type: U-Grind 800 --> Control system: Rexroth, type IndraControl V --> Workpiece diameter max. 250 mm --> Workpiece length max. 800 mm --> (External grinding, internal grinding, hard turning, measuring) --> Speed max. C-workpiece spindle: 1,000 rpm Hfjdpjyrhnrofx Ahzji --> High-performance external grinding spindle: 5,100 rpm --> Internal grinding spindle: 30,000 rpm --> Feed rates max. Z 30 m/min, X 60 m/min Highlights: > Complete machining in a single setup. Turn whatever can be turned. Grind whatever needs to be ground. > Short setup time, quick programming—a machine that’s a pleasure to work with and gets the job done fast. > Intuitive and ergonomic: easy access, crane loading, intuitive operation via touchscreen, and ready-to-use program modules. > Compact footprint thanks to integrated coolant treatment > Optional automation solutions: With our ULoad or a custom solution—such as one from rbc robotics—the DVS UGrind can also operate fully automatically.

Condition: good (used), Year of construction: 2018, rated current 60 A voltage 3 - 400 V control voltage 24 V DC Turning and Grinding Machine for Hard Precision Machining | Grinding Machines with Additional Machining Capabilities (Grinding Centers) DVS UGrind – Incredibly Impressive. - Efficient complete machining with grinding, turning, and measuring tools on a single multifunction head - Ideal for small to medium batch sizes of shafts and chuck components with a center-to- center distance of up to 1,800 mm - Machine bed made of naturalgranite for high dynamic and thermal rigidity - Consistently precise machining results thanks to a hydrostatically supported tailstock - Faster achievement of targetdimensions thanks to the intuitive DVS UCee operating system - Only 7 or 8.5 m² of floorspace,including coolant system --> BUDERUS, type: U-Grind 800 --> Control system: Rexroth, type IndraControl V --> Workpiece diameter max. 250 mm --> Workpiece length max. 800 mm --> (External grinding, internal grinding, hard turning, measuring) Hfedpfx Ahjyrhnfjzoi --> Speed max. C-workpiece spindle: 1,000 rpm --> High-performance external grinding spindle: 5,100 rpm --> Internal grinding spindle: 30,000 rpm --> Feed rates max. Z 30 m/min, X 60 m/min Highlights: > Complete machining in a single setup. Turn whatever can be turned. Grind whatever needs to be ground. > Short setup time, quick programming—a machine that’s a pleasure to work with and gets the job done fast. > Intuitive and ergonomic: easy access, crane loading, intuitive operation via touchscreen, and ready-to-use program modules. > Compact footprint thanks to integrated coolant treatment > Optional automation solutions: With our ULoad or a custom solution—such as one from rbc robotics—the DVS UGrind can also operate fully automatically.

Condition: ready for operation (used), Year of construction: 2002, operating hours: 33,908 h, functionality: fully functional, CNC – Lathe Manufacturer: WEILER Model: E 35 D Year of manufacture: 2002 Technical data Brand: WEILER Model: E35 D Year: 2002 Center distance: 950 mm Center height: 200 mm Turning diameter over bed: 410 mm Spindle bore: 54 mm Max. turning diameter: approx. 260 mm Spindle speed: 20 – 3000 rpm Power: 10 kW Dimensions: approx. L 2.60 x W 1.60 x H 1.70 m Weight: approx. 2.5 t Hfedpfoy R Uukox Ahzoi Equipment • Operating manual • Coolant system • 3-jaw chuck • Collet chuck adapter All information subject to change without notice. A demonstration under power is possible at any time in our exhibition hall.

Condition: excellent (used), Year of construction: 2012, travel distance X-axis: 700 mm, travel distance Y-axis: 420 mm, travel distance Z-axis: 380 mm, spindle speed (min.): 20 rpm, spindle speed (max.): 24,000 rpm, Control system: SIEMENS 840 D solutionline Operating hours: 12,400 h Hfodpfx Ahozkimxozsi Spindle hours: 2,850 h Table surface: 840 x 420 mm Max. table load: 300 kg Tool interface: BBT 30 Tool magazine: 25 positions Chip-to-chip time: 1.7 s Chip conveyor Software package: - Job Shop - Siemens Mdynamics Dimensions L x W x H: 2340 x 1650 x 2500 mm Weight: 4,100 kg

Condition: used, Year of construction: 2022, controller manufacturer: Siemens, controller model: SINUMERIK 828D, _____ Description: Year of manuf. : 2022 Control : Siemens SINUMERIK 828D Turning diam. : 288 mm Hfodpfx Asyavz Aehzei Turning length : 243 mm Work area max. turning diameter:288mm max. machining length:243mm X-axis:175mm Z-axis:350mm Main spindle Chuck diameter:210mm Max. bar diameter:67mm Spindle bore diameter:76mm Drive power:10.5/20 kW max. torque:213 NM max. speed:4,500 rpm Tailstock Quill diameter:65mm Quill stroke:80mm Axial force:4,312 N Center point adapter:MT4 Tool turret Number of tool stations:12 Tool holder:BMT45 Powered tools:Yes Max. speed:5,000 rpm

Condition: excellent (used), Year of construction: 2012, Capacity Swing over bed 950mm Swing over carriage 630mm Max turning diameter 950mm Max turning length 4845mm Distance between centres 5000mm Max load between centres 5000kg Spindle Spindle speeds 2 - 630rpm 630 H Max 205 L Max Spindle speed range step manual 2 Spindle nose type A2-15" Spindle bore 254mm Spindle centre taper MT6 Hodpfx Ahozhaqvjzjfi Number of Tool positions 8

Condition: good (used), Year of construction: 1999, functionality: fully functional, machine/vehicle number: M232302, turning length: 435 mm, turning diameter: 250 mm, spindle bore: 63 mm, spindle speed (max.): 4,500 rpm, travel distance X-axis: 195 mm, travel distance Z-axis: 480 mm, rapid traverse X-axis: 12 m/min, rapid traverse Z-axis: 24 m/min, total height: 2,200 mm, total length: 8,000 mm, total width: 2,400 mm, overall weight: 5,000 kg, bar passage: 52 mm, spindle nose: A2-5, controller manufacturer: FANUC, controller model: SERIES 18i-T, Equipment: chip conveyor, rotational speed infinitely variable, NAKAMURA TOME WT-250 CNC lathe - Operating voltage: 400 V - Frequency: 50 Hz - Rated current: 225 A - Connection: 62 kVA - Swing diameter over bed: 250 mm - Swing diameter over carriage: 250 mm - Standard turning diameter: 100 mm Hfjdpfoyvrthsx Ahzei - Max. bar size: 51 mm - Chuck size: 6 inch - Front spindle bearing diameter: 90 mm - Tailstock travel: 620 mm - Tailstock rapid traverse: 24 m/min - Ball screw diameter: 32 mm - Ball screw pitch: Diameter 12 mm - Distance between spindle centers: min. 250 mm, max. 870 mm - Positional accuracy of feed axes: 0.05 mm The machine is equipped with a counter spindle, HAINBUCH clamping system, a main spindle with a HAINBUCH clamping system, a double turret with the tool holders visible on the turret, as well as a bar feeder from the manufacturer KUPA, type: LM92P, and a chip conveyor and transformer. Attention: the item must be picked up between May 12th and May 22nd, 2026, on a date to be agreed upon. FCA D-73529 Schwäbisch Gmünd - loaded onto a truck.

Condition: used, Year of construction: 2005, turning length 200 mm swing diameter 20 mm Hjdpfx Aozkbp Eohzjfi spindle bore 20 mm control Cincom Number of working hours ca. 52.219 h In our assessment, the machine is in good used condition and can be inspected under power by appointment. Accessories, tools, and clamping devices shown are included in the scope of delivery only if specified in the additional information. Subject to change, errors in technical data and specifications, and prior sale.

Condition: used, TECHNICAL DETAILS - Number of axes : 10 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 12 [mm] - Max. machining length : 170 [mm] - Spindle speeds : 200 - 12000 [rpm] - Spindle power : 1.5 / 2.2 [kW] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Max. bar diameter : 12 [mm] - Z stroke : 200 [mm] - X stroke : 220 [mm] - Spindle speeds : 200 - 12000 [rpm] - Spindle power : 1.5 / 2.2 [kW] - C axis indexing precision : 0.001 [°] GUIDE BUSH HOLDER 1 - Number of positions : 5 - Number of motorized positions : 3 - Live tools speed : 8000 [rpm] GUIDE BUSH HOLDER 2 - Number of positions : 3 END ATTACHMENT - Number of positions : 4 SECONDARY OPERATION - Number of positions : 8 - Number of motorized positions : 4 - Live tools speed : 8000 [rpm] POWER SUPPLY - Total installed power : 14.1 [kVA] Hsdpfezk Rttsx Ahzefi WEIGHT & DIMENSIONS - Machine floor space : 1.655 X 1.215 [mm] - Machine height : 1.700 [mm] - Machine weight : 2150 [kg] EQUIPMENT - CNC : Fanuc Series 31i-B - Rotating guide bush - Ejection of workpiece - Parts catcher - Parts conveying strip - Coolant tank - Bar loader : IEMCA ELITE 112 EVO / 32 L - Electric transformer

Condition: used, TECHNICAL DETAILS - Number of axes : 9 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 20 [mm] - Max. machining length : 200 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 2.2/3.7 [kW] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 0.75/2.2 [kW] - C axis indexing precision : 0.001 [°] GUIDE BUSH HOLDER 1 - Number of positions : 8 - Number of motorized positions : 3 - Live tools speed : 9000 [rpm] - Live tools power : 2.2 [kW] END ATTACHMENT - Number of positions : 6 + 4 - Number of motorized positions : 3 + 4 - Live tools speed : 7500 [rpm] - Live tools power : 0.75 [kW] SECONDARY OPERATION - Number of positions : 8 - Number of motorized positions : 4 - Live tools speed : 7500 [rpm] - Live tools power : 0.75 [kW] POWER SUPPLY - Supply voltage : 200 [V] - Total installed power : 7.3 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2.120 x 1.220 [mm] - Machine height : 1.835 [mm] - Machine weight : 2.350 [kg] EQUIPMENT - CNC : Mitsubishi MELDAS M70LPC-VU - B Rotary Axis : [°] (+/-) Hsdezk Rtmjpfx Ahzofi - Rotating guide bush - Ejection of workpiece - Parts catcher - Parts conveying strip - Coolant tank - Bar loader : IEMCA BOSS 338 HD/R / 32 LL - Electric transformer

Condition: used, TECHNICAL DETAILS - Number of axes : 7 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 12 [mm] - Max. machining length : 135 [mm] - Spindle speeds : 15.000 [rpm] - Spindle power : 2.2/3.7 [kW] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 10.000 [rpm] - Spindle power : 0.4/0.75 [kW] - C axis indexing precision : 0,001 [°] GUIDE BUSH HOLDER 1 - Number of positions : 10 Hsdpfjzk Rtgex Ahzefi - Number of motorized positions : 4 - Live tools speed : 10000 [rpm] END ATTACHMENT - Number of positions : 4 SECONDARY OPERATION - Number of positions : 4 POWER SUPPLY - Supply voltage : 200 [V] - Total installed power : 6.1 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 1760 X 820 [mm] - Machine height : 1610 [mm] - Machine weight : 1700 [kg] EQUIPMENT - CNC : Mitsubishi - 3 colors status lamp - Rotating guide bush - Ejection of workpiece - Parts catcher - Parts conveying strip - Coolant tank : Müller Combiloop CL2 * with high-pressure pump - Bar loader : IEMCA ELITE 112 E/R / 32 LL - Electric transformer

Condition: used, TECHNICAL DETAILS - Number of axes : 9 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 20 [mm] - Max. machining length : 200 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 2.2/3.7 [kW] - C axis indexing precision : 0.001 [°] Hedpszk Rtaefx Ahzjfi COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 0.75/2.2 [kW] - C axis indexing precision : 0.001 [°] GUIDE BUSH HOLDER 1 - Number of positions : 8 - Number of motorized positions : 3 - Live tools speed : 9000 [rpm] - Live tools power : 2.2 [kW] END ATTACHMENT - Number of positions : 3 + 4 - Number of motorized positions : 4 - Live tools speed : 7500 [rpm] - Live tools power : 0.75 [kW] SECONDARY OPERATION - Number of positions : 8 - Number of motorized positions : 4 - Live tools speed : 7500 [rpm] - Live tools power : 0.75 [kW] POWER SUPPLY - Supply voltage : 200 [V] - Total installed power : 7.3 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2.120 x 1.220 [mm] - Machine height : 1.835 [mm] - Machine weight : 2.350 [kg] EQUIPMENT - CNC : Mitsubishi MELDAS M70LPC-VU - B Rotary Axis : [°] (+/-) - Rotating guide bush - Ejection of workpiece - Parts catcher - Parts conveying strip - Coolant tank * with high-pressure pump - Bar loader : IEMCA BOSS 338 HD/R / 32 LL - Electric transformer

Condition: used, TECHNICAL DETAILS - Number of axes : 7 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 12 [mm] - Max. machining length : 135 [mm] - Spindle speeds : 15.000 [rpm] - Spindle power : 2.2/3.7 [kW] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 10.000 [rpm] - Spindle power : 0.4/0.75 [kW] - C axis indexing precision : 0,001 [°] GUIDE BUSH HOLDER 1 - Number of positions : 10 - Number of motorized positions : 4 - Live tools speed : 10000 [rpm] END ATTACHMENT - Number of positions : 4 SECONDARY OPERATION - Number of positions : 4 POWER SUPPLY - Supply voltage : 200 [V] - Total installed power : 6.1 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 1760 X 820 [mm] - Machine height : 1610 [mm] - Machine weight : 1700 [kg] EQUIPMENT - CNC : Mitsubishi - 3 colors status lamp - Rotating guide bush Hsdszk Rr Nopfx Ahzsfi - Ejection of workpiece - Parts catcher - Parts conveying strip - Coolant tank : Müller Combiloop CL2 * with high-pressure pump - Bar loader : IEMCA ELITE 112 E/R / 32 LL - Electric transformer

Condition: used, TECHNICAL DETAILS - Number of axes : 8 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 20 [mm] - Max. machining length : 200 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 2.2/3.7 [kW] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 0.75/2.2 [kW] - C axis indexing precision : 0.001 [°] GUIDE BUSH HOLDER 1 - Number of positions : 9 - Number of motorized positions : 4 - Live tools speed : 9000 [rpm] - Live tools power : 2.2 [kW] END ATTACHMENT - Number of positions : 6 + 3 - Number of motorized positions : 3 - Live tools speed : 7500 [rpm] - Live tools power : 0.75 [kW] SECONDARY OPERATION - Number of positions : 8 - Number of motorized positions : 4 - Live tools speed : 7500 [rpm] - Live tools power : 0.75 [kW] POWER SUPPLY - Supply voltage : 200 [V] - Total installed power : 7.3 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2.120 x 1.220 [mm] - Machine height : 1.835 [mm] - Machine weight : 2.350 [kg] EQUIPMENT - CNC : Mitsubishi MELDAS M70LPC-VU - 3 colors status lamp - Rotating guide bush - Ejection of workpiece Hfjdpfx Ajzk Rr Ashzji - Parts catcher - Parts conveying strip - Chips conveyor : LNS TURBO MF3 - Coolant tank : MÜLLER COMBILOOP * with high-pressure pump : 100 [bars] - Bar loader : IEMCA SMART 32 LL - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer. - Electric transformer

Condition: used, TECHNICAL DETAILS - Number of axes : 5 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 20 [mm] - Travel : 205 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 2.2 / 3.7 [kW] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 8000 [rpm] - Spindle power : 1 [kW] GUIDE BUSH HOLDER 1 - Number of positions : 10 - Number of motorized positions : 4 Hfedpfx Ahezk Rrvjzei - Live tools speed : 6000 [rpm] - Live tools power : 1 [kW] END ATTACHMENT - Number of positions : 4 POWER SUPPLY - Supply voltage : 200 [V] - Total installed power : 4.6 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2.070 x 1.177 [mm] - Machine height : 1.760 [mm] - Machine weight : 1650 [kg] EQUIPMENT - CNC : Fanuc Oi-TD - 3 colors status lamp - Rotating guide bush - Ejection of workpiece - Parts catcher - Parts conveying strip - Coolant tank - Bar loader : IEMCA SMART 320 / 32 LL - Electric transformer

Condition: excellent (used), Year of construction: 2016, operating hours: 1,527 h, functionality: fully functional, MAZAK QT-COMPACT 300ML CNC lathe / CNC turning center Manufacturer: Mazak Model: QT-COMPACT 300ML Control: MAZATROL Smooth C Application / Field of use: Training facility for aspiring mechanical engineers / machining mechanics Operating hours: 1,527 hours of machining time Technical data: Max. turning diameter: 695 mm Max. turning diameter over slide: 340 mm Spindle bore: 82 mm Spindle speed main spindle: 4,500 rpm Chuck: Kitagawa Ø 250 mm Turret: 12 stations Driven tools / M-drive: 4,500 rpm Tailstock: present, with centering point Tool measurement: Tool measuring arm / Tool-Eye visible in the work area Equipment: MAZATROL Smooth C control CNC inclined-bed lathe Main spindle with 3-jaw Kitagawa chuck Ø 250 mm 12-position tool turret Driven tools / M-drive Tailstock with centering point Tool measuring arm / Tool-Eye visible Work area lighting Enclosed work area Coolant system available Bar loader interface / automation connection available Machine currently operating in stand-alone mode without a connected bar loader Several tool holders available Internal coolant supply through the spindle available (IKZ) Tool package according to data: 1 × angled tool holder 2 × straight tool holders Hodozkwvhspfx Ahzjfi Not available: No bar loader connected (not included or not present) No counter spindle No Y-axis No chip conveyor
