Used Tailstock 5275 for sale (1,540)

Condition: good (used), Year of construction: 1989, BOEHRINGER DUE 800 Precision lathe We are offering an exceptionally good precision lathe. This machine is probably the best German lathe in its class that has ever been built. Year of manufacture: 1989 3-axis digital display HEIDENHAIN, Model ND 780 Center height: 400 mm Swinging diameter over bed: 820 mm Swinging diameter over cross slide: 515 mm Distance between centers: approx. 2,200 mm Effective turning length: approx. 2,000 mm Bar capacity: 128 mm Spindle head: DIN 55022, Size 11 Drive power: 30 kW Max. torque: 6,300 Nm 24 spindle speeds: 7.1 – 1,400 rpm 60 cross-feed rates: 0.05 – 28 mm/rev 60 longitudinal feed rates: 0.06 – 56 mm/rev Rapid traverse in longitudinal and cross direction Motorized upper steady rest Tailstock quill travel: 280 mm Tailstock taper: MK 6 Footprint (L x W x H): approx. 6,700 mm x 2,500 mm x 2,250 mm Weight: approx. 7,500 kg Equipment: 3-jaw chuck 400 mm Faceplate 800 mm Following rest Fixed rest Multifix tool holder Lighting Following center and more All other accessories visible in the pictures and video are not included in the scope of delivery and are therefore not part of this sale. The scope of delivery only includes the accessories that are explicitly listed here, in the order confirmation, and on the invoice. Fjdpfozb A U Sex Aageph FCA (Free on Truck) D-32457 Porta Westfalica Packaging only Delivery time: immediately Subject to prior sale / Payment due immediately upon purchase

Condition: ready for operation (used), Year of construction: 2020, operating hours: 5,379 h, spindle speed (max.): 4,200 rpm, travel distance X-axis: 260 mm, travel distance Y-axis: 120 mm, travel distance Z-axis: 1,010 mm, spindle motor power: 30,000 W, overall weight: 6,600 kg, controller manufacturer: OKUMA, controller model: OSP-P300LA, number of slots in tool magazine: 12, swivel angle C-axis (max.): 360 °, number of axes: 4, This 4-axis Okuma LB3000II-MYC 950 was manufactured in 2020. It features a maximum turning diameter of 340 mm and a maximum turning length of 950 mm. The machine is equipped with a robust main spindle power of 30 kW and a maximum spindle speed of 4,200 rpm. If you are looking to get high-quality turning capabilities, consider the Okuma LB3000II-MYC 950 horizontal turning machine we have for sale. Contact us for further details. • Max Turning Diameter: 340 mm • Max Turning Length: 950 mm • Swing Over Cross Slide: 470 mm • Main Spindle Torque: 700 Nm • Spindle Speed Range: 42 - 4,200 rpm • Spindle Bore: 91 mm • Spindle Nose: A2-8 (KK Size 8) • Front Bearing Diameter: 140 mm • Turret Stations: 12 • Driven Tool Power: 7.1 kW • Driven Tool Torque: 23.7 Nm • Driven Tool Speed: 4,500 rpm • Driven Tool Speed Range: 45 - 4,500 rpm • Rapid Traverse X: 25 m/min • Rapid Traverse Z: 30 m/min • Rapid Traverse Y: 12.5 m/min • Rapid Traverse C: 200 rpm • Tailstock: NC Tailstock • Tailstock Force: 5 kN • Tailstock Taper: MT5 • Chuck: SMW KNCS-N 275-86 A8 • Chuck Diameter: 275 mm • Chuck Through Hole: 86 mm • Draw Tube Bore: 82 mm • Maximum Chuck Speed: 4,700 rpm • Collet Chuck: Hainbuch Spanntop mini Axzug 65 K8 • Collet Capacity: 4 - 65 mm • Collet Chuck Diameter: 204 mm • Collet Chuck Length: 155 mm • Maximum Collet Chuck Speed: 6,000 rpm • Coolant System: Knoll KF 110/700 • Through-Spindle Coolant (TSC): Yes • High Pressure Coolant: 70 bar • Coolant Tank Capacity: 700 l • Filter Capacity: 110 l/min • Power Supply: 400 V • Phases: 3 • Frequency: 50 Hz • Maximum Connected Load: 38 kVA • Total Current Consumption: 54.9 A • Maximum Motor Current: 219 A • CE Marked: Yes • Driven Tools: Yes • Sub Spindle: No • Chip Conveyor optional, not included: Interlit ISF Fedpjzcf Ansfx Aageph • Chip Discharge: Right Side • Chip Conveyor Discharge Height: 1,200 mm • Spindle Hours: 5,379 h • Power-On Hours: 20,878 hSpecial equipment or accessories are not included Technical Specification Through-spindle Coolant Yes Counter Spindle No Driven Tools Yes

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, machine/vehicle number: 665100, overall weight: 4,700 kg, center height: 125 mm, Round grinding machine with robot! TECHNICAL DETAILS Center height: 125 mm MACHINE DETAILS Control: Fanuc 18i-T Fpjdpfx Aezcwfusageh Total weight: 4,700 kg Operating hours Automatic cycle time (according to diagram): 41,411 h Feed time (according to diagram): 14,251 h EQUIPMENT Universal Robots UR5 robot Standard accessories 1 grinding wheel set, right-hand, 500 x 110 x 203.2 mm 1 manual swivel chuck for turning parts with manual indexing every 2.5 degrees Automatic balancing device MARPOSS type E 82 Hydraulic quill retraction for the tailstock Stroke monitoring for the tailstock Standard workpiece spindle MK 5 DIN 55026 size 5”

Condition: not inspected (used), Year of construction: 2022, machine/vehicle number: ML0390-000447, turning length: 303 mm, turning diameter: 320 mm, travel distance X-axis: 175 mm, travel distance Z-axis: 330 mm, total height: 1,700 mm, total length: 2,000 mm, total width: 1,800 mm, workpiece weight (max.): 2,600 kg, Parts collector, chip conveyor, manual tailstock with fixed centering point MT4, transformer. Fpsdozc Hw Tspfx Aagjh

Condition: good (used), Year of construction: 2007, CNC Turning and Milling Center Machine type: Mori Seiki NZ-S 1500 / 1000 Control: Fanuc MSC-701 Year of manufacture: 2007 Fpodpfx Aewxahfjagjh TECHNICAL DATA: Max. turning length: 1,055 mm Turning diameter: 120 mm Max. swing over bed: 285 mm Rapid traverse (X/Z): 20 m/min Main spindle Max. speed: 3,500 rpm Drive power: 7.5 / 5.5 kW Bar capacity: 43 mm Spindle nose: A2-6 Number of turrets: 2 Tool stations: 6 + 6 Tool interface: Capto Tailstock Quill diameter: 85 mm Quill taper: MK 4 Quill stroke: 70 mm Tailstock traverse: 520 mm Steady rest: hydraulic Steady rest: SMW SLU-1-Z Equipment features: Chip conveyor Coolant pump Tool measurement system

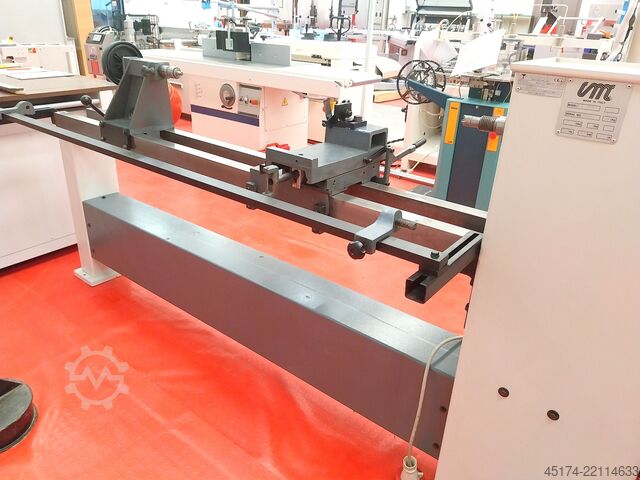

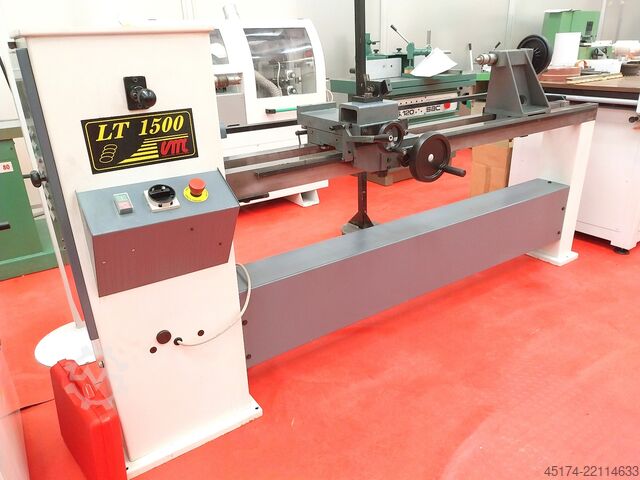

Condition: good (used), Code: 0410 Brand: CMC - ITALY Model: LT 1500 Lathe with copying device for wood and similar materials Technical specifications: Max centre distance 1500 mm Centre height 240 mm Max working diameter (without copying device) 450 mm Copying device with manual handwheel feed Gouge rest Tailstock Spindle speed rpm 600/1000/1500/2000 Motor power 1,5 Hp three-phase Overall dimensions mm 2430 x 730 x 1230 h Fjdpfx Aezc Rmleagjph Weight kg 340

Condition: ready for operation (used), Year of construction: 2023, spindle speed (max.): 5,000 rpm, travel distance X-axis: 360 mm, travel distance Y-axis: 120 mm, travel distance Z-axis: 1,580 mm, spindle motor power: 29,500 W, total height: 2,115 mm, total width: 1,980 mm, overall weight: 8,500 kg, product length (max.): 5,750 mm, number of axes: 3, This 3-axis SPINNER TC800L 110 was manufactured in 2023. The machine is fully functional and includes a steady rest, tailstock, chip conveyor, and oil mist extraction system. It operates on a 3-phase power supply at 400 V. If you are looking to get high-quality turning capabilities, consider the SPINNER TC800L 110 horizontal turning machine we have for sale. Contact us for further details. • Status/condition • Machine powered on and still in operation • Fully functional; steady rest requires sensor bang-up replacement • Configuration and capacities • Turret without AgW (adjustable power supply) • Turret type: axial/radial • Number of tool stations: 12x VDI50 (option: 16x VDI40 or 12x BMT65) • Tool holder type: VDI50 (option: VDI40/BMT65) • Number of driven tools: 12 (option) • Driven tool speed: 4000 rpm • Driven tool power (S1/S3): 2.2 / 5.5 kW • Driven tool torque (S1/S3): 17.5 / 43 Nm (axial), 14 / 35 Nm (radial) • Maximum turning diameter: 500 mm • Maximum swing diameter: 800 mm • Turning length: 800 mm / 1580 mm (L version) • Distance between centers: 800 mm / 1580 mm • Maximum workpiece weight: 800 kg • Axes • Rapid traverse X/Z: 15 / 24 m/min • Spindles • Number of spindles: 2 • Main spindle • Nose: A11 • Bar capacity: 110 mm • Torque (100% / 40%): 175 / 235 Nm • Torque gear stage 2: 700 / 939 Nm • Sub spindle (option) • Nose: A6 • Bar capacity: 52 mm • Chuck size: 210 mm • Power (S1/S6): 15 / 19 kW • Torque (S1/S6): 95 / 121 Nm • Tailstock (if equipped) • Pinole diameter: 110 mm • Taper: MK4 • Stroke: 100 mm • Thrust force: 850 daN • Fluids and tanks • Coolant tank capacity: approx. 235 l (up to 270 l in L-version) • Hydraulic tank: approx. 31 l • Central lubrication tank: approx. 2–3 l • Electrical data Fpjdpeyyzucsfx Aagjh • Electrical connection: 3-phase 400 V + N + PE • Frequency: 50/60 Hz (also stated as 50 Hz) • Rated current: 44 A • Fuse protection current: 50 A • Rated current protection: 63 A • Connected load: approx. 40 kVA (up to 50 kVA with 2 spindles) • Protection class: BA 3 (Chap. 3.4.5) • Network type: TN network with grounded neutral point • Recommended protection: without FI switch (recommended) Additional equipment • Steady rest (note: sensor bang-up replacement needed) • Tailstock • Chip conveyor • Oil mist extraction system • Possibly chuck and tool holder (to be confirmed) Technical Specification Counter Spindle No Driven Tools Yes

Condition: used, Year of construction: 2005, functionality: fully functional, travel distance Z-axis: 1,219 mm, rotational speed (max.): 2,000 rpm, travel distance cross slide: 203 mm, Flatbed Lathe Manufacturer: Haas Type: TL-2 S/N: XXXXX Year of Manufacture: 08-2005 On-time hours: n/a Control: Haas CNC Technical Parameters: ----- Fjdpfx Aswftdmsagjph - 4-way tool post with Parat quick change system - Z travel: 1,219 mm - X travel: 203 mm - Swing over bed: 406 mm - Swing over slide: 282 mm - Spindle bore: 76 mm - Spindle speeds: 10 - 2,000 rpm - Coolant system - Tailstock / MT 4 - Weight: 2,100 kg Accessories: ----- - 3 Parat cartridges - 3-jaw chuck - Documentation

Condition: ready for operation (used), Year of construction: 2003, operating hours: 1,523 h, spindle speed (max.): 6,000 rpm, travel distance X-axis: 245 mm, travel distance Z-axis: 570 mm, spindle motor power: 7,500 W, total height: 1,810 mm, total width: 1,640 mm, overall weight: 3,390 kg, product length (max.): 1,990 mm, number of axes: 2, Horizontal turning machine manufactured in 2003. This MORI SEIKI CL 1500 T features a Kitagawa power chuck and includes a tailstock, tool measuring system, and tool holders. With production hours of 1523, this machine offers reliable performance for turning applications. If you are looking to get high-quality turning capabilities, consider the MORI SEIKI CL 1500 T machine we have for sale. Contact us for further details. • Control: MSG-805 V (MAPPS) • Maximum Swing Diameter: 510 mm • Recommended Turning Diameter: 176 mm • Maximum Machining Diameter: 420 mm • Maximum Turning Length: 570 mm • Spindle Nose: A2-5 • Spindle Bore: 43 mm • Spindle Bearing Diameter: 80 mm • Bar Capacity: 33 mm • X-Axis Servo Motor: 1.5 kW • Z-Axis Servo Motor: 2.0 kW • Rapid Traverse X-Axis: 24 m/min • Rapid Traverse Z-Axis: 24 m/min • Feed Rate Range: 0 – 1,260 mm/min • Resolution: 0.001 mm • Positioning Accuracy X-Axis: 0.004 mm • Positioning Accuracy Z-Axis: 0.004 mm • Repeatability X-Axis: ±0.003 mm • Repeatability Z-Axis: ±0.003 mm • Tailstock Quill Diameter: 85 mm • Tailstock Taper: MT4 • Tailstock Quill Stroke: 120 mm • Tailstock Travel: 340 mm • External Tool Size: 20 × 20 mm • Internal Boring Bar Capacity: Ø32 mm • Number of Turret Stations: 12 • Turret Index Time: 0.7 sec • Turret Clamping Force: 2300 Nm • Index Coupling Diameter: 180 mm • Automatic Turret Direction Logic: Yes • Coolant Tank Capacity: 150 L • Coolant Pump Flow Rate: 13 L/min • Automatic Central Lubrication: Yes • Power Supply: 400 V / 3 Phase / 50 Hz • Control Voltage: 200 V AC / 24 V DC • Connected Load: 17.3 kVA • Chuck: Kitagawa B-206 A5 Hydraulic Power Chuck • Tailstock: Hydraulic • Tool Presetter: Included • Tool Holders: Included • Dual Foot Switch: Included • Reinforced Coolant Pump: 20 L/min • Reinforced Coolant Pump Pressure: 5 bar • Reinforced Coolant Pump Motor Power: 1.1 kW • Chip Conveyor: optional, not included Technical Specification Counter Spindle No Fpsdjzb Ipnspfx Aagoh Driven Tools No

Condition: excellent (used), Year of construction: 2004, Please read the technical specifications thoroughly. If you are considering this machine as a potential investment, we kindly request your complete credentials with an accurate telephone number and email address in order to submit an offer. We are offering an exceptionally high-quality precision lathe. In its class, this is arguably the best German lathe ever built. BOEHRINGER Precision Lathe Model DUE 500 Year of manufacture: 2004, incl. CE certificate and central lubrication Machine no.: T1022.2027-00 Centre height: 240 mm Swing over bed: 500 mm Swing over cross slide: 285 mm Centre distance: approx. 1,200 mm Turning length (effective): approx. 1,000 mm Bar capacity: 62 mm Spindle nose: DIN 55027 size 6 Spindle diameter: 100 mm Drive power: 11 kW Max. torque: 2,000 Nm 24 spindle speeds: 11.2 – 2,240 rpm 60 cross feeds: 0.03 – 28 mm/rev 60 longitudinal feeds: 0.06 – 56 mm/rev Fjdpfx Aow Rdthoageph Tailstock quill travel: 190 mm Tailstock taper: MK 5 Space requirement: approx. 4,000 x 1,525 mm (L x W) Weight: approx. 4,300 kg Accessories included: - 3-axis digital readout HEIDENHAIN - Central lubrication - Electrically interlocked chuck guard - Coolant system - Chip protection rear wall - Röhm lathe chuck T 250 mm incl. various clamping jaws - Telescopic cover for leadscrew and support to bed - Machine lamp - Multifix C tool post + 4 holders - Live centre - Operating manual - Circuit diagram - Rapid traverse in longitudinal and cross slide Condition: The machine is in very good technical and visual condition. Backlash in cross slide: approx. 0.3 mm, top slide: approx. 0.15 mm Spindle nose runout: approx. 0.006 mm Bed geometry: deviation approx. 0.01 mm over 750 mm of bed length (measured on flat guideway with dial indicator towards the chuck) The following parts have been renewed: - Oil change - New hoses for central lubrication - New wipers - Key for engagement lever replaced - Locking pin for engagement interlock replaced Net price EXW. Delivery with our own truck can be offered for an additional charge.

Condition: ready for operation (used), turning length 500 mm turning diameter over bed 297 mm turning diameter over slide rest 160 mm spindle bore 36.0 mm tool adaptor DIN 55022 Gr. 5 quill: 3 MK quill travel 90.0 mm turning speeds 30 - 3550 U/min motor speeds: 1410 / 2830 U/min total power requirement 3.3 kW voltage 380 V weight of the machine ca. 620 kg. range L-W-H 1420 x 700 x 1200 mm from a vocational school - in very good condition (!!) particularly suitable for medium-precision turned parts Features: - Robust lead/feed screw lathe - RÖHM three-jaw chuck Ø 160 mm - Foldable lathe chuck guard - Chuck key - MULTIFIX steel holder A, with 3x new inserts - Movable tailstock - Swiveling machine light - Control panel, front left - Automatic feeds for face and upper support - Machine base, with cabinet door (storage space) - Chip splash guard rear panel - Emergency stop button Fodpfx Aexq Hhysagoph - Operating instructions

Condition: excellent (used), Weiler Commodor Turning length: 750 mm Turning diameter over bed: 380 mm Turning diameter over cross slide: 190 mm Spindle speed: 25 - 2000 rpm 18 speeds Spindle bore: Ø 56.0 mm Tailstock quill mount: MK 4 Quill travel: 150 mm Bed width: 310 mm Spindle mount: DIN 55027 / 6 Feeds - longitudinal: 0.022 - 0.8 mm/rev Feeds - facing: 0.011 - 0.4 mm/rev Threads: M 0.3 - 10.0 mm Machine weight approx.: 1600 kg Dimensions L x W: 2400 x 900 mm Accessories/Equipment: Fsdpfozcn Sfox Aageph - Emergency stop - Multifix B including 4 tool holders - Electrically interlocked chuck guard - Lead screw and feed spindle cover - 3-jaw chuck Forkardt D200mm The machine is in very good condition and runs perfectly. The machine bed is in excellent condition! Backlash of facing slide spindle: 0.1 mm Backlash of top slide: 0.1 mm

Condition: used, Year of construction: 2000, max swing 700 mm, X/Y 255/520 mm, 12-position upper tool turret and 8-position lower tool turret with driven tools, measuring head, tailstock, CNC SIEMENS SINUMERIK 840D, 400V 50Hz 45kW, weight 15 t Fpsdpeym Sx Dsfx Aagoh

Condition: used, Year of construction: 2000, max swing diameter 700mm, X/Y 255/520mm, tailstock, 12-position tool turret, CNC SIEMENS SINUMERIK 840D, 400V 50Hz 45kW, weight 12t Fedpjym Sm Usfx Aagjph

Condition: refurbished (used), Year of construction: 2023, operating hours: 3,000 h, functionality: fully functional, center height: 180 mm, workpiece weight (max.): 200 kg, grinding length: 1,000 mm, center width: 1,000 mm, grinding wheel diameter: 500 mm, total width: 2,600 mm, total length: 4,700 mm, total height: 2,200 mm, grinding diameter: 300 mm, workpiece weight between centers: 200,000 g, type of input current: three-phase, workpiece diameter between centers: 300 mm, workpiece length between centers: 1,000 mm, grinding wheel width: 100 mm, spindle speed (max.): 1,200 rpm, spindle speed (min.): 10 rpm, feed length X-axis: 320 mm, feed length Z-axis: 1,100 mm, feed rate X-axis: 1,000 m/min, feed rate Y-axis: 1,500 m/min, grinding spindle speed: 1,700 rpm, overall weight: 7,500 kg, pivoting range: 30 °, warranty duration: 12 months, year of last overhaul: 2023, input frequency: 50 Hz, rapid traverse X-axis: 1,000 m/min, rapid traverse Z-axis: 1,500 m/min, input voltage: 400 V, Schaudt PF43 U1000, manufactured in 1994, retrofitted (premium refurbished) by GSN in 2023. Siemens Sinumerik 840 D SL control system. Low operating hours, approximately 3000 hours since the retrofit. MK4 workpiece spindle, MK4 tailstock. Grinding travel: 300mm Workpiece length, including clamping devices, at maximum grinding travel: 450mm Grinding wheel dimensions: 500x100mm Bore diameter: 203.2mm Controlled workpiece circumferential speed (WUG) Fodpfjzcfnqsx Aagsph SUG external cylindrical grinding spindle: 45m/s Freely positionable, automatic B-axis Machine with new, fully enclosed splash guard GSN measuring head Diatronic 22 including C2 and W axes/turret Touch probe sensor with hydrophone (water jet) including collision monitoring Tailstock retrofitted with automatic cylinder error compensation Clamping/unclamping adjustable via hydraulic clamping device Upgrade to a 15" screen on the control panel NEW PRICE GROSS 2023: €407,432.20 plus additional tools, etc.

Condition: used, Herkules Siegen LAB250H Roll grinder Fodey U Hdfopfx Aageph Model LAB250H 20 ton capacity Single head 1000mm swing 6500mm between centres 900mm chuck Power tailstock Waste conveyor

Condition: excellent (used), Year of construction: 2014, Haas ST25Y Year of manufacture: 2014 Haas control system RPM: 3500 Chuck diameter: 254mm Complete with: Fpjdpfozbmkqex Aageh - chip conveyor - coolant system - tailstock - tool holders

Condition: ready for operation (used), L & Z lathe / WEILER MATADOR from a vocational training center -Center height approx. 150mm -Swinging diameter over carriage 160mm -Swinging diameter over bed approx. 300mm -Distance between centers approx. 500mm -Spindle bore approx. 36mm -Speed range 30 - 3550 rpm -Automatic longitudinal / cross feeds -Tailstock / MK3 -Three-jaw chuck -Chip guard -Coolant system Fpsdezb Rm Aepfx Aagsh -Work light -Documentation Dimensions: L x W x H 1.5 x 0.7 x 1.5 meters / Weight 600kg Errors and omissions excepted.

Condition: reconditioned (used), Year of construction: 2010, operating hours: 31,600 h, functionality: fully functional, machine/vehicle number: 3078, Travel range Z = 400 mm Y = 200 mm X = 410 mm Power / thrust force Z-Y 2.5 kW / 550 daN (linear motor option = 7.2 kW / 350 daN) X 4.8 kW / > 550 daN X-Y-Z Travel speed 40 m/min (linear motor option = 50 m/min) X-Y-Z-W Acceleration 8 m/s2 / 0.8 g (linear motor option = 10.4 m/s2 / 1.1 g) X-Y-Z-W Resolution 0.0001 mm MAIN SPINDLE + C1 Power 7.5 kW Torque / peak 22 / 28 Nm Measuring system direct Resolution 0.0001° Accuracy 0.001° Bar passage Ø 32 mm Turning spindle speed 72,000°/min Turning clamping force 4,900 N at 6 bar AXIS B (TILT AXIS OF TOOL HOLDER SPINDLE) Fedpsyf Angjfx Aagsph Power 4.3 kW Torque / peak 119 / 226 Nm Angular travel -25° / +115° Measuring system direct Resolution 0.0001° Accuracy 0.001° Rotational speed 36,000°/min Supporting torque 200 Nm TOOL HOLDER SPINDLE Power 5 kW Torque 6 to 800 min-1 Max. speed 30,000 min-1 Clamping force of the tool holder 2,000 N Blocking torque mechanical blocking via straight-tooth gearing Tool shank taper HSK 40 (A or E) Tool clamping power 1000 daN TOOL CHANGER Number of stations 30 (for HSK 40) CNC control Fanuc 30i/31i type Y-axis (transverse axis) Travel 200 mm Power 4.8 kW Feed power 240 daN Resolution 0.0001 mm Max. rapid traverse G0 50 m/min Max. feedrate G1 20 m/min Measuring system glass scale Z-axis (longitudinal axis) Travel 400 mm Power 7.2 kW Feed power 360 daN Resolution 0.0001 mm Max. rapid traverse G0 50 m/min Max. feedrate G1 20 m/min Measuring system glass scale Includes coolant unit 8 kW and integration of an emergency stop system. Inventory no. 2220114, machine comprising: CONTROL Fanuc 30i/31i, with 14’’ screen LINEAR MOTOR FEED OPTION for Y and Z axes TURNING-MILLING FUNCTION with integration of an indexing system (8 positions) on the tool holder spindle, transformation of the tool magazine for HSK40-A tool holders, increase of the spindle speed to 5500 min-1 4-POSITION PART RECOVERY UNIT “PRM” FOR MACHINING THE 6TH FACE: In idle state, the unit is located protected under the main C1 spindle. The recovery unit moves on the W-axis, which is parallel to the C-axis. Max. speed W-axis: 40 m/min. Travel on W-axis: 310 mm. With 2 vices – power at 5 bar: 3500 N 1 tailstock INCREASED SPINDLE PASSAGE increase from 1 to 50 mm (main spindle) TOOL MEASUREMENT DEVICE “RENISHAW” T27 Measurement of the length of the turning tool. Routine detection by M-code. Automatic tool breakage monitoring. TOOL MAGAZINE EXTENSION Increase in the number of tools from 30 to 60 stations COOLANT THROUGH THE SPINDLE 100 bar, 25 L/min, 400 L tank ADAPTATION AND PREPARATION OF HP THROUGH THE MILLING SPINDLE Mechanical and electrical integration of the turning clutch. PART UNLOADING CONVEYOR Output to the left of the machine PAPER BAND FILTER SYSTEM CLAMPING SYSTEM FOR F-48 CLAMPS ADAPTATION FOR W-20 CLAMPS PREPARATION FOR INTEGRATION OF A BAR FEEDER Subject to errors and omissions, the technical specifications are provided without commitment.

Condition: good (used), Year of construction: 1982, functionality: fully functional, Traub CNC turning machine TND360, TX8, year of manufacture 1982, serial number >600. Includes 1 turret, tailstock, chip conveyor, draw tube, and 3-jaw chuck KNCS250. The images show the machine in its production environment. Fsdpfezcdnvsx Aagsph The machine can be inspected while powered on.

Condition: good (used), Year of construction: 1990, functionality: fully functional, Traub CNC turning center TNA480, TX8D, year of manufacture 1990, serial number >550. C-axis, rotary tool drive, 1 turret VDI40, tailstock, chip conveyor, hollow cylinder chuck, 3-jaw chuck KNCS315. Good condition, ready for operation. Fedpfxezcdgfs Aagjph Machine geometry has been checked and corrected/adjusted. Scrapers and belts have been inspected, replaced, maintenance performed after 4000 operating hours. The photos were taken in the production environment; the machine will be cleaned and inspected further. The machine can be inspected while powered on.

Condition: used, Year of construction: 2017, Technical details: turning diameter: 340 mm turning length: 1000 mm control: OSP 300 LA swing diameter over cross slide guide: 470 mm swing diameter max. over bed cover: 580 mm Fodozb Rh Hjpfx Aageph travel -x axis: 260 mm travel -z axis: 1065 mm rapid travel - longitudinal/face: 30 / 25 m/min bar material dia.: 52 mm spindle diameter: 80 mm Spindle RPM: 5000 1/min spindle drive: 22 / 15 kW turret stations / rotary tool stations: 12/12 VDI 40 : 7 kW speed of driven tools: 6000 1/min Tailstock Travel: 1015 mm tailstock quill taper MT: 5 total power requirement: 38,7 kVA weight of the machine ca.: 6500 kg dimensions of the machine ca.: 4 x 2,5 x 2 m Accerories Chip conveyor Signal lamp 2 colors manual tool eye High precision Turning and Milling Centre with turret for milling tools and main spindle with C- axis. The Stiefelmayer mandrel for inside clamping of hollow shafts can b e replaced by regular 250 mm Kitagawa chuck. Machine can be shown undeer power *

Condition: reconditioned (used), Year of construction: 2005, NC indexing head Hofmann RWNC 160 Center height: 160 mm Fpjdpewtfpdefx Aagoh With tailstock

Condition: used, Year of construction: 2014, KOVOSVIT MAS MULTICUT 630S x 3000 multi-axis turning center for sale. Heavy-duty multitasking machine configured for complete machining of large and complex components. Machine is equipped with milling spindle, lower turret, right spindle/tailstock, automatic tool changer and hydraulic steady rest system. Machine is currently under power and can be inspected in production. Main configuration: MULTICUT 630S x 3000 Siemens SINUMERIK control with SHOPTURN Right spindle / tailstock Milling spindle with high-pressure coolant Automatic tool changer 120 tool positions CAPTO C8 Magazine for 3 boring bars with automatic exchange B-axis prepared for automatic boring bar clamping Hydraulic steady rest K5.1 Ø100–410 mm High-pressure coolant through spindle – 60 bar External coolant system Chip conveyor Automatic door opening Central lubrication Machine status signal lamp Electrical cabinet with air conditioning Prepared for bar feeder USB and Ethernet connection Tool measuring probe Viviport spin windows in doors Technical details: CAPTO C8 system Max boring bar length: 500 mm Fodjy U Nacopfx Aageph Max boring bar weight: 12 kg Through hole right spindle: Ø127 mm 10,000 rpm spindle option S1/S6 spindle power: 37/47 kW Spindle torque: 140/180 Nm Machine hours: System power on time: 52,270 h Machine power on time: 49,264 h Automatic cycle time: 9,599 h

Condition: used, Year of construction: 2009, operating hours: 3,483 h, functionality: fully functional, total length: 5,550 mm, total width: 2,250 mm, bar diameter (max.): 95 mm, overall weight: 8,400 kg, Max. workable diameter from bar mm 95 Max. workable diameter from recovery mm 500 Max. workable length mm 1250 Max. rotating diameter mm 700 MAIN ELECTROSPINDLE: Variable rotation range rpm 40-2800 ASA spindle nose 8" Spindle hole mm 111 Internal diameter of bearings mm 150 Self-centering diameter mm 315 Motor power kW 30 TAILSTOCK TO FOLLOW: Positioning stroke mm 1,100 Quilt stroke mm 150 Quilt diameter mm 115 Fodpfxovv Ud Re Aagjph MOTORIZED ELECTROSPINDLE HEAD: Type of attachment HSK-63 Max. revolutions RPM 6,000 Electrospindle motor power Kw 9 B AXIS UNIT: Total rotation range 205° Rotation range beyond the tailstock axis 15° Rotation range beyond the spindle axis 10° Angular position with mechanical block Every 5° CROSS SLIDE Max. Z stroke mm 1300 Max. X stroke mm 520 Max. stroke Y mm 210 (+120 – 90) TOOL MAGAZINE Magazine capacity 40 pos Max. diameter of tools with adjacent tools mm 80 Max. diameter of tools without adjacent tools mm 140
