Used Pfauter Cnc Gear Hobbing Machine for sale (70,177)

Condition: ready for operation (used), Year of construction: 2012, XYZ SLX555 x 3m ProtoTRAK Control Gap Bed Centre Lathe ProtoTRAK SLX Control (2012) Max. Distance Between Centres 3000mm Max. Swing over Bed 560mm Cjdpfx Ahsyaywhemehc Max. Swing over Gap 935mm Max. Swing over Cross slides 350mm Max. Cross slide Travel 290mm Spindle Nose D1-11 Spindle Bore 104mm Spindle Speeds 30 – 1800rpm Spindle Motor 15Hp Quick Change Tool Post Tailstock MT7 Tailstock Dia’ 75mm Tailstock Travel 160m Manufactured | 2012 Dimensions: L x D x H 5220 x 2150 x 1950 mm Weight 7400 kg Supplied with: 3 Jaw Chuck Machine Handbooks TRAKing®. Constant Surface Speed. Rapid Traverse with Joy Stick. QCTP & Holders 2 x Fixed Steadys 15” Interlocking Guards Auto Lubrication. Coolant. Worklight We can offer delivery & installation, operator training and warranties. *For sale with Jet Machinery Ltd* Jet Machinery Stock No: #79024 Machine Serial Number: SLM00035 £47,500.00 + VAT Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details. Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.

Condition: excellent (used), Year of construction: 2019, Sub-spindle, driven tools, Y-axis, C-axis FANUC 32i B-NT-SmartX control Turning diameter max 225 mm Turning length -910 mm Chuck Diameter -210 mm Main-spindle speeds 5'000 rpm Sub-spindle speeds 5'000 rpm Turret head 1+2: 24 positions with 12 driven positions each Barloader LNS Sprint 565 S2 Piece catching device Chedpfjvwkirjx Ahmec Misc. accessories MARCELS MASCHINEN CH

Condition: excellent (used), Year of construction: 1997, max. wheel diameter 820 mm gear width 300 mm max. module 8 min. module 0,5 clamping length 865 mm number of teeth 10 - 600 max.helical angle +/- 30 ° turning speeds 1100 - 2150 U/min grinding wheel diameter 280 - 400 mm grinding wheel width 84 /104 workpiece weight max. 300 kg weight of the machine ca. 11,5 t Codpfxez Hz Rle Ahmjhc dimensions of the machine ca. 6,0 x 4,8 x 2,9 m including Reishauer AF Filter, flanges, wheels,...

Condition: excellent (used), Year of construction: 2018, Manufacturer: TEKNA Model: TKE 984-6 Design: RFT Year of manufacture: 2018 Machine type: CNC machining center with moving gantry Axes: 4 Suitable for: Drilling, milling, threading, and machining of aluminum, PVC, light metal, and steel profiles X-axis travel: 6,700 mm Y-axis travel: 1,350 mm Z-axis travel: 610 mm Swivel range of machining head: -90° to +90° Positioning resolution of swivel axis: 0.01° Electro spindle: 9 kW Max. spindle speed: 24,000 rpm Max. torque: 14.3 Nm Tool interface: HSK 63F Spindle cooling: Water cooling with chiller Clamping devices: 6 clamps Automatic positioning of the clamps via the X-axis Tool magazines: 3 fixed magazines Tool positions: 14 per magazine / total 42 tool positions Chip conveyor: Rubber belt chip conveyor, design 6,700 mm Measuring system: 3D measuring system for multiple scanning Additional tank for lubrication system: 15 liters Integrated cabin Separate electrical control cabinet Glass scale on the X-axis Customer-specific clamping device system for profiles X-axis with 2 motors in master/slave configuration Laser length measuring tool instead of the standard version 2 feed pipes for lubrication Multi-part machining Double-mode operation / machining in two work areas Parallel machining of two profiles possible Drilling capacity aluminum AL99: max. Ø 20 mm Drilling capacity steel FE370 D FF: max. Ø 14 mm Straight milling aluminum AL99: max. 15 mm material thickness Cjdpfx Ahez Er Hhsmehc Straight milling steel FE370 D FF: max. 5 mm material thickness Thread cutting aluminum: up to M12 Thread cutting steel: up to M8

Condition: excellent (used), Year of construction: 2003, Sub-spindle, Y-axis, B-axis, C-axis SIEMENS 840D ShopMill Turning diameter max 246mm Turning length -445mm Spindle speeds main & sub-spindle -6'000 rpm Turret head: 12 driven positions B-Axis 440 mm Tool presetting device Tool catching attachement Chjdpsz Iaqgofx Ahmec Misc. accessories MARCELS MASCHINEN CH

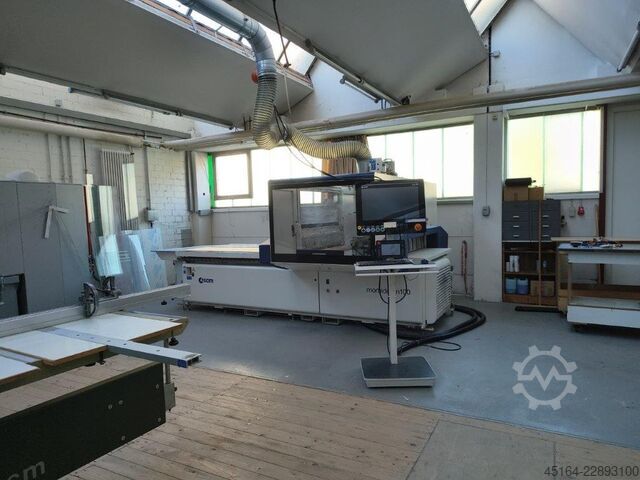

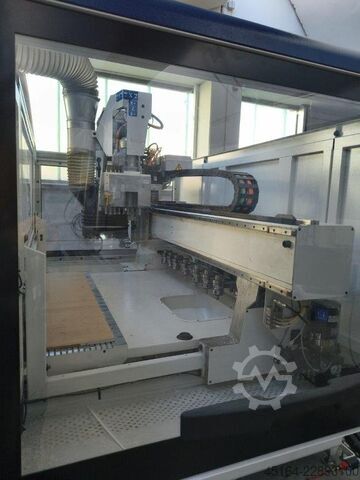

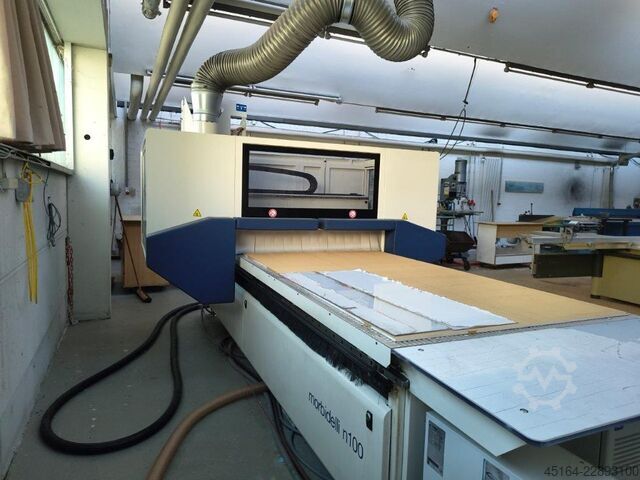

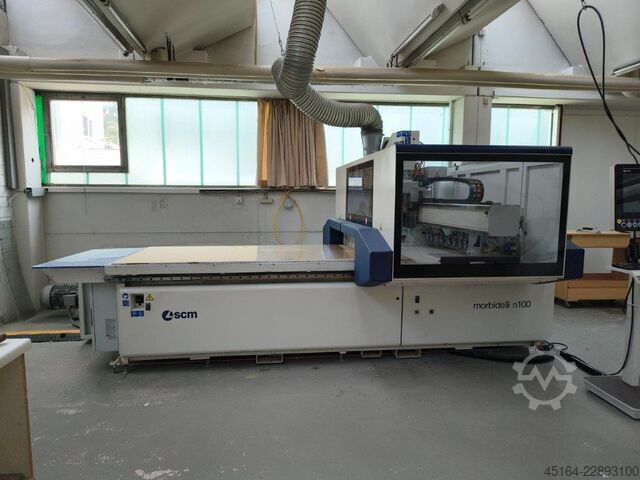

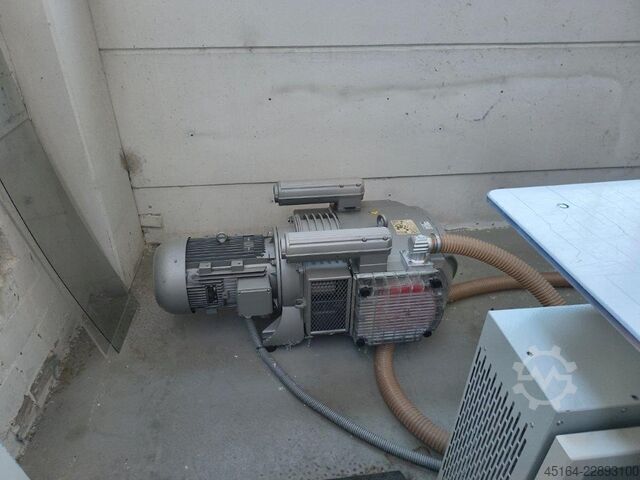

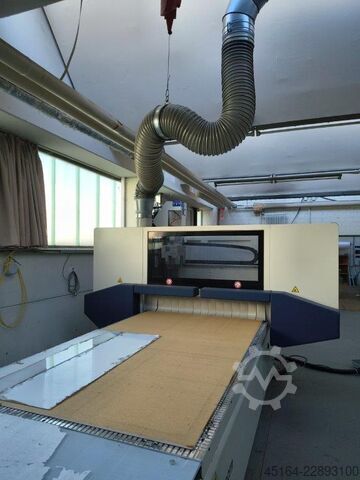

Condition: used, Year of construction: 2021, CNC MACHINING CENTER Morbidelli N100 KEY FEATURES "BUMPERS": THE PERFECT COMBINATION OF SAFETY AND PRODUCTIVITY "PRO-SPACE" SAFETY DEVICES: SAFE AND COMPACT "HE" TABLE - FOCUS: EFFICIENCY AND SAVINGS AXES Morbidelli N100 12 Morbidelli N100 15 Morbidelli N100 18 Morbidelli N100 22 Working area in X-Y-Z axis * mm 2486-1255-150 3686 TECHNICAL DATA -1555-150 3686-1860-150 22-31 = 30862185-150 22-43 = 42862185-150 Travel X-Y-Z axes mm 3120-1685-250 4320-1985-250 4320-2285-250 22-31 = 37702585-250 22-43 = 49702585-250 Traverse speed of X-Y axes m/min 35 WORK TABLE Type Multifunction table made of aluminum Stops for "A" working area No. 4 Vacuum pump (Opt.) m³/h 250/300 DRILLING UNIT Vertical spindles No. – RPM 7 (4X-3Y) 8000 – 12 (8X-4Y) 8000 Horizontal spindles (Opt.) No. – RPM 4 (2X-2Y) 8000 – 6 (4X-2Y) 8000 Integrated saw blade in X (Opt.) Ø mm – RPM 125 – 10000 Motor power kW (HP) 2.2 (3) ELECTROSPINDLE Motor power Std. (S6) kW (HP) 6.6 (9) – 9.5 (13) Max. speed RPM 24000 Lateral tool changer 8 positions 10 positions 11 positions 13 positions INSTALLATION Installed power kVA 23÷28.5 Compressed air requirement l/min 400 Extraction air requirement m³/h 5300 Extraction air speed m/s 30 Extraction nozzle diameter (electrospindle + drilling unit + kit) mm 250 Machine weight kg 1950 2200 2500 22-31 = 2550 22-43 = 3200 * X Distance between stops - Y Max. panel width - Z Workpiece passage only electrospindle or electrospindle + drilling unit: diameter 200 mm; Extraction air requirement 3,400 m³/h In conjunction with the strip for panel ejection, the extraction nozzle diameter is always = 250 mm GENERAL FEATURES CNC machining center for processing panel materials. Self-supporting structure and work table Box construction made of cold-rolled steel, consisting of rectangular sections welded together; multifunctional work table made of aluminum with a single working area. Holes in a grid of 120 mm for vacuum connection, easily removable via a magnetic device (patented system). The entire surface is grooved at a distance of 20 mm so that the workpieces can be clamped using rubber seals, MODULSET or suction cups. Automatically retractable reference stops that ensure accurate positioning of the workpieces to be machined. Moving gantry It is a gantry structure made of cold-rolled steel in a box construction, consisting of rectangular sections. The working units are installed on the gantry. Working unit consisting of a drilling head with vertical spindles, horizontal spindles, an integrated grooving and sawing unit and an SCM electrospindle with a quick-change tool system of type HSK63F. Travel of the gantry and aggregate carrier The movement in the X, Y and Z axis takes place on linear prismatic recirculating ball guides by means of pre-tensioned ball screws. The movement transmission of the X and Y axes (moving column and carriage) takes place via a reduction gearbox with rack and pinion drive. The movement of the aggregate carrier in the Z direction takes place via pre-tensioned ball screws. Positioning of the working units and control of the machine functions takes place via "Brushless" three-phase servo motors and digital control units. CONTROL The control unit consists of a numerical control. Chsdpjz Iyvpefx Ahmjc

Year of construction: 1971, condition: used, Technical details: max. wheel diameter: 300 mm max. module: 5 module min. : 0,5 max. workpiece weight: 60 kg weight of the machine ca.: 4,0 t dimensions of machine: 1800x1850x2500 mm dimensions electric cabinet: Nr. 1: 1930x400x1920 mm dimensions electric cabinet: Nr. 2: 800x230x1950 mm dimensions:: Abluftanlage: 1400x700x560 mm dimension cooling device LxWxH: 1,2 x 1,0 x 0,45 m Electronically controlled tooth flank grinding machine Cedpfxovc Apbj Ahmehc up to module 5 and a Ø of 240 - 300 mm feed speed per workpiece revolution infinitely variable 0.4 - 3.2 mm max./min. Number of teeth: 130 / 12 max./min. Pressure angle: 30° / 14°30` max./min. Spiral pitch with 24 teeth: 6000 / 200 mm max. tooth helix angle, both sides: 45° Speed of the grinding worm: 1900 rpm without dressing device Equipment: approx. 77x change transmission wheels, pipe extensions and various tools Two of these machines are for sale. Both machines are supplied via two common control cabinets and an exhaust air system. *

Year of construction: 1971, condition: used, Technical details: Codpsvc An Dsfx Ahmjhc max. wheel diameter: 300 mm max. module: 5 module min. : 0,5 max. workpiece weight: 60 kg weight of the machine ca.: 4,0 t machine dimensions LxWxH: 1,8 x 1,9 x 2,5 m dimensions electric cabinet LxWxH: Nr. 1: 1,95 x 0,4 x 1,95 m dimensions electric cabinet LxWxH: Nr. 2: 0,8 x 0,23 x 1,95 m dimensions:: Abluftanlage: 1,4 x 0,7 x 0,55 m Electronically controlled tooth flank grinding machine up to module 5 and a Ø of 240 - 300 mm feed speed per workpiece revolution infinitely variable 0.4 - 3.2 mm max./min. Number of teeth: 130 / 12 max./min. Pressure angle: 30° / 14°30` max./min. Spiral pitch with 24 teeth: 6000 / 200 mm max. tooth helix angle, both sides: 45° Speed of the grinding worm: 1900 rpm without dressing device Equipment: approx. 69x change transmission wheels, pipe extensions and various tools Two of these machines are for sale. Both machines are supplied via two common control cabinets and an exhaust air system. *

Condition: ready for operation (used), Year of construction: 1992, TOS Varnsdorf WHN 13 Year of manufacture: 1992 Travel ranges: 2000 x 1850 x 800 Chjdpfjz D Sptsx Ahmjc Table load: approx. 18 tons Heidenhain 310 TNC 37 kW spindle: diameter 130 / SK 50 / S800

Condition: used, Year of construction: 2023, max. wheel diameter 200 mm gear width 60 mm max. module 5 min. module 2 workpiece weight max. 6,0 kg total power requirement 4 kVA weight of the machine ca. 0,5 t dimensions 1,35 x 1,55 x 1,7 m Less used Gear deburing machine Cedpfx Ajzy Satjhmshc - 3-jaw chuck ZG 125 - One twist in 5- 120 sec. - After test maybe modil 1,25 possible - Working Unit 1, milling function - Working Unit 2, brush function - dust collector - automatic mode

Condition: used, Year of construction: 2012, GENERAL FEATURES: CNC machining center with a fixed machine table and a moving tool carrier in a portal design for drilling and milling operations on panels made of various materials (chipboard, MDF, solid wood, plastic, etc.). MACHINE STRUCTURE: The base structure is a monolithic design made of thick-walled material, reinforced by welded-in parts across the entire machine bed, making it extremely stable. The table design, with a large base, ensures long-lasting precision and stability. The machine layout allows the user an optimal workflow despite a minimum of space. The mobile portal carrier is made from a solid monoblock. It is positioned in the X-direction on prismatic, ground guides using ball screw slides. On this mobile tool carrier, the working unit is in turn attached to prismatic, ground guides and the ball screw slide. Axis movement is achieved using "brushless" motors in the X/Y/Z axes. The drive system operates in the X-axis via a pre-tensioned precision rack and pinion drive, and in the Y/Z axes via ground ball screws of the highest precision class. AXIS MOVEMENT: The movement of all axes takes place on prism linear guides with a large cross-section and ball screw shoes with a large contact surface, which ensure optimal sliding even at the highest speeds and accelerations. The precise and rapid positioning of the moving portal (X-axis) is achieved by a pinion and rack with helical teeth. Ball screws with a large cross-section ensure the accurate positioning of the working unit along the moving portal (Y and Z axes). The perfect mechanical dynamics and maximum positioning accuracy are controlled by high-quality drives and brushless motors. STANDARD MACHINE DESIGN: Milling spindle with 5-axis positioning, 11kW (15HP), HSK63, 1200-20000 RPM. The machining unit consists of a powerful 11 kW (15 HP) motor, which is liquid-cooled and capable of 5-axis positioning. This feature enables machining operations to be performed with a tool that can be oriented in any direction; therefore, fewer angular movements are required. The base structure of the milling unit is based on a design with two non-orthogonal axes that intersect next to the tool. This feature guarantees a robust carrier for heavy-duty milling applications. Thanks to the non-orthogonal axes, it is possible to perform numerous repositionings without using too much space. This allows the machining of complex geometries without the risk of collision with the workpiece and achieves an angle of -10° in relation to the machine table. All machining operations are facilitated by the small dimensions of the group in relation to the rotation axis of the spindle: when the group is in a horizontal position, the dimension is only 35mm. WORK TABLE TV: The work table is designed to guarantee the operator maximum "freedom of movement." The vacuum quick-change clamping system provides maximum flexibility with precise positioning and optimal work piece holding. The table consists of moving consoles that are adjusted in the X-axis on ground guides with ball screw shoes and a special profile to ensure Chsdpjzrvvvjfx Ahmoc

Condition: used, Year of construction: 2017, ++ without ST package ++ can be purchased separately CNC-CONTROLLED MACHINING CENTER KEY FEATURES "PRO-SPACE" SAFETY DEVICES: SAFE AND COMPACT "HE" TABLE - FOCUS: EFFICIENCY AND SAVINGS TECHNICAL DATA AXES Pratix S22 Working area in X-Y-Z axis * mm 22-43 = 4286-2155-150 Travel X-Y-Z axes mm 22-43 = 4970-2585-250 Travel speed of X-Y axes m/min 35 WORK TABLE Type Multifunction table made of aluminum Stops for "A" working area pcs 4 Vacuum pump (Opt.) m³/h 90/108 - 250/300 DRILLING UNIT Cedpfx Aoz Ebzhohmohc Vertical spindles No. – rpm 7 (5X-3Y) 6,000 – 12 (8X-5Y) 6000 Horizontal spindles (Opt.) No. – rpm 4 (2X-2Y) 6,000 – 6 (4X-2Y) 6000 Integrated saw blade in X (Opt.) Ø mm – rpm 120 – 7500 Motor power kW (HP) 2.2 (3) ELECTROSPINDLE Motor power Std. (S6) kW (HP) 6.6 (9) – 9.5 (13) Max. speed rpm 24000 Side tool changer 13 positions INSTALLATION Installed power kVA 23÷28,5 Compressed air requirement l/min 400 Extraction air requirement m³/h 5300 Extraction air speed m/sec 30 Extraction nozzle diameter (electrospindle + drilling unit + kit) mm 250 Machine weight kg 22-43 = 3200 * X Distance between stops - Y Max. panel width - Z Workpiece passage Only electrospindle or electrospindle + drilling unit: diameter 200 mm; extraction air requirement 3400 m³/h In conjunction with the slider for panel output, the extraction nozzle diameter is always = 250 mm GENERAL FEATURES CNC-controlled machining center for processing panel materials. Self-supporting structure and work table Box structure made of cold-rolled steel, consisting of rectangular sections that are welded together; multifunction work table made of aluminum with a single working area. Holes in a 120 mm grid for vacuum connection, can be easily removed using a magnetic device (patented system). The entire surface is grooved at a distance of 20 mm so that the workpieces can be clamped using rubber seals, MODULSET or suction cups. Automatically retractable reference stops that ensure accurate positioning of the workpieces to be processed. Moving gantry This is a gantry structure made of cold-rolled steel in a box design, consisting of right-angled sections. The working units are installed on the gantry. Working unit consisting of a drilling head with vertical spindles, horizontal spindles, an integrated grooving and sawing unit and an SCM electrospindle with a tool quick-change system type HSK63F. Travel paths of the gantry and the unit carrier The movement in the X, Y and Z axis takes place on linear prismatic recirculating ball guides with the help of pre-tensioned Movement transmission of the X and Y axes (moving column and carriage) takes place via a reduction gearbox with rack and pinion drive and oblique The movement of the unit carrier in the Z direction takes place via pre-tensioned Positioning of the working units and control of the machine functions takes place via "Brushless" three-phase servomotors and digital CONTROL The control unit consists of a numerical control for milling and drilling machines and a user interface with remote control with a 7" touchscreen color screen. The Xilog Maestro machine operating interface offers optimal communication between operator and the machine for all programming functions.

Condition: good (used), Year of construction: 2012, Ref. -No.: 10558 Manufacturer: YOU JI Type: HMC 1200 BP Year of construction: 2012 Type of control: CNC-Steuerung Control: FANUC Series 18i-MB Storage location: Halberstadt Country of origin: Taiwan X-Travel: 1800 mm Y-Travel: 1500 mm Z-Travel: 1360 + 990 mm B-Axis: 360 ° W-Axis: 700 mm Table Dimensions (Lengthxwidth): 1200 x 1400 mm Table Load: 5.000 kg Max. Tool Weight: 25 kg Max. Tool Length: 400 mm Max. Tool Diameter: 125 mm Spindle Speed: 30 - 3.500 RPM Numbers Of Pallets: 2 Further information: 4-axis simultaneous machining IKZ (internal spindle cooling) AKZ (external spindle cooling) Synchronized walking (rigid thread cutting) Codpfxexxpbxe Ahmjhc Renishaw RMP60 workpiece probe (radio) Number of pallet changers for automatic pallet change: 2 Size: 1200 x 1400 mm Tool magazine, number of tools: 60 The machine is currently in production and can be viewed by appointment.

Condition: used, Year of construction: 2020, CNC-CONTROLLED MACHINING CENTER WITH MULTIFUNCTIONAL TABLE - WORK CELL VERSIONX400 CELLDrilling and milling made for you!The numerically controlled machining center is equipped with a wide range of milling/drilling tools to meet every need in the processing of wood and similar materials.- More powerful, with drilling spindles with 8,000 rpm and . Technology, the toughest spindle available on the market, with over 1,000 maintenance-free hours of use. Better and more comprehensively equipped, with various configuration options thanks to the multifunctional table to optimally equip the machine according to your needs. Easier and more understandable programming thanks to the integrated MAESTRO CNC CAD-CAM module. Easier to use: the work table is accessible at all times, the electrical cabinet and vacuum pump are integrated, and in the PRO SPACE configuration there are no guards. Supporting structure. The supporting structure consists of a particularly strong monolithic steel base, heavily ribbed and very rigid. The particularly wide support was specifically designed to give the machine stability, ensuring consistent precision regardless of the working conditions and eliminating the need to anchor the machine to the floor. The base forms a large and solid support for the mobile column: the work unit is thus equipped with a balanced, stable, and durable support that can withstand the most extreme stresses, ensuring higher quality performance and greater precision. The mobile gantry consists of a single, solid unit anchored to the base on both sides and slides on pyrotechnic guides with top-quality ball-return slides. The dual motorization along the X-axis ensures top performance even under demanding working conditions. The movement of the lower moving unit (X-axis) and the working unit along the rod of the moving unit (Y-axis) is achieved thanks to a rack/pinion transmission with helical teeth. this creates a greater tooth-to-tooth thrust which achieves greater acceleration and greater speed along the X and Y axes. The specially designed helical gearing ensures less wear on the mechanical components and less noise. The vertical Z axis is driven by a screw with ball return which ensures perfect balance with dynamic loading and strong acceleration and deceleration. The main milling unit is directly coupled to the Z axis carriage and ensures absolute quality of finishes as any vibrations are completely eliminated. Translation along the X-Y-Z axes is carried out by brushless motors driven by static inverters; These ensure: - Reduced processing times thanks to improved acceleration - Better positioning accuracy thanks to the high-resolution encoder - Zeroing of setup operations when switching on the machine thanks to absolute encoders - Zeroing of general maintenance operations since there are no brushes with the "brushless" system The management of the axis displacement and, in general, of the machine's working elements is carried out by an industrial NS module with digital D Codpfxsvvi N Ie Ahmshc

Year of construction: 1991, condition: good (used), Used fixed bed milling machine Brand: LAGUN Chsdpfx Ahjh Rycfjmec Model: FBF 1200 Year: 1991 Serial number: B10109 Weight: 5,500kg Measurements: 2600x2300x2600(h)mm Control: HEIDENHAIN TNC 355 (New Screen) Table measurements: 1200x550mm Axis displacements: X-1100mm Y-600mm Z-600mm Ferret head with hydraulic mooring tool. Cone: ISO 50 Spindle speeds: 50 - 3000 rpm (2 speed ranges) Feedrates in the X Y Z axes: 1 - 3000 mm/min Rapid advance axes X Y Z: 10,000 mm/min Motor power: 15KW

Condition: new, Year of construction: 2025, Ref. -No.: 10464 Manufacturer: IGREK Type: 3500 XXL Year of construction: 2025 Type of control: CNC-Steuerung Control: Siemens 840 D / Heidenhain iTNC 640 Storage location: Istanbul Country of origin: Türkiye X-Travel: 10500 mm Y-Travel: 3500 mm Z-Travel: 1400 mm A-Axis: +/- 115 ° B-Axis: 360 ° Max. Torque: 235 Nm Rapid Traverse X/Y/Z: 30 m / min Drive power spindle: 54 kW Table load max.: 4000 kg Tool Taper: HSK-A100 Spindle Speeds: 12500 RPM Machine length: 16000 mm Machine width: 7400 mm Machine Height: 8500 mm Weight: 195 t Further information: GREK 3500 XXL – Customized precision for large-scale projects The IGREK 3500 XXL is a CNC 5-axis portal milling machine of the latest generation, developed for the high-precision machining of large components. Built in 2024, it is ready for immediate use and equipped with the latest technology to meet the most demanding requirements in heavy industry and mechanical engineering. Key features: Gigantic machining areas: With travel distances of 10,500 mm (X), 3,500 mm (Y) and 1,400 mm (Z), the machine offers extraordinary flexibility for machining large parts. 5-axis simultaneous machining: The A-axis with +/- 115° and the B-axis with 360° guarantee maximum precision and versatility when machining complex workpieces. Powerful spindle: Equipped with a speed of up to 12,500 rpm, a maximum torque of 235 Nm and a drive power of 54 kW – ideal for high-performance machining. Robust and durable: Weighing 195 tons and with a table load of up to 4,000 kg, the machine is designed for heavy-duty machining. Innovative tool holding fixture: The HSK-A100 tool holding fixture enables quick tool changes and increases efficiency. Speed and efficiency: Rapid feed rates of 30 m/min on all axes ensure maximum productivity. Technical data at a glance: Traverse paths: X 10,500 mm / Y 3,500 mm / Z 1,400 mm Spindle power: 54 kW Chjdpsxc Tr Asfx Ahmsc Spindle speed: 12,500 rpm Table load: up to 4,000 kg Machine dimensions (LxWxH): 16,000 x 7,400 x 8,500 mm Weight: 195 tons Additional benefits: The machine is supplied with the advanced Siemens 840D or Heidenhain iTNC 640 control system and offers worldwide warranty and service support from the manufacturer. Choose the IGREK 3500 XXL for precision and efficiency in the machining of large parts. Contact us now for a non-binding offer!

Condition: good (used), Year of construction: 2015, Ref. -No.: 10647 Manufacturer: DMG MORI Type: DMF 360-11 Year of construction: 2015 Type of control: CNC Control: Heidenhain iTNC 530 Storage location: Halberstadt Country of origin: Germany Serial no.: 2903XXXX Machine-No.: 591XX X-Travel: 3600 mm Y-Travel: 1100 mm Z-Travel: 900 mm Max. Workpiece Weight: 8000 kg Max. Tool Weight: 5 kg Max. Tool Length: ab Spindelnase 300 mm Workpiece Diameter With 2 Vacant Positions: 130 mm Tool Taper: HSK 63 Numbers Of Tools In Magazin: 120 Tool changer: 60 Spindle Speed: 20000 RPM Max. Torque: 288 / 187 Nm Rapid Travel X/Y/Z: 80 x 60 x 60 mm / min Main Drive: 35 / 25 kW Internal cooling: 40 bar coolant reservoir: 600 L. Chsdpfx Ajzc D Hfjhmsc Further information: - Fixed table, often with an integrated NC rotary table (FD version) - Spindle: Standard speed is typically 10,000 rpm; more powerful variants are available as an option - Traveling column design: Ideal for pendulum machining and long workpieces - Stability: The mineral cast machine bed ensures high damping and precision - 5-axis: Usually equipped with an NC swivel milling head (B-axis) The machine can be viewed while powered on by appointment.

Condition: used, Year of construction: 2018, CNC-CONTROLLED MACHINING CENTER AUTHOR M 200 AUTHOR M200 3710x1620 Z250 - CNC-controlled machining center 1 Technical data Work area I.M.S. I.U. Work area X-axis 3710 mm * 146" * Work area Y-axis 1620 mm * 63¾" * Workpiece passage Y 1900 mm 74¾" Workpiece passage Z 250 mm 9¾ Workpiece length for pendulum machining 1700 + 1700 mm 67" + 67" Travel speed of the X-Y axes PRO-SPACE 56 m/min 184 ft/min Travel speed of the X-Y axes PRO-SPEED 78 m/min 256 ft/min * Distance covered by all tools in the X and Y direction; see the corresponding layout for further details. With a 5-axis motor, the dimension in Y increases to 1680mm (66"), for motor JQX or 1720mm (67½") for motor KS/KT max. Width of the loadable plate for horizontal drilling, electric spindle only oriented vertically, no central reference stops Installation data I.M.S. I.U. Installed power 23 - 28.5 KVA Electrical standard specifications 400 Voltage 50 Hz 3 phases Air consumption 450 Nl/min Compressed air consumption 4500 m³/h 2650 CFM Extraction air velocity 30 m/sec Extraction nozzle diameter 250 mm 9.8 Inches Noise level VSA * LAV * Drilling 72.2 74.6 Milling 74.3 80.7 Reference standard EN ISO 11202:1995* VSA = unloaded and without extraction * LAV = in operation with extraction Structure of the base body: The CNC machining center can be equipped flexibly with different milling units as well as multi-spindle drilling heads and many other units, up to dowel drilling units. In order to meet all requirements in the field of wood and plastic processing, as well as the demands of the users, each machine can be equipped with 3, 4 or 5 machining axes. The selection of drilling units extends to up to 34 drilling spindles with an integrated groove saw for the back panel groove or rabbet machining. The possibility of using this high-quality CNC machining center both as a cantilever table machine and with an aluminum grid table underscores the flexible range of applications and the performance of the M100 and M200 series. Powerful drilling heads, with individually selectable drilling spindles, max. RPM 8,000, and implemented in . technology, "the most robust drilling spindles on the market", with more than 1,000 maintenance-free application hours (lubrication interval of the drilling spindles). The possibility of being able to replace the drilling spindles within a very short time, "even without a technician", through the technology, without disassembling the drilling gear, sets a benchmark in the industry and is already standard on your machining center. Imagine your CNC machine performing hinge drilling in just one drilling operation (option), instead of the usual 3. An option that underscores our claim to offer you robust and high-performance units on our machines. Ideally and flexibly equipped for a wide variety of requirements. Whether manual or automatic, the FLEX cantilever work table allows vacuum cups and mechanical clamping elements, such as pneumatic clamps for window or curtain wall constructions (option), to be quickly, safely and cost-effectively adjusted to any material and clamping requirements, making your day-to-day work easier. Differently sized vacuum cups and clamping elements, which were developed in close cooperation with customers and users, are available as an option. Cjdpfezvhkyox Ahmohc

Condition: used, A CNC machining center with T-slot table is offered. Control: HURCO Ultimax with dual-screen console. Equipped with several fixtures mounted on the machine table, coolant system and available HURCO documentation including training documentation for the Ultimax CNC control. Inspection possible by appointment. Cedpfx Aez Hzd Sjhmjhc

Condition: used, Year of construction: 2013, A versatile and flexible NC controlled machining centre suitable for a variety of machining operations including hinge recessing, lock slots, handle holes, key slots and euro grooves etc. Programming is extremely simple thanks to the colour graphic touch screen controller using pre-installed electronic macros. As standard the machine is equipped with one milling head that automatically moves for either vertical or horizontal machining. It also has interpolation of the axis. Specification Axis capacity - X 2800mm, Y 180mm, Z 150mm. (2400mm X capacity when optional drilling head fitted). 1 x ER32 collet for milling cutter 16mm max. dia. Max working table dimensions - 3000x618mm X axis positioning speed 35m/min. Y axis / Z axis positioning speed 6m/min. Retractable pneumatic positioning stops 2 off - on front of table Adjustable pneumatic workpiece clamps x 3 - mounted on rear of table. Left hand side ref. stop. Front table extension supports x 2 Router motor power 3.3kw. Router motor RPM 0-18,000 rpm. Touch screen controller - Elco Power 1000. Dust extraction outlet x 1 80mm dia, 2 x 100mm dia CE side and rear safety guards with front light curtain. With following options fitted : - Pneumatic tool change ISO 30 Chsdpfx Ahszzwg Ujmoc - Drilling unit with ER25 collet. - Extended Y axis stroke 400mm - Increased clamping capacity 200mm. Year - 2013 CE Compliant Serial Number - 22170

Condition: like new (used), Year of construction: 2010, Retrofitted: 2026 Cedpfsz Alwqsx Ahmjhc Numerical control: HEIDENHAIN TNC-i530 Technical features Dimensions Table dimensions: 8500 x 2500 mmNumber of T slots: 17T slots dimensions: 22 mm Traverses of axis X axis traverse: 8000 mmY axis traverse: 3800 mmZ axis traverse: 1500 mmVertical capacity (VC): 168 / 1668 mmDistance between columns: 3100 mm Milling head Auto-indexing differential head (UAD - 0,02º)Tool clamping system: HydraulicTaper nose: ISO50 (DIN69871) / Pull stud: DIN69872Speed range: 6000 rpmSpindle power: 30 kW Feedrates Rapid feedrate (X / Y,Z): 7200 / 12000 mm/min Weight and dimensions Maximum weight on table: 35000 kgMachine weight approximate: 79000 KgMachine dimensions approximate: 22700 x 7660 x 6800 mm Accessories Guarding: 2 sliding doors with a new perimetral wire-mesh fenceAutomatic tool changer: ATC-60Chip conveyor: 2longitudinal hinge typeElectronic handwheel: New HR-510Coolant: External internal high pressure through spindle Sale conditions Warranty: 6 months mechanical spare partsPrice and sale conditions: On request View all technical features

Condition: excellent (used), FANUC Power Mate control Grinding range 800 x 400 mm Wheel diameter / width / bore 250/ 50 / 127 mm Chedpeyla Nuofx Ahmjc Magnetic plate 800 x 350 mm Misc. accessories MARCELS MASCHINEN CH

Condition: good (used), Year of construction: 2008, functionality: fully functional, Peddinghaus FDB 1000/3 – CNC Plate Drilling & Profiling System– Year 2008 6 metres x 1 metres Capacity. Maximum workpiece width 1000 mm. Maximum workpiece thickness 50 mm. 3 x drilling spindles. Maximum drilling diameter 40 mm. Cjdpfxoz Hfbbo Ahmehc Oxy‐Fuel. Hypertherm Plasma. Kemper Extraction Unit.

Condition: used, Year of construction: 2015, MTRent MTCut V110TH - CNC Milling Machine - Spindle mount: SK40 - X/Y/Z: 1100 / 610 / 610 mm - Heidenhain CNC control - Includes milling tools, technical documentation, and operating manual - Operating hours: 21295 h - Spindle hours: 6661 h - Year of manufacture: 2015 Technical Data Axes: - X-axis travel: 1100 mm - Y-axis travel: 610 mm - Z-axis travel: 610 mm - Rapid traverse rate X/Y/Z: 32 m/min - Feed rate: 1 - 12000 mm/min - Positioning accuracy: ± 0.005 mm - Repeatability: ± 0.003 mm - Spindle nose to table: 120 - 730 mm - Linear guides X/Y/Z: Linear 45 / 45 / 45 mm - Machine bed: Cast iron Machine table: - Dimensions: 1250 x 610 mm - Max. table load: 900 kg - T-slots in table: 5 - T-slot width: 18 mm H8 - T-slot spacing: 100 mm Spindle: - Speed: 10000 rpm - Torque (40% duty cycle): 256 Nm - Power (40% duty cycle): 24 kW - Spindle cooling: Oil - Tool holder: SK40 - Pull stud: DIN 69871/72 Tool changer: - Tool stations: 30 - Tool change time (tool to tool): 1.5 s - Max. tool weight: 7 kg - Max. tool Ø: 80 mm - Max. tool Ø with free magazine space: 140 mm - Max. tool length: 300 mm Codpfx Ajz Iquijhmjhc Machine data: - Central lubrication: R68 (IS068) - Hydraulic oil: R32 (ISO32) - Compressed air: 3/8" 6-8 bar - Coolant tank: 250 l - Power supply: 400 V / 75 A / 35 KVA - Machine dimensions with chip conveyor (W x H x D): 3521 x 2890 x 3345 mm - Machine weight: approx. 7500 kg

Condition: excellent (used), Measuring range X-Y-Z 600 x 600 x 250 mm Codoxpug Iepfx Ahmohc Table size 697 x 758 mm MARCELS MASCHINEN AG
