Used Gildemeister / Grundig Vk030 Si188 Karte Sn6235027 for sale (444)

Condition: used, Tool holder, milling holder, milling tool -Intake: SK50 5 pieces -Sizes: see pictures -Price: complete -Dimensions box: 400/300/H270 mm Ijdpfx Asfnbynjpcjar -Weight: 42.1 kg

Condition: excellent (used), Year of construction: 1974, functionality: fully functional, WE OFFER UNIVERSAL LATHE WITH BRAND NEW 3 AXIS DIGITALS COMPLETE TOOLS AND ACCESSORIESS. DESCRIPTION Description Precision lathe, turning machine -Manufacturer: VDF Heidenreich & Harbeck -Machine bed rails: hardened -Turning length: 750 mm -Turning Ø over bed: 500 -Turning Ø over recess: 355 mm -Turning Ø over support: 290 mm -Spindle bore: Ø 56 mm Iasdpfx Aevkpkzepcsr -Spindle speeds: 19 - 2000 rpm -Wedge bar chuck: Forkardt Ø 250 mm -Tailstock mount: MK4 -Drive: 7.5 kW -Accessories: 1x steady rest, 6x Multifix tool holder, -Dimensions: 1180/3050/H1345 mm -Weight: 2000 kg

Condition: used, Year of construction: 2004, Technical data: Main spindle: Max. turning diameter: 33 mm Max. speed: 8000 1/min Drive power: 5.5 kW Drive power at 60% duty cycle: 7.5 kW Slide 1: Slide travel Z1: 320 mm Slide travel X1: 50 mm Slide travel Y1: 255 mm Rapid traverse speed: 30 m/min Ball screw diameter: 25 mm Tool holder slide 1: Number of tools stationary with tool shank 16 x 16: 5 pieces Slide 2: Slide travel X2: 165 mm Iedpfjtzyx Tex Apcear Slide path Z2: 200 mm Rapid traverse speed: 30 m/min Ball screw diameter: 30 mm Tool holder slide 2: Number of stations for turret with integrated spindle: 8 pieces Number of axially driven tools (integrated): 8 pieces Coolant tank, approx.: 400 l Coolant pump, max. output: 80 l/min Dimensions (LxWxH), approx.: 2460 x 1510 x 1750 mm Equipment: - CNC control Fanuc iT - Workpiece unloading system - IEMCA bar loading magazine - 5-pos. tool carrier plate for slide 1 - Electrical interface and software for bar loading magazine - Collet chuck holder for main and pick-up spindle - 2 Double drill holder for rear machining support with cylinder - Pick-up spindle workpiece pusher

Condition: good (used), Year of construction: 2002, operating hours: 33,328 h, functionality: fully functional, machine/vehicle number: 04780000151, turning length: 1,850 mm, turning diameter: 610 mm, spindle speed (min.): 3,200 rpm, travel distance X-axis: 605 mm, travel distance Y-axis: 210 mm, travel distance Z-axis: 1,470 mm, rapid traverse X-axis: 46 m/min, rapid traverse Y-axis: 24 m/min, rapid traverse Z-axis: 60 m/min, 5-axis, 12" CNC lathe with double chuck. Siemens control system. Spindle operating hours: 1891 hours. Transport at buyer's expense. Iodpfx Asyiy Sdspcjar

Condition: good (used), Year of construction: 1984, functionality: fully functional, Swing diameter over bed: 560 mm Swing diameter over cross slide: 250 mm Spindle bore: 65.3 mm Iajdpfx Ajvn Rlzspcer Max. power: 15 kW Speeds: 11.2 - 2,240 rpm Distance between centers: 1,000 mm Quill diameter: 80 mm Quill taper: MT 5 Including chip conveyor Including complete documentation Immediately available from stock

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, turning length: 1,185 mm, turning diameter: 640 mm, spindle speed (max.): 4,000 rpm, turning diameter over bed slide: 640 mm, counter spindle torque (max.): 5,000 Nm, Turning and Milling Center with Main and Counter Spindle and Comprehensive Equipment! TECHNICAL DETAILS Turning diameter: 640 mm Turning length: 1,185 mm Swing diameter: 640 mm Distance between headstocks: 1,500 mm SLIDE I X-Axis travel: 550 mm Y-Axis travel: 180 mm Z-Axis travel: 1,185 mm B-Axis: 240° Feed rate X-axis: 0 – 40,000 mm/min Feed rate Y-axis: 1 – 24,000 mm/min Feed rate Z-axis: 1 – 70,000 mm/min Feed rate B-axis: 1 – 20 rpm Rapid traverse X/Y/Z: 40 / 24 / 70 m/min Feed force X/Y/Z S6: 7.00 / 11.00 / 7.50 kN Tool interface: HSK 63 Milling spindle speed: 10 – 12,000 rpm Drive power 100% duty cycle: 13.20 kW Drive power 40% duty cycle: 22.00 kW Milling spindle torque: 60 / 100 Nm Max. tool length: 350 / 200 mm Tool diameter: 80 mm Tool diameter with 2 free pockets: 120 mm Max. tool weight: 6 / 10 kg SLIDE II X-Axis travel: 180 mm Z-Axis travel: 1,050 mm Feed rate X-axis: 1 – 24,000 mm/min Feed rate Z-axis: 1 – 36,000 mm/min Rapid traverse X + Z axes: 24 / 36 m/min Feed force Z / X S6: 11.00 / 9.00 kN Turret (positions): 12 Tool holder: DIN 69880 Ø40 Driven tool positions: 12 Speed: 1 – 4,000 rpm Drive power 100% duty cycle: 10.70 kW Torque S1: 32 Nm SLIDE III Z-Axis travel: 1,150 mm Feed rate Z-axis: 1 – 36,000 mm/min Rapid traverse Z-axis: 36 m/min Feed force Z-axis S6: 13.00 Nm MAIN SPINDLE Model: ISM90 Speed: 10 – 4,000 rpm Drive power 100% duty cycle: 36.00 kW Drive power 40% duty cycle: 45.00 kW Torque at 40% / 100% duty cycle: 800 / 630 Nm Spindle bore: 80 mm COUNTER SPINDLE Speed: 10 – 5,000 rpm Drive power 100% duty cycle: 21.00 kW Drive power 40% duty cycle: 28.00 kW Torque at 40% / 100% duty cycle: 320 / 240 Nm Spindle bore: 80 mm MACHINE DETAILS Iaodpfx Ajwyvc Uspcjr Electrical Data Total power requirement: 70.00 kW Dimensions & Weight Machine weight: approx. 20.00 t Footprint: approx. 8.50 x 4.50 x H3.10 m Control Control manufacturer: Siemens Control model: SINUMERIK 840D EQUIPMENT Chip conveyor Oil mist separator DMG Automation WH10top Main spindle ISM90: Hollow chuck, C-axis, 3-jaw power chuck SMW-AUTOBLOK KNCS-NB-315-91 Counter spindle ISM76: Partial hollow chuck, C-axis, 3-jaw power chuck SMW-AUTOBLOK KNCS-NB-315-91 Pick-off unit with integrated conveyor belt Automatic safety cover Differential pressure clamping With pump stand for coolant: Pump 1: 17 l/min at 80 bar / Pump 2: 20 l/min at 8 bar / Pump 3: 40 l/min at 20 bar Hainbuch collet chuck including collets Ø30, 45, 50, 55, 60, 65, 72, 82, 85, 90 1 workpiece pick-off for turret

Condition: good (used), Year of construction: 2008, 1 used CNC turning/milling center Gildemeister type TWIN 65 RG 2 year 2008 with Siemens 840 D Maximum turning length (travel in the Z axis) 650 mm Maximum turning diameter over bed 250 mm Maximum length of travel in the X-axis 300 mm Maximum feed speed X-axis 30 m/min Maximum feed speed Z axis 30 m/min Maximum main spindle power 35 kW Spindle diameter 65 mm Minimum main spindle speed 20 1/min Isdpfeq T I Izox Apcoar Maximum main spindle speed 5000 1/min Lathe length 7000 mm Lathe width 4700 mm Lathe height 2500 mm Lathe weight 10 t Machine equipment Y axis Irco loading magazine ILS RBK 1200 mm Workpiece pick-up device Technical data Errors excepted Please note that the machine is sold without chucks, as these remain with the seller!

Condition: good (used), Year of construction: 1989, operating hours: 64,136 h, Centre height: 350 mm Turning length: 1000 mm Max. swing diameter over bed cover: 600 mm Max. swing diameter over cross slide: 360 mm Spindle bore: 107 mm Speed range: 16 – 3150 rpm Feed range longitudinal & face: 0.5 – 5000 mm/min Rapid traverse longitudinal & face: 9 m/min Main drive: 30 kW Dimensions of machine with chip conveyor (L x W x H): 5400 x 2200 x 2000 mm Weight: 6400 kg Accessories / Special features: • CNC control GILDEMEISTER EPL 2 with TFT display General description: CNC manual input control system with program entry via function and numeric keypad. All information is entered in dialogue with the screen. Integrated menu technology with plain text display of all functions. Operator keypad, display, and electronic handwheel located within a separate chip guard housing. The EPL control offers the following capabilities: • Direct interactive program entry and editing by the operator through the EPL control without manual technological preparation • NC programs in ISO/EIA format can be entered, output, or manually keyed in via the RS 232 serial interface Machining cycles: • Removal cycles for longitudinal, facing, and contour turning, including with allowance • Thread cutting • Undercuts as per DIN 509-Form E and F and DIN 76; grind stock programmable • Axial and radial grooves as per DIN 471 and 472, including bottom finishing • 90° radii and 45° chamfers • Automatic cutter radius compensation for cycles, undercut, groove, radius, chamfer Programming: • Block-orientated, metric/inch, diameter for absolute entry, radius for incremental entry Isdjvr Eh Eepfx Apcear • Full circle programming, subroutine technology, hide levels for program sections, zero point offset, mode selection via menu Program entry and output: • Interactive via guided menu or direct in dialogue • Hydraulic 3-jaw chuck Ø 315 mm with through spindle bore Ø 80 mm • Hinged chip conveyor • 12-position tool turret VDI 40, 6 standard stations + 6 driven tool stations • Coolant system • RS 232 interface • Electronic handwheel • Electric foot switch for 3-jaw chuck and tailstock quill • Lighting • 12 various standard toolholders (to be finalized on site) Overhauled servo drive for main spindle, 06/2025 Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel

Year of construction: 2003, condition: good (used), Sub-spindle, Y-axis, B-axis SIEMENS 840D Powerline Turning diameter max 200mm Turning length -635mm Swing Diameter -250mm Spindle speeds main & sub-spindle 20-7000 rpm Turret head 1+2: 12 driven positions B-Axis, upper turret head +135/-45° Iedpfxjglf A He Apcsar Misc. accessories MARCELS MASCHINEN CH

Condition: excellent (used), CNC vertical lathe Gildemeister CTV 250 Working area: Chuck diameter: 250mm X-axis: 800mm Z-axis: 300m Spindle head: 170 h5 Iasdsvuqm Sjpfx Apcsr Spindle diameter in the front bearing: 120mm Spindle bore: 79mm C-axis Number of work stations: 12 Videos available!!

Condition: excellent (used), Year of construction: 2007, CNC Lathe GILDEMEISTER CTX 420 Linear 2007 Siemens 840 D Technical specifications: * Turning length: 600 mm * Turning diameter: 680 mm * Spindle bore: 79 mm * Spindle speed: 5000 rpm * Spindle power: 25 kW Iaodew Slfbspfx Apcer * Chip conveyor: Yes * Variable spindle speed: 5000 rpm Main spindle with bar capacity: Ø 65 mm Self-centering Autoblock chuck: Ø 250 mm

Condition: excellent (used), Year of construction: 2002, CNC Turning-Milling Center GILDEMEISTER TWIN 500 Linear Year of manufacture: 2002 Siemens control system Iedpew Tarfofx Apcsar Technical data: Swing diameter: 610 mm Turning diameter: 610 mm Turning length: 1870 mm Drive power: 69 kW Spindle speed: 3,200 rpm C-axis torque: 650 Nm Main spindle - left Chuck diameter: 250–500 mm Max. bar diameter: 102 mm Upper slide Rapid traverse speed X/Y/Z: 45/24/70 m/min Slide travel X1/Y1605 / 105 mm Turning/milling spindle HSK 63A Max. spindle speed: 12,000 rpm B axis Swivel range B1: 120° Resolution: 0.001° Tool magazine Number of tools: 40 Tool length / Max. quantity: 350/40 mm

Condition: excellent (used), Year of construction: 2008, operating hours: 35,598 h, functionality: fully functional, machine/vehicle number: 07400004031, spindle motor power: 20 W, spindle speed (min.): 3,250 rpm, spindle speed (max.): 5,000 rpm, bar passage: 90 mm, overall weight: 10,000 kg, bar capacity 90 mm - 2x12 position driven turrets - Y axis in upper turret - tail stock - Siemens 840D power line Control - machine in perfect condition that has always worked with oli - very very well tooled - Lns Sprint S2 barfeed. Iajdeuyx Hzspfx Apcer

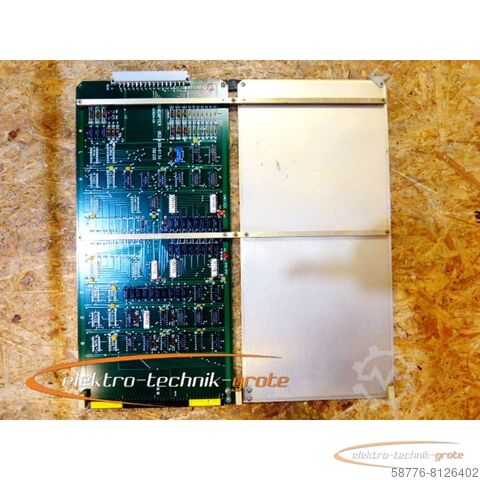

Condition: ready for operation (used), Gildemeister 852.14.00-01.34 bus adapter, serial number as per photo, used, normal signs of use, 100% functional Iodpfji D U Tcjx Apcjar

Condition: ready for operation (used), Gildemeister 9.635.839 High Board 25-355 , serial no. according to photo, used, normal signs of wear, 100% functional Iodpfx Aei D U Tgepcear

Condition: excellent (used), Boring head, spindle head, drilling head, grooving drill head, grooving head, spindle drilling head, boring head, spindle tool -Adjustment: SK50 Iaodpfsb A Hvajx Apcsr -Tool holder: M20 -Price: for both recordings -Weight: 16 kg

Condition: used, Year of construction: 2001, turning diameter 400 mm turning length 549 mm control HEIDENHAIN Eltropilot swing over bed 570 mm travel -x axis 220 mm travel -z axis 635 mm main spindle bore 79 mm main spindle speed 25 - 5000 U/min main spindle drive 21 kW max. torque on the spindle max. 240 Nm 120 mm c-axis, speed 100 U/min C-axis Haltemoment 200 Nm C-axis resolution < 0,04 ° sub spindle bore 56 mm sub spindle speed 25 - 5000 U/min sub spindle drive 9 kW max. torque on the spindle max. 72 Nm 90 mm c-axis, speed 100 U/min C-axis Haltemoment 150 Nm C-axis resolution < 0,04 ° feed power X/Z axis 3,5 / 7 Nm rapid traverse X-axis 20 m/min rapid traverse Z-axis 24 m/min Iasdpfox I Sfnox Apcer tool turret 1 x 12 Stationen number of driven tool stations 12 speed of driven tools 4.000 U/min total power requirement 44 kVA weight of the machine ca. 5,7 t dimensions of machine L x W x H 3,65 x 2,03 x 2,1 m Accessories: collet fixture HAINBUCH on main spindle, 3-jaw chuck RÖHM, 140 mmø, on sub spindle, 3 collets, chip conveyor, coolant with band filter device

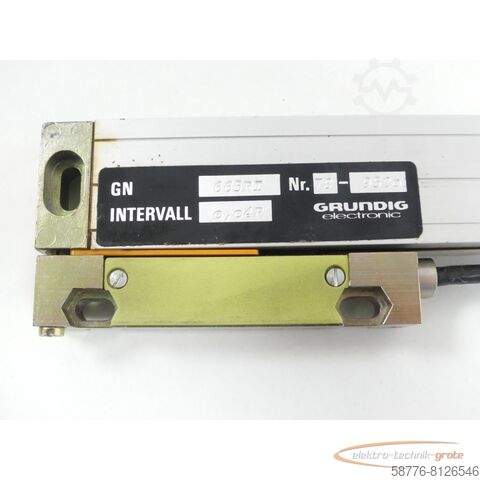

Condition: ready for operation (used), Grundig 665RI Length gauge ML 770 mm SN:78-95201 ,used, normal signs of wear, 100% functional, scope of delivery according to photos Iaodpoi Eacwofx Apcer

Condition: ready for operation (used), Heidenhain / Grundig VIC30 AES 2 / IN0853694 control board SN:7171033 Grundig No. 0.881.952-0 VIC30 from Gildemeister CTX 600, used, minor signs of wear, 100% fully functional, delivery as per photos. Iajdpox Dwqxofx Apcsr

Condition: ready for operation (used), Year of construction: 2007, operating hours: 23,567 h, functionality: fully functional, spindle speed (max.): 5,000 rpm, travel distance X-axis: 165 mm, travel distance Y-axis: 80 mm, travel distance Z-axis: 678 mm, bar passage: 70 mm, controller model: Fanuc 310i, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS X1 travel: 165 mm Y1 travel: 80 mm (+50/-30 mm) Z1 travel: 678 mm X2 travel: 165 mm Z2 travel: 640 mm Main spindle Max. speed: 5,000 rpm Max. bar capacity: 70 mm Draw tube bore: 75 mm Torque: 191 Nm Power: 20 kW Sub-spindle Max. speed: 5,000 rpm Draw tube bore: 42 mm Torque: 108 Nm Power: 17 kW Turret 1 & 2 Tool stations per turret: 12 live Live tools: 4,000 rpm MACHINE DETAILS Control: Fanuc 310i Number of controlled axes: 8 Dimensions & Weight Machine dimensions: 4,400 mm x 2,000 mm x 2,300 mm Iasdpsx Af Dkofx Apcor Machine weight: 8.8 t Chip conveyor weight: 750 kg Operating Hours Automatic mode: 23,567 h Power-on hours: 51,273 h EQUIPMENT Chip conveyor 2 x collet chucks Parts conveyor Extraction unit Bar feeder FMB Turbo 8-80 / 3200

Condition: excellent (used), Year of construction: 1973, 3 Gildemeisters AS32-6 in good state for sale Iasdpjd S E Itefx Apcer Different separate spare parts available, among which a new tapping device, a new bronze crown wheel for the main drive, a cross drill device, several gripping spindles for processing the rear of product and several other spare parts €12.500 per Gildemeister

Condition: excellent (used), Year of construction: 2004, Control Siemens Sinumerik 840D Bar capacity 65 mm Speed 5,000 min-1 2 x 12-way turret with driven tool Turret 1 with Y-axis Part collection device Belt filter system Iaedpfx Apewh U D Hscor Chip conveyor Bar loading magazine IRCO Profimat

Condition: excellent (used), Year of construction: 2000, Siemens control unit Bar passage 32 mm 2 x 12-position turrets with driven tools Main / counter spindle Y-axis turret top Parts lifting device Iajdpewh U Edjfx Apcsr Chip conveyor IRCO bar loading magazine

Condition: ready for operation (used), Year of construction: 2005, 1 unit of used CNC lathe with driven tools and Y-axis. Siemens control. Iasdpfx Ajwz Sgfepcer

Condition: good (used), Center height 260 mm Trestle holder MK 4 Quill stroke 100 mm Iajdpfxjralkms Apcsr This hydraulic tailstock comes from a GILDEMEISTER CT 40 CNC slant-bed lathe. Fig. similar Siegfried Volz Machine Tools Rüschebrinkstr. 151-153 DE - 44143 Dortmund-Wambel
