Used Bruderer Bsta30 for sale (70)

Condition: used, Bruderer Press BSTA30.  30 Ton Capacity, Digital Display. Variable Range 100-600 RPM Stroke Adjustment 8-40mm Ram adjustment 40mm Drive Motor 5.5KWMax material Width 120mmMax Material Thickness 3mm Crsdpfxsx Sr Nbj Aqtof

Condition: good (used), . Technical data . Pressing force 30 t Stroke 100 - 600 mm Ram stroke, adjustable 8 - 40 mm Installation height 200 mm . Various reels in stock up to 300 kg Cedpfx Aqjzg Tfkoterf . . Ongoing purchase of used German machines without NV or CNC control

Condition: used, Year of construction: 1979, machine/vehicle number: 5255, pressure:30 t no. of strokes:100-600 Hub/min sheet width:120 mm table-size:540 x 450 mm Bruderer Double Roll Precision Feed:links Codecxxu Nspfx Aqterf stroke adjustable from - to:16-40 mm distance between columns:330 x 300 mm total power requirement:5,5 kW weight of the machine ca.:3 t dimensions of the machine ca.:2,10 x 1,65 x 0,75 m with air cooler, piece counter, separate electrical cabinet, air clutch, BRUDERER precision double-roll feeder on left side, machine technically, mechanically and optically as new

Condition: used, machine/vehicle number: 632/6, pressure:30 t no. of strokes:100-600 Hub/min sheet width:120 mm table-size:480 x 450 mm Csdpjcxxycefx Aqtorf Bruderer Double Roll Precision Feed:links stroke adjustable from - to:16-40 mm distance between columns:330 x 300 mm dimensions of the machine ca.:2,10 x 1,65 x 0,75 m with air cooler, piece counter, separate electrical cabinet, air clutch, BRUDERER precision double-roll feeder on left side, machine technically, mechanically and optically as new

Condition: used, machine/vehicle number: 8483, pressure:30 t no. of strokes:100-600 Hub/min sheet width:115 mm table-size:450x450 mm Bruderer Double Roll Precision Feed:BBV 190/85 links stroke adjustable from - to:16-40 mm distance between columns (le-ri):330 mm :280 mm dayligth:290 mm inlet width:120 mm Csdpfscxxrdex Aqtjrf feed length:15-80 mm dimensions of switch cabinet:1,1 x 1,2 x 2,2 mm hole in the table:315 x 100 mm total power requirement:5,5 kW weight of the machine ca.:3 t high speed triple-column design, BRUDERER BBV 190-85 feeder on left side, cooler ventilation, swivelling safety gate, pneumatic clutch, manual roll vent. on feeder

Condition: used, Year of construction: 1971, machine/vehicle number: 1967, pressure:30 t no. of strokes:100 - 600 Hub/min stroke adjustable from - to:8 - 40 mm ram adjustment:40 mm inlet width:198 mm mould height - Max./min.:230 - 270 mm roll surface width:110 mm hole in the table:310 x 80 mm distance between columns (le-ri):330 mm distance between columns (vo-hi):280 mm table height over floor:990 mm column diameter:50 mm voltage:380 V frequency:50/60 Hz control voltage:24 V table-size:475 x 450 mm ram diameter:190 mm total power requirement:0,96 - 5,5 kW Crodpfjcxxxmex Aqtof weight of the machine ca.:2,5 t dimensions of the machine ca.:1,2 x 1,16 x 2,15 m

Condition: refurbished (used), Year of construction: 2001, functionality: fully functional, Overhauled BRUDERER BSTA300 automatic punching press incl. new press control unit Technical data: ----- Tonnage 300KN Die installation opening 750mm Stroke rate 80-1400 (depending on selected stroke) Adjustment stroke 13, 16,19,25,32,38,44,47 Plunger adjustment range 51mm Tool installation height 171-239 mm (depending on the selected stroke) Clamping plate 740x480mm Ram area 630x360mm Belt passage width 206mm Base plate opening 710x160mm Belt infeed height 50-120mm Belt direction left to right Feed Servo feed Machine weight approx. 5150 kg Machine color RAL 1013 pearl white Color attachments RAL 7016 anthracite Control cabinet color RAL 7035 light grey Crsdpstvnlbofx Aqtjf

Condition: reconditioned (used), functionality: fully functional, ram adjustment: 40 mm, installation height: 2,500 mm, pressing force: 30 t, stroke length: 40 mm, High Speed Automatic Punching Press. Machine with CE certificate and EUR1 certificate of European origin. Equipped with twin synchronized double rolls feeds for strips widths from 5 mm – 150 mm. PLC touch screen logical interface control. Numerically controlled stamping process (NC). With stroke and speed counter, programmable length, auto stop. Three working modes: Manual, One stroke and Automatic. Pneumatic clutch and brake. Operator’s instruction manual in English. Stroke power: 300 [KN] (30 [tons]). Adjustable stroke: 8-40 [mm]. Table: 540 x 300 [mm]. Adjustable speed 100 – 600 strokes per minute up to 10 in one second. Maximum strip thickness 2.5 [mm]. Central lubrication. Power consumption 5.5 [kW] Technical Air 5-10 [bar]. Warranty: 1 year. Crjdpfevkfmrex Aqtof Two feeders are used when you need to stamp very thin, soft strip or very heavy strip, to secure precise feeding. All specifications non-binding , subject to change without notice.

Condition: used, Year of construction: 2004, pressure 80 t Credpfx Aozrpq Hoqtof stroke 16 - 63 mm no. of strokes 100 - 750 /min distance between columns 970 mm dayligth (stroke and adjustment up) 380 mm column travel -side 380 mm table surface area 940 x 910 mm hole in the table 770 x 190 mm table height over floor 1180 mm ram surface 940 x 510 mm ram adjustment 76 mm material width 203 mm material thickness - 6,0 mm feed length 0 - 120 mm power requirement 37,0 kW Weight 14,50 t dimensions of the machine ca. 2,7 x 1,7 x 3,6 m with infinitely variable drive, pneumatic clutch/brake combination, semi-automatic stroke adjustment, motoric ram adjustment, fix table, circular oil lubrication mechanical roll feed Bruderer BBV 205/120 with drive via main shaft / pivot shaft of the press consoles Guethle CK 01/0800

Condition: excellent (used), Year of construction: 1990, functionality: fully functional, machine/vehicle number: 9443, total height: 3,160 mm, ram adjustment: 64 mm, total width: 1,300 mm, total length: 2,470 mm, conveyor belt width: 160 mm, pressing force: 50 t, control cabinet height: 1,100 mm, control cabinet length: 1,250 mm, control cabinet width: 400 mm, type of input current: AC, stroke adjustment: 1,651 mm, clearance between the columns: 250 mm, working width: 950 mm, input voltage: 380 V, overall weight: 8,600 kg, control voltage: 24 V, conveyor belt thickness: 4 mm, pressure: 5 bar, compressed air connection: 10 bar, input frequency: 50 Hz, punching force: 50 t, BRUDERER BSTA 50HL (500 kN, year of manufacture 1990, order no. 9443) HIGH-PERFORMANCE STAMPING PRESS 100-1000 SPM Technical data Press manufacturer: BRUDERER AG, Frasnacht, Switzerland Machine model: BSTA 50 HL Serial/order number: Order no. 9443 Year of manufacture: 1990 Total weight approx.: 8,700 kg Soundproof cabin: W 3,460 × L 2,331 × H 3,910 mm (optional extra) Stroke range (adjustable): 16 / 19 / 25 / 32 / 38 / 44 / 51 mm Ram adjustment range: 64 mm Tool opening width (max.): 950 mm Support plate – width × depth: 940 × 650 mm Base plate opening W × D: 900 × 200 mm Strip feed height (adjustable): 60 – 140 mm Max. strip feed width: 250 mm Feeder: BBV 195 - 85 Feed angle: 90 degrees Max. strip thickness: 4 mm, strip width: 160 mm Feed length: 0 – 85 mm Supply voltage: 3 × 380 V / 50 Hz Main motor power: 28 kW Control voltage (DC): 24 V DC Csdpszq Sdyefx Aqterf Pneumatic supply: 6 – 10 bar (R ½" connection) Press width (with feeder): approx. 2,471 mm Press depth: approx. 1,302 mm Press height: approx. 3,165 mm Price including transport in Europe Original technical documentation and circuit diagrams Optional: Sound-insulating safety cabin/enclosure

Condition: refurbished (used), Year of construction: 2027, pressing force: 60 t, Machine made to order: High speed press BSTA 60 Retrofit and general overhaul Conversion to electronic drive und new Unidor PC-control system. Tool area enlargement possible. Credpfx Aqezlqlfjtsf Please contact us for detailed offers.

Condition: refurbished (used), Year of construction: 2025, functionality: fully functional, Bruderer roll feed, BBV 202/120, left-hand side, suitable for installation on BSTA 25/250 or BSTA 50/500 presses Feed length 0-120 mm Roller width 120 mm Crodpezlqkbefx Aqtof Strip inlet width max. 203 mm Strip thickness max. 6 mm Feed length adjustment motorized. Fully overhauled in 2025. Available for immediate delivery. Also in stock are other feeder models, such as BBV 190/85, BBV 195/85, BBV 205/120, BBV 320/200 etc. Please contact us for more information!

Condition: excellent (used), Year of construction: 2007, operating hours: 19,269 h, functionality: fully functional, BSTA 41, with 2x BBV 202/120+ scrap shear complete refurbished by Bruderer Swiss in 2007, CE conversion possible Contact us! Crsdozlqi Dspfx Aqtof

Condition: excellent (used), Year of construction: 2000, functionality: fully functional, stroke length: 38 mm, input voltage: 400 V, punching force: 25 t, Bruderer BSTA 25USL with BBV 190/85 roll feed, - year of mfg. 2000 - Tool area 750mm - Adjustable stroke 13 to 38mm - complete documentation - Soundproof cabin - Machine checked, in very good condition! Cjdpfx Aozlqhyoqtsrf contact us!

Condition: excellent (used), Year of construction: 2006, functionality: fully functional, punching force: 25 t, Bruderer BSTA 250-75B with BBV 190/85H - B-Control, year of mfg. 2006 - Tool area 750mm - Adjustable stroke 13 to 38mm - complete documentation - Machine checked, in very good condition! contact us! Codpjzlqhmefx Aqtjrf

Condition: used, Year of construction: 1983, Bruderer BSTA 50 HL with BBV 202/120 Available, delivery time on request CE conversion possible. Crodszlqg Aepfx Aqtsf Contact us!

Condition: reconditioned (used), Year of construction: 1996, pressing force: 50 t, stroke length: 51 mm, Bruderer BSTA 50USL - Tool loading area 1100mm L-R Cedpfx Aszlqgieqtjrf - Machine under refurbishment, with new controls, - Roll feed BBV or optionally servo feeder available Please contact us for a detailed quotation!

Condition: used, Year of construction: 1980, pressure 25 t no. of strokes 1500 Hub/min Csdpfovu E Iqox Aqtjrf total power requirement 20 kW

Condition: used, Year of construction: 1985, pressure 25 t Credsvu E I Depfx Aqtof no. of strokes 1500 Hub/min total power requirement 20 kW

Condition: used, Year of construction: 1994, functionality: fully functional, table length: 950 mm, table width: 650 mm, pressing force: 50 t, stroke length: 51 mm, Bruderer BSTA 50EL - Tool loading area 950mm L-R - Machine will be mechanically overhauled Codpfszkk Azsx Aqtjrf - Roll feed BBV 202/120 Please contact us for a detailed quotation!

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, table length: 950 mm, table width: 650 mm, pressing force: 50 t, stroke length: 51 mm, Bruderer BSTA 50UL - Tool loading area 950mm L-R - Machine will be mechanically overhauled Crsdpfozkkxcjx Aqtsf - Roll feed BBV 202/120 Please contact us for a detailed quotation!

Condition: used, machine/vehicle number: 4131, Item No. Lg 34422 High-performance stamping press BRUDERER BSTA 60 H Cedpfx Asinzdloqterf from current production. Stroke adjustment needs to be repaired. without soundproof cabin and without conveyor system. Feeder BBV 202/120

Condition: used, Year of construction: 2021, Stamping Press Manufacturer: Bruderer AG, CH-9320 Frasnacht, Switzerland Type: BSTA 1600-181 Serial number / Commission: 14073 Year of manufacture: 2021 Press force: 1,600 kN (160 tons) Press control type: B2 Connected load: 99 kVA Supply voltage: 400 V / 50 Hz Pneumatic connection: 7–10 bar Clutch and brake system pressure: 4.3–5.8 bar Max. stopping time: 250 ms Total weight: 33,020 kg Control panel: Bruderer touchscreen HMI Secondary display: Nidec / SYS PCS 100-P-C Sound-insulating enclosure (red/orange) Tool stroke counter: 11,983,110 (as displayed) Crsdpfxjzil Trs Aqtef UVV safety inspection by Bruderer: September 2025 – no defects found Strip Feeding Line Manufacturer: Kohler Maschinenbau GmbH, Lahr, Germany Type: BZA ABH 2000.2H – KRS 18.260/19 – BF1 Machine number: 41000 Year of manufacture: 2021 Connected load: 10 kW Supply voltage: 400 V, 50 Hz Feed type: BBV 300 Motorized decoiler with yellow safety enclosure

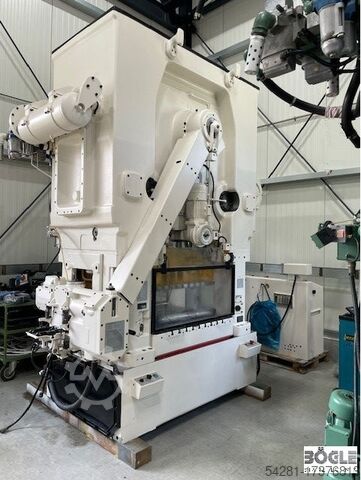

Condition: used, Year of construction: 1977, Stamping Press Manufacturer: Bruderer AG, Arbon, Switzerland Type: BSTA 110 Serial number: 4343 Year of manufacture: 1977 Press force: 110 tonnes Stroke rate: 100–850 strokes/min Stroke (adjustable): 16, 19, 26, 35, 43, 51, 58, 64, 70, 75 mm Ram adjustment: 89 mm Max. tool installation width: 1,170 mm Max. strip feed width: 400 mm Strip feed height above clamping plate: 80–180 mm Bed opening: 1,120 x 400 mm Connected load: 50 kW Supply voltage: 3 x 380 V AC, 50 Hz Control voltage: 24 V AC Compressed air connection: R ½", 6–10 bar Machine dimensions (H x W x D): 3,930 x 3,320 x 2,250 mm Total weight incl. strip feed: approx. 24,600 kg Crsdpfxozil Suo Aqtsf Strip Feed Unit Manufacturer: Bruderer AG, Arbon, Switzerland Type: BBV 320/200 Max. feed: 200 mm Max. strokes/min: up to 1,000 (feed-dependent) Accessories Kohler unwinder Heспо straightener SYS PHS 5000 Sound-insulating enclosure (orange)

Condition: used, Year of construction: 1994, operating hours: 28,000 h, functionality: fully functional, The Bruderer BSTA 80H is an 80-ton high-speed stamping press built for heavy-duty progressive-die production, fitted with a BBV 320/200 strip feeder and Unidor tool monitoring. In stock in Pforzheim, ready for inspection. Nominal force: 800 kN (80 tons) Tool monitoring: Unidor Stroke rate: 100–1,000 spm Cedpfxszibtbj Aqtjrf Strip feeder: Bruderer BBV 320/200 Adjustable stroke: 16–63 mm Clamping plate area: 970 mm Main drive: 43 kW Power supply: 380 V / 50 Hz Ram area: 760 x 510 mm Table area: 950 x 910 mm Strip inlet height (adjustable): 80–180 mm Max. strip width: 360 mm Max. material thickness: 3 mm Machine dimensions: 2834 x 1742 x 3460 mm Weight: approx. 15,550 kg Operating hours (main drive): approx. 28,067 h More machines from brands Bruderer, Bihler, Soprem, Noxon, Huras, Schaal and Mabu on stock available on request
