Used Deckel Maho Fp4M Special Edition for sale (9,278)

Condition: like new (used), Year of construction: 2022, functionality: fully functional, We offer you: Manufacturer: Deckel Maho Model: FP4M special edition Year of manufacture: 2022 Control system: Heidenhain ND 7013 digital readout Technical data: Travel distances: X-axis: 500 mm Y-axis: 530 mm Z-axis: 400 mm B-axis: swiveling ±90° (180°) Main spindle: Tool holder: SK 40 Spindle speed range – main spindle: 25 – 3,000 rpm Drive power – main spindle (100/40%): 6 kW Worktable: Table size: D 800 x 480 mm Feeds: Feed range: 6 – 500 mm/min Rapid traverse (x/y/z): 1,500 mm/min Space requirement (W x D): approx. 2,235 x 1,875 mm Machine weight: approx. 1,600 kg with worktable and milling head Technical features & accessories: - With additionally adjustable milling head on the Y-axis (130 mm) Accessories, depicted tools and clamping devices are only included in the scope of delivery if specified in the additional information. Subject to changes and errors in the technical data and specifications, as well as prior sale! Ncodpfxjy Hfquj Akuot

Condition: ready for operation (used), Year of construction: 2001, operating hours: 8,200 h, functionality: fully functional, machine/vehicle number: 28850018432, TECHNICAL DETAILS Tool diameter: max. 140 mm Speed at maximum diameter, max.: 6,500 rpm Balancing quality according to DIN ISO 1940: G 6.3 Tool Magazine Number of tools: 24 Tool diameter, standard tools: max. 80 mm Tool diameter, special tools with adjacent positions free: max. 140 mm Tool length: max. 300 mm Tool weight: max. 7 kg Magazine load: max. 72 kg Ncjdpfx Akey Rta Eeust Table Clamping surface with T-slots DIN 650-14: 800 x 500 mm Loading height, top of table: 850 mm Workpiece height: max. 240 mm Table load capacity: max. 500 kg Coolant System Tank capacity with standard chip container: 150 l Tank capacity with spindle cooling: 80 l Pump performance standard, flow rate: 30 l/min Pump performance standard, pressure: 1.2 bar Tank capacity with chip conveyor option: 750 l Pump performance, chip conveyor option, flow rate: 40 l/min Pump performance, chip conveyor option, pressure: 3.0 bar Tank capacity including chip conveyor: 750 l Pump performance, internal coolant supply, flow rate: 30 l/min Pump performance, internal coolant supply, pressure: 15 bar Chip Disposal Chip conveyor discharge height: 850 mm Chip conveyor type: scraper belt MACHINE DETAILS Rated power: 30 kVA Rated current: 42 A Delayed main fuse: 3 x 50 A Operating voltage: 400 V Frequency: 50 Hz Compressed air connection: 6 bar Required system delivery rate: 38 Nm³/h Ambient temperature: +5 to +40 °C Average temperature over 24 h: +35 °C Relative humidity: 30–95 % Dimensions & Weight Transport dimensions of the machine with table (L x W x H): 3.1 x 2.1 x 2.4 m Transport weight: approx. 4,200 kg Mounting elements: 4 x BNV 150/4 EQUIPMENT Fixed station coding Vertical tool changer Pick-up system via work spindle Coolant system Spindle cooling Chip conveyor Internal coolant supply Mounting elements BNV 150/4

Condition: ready for operation (used), Year of construction: 2001, operating hours: 18,391 h, functionality: fully functional, machine/vehicle number: 11160000853, travel distance X-axis: 600 mm, travel distance Y-axis: 700 mm, travel distance Z-axis: 600 mm, controller manufacturer: Heidenhain, spindle speed (max.): 12,000 rpm, No minimum price – guaranteed sale to the highest bidder! Nedpfx Akjy Ni Aasusct TECHNICAL DETAILS X-Axis Travel: 600 mm Y-Axis Travel: 700 mm Z-Axis Travel: 600 mm Maximum Spindle Speed: 12,000 rpm X-Axis Feed Rate: 20 – 15,000 mm/min Y-Axis Feed Rate: 20 – 15,000 mm/min Z-Axis Feed Rate: 20 – 15,000 mm/min Rapid Traverse X-Axis: 40 m/min Rapid Traverse Y-Axis: 40 m/min Rapid Traverse Z-Axis: 40 m/min Linear Scale Resolution X-Axis: 0.001 mm Linear Scale Resolution Y-Axis: 0.001 mm Linear Scale Resolution Z-Axis: 0.001 mm Input Increment X-Axis: 0.001 mm Input Increment Y-Axis: 0.001 mm Input Increment Z-Axis: 0.001 mm Positioning Accuracy X-Axis: 0.01 mm Positioning Accuracy Y-Axis: 0.01 mm Positioning Accuracy Z-Axis: 0.01 mm Tool Holder: SK 40 NC Rotary Table Clamping Surface Diameter: 630 mm Max. Table Rotation Speed: 10.7 rpm Table Feed Rate: 3,600 /min Table Scale Resolution: 0.001 MACHINE DETAILS Control Manufacturer: Heidenhain Recorded Spindle Hours: 18,391 h Operating Voltage: 400 V Frequency: 50 Hz Rated Current: 80 A Connected Load: 44 kVA Dimensions & Weight Dimensions (L x W x H): 5,500 x 4,500 x 2,500 mm Machine Weight: 10,000 kg EQUIPMENT 60-station tool changer Chip conveyor Cooling system

Condition: used, Year of construction: 2008, functionality: fully functional, travel distance X-axis: 635 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 460 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, controller manufacturer: Heidenhain, controller model: iTNC530, workpiece weight (max.): 600 kg, total height: 2,665 mm, total length: 2,440 mm, total width: 1,900 mm, table width: 790 mm, table length: 560 mm, table load: 600 kg, overall weight: 4,200 kg, spindle speed (min.): 20 rpm, spindle speed (max.): 10,000 rpm, operating hours of spindle: 6,651 h, coolant supply: 20 bar, spindle nose: SK40 (DIN69871), number of slots in tool magazine: 20, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, A very well-equipped DMG Deckel Maho DMC 635 V with relatively low spindle hours. The machine is connected to power and can be seen in operation by appointment. Additional options & accessories: - Operation mode 4 - Internal cooling – 20 bar - Band filter system – 600L - Chip conveyor - Electronic handwheel - Original accordion cabin roof - Rinsing pistol - Approx. 30 pcs. SK40 tool holders (incl. 3D probe) - All original documentation Weight & dimensions: Ncjdpfsy E N Dcsx Akust 4,200 kg 2440 (3500 incl. PLC) x 1900 x 2665 mm (LxWxH)

Condition: ready for operation (used), Year of construction: 2001, Immediately available ex-site: 5-Axis Machining Centre Deckel Maho Model: DMU 50 M Year of manufacture: 2001 Control system: Heidenhain TNC 124 5 axes (3 + 2) Manual rotary axes with B and C swivel rotary table B and C axes are displayed on the control Table size: 700 x 500 mm Travel paths X/Y/Z: 500 / 400 / 400 mm Table load capacity: 200 kg Spindle taper: SK 40 Spindle speeds: 20 – 4,500 rpm Drive power: 9 / 13 kW C-axis rotation range: 360 degrees Swivel range: plus 95 / minus 10 degrees Njdpfx Asy Ugzqokuoct Feed rate up to 5,000 mm/min Spindle speeds: 20 – 4,500 rpm Weight: 3 tonnes Coolant system Price: EUR 8,500.— net, ex-site, plus VAT.

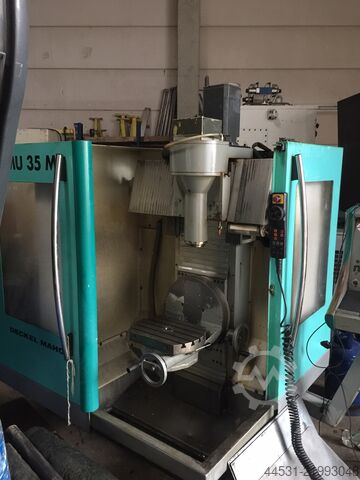

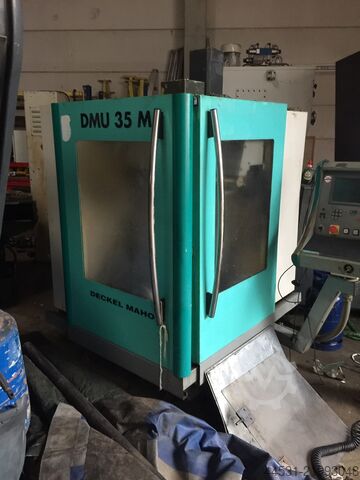

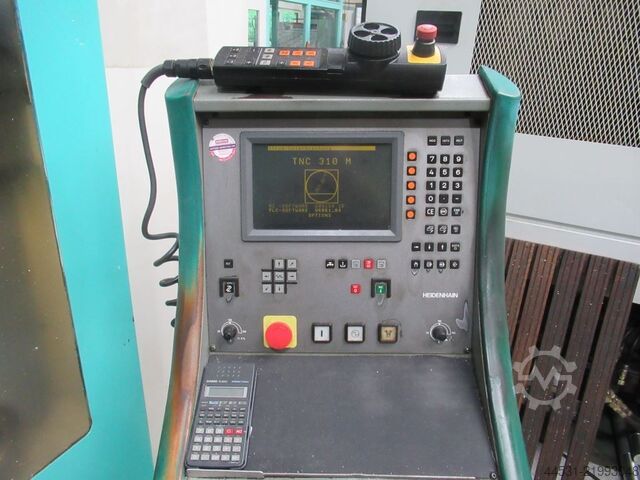

Condition: ready for operation (used), Year of construction: 2000, Immediately available from Swiss toolmaking: 5-axis milling machine Deckel Maho Type DMU 35 M Year of manufacture: 2000 CNC control: Heidenhain TNC 310 M Electronic handwheel Table 400 x 280 mm Table load up to 100 kg Travel X/Y/Z: 350/240/340 mm Infinitely variable spindle speeds: 0 – 5,000 rpm Taper SK 40 Rapid traverse 5 m/min Servo motors for X/Y/Z axes Swivel range 360 degrees Table clamping plus 105/minus 150 degrees Ncsdpfx Aey Ugw Eekust Weight 2 t Accessories, hydraulic vise Price: EUR 5,000.—plus VAT, ex works

Condition: used, Year of construction: 2021, operating hours: 14,603 h, machine/vehicle number: 15175186784, Catalog No.: 1.5, 5-axis machining, HEIDENHAIN TNC 640 (5 axes) path control, tool holder: SK40, clamping plate/table: 2,000 x 800 mm, max. table load: 500 kg, travel ranges X/Y/Z: 1,800/700/700 mm, swiveling head: +/- 100° stepless, special equipment: connection to a central oil mist extraction system, direct measuring systems, RENISHAW measuring probe with wireless communication, rotary table D700 with stepless positioning, external programming option via Mastercam, subject to prior sale. Nsdey T Nxiepfx Akusct

Condition: good (used), Year of construction: 2002, This vertical machining center was built in 2002 in Germany. It is in good working condition, with a maximum spindle speed of 18000 rpm and 21232 spindle hours. Including: Cnc controlled B-axis and C-axis Cooling through the spindle high pressure 40bar M&H 3d-probe Tool measurement It can be inspected under power in Belgium and will be available in October 2026 Control Heidenhain iTNC 530 Travel X 1080 mm Travel Y 710 mm Travel Z 710 mm Max spindle speed 18000 rpm Tool changer/magazine SK40 Ncodpfx Asy Tv Epskuet Number of toolpositions 32 Spindle hours 21232h Machine dimensions (LxWxH) 3500 x 2200 x 2410 mm Machine weight 9000 kg Please note: The information on this page has been obtained to the best of our ability and belief. This information is provided in good faith, but its accuracy is not guaranteed. Accordingly, this information is not binding and does not constitute a contractual condition. We recommend that you check all essential details during an inspection of the machine. To save unnecessary travel costs for our customers, in most cases we recommend organizing a live video inspection.

Condition: used, Year of construction: 2000, Technical details: x-travel: 500 mm y-travel: 400 mm z-travel: 400 mm b-axis: manuell positionierbar ° c-axis: manuell positionierbar control: Heidenhain TNC 124 tool changer with: nein Plätze spindle taper MT: SK40 Revolution per minute: 4500 U/min. feed speeds infinitely variable: X/Y/Z: max. 14000 mm/min rapid traverse:: 5,0 m/min table-size: 700 x 500 mm total power requirement: 17 kVA Weight approx.: 2,91 t dimension machine xH: 2,0 x 2,0 x 2,5 m Njdpfx Aou Idffjkuect CNC universal vertical milling machine The machine has 5 axes. B- and C-axis manual with measuring system. B-axis table swivel -10° / +95° and C-axis table rotate 360° (not interpolatable, manually selectable via control). Cooling device (without pump) Operation via swiveling boom *

Condition: used, Year of construction: 2001, Technical details: x-travel: 630 mm y-travel: 560 mm z-travel: 560 mm c-axis: Tisch 360° ° b-axis: Spindel=rechts:90/links=10° manuell ° control: Heidenhain TNC 430 MillPlusM table-size: 1000x600 mm table load capacity: 400 kg Nedpfsu Idgcex Akuect tool taper: SK 40 Revolution per minute: 20 - 12 000 U/min. feed speeds infinitely variable: x/y/z= 20 - 10.000 mm/min tool changer: 2 Magazine tool changer with: 12 place pro Magazin spindle hours: 21 212 h operating hours - idle run: 49 845 h total power requirement: 20,6 kW Weight approx.: 6,7 t dimension machine xH: 3,0 x 2,0 x 2,15 m Equipment: - AC motors for x/y and z-axis - Tool clamping hydraulic/mechanical - Chip conveyor with separator (screw conveyor) - seperately working indexing head Ø 300mm with manual control unit for B-axis table tilting -10° / +95° and C-axis table turning 360° (not interpolable, electric selectable via manual control unit) - Coolant unit 8 m³/h (dimensions: L:1,1 x W: 0,54 x H:1,2m) - control unit *

Condition: used, Year of construction: 2007, Technical details: x-travel: 635 mm y-travel: 460 mm z-travel: 510 mm control: 3D Heidenhain i TNC 530 table-size: 790 x 560 mm table load capacity: 600 kg tool taper: SK 40 Revolution per minute: 20 - 12 000 U/min. tool changer with: 20 place Njdpfx Aow A I Uuskujct spindle hours: 36.050 h operating hours - idle run: 91.000 h total power requirement: 13,9 kW Weight approx.: 3,6 t tool taper: SK 40 range of revolution per miute: 20-10.000 U/min Tool changer: 20-fach dimension machine xH: 3,0 x 2,0 x 2,15 m

Condition: used, x-travel 1.000 mm Ncjdpjy T Sb Tofx Akujt y-travel 800 mm z-travel 500 mm Control Heidenhain spindle tunring speed 15.000 U/min table dimensions 1.250 x 800 mm number of tool places 30 Pos. In our estimation, the machine is in good used condition and can be inspected under power by appointment. Accessories, as well as the tools and clamping devices shown in the images, are included in the scope of delivery only if explicitly noted in the additional information. Subject to changes, errors in technical data and specifications, and prior sale!

Condition: used, Year of construction: 2003, Technical details: turning diameter: 720 mm turning length: 2000 mm control: 4110 total power requirement: 40 kW weight of the machine ca.: 6 t dimensions of the machine ca.: 4,5 x 2,3 x 1,9 m turning length: 2000 mm centre height: 345 mm internal taper -metric: 100 mm spindle bore: 92 mm Ncjdpfxey Tnaxe Akuet tailstock-quill taper dia.: 100 mm turning diameter over bed: 720 mm

Condition: used, Year of construction: 1998, x-travel 500 mm y-travel 400 mm z-travel 400 mm Control TNC 426M Heidenhain turning speed range - main spindle 20 - 9.000 min/-1 power capacity - main spindel 9 / 13 kW max. Torque 57 / 82 Nm tool taper ISO 40 DIN 69871 table diameter 700 x 500 mm swivellable B: 105° (-10°/+95°) man. rotatable 360° man. max. table load 200 kg number of T-slots 7 T-slot - distance 63 mm T-slot - width 14H7 mm center hole 30H7 mm number of toolpositions 16 pos. tool taper ISO 40 DIN 69871 max. tool length 290 mm max. tool weight 6,0 kg max. total weight 50 kg feed speeds max. 10.000 mm/min rapid traverse 12 m/min Nodpfxjxmag Ue Akujct input unit 0,01 mm total power requirement 17 kW weight of the machine ca. 3,2 t dimensions of the machine ca. 4,0 x 4,0 x 2,5 m CNC - MachiningCenter Univresal DECKEL MAHO - DMU 50 T - 5 Axis (3 + 2) - Swivel-Rotary-Table incl. Angle-Specification (manual Axis B+C via Handwheel)

Condition: used, Year of construction: 2010, x-travel 2.600 mm y-travel 700 mm z-travel 700 mm control iTNC 530 Heidenhain turning speed range - main spindle 20 - 18.000 min/-1 power capacity - main spindel 35 / 25 kW tool taper SK 40 table surface area 2.900 x 700 mm max. table load 2.150 kg number of toolpositions 30 pos. tool taper SK 40 max. tool diameter 80 mm max. tool-dia with free toolbox 130 mm max. tool length 300 mm max. tool weight 6,0 kg rapid traverse ( X / Y / Z ) 40 m/min feed speeds max. 40.000 mm/min feed power max. 8 kN total power requirement 54 kVA weight of the machine ca. 14,4 t dimensions of the machine ca. 8,0 x 5,6 x 2,8 m CNC - Travel Column Milling Machine DECKEL MAHO - DMF 260 New Design - NC dividing head (A-axis) - Operating hours: 18.709h spindle run Ncjdpov Dxxnjfx Akujt - overhauld spindle installed (Dec 2023) - Z-axis weight compensation changed (Feb 2023) - Production package - Option: tool clamping for tightening bolts - WITHOUT vices!

Condition: used, Year of construction: 2007, x-travel 885 mm y-travel 600 mm z-travel 600 mm control iTNC 530 Heidenhain Max. rpm 1 - 28.000 min/-1 power capacity - main spindel 35 / 25 kW max. Torque 119 / 85 Nm tool taper HSK A63 Swivel range milling spindle B: -10° / +110° ° spindle bearing diameter 80 mm Ncedpfx Aotqmpiekuet table diameter 750 mm rotation range C: 360 ° rotary speed max. 100 min/-1 max. table load 600 kg feed speeds 1 - 90.000 mm/min rapid traverse 90 m/min Feed force X/Y: 13,8 kN Feed force Z: 10,35 kN number of toolpositions 30 pos. max. tool diameter 80 mm max. tool-dia with free toolbox 140 mm max. tool length 300 mm max. tool weight 10 kg max. workpiece height 460 mm Max. Workpiece Area ca. 750 x 600 mm passage max. 600 mm total power requirement 60 kVA weight of the machine ca. 12 t dimensions of the machine ca. 4,5 x 4,5 x 3,0 m CNC-Machining Center Vertical DECKEL MAHO - DMC 75 V linear - 5-Axis-Machining - NEW SPINDLE from 12/2022 ! - Swiveling Milling Spindle (-10° / 110°) - Rotary Table 360° - extensive tool package - only approx. 900 spindle hours (after exchange) - WITHOUT clamping devices, WITHOUT exhaust!

Condition: used, Year of construction: 2007, x-travel 880 mm y-travel 630 mm Ncsdpfsyaci Tex Akust z-travel 630 mm control iTNC 530 Heidenhain turning speed range - main spindle max. 18.000 min/-1 power capacity - main spindel 28 / 19 kW max. Torque 121 Nm tool taper HSK-A 63 swivellable B: +30° / -120 ° table surface area Ø 700 / 1.250 x 700 mm max. table load 650 kg rotatable C: 360 ° number of toolpositions 2x16 pos. tool taper HSK-A 63 max. tool diameter 80 mm max. tool-dia with free toolbox 130 mm max. tool weight 8,0 kg max. tool length 315 mm feed speeds max. 30.000 mm/min rapid traverse 30 m/min total power requirement 48 kVA weight of the machine ca. 14,0 t dimensions of the machine ca. 4,5 x 4,0 x 2,6 m 5 Axis CNC - MachiningCenter Universal DECKEL MAHO - DMU 80 monoBLOCK - NC-Rotary Table (C-Achse) integrated in rigid-table - Swivel-Milling-Head (B-Achse)

Condition: used, Year of construction: 2006, x-travel 880 mm y-travel 630 mm z-travel 630 mm control iTNC 530 Heidenhain turning speed range - main spindle max. 18.000 min/-1 power capacity - main spindel 28 / 19 kW max. Torque 121 Nm tool taper HSK-A 63 swivellable B: +30° / -120 ° table surface area Ø 700 / 1.250 x 700 mm max. table load 650 kg rotatable C: 360 ° Njdpsyackdsfx Akuect number of toolpositions 2x16 pos. tool taper HSK-A 63 max. tool diameter 80 mm max. tool-dia with free toolbox 130 mm max. tool weight 8,0 kg max. tool length 315 mm feed speeds max. 30.000 mm/min rapid traverse 30 m/min total power requirement 48 kVA weight of the machine ca. 14,0 t dimensions of the machine ca. 4,5 x 4,0 x 2,6 m 5 Axis CNC - MachiningCenter Universal DECKEL MAHO - DMU 80 monoBLOCK - NC-Rotary Table (C-Achse) integrated in rigid-table - Swivel-Milling-Head (B-Achse)

Condition: used, Year of construction: 2005, x-travel 880 mm y-travel 630 mm Nsdsvn Ur Eopfx Akusct z-travel 630 mm control iTNC 530 Heidenhain turning speed range - main spindle max. 18.000 min/-1 power capacity - main spindel 28 / 19 kW max. Torque 121 / 82 Nm tool taper HSK-A 63 swivellable B: +30° / -120 ° table surface area Ø 700 / 1.250 x 700 mm max. table load 650 kg rotatable C: 360 ° max. workpiecediameter 850 mm max. workpiece height 550 mm number of toolpositions 32 pos. tool taper HSK-A 63 max. tool diameter 80 mm max. tool-dia with free toolbox 160 mm max. tool weight 8,0 kg change-time chip to chip 10 sec feed speeds max. 30.000 mm/min rapid traverse 30 m/min Accelaration 5 m/s² total power requirement 48 kVA weight of the machine ca. 14,0 t dimensions of the machine ca. 6,5 x 5,0 x 2,9 m 5 Axis CNC - MachiningCenter Universal DECKEL MAHO - DMU 80 monoBLOCK - NC-Rotary Table (C-Achse) integrated in rigid-table - Swivel-Milling-Head (B-Axis) - only 6.100h Spindle Hours

Condition: used, Year of construction: 2005, x-travel 1.000 mm y-travel 1.000 mm z-travel 1.000 mm Control 840 D Siemens turning speed range - main spindle 20 - 18.000 min/-1 power capacity - main spindel 28 / 19 kW max. Torque 121 Nm tool taper HSK-A63 swivellable B: -30 / +180 ° swivle time 1,2 s numbers of pallets 2 size of pallet 1.000 x 800 mm max. workpiece weight 1.500 kg rotatable C: 360 ° number of toolpositions 180 pos. tool taper HSK-A63 total power requirement 78 kVA weight of the machine ca. 27,0 t Ncodpswf Rgfefx Akuot dimensions of the machine ca. 8,0 x 7,0 x 3,4 m 5 Axis - CNC Machining Center Universal DECKEL MAHO - DMC 100 U duoBLOCK - Swivel-Milling-Head (B-Achse) - NC-Rotary (C-Axis) - pallet changer - 180-pos. tool-changer - WITHOUT zero point clamping system - WITHOUT RINGLER exhaust - WITHOUT tools

Condition: used, Year of construction: 2006, x-travel 800 mm y-travel 800 mm z-travel 800 mm Control iTNC 530 Heidenhain Max. rpm 18.000 min/-1 power capacity - main spindel 28 / 19 kW max. Torque 121 / 82 Nm tool taper HSK A63 swivellable B: 0 - 190 ° swivle time 1,2 s table diameter 900 x 700 mm max. table load 1.400 kg rotatable C: 360 ° number of toolpositions 60 pos. tool taper HSK A63 change-time chip to chip ca. 5,0 sec rapid traverse ( X / Y / Z ) 60 m/min rapid traverse B: 30 m/min rapid traverse C: 30 m/min feed speeds max. 60.000 mm/min total power requirement 64 kVA weight of the machine ca. 14,0 t dimensions of the machine ca. 6,0 x 6,5 x 3,2 m 5 Axis CNC-Machiningcenter Universal DECKEL MAHO - DMU 80 P duoBLOCK - 5-axis simultaneous Ncedpfxotqmmze Akuot - Swivel-Milling-Head - Rotary-Table

Condition: used, Year of construction: 2011, x-travel 630 mm y-travel 560 mm z-travel 560 mm control iTNC 530 Heidenhain turning speed range - main spindle max. 12.000 min/-1 power capacity - main spindel 10 / 15 kW max. Torque 130 / 87 Nm tool taper HSK-A 63 Ncsdpfjyz Dcfjx Akuot swivellable NC: ° table surface area 1.000 x 600 mm table diameter Ø 600 mm T-slots 1x 14 x H7, 8x 14 H12 max. table load 500 kg rotatable C: 360 ° number of toolpositions 2x12 (24) pos. tool taper HSK-A 63 max. tool diameter 80 mm max. tool-dia with free toolbox 130 mm max. tool weight 8,0 kg max. tool length 315 mm total power requirement 45 kVA weight of the machine ca. 6,8 t dimensions of the machine ca. 4,5 x 4,5 x 2,5 m CNC - MachiningCenter Universal DECKEL MAHO - DMU 60 monoBLOCK - Swivel-Millinghead - Package for tropical climate

Condition: used, Year of construction: 2002, x-travel 2.200 mm Ncodpfxotqmr Rs Akust y-travel 560 mm z-travel 720 mm control 840 D Powerline ShopMill Siemens Main spindle: turning speed range - main spindle 20 - 12.000 min/-1 power capacity - main spindel 35 / 25 kW max. Torque 130 / 87 Nm tool taper SK 40 internal coolant system feed 40 bar work table: table surface area 2.600 x 600 mm max. table load 2.200 kg number of T-slots 6 T-slot - width 18 H7 mm T-slot - distance 100 mm Tool-Presetter: number of toolpositions 30 pos. max. tool length 300 mm max. tool weight 6 kg max. tool diameter 80 / 125 mm feeds: feed speeds 20.000 mm/min input unit 0,01 mm rapid traverse ( X / Y / Z ) 100 / 50 / 50 m/min measuring system Resolution 0,001 mm total power requirement 60 kVA weight of the machine ca. 12,5 t dimensions of the machine ca. 6,0 x 3,7 x 2,9 m CNC - Machining Center Vertical DECKEL MAHO - DMF 220 linear - from individual part production (aluminium, brass and stainless steel) - incl. workroom wall - M26 function (switching to blown air through spindle center) - new ball screw Z-axis incl. bearing (April 2015) - new milling spindle (2016) - Spindle hours: ca. 11,966 h - WITHOUT vices

Condition: used, Year of construction: 2003, x-travel 630 mm y-travel 560 mm z-travel 560 mm control iTNC 530 Heidenhain Main spindle: turning speed range - main spindle 20 - 12.000 min/-1 power capacity - main spindel 15 / 10 kW max. Torque 125 Nm tool taper MAS BT 40 swivellable B: 103 ° feed: feed speeds 20 - 10.000 mm/min rapid traverse X-axis 26 m/min rapid traverse Y-axis 26 m/min rapid traverse Z-axis 20 m/min Resolution 0,001 mm input unit 0,001 mm work table: surface area 1.000 x 600 mm rotary table dia. 600 mm number of T-slots 8 / 1 T-slot - width 14 H12 / 14 H7 T-slot - distance 63 mm max. table loading capacity 350 kg rotatable C: 360 ° Tool-Presetter: number of toolpositions 24 pos. max. tool diameter 80 mm max. tool-dia with free toolbox 130 mm max. tool length 315 mm max. tool weight 8 kg total wight max. 100 kg total power requirement 26 kVA weight of the machine ca. 6,7 t dimensions of the machine ca. 4,0 x 4,0 x 3,0 m CNC - MachiningCenter Universal DECKEL MAHO - DMU 60 T - 5-Axis Njdpovn Utcjfx Akusct - controled NC-Swivel-Milling-Head ( B-Axis ) - Rotary Table integrated in Working-Table ( C-Axis )

Condition: used, Year of construction: 2007, x-travel 635 mm y-travel 510 mm z-travel 460 mm control iTNC 530 Heidenhain power capacity - main spindel 13 / 9 kW turning speed range - main spindle 20 - 10.000 min/-1 Torque 83 / 57 Nm tool taper SK 40 tension force 10 kN table surface area 790 x 560 mm number of T-slots 4 + 1 T-slot - width 4 x 14H12 / 1 x 14H7 mm T-slot - distance 100 mm max. table load 600 kg table height over floor 720 mm number of toolpositions 30 pos. Ncodpfx Aksyaci Houst max. tool diameter 80 mm max. tool-dia with free toolbox 130 mm max. tool length 300 mm max. tool weight 6 kg Total weight, approx. max. 60 kg feed speeds max. 20.000 mm/min Feed force 5 kN input unit 0,01 mm rapid traverse 30 m/min total power requirement 20 kVA weight of the machine ca. 4,1 t dimensions of the machine ca. 4,5 x 4,0 x 2,8 m CNC-Machining Center Vertikal DECKEL MAHO - DMC 635 V - Spindle-Runtime only approx. 7.883h - Power-On approx. 23.023h
