Used Dirinler Blanking Press - Single Column for sale (21,982)

Condition: used, Year of construction: 1991, pressure / t plate thickness / mm no. of strokes / Hub/min Condition: used Laodpowgi S Nefx Am Noa The punching machine works perfectly. A functional video is available.

Condition: used, Year of construction: 1999, hydraulic ja 100 t Ljdpfx Aox U A Tvjm Noaa weight of the machine ca. 2,9 t

Condition: used, pressure 150 t Table dimensions 1000 x 360 mm Lodpfeyuqdhjx Am Nsaa voltage 400 V

Condition: used, pressure 150 t Table dimensions 1000 x 630 mm voltage 400 V Inclineable mechanical press with updated electrics (CE2004) and bolster plates. The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. Lodpfsyqv Ahsx Am Nsaa About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: good (used), Year of construction: 1982, machine/vehicle number: 055-013-15, Offer 25274 Technical Data: - Max. pressing force: 25 t Laodpfx Asy Ewx Usm Nsa - Max. ram stroke: 500 mm - Stroke speed: 200 mm/sec - Return speed: 450 mm/sec - Installation height: 800 mm - Throat depth to centre of ram: 380 mm - Ram clamping area: 440 x 360 mm - Ram clamping pin: 40 mm - Table size: 630 x 500 mm - Table opening / through hole: 180 mm - Drawing cushion: 10 t - Electric foot switch - Two-hand control panel - Drive: 400 V / 12.5 kW - Required space approx.: W 800 x H 2750 x D 1150 mm - Weight approx.: 2400 kg

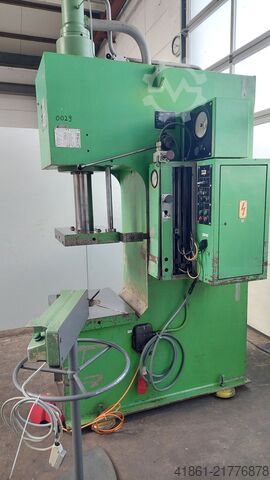

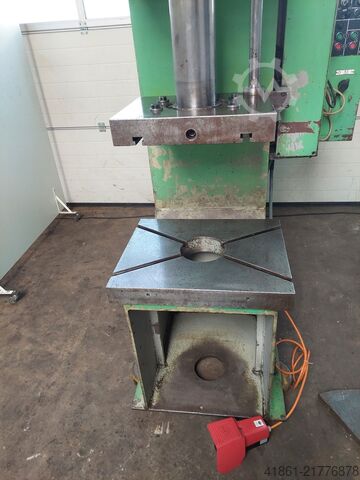

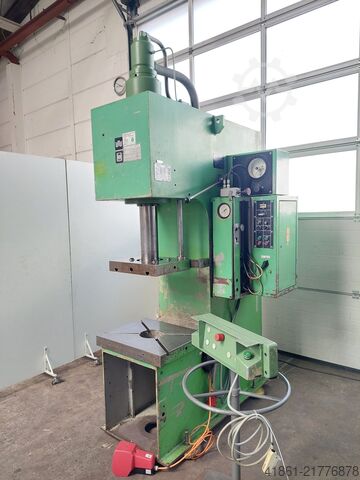

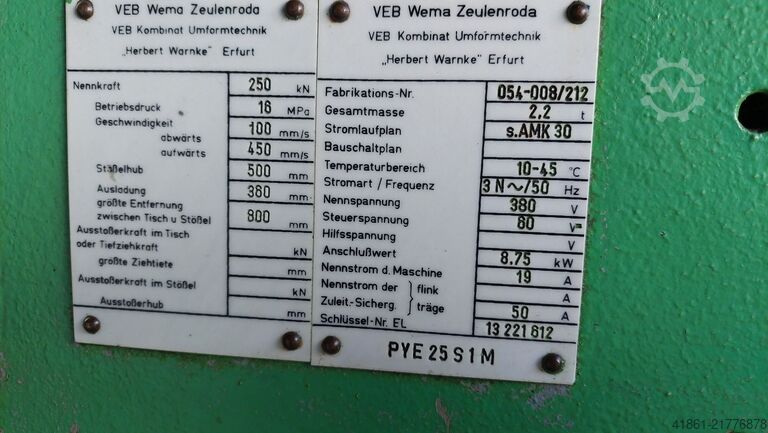

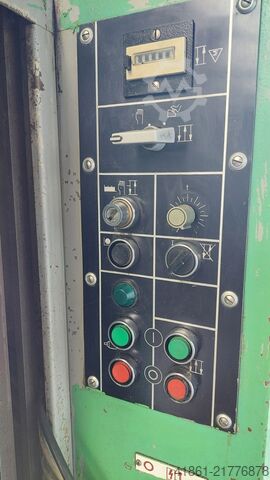

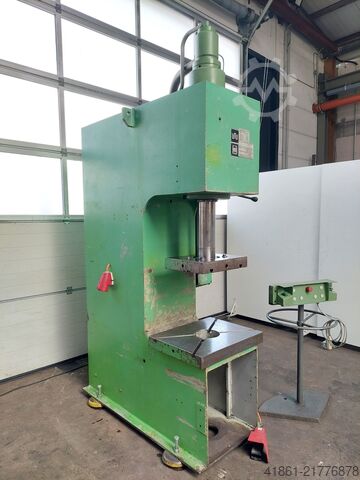

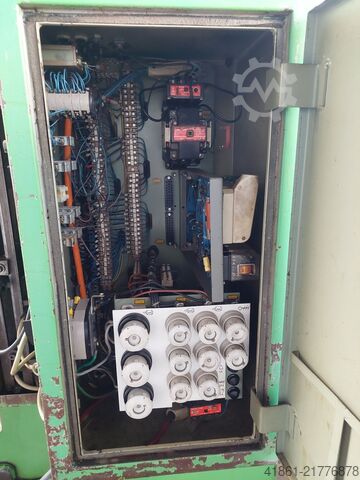

Condition: good (used), Year of construction: 1984, machine/vehicle number: 054-008-212, Offer 25272 Technical data: - Max. pressing force: 25 t - Max. ram stroke: 500 mm - Stroke speed: 0 – 2.4 m/min Ledpfx Ajy Ewtrem Nsaa - Return speed: 0 – 12 m/min - Installation height: 800 mm - Throat depth to ram center: 360 mm - Ram clamping area: 440 x 360 mm - Ram mounting shank: 40 mm - Table size: 630 x 500 mm - Table bore/opening: 180 mm - Electric foot switch - Two-hand control panel - Drive: 400 V / 8.75 kW - Required space approx.: W 800 x H 2750 x D 1150 mm - Weight approx.: 2000 kg

Condition: used, Technical details: pressure: 25 t distance between columns: 360 mm stroke: 500 mm daylight dimension : table/slide up: 800 mm throat: 360 mm ram stroke: 500 mm ram speed - forward: 0,200 m/s ram speed - reverse: 0,45 m/s Table dimensions: 630 x 500 x 71 mm passage inside table: Ø 182 mm surface area of ram: 450 x 360 mm mortise hole in ram: Ø 32 x 72 mm ram diameter: Ø 125 mm height over floor: 710 mm total power requirement: 12,5 kW Lasdpfx Asu U D I Rom Noa weight of the machine ca.: 2,4 t dimension machine xH: 1,7 x 1,1 x 2,95 m Operation via two-hand control panel (and one-hand operation in set-up mode) Continuous and single stroke TÜV until *

Condition: new, pressure 17,0 kN stroke 40 mm throat 110 mm Working height from to 70 - 220 mm table surface area 190 x 140 mm spindle diameter 30 mm weight of the machine ca. 60 Kg dimensions 310 x 190 mm Ledpfx Ajfv Avvem Nsaa Toggle pneumatic presses incl. working height fine adjustment via bevel gear with lateral crank comfortable and easily adjustable. Toggle lever pneumatic presses are to be used when the maximum pressure is required shortly before the end of the stroke, e.g. when assembling, punching, embossing, caulking, etc.

Condition: new, pressure 26,0 kN stroke 60 mm throat 110 mm Working height from to 70 - 250 mm table surface area 190 x 140 mm spindle diameter 30 mm weight of the machine ca. 46 Kg dimensions 310 x 140 x 475 mm Knee lever hand presses SPECIAL PRICE!!! Lodpfxofv Avrj Am Nsaa HK 2600 stroke 60 mm, incl. working height fine adjustment via bevel gear with comfortable and easy to adjust with a side crank. Stand height 475 mm Even more pressure in production without additional effort. Maximum pressure performance shortly before the end of the stroke thanks to toggle lever technology. Particularly stable construction of the spindle head and column

Condition: new, pressure 34,0 kN stroke 40 mm throat 130 mm Working height from to 80 - 240 mm table surface area 190 x 140 mm spindle diameter 30 mm weight of the machine ca. 80 Kg dimensions 375 x 200 mm Toggle pneumatic presses Ledpfxjfv Avys Am Neaa incl. working height fine adjustment via bevel gear with lateral crank comfortable and easily adjustable. Toggle lever pneumatic presses are to be used when the maximum pressure is required shortly before the end of the stroke, e.g. when assembling, punching, embossing, caulking, etc.

Condition: used, Single-column hydraulic press EXNER Type EEX 20 S - Machine no.: 1615 Year of manufacture: 1980 - Pressing force: 20 tons - Throat depth: 180 mm - Table size: 380 x 350 mm - Table opening: Ø 50 mm - Ram surface: 310 x 250 mm - Clamping shank: Ø 35 mm - Ram stroke: 100 mm - Max. installation height: 250 mm - Table height above floor: 900 mm - Descent speed: approx. 480 mm/s - Return speed: approx. 480 mm/s - Working speed: 20 mm/s - Hydraulic tank capacity: 110 liters - Hydraulic operating pressure at 20 tons: 200 bar - Motor output: 4 kW - Power connection: 400 Volt, 50 Hz - Stroke release via two-hand control or light barrier - Operating modes: setup, two-hand operation, BWS - SICK light curtain, type LVU, with single- and double-stroke settings and safety function - Rapid approach and working stroke - Stroke limitation dependent on pressure or travel - Mechanically adjustable solid stop - Press force adjustment manually via knurled wheel - Control cabinet mounted on the side of the machine - Operating manual and electrical schematics included - Stroke counter - Space requirement (L x W x H): 1250 x 750 x 2000 mm - Weight: 1.4 tons Lasdjyz Dtdepfx Am Nea In good condition

Condition: excellent (used), pressure 6,3 t throat 200 mm stroke 200 mm dayligth max 500 mm table surface area 450 x 420 mm weight of the machine ca. 1,5 t Lsdpfxjwuu A Ao Am Nsaa dimensions of the machine ca. 1,2 x 0,6 x 2,0 m

Condition: used, Year of construction: 2007, pressure 40 t stroke 12 - 100 mm no. of strokes 60 - 150 /min throat 220 mm dayligth 340 mm table surface area 650 x 480 mm ram surface 370 x 300 mm ram adjustment 70 mm power requirement 4,0 kW Weight 3,0 t Laodpfxjyx Inte Am Nsa dimensions (WxDxH) 1,2 x 1,5 x 2,3 m permitted for manual loading according to the CE-norm with infinitely variable drive, pneumatic clutch/brake combination, light guard (make Sick), hydraulic overload protection in ram, pneumatic counterbalance on ram, manual stroke adjustment, manual ram adjustment, central lubrication, two-hand and foot operation

Condition: used, Year of construction: 1976, pressure 032 t throat 280 mm stroke fix 140 mm no. of strokes 120 /min distance table/ram, max. stroke up, adjustment up 370 mm table surface area 700 x 550 mm hole in the table 260 x 260 mm table height above floor 860 mm passage to the back 350 mm ram surface 320 x 300 mm ram adjustment 63 mm weight 3,0 t Dimensions (WxDxH) 1,2 x 1,4 x 2,4 m the press has a FIXED stroke permitted for manual put-in according to the German Safety Regulations (UVV) with motor, pneumatic clutch, FIX stroke, manual ram adjustment, motoric centralized lubrication, two-hand and foot operation Lajdpoyx Imiefx Am Nea can be offered with or without putting into operation in our warehouse

Condition: used, Year of construction: 1961, pressure 063 t throat 280 mm stroke 8 - 100 mm no. of strokes 65 /min distance table/ram, max. stroke up, adjustment up 415 mm table surface area 620 x 500 mm hole in the table 230 mm table height over floor 800 mm Laodsyx Imcspfx Am Nja ram surface 310 x 255 mm ram adjustment 63 mm power requirement 5,5 kW weight 3,95 t dimensions (WxDxH) 1,2 x 1,8 x 2,4 m permitted for manual put-in according to the German Safety Regulations (UVV) with motor, friction clutch, mechanical overload protection in ram, manual stroke adjustment, manual ram adjustment, fix table, manual central lubrication, two-hand and foot operation

Condition: used, Year of construction: 1993, pressure 80 t throat 280 mm stroke 10 - 140 mm Stroke rate 85 / min Distance table/ram, max. stroke up, adjustment up 380 mm Table surface area 850 x 560 mm Hole in the table 300 x 200 mm Table height above floor 790 - 950 mm Ram surface 420 x 210 mm Ram adjustment 60 mm Power capacity 4,0 kW Weight 4,5 t Dimensions (WxDxH) 1,3 x 1,4 x 2,45 m permitted only for safe tools or fixed screen according to the German Safety Regulations (UVV) with motor, rolling-key clutch, mechanical overload protection in ram, manual stroke adjustment, manual ram adjustment, adjustable table, manual centralized lubrication, foot operation Laedjyx Ikuepfx Am Nja can be inspected in running condition in our warehouse

Condition: used, Year of construction: 1989, pressure 16 t throat 200 mm Ledpfx Amsyx Ii Rj Nsaa stroke 160 mm dayligth 490 mm table surface area 1300 (3300) x 250 mm table height over floor 935 mm ram surface 65 mm power requirement 4,0 kW weight of the machine ca. 2,2 t required space 1,4 (5,4) x 1,3 x 2,4 m with oilhydraulic drive, shaft straightening device length of straightening table approx. 1300 + 2x2000 mm can be inspected in running condition in our warehouse

Condition: used, Year of construction: 1978, pressure 125 t throat 340 mm stroke 20 - 160 mm no. of strokes 55 /min distance table/ram, max. stroke up, adjustment up 480 mm table surface area 1000 x 660 mm table height over floor 730 mm ram surface 600 x 300 mm ram adjustment 75 mm power requirement 8,5 kW weight 7,8 t dimensions (WxDxH) 1,4 x 2,8 x 2,7 m Ljdsyx Iiwjpfx Am Nsaa permitted for manual put-in according to the German Safety Regulations (UVV) with motor, back gears, pneumatic clutch, mechanical overload protection in ram, manual stroke adjustment, manual ram adjustment, fix table, two-hand and foot operation

Condition: used, Year of construction: 1976, pressure 400 t throat 520 mm stroke 20 - 200 mm no. of strokes 30 /min distance table/ram, max. stroke up, adjustment up 680 mm table surface area 1600 x 1000 mm table height over floor 715 mm passage to the back 1000 mm Ljdpfx Amoyx Iikj Njaa ram surface 1300 x 800 mm ram adjustment 130 mm power requirement 38,0 kW weight 41,0 t dimensions (WxDxH) 2,1 x 2,6 x 4,2 m permitted for manual put-in according to the German Safety Regulations (UVV) with pneumatic clutch/brake combination (make Ortlinghaus), hydraulic overload protection in ram, pneumatic counterbalance in ram, motoric ram adjustment, two-hand operation can be offered without putting into operation (no electrical cabinet) or alternatively with new control Siemens S 7-1500 F

Condition: used, pressure 075 t throat 230 mm stroke 6 - 100 mm no. of strokes 105 /min distance table/ram, max. stroke up, adjustment up 354 mm table surface area 700 x 420 mm hole in the table 250 mm table height over floor 800 mm passage to the back 310 mm ram surface 264 x 270 mm ram adjustment 60 mm power requirement 5,5 kW weight 3,6 t dimensions (WxDxH) 1,2 x 1,6 x 2,3 m Lajdpfsyx Iidox Am Nsa permitted for manual put-in according to the German Safety Regulations (UVV) with motor, friction clutch, manual stroke adjustment, manual ram adjustment, inclineable, manual central lubrication, two-hand and foot operation

Condition: used, Year of construction: 1959, pressure 063 t throat 280 mm stroke 8 - 100 mm no. of strokes 65 /min distance table/ram, max. stroke up, adjustment up 550 mm table surface area 630 x 500 mm hole in the table 230 mm table height over floor 740 mm table adjustable 200 mm ram surface 320 x 260 mm Lodpfxoyx Ih He Am Noaa ram adjustment 63 mm power capacity 5,5 kW weight 4,6 t Dimensions (WxDxH) 1,4 x 1,8 x 2,4 m permitted for manual loading according to the German Safety Regulations (UVV) with motor, friction clutch, mechanical overload protection in ram, manual stroke adjustment, manual ram adjustment, adjustable table, manual centralized lubrication, two-hand operation Press is currently under revision

Condition: used, Year of construction: 1985, pressure 100 t stroke 650 mm throat 380 mm dayligth 950 mm table surface area 800 x 700 mm table height over floor 920 mm ram surface 630 x 600 mm Ljdsyx Ihyjpfx Am Noaa feed down 16 - 65 mm/s feed up 375 mm/s working feed 0 - 16 mm/s oil volume 350 l power requirement 18,5 kW Weight 9,0 t dimensions of the machine ca. 1,5 x 2,5 x 4,0 mxmxm permitted for manual loading according to the German Safety Regulations (UVV) with oil-hydraulic drive, controllable dependent on pressure/time and way, speed adjustable, two-hand operation can be offered with putting into operation in given condition or alternatively with new control Siemens S 7-1500 F

Condition: used, Year of construction: 1975, pressure 40 t throat 280 mm stroke 160 mm dayligth 420 mm table surface area 2000 x 500 mm table height over floor 870 mm ram surface 85 mm power requirement 7,5 kW weight of the machine ca. 3,2 t Ledpsyx Ihasfx Am Njaa required space 1,7 x 2,0 x 2,3 m with oilhydraulic drive, shaft straightening device, manual lever control can be inspected in running condition in our warehouse

Condition: used, Year of construction: 1970, Pressure 063 t throat 250 mm stroke 8 - 100 mm no. of strokes 120 /min distance table/ram, max. stroke up, adjustment up 415 mm table surface area 700 x 500 mm hole in the table 250 mm table height over floor 800 mm passage to the back 320 mm ram surface 450 x 280 mm ram adjustment 63 mm power requirement 4,0 kW weight 4,5 t Dimensions (WxDxH) 1,6 x 2,0 x 2,8 m Laodpfxsynmn Nj Am Nsa SPECIAL DEAL as is where is WITHOUT putting into operation / WITHOUT additional work

Condition: used, Year of construction: 1990, pressure 160 t stroke 200 mm throat 500 mm Lajdpfx Aewvva Som Nja dayligth 500 mm table surface area 1140 x 980 mm table height over floor 860 mm ram surface 1000 x 800 mm oil volume 1000 l power requirement 50,0 kW Weight 18,0 t dimensions of the machine ca. 1,3 x 2,6 x 3,4 mxmxm hole in the table 180 mm yom 1981 - modernization 1990 permitted for manual loading according to the German Safety Regulations (UVV) with oil-hydraulic drive, controllable dependent on pressure/time and way, hydraulic cutting impact cushioning, mechanical depth stop, two-hand operation can be offered without putting into operation or alternatively with new control Siemens S 7-1500 F
