Used Double External Broaching Machine for sale (76,460)

Year of construction: 1961, condition: used, General / technical data: Vertical duplex external broaching machine with two tables Manufacturer: Karl Klink Model: RSA 10 T/Zw. Year of manufacture: 1961 weight: approx. 6.500kg tractive force: 10t clearing speeds: 1 - 11m/min return speeds: 7 - 25m/min maximum stroke: per machine unit 1250mm clamping area: 500 x 500mm passage width: 380mm power supply: 380 Volt / 50 Hz Kdedpfjlwu Hrox Akwot Remark: The machine is under power in our warehouse and can be inspected.

Condition: used, BROACHING MACHINE Kdsdpfjt Hr Dfsx Akwst

Condition: new, Year of construction: 2025, Roll forming metal siding “double façade panel” machine SPM-2 Roll forming metal siding “double façade panel” machine SPM-2 is new design product of our company for façade and wall metal panels forming with the necessary configuration. These double façade panels are very popular in construction business of cladding residential buildings and industrial structures, for the construction of fences of various configurations, gazebos, roofing elements, etc. The SPM-2 metal siding production line is fully automatic and consists of a rolling part of the machine, an automation system and guillotine cutting shears at the machine exit. The line can have as additional parts a manual or automatic uncoiler for metal rolls, depending on the customer's needs. Kjdpfoxghngjx Akwsdt As standard version, this metal siding double façade panels roll forming machine SPM-2 makes a flat panel profile, but with the additional equipment, it is possible to roll panels with a microwave or rib shape profile. To start rolling, it is necessary to install a roll of metal to the decoiler and to put the end of the strip to the first rolling rollers of the equipment and feed it into them. After step by step, to put the metal to the next rollers, adjusting it if necessary. When metal comes to the cutting device of machine you need to feed metal into cutting knives and to make “zero” cut. After such step, equipment can move to automatic operation mode. The control panel of machine has the ability to set the number of tasks and the length of products, single tasks or to work in multitasking mode. After setting up necessary parameters the machine will automatically roll the metal cladding wall panels and cut them into necessary sizes. Thus, the customer will receive final product as quickly as possible and with the highest possible result. The roll forming speed is adjustable and can be up to 10-15 meters per minute. The SPM-2 metal wall cladding panels production line has special tools for punching out fastening holes on the side of the panel. It makes possible for the customer to get more interesting solution options and to offer a wider range of products to the end user. The rolling part of the machine has 18 pairs of forming steps, ensuring high quality of final product. You can get machine with protective cover or without it as per your request preferences. Specifications Material width (mm) 416 The material thickness (mm) 0,4-0,5 Engine power (kW) 3 + 1,1 Rolling speed (m/min) 10-15

Condition: good (used), Year of construction: 1998, grinding wheel diameter: 915 mm, overall weight: 14,000 kg, GIUSTINA Grinder R242 to ground big bearings (up to 800mm). All machine's actions are controlled by Bosch Control. Beside controlling parts grinding process, the NC programs are also an operator guide for the machine set up and a source of information about wheel wear, thus allowing the operator to check wheels without opening the hood. Equipped with: Bosch CNC Control Specifications: Wheel Rotation Axis: Horizontal Grinding Wheel Size (OD): 915 mm Kedpfx Aksrtr D Iewjdt Grinding Wheel Size, Usable Width: 65 mm Grinding Wheel Size, Peripheral Speed: 30 ms Spindle Motors: 75 kw Grinding Feedrate: 0.1 - 1000 mm/min Spindle Type: Moving Quill Angular Contact Spindle Bearings (Precision): ABEC-7 (ISO4) Slide Position Accuracy: 0.001 mm Coolant Flow Rate: 600 l/min Work Capacity (Approx) Rotary: 20 -200 Dia. In.

Condition: used, machine/vehicle number: 008379, Squaring: First and Second Pass Max Panel Thickness: 35 mm Max feed speed: 30 m/min Distance between dogs: 320 mm Kedpfxezvwp Es Akwodt

Condition: used, Year of construction: 1972, Max. pulling force: 10 tons Max. stroke: 1250 mm Kedpfjcdtnhex Akwodt Max. cutting speed: 10 m/min Max. return speed: 25 m/min Number of die positions: 3 Throat depth: 470 mm Distance between die positions: 125 mm Table: 400 x 400 mm Special equipment: Chip removal via a permanent magnet chip conveyor 1 hydraulic unit, 1 work platform, electrically controlled hydraulic ram and end-piece holder, automatic feeding device

Condition: new, functionality: fully functional, Year of construction: 2026, New machine Vertical broaching machine VADARI GmbH TYPE SRM 2027-60 KN - 90 KN or 120 KN also possible! BROACHING MACHINES MADE IN GERMANY. Kdodpfxsuqbnho Akwjt Note: The machine can also be offered and manufactured in a version with a pulling force of 90 KN (9 tons) or 120 KN (12 tons). ==> Information for manufacturing companies or dealers with their own production: If desired, the drawings, rights, spare parts, customer and prospect data, planning and manufacturing documents (including plans for a version with 9 tons of pulling force) for the broaching machine can be purchased from us. Please contact us if you are interested. ==> The new machines are manufactured by us on a project-specific basis after placing an order. Short-term production and delivery are possible. ==> Spare parts such as spindles and spindle nuts for Wolff SRM and VADARI SRM broaching machines are currently available for immediate delivery. Cost-effective and extremely robust vertical broaching machine for long-term use. Broaching tools (including special broaches for internal gearings, etc.) and accessories available. Please inquire separately. All broaching tools and tool holders from other manufacturers can be used with our broaching machine! Complete manufacturing and assembly at our plant in Germany. Furthermore, we also offer spare parts for Wolff and VADARI SRM broaching machines (spindles, spindle nuts, motors, gears, and all other required components - including electrical components). Vertical broaching machine Type SRM 2027 - NEW MACHINE: 60 KN version: The main application is in the production of keyway grooves from 3-28 mm (and even larger) and profiles of similar dimensions. The compact and space-saving machine can therefore be successfully used in small, medium, and large companies. The low price justifies the purchase even for small series and individual production. The drive is via a pole-changing gearbox brake motor. The maintenance-free double spindle drive ensures smooth operation and a central pull point, as well as constant cutting performance. The free tool table allows large workpieces to be placed without hindrance. In most cases, the workpieces to be broached do not need to be firmly clamped. Stroke adjustment is carried out by adjustable limit switches with stroke limitation. For short hubs/workpieces, several workpieces can be placed on top of each other. Broaching pins, mandrels, and spare parts available on request. Technical data: Pulling force: 60 KN at 3m/min, 40 KN at 6m/min. Broaching speed: 3m/min + 6m/min. (Optional: stepless speed adjustment (from 0 m/min to 6 m/min possible with extended electronics) Return speed: 6m/min. Stroke: 1050 mm Broaching tool length: 1200 mm Workpiece diameter: any Work table: 450 x 350 mm Table through-hole: 140 mm Weight: approx. 510 kg Floor area: 750 x 570 mm Overall machine height: 1510 mm Drive power: 3.7 / 4.4 KW Electrical equipment: 400 / 230 Volt 50 Hz Control voltage: 230 Volt Operating voltage: 400 Volt 50 Hz Paint finish: Exterior RAL 7035/7036/7016, Interior RAL 3000 Safety door: Standard equipment Coolant system: Standard equipment The machine complies with the current Machinery Directive and has the CE marking.

Condition: used, Year of construction: 2004, grinding wheel diameter 660 mm Control Siemens 840D work piece width min. 5 / max. 180 mm max. workpiece diameter 200 mm weight of the machine ca. 15,0 t dimensions of the machine ca. L 3,1 x B 4,0 x 2,7 m One machine is suitable for rough grinding, and the other for finish grinding. The machines were used for the production of connecting rods. In our assessment, the machine is in good used condition. Kdsdpfjxq R Haex Akwjt Accessories, tools, and work-holding devices shown are included in the scope of delivery only if specified in the additional information. Subject to change and errors in technical data and specifications; subject to prior sale.

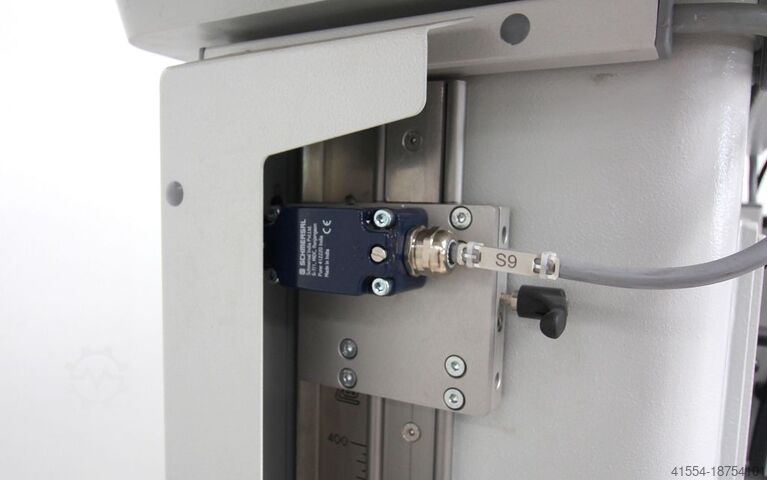

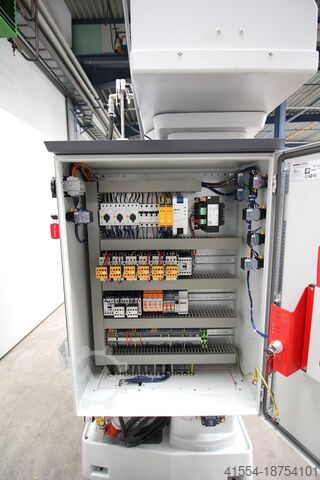

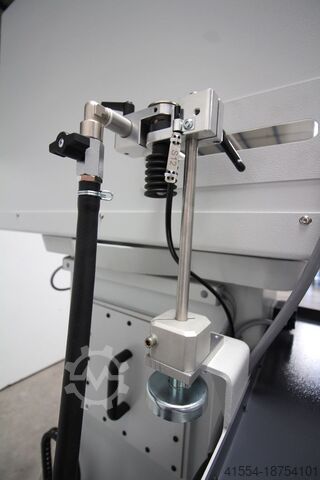

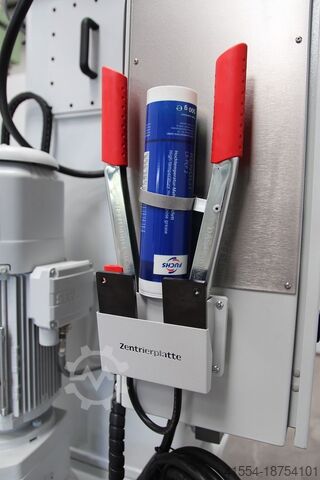

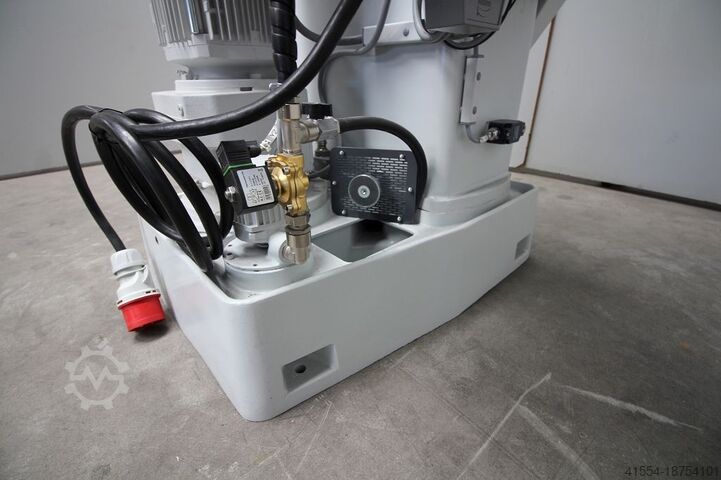

Condition: refurbished (used), functionality: fully functional, Year of construction: 2024, broaching length: 1,000 mm, number of broaching positions: 1, broaching speed: 3 m/min, Manufacturer: Rausch (Haan/Rhld) Model: RS 6/1000 Kjdpfx Akow Ighijwsdt Machine No.: 51261 Year of Manufacture: 1978 Weight: 680 kg Overhauled: 11/2024 by Wiemers AG General Information / Technical Data: Overhauled mechanical vertical broaching machine Rausch RS 6 G Pulling force: 60 kN Broaching speeds: 3 m/min and 6 m/min Return speed: 6 m/min Maximum stroke: 1000 mm Maximum tool length: 1200 mm Table dimensions / Working area: 610 x 470 mm / 520 x 320 mm Table aperture: Ø90 mm for standard broaching mandrels Workpiece diameter: unlimited Dimensions (H x W x D): 2,250 mm x 850 mm x 1,200 mm (H = table height from floor, without attachments) Motor: 4.4 kW / 5.5 kW Power supply: 400 Volt / 50 Hz Additional modifications/upgrades to the original machine performed: - External stroke adjustment - New, machine-independent, reproducible tool length adjustment system - Additional limit switches for end position monitoring - Safety door with monitoring (integrated in the emergency circuit) - Machine enclosure below safety door with chip protection and tool storage area - Electrical sensing of clamping jaws (tool removal monitoring to prevent unintended retraction of the broaching bridge) - Coolant swing system with solenoid valve operated during swing motion (for switching on coolant before broaching stroke – optical flow control ensures lubrication, no dry cutting!) - Routing of electrical cables in protective steel conduits - Heavy-duty control cabinet mounting for machine components - Additional oil-proof drip tray on the control cabinet - Three-sided closed splash guard cabin (W = 960 x D = 450 x H = 590 mm) - Reinforced chip screen with magnetic separator - Control panel made of stainless steel with durable labeling - 4 central lubrication points for trapezoidal spindle drive Remarks: The machine has been completely overhauled, the machine body fully refurbished. All wear parts have been replaced. - New trapezoidal spindles and spindle nuts made from cast wear-resistant bronze - All bearings and seals renewed - The coolant system (pump, solenoid valve, and drain tap), including the coolant/lubrication swing system, is new - The clamping jaws are new - Complete electrical system (control cabinet) is new - All sheet metal and enclosures are new - The following components have been overhauled and re-used: - Machine base - Machine column - Machine table with table insert - Broaching bridge (clamping jaws new) - Gear wheels - Electric motor (new brake, new bearings) The machine is stored in our warehouse and can be inspected under power. The attached images are original photos of the machine. The machine is CE marked. The CE marking corresponds to the status as of 1998 (first overhaul).

Condition: used, total length: 4,300 mm, total width: 600 mm, total height: 1,100 mm, Colour: Green Empty weight: 600 kg Kjdezkkukjpfx Akwjdt - Documentation available: No - CE certificate present: No - Drive system: Conventional - Drive type: Hydraulic - Model: Horizontal - Number of axes [pcs]: 1 - X-axis travel [mm]: 1500 - Transport dimensions: 4300mm x 600mm x 1100mm (l x w x h) - Transport weight [kg]: 600kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: new, Year of construction: 2026, Brand new, high-precision vertical broaching machine – a machine of exceptionally high quality. CNC-controlled vertical broaching machine with two, three (or four) CNC axes and electronic control of the rotary table with a positioning accuracy of 0.001°. For the efficient production of spline grooves (including tapered and tangential grooves) – keyways, internal and external gears, racks, etc. CNC control with a 10” color display and touch screen – software for roughing, finishing, and fine finishing (to achieve surfaces with the highest possible quality). Stroke range of the broaching tool holder: 10 to 250. Broaching tool holder speeds: 22 to 90 strokes/min, infinitely adjustable. Broaching tool holder swivel range: +/- 20°. Rotary table size: 450 mm. Bore in the rotary table: Ø 135 mm. Kdsdjz Dpcqepfx Akwst Maximum table load: 1,250 kg. Table travel distances, longitudinal and transverse: 250 x 225 mm. Drive power, servomotor for the broaching tool holder: 3 kW. Machine dimensions without control console: 1.3 x 1.45 m x approx. H 2.6 m. Machine weight: approx. 1,700 kg. - Automatic, electronically monitored central lubrication system for the guide rails. - Cutting fluid system for cooling and lubricating the broaching tools. Other models available.

Condition: new, Year of construction: 2023, functionality: fully functional, machine/vehicle number: 39.963TW, working height: 1,300 mm, planer shaft diameter: 60 mm, workpiece height (max.): 250 mm, workpiece width (max.): 300 mm, power: 18.5 kW (25.15 HP), A new two-sided planing machine is for sale! TECHNICAL DETAILS Processing: Two-sided planing (calibrating) Thickness tolerance: < ±0.1 mm Workpiece length min./max.: 800 / 3,200 mm Minimum length for continuous feed: 1,250 mm Workpiece width max.: 300 mm Workpiece height min./max.: 20–250 mm (each ±1 mm) Passage height: 280 mm Working height: approx. 1,300 mm Number of spindles: 2 Spindle diameter: 160 mm Planer shaft diameter: 60 mm Feed speed: 5–20 m/min, continuously adjustable Kdedpfx Asz A Ubiekwjt Ram columns: 4 × Ø 110 mm MACHINE DETAILS Input voltage: 3 × 400 V AC Frequency: 50 Hz Network type: TNS, for industrial networks Control voltage: 230 V AC / 24 V DC Power: 18.5 kW Power of feed motor: 9 kW Compressed air connection: 8 bar Electrical equipment: Télémecanique / MOELLER / SIEMENS Machine color: RAL 7035 Light Grey / RAL 3003 Ruby Red Cabinet color: RAL 7035 Light Grey / RAL 3003 Ruby Red Total weight: 7,000 kg EQUIPMENT Continuously adjustable feed speed Feed rollers individually and directly driven by separate gear motors Electronically synchronized feed rollers Grooved feed rollers in front of the planer shafts Smooth feed rollers at the outlet Hard-chrome-plated tables, feed rollers, pressure elements, and stops Automatic feed deceleration in case of overload Processing motors with electronic soft start controls Integrated DC motor brakes Télémecanique ALTISTART Control panel on a pivoting arm on the front wall of the cabinet

Condition: as good as new (ex-display), Year of construction: 2025, functionality: fully functional, Demonstration machine, few operating hours. 3.7 kW motor for high material removal rate, robust design, suitable for continuous commercial use. Steel drums with hard rubber coating for perfectly flat, smooth surfaces. Independently adjustable rear drum for controlled material removal. Two-stage feed gearbox for adaptation to different types of wood. Heavy-duty feed table made of gray cast iron, precisely guided by four spindles. Drum hood with double dust extraction connection and guide plates for efficient dust removal. Digital height indicator for quick and safe adjustment to the desired dimension. Abrasive belts with 75 mm and 100 mm width can be used. Technical data Feed motor: 0.18 kW Kdjdpeziw Afefx Akwot Scope of delivery 80 grit abrasive belt mounted on the drum 100 grit abrasive belt mounted on the drum Height crank, operating manual and spare parts list.

Condition: like new (used), Year of construction: 2023, Technical data: Double bending machine Working length: 8200 mm Bending capacity: 2.5 mm CNC control Sheet metal cutting device Back gauge depth: 1250 mm Bending accuracy: +/- 0.5° Bending range: 140° Multi-zone crowning system Bending die width: 10/20 mm Number of gripper fingers: 9 pcs. CE marking Dimensions (length x width x height): approx. 10200 x 2300 x 2150 mm Kdedpfozz Adfex Akwjt Weight: approx. 12.5 tons Accessories: Sheet metal cutting device Hydraulic unit with oil cooler Bending die lighting Various tools The seller is not liable for typographical or data transmission errors. The machine's appearance, technology, and wear are consistent with its age; used machines are sold without any warranty. Condition: overall in new condition

Condition: used, Wigo double squaring machine with 3 groups per side, complete with inverters. - right and left circular saw - right and left milling cutter - right and left milling cutter Working width max: mm. 1500 Motor power: Circular saws: 3KW X2 Milling-Turning Centers: 5.5kW x2 Rotary grinders: 5.5kW x2 Feed motor: 4KW Kodpfx Aeummldekwsdt Shoulder width adjustment motor: 3KW Assembled machine dimensions:: mm. 3060x3600 h. 1800

Condition: used, Year of construction: 2016, functionality: fully functional, machine/vehicle number: DLM 705, overall weight: 8,000 kg, The machine is in good overall condition. Price is negotiable after inspection. Ksdpfx Ajz Aquzokwodt

Condition: used, Year of construction: 1999, machine/vehicle number: 17, No minimum price – guaranteed sale to the highest bidder! The machines are still assembled, but disconnected from the power supply. An 11-ton forklift is available on-site for loading. Kedpfx Ajzy Ulrskwodt For sale is a vertical internal stripping machine manufactured by FORST, model: RISH 6.3 x 1000xx 320 M. TECHNICAL DETAILS Operating voltage: 400 V Phases: 3 Frequency: 50 Hz Control voltage: 230/240 V AC Control frequency: 50 Hz Control current: 6.3 A Machine rated current: 180 A

Condition: excellent (used), Year of construction: 2019, operating hours: 29,081 h, functionality: fully functional, CNC control HEIDENHAIN TNC 640, 15" Main computer MC Controller unit CC Keyboard TE 15" TFT color flat screen with softkeys RAM: 4 GB Hard disk: 32 GB, of which at least 21 GB program memory Input resolution / display increment linear axes: up to 0.1 µm Input resolution / display increment rotary axes: up to 0.0001° Input range: max. 99,999.9999 mm or 99,999.9999° Circular interpolation in 3 axes with tilted machining plane Helical interpolation Linear interpolation in 5 axes Block processing time: 0.5 ms Ethernet: 2 x 1000BaseT USB: 1 x front USB 2.0, 4 x rear USB 3.0 Handwheel HEIDENHAIN HR510 Axis selection via buttons / softkeys Buttons for continuous axis movement Emergency stop button Magnetic attachment Enable buttons / dead man's buttons according to CE Travel ranges X-axis / longitudinal axis: 4,000 mm Y-axis / transverse axis: 2,500 mm Z-axis / vertical axis: 1,300 mm Feed / connection / pneumatics Max. feed rate interpolating axes: 40 m/min Installed power: 60 kVA Max. power consumption: 150 A Air requirement pneumatics: 400 Nl/min Working pressure pneumatics: 6 bar Machine table / floor plate Machine table recessed, with leveling units Table size: 2,500 x 4,000 mm Table height: 300 mm Load capacity: 10 t/m² T-slot width: 28 H12 mm T-slot spacing: 250 mm Milling head / universal milling head Universal milling head with continuous movement in 2 axes 5-axis machining Direct drives for rotary axes Rotary axes as interpolated CNC axes Automatic tool clamping Undercut machining up to 10° possible Integrated cooling of the torque motors and spindle bearings C-axis swivel range: +/- 270° A-axis swivel range: +/- 185° Max. speed A/C axes: 30 rpm Working torque A/C axes: 450 Nm Clamping torque axes: 1,400 Nm Positioning accuracy A/C axes: 8 arcsec Positioning repeatability A/C axes: 4 arcsec Kdsdpfxeyrndmo Akwot Main spindle Spindle power S1 / S6: 22 / 33 kW Spindle torque S1 / S6: 84 / 128 Nm Max. spindle speed: 18,000 rpm Constant power: 2,500 - 18,000 rpm Constant torque: 10 - 2,500 rpm Tool holder: HSK-A63 DIN 69893 Rigid tapping for electric spindle Software / calibration Dynamic RTCP software AUTOCAL software for automatic calibration 3D Form Inspect M&H software Software for measuring 3D shapes, tools, molds and dies Measurement program creation directly via coordinate points / surface points Vibration / collision monitoring Sensor for detecting vibrations Detection of collisions and excessive vibrations on 3 axes Reaction time approx. 1 ms Electronic interface for functional testing Tool changer Tool changer with arm for tool changes Overlapped-wheel design Full enclosure for operator safety Tool positions: 80 Max. tool diameter: 75 mm Max. tool diameter with free adjacent positions: 125 mm Max. tool weight: 10 kg Max. tool length: 600 mm for 40 tools Max. tool length: 250 mm for 40 tools Tool type: HSK-A63 DIN 69893

Condition: excellent (used), Double side - Independent Machine (or 1st and/or 2nd in a line) Edges (tape) thickness in rolls (min/max) mm 0,3 / 3 Edges thickness in stips / lippings (min/max) max mm 1,0 Panels thickness (min/max) mm 8 / 45 (60) Working width (min/max) mm 236 (266) / 3300 Numerical Control / Software ICOS Open (Windows base) Adjustable feeding speed (m/min ) 10 - 50 Safety and sound-proof enclosures/cabins SIZING PART (for each side): Anti-chipping Milling Unit 75.186 (1 x Kw 4,4) Hogging Units (2 x Kw 6,6) Free space EDGE-BANDING PART (for each side): Lamps to heat the workpieces side Glueing Unit (Hot Melt glue) 04.1570 Pressure zone Edge coils supporting unit (No. of reels) 2 Snipping (end-cutting) unit 08.42 (2 x Kw 0,66) 30 m/min (0°-25°) Rough Trimming unit 08.0555 (1 x Kw 0,66) Multi Function Unit (Profile contour Trimming unit) MFA 08.342 (2 x Kw 0,66) SERVO - 20m/min Kodswz Ic Ajpfx Akwedt Profile Scraping unit 08.519 Glue scraping unit 08.50 Buffing unit 08.617-2 (2 x Kw 0,18) Milling grooving unit: 75.30 (2 x Kw 4,4) OPTION:No. 1 Automatic Return System

Condition: excellent (used), Double side - Independent Machine (or 1st and/or 2nd in a line) Edges (tape) thickness in rolls (min/max) mm 0,3 / 3 Edges thickness in stips / lippings (min/max) max mm 1,0 Panels thickness (min/max) mm 8 / 45 (60) Working width (min/max) mm 236 (266) / 3300 Numerical Control / Software ICOS Open (Windows base) Adjustable feeding speed (m/min ) 10 - 50 Safety and sound-proof enclosures/cabins SIZING PART (for each side): Anti-chipping Milling Unit 75.186 (1 x Kw 4,4) Hogging Units (2 x Kw 6,6) Free space EDGE-BANDING PART (for each side): Lamps to heat the workpieces side Glueing Unit (Hot Melt glue) 04.1570 - Pressure zone Edge coils supporting unit (No. of reels) 2 Snipping (end-cutting) unit 08.42 (2 x Kw 0,66) 30 m/min (0°-25°) Rough Trimming unit 08.0555 (1 x Kw 0,66) Ksdpfx Aozz R Rgekwedt Multi Function Unit (Profile contour Trimming unit) MFA 08.342 (2 x Kw 0,66) SERVO - 20m/min Profile Scraping unit 08.519 Glue scraping unit 08.50 Buffing unit 08.617-2 (2 x Kw 0,18) Milling grooving unit: 75.30 (2 x Kw 4,4)

Condition: refurbished (used), Year of construction: 1975, DISKUS GRINDING MACHINE (Double-surface grinding machine) DISKUS WERKE AG (FRANKFURT / MAIN), Type DDS 600 P, Year of manufacture 1975, COMPLETELY OVERHAULED in 2024. Kjdpezzpaajfx Akwodt

Condition: used, machine/vehicle number: 008269, Position 1: Panel Feeding and Loading IMA+BARGSTEDT+SAG-COMBIMA/CONCEPT/II/500/B/R3 Kdodpex A Hggjfx Akwet Position 2: Panel Turning Device IMA+BARGSTEDT+SAG-COMBIMA/CONCEPT/II/500/B/R3 Position 3: Double Sided Squaring/Edgebanding Machines IMA+BARGSTEDT+SAG-COMBIMA/CONCEPT/II/500/B/R3 Position 4: Panel Turning Device IMA+BARGSTEDT+SAG-COMBIMA/CONCEPT/II/500/B/R3 Position 5: Panel Stacking and Offloading IMA+BARGSTEDT+SAG-COMBIMA/CONCEPT/II/500/B/R3

Condition: used, machine/vehicle number: 008266, Type of edging: Thin edge, Thick edge Gluing System: EVA Hotmelt Corner Rounding Unit: yes Combination Squaring Edgebanding Machine: First and Second Pass Max Panel Width: 3000 mm Kdodsx A Hfijpfx Akwjt Max feed speed: 25 m/min Operating Units Right Side: 9 nr Operating Units Left Side: 9 nr

Condition: used, machine/vehicle number: 008288, Position 1: Panel Feeding and Loading SCM-MAHROS - STEFANI - CELASCHI Position 2: Double Sided Squaring/Edgebanding Machines SCM-MAHROS - STEFANI - CELASCHI Position 3: Panel Turning Device SCM-MAHROS - STEFANI - CELASCHI Kdjdpex Nv S Usfx Akwet Position 4: Double Sided Squaring/Edgebanding Machines SCM-MAHROS - STEFANI - CELASCHI Position 5: Panel Turning Device SCM-MAHROS - STEFANI - CELASCHI Position 6: Splitters SCM-MAHROS - STEFANI - CELASCHI Position 7: Panel Stacking and Offloading SCM-MAHROS - STEFANI - CELASCHI

Condition: excellent (used), Year of construction: 2021, operating hours: 200 h, functionality: fully functional, machine/vehicle number: 220247, total length: 18,000 mm, total width: 4,000 mm, total height: 3,000 mm, input frequency: 50 Hz, input voltage: 400 V, pressure: 7 bar, The HE 500 is a double-edging line – L-shaped – consisting of 2 grinding machines connected at an angle. The first machine is designed for processing wider sheets of glass, while the second is for narrower sheets. At the inlet of the second machine, there is a centering device that corrects the position of the glass. Technical specifications of HE500: Minimum working size – 400x200, Working thickness – 3 – 25, Oscillating spindle – 1+1, Kdsdpfx Akszznuijwet Diamond spindles for grinding flat edges – 2+2 Diamond spindles for grinding bottom bevels – 1+1 Polishing spindles for bottom bevels – 1+1 Diamond spindles for grinding top bevels – 1+1 Polishing spindles for top bevels – 1+1 Polishing spindles for flat edges – 3+3 Spindles for rounding corners – 1+1 Engraving spindle – 2+2 Empty positions – 0 Total power of the XE line installation (kW) – 120 Conveyor belts, motorization: Belts driven by 4 brushless motors Mobile bridge movement Ball bearing guides, controlled by two brushless motors Summary: Bavelloni HE500L Double Edging Line – 1 set. TT5130 feeding table – 1 piece. Horizontal washing machine 2800 – 1 piece.
