Used Hüller Hille Vertical Lathe for sale (15,236)

Condition: good (used), Year of construction: 2008, Ref. -No.: 10335 Manufacturer: HüLLER HILLE Type: NBH 170 Year of construction: 2008 Type of control: CNC Control: Sinumerik 840D pl Storage location: Halberstadt Country of origin: Germany X-Travel: 1000 mm Y-Travel: 800 mm Z-Travel: 800 mm B-Axis: 360 ° Distance spindle center - table: 150 mm Table Dimensions (Lengthxwidth): 500 x 630 mm Table Load: 800 kg Max. Workpiece Weight: 40 kg Max. Tool Length: 650 mm Max. Tool Diameter: 325 mm Workpiece Diameter At Full Load: 100 mm Tool Taper: HSK - 100 Spindle Speed: RPM Rapid Traverse: 60 m / min Machine length: 9500 mm Machine width: 4500 mm Machine Height: 3500 mm Further information: Lhodpfxey Edzve Akyef Coolant system = 1250 l

Condition: used, Year of construction: 2003, x-travel 1000 mm y-travel 800 mm z-travel 800 mm control SIN840D speeds 10 - 10.000 U/min feed range 1 - 36000 mm/min B - axis 360 x 1 ° repeating accuracy + / - 3 " surface area 2 x 500 x 630 mm tool diameter 100 mm workpiece length 650 mm workpiece weight max. 40 kg tool taper DIN 69871 SK 50 workpiece weight 800 kg tool magacine with 100 Plätzen wotkpiece diameter with 2 vacant positions 325 mm Chip to chip time ca. 8,00 sec. change time of pallets ca. 12,00 sec Lhjdpfx Akewhqtksyef total power requirement 65,00 kW weight of the machine ca. 20,00 t dimensions of the machine ca. 7,80 x 3,50 x H3,40 m Horizontal machining center with SIEMENS SIN840D control. NC-rotary table; chip conveyor; coolant-unit; coolant through the spindle Magazine with 2 cassette à 50 pockets.

Condition: ready for operation (used), Year of construction: 2003, functionality: fully functional, machine/vehicle number: A.100765.01, travel distance X-axis: 1,200 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,200 mm, controller model: SIEMENS SINUMERIK 840 D, spindle speed (max.): 6,000 rpm, The machine spindle was overhauled in 2015! TECHNICAL DETAILS Travel X-axis: 1200 mm Travel Y-axis: 1000 mm Travel Z-axis: 1200 mm Spindle speed: 25 - 6,000 rpm Max. torque: 900 / 1130 Nm Number of tables: 2 Maximum interference diameter: 1200 mm Table rotation speed: 15 rpm Table clamping torque: 10,000 Nm Tilting moment: 29,000 Nm Distance between spindle nose and table: 130 mm Pallet dimensions: 800 x 630 mm Pallet change time: 16 s Transport weight: 1,200 kg Number of tool stations: 250 Maximum tool diameter: 125 mm Diameter with adjacent stations free: 250 mm Maximum tool length: 650 mm Maximum tool weight: 40 kg Tool change time: 2.5 - 4.5 s Average chip-to-chip time: 7 - 9 s Tool holder: SK 50 DIN69871 Feed rate: 1 - 36,000 mm/min Rapid traverse: 36 m/min MACHINE DETAILS Ljdpfxoytfmzo Akyehf Control: SIEMENS SINUMERIK 840 D Dimensions & Weight Dimensions (L x W x H): 10,000 x 6,000 x 3,800 mm Machine weight: approx. 30,000 kg Operating hours: approx. 100,000 h (The machine was operated in 2-shift + ghost shift mode. The previous owner estimates approximately 100,000 hours over 20 years of operation.) EQUIPMENT Direct measurement via glass scales Coolant system 1,250 L High-pressure pump 11 bar (coolant) Through-spindle coolant 25/50 bar (TSC) Blow-out device for spindle taper Paper filter system Chip conveyor Pallet changer 2 pallets Set of tool holders Coolant/mist extraction Touch probe

Condition: used, Year of construction: 1999, x-travel 800 mm y-travel 630 mm z-travel 800 mm Control Siemens Ljdsyqu Uvopfx Akyehf type 840 D size of pallet 500x630 mm numbers of pallets 8 360 ° turning speeds 6000 U/min Table load 800 kg spindle taper ISO 50 Feed 1-36000 mm/min Cooling through the spindle 50 bar weight of the machine ca. 19,5 t dimensions of the machine ca. 8x7x4,2 m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: used, Year of construction: 2005, x-travel 1800 mm y-travel 1600 mm z-travel 1400 mm Control Siemens type 840 D size of pallet 1000x1250 mm numbers of pallets 2 360 ° Table load 3500 kg workpiece swivable +/- 2100 mm positioning accuracy 0,01 mm spindle taper ISO 50 transmission ratio 2 Torque 1130 NM turning speeds 25-10.000 U/min Feed 1-40.000/50.000 mm/min weight of the machine ca. 43 t dimensions of the machine ca. 11x9x34,5 m The tech. Data are manufacturer or operator information and therefore non- Ljdpfxoyquvms Akyohf binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: ready for operation (used), Year of construction: 2009, operating hours: 15,716 h, travel distance X-axis: 1,200 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,200 mm, controller manufacturer: SIEMENS, controller model: 840 D, spindle motor power: 37,000 W, number of axes: 4, This 4-axis HULLER HILLE NBH 230 horizontal machining center was manufactured in 2009. Ideal for precision engineering, it offers robust construction and reliable performance. Consider the opportunity to buy this HULLER HILLE NBH 230 horizontal machining center. Contact us for more information. Additional equipment Ledpfx Akex D Rn Rjyohf • Machine includes a Kirchgässner pallet storage. • Magazine Capacity: 32 Euro pallet spaces for raw material • Pallet Size: 630x800 mm • Pallet Spaces: 32 Extra Information Machine still under power

Condition: new, Year of construction: 2011, Lot of Hüller Hille nb-h95, nb-h135 spare parts 2 pallets and 2 mesh boxes filled with new spare parts for these two machine types. Lhodpfx Akodr Shgeysf The parts come from the maintenance department of a company that operated 12 of these machines. As such, only components with a proven history of wear or failure have been selected, making this an ideal stock for ongoing maintenance needs. The price is for the entire lot, but individual sales are also possible. Collection and shipping by freight forwarder available.

Condition: ready for operation (used), Year of construction: 2004, Travel X/Y/Z: 700mm/630mm/700mm, max. workpiece dimensions X/Y: 750mm/700mm, pallet clamping surface X/Y: 500mm/500mm, max. pallet load capacity: 500kg, tool holder: SK40, feed rate: 50m/min, rapid traverse: 50m/min, positioning accuracy: +/-0.004mm, repeatability: +/-0.001mm, spindle speed: 12000rpm. Machine dimensions X/Y/Z: approx. 4000mm/3800mm/3000mm, weight: approx. 12500kg, control: Fanuc Series 21i-MB, operating hours: approx. 42400h, spindle hours: approx. 11500h. Includes Renishaw OMP 40-2, central lubrication, and 4 pallets. Documentation available. On-site inspection possible. Expected to be available from January 2026. Lhedjxuvpbjpfx Akysf

Condition: used, Year of construction: 2007, 4-axis CNC horizontal milling machine Hüller Hille BlueStar5, year of manufacture 2007. Automatic pallet changer with 2 exchange pallets, each with 4 vices (125mm), 4 additional exchange pallets (one with a mineral cast clamping tower), Renishaw measuring system, high-pressure coolant system with additional filtration, coolant and air through the spindle, 40-position tool magazine BT40. Lodpfx Asw D Sbnekyjhf

Year of construction: 1982, condition: good (used), Clamping plate with T-slots and cross table, plate field, welding table, welding table, plate boring machine, T-slot plate, pallet changer -T-slot plate comes from: a Hüller Hille milling machine type nb-h 70 -Width: 475 mm -Length: 500 mm Lhodpfxjfhtp So Akyof -Height: 68 mm -Plate: is solid -Groove width: 12 mm -Dimensions: 500/475/H68 mm -Weight: 90 kg

Condition: used, Year of construction: 2005, Technical details: x-travel: 1800 mm y-travel: 1600 mm z-travel: 1400 mm B-axis (table): 360° size of pallet: 1000 x 1250 mm workpiece swing dia.: 2100 mm workpiece weight: 3500 kg spindle taper ISO: 50 spindle drive motor: 37 kW spindle turning speed range: 25 - 10000 U/min Lsdpfxevgcrks Akyehf feed range: 40/50 m/min rapid power traverse circular: 10 U/min total power requirement: 90 kVA weight of the machine ca.: 43 t dimensions of the machine ca.: 11 x 9 x 4,5 m Machine with SIemens 840 D control for 4 axis - full B-axis - palette changer - tool changer for 150 tools - coolant device with coolant through spindle - chip conveyor *

Condition: used, Year of construction: 2007, Technical details: x-travel: 700 mm y-travel: 630 mm z-travel: 700 mm weight of the machine ca.: 15 t dimensions of the machine ca.: 4,20 x 2,90 x 2,90 m pallet size:: 500 x 500 mm tool taper: SK 40 Tool taper: HSK-A 63 turning speed range: 10.000 U/min Lhsdpfxjw Dufce Akyef

Condition: good (used), Year of construction: 2012, functionality: fully functional, Schiess CNC vertical lathe with C axis, year 1992, retrofitted in 2012 CNC: NUM 1060 FLEXIUM 2 tables, table diameter 2000mm – max turning diameter 2500mm – max table speed 201 rpm – table power 56 KW Load capacity (table included): 16,000kg Movable crossrail with 12 positions, 50mm pitch Available space under spindle nose: min. 795mm, max. 1345mm RAM Z stroke: 1000mm C axis with 360,000 positions – milling spindle max speed 1600 rpm – milling spindle power 22KW – 2 gear ranges Tool magazine: 20 turning tool positions, 35 milling tool positions 1 milling head WIDAFLEX UTS80 1 milling head ISO 50 Renishaw MP60 touch probe (for parts) Lsdexpqm Rjpfx Akyohf Tool presetter – Transmit function: G20 / G21 – No rigid tapping Chip conveyor Front door: partial opening M0 / full opening

Condition: good (used), Year of construction: 2004, Hüller Hille Bluestar 5, year of manufacture 2004, Fanuc 21 Ti - MB control, travel X/Y/Z 700/630/700 mm, 2-pallet changer, pallet size 500 x 500 mm, rotary table C-axis 0.001°, 40-position tool changer, BT 40 spindle taper, spindle speed up to 10,000 rpm, feed rates X/Y/Z up to 50 m/min, internal coolant 40 bar, chip conveyor, max. table load 500 kg. Ledpjxwvg Sofx Akyshf

Condition: good (used), Year of construction: 2002, functionality: fully functional, 2-axis machine. Largest turning diameter: 1000 mm Largest swing diameter: 1250 mm Vertical slide stroke: 1000 mm Stroke horizontal slide: 1250 mm Spindle head according to DIN 55026: Size A 15 Spindle Ø in front bearing: 240 mm Drive 100% / 40% ED: 4.4 / 5.5 kW Speed range 1: 6.3 90 224 rpm Speed range 2: 25 360 900 rpm Feed rates: max. 14000 mm/min Rapid traverse: max. 20000 mm/min Turret head: 4 stations Round shank: Ø 60 mm according to DIN 69880 Connected load: 110 KW Weight: 25 tons The machine is still under power. Lhjderx R S Uepfx Akyof Inspection possible at any time by arrangement. Price ex location. We will be happy to enquire about the costs for free truck.

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, machine/vehicle number: A.1001840.01, travel distance X-axis: 700 mm, travel distance Y-axis: 630 mm, travel distance Z-axis: 700 mm, total height: 2,900 mm, total length: 4,200 mm, total width: 2,900 mm, overall weight: 12,500 kg, spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Working Area Max. workpiece contour: 750 × 700 mm Transport load per pallet: approx. 500 kg Clamping surface pallet DIN 55201, Form A2: 500 mm x 500 mm Distance table center to spindle nose in Z: 100 mm Distance table top to spindle nose in Y: 85 mm Working Spindle Standard tool holder: SK 40 Ball bearing in front bearing: 80 mm Standard speed range: 10,000 rpm Feed Feed rate X-, Y-, Z-axis: 1 – 50,000 mm/min Feed force X-, Y-, Z-axis, 40% duty cycle: approx. 5,000 N Rapid traverse X-, Y-, Z-axis: 50 m/min Acceleration: approx. 7 m/s² Ball screw (lead): 40 (20) mm Tool Magazine Lhodpfx Ajwx Ed Eskyjf Chain magazine 40 tool positions: max. quantity 40 Tool change position: via spindle Max. tool diameter: 80 mm Max. tool length: 350 mm Max. tool change time: 2.5 s MACHINE DETAILS Electrics Operating voltage, three-phase, frequency: 400 V, 50 Hz Control voltage, frequency: 230 V, 50 Hz Connected load: 27 kVA Fuse protection: 80 A

Condition: good (used), Year of construction: 2001, HÜLLER HILLE HESAP, type DV120, serial no.: A.1000439, year of manufacture: 2001, recorded operating hours: 92,566, max. workpiece diameter: 1,000 mm, max. turning length: 1,000 mm, X-axis: 870 mm, Z-axis: 1,020 mm, spindle speed: 25 - 900 rpm, 2 tool magazines: 1x 12 – 2x 24 positions, workstation 0950, control system: Siemens Sinumerik 840C, extraction unit: Keller. Lhedswyxbyepfx Akysf

Condition: used, Year of construction: 2007, 4-axis CNC horizontal milling machine Hüller Hille BlueStar5, year of manufacture 2007. Automatic pallet changer with 2 exchange pallets, each with 4 vices (125mm), 4 additional exchange pallets (one with a mineral cast clamping tower), Renishaw measuring system, high-pressure coolant system with additional filtration, coolant and air through the spindle, 40-position tool magazine BT40. Ljdpfoxurapsx Akyehf

Condition: used, Year of construction: 2005, x-travel 700 mm y-travel 630 mm z-travel 700 mm Control SIN 840 D SIEMENS spindle turning speed - stepless 10.000 U/min power capacity at 100 % load 13,00 kW feeding force at 40 % ED 18,00 KW tool taper HSK-A63 spindle diameter in front bearing 80 mm feed X/Y/Z/-axis 1 - 50.000 mm/min rapid traverse X/Y/Z 50,00 m/min feed capacity X/Y/Z 5,00 kN B - axis 360 x 1 ° B-axis 30,00 U/min size of pallet 2x 500 x 500 mm workpiece weight 500 kg 0 700 x 700 x 750 mm tool magacine with 40 Plätzen Lhjdpswhqtqsfx Akyef tool length - max. 350 mm tool diameter 80 mm tool diameter with 2 vacant positions 150 mm weight of tools max. 10,00 kg Chip to chip time 4,00 sec. total power requirement 24,00 kW weight of the machine ca. 15,00 t dimensions of the machine ca. 4,00 x 4,00 x H3,00 m Horizontal machining center with SIEMENS SIN840D (PCU50); chip conveyor, coolant-unit, coolant throu the spindle 40bar at 23 l/min;

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, travel distance X-axis: 700 mm, travel distance Y-axis: 630 mm, travel distance Z-axis: 700 mm, workpiece weight (max.): 500 kg, spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Lhedpfx Aoxf Dckokyjf Travel Travel X: 700 mm Travel Y: 630 mm Travel Z: 700 mm Spindle Spindle speeds: 10,000 rpm Drive power 100% duty cycle: 13.00 kW Drive power 40% duty cycle: 18.00 kW Spindle diameter: 80 mm Workpiece Pallet size: 2 x 500 x 500 mm Workpiece weight: 500 kg Minimum workpiece dimensions: 700 x 700 x 750 mm Tools Tool holder: HSK-A63 Tool magazine capacity: 40 positions Max. tool length: 350 mm Tool diameter: 80 mm Tool diameter with free adjacent spaces: 150 mm Max. tool weight: 10.00 kg Feed rate X/Y/Z: 1 - 50,000 mm/min Rapid traverse X/Y/Z: 50.00 m/min Feed force X/Y/Z: 5.00 kN B-axis: 360 x 1 B-axis speed: 30.00 rpm Chip-to-chip time: 4.00 s MACHINE DETAILS Control: SIEMENS SIN840D (PCU50) Total power requirement: 24.00 kW Dimensions & Weight Dimensions (approx.): 4.00 x 4.00 x 3.00 m Machine weight (approx.): 15.00 t EQUIPMENT Chip conveyor Gravity band filter system High-pressure coolant system 40 bar at 23 l/min

Condition: good (used), Year of construction: 2019, machine/vehicle number: 25728, Equipped with: Hydraulic Unit Sinumerik 840D sl CNC Control Slim Line Operator Panel OP012 W/12 TFT-Color Display 19" Machine Control Panel 20 Tool ATC CAPTO C6 Multifunctional Tool Carrier For Turning and Driven Tools One Fixed Tool Unit Assembled To The Compound Slide W/Coolant Thru The Turning And Drilling Tools, Coolant For The Driven Spindle From The Outside Drilling Spindle Additional Drill Spindle For Orientation Chip Conveyor Coolant Equipment -Including piping and shut-off valve and flow control switch -To supply coolant to tools for coolant and flushing through the cutting tools -To supply coolant for flushing the work piece and chuck -To supply coolant for flushing the working area Paper Band Filter Immersion Cooler High Pressure Coolant Pump, 40 Bar Through Tools Flushing Pistol, Hand Held Air Cleaner - Mechanical Separation "Mist Collector" Tool Life Display Remote Diagnostics Signal Lamp Automatic Door For Loading W/Shuttle Load and Unload Shuttle Swivel Loader Automation Cell Tuned for Part Pallet Conveyor For 20 Raw And Finished Parts Pallets Pallets Designed for Part 596500 Handling System SPC Station (Maximum O 270 mm, Maximum H 150 mm, Maximum Wt. 12 kg) NIO Station (Closing forward leading gravity) Skiving Software (Hardware: Software and user surfaces for skiving technology) Measuring Probe (For measuring diameters and length of the workpiece in the machine) Measuring Software for Teeth Measuring (MDK and Flank Line, Software and User) Measuring Program (Automatically measuring program for measure the position of the two gears to each other, after using sister tools) SPC (Every X workpieces the MDK needs to be measured) Tool Changer (Precut, measurer and final cut) Skiving Tool Identification (Hardware, software for the identification of the skiving tool after tool change) Hydraulic Diagrams Coolant Diagrams Lubrication Diagrams Electrical Wiring Diagrams Hardcopy of Diagrams CF Certificates Specifications: Workpiece Spindle: -Speed: 0-7000 l/min -Power: 55,2 - 59,7 kW Tool: Capco C6 Tool Spindle: -Speed: 0-6000 l/min -Power: 29 - 41 kW Machine Weight, Floor Space and Voltage Supply: -Operating Voltage: 400V, 3 Phases, 50 Hz -Control Voltage: 24 V -Lighting Voltage: 240 V, 50 Hz -Floor Space: 2,700 x 2,600 mm -Height: 4,000 mm -Total Weight, Approximate: 16,000 kg Longitudinal, Z-Axis: -Stroke: 800 mm -Rapid Rate: 24 m/min -Feed Force: 12 kN Transverse, X-Axis: Lhsdew Iqumepfx Akysf -Stroke: 900 mm -Rapid Rate: 24 m/min -Feed Force: 12 kN Tool Spindle, B-Axis: -Range: -20 / +90 Degree Y-Axis for Spindle Unit: -Stroke: 200 mm -Rapid Rate: 12 m/min -Feed Force: 6 kN C-Axis Main Spindle: -Positioning Accurace: 9" Multifunctional Tool Carrier: -Power: 29 kW at 100% ED -Power: 41 kW at 44% ED -Torque: 141 Nm at 100% ED -Torque: 212 Nm at 44% ED -Spindle Speed: 0-6000 min-1 -B-Axis for Stepless Motion in a Range Of: -20/+90 Degree Tool Magazine: -Maximum Tool Diameter: 100 mm -Approximate Tool Length: 300 mm -Approximate Tool Weight: 12 kg Swivel Loader: -Maximum Workpiece Diameter: 270 mm -Height: 150 mm -Weight: 16 kg

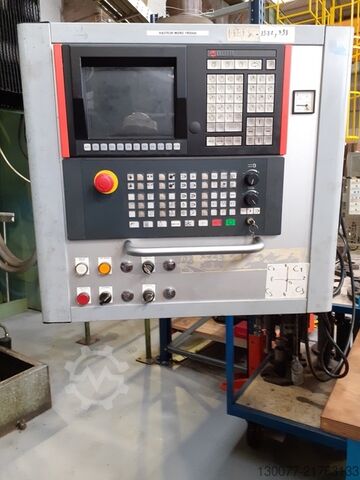

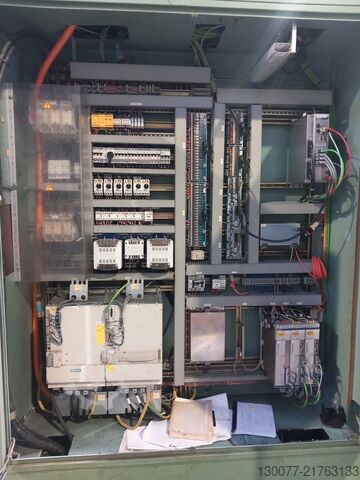

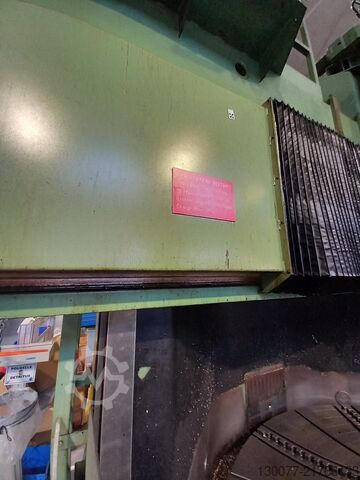

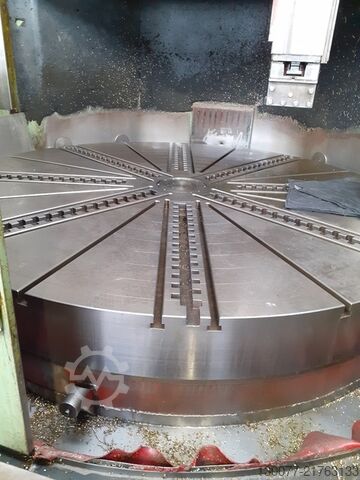

Condition: good (used), functionality: fully functional, Vertical lathe BERTHIEZ Brand: BERTHIEZ Table diameter: 2550 mm Lhedpfx Akey Egb Soysf Max. turning diameter: 2800 mm Machinable height: 2300 mm Max. load: 25 t Speeds: 1 - 160 rpm Floor dimensions: 4000 x 4000 mm

Condition: used, faceplate diameter 2500 mm Lhjdpfx Asyuqidjkyof swing diameter 2700 mm turning height 1600 mm turning speed range - milling 1,18 - 32,5 U/min turning speed range - milling 4,25 - 117 U/min workpiece weight 10000 kg side head - cross travel 800 mm ram head - cross travel 45 degrees - 1000 mm ram head - cross travel 30 degrees - 1000 mm total power requirement 80 kW 2-Axis D.R.O. 5 positions turret

Condition: ready for operation (used), Year of construction: 2008, spindle speed (max.): 6,000 rpm, overall weight: 6,500 kg, Fanuc 18ITB Lhsdpfx Asx Irzvekyjf parts diameter 130 mm, length 110 mm spindle speed 7500 rpm 12-station turret max tool speed 6000 rpm power 24 kW, chip conveyor

Condition: good (used), Year of construction: 1983, Faceplate diameter: 1250 mm Max. turning diameter: 1400 mm Max. turning height: 1180 mm Max. ram stroke, vertical: 750 mm Table load capacity: 5,000 kg Faceplate speed range: 4 - 210 rpm Vertical slide swivel adjustment: 45° Feed range: 0.044-8 mm/rev Lhsdpfx Akoy Ex Epsyef Rapid traverse: 2 m/min Machine dimensions (L x W x H): approx. 2715 x 2665 x 3950 mm Total weight: approx. 16,500 kg Accessories / Special features: • 2-axis digital display, make ACU-Rite • Faceplate Ø 1250 mm with 4 jaw chucks • 5-position turret head Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel / Germany
