Used Hauser Profile Projector for sale (5,849)

Condition: used, TECHNICAL DETAILS screen Ø : 300 [mm] Lredpfx Aouhb Nlsa Ror EQUIPMENT - 3 objectives (10x, 20x, 50x) - 2 axis display

Condition: used, TECHNICAL DETAILS - Ø screen : 600 [mm] Lsdpfxouhb Nfs Aa Rerr - Strokes (X/Y) : 200 / 100 [mm] - Magnification : 10X, 20x, 50x, 100x - power max : 1 [kW] - floor space (L x D x H) : 1100 x 1720 x 2100 [mm] - weight : about 400 [kg]

Condition: used, functionality: fully functional, overall weight: 100 kg, Profile projector: Profile measuring device Optical measuring device with 10x magnification and digital display. Functionally sound. In good condition. Operating manual not available. Used for re-measuring radii, contours, and manufactured parts. Digital display on two axes. Dimensions: Lrodpfszl Diqex Aa Rsr Height: 900 mm Length: approx. 600 mm Width: approx. 600 mm Weight: approx. 100 kg Inspection and collection possible. Cash payment upon collection. Sold as is, no warranty claims, and with exclusion of any liability for defects.

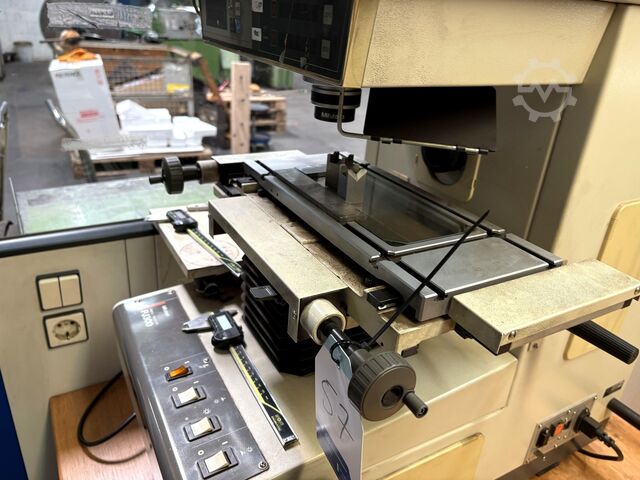

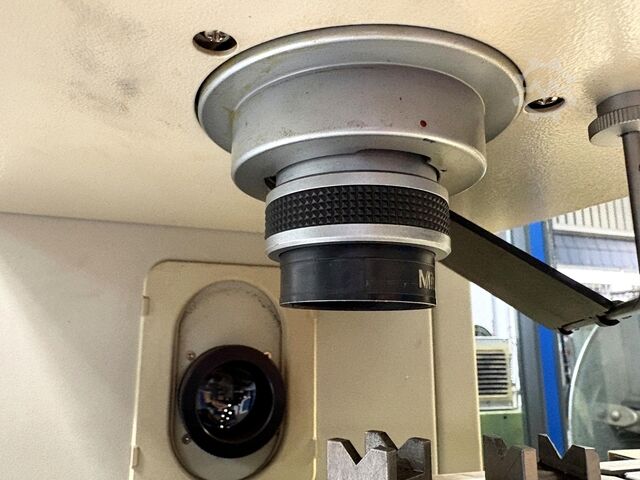

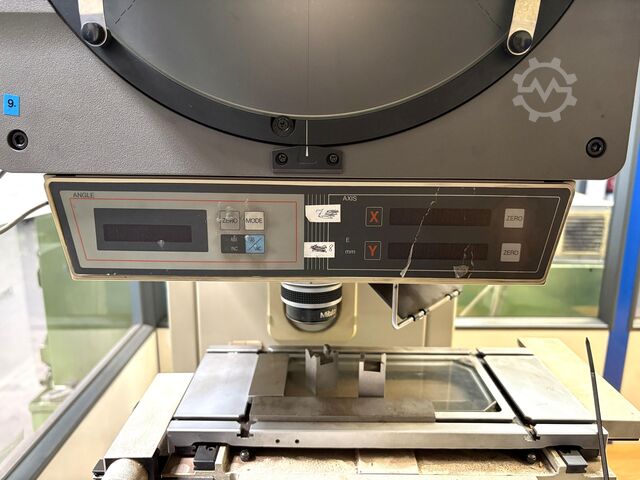

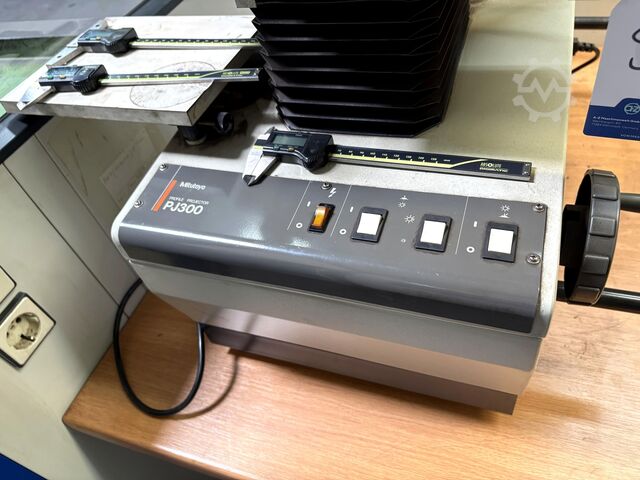

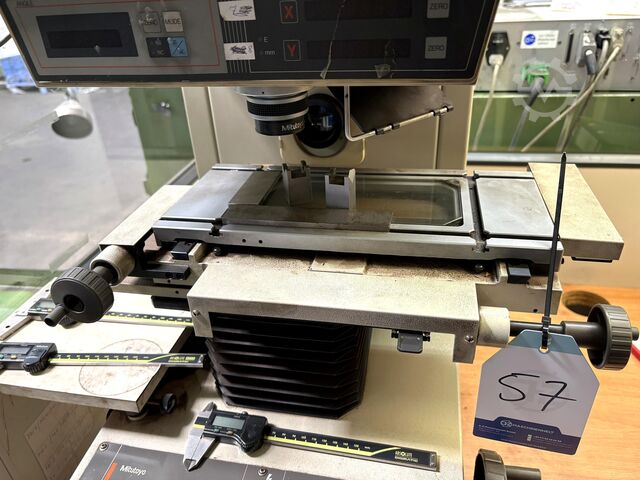

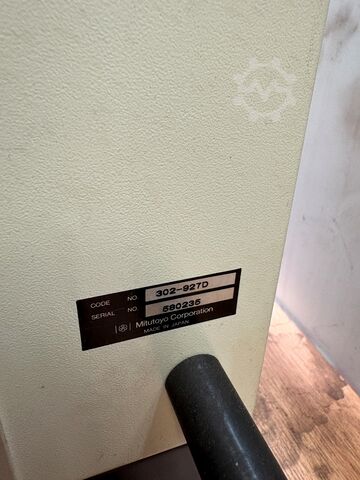

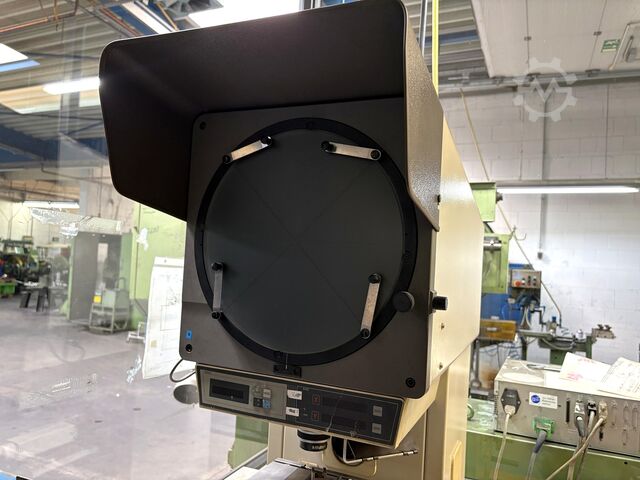

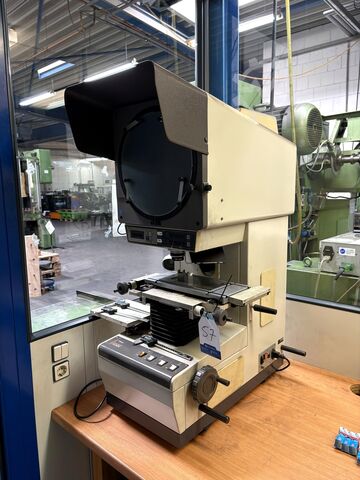

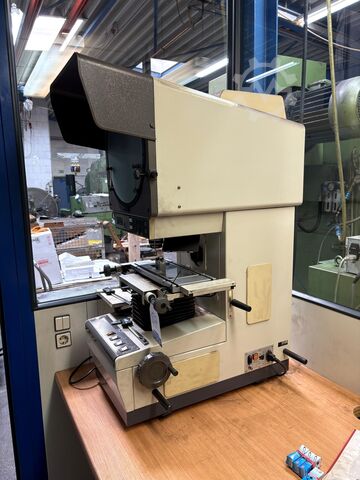

Condition: good (used), functionality: fully functional, machine/vehicle number: 302-101-4, travel distance X-axis: 110 mm, travel distance Y-axis: 55 mm, total width: 500 mm, total length: 1,000 mm, space requirement height: 1,100 mm, overall weight: 120 kg, For sale is a profile projector from the manufacturer Mitutoyo, type PJ 300. The item is in good condition. Technical data: Device type / series: Vertical profile projector PJ-300H Code No.: 302-101-4 Serial number: 81636 Manufacturer: Mitutoyo Corporation Screen diameter (effective): Ø 300 mm Projection image: Side-correct, upright Angle scale / rotation: 360° rotatable screen, digital angle counter Angle resolution: 1' or 0.01° Crosshair: 90° solid lines Standard objective magnification: 10X (optionally expandable to 20X, 50X, 100X) Through-light illumination (contour): Halogen light source (24 V, 150 W) with integrated heat protection filter / Telecentric system Top-light illumination: Halogen light source (24 V, 150 W) for excellent detail visibility Brightness control: 2-stage for optimal adjustment to the workpiece XY-axis detection: Integrated digital display (XY counter) directly next to the screen for ergonomic operation Ljdpfszl Sr Tex Aa Rsrr Interfaces: Data output RS-232C (for connection to measuring software, e.g. QM-Data200 or PC) Power supply: 100 - 240 V AC, 50/60 Hz Power consumption: approx. 400 W Net weight: approx. 110 kg - 120 kg Dimensions (W x D x H): 677 mm x 646 mm x 1,004 mm On request, transport and loading can be arranged throughout Europe for an additional charge. Prices are plus VAT. Inspection is possible by appointment. Contact us, our team will be happy to assist you further. Trade-in or exchange is possible! Machine purchase / sale BUYING / SELLING PRODUCTION & METALWORKING MACHINES AND MORE. Do you need a high-quality but affordable metalworking machine for your production? Or do you want to sell yours? For more information or contact options, visit our website.

Condition: new, Nikon V-20 B profile projector NEW, never used (new price 52,400 euros) x,y 250 x 150 mm Ljdpfx Aaevlph As Rerr screen around 500 mm 10 x and 20 x magnification light through and light on the product heidenhain quadra chek digital readout with various measuring/ and calculation functions turntable to align the product documentation

Condition: used, Manufacturer: Mitutoyo Lrsdpfoy Nlu Esx Aa Ror Model: PJ 3000

Condition: not inspected (used), Year of construction: 2007, functionality: unexamined, CNC control for Werth measuring machine for scanning probe SP25M Ledpfext Ri Tox Aa Rerr

Condition: used, functionality: unexamined, Ferwood Code: RU0011952 – Manufacturer Code: PJ-300H – Condition: Used – Functionality: Not tested – Compatible Machine: – If interested, we offer an overhaul service, please contact us. 140KG 120X80X115 Lrjdpfoyrplrsx Aa Rer

Condition: excellent (used), functionality: fully functional, travel distance X-axis: 155 mm, travel distance Y-axis: 105 mm, travel distance Z-axis: 105 mm, input voltage: 110 V, type of input current: AC, table length: 405 mm, input current: 3 A, table width: 155 mm, Equipment: lighting, Mitutoyo PH-350H Profile Projector Part Number: 172-101-4 Serial Number: 70174 SPECIFICATIONS: Screen Size….35.5 cm Table Surface (3 T-Slots)15.5 cm x 40.5 cm X-Axis Travel…15.5 cm Y-Axis Travel…10.5 cm Z-Axis Travel…10.5 cm Table Rotation….+/- 10 degrees Projection Type….Horizontal Table Load Capacity – Maximum…40 kg Lrjdpfx Aaswr Uvqs Ror Surface Illumination.150 W Halogen Lamp Electrical System…110 V/50 Hz/3 Amps Comparator Dimensions 76 cm L X 122 cm W X 117 cm H Cabinet Dimensions 51 cm L X 122 cm W X 45 cm H

Condition: excellent (used), functionality: fully functional, travel distance X-axis: 252 mm, travel distance Y-axis: 152 mm, workpiece weight (max.): 40 kg, input voltage: 110 V, type of input current: AC, total height: 1,155 mm, total length: 1,137 mm, space requirement width: 467 mm, overall weight: 155 kg, table length: 450 mm, table width: 146 mm, Equipment: lighting, Mitutoyo PH3500 Profile Projector Used Mitutoyo PH3515F for sale in good condition. Manufacturer: Mitutoyo Type: PH3515F Built-in linear scale Magnification: 10x Display size: 353mm Digital angle measurement with 1' or 0.01° accuracy. Built-in linear scales for use with optional display counters. +/-0.1% or less (contour), +/-0.15% or less (surface) Working area range X-axis horizontal movement: 254 Y-axis vertical movement: 152 Table size: 450x146 mm Light source: Halogen bulb 24V 150W Suitable for thread pitch measurement – ​​No blurred or distorted image when the workpiece is tilted. Still image on the bright screen in the living room. Standard dual fiber optic illumination. 14" (353 mm) diameter protractor screen with crosshairs and stepped lines for easy alignment. Digital angle measurement with 1' or 0.01° accuracy. Durable workpiece table features linear scales for fast and accurate measurement. Lrjdpfx Aajwr U A De Rjr Height: 1155mm Length: 1137mm Width: 467mm Weight: 155kg

Condition: used, Tool presetting machine GILDEMEISTER-DE VLIEG, type EGS 5045 / Microset DPS 100 Serial No. 83-10-102, Year of manufacture 2002 Travel X-axis: approx. 400 mm Travel Z-axis: approx. 400 mm Tool holder in the mounted rotary table: Ø 50 mm Pitch circle diameter of the tool holders in the mounted rotary table: Ø 340 mm Internal taper in the mounted rotary table: Ø 245 mm Tool holder plate as a rotary table with 8 mounting holes Ø 50 mm Centering diameter of the mounted tool holder plate: Ø 102 mm Rotatably mounted flange with centering diameter: Ø 102 mm Lrsdpfxshbal Ds Aa Ror Rotatably mounted flange with outer diameter: Ø 155 mm Rotatably mounted flange with 3x M10 mounting holes, pitch circle: Ø 130 mm Mains connection: 230 volts, 50 Hz - Measuring electronics Microset DPS 100 - Rotary table with 8 tool positions - Interfaces: 1x RS232, 2x measuring system (X/Z) - Profile projector with screen Ø 100 mm, magnification 20x and two circle ground glass screens - Ground glass screen fixed with crosshair - Axis movement via manual quick adjustment with pneumatic clamping - Fine adjustment via handwheels - Rotatable rotary table with pneumatic clamping - Metal base with 3 drawers Footprint L x W x H: 1100 x 1000 x 800 mm Weight: 400 kg Good condition

Condition: new, Year of construction: 2024, functionality: fully functional, Baty R400 profile projector - flexibility and precision for larger workpieces The Baty R400 profile projector combines precise optical measurement technology with a generous 400 mm diameter screen, making it the ideal choice for inspecting larger workpieces. The horizontal light path and large measuring area of 300 mm x 150 mm provide the flexibility to efficiently measure both small and larger parts. Equipped with a choice of magnification lenses (10x, 20x, 50x and 100x), the R400 can be adapted to different measurement requirements. It is also available with multiple display options: XLS: Basic 2-axis display for precise and simple measurements. Lodpfx Aasuyh E Hs Rsrr MX200: This model extends the functions to include geometric measurements, including the calculation of angles, radii and distances. It also enables the creation of tolerance reports. FT2: This model offers advanced features such as edge detection and a fully integrated reporting and analysis tool with SPC support and automatic data acquisition. With its robust design and ability to perform both simple and complex inspection tasks, the Baty R400 is the perfect choice for manufacturing environments where reliability and precision are required

Condition: new, Year of construction: 2024, functionality: fully functional, Baty SM300 profile projector - Compact and precise optical inspection The Baty SM300 profile projector is a versatile and precise projector designed specifically for demanding quality control on the shop floor or production floor. With a vertical light path and a 300 mm screen, it is ideal for inspecting small and medium-sized workpieces. The SM300 offers a high resolution of 0.5 microns and a measuring range of 150 mm x 50 mm, enabling detailed and precise measurement of components. The device is available with different magnification lenses, including 10x, 20x, 50x and 100x, to meet the specific requirements of your inspection tasks. The GMR display, which enables full geometric functionality, is available as a display option on this profile projector. These features make the SM300 an ideal choice for quality control applications where precision and efficiency are critical. Lredpsuyh N Sjfx Aa Rsr Features: 300 mm screen with finely ground glass for clear projections. Robust design suitable for use in harsh environments. Magnification options: 10x, 20x, 50x, 100x. Measuring range of 150 mm x 50 mm with a resolution of 0.5 micrometers. Integrated profile and surface illumination for sharp and precise images. Digital angle measurement and complete geometric measurement functions with the GMR display system. The SM300 is particularly suitable for workshops where reliable and precise inspection is required. The robust design ensures a long service life and consistently high measuring accuracy, even under difficult conditions.

Condition: new, Year of construction: 2024, functionality: fully functional, Baty SM350 profile projector - Powerful inspection for demanding applications The Baty SM350 is a sophisticated profile projector with a 350 mm screen and a robust, precise working platform with a measuring range of 250 mm x 125 mm. It is ideal for precise optical inspections in environments where reliability and accuracy are paramount. XLS: A simple 2-axis digital display for X and Y measurements, ideal for basic applications. MX200: This model extends the functions to include geometric measurements, including the calculation of angles, radii and distances. It also enables the creation of tolerance reports. FT2: The most advanced version offers a touchscreen interface with Fusion 2D software. This version includes optical edge detection and full reporting, including SPC diagrams and DXF overlays. The device is equipped with a 3-position lens turret that allows quick and easy switching between different magnification lenses without the need for recalibration. With the FT2-E display option, the SM350 also offers advanced measurement functions such as edge detection and DXF overlays. These features make it the ideal solution for detailed inspections and demanding measurement tasks in the manufacturing industry Ledpfxouyh Rpj Aa Rorr

Condition: new, Year of construction: 2024, functionality: fully functional, Baty R14 profile projector - Precise and compact solution for workshop environments The Baty R14 Profile Projector offers a precise, non-contact measurement solution for a wide range of applications, particularly for the inspection of turned and machined parts. With a 340 mm screen and a generous measuring area of 175 mm x 100 mm, it is ideal for use in workshops where space is limited. Thanks to the different display variants available (XLS, GXL and FT2-E), the device can be adapted to different requirements. Lsdpfx Aaeuyh Dvs Rorr XLS: A simple 2-axis digital display for X and Y measurements, ideal for basic applications. MX200: This model extends the functions to include geometric measurements, including the calculation of angles, radii and distances. It also enables the creation of tolerance reports. FT2: The most advanced version offers a touchscreen interface with Fusion 2D software. This version includes optical edge detection and full reporting, including SPC diagrams and DXF overlays. In addition, lenses with different magnifications (10x, 20x and 50x) are available to adapt to the specific requirements of your measurements. The compact, robust design of the R14 makes it the ideal choice for workshop environments

Condition: new, Year of construction: 2024, functionality: fully functional, Baty SM20 profile projector - compact performer for optical inspection The Baty SM20 offers a vertical light path and a 500 mm screen, making it ideal for the inspection of medium to large workpieces. The device offers a robust design and a generous measuring range of 250 mm x 125 mm, making it ideal for precise inspections on the production floor. XLS: A simple 2-axis digital display for X and Y measurements, ideal for basic applications. MX200: This model extends the functions to include geometric measurements, including the calculation of angles, radii and distances. It also enables the creation of tolerance reports. Lrsdpfx Aouyh N Eja Rer FT2: The most advanced version offers a touchscreen interface with Fusion 2D software. This version includes optical edge detection and full reporting, including SPC diagrams and DXF overlays. With a choice of magnification lenses (up to 100x) and advanced features such as digital angle adjustment and optional edge detection, the SM20 is ideal for a wide range of quality assurance and process monitoring applications. Users can also choose from a range of display options, from simple measurement functions to comprehensive reporting with the FT2-E variant.

Condition: new, Year of construction: 2024, functionality: fully functional, Baty R600 profile projector - Large format precision measurement The Baty R600 profile projector is a versatile solution for the optical inspection of large workpieces. With an impressive screen diameter of 600 mm and a measuring range of 450 mm x 200 mm, this device is ideal for extensive and complex inspection tasks. The device is equipped with a 4-lens turret that enables quick changes between magnifications (10x, 20x and 50x) without the need for recalibration. XLS: A simple 2-axis digital display for X and Y measurements, ideal for basic applications. MX200: This model extends the functions to include geometric measurements, including the calculation of angles, radii and distances. It also enables the creation of tolerance reports. Lrjdpfxjuyh Nlj Aa Rer FT2: The most advanced version offers a touchscreen interface with Fusion 2D software. This version includes optical edge detection and full reporting, including SPC diagrams and DXF overlays. The R600 is available with advanced display options such as the FT2-E system, which offers touchscreen capabilities, automatic edge detection and full reporting. Thanks to the motorized axis control and optional CNC control, inspections can be fully automated, saving time and resources. These features make the R600 an ideal solution for demanding measuring tasks in the manufacturing industry

Condition: used, Field of view on the objective lens at 50x: 11.2 x 9.2 mm Field of view on the objective lens at 100x: 5.6 x 4.6 mm Projection area: 560 x 460 mm Objective table size: 230 x 165 mm Diameter of the glass table: 80 mm Lsdpfeb Nxl Iex Aa Rorr Approximate weight: 230 kg Space requirement: 1030 x 780 x 1800 mm

Year of construction: 1973, condition: used, machine/vehicle number: 8530, screen size: 500 x 500 mm visual field: 100 mm Ø Lrsdpfx Ao T Apyoa Rjr dimensions: 620 x 1020 x 1650 mm weight: approx. 250 kg

Condition: used, Stereomicroscope, projection enlarger, microscope, projector MOTIC type SL-41 Series Year of manufacture: approx. 1995 Magnification lens W10X/20 Power supply 230 Volts, 50Hz - Table stand with power supply for reflected light Lsdpfxjxtq Aaj Aa Rorr - Height-adjustable objective head - Round column stand with large outreach, inclinable extension arm - Light source for incident light 12 Volts, 10 Watts Space requirement (L x W x H): 500 x 140 x 350 mm Weight approx. 10 kg Good condition

Condition: excellent (used), The profile projector is used in the precision industry to solve measuring and inspection tasks that cannot be solved at all or not as economically with other methods. ISOMA profile projectors are suitable for series inspections (full inspections or spot checks), as well as for measuring and inspecting individual parts (e.g. in toolmaking). The workpiece is imaged exactly to scale at a certain magnification. Profile shape and distances can be compared with reference drawings of corresponding precision or measured directly with the scale. Deviations from nominal values, or any distances on the workpiece can be accurately determined using the precision measuring stage. Lrodpfxsl Skayo Aa Ror Power supply: 230 VAC Dimensions W x D x H: approx. 850 x 1500 x 2100 mm Weight: approx. 370 kg

Condition: excellent (used), Profile projector ORAMA 500 with digital display Lsdpfx Ajylc Utja Rerr

Condition: excellent (used), functionality: fully functional, travel distance X-axis: 400 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 450 mm, spindle speed (max.): 3,000 rpm, spindle speed (min.): 60 rpm, feed rate X-axis: 1 m/min, total height: 1,750 mm, total length: 1,400 mm, total width: 1,250 mm, quill diameter: 60 mm, space requirement width: 1,500 mm, space requirement length: 1,500 mm, space requirement height: 1,800 mm, distance table center to spindle nose: 590 mm, spindle stroke: 130 mm, workpiece weight (max.): 400 kg, Equipment: rotational speed infinitely variable, Important note! No sales/shipments to India/USA/Canada. Ledpszuvwlsfx Aa Rorr Payment for the machine must be made in full before loading, no partial payments or installments! HENRI HAUSER OP3, unique piece / excellent condition! (Bienne/Biel, Switzerland) Coordinate drilling machine / precision drilling machine with tool set (see photos) in very well-maintained, exceptional condition, second owner (41 years in current ownership). This quality will never be produced again! The coordinate drilling machine has the rare option of motorized table drive in the X and Y axes and potentiometers. This eliminates the need for tedious manual adjustment of individual coordinates over long distances with hand cranks. Furthermore, it has rare thermal stabilization and expansion compensation. Two heaters are provided for this purpose, which can and must be switched on separately before starting work and to maintain high accuracy and dimensions. This explains the factory-set high positioning accuracy of 0.002 mm with a resolution of 0.001 mm. What is unique is that the Hauser has two Heidenhain digital displays with a total of 4 glass scales with 1My resolution, also for the quill feed. This is a major advantage for precise drilling and machining at depth with Wohlhaupter, spindle tools, etc. With the mentioned options and in this first-class condition, it is very rare and most likely no longer available. Those familiar with these machines, which are primarily used in the watch industry, gunsmithing / defense industry, precision engineering, material testing, and the optical industry, know the value of these masterpieces of mechanical engineering. Also ideally suited for engine construction/overhaul, technical universities and training, materials technology, special machine construction, etc. All documents, manuals, electrical diagrams, etc. are, of course, available in their original form! Technical data: Table length 550 mm, table width = 320 mm, longitudinal travel X-axis = 400 mm, transverse travel Y-axis = 250 mm, vertical travel Z-axis = 400 mm Max. workpiece weight on the table = 400 kg, spindle mounting MK 2, stroke of the drilling spindle (Z-axis) = 130 mm Distance table to spindle = 590 mm, spindle speeds continuously variable from 60 rpm to 3000 rpm Feeds: Drilling spindle carriage: 2 stages from 0.03 mm/rev to 0.06 mm/rev Connection 50 Hz 3x 380 volts, spindle motor 0.80 hp Machine dimensions: Length = 1400 mm, Width = 1250 mm, Height = 1750 mm Machine weight approx. 1500 kg. Shipping (direct transport without transshipment) within the EU is possible. Price net for export within the EU. Example: Secure shipping via direct transport (without transshipment!) to France/Spain/Italy etc. up to 1700 km driving distance approx. 1100 - 1450 EUR.

Condition: excellent (used), Year of construction: 1998, functionality: fully functional, travel distance X-axis: 500 mm, travel distance Y-axis: 300 mm, travel distance Z-axis: 110 mm, spindle speed (min.): 9,000 rpm, grinding spindle speed: 45,000 rpm, overall weight: 3,500 kg, Equipment: documentation/manual, Still in production, in good condition, fully functional Can be seen in Switzerland, test part possible Sold "AS IS" Lrjdpfx Aaszuv U Re Ror

Condition: refurbished (used), Year of construction: 2012, functionality: fully functional, travel distance X-axis: 1,200 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 170 mm, grinding spindle speed: 45,000 rpm, overall weight: 7,000 kg, This machine has been retrofitted and fully overhauled in 2012 with new Fanuc control Z-axis fitted with linear motor instead of the traditional hydraulic Still in production, fully functional Ljdpfx Aezuvlcsa Rorr Can be seen in Switzerland, test part possible if required. Sold "AS IS"
