Used Index V100 for sale (1,399)

Condition: used, TECHNICAL DETAILS - Spindle power : 10,5 [kW] - Spindle speed : 10 000 [Rpm] - Spindle type : A2-4 - X/Y/Z strokes : 280/280/145 [mm] - Rapid traverse : 50 [m/min] Nlodpfxjuhbgwo Akuob - Loading zone X/Z strokes : 110/90 [mm] - Number of tools : 8 - Live tools speed : 6000 [Rpm] - Live tools power : 9,5 [kW] - Tool type : Capto C4 - Dimensions : 1700 x 3000 x 2400 [mm] - Weight : 4000 [kg] - Total installed power : 2,5 [kW] EQUIPMENT - CN Siemens 840D - Axis C

Condition: used, TECHNICAL DETAILS - Spindle power : 10,5 [kW] - Spindle speed : 10 000 [Rpm] - Spindle type : A2-4 - Strokes X/Y/Z : 280/280/145 [mm] - Quick movement : 50 [m/min] - Loading zone strokes X/Z : 110/90 [mm] - Tools number : 8 - Motorized tools number : 2 - Rotary tools speed : 6000 [tr/min] - Rotary tools power : 9,5 [kW] Nledpfouhbfmox Akujb - Tools type : Capto C4 - Dimensions : 1700 x 3000 x 2400 [mm] - Weight : 4000 [kg] - Installed power : 2,5 [kW] EQUIPMENT - CN Siemens 840D - Axis C - Measuring rules on linear axes - Counter spindle - 1 turning tool holder for counter operation - Coolant tank with pump - Chip conveyor

Condition: used, TECHNICAL DETAILS - Spindle power : 10,5 [kW] - Spindle speed : 10 000 [Rpm] - Spindle type : A2-4 - X/Y/Z strokes : 280/280/145 [mm] - Rapid traverse : 50 [m/min] - Loading zone X/Z strokes : 110/90 [mm] - Number of tools : 8 - Live tools speed : 6000 [Rpm] - Live tools power : 9,5 [kW] - Tool type : Capto C4 - Dimensions : 1700 x 3000 x 2400 [mm] - Weight : 4000 [kg] Nljdpfjuhbf Tox Akuob - Total installed power : 2,5 [kW] EQUIPMENT - CN Siemens 840D - Axis C

Condition: used, TECHNICAL DETAILS - Spindle power : 10,5 [kW] - Spindle speed : 10 000 [Rpm] - Spindle type : A2-4 - Strokes X/Y/Z : 280/280/145 [mm] - Quick movement : 50 [m/min] - Loading zone strokes X/Z : 110/90 [mm] - Tools number : 8 - Motorized tools number : 2 - Rotary tools speed : 6000 [tr/min] - Rotary tools power : 9,5 [kW] - Tools type : Capto C4 - Dimensions : 1700 x 3000 x 2400 [mm] - Weight : 4000 [kg] - Installed power : 2,5 [kW] Nedpfxeuhbfte Akuslb EQUIPMENT - CN Siemens 840D - Axis C - Measuring rules on linear axes - Counter spindle - 1 turning tool holder for counter operation - Coolant tank with pump - Chip conveyor

Condition: used, TECHNICAL DETAILS - Spindle power : 10,5 [kW] - Spindle speed : 10 000 [Rpm] - Spindle type : A2-4 - X/Y/Z strokes : 280/280/145 [mm] - Rapid traverse : 50 [m/min] - Loading zone X/Z strokes : 110/90 [mm] - Number of tools : 8 - Live tools speed : 6000 [Rpm] - Live tools power : 9,5 [kW] - Tool type : Capto C4 - Dimensions : 1700 x 3000 x 2400 [mm] - Weight : 4000 [kg] - Total installed power : 2,5 [kW] Nledpjuhbgdofx Akujb EQUIPMENT - CN Siemens 840D - Axis C

Condition: ready for operation (used), Year of construction: 2006, operating hours: 91,318 h, functionality: fully functional, machine/vehicle number: 040033, rotational speed (max.): 5,000 rpm, working width: 120 mm, working height: 260 mm, working length: 360 mm, TECHNICAL DETAILS Work area X-axis: 360 mm Work area Y-axis: 120 mm Work area Z-axis: 260 mm Handling area X/Z: 490/260 mm Maximum spindle speed: 5,000 rpm Spindle bore: 65 mm Spindle diameter at front bearing: 110 mm Spindle nose, cylindrical: ∅ 140 mm Feed force X/Y: approx. 8,000/10,000 N Feed force Z: 10,000 N Rapid traverse rate X/Z/Y: approx. 80/40/7.5 m/min Acceleration X/Z/Y: 7 m/s² Nljdpfjy T Itrsx Akusb MACHINE DETAILS Control system: SIEMENS Sinumerik Power at 100% duty cycle ED main spindle: 20 kW Torque at 100% duty cycle ED: 105 Nm Power at 40% duty cycle ED: 27 kW Torque at 40% duty cycle ED: 145 Nm Dimensions & Weight Machine dimensions (L x W x H): 2,430 x 2,000 x 2,850 mm Machine weight: approx. 7,500 kg Rated power: 20 kW Apparent power: 25 kVA Rated current: 36 A Voltage: 400 V Frequency: 50/60 Hz Operating hours: 91,318 h EQUIPMENT Sliding door: Sheet thickness 5 mm Note: The machine is sold including a small set of accessories!

Condition: ready for operation (used), Year of construction: 2005, operating hours: 91,318 h, functionality: fully functional, machine/vehicle number: 040018, rotational speed (max.): 5,000 rpm, controller model: SIEMENS Sinumerik, working width: 120 mm, working height: 260 mm, working length: 360 mm, TECHNICAL DETAILS Working area, X-axis: 360 mm Working area, Y-axis: 120 mm Working area, Z-axis: 260 mm Handling area, X/Z: 490/260 mm Maximum spindle speed: 5,000 rpm Spindle through-hole diameter: 65 mm Spindle diameter at the front bearing: 110 mm Spindle nose, cylindrical: ∅ 140 mm Feed force, X/Y: approx. 8,000/10,000 N Feed force, Z: 10,000 N Nljdpoy T Im Ejfx Akueb Rapid traverse rate, X/Z/Y: approx. 80/40/7.5 m/min Acceleration, X/Z/Y: 7 m/s² MACHINE DETAILS Control system: SIEMENS Sinumerik Power at 100% duty cycle, main spindle: 20 kW Torque at 100% duty cycle: 105 Nm Power at 40% duty cycle: 27 kW Torque at 40% duty cycle: 145 Nm Dimensions & Weight Machine dimensions (L x W x H): 2,430 x 2,000 x 2,850 mm Machine weight: approx. 7,500 kg Rated power: 20 kW Apparent power: 25 kVA Rated current: 36 A Voltage: 400 V Frequency: 50/60 Hz Operating hours: 91,318 h EQUIPMENT Sliding door: Sheet thickness 5 mm Note: The machine is sold including a small set of accessories!

Condition: used, Year of construction: 2017, INDEX C200 Mfd. 2017 Tooling in photos to be divided between 3 C200 machines available. Power-on hours: ~49,960 h Hydraulic hours: ~48,700 h Main spindle hours: ~24,800 h Counter spindle hours: ~24,000 h Stroke mm 20 Clamping pressure min.Max. bar 8/80 Piston Area pressure cm^2 57 Area piston thrust cm^2 57 pressure Force Max. CN 45,6 Tensile force Max. CN 45,6 10350989 1 INDEX C200 CNC-turning machine with 3 revolvers with Siemens-Based Index C200 control system SINUMERIK 840D SolutionLine - Rigid cast iron bed, perpendicular angle to the ground, excellent gradient chips - The kinematics of tool head movements guarantees maximum damping, reducing tool wear - Patented plate supports with excellent properties damping and stiffness The motion of the X-axis is derived through kinematics. "double scissors" guaranteeing high dynamics Nsdpfx Ajy Um Rrskuolb - Thermosymmetric spindle Control system Index C200 Identical to SIEMENS SINUMERIK 840d SolutionLine - Modular multiprocessor control system, SINAMICS with 120 drives - Siemens Operate control box, display in language Germany - language switching WINDOWS and flat screen - 2x USB 2.0 connection on the control panel, 2x USB connection on the control panel - NCU 720.3 B PN NCK - Integrated PLC 317-3 PNDP and ET200S - Security features implemented in software through SIEMENS Safety-Integrated and ProfiSave Extended machining cycles consisting of: Einstechzyklus Freistechzyklus Gewindestrehlen with 4 point move Lighting work. space in LED design 1 flat color TFT screen, 18.5" PCT-Touch IP65 front panel 10142338 1 Main spindle dia 65 Spindle end AD140mm, ID 85mm Material passage Max. mm 65 Speed max. 1 / min 5000 Front bearing diameter mm 110 Power 100% / 40% kW 31,5/32 Torque Max. 100%/40% Nm 125/170 Continuously synchronous variable speed drives Main spindle with hollow clamping cylinder D65/20 for pincer clamping or Chuck clamping Hydraulic control with clamp metering C axis of main spindle Drive: hollow spindle motor clamping cylinder, metering system directly on the spindle Resolution 0.00014 degrees Positionsstreubreite (VDI/DGQ 3441) Psmax = 0.01 degree 11040430 pressure clamping device Clamping pressure 8-75 bar adjustable For anti-spindle clamping cylinder 10038475 1 tool carrier 1 X-axis work vehicle mm 110 X-axis quick shift m / min 30 X-axis acceleration m / s^2 9 X-axis shear force N 5000 Z-axis work vehicle mm 320 Z-axis quick feed m / min 50 Z-axis acceleration m / s^2 9 Z-axis shear force N 5000 Y-axis working vehicle mm 100 Y-axis quick feed m / min 15 Y-axis acceleration m / s^2 9 Y-axis shear force N 5000 Offer: 1702114 - 02 / 30.3.2017 CNC-lathe INDEX C200 (GP3790. 0000F) Revolver 1: 14 stations with cylindrical shank clamping D25x48 (DIN 69880), W-grooves on the revolver-higher repeated accuracy when replacing the tool. Centering plate set, V-strips, not content of delivery, must be ordered separately. Gearshift revolver AC motor, hydraulic locking A driven tool is possible in each station of the revolver 1 . Power 25% kW 10 Torque 25% Nm 16 Speed max. 1 / min 8000 10720950 1 tool carrier 2 X-axis working vehicle mm 110 X-axis quick shift m / min 30 X-axis acceleration m / s^2 9 X-axis shear force N 5000

Condition: used, Year of construction: 2011, INDEX MS22-6 Mfd. 2011 Nledpfey Ihk Hjx Akusb IEMCA SIR Loader Knoll System Equipped as pictured

Condition: used, Year of construction: 2017, Mfd. 2017 Configuration: 2-Synchron (Dual Counter-Spindle) Production Hours: 20,000 Overview Well-equipped and maintained INDEX Werke MS22-6 configured for high-precision production, including medical components. This machine features a robust Siemens control platform, dual counter-spindles, and extensive automation for efficient, lights-out capable operation. Control & Technology • Siemens 840D SL CNC control • Dual NCU (Numerical Control Units) • TRANSMIT / TRACYL functions • ARTIS tool monitoring system • 2 additional electronic shaft preparations Configuration & Equipment • 6 main spindles • 2 SCARA counter-spindles • 2 parts catchers with conveyor belt • Bar scrap recuperator • INDEX bar guide system • IEMCA PRA bar loader • Bar feeder interface • Fire protection system Nledsy Abc Ejpfx Akujb Capacity & Performance • Max. bar diameter: 22 mm • Spindle speed: 10,000 rpm • Spindle power: 8.7 / 15 kW • Torque: 10 / 18 Nm Axes & Travels • Total slides: 10 • Main slides travel (X/Z): 62 / 85 mm • Counter-operation slides: 2 • Counter slide travel (X): 62 mm Additional Specifications • Number of counter-spindles: 2 • Counter-spindle speed: 10,000 rpm • Machine dimensions (L x W x H): 3330 x 1830 x 2860 mm • Weight: 5,700 kg • Connected load: 75 kVA Applications • High-precision medical components • Complex turned parts requiring multi-operation efficiency • Ideal for high-volume production environments

Condition: good (used), Year of construction: 2006, INDEX MS52C CNC Multi-Spindle Mfd. 2006 Control: Siemens 840D 6 Spindles 52mm Capacity Equipped as pictured Under power Knoll System Nodpfx Ajt Rkzwjkujlb Chip Conveyor Riedel Chiller 3.6 meter (12ft) IEMCA SIR Bar Feed SIR MS52/F Type 38 XL Mfd. 2005

Condition: excellent (used), Year of construction: 2019, operating hours: 13,000 h, functionality: fully functional, bar diameter (max.): 22 mm, INDEX MS22-8 Mfd. 2019 2 NCU 2 Syncrons 2 Y-Axis Control: Siemens Solution Line Knoll System Bar Feed: IEMCA SIR rack loader (12-ft) 22,000 on-hours 10,000-15,000 Hours Njdpfx Akjx H H Nrsujlb

Condition: excellent (used), Year of construction: 2000, INDEX ABC CNC Lathe. Mfd. 2000 Control: Siemens 840C Capacity 65mm Ran oil Still in production, running nylon With 12-ft Bar Feed (pictured) Chip Conveyor Comes the a good amount of tooling Control Type: Siemens SINUMERIK 840C Spindle Speed (max.): 6,000 RPM Power Requirements (V/Hz/PH): 400/60/3 Main Spindle Speed (max.): 6,000 RPM Bar Capacity: 65 mm Power: 20 kW (at 100%) Power: 27 kW (at 40%) Synchronous Spindle Speed (max.): 4,500 RPM Power (max.): 4.2 kW Capacity Tool Carrier 1: 8 (7 + synchronous spindle) Tool Carrier 2: 6 Nedpfx Aow Td U Rskuelb Dimensions Bar Feeder: L 150" x W 27" x H 52" Turning Center: L 80" x W 48" x H 65" Power Enclosure: L 52" x W 18" x H 70" Chip Conveyor: L 88" x W 48" x H 35"

Condition: used, Year of construction: 2024, INDEX MS22-8 Mfd. 2024 2 NCU (4) Y-Axis SL Control Cutting hours: 1,000 Turnkey Available Located in Europe 4-Meter IEMCA SIR MS22-8/43/P Rack loader 50 Hz D9-13-19-25 Bar length 4300 mm with drilling unit and minimum quantity lubrication unit additional end-of-bar sensor Bar stock 500mm (D12-D24) Bar stock 340 mm (D5-D11). Additional storage chain for 22 bars with Profinet interface. 1 11007253 (21711) 1 set (8 pieces) bar stock pushers, external clamping for bar stock diameters D7-D10 mm, internal clamping for bar stock diameters D13-D18 mm, consisting of: 8 bar stock pushers D12 8 rotating sleeves D12 1 10287026 Nedpexnrtcjfx Akuslb (21712) 1 set (8 pieces) bar stock pushers, external clamping for bar stock diameters D11-D16 mm, internal clamping for bar stock diameters D19-D24 mm, consisting of: 8 bar stock pushers D18 8 rotating sleeves D18 1 10536056 (21713) 1 set (8 pieces) bar stock pushers for bar diameters D17 mm-D22 mm, consisting of: 8 bar stock pushers D23 8 rotating sleeves D23 1 10414481 (21702) 1 set (8 pcs.) of internal clamping sleeves D12mm for bar diameters D13 mm - D18 mm Drill diameter D8 mm. 1 10472413 (21704) 1 set (8 pcs.) of external stops D12 mm for bar diameters D13 mm - D18 mm pre-machined. 1 10264327 (21703) 1 set (8 pcs.) of internal clamping sleeves D18mm for bar diameters D19 mm - D24 mm Drill diameter D15mm. 1 10058206 (21705) 1 set (8 pcs.) of external stops D18 mm for bar diameter D19 mm - D24 mm pre-machined. 1 12123486 Drill for drilling unit consisting of: 1 indexable insert drill D 15 mm 10 indexable inserts for steel 2 solid carbide drills D 8 mm

Condition: used, Technical details: spindle passage: 60 mm turning length: 45 mm turning diameter: max. 56 mm drill depth: max. 70 mm revolution per minute: 48 - 1500 (spindle) U/min threading: Drehzahl: 24 - 750 U/min tool turret - number of stations: 8 total power requirement: 5,5 kW weight of the machine ca.: 2,4 t space requirement of the machine approx.: L:2,1x1,0x1,8 m Cam-controlled automatic lathe according to template. Workpiece is clamped via clamping cartridge. Turret head: disk turret Hahn&Tessky Esslingen, tool path 80mm, adjustment 36mm, distance collet/turret head min./max.: 72/188mm 2 pieces turning support, working stroke 45mm 2 piece cutting off support, working path approx. 40mm Cooling water system Machine is not connected. Sale at a low selling price. Nledpfx Akju Iwyisueb *

Condition: used, TECHNICAL DETAILS - Number of spindles : 6 - Number of counter-spindles : 1 SPINDLES - Max. bar diameter : 22 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 8.5/15 [kW] NUMERICAL AXES Nodpfxeyzi Ums Akujlb - Slide unit 1.1 : X and Z axes controlled by NC - Slide unit 1.2 : X and Z axes controlled by NC - Slide unit 2.1 : X and Z axes controlled by NC - Slide unit 2.2 : X and Z axes controlled by NC - Slide unit 3.1 : X and Z axes controlled by NC - Slide unit 3.2 : X and Z axes controlled by NC - Slide unit 4.1 : X and Z axes controlled by NC - Slide unit 4.2 : X and Z axes controlled by NC - Slide unit 5.1 : X and Z axes controlled by NC - Slide unit 5.2 : X and Z axes controlled by NC - Slide unit 6.1 : Z axis controlled by NC - Slide unit 6.2 : X and Z axes controlled by NC POWER SUPPLY - Supply voltage : 380 [V] - Total installed power : 77 [kW] WEIGHT & DIMENSIONS - Machine floor space : 3329 x 2032 [mm] - Machine height : 2654 [mm] - Machine weight : 7100 [kg] MACHINE HOURS - Number of hours under power : 36508 [h] - Number of working hours : 26721 [h] - Number of spindle hours : 20860 [h] EQUIPMENT - CNC : Siemens 840D SL - Double NCU - Cutting force monitoring: ARTIS - Chips conveyor - Coolant tank * with high-pressure pump : 80 [bars] - Bar loader : IEMCA SIR mS22P/33 - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer. - Electric transformer

Condition: used, Year of construction: 2012, swing diameter 560 mm turning length 800 mm control C200-4D Siemens 840 D spindle head 8 DIN 55026/55021 ISO 7027/1 bar capacity 90 mm spindle diameter in front bearing 140 mm turning speed range - spindle ~ 3.500 U/min drive capacity - spindle motor 100% / 40%: 43 / 57 kW Torque 275 / 363 Nm Indexing 2,5 ° C-Axis 0,001 ° Number of Turrets 1 number of toolpositions 12 pos. Spindle speed - driven tool stations ~ 6.000 min -1 power capacity - driven tool-stations 11 kW Nlodpfx Aksx Emp Neujb tool taper 40 x 63 mm DIN 69880 Torque 21,5 Nm travel -x axis 300 mm travel -z axis 800 mm rapid traverse X/Z: 30 / 22,5 m/min feed power X: 7.200 N feed power Z: 9.000 N dia. of quill 65 mm Cone SK 30 longitudinal travel 800 mm rapid traverse 10 m/min total power requirement 51 kVA weight of the machine ca. ca. 14 t dimensions of the machine ca. 7,3 x 4,0 x 2,6 m CNC Turning- and Milling Center INDEX - G 250 - Precision package for main or counter spindle - Selected spindle housing - Bearingless clamping cylinder - Precision balancing of work spindle, clamping cylinder, and collet clamping

Condition: used, Year of construction: 2001, swing diameter max. 450 mm chucking diameter 400 mm control Siemens 840D (Index) Nsdsyq Sk Iepfx Akuolb Max. rpm 4.200 min/-1 power capacity - main spindel ( 35,5 / 56 ) kW max. Torque ( 340 / 550 ) Nm C-Axis 0,001 ° number of toolpositions 2x 12 pos driven statition 2x 12 pos worktool system VDI 30 max. spindle speed driven tools 6.000 U/min. power capacity - driven tools 9,5 kW max. Torque 40%: 19 Nm Y - Axis +/- 90 mm B-Axis +270° / -90 ° x-axis 730 mm z-axis 340 mm y-axis +/- 90 mm b-axis +270° / -90 ° rapid traverse X: 40 / Z: 30 m/min numbers of pallets 24 pos. size of pallet 410 x 300 mm max. workpiecediameter 300 mm max. workpiece weight incl. Pallet: 25 kg Chain width 75 mm band speed 7,5 m/min total power requirement 56 kW weight of the machine ca. 9,0 t dimensions of the machine ca. 8,5 x 6,0 x 2,7 m CNC - Vertical Lathe INDEX - V 300 Y/B - incl. 24 pos. palett changing system Schnaithmann - incl. ball screw as spare part - incl. 39x driven tools - incl. 39x tool holders

Condition: ready for operation (used), Year of construction: 2003, operating hours: 92,000 h, controller manufacturer: SIEMENS, controller model: 840D, number of axes: 5, This 5-axis Index G 200 RATIO LINE was manufactured in 2003. It features a Y-axis travel of 120 mm, a main spindle diameter of D65, and a counter spindle diameter of D60. The machine is equipped with a turret that has 12 stations and driven tools on turret 1 and 2. If you are looking to get high-quality turning and milling capabilities, consider the Index G 200 RATIO LINE turn-mill centre we have for sale. Contact us for further details. • C-axis on main and counter spindle • Thread cutting without compensating chuck • Electronic shaft • Additional V24 RS232 interface in control cabinet • Transmit-/Tracyl function • MDE interface (machine on, machine running, parts counter) • Marposs (Brankamp) collision monitoring CMS100 • 3D machine model for kinematic simulation in CAM programming system • Control cabinet cooling unit • Main spindle D65 • Counter spindle D60 • Coolant flushing of counter spindle (electrically controlled shut-off valve) • Foot switch • Turret (12 stations) bottom and top • Driven tools on turret 1 and 2 • Control function “synchronous tailstock” for turret 2 • Y-axis 120 mm • Automatic sliding door (hydraulic) • Coolant pump 80 l / 8 bar • High-pressure coolant connection slide 1 and 2 with solenoid valve • Coolant flushing gun • Preparation for extraction and filter system connection • Operating hours approx. 92,000 h Nsdoylw Dcopfx Akuolb Additional equipment • Portal unloading device with actuated gripper, NC-controlled • Gripper fingers D4–45 mm and D40–65 mm • Indexed conveyor belt • UNIMAG interface • Chip conveyor (hinged belt), discharge height 1250 mm • Vacuum rotary filter KNOLL (emulsion use) • High-pressure pump 80 bar • Workholding: • Collet chucks for draw tube, HAINBUCH (main and counter spindle) • Power chucks D210 with quick jaw change, Schunk (main and counter spindle) • Stop device • Optional: large number of powered tool holders and spare parts warehouse

Condition: ready for operation (used), A cam-controlled automatic lathe is offered. Working area bar capacity: 60mm, turret: 6 stations (axial), cross slides: 4 (radial), control: mechanical cam control. Equipped with bar guiding device, foldable safety cover, integrated coolant system, chip tray, various tool holders. Weight: approx. 2350kg, overall dimensions X/Y/Z: approx. 2100mm/1250mm/1750mm (dimensions without bar guide). Inspection possible by arrangement. Nlodpfxey Tx Sre Akuob

Condition: ready for operation (used), A tool milling machine is offered. Travel range X/Y: approx. 400mm/200mm, spindle speed: 224-2240rpm (6 steps), feeds: 0.10-0.71mm/rev, tool holder: MT/SK, control: manual. Equipped with vertical milling head, adjustable compound table, mechanical handwheels. Inspection possible by arrangement. Njdpfsy Tx R Uox Akujlb

Year of construction: 1994, condition: ready for operation (used), A CNC production turning machine is offered. Working area bar capacity: 65mm, max. turning length: approx. 150mm, tool turret: 14 stations, control: C200. Equipped with automatic bar feeder magazine (type MBF), chip conveyor with integrated coolant cleaning system, compressed air connection, hydraulic chuck, signal light. Weight: approx. 5500kg, overall dimensions X/Y/Z: approx. 8500mm/2100mm/2200mm (incl. loading magazine). Inspection possible by arrangement. Nodpfjy Tx Sfsx Akuslb

Condition: ready for operation (used), Offered is a cam-controlled automatic lathe. Bar capacity: 29mm, speed range: max. 3750rpm, main drive: incrementally adjustable via change gears, number of tool slides: 4, control: cam control. Equipped with bar loading magazine, coolant device, tool turret, various tool holders, change gear set. Note: Sale is without extraction system. Weight: approx. 2200kg incl. magazine, overall dimensions X/Y/Z: approx. 5500mm/1300mm/1750mm. Inspection possible by arrangement. Nsdpfx Ajy Tx N Rekujlb

Condition: used, Year of construction: 2003, Technical details: Nodpfox Dlhljx Akuelb turning diameter: 270 mm turning length: 710 mm weight of the machine ca.: 6,5 t max. swing diameter: 590 mm with automatic loading and unloading system, chip conveyor G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools. *

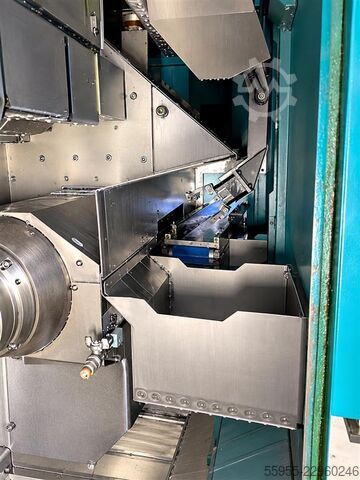

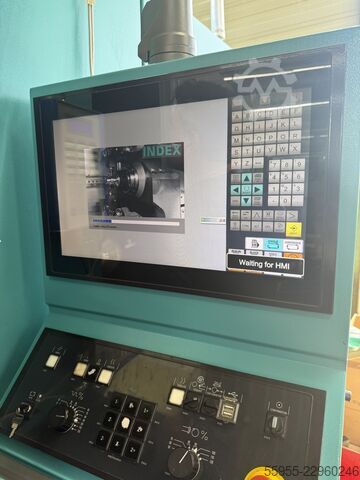

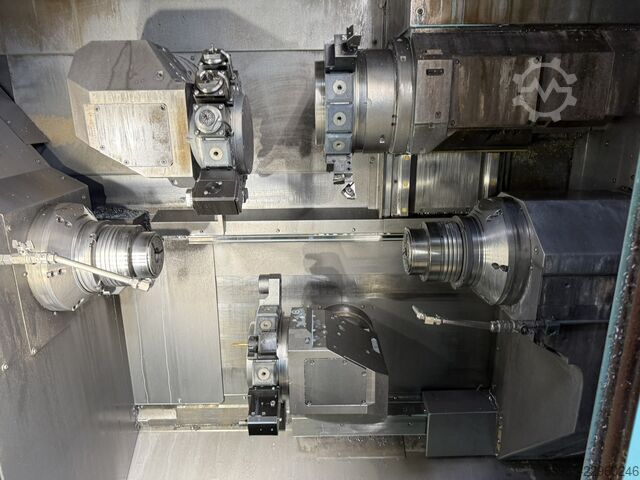

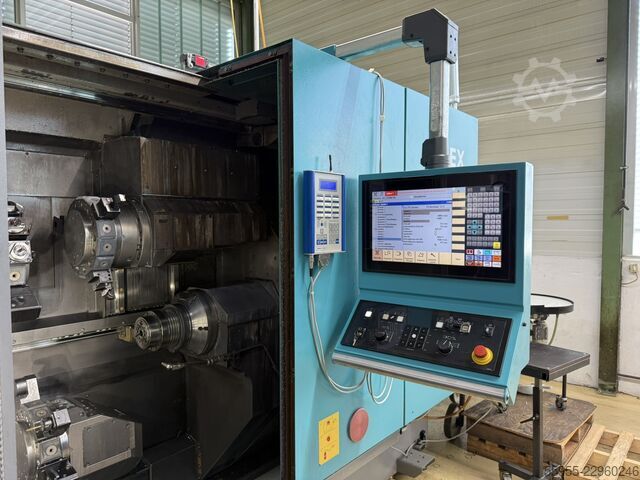

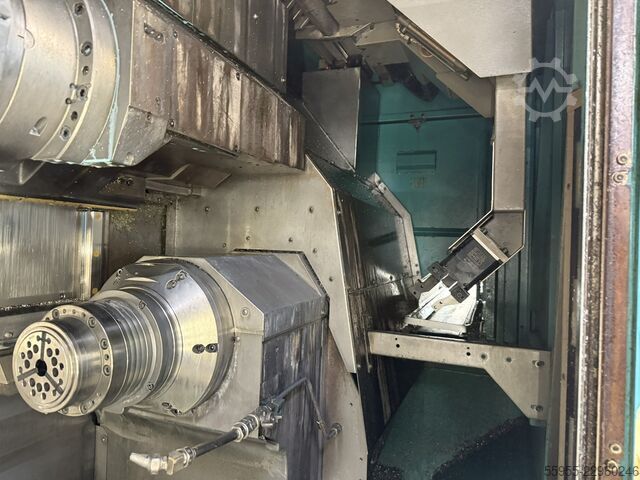

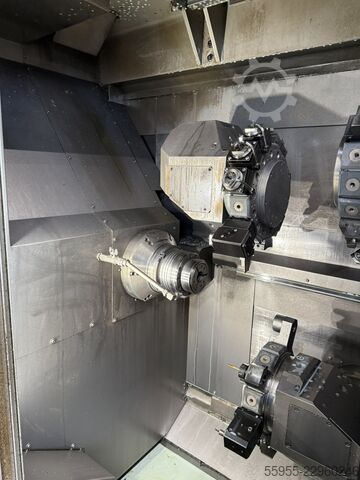

Condition: excellent (used), Year of construction: 2009, operating hours: 29,000 h, functionality: fully functional, Equipment: documentation/manual, The INDEX C200 – manufactured in 2009 – is a powerful CNC production turning center with a FANUC 31i control, main and counter spindle, and a 65 mm bar capacity. The machine features a high-quality 3-turret design, with turrets 1 and 2 each equipped with X, Z, and Y axes, and turret 3 used for machining on the counter spindle. All three disc turrets are equipped with 10 stations and, with driven tools up to 6,000 rpm, enable highly flexible complete machining. With a portal parts handler, conveyor belt, C-axes on the main and counter spindles, and powerful spindle drives, the machine is particularly suitable for productive series production of complex turned/milled parts. Control: FANUC 31i Design: Machine with 3 tool holders / 3 disc turrets Bar capacity: 65 mm Machine bed: Vertically arranged gray cast iron machine bed Main spindle: Spindle 4 Counter spindle: Spindle 5 with Z-axis Spindles Main spindle Bar capacity: 65 mm Spindle diameter at front bearing: 110 mm Spindle nose: ISO 702/1, Size 140 Cyl. Chuck diameter: 160 mm Power: 25 kW at 100% ED / 33 kW at 40% ED Torque: 112 Nm at 100% ED / 150 Nm at 40% ED Speed: 5,000 rpm C-axis: Resolution 0.001° Counter spindle Bar capacity: 65 mm Spindle diameter at front bearing: 110 mm Spindle nose: ISO 702/1, Size 140 Cyl. Chuck diameter: 160 mm Power: 25 kW at 100% ED / 33 kW at 40% ED Torque: 112 Nm at 100% ED / 150 Nm at 40% ED Speed: 5,000 rpm C-axis: Resolution 0.001° Counter spindle Z-axis: 700 mm travel Rapid traverse Z-axis: 50 m/min Tool holder / Turret Design with 3 disc turrets, each with 10 stations. Tool system with 10 stations: Cylindrical shank DIN 69880 – Ø30 x 55 mm. Tool holder 1 X, Z, Y axes 10 stations X-axis: 110 mm Z-axis: 320 / 550 mm (according to documentation) Y-axis: 100 mm, ±50 mm Driven tools: 6.5 kW / 16 Nm / 6,000 rpm Tool holder 2 X, Z, Y axes 10 stations X-axis: 110 mm Z-axis: 550 mm Y-axis: 100 mm, ±50 mm Driven tools: 6.5 kW / 16 Nm / 6,000 rpm Tool holder 3 X-axis 10 stations Used exclusively for machining on the counter spindle X-axis: 180 mm Driven tools: 6.5 kW / 16 Nm / 6,000 rpm Further technical equipment according to documentation Portal parts handling system with numerically controlled Z-axis Workpiece removal from main or counter spindle to conveyor belt Removal of scrap material from the main spindle into a scrap container Nledpfoy Tmhzjx Akusb Portal parts handler: Traverse speed: 100 m/min Traverse range: 70 mm Workpiece diameter max.: 90 mm Workpiece length max.: 250 mm Scrap length max.: 250 mm Workpiece weight max.: 3.5 kg Hydraulic system: Flow rate: 19 l/min System pressure: 90 bar Hydraulic tank: 40 l Coolant circuit: Flow rate: 19 l/min Coolant unit power: 13 kW Coolant system: Pump output: 80 l/min / 8 bar Tank capacity: 300 l Chip conveyor: Chip discharge height: 1,250 mm
