Used Komatsu Double Column Press / Straight Side Press for sale (38,890)

Condition: used, Year of construction: 2008, Pressure total: 100 ton Daylight: 1.400 mm Table surface area : 1.300 x 1.000 mm Slide area: 1.300 x 1.000 mm Nwedpfsznn Upox Abxoi Ejector Force: 35 kN max. capacity of swivelling ram plate: 40 kN Die Weight on table max.: 80 kN max. capacity of tilting table: 50 kN Oil volume: 200 l Required power: 10 kW Dimensions L x W x H: 3.95 x 2.3 x 4.5 m Distance between the columns F - B: 1.050 mm Weight of machine approx.: 10 ton

Condition: used, Year of construction: 1977, Pressure total: 800 ton Ram stroke: 700 mm Slide adjustment: 600 mm Shut height (stroke down, adjustment up): 1500 mm Free frontal opening L-R: 3800 mm Free lateral opening F-B: 1450 x 1100 mm Table surface area : 3500 x 1900 mm Slide area: 3500 x 1900 mm Die cushion capacity in table: 150 ton Die cushion stroke: 250 mm Die cushion pad area: 2780 x 1570 mm Number of strokes: 7 - 18 s.p.m. Required power: 120 kW Height over floor approx.: 9510 mm Weight of machine approx.: 260 ton Nedpfx Asyxmulebxowi

Condition: used, Year of construction: 2005, Pressure total: 400 ton Ram stroke: 500 mm Slide adjustment: 350 mm Daylight: 1250 mm Table surface area : 2500 x 1500 mm Slide area: 2500 x 1500 mm Die cushion capacity in table: 80 ton Nwjdjwnn Rtspfx Abxji Die cushion stroke: 250 mm Number of strokes: 15 - 30 s.p.m. Die weight at the ram max.: 4000 kg Required power: 70 kW Height over floor approx.: 8000 mm Weight of machine approx.: 150 ton Standard configuration 2 cushion cylinder 2 pads

Condition: used, Year of construction: 1986, Pressure total: 500 ton Stroke: 1100 mm Daylight: 1500 mm Table surface area : 2000 x 1250 mm Slide area: 2000 x 1250 mm Die cushion capacity in table: 160 ton Die cushion stroke: 300 mm Approach speed: 650 mm / sec Required power: 55 kW Weight of machine approx.: 50 ton Nwsdpeuqdqlefx Abxoi Standard configuration The press was completely overhauled mechanically, hydraulically and electrically in 2008.

Condition: used, Year of construction: 2005, Pressure total: 400 ton Ram stroke: 500 mm Slide adjustment: 350 mm Daylight: 1250 mm Table surface area : 2500 x 1500 mm Slide area: 2500 x 1500 mm Number of strokes: 15 - 30 s.p.m. Nwjdpfewnpavox Abxsi Die weight at the ram max.: 4000 kg Required power: 70 kW Height over floor approx.: 8000 mm Weight of machine approx.: 150 ton Standard configuration without cushion

Condition: used, Year of construction: 1989, Pressure total: 1400 ton Stroke: 950 mm Daylight: 2000 mm Table surface area : 3600 x 2500 mm Slide area: 3600 x 2500 mm Die cushion capacity in table: 400 ton Die cushion stroke: 500 mm Nodpfeuqdi Usx Abxewi Die cushion pad area: 3060 x 1860 mm Approach speed: 400 mm / sec Working speed: 40 / 80 mm / sec Return speed: 400 mm / sec Oil volume: 5000 l Required power: 450 kW Weight of machine approx.: 240 ton Standard configuration with hydraulic tool clamps on the ram

Condition: used, Year of construction: 2002, machine/vehicle number: 10857, Pressure total: 315 ton Stroke: 1100 mm Daylight: 2200 mm Table surface area : 2500 x 1000 mm Slide area: 2500 x 1000 mm Die weight at the ram max.: 6000 kg Approach speed: 600 mm / sec Working speed: 32 - 230 mm / sec Return speed: 600 mm / sec Required power: 158 kW Weight of machine approx.: 44 ton Njdpfjvmfzbox Abxewi Height over floor approx.: 6175 mm Automation

Condition: used, Year of construction: 1996, machine/vehicle number: 14.194, Pressure total: 80 - 800 ton Ram stroke: 1600 mm Free frontal opening L-R: 2850 mm Free lateral opening F-B: 1000 mm Daylight: 1900 mm Table surface area : 2800 x 2000 mm Slide area: 2800 x 2000 mm Die cushion capacity in table: 32 - 320 ton Die cushion stroke: 400 mm Die cushion pad area: 2500 x 1700 mm Approach speed: 400 mm / sec Working speed: 5 -42,7 mm / sec Return speed: 420 mm / sec Required power: 246 kW Height over floor approx.: 7785 mm Weight of machine approx.: 100 ton Nodpfxsu Saaaj Abxswi No. of moving bolster: 1 pcs.

Condition: used, Year of construction: 2006, machine/vehicle number: 18282, Pressure total: 140 ton Stroke: 800 mm Nodpfx Ajuqd Nujbxjwi Daylight: 1.004 mm Free frontal opening L-R: 2.060 mm Table surface area : 2.000 x 520 mm Slide area: 2.040 x 520 mm Working speed: 4 -20 mm / sec Rapid travel: 135 mm / sec Return speed: 120 mm / sec Weight of machine approx.: 14 ton Height over floor approx.: 4.810 mm Oil volume: 700 l

Condition: used, Year of construction: 2006, machine/vehicle number: 18282, Pressure total: 140 ton Stroke: 800 mm Daylight: 1.004 mm Free frontal opening L-R: 2.060 mm Table surface area : 2.000 x 520 mm Slide area: 2.040 x 520 mm Working speed: 4 -20 mm / sec Rapid travel: 135 mm / sec Return speed: 120 mm / sec Nsdpfxjuqd S Aj Abxowi Weight of machine approx.: 14 ton Height over floor approx.: 4.810 mm Oil volume: 700 l

Condition: used, Year of construction: 1998, machine/vehicle number: 1 / 2000, Pressure total: 2000 ton Ram stroke: 900 mm Slide adjustment: 800 mm Shut height (stroke down, adjustment up): 1800 mm Free frontal opening L-R: 5040 mm Distance between oil tray: 4840 mm Distance between the columns F - B: 2600 x 2400 mm Table surface area : 5000 x 2700 mm Slide area: 5000 x 2700 mm Die cushion capacity in table: 400 ton Die cushion stroke: 350 mm Die cushion pad area: 4200 x 2100 mm Cushion pressure in ram: 200 ton Ejector stroke in ram: 200 mm Number of strokes: 8 - 14 s.p.m. Required power: 350 kW Height over floor approx.: 11350 mm Die weight at the ram max.: 40000 kg Nwjdpfoyvz U Iex Abxsi Die Weight total: 80000 kg Weight of machine approx.: 580 ton Standard configuration Moving bolster front sidePin diameter 52 mmForce in microinches = 400 tA SIEMENS control system is installed The documentation is available.A packing list would be available, as an identical press has already been dismantled.

Condition: used, Year of construction: 1998, machine/vehicle number: 2 / 2000, Pressure total: 2000 ton Ram stroke: 900 mm Slide adjustment: 800 mm Shut height (stroke down, adjustment up): 1800 mm Free frontal opening L-R: 5040 mm Distance between oil tray: 4840 mm Distance between the columns F - B: 2600 x 2400 mm Table surface area : 5000 x 2700 mm Slide area: 5000 x 2700 mm Die cushion capacity in table: 400 ton Die cushion stroke: 350 mm Die cushion pad area: 4200 x 2100 mm Cushion pressure in ram: 200 ton Ejector stroke in ram: 200 mm Number of strokes: 8 - 14 s.p.m. Nedpfoyvz Stsx Abxewi Required power: 350 kW Height over floor approx.: 11350 mm Die weight at the ram max.: 40000 kg Die Weight total: 80000 kg Weight of machine approx.: 580 ton Standard configuration Moving bolster front sidePin diameter 52 mmForce in microinches = 400 tA SIEMENS control system is installed The documentation is available.A packing list would be available, as an identical press has already been dismantled.

Condition: used, Year of construction: 1985, Pressure total: 250 ton Nedpfx Asyvkukjbxowi Ram stroke: 70 / 250 mm Slide adjustment: 160 mm Ejector in ram: 20 ton Ejector stroke in ram: 10 mm Shut height (stroke down, adjustment up): 520 mm Free lateral opening F-B: 1.300 mm Table surface area : 1.600 x 1.600 mm Slide area: 1.600 x 1.600 mm Number of strokes: 0 - 50 s.p.m. Required power: 33 kW Height over floor approx.: 5.500 mm Weight of machine approx.: 58 ton Roll feeder Material width: 1250 mm Material thickness: 0,3 - 1,6 mm Control: Siemens S7

Condition: new, pressing force: 400 t, pressure:400 t distance between columns:3400 mm stroke:500 mm total power requirement:55 kW weight of the machine ca.:49 t draw back pressure:26 t pump capacity:131 Lt./min dimensions:7.900 x 5.500 x 4.300 mm Nwsdefhcc Repfx Abxsi :5000 mm :2800 mm table height over floor:700 mm distance between table / ram:1000 mm :700 l traversing speed:0-33 mm/sec. down speed:0-10 mm/sec :0-25 mm/sec.

Condition: new, Year of construction: 2019, pressing force: 275 t, pressure:275 t distance between columns:3000 mm total power requirement:30 kW weight of the machine ca.:40 t Nwjdpsfxyigofx Abxsi draw back pressure:27 t pump capacity:Axialpumpe mit Proportionalventil :6000 mm :max. 3000 mm Table dimensions:6000 x 3000 mm table height over floor:700 mm distance between table / ram:1100 mm :450 l traversing speed:auf X und Y, 30-33 mm/sec. down speed:2-10 mm/sec :2-50 mm/sec. Cylinder hub:900 mm Cylinder diameter:440 mm Stestle extension:200 / 200 mm / Ø :40 mm Siemens Control System:S7 1200 Monitor Siemens 9":Touch Panel Tax desk:tragbar

Condition: used, Year of construction: 1990, pressure 3 t throat 0 mm stroke 200 mm total power requirement 15 kW weight of the machine ca. 4 t dimensions of the machine ca. m Nwsdpot Hw Amsfx Abxsi Fully Automatically Straightening Press, 3 Stations,parts turning, (bolts)

Condition: used, Year of construction: 1984, pressure 10 t distance between columns 500 mm stroke 200 mm Nwjdpst Hwwdsfx Abxji total power requirement 10 kW weight of the machine ca. 4.500 kg dimensions of the machine ca. m

Condition: used, Machine not operational - control system not functioning Available at a special price Double-column hydraulic press ALPHA TEC -- ALPHATEC Type RPS 5000 Factory No. 300487, Year of Manufacture 2006 Nodpfjdzqptjx Abxowi Pressing force: 500 tons Distance between columns (front and rear): 2520 mm Table area: 2500 x 2500 mm Ram area: 2500 x 2500 mm Ram stroke: 600 mm Maximum installation height: 600 mm Table height above floor: approx. 900 mm Tank capacity: approx. 1000 liters Ram retraction force: approx. 22 tons Adjustable forward speed: 100-800 mm/s Pressure build-up to 5000 kN: approx. 0.7 sec. Return stroke speed: approx. 300 mm/s Main motor power: 75 kW Control pump motor power: 2.2 kW Power supply: 400 Volt, 50 Hz - 8-fold flat guide for the ram - Hydraulic ram locking in the top dead center position - Adjacent control cabinet (200 x 50 cm) - Electrical control system SIEMENS PLC S7-314 - Operation via SIEMENS OP 170-B (5.7") - 2-hand control panel located beside the machine - Floor-level installation - Table top 2510 x 2530 x 135 mm (approx. 6700 kg) - Central lubrication system - Operating manual with circuit diagrams Space requirement (L x W x H): 372 x 260 x 460 cm Space requirement for horizontal transport (L x W x H): 460 x 372 x 260 cm Weight: approx. 50 tons The machine was used for straightening heated steel flanges. From insolvency – in good condition.

Condition: new, pressure 500 t column daylight 600 mm stroke 600 mm table surface area 3500 x1500 mm 600 mm feed down 8 mm/sec feed up 16 mm/sec travel on the bed 2200 x 900 mm total power requirement 30 kW weight of the machine ca. 28 t Nwsdpfofv Awhox Abxsi 2. STANDARD EQUIPMENT FRAME - Welded steel frame - Frame and plates are precision-milled using a CNC milling machine - Chrome-plated cylinder - Worktop with threaded holes HYDRAULICS - Bosch Rexroth hydraulic pump - Hydrapack or Badestons hydraulic directional control valve - Hydraulic block in accordance with EN standards - 1000-liter hydraulic oil tank - Pressure adjustment via pressure transmitter/regulator ELECTRICS - Control cabinet in accordance with EN standards - All cables are labeled and clearly arranged - All electrical components are from Siemens CONTROL PANEL - Stroke control in any position - X, Y, and Z-axis movement via remote control - Stroke adjustment via sensor SAFETY - The machine complies with the EC safety standards 2006/42/EC Machinery Directive, EN ISO 16092-01 and 16092-03 - Two-hand operation - Emergency stop button - Safety rope with switch around the press 4. TRANSPORT AND INSTALLATION – The price includes transport costs, installation, and training at the customer's factory. – Hydraulic oil is not included in the price. – All handling costs (e.g., crane, forklift, etc.) are borne by the buyer. 5. WARRANTY – The machine has a 2-year manufacturer's warranty. – This warranty covers the delivery of all spare parts required for repair and service of the machine. Damaged parts will be returned to the manufacturer after replacement with a new part. – This warranty does not cover parts damaged due to improper use.

Condition: new, pressure 300 t working feed 3-8 mm/sec stroke 500 mm return speed 15 mm/sec table-size 3000 x 1500 mm tank capacity 45 l travel x / y 2600 x 1000 mm daylight 500 mm total power requirement 18,5 kW weight of the machine ca. 18 t Nwjdpfxevxw Hmo Abxji

Condition: new, Year of construction: 2025, pressure 1000 t Nodpfxjym D E Aj Abxswi distance between columns 4250 mm stroke 400 mm Control SIEMENS S7-1500F table dimension - longitudinal 4000 mm table dimension - cross 1600 mm total power requirement 200 kW weight of the machine ca. 250 t dimensions of the machine ca. 7,5 x 4,8 x 7,4 m

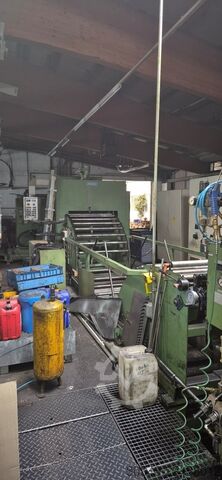

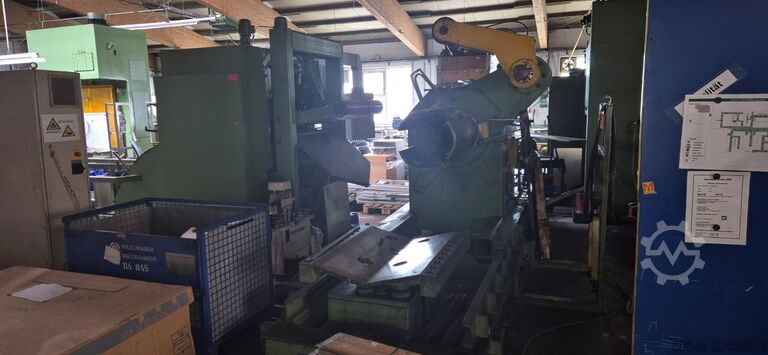

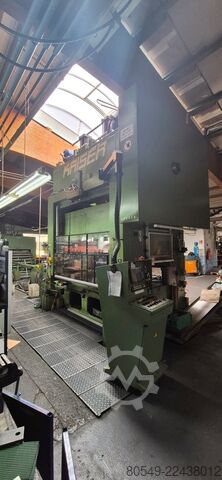

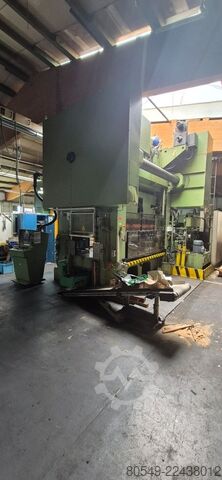

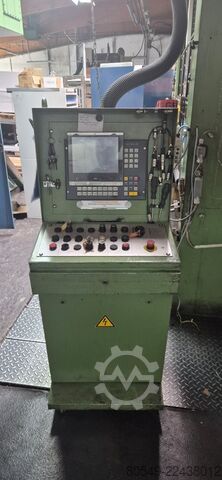

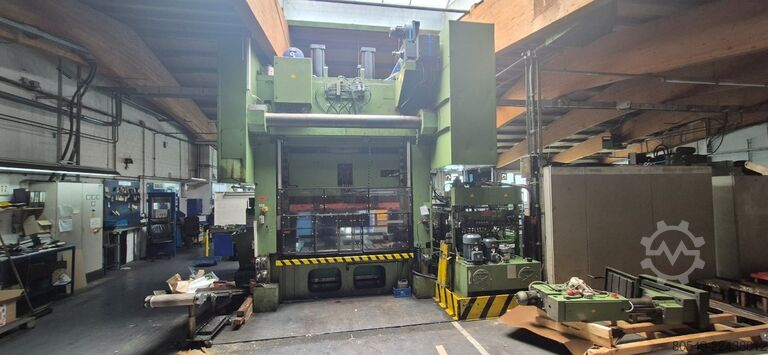

Condition: used, Year of construction: 1994, KAISER Press Pressing force 4,000 kN Stroke adjustment 40-200 mm Ram adjustment 150 mm Nedpezp Ed Refx Abxewi Stroke rate 20-80 1/min Table area 2,340 x 1,600 mm Ram area 2,000 x 1,500 mm Installation height 550 mm

Condition: as good as new (ex-display), Year of construction: 2020, pressing force: 20 t, Double column press 20 T capacity, a) Closing speed up to 10 mm/sec b) opening speed up to 30 mm/sec c) table size between columns 1400x1100 mm d) ram size between columns 1400x1100 mm e) Manual lubrication (via grease nipple) f) UKF pump-cooling-filtration ( electrical cooling ) g) Pressure adjustment from 4 T to 20 T ( adjustable via rotary control ) h) Travel adjustable via slide control Type of construction Press design Double column press ,hydraulic Thermally neutral 80 - 120 °C Number of operating sides 1 side Forces Pressing force max. 200 kN Free ripping force max. 20 kN Pressure build-up time Closed tool Steel on steel Max. 4 sec. Dimensions Max. Opening width 500 mm Stroke 300 mm Table height above floor, approx. 900 mm Height above floor (headroom) approx. 2800 mm Hall height min. 3,500 mm Parallel deviation at 20°C #ERROR! mm Deflection Determined at max. clamping force with 2/3 occupancy < = 0.4 mm/m Nodshmbhqspfx Abxswi Weight Total weight of the press without operating materials approx. 3 to Table cut-out Size 1100x850 mm Speeds Fast closing with 9 mm sec. Pressing speed 9 mm sec. Sound pressure Sound pressure level, measured at 1.5m height at the control panel according to DIN 45635-T16-KL3 max. 78 db(A) Hydraulics Number of press/driving cylinders 2 pcs. Operating pressure max. 280 bar Pressing pressure build-up time 3-5 sec. Pressure accuracy during pressing stroke +/- 5 bar Main pump BOSCHREXROTH/PARKER approx. 35 L/min Oil volume approx. HLP 46 D 150 litres Ambient temperature max. 40 °C Oil temperature max. 55 °C Flow temperature °C Circulation pump for cooling ACS approx. 6.5 L/min Electrical system Main supply 400 V AC Control voltage 24 V Frequency 50 Hz Hydraulic connection Main motor 3 kW Total connection Approx. 5 kW

Condition: as good as new (ex-display), Year of construction: 2022, pressing force: 400 t, Press design double column press Thermally neutral 80 - 120 °C Number of operating sides 1 side Forces Pressing force max. 4000 kN Free ripping force max. 400 kN Pressure build-up time Closed die steel to steel Max. 4 sec. Dimensions 3,800 mm long and 4,475 mm wide Max. Opening width 800 mm Stroke 800 mm Table height above floor 1100 mm Height above floor (headroom) approx. 4300 mm Hall height min. 5500 mm Nwsdeph Uk Nspfx Abxsi parallel deviation at 20°C +/- 0,1 mm Deflection Determined at max. clamping force with 70% occupancy < = 0.2 mm/m Weight Total weight of press without operating materials and table plate approx. 28 t Press table Table size 1500x1500 mm Speeds Fast closing with 100 mm sec. Pressing speed 8 - 3 mm sec. Sound pressure Sound pressure level, measured at 1.5m height at the control panel according to DIN 45635-T16-KL3 max. 78 db(A) Hydraulics Number of pressing cylinders/driving cylinders 1 pc. Operating pressure max. 300 bar Pressing pressure build-up time 4 sec. Pressure accuracy during pressing stroke +/- 3 bar Main pump BOSCHREXROTH axial piston pump approx. 145 L/min Oil volume approx. HLP 46 MW 1000 liters Ambient temperature max. 40 °C Oil temperature max. 55 °C Flow temperature °C Auxiliary pump BOSCHREXROTH, gear pump 10 L/min Pressure stabilization for up to 300 sec. Electrical system Main supply 400 V AC Control voltage 24 V DC Frequency 50 Hz Connection hydraulics main motor 40 kW Sliding table press with 400 T capacity, Closing speed up to 100 mm/ ( adjustable via touch screen ) Opening speed up to 100 mm/sec ( adjustable via touch screen ) Starting press speed 10 mm/sec ( adjustable via touch screen ) table top size 1500x1500mm ram size approx. 1600x1500mm Oil temperature monitoring 55 degree warning, 60 degree shutdown Automatic lubrication ( adjustable via touch screen ) Free positioning of the ram ( adjustable via touch screen ) SICK/PILZ light barriers 14 mm, front, up to 1800 mm height Hydraulic and mechanical ram protection Circuit oil cooling ( adjustable via touch screen ) Ejector in table, 20 T press force, 350mm travel Ejector moves outwards with the table Table plate milled flat, with DIN 22 T grooves Pressure adjustment from 60 T to 400 T ( adjustable via touch screen ) Travel limitation either by pressure or position Set-up mode, single stroke and cycle sequence ( adjustable via touch screen ) Swiveling control panel on the cabinet Two-hand operation, with opening button, manual/single stroke/cycle switchover button Installation, commissioning, instruction against separate charge The control is supplied by SIEMENS. ( S 7 1200 ) Also the touch screen monitor with 9 inch. The remote maintenance unit SECOMEA -Ethernet is included in the delivery. The side of the press has two 1000 mm high and 800 mm wide windows with double doors. (sliding table press, hydraulic press, hydraulic press, double column press)

Condition: as good as new (ex-display), Year of construction: 2017, machine/vehicle number: DF0052, pressing force: 200 t, pressure:200 t distance between columns:1200x1000 mm stroke:600 mm total power requirement:32,5 kW weight of the machine ca.:20,5 t dimensions of the machine ca.:4000x2600x5000 m draw back pressure:20 t Master cylinder:1 Stück voltage:400 V frequency:50 Hz :24 V :BOSCH/REXROTH dayligth:800 mm :1200x1000 mit T-Nuten nach Kundenwunsch DIN 650-22 mm work height max.:1100 mm pre-running speed:170 mm/sec return speed:150 mm/sec Speed printing phase:15 mm/sek. Hydraulic block:REXROTH demand for oil:500 l Nwjdjfxyirspfx Abxsi pressure control:über PLC (Mindestdruck 20t) Oil Cooling:elektrisch :220 (im Schaltschrank) V memory:200 Programme :über Monitor von 20-200 t Controll:Zweihandbedienung beweglich :2-10 mm/sec :0-10 sec
