Used Nakamura-Tome Wt250 for sale (98)

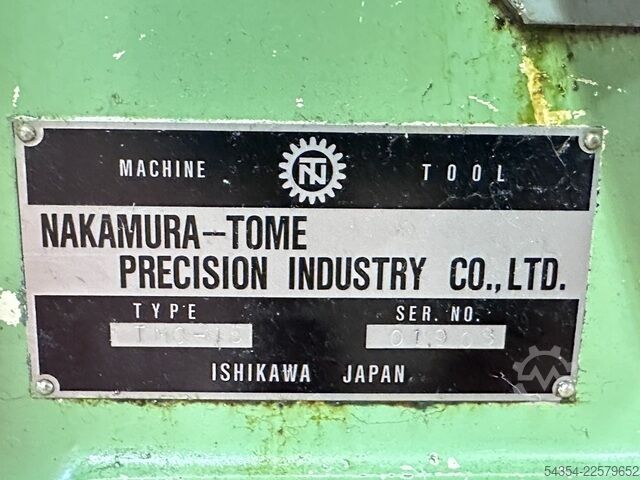

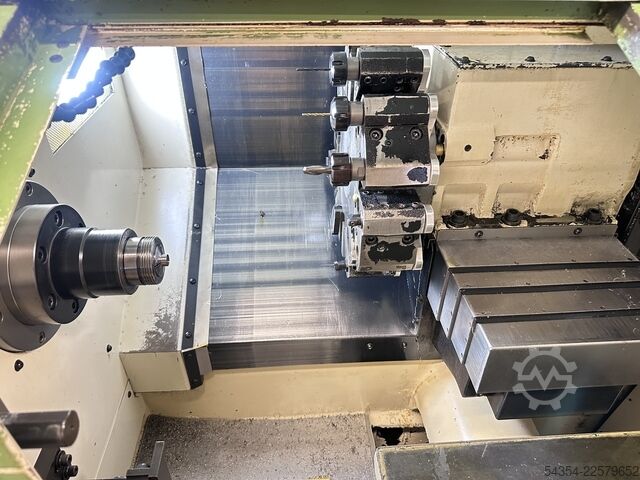

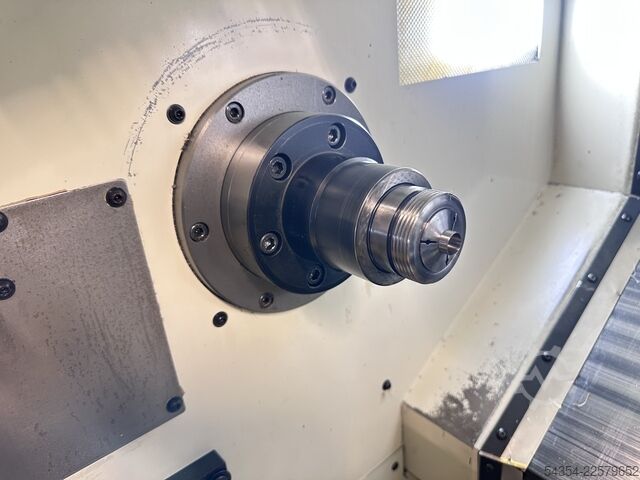

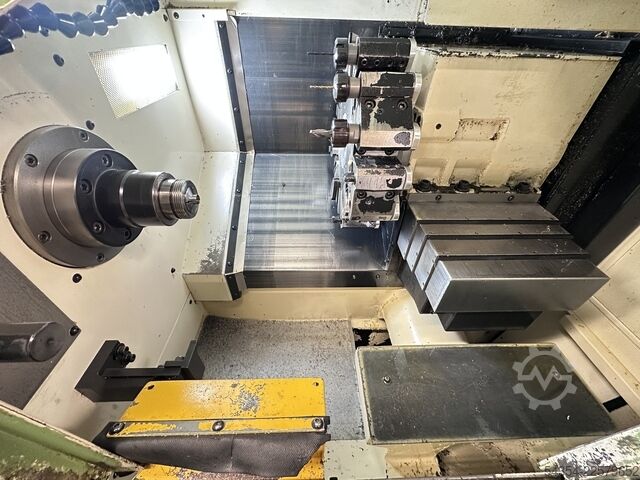

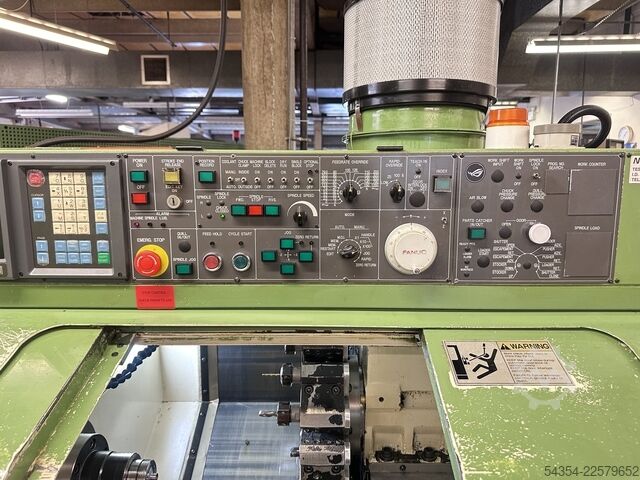

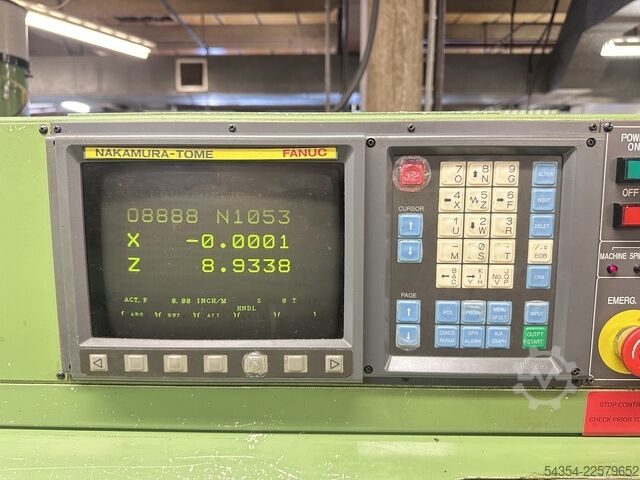

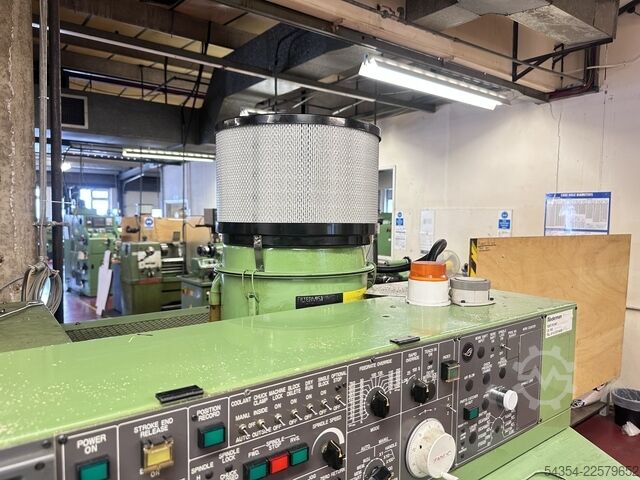

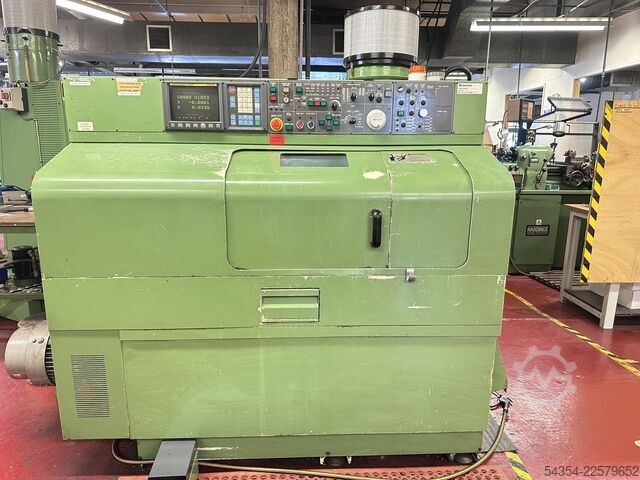

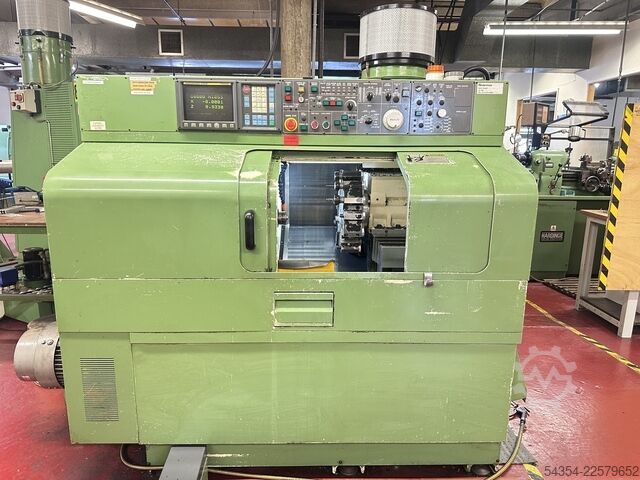

Condition: used, Nakamura - Tome TMC - 15 CNC Lathe with Nakamura - Tome Fanuc CNC Control, 16 Position Tool Turrret, LNS 6.42HS = 4.8 Barfeeder. S/No. 34545, Capacity Round Collet 34mm, Chuck Diameter 165mm, Swing Over Bed 300mm, Swing Over Saddle 170mm, Max Turning Diameter 180mm, Max Turning Length 250mm, Spindle Speed 135 - 4500rpm, Spindle Nose A2 - 5. S/No. 01908. Country of Origin: Japan Please Note: Filtermist shown not included in this lot, can be purchased separately. Iijdozvcrfopfx An Hef Location: This lot is located in Burton-on-Trent. A charge of £300 for dismantling and loading onto suitable transport will be automatically added to your invoice should you be successful in purchasing this item. Blocking and securing will be at the cost of the purchaser.

Condition: repair required (used), Year of construction: 2008, functionality: not functional, machine/vehicle number: M234205, Technical Specifications: Work Area - Maximum turning diameter: 250 mm - Maximum machining diameter: 250 mm - Maximum workpiece length: 555 mm - X1/X2-axis travel: 195 mm / X-axis rapid traverse: 30 m/min - Z1/Z2-axis travel: 600 mm / Z-axis rapid traverse: 30 m/min - Y-axis (Upper Turret) travel: ±41 mm / Y-axis rapid traverse: 30 m/min - B-axis travel (Right Spindle Travel): 620 mm / B-axis rapid traverse: 30 m/min Main Spindle - Spindle interface to DIN 55026: Size 6 - Max. speed: Left 4500 rpm / Right 5000 rpm - Power at 100% duty cycle: Left - 15 kW / Right - 7.5 kW - Bar capacity: Left spindle - 65 mm / Right spindle - 51 mm Tool Carrier with Driven Tools - Tool interface: BMT55 - Number of stations: 12-station disc turret, all stations driven - Max. speed: 6000 rpm; Milling motor power: 3.7 kW Electrical Equipment - Operating voltage: 200V 3-phase, fuse 217A GL - Connected load: 75 kVA Dimensions - Machine dimensions (L×W×H): 4,059 × 2,314 × 2,225 mm - Weight: 6,000 kg Key Features and Capabilities: - Horizontal design: Optimized chip removal and easy loading/unloading Iiodpfx Anjxxvw Hs Hjf - CNC control: Fanuc 18i-T - Chip conveyor - Bar feeder interface - Documentation: Electronic not available / Paper manual available Machine condition: NOT OPERATIONAL - B-axis not functional - Lower turret not functional

Condition: excellent (used), Sub-spindle, Y-axis, C-axis FANUC 18i-TB control Turning diameter max 250 mm Turning length -555 mm Chuck Diameter -165 mm Main-spindle speeds 50-4'500 rpm Sub-spindle speeds 5'000 rpm Turret head 1+2: 24 positions with 12 driven positions each Tool presetting device Barloader Isdpfx Anex A Eupj Hjif Piece catching device Misc. accessories MARCELS MASCHINEN CH

Condition: repair required (used), Year of construction: 2008, functionality: not functional, machine/vehicle number: M232102, Technical characteristics: Work Area # Maximum turning diameter: 250 mm # Maximum machining diameter: 250 mm # Maximum workpiece length: 555 mm # X1/X2-axis travel: 195 mm / Rapid traverse X: 30 m/min # Z1/Z2-axis travel: 600 mm / Rapid traverse Z: 30 m/min # Y-axis (Upper Turret) travel: +/-41 mm / Rapid traverse: 30 m/min # B-axis travel (Right Spindle Travel): 620 mm / Rapid traverse: 30 m/min Main Spindle # Spindle according to DIN 55026: Size 6 # Maximum speed: Left 4500 rpm / Right 5000 rpm # Continuous power (100% duty cycle): Left 15 kW / Right 7.5 kW # Bar capacity: Left spindle - 65 mm / Right spindle - 51 mm Tool Holder with Driven Tools # Tool interface: BMT55 # Number of positions: 12-station disc turret, all driven positions # Maximum speed: 6000 rpm, Milling motor power: 3.7 kW Electrical Equipment # Operating voltage: 200V, 3-phase, fuse 217A GL # Connected load: 75 KVA Iijdpexxvv Aofx An Hof Dimensions # Machine dimensions (L×W×H): 4,059 × 2,314 × 2,225 mm # Weight: 6,000 kg Main Features and Capabilities: # Horizontal design: Optimal chip evacuation and easy loading/unloading # CNC control: Fanuc 18i-T # Chip conveyor # Bar feeder interface # Documentation: Electronic not available / Book available Machine Status: NOT WORKING # Fault not specified. Complete electrical rewiring performed in 2018 and linear guides renewed.

Condition: good (used), Year of construction: 2007, operating hours: 37,000 h, functionality: fully functional, Fanuc 31i-TA control system, two turrets, Iisdpfezut Izox An Hof counter spindle, Nakamura CNC portal loader GR210, 14-position stack magazine, SMW-3 3-jaw chuck for HS and GS, fixed tool holders and automatic tool changer. Available immediately.

Condition: used, TECHNICAL DETAILS - Number of axes : 8 - Number of spindles : 2 - Number of turrets : 2 MAIN SPINDLE - Spindle nose : A2-6 - Spindle power : 18,5 [kW] - Spindle speeds : 59 - 4500 [rpm] - Max. bar diameter : 65 [mm] - Max. turning diameter : 250 [mm] - Max. chuck diameter : 215 [mm] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Spindle nose : A2-5 - Spindle power : 11 [kW] - Spindle speeds : 59 - 4500 [rpm] Ijdpfx Anouhafxj Heif - Max. bar diameter : 51 [mm] - Max. turning diameter : 165 [mm] - C axis indexing precision : 0,001 [°] - Travel : 575 [mm] - Spindle / counter-spindle distance : 250 - 870 [mm] TURRET 1 - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 195/600 [mm] - Live tools speed : 80 - 3600 [rpm] - Live tools power : 5.5 [kW] TURRET 2 - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 195/600 [mm] - Live tools speed : 80 - 3600 [rpm] - Live tools power : 5.5 [kW] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 63 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 3475 x 1933 [mm] - Machine height : 2225 [mm] - Machine weight : 7800 [kg] MACHINE HOURS - Number of hours under power : 58774 [h] - Number of spindle hours : 19265 [h] EQUIPMENT - CNC : 18i-TB - 3 colors status lamp - Coolant tank * with high-pressure pump : 25 [bars] - Chips conveyor - Parts catcher - Parts conveying strip - Number of turning tool holders : 11 - Number of fixed tool holders : 11 - Collet chuck

Year of construction: 2014, condition: used, Empty weight: 4 kg Length: 78 cm Serial number: 22220 V251403 5-axis machining center comprising: - a NAKAMURA lathe, TYPE: NTMX, year: 2014, 5-axis dual-spindle + milling head. - a SAMSYS+ bar feeder, Model: M3000, year: 2014 - an LNS YOSHIDA chip conveyor Iiodpfszvccdex An Hsf Technical specifications: - capacity: - max turning diameter: 200 mm - Max turning length: 780 mm - Distance between centers: max 980 mm / min 210 mm - Bar capacity: 51 mm on both left and right - Chuck size: 165 or 210 mm - Axis travel: - X1/X2 slide travel: 570 mm / 130.5 mm - Z1/Z2/B2 slide travel: 1,297/658/770 mm - Y-axis travel: ±100 - Left/right spindle: - Speed: 5,000 rpm - Tool spindle: - Speed: 12,000 rpm - Tool type: CAPTO C4 - Number of tools in magazine: 24 - Max. tool diameter: 60 mm - Max. tool length: 180 mm - Max. tool weight: 4 kg - Indexing range: 190° - Turret: - Type: 12-sided drum turret - Number of indexing positions: 24 - Square tool size: 20 mm - Round tool size: 20 mm diameter - Spindle speed: 6,000 min⁻¹ - Floor dimensions: L 4,225 mm x W 3,015 mm x H 2,650 mm - Approximate machine weight: 14,500 kg Hours on the counter: approximately 3,622 h Sold with 1 cabinet and 2 workbenches, including contents Online auction held following the closure of the "Supadis" production facility in Le Plessis-Pâté (91), a company specializing in precision machining. This sale includes more than 100 lots, notably several 3-, 4-, and 5-axis CNC machining centers from “Matsuura,” “OKK,” “Biglia,” and “Nakamura Tome,” as well as a “Kasto Functional A” automatic saw. The lot also includes grinding machines, a “Cincinnati” column drill press, “Trimos” and “Mitutoyo” measuring columns, as well as numerous tools, workbenches, and inspection equipment. The sale also includes stocks of raw materials (steel, aluminum, titanium, “Inconel,” “PEEK,” copper, etc.), workshop equipment, compressors, shelving, and various material-handling equipment. Sale organized by Dome Auctions France, OVV No. 331-2026, auctioneer Blandine Camper. The online auction opens Tuesday 18 August and closes Thursday 24 September. Register your account via our website and place your bid. For viewings and inspections check the auction information on the website. Viewing day is on: - Tuesday 22 September Dome Auctions is an innovative auction platform dedicated exclusively to the industrial sector. By focusing on machinery sales from business closures, restructurings, and bankruptcies, we provide a trusted marketplace where buyers and sellers connect with confidence. Unlike general auction houses, Dome Auctions specializes in selling complete industrial assets directly from factories, ensuring quality and reliability. With a commitment to transparency, industry expertise, and tailored service, we streamline the sales process and maximize value for all parties. As online...

Condition: used, TECHNICAL DETAILS - Number of axes : 8 - Number of spindles : 2 - Number of turrets : 2 MAIN SPINDLE - Spindle nose : A2-6 - Spindle power : 18,5 [kW] - Spindle speeds : 59 - 4500 [rpm] - Max. bar diameter : 65 [mm] - Max. turning diameter : 250 [mm] - Max. chuck diameter : 215 [mm] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Spindle nose : A2-5 - Spindle power : 11 [kW] - Spindle speeds : 59 - 4500 [rpm] - Max. bar diameter : 51 [mm] - Max. turning diameter : 165 [mm] - C axis indexing precision : 0,001 [°] - Travel : 575 [mm] - Spindle / counter-spindle distance : 250 - 870 [mm] TURRET 1 - Number of positions : 12 Isdpfx Aouhafrsn Hjif - Number of motorized positions : 12 - X/Z stroke : 195/600 [mm] - Y stroke : +/- 42 [mm] - Live tools speed : 80 - 3600 [rpm] - Live tools power : 5.5 [kW] TURRET 2 - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 195/600 [mm] - Live tools speed : 80 - 3600 [rpm] - Live tools power : 5.5 [kW] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 63 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 3475 x 1933 [mm] - Machine height : 2225 [mm] - Machine weight : 6000 [kg] MACHINE HOURS - Number of hours under power : 42932 [h] - Number of spindle hours : 12433 [h] EQUIPMENT - CNC : 18i-TB - 3 colors status lamp - Coolant tank * with high-pressure pump : 25 [bars] - Chips conveyor - Parts catcher - Parts conveying strip - Bar loader : LNS QUICK LOAD SERVO 3 - Number of turning tool holders : 6 - Number of fixed tool holders : 15 - Collet chuck

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, spindle speed (max.): 3,500 rpm, spindle bore: 80 mm, travel distance X-axis: 192 mm, travel distance Y-axis: 55 mm, travel distance Z-axis: 290 mm, spindle nose: A2-8, number of spindles: 2, number of tool turrets: 3, Used Nakamura Tome Super NTY3 Jumbo machine (2 spindles, 3-turret lathe with Y-axis) Iedpfszr D A Rox An Hjif Max. turning diameter: 325 mm Max. turning length: 250 mm Distance between spindle centers: 260 - 1095 mm 11x Rotary tool holders 20x Boring tool holders 15x Driven angled tool holders 18x Driven axial tool holders 2 x Hainbuch collets 80 mm (main and counter spindle)

Condition: excellent (used), Year of construction: 2022, functionality: fully functional, NAKAMURA-TOME SC-100X2 Technical Specifications L-Spindle (Main Spindle): Bar capacity Ø51 mm / 6,000 rpm R-Spindle (Sub Spindle): Bar capacity Ø42 mm / 6,000 rpm Machine Features: Two tools in cut (simultaneous machining with two tools) Lower turret + 2-axis machining on R-spindle Easy-to-use Superimposed Cycle Standard Equipment: Iiodsy A Exkepfx An Hjf Milling and Y-axis are standard L-spindle motor: 11 / 7.5 kW R-spindle motor: 7.5 / 5.5 kW Milling motor: 7.1 / 2.2 kW / max. speed 6,000 rpm Lower turret equipped with manual unloading gripper Lubrication oil recovery system (standard specification) Environment-friendly inverter-type hydraulic unit

Condition: used, Empty weight: 12.500 kg Length: 62 cm Serial number: B151706 Machining center consisting of: - a NAKAMURA TOME CNC lathe, model: SUPER NTJ, manufactured in 2007 - a SAMSYS+ bar feeder, model: M3000 - a FANUC 18i-TB controller - Technical specifications: - Number of controlled axes: 9 axes - Number of simultaneously controlled axes: 4 - Maximum turning diameter: 190 mm - Maximum turning length: 620 mm - Bar capacity: 51 mm (R/L)/ 65 mm (Left) - Chuck: 210 mm - Spindle speed: 5,000 rpm (∅51)/ 4,500 rpm (∅65 mm) - Spindle nose: A2-5 (∅51) / A2-6 (∅65) - Spindle bore: 63 mm (∅51) / 80 mm (∅65) - C-axis: 0.001° - 600 rpm - B-axis: -91° to +91° - 180°/s - 2 turrets: 24 stations - 12 powered tools - Powered tool speed: 60 to 6,000 rpm - X1 travel: 345 mm - X2 travel: 167.5 mm - Z1 travel: 1,240 mm - Z2 travel: 685 mm - Y-axis travel: 45 mm - Feed rate: X1/X2 16 m/min - Z1/Z2 40 m/min - Machine weight: 12,500 kg - Approximate dimensions: L 3,660 mm x W 2,320 mm x H 2,170 mm Hours on the counter: approximately 2,960 hours of use Ijdozvccqspfx An Hoif Online auction held following the closure of the "Supadis" production facility in Le Plessis-Pâté (91), a company specializing in precision machining. This sale includes more than 100 lots, notably several 3-, 4-, and 5-axis CNC machining centers from “Matsuura,” “OKK,” “Biglia,” and “Nakamura Tome,” as well as a “Kasto Functional A” automatic saw. The lot also includes grinding machines, a “Cincinnati” column drill press, “Trimos” and “Mitutoyo” measuring columns, as well as numerous tools, workbenches, and inspection equipment. The sale also includes stocks of raw materials (steel, aluminum, titanium, “Inconel,” “PEEK,” copper, etc.), workshop equipment, compressors, shelving, and various material-handling equipment. Sale organized by Dome Auctions France, OVV No. 331-2026, auctioneer Blandine Camper. The online auction opens Tuesday 18 August and closes Thursday 24 September. Register your account via our website and place your bid. For viewings and inspections check the auction information on the website. Viewing day is on: - Tuesday 22 September Dome Auctions is an innovative auction platform dedicated exclusively to the industrial sector. By focusing on machinery sales from business closures, restructurings, and bankruptcies, we provide a trusted marketplace where buyers and sellers connect with confidence. Unlike general auction houses, Dome Auctions specializes in selling complete industrial assets directly from factories, ensuring quality and reliability. With a commitment to transparency, industry expertise, and tailored service, we streamline the sales process and maximize value for all parties. As online auctions continue to grow in the European industrial market, Dome Auctions offers a professional and...

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, turning length: 555 mm, travel distance X-axis: 195 mm, travel distance Y-axis: 82 mm, travel distance Z-axis: 600 mm, workpiece diameter (max.): 250 mm, TECHNICAL DETAILS Iiodoynhihepfx An Hof Counter-spindle speed: 59–4,500 rpm Bar capacity main spindle: 65 mm Bar capacity counter-spindle: 51 mm Travel X1/X2 axis: 195 mm Travel Y axis: ± 41 mm Travel Z axis: 600 mm Max. workpiece diameter: 250 mm Max. turning length: 555 mm Number of tool stations upper turret: 12 Number of tool stations lower turret: 12 All tools driven Main spindle nose: A 2-6 Counter-spindle nose: A 2-5 Feed power X1/X2/Y axis: 1 kW Feed power Z1/Z2 axis: 2.1 kW Maximum loading length: 6,200 mm MACHINE DETAILS Control model: Fanuc 18 IT Main spindle power: 18.5 kW / 15 kW Counter-spindle power: 11 kW / 7.5 kW Bar feeder Max. bar length: 6 m 8 channels with diameters: 22 mm, 27 mm, 32 mm, 37 mm, 42 mm, 47 mm, 57 mm, 67 mm 8 pushers with pusher cone Intermediate sizes can also be loaded Unload magazine Max. bar length: 2 m EQUIPMENT Coolant tank Chip conveyor from 10/2021 Last overhaul of bar feeder 09/2020 (channel replacement, replacement of various bearings, replacement of push rods and spindle liners, including maintenance)

Condition: ready for operation (used), Year of construction: 2012, functionality: fully functional, turning length: 503 mm, turning diameter: 190 mm, spindle speed (max.): 6,000 rpm, travel distance X-axis: 135 mm, travel distance Z-axis: 503 mm, spindle motor power: 11,000 W, rapid traverse X-axis: 16 m/min, rapid traverse Y-axis: 6 m/min, rapid traverse Z-axis: 40 m/min, type of input current: three-phase, torque: 75 Nm, overall weight: 6,200 kg, spindle nose: A2-5, CNC Lathe NAKAMURA-TOME WT100 TECHNICAL CHARACTERISTICS: Year of manufacturing: 2012 CNC control: FANUC 31i-B Distance between spindles: 735 [mm] Max. cutting diameter: 190 [mm] Max. turning lenght: 503 [mm] Stroke Y axis: -31 / +31 [mm] Stroke Z1 axis: 503 [mm] Stroke X1 axis: 135 [mm] Stroke Z2 axis: 503 [mm] Stroke X2 axis: 135 [mm] Rapid traverse rate X1 axis: 16000 [mm/min] Rapid traverse rate X2 axis: 16000 [mm/min] Rapid traverse rate Z1 axis: 40000 [mm/min] Rapid traverse rate Z2 axis: 40000 [mm/min] Rapid traverse rate Y axis: 6000 [mm/min] Spindle nose: A2-5" Max. bar diameter in turning spindle: 42 [mm] Spindle throughbore: 56 [mm] Max. spindle speed: 6000 [rpm] Increment C-axis: 0.001 [°] Spindle power: 11 [kW] Spindle torque: 75.4 [Nm] Counter spindle nose: A2-5" Counter spindle throughbore: 56 [mm] Counter spindle stroke: 525 [mm] Max. counter spindle speed: 6000 [rpm] Counter spindle increment C-axis: 0.001 [°] Counter spindle power: 11 [kW] Counter spindle torque: 75.4 [Nm] Max. tool holder cross-section: 20 x 20 [mm] Number of tool stations - Turret 1: 12 Number of tool stations driven - Turret 1: 12 Max. speed driven tools - Turret 1: 6000 [rpm] Number of tool stations - Turret 2: 12 Number of tool stations driven - Turret 2: 12 Max. speed driven tools - Turret 2: 6000 [rpm] Live tools power: 7.1 [kW] Total power required: 55.2 [kVA] Supply voltage: 400 [V] Weight: 6200 [Kg] INCLUDED EQUIPMENT: x1 IEMCA BOSS 545 E Type 32 L bar feeder (3 m bar capacity) x1 SMW-AUTOBLOK Mario Pinto PPBE-42 A5 collet chuck (S1 spindle) x1 Collet chuck (S2 spindle) x4 Radial driven tool holders x2 Axial driven tool holders x16 Static tool holders x1 Foot pedal control for chuck open/close x1 Parts catcher on upper turret with conveyor belt x1 Chip conveyor Isdszhvwlspfx An Hjif x1 Automatic lubrication system x1 Three-color status indicator lamp x1 Transformer x1 USB memory stick for parameter backup Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Machine tool similar to turning and milling centers, machining centers and milling machines, including brands such as Schaublin, Index, Mori Seiki, Traub, Tsugami, Star, Tornos, Biglia, Nakamura, Miyano, DMG and Mazak. CNC lathe, CNC turning center, CNC turning machine, machining center, CNC milling machine, CNC machining center, Fanuc, iTNC, TNC, Heidenhain, Mori Seiki, Mazak, Hurco, Nakamura, Takamura, Hardinge.

Condition: excellent (used), Year of construction: 2019, Control Nakamura-Tome NT Smart X Travel distances X1/X2 axis: 135 mm Y1 axis: 62 mm Z1/Z2 axis: 503 mm W axis: 865 mm Max. turning diameter 190 mm Standard turning diameter 210 mm Max. turning length 503 mm Main spindle max. spindle speed: 6,000 rpm Counter spindle max. spindle speed: 6,000 rpm Tool turret 2 x 12-station turrets (24 index positions) 2 x 12 driven tool stations Milling drive power: 7.1/2.2 kW max. speed of driven tools: 6,000 rpm Additional options Iiedpfexmuz Tjx An Hef Finished parts gripper Type G incl. conveyor belt Part catcher Type A Chip conveyor Bar feeder magazine FMB Turbo 5-65/3200A, year 2019

Condition: excellent (used), Year of construction: 2015, FANUC 31i-B control C-axis on both spindles Milling drive on the upper turret Milling drive on the lower turret Travel range – Y1 axis: 80 (+/- 40) mm Travel range – Y2 axis: 65 (+/- 32.5) mm Swivel range of B-axis: +/- 91° Incline angle: 90° MAIN SPINDLE Bar diameter: 42 mm Spindle diameter: 51 mm Spindle speed: 6,000 rpm Drive power – spindle motor max./continuous: 11 / 7.5 kW TAILSTOCK SPINDLE Bar diameter: 42 mm Spindle diameter: 51 mm Spindle speed: 6,000 rpm Drive power – spindle motor max./continuous: 11 / 7.5 kW TOOL TURRET Tool magazine positions, upper turret: 12 / 24 + 6 Tool magazine positions, lower turret: 12 / 24 INCLUDED Inclined bed filter system Iiedpfx Aszum Tden Hof Hinged belt chip conveyor, discharge to the right Coolant system Material collection tray

Condition: used, Year of construction: 1997, functionality: fully functional, machine/vehicle number: W301002, Technical characteristics: Work Area # Maximum turning diameter: 270 mm # Maximum machining diameter: 215 mm # Maximum workpiece length: 265 mm # Distance between spindle noses: 1080 mm # X1/X2-axis travel: 195 mm / Rapid traverse in X: 12 m/min # Z1/Z2-axis travel: 265/780 mm / Rapid traverse in Z: 24 m/min # B-axis travel (right spindle): 850 mm / Rapid traverse in Z: 24 m/min Spindles Ijdpfx Anjxw Uh Io Hoif # Spindle as per DIN 55026: Size A2-6 # Maximum speed: Left & Right 50–5000 rpm # Power at 100% duty cycle: Left 11 kW / Right 11 kW # Main spindle special feature: Optional dual command clamping cycle for 2-stage chuck clamping # Bar capacity: Left spindle 51 mm / Right spindle 51 mm Two Tool Turrets # Tool interface: BMT55 # Number of stations: 12-position disc turret Electrical Equipment # Operating voltage: 200/220VAC +10%/–15%, single-phase, 50/60 Hz # Connected load: 54 kVA (connection 61 VA) Dimensions # Machine dimensions (L×W×H): 3645 × 1875 × 1970 mm # Weight: 10,800 kg Main Features and Capabilities: # Horizontal construction: Optimal chip evacuation and easy part handling # CNC control: Fanuc 6i-TT # Chip conveyor # Automation interface for gantry loader available # Main spindle fitted with Autoblock Chuck 265 TXS # Each turret equipped with 2 external tool holders # Documentation: Electronic not available / Hardcopy available Machine status: RUNNING/IN OPERATION

Condition: used, Year of construction: 2006, functionality: fully functional, machine/vehicle number: M301809, Technical characteristics: Work Area # Maximum turning diameter: 270 mm # Maximum machining diameter: 215 mm # Maximum workpiece length: 780 mm # Distance between spindle noses: min. 250mm/max. 1100mm # X1/X2 axis travel: 195 mm / Rapid traverse X: 30 m/min # Z1/Z2 axis travel: 780 mm / Rapid traverse Z: 30 m/min # Y-axis (Upper Turret) travel: +/- 60 mm / Rapid traverse Y: 30 m/min # B-axis travel (Right Spindle): 850 mm / Rapid traverse B: 30 m/min Spindles # Spindle DIN 55026: Size A26 # Max speed: Left 4,500 rpm / Right 4,500 rpm # Power with 100% ED: Left – 15 kW / Right – 15 kW # Main spindle feature: Optional dual-stage clamping cycle # Bar capacity: Left spindle - 80 mm / Right spindle - 80 mm Tool Holder with Driven Tools # Tool interface: BMT55 # Number of positions: 12-station disc turret, all positions driven # Max speed: 3,600 rpm, Milling drive power: 5.5 kW Electrical Equipment # Operating voltage: 400V 3-phase, fuse 217A GL # Connected load: 71.9 kVA Dimensions # Machine dimensions (L×W×H): 4,059 × 2,314 × 2,225 mm # Weight: 14,000 kg Main Features and Capabilities: # Horizontal design: Optimal chip evacuation and straightforward loading/unloading Iiedexxv A Aepfx An Hjf # CNC Control: Fanuc 18i-TB 2CPU, 2-channel control # Upgraded hydraulic unit: Hazabal S.L. GH1018/008 # Chip conveyor # Bar feeder interface # Automation interface available # Documentation: Electronic and hard copy available Machine status: Operational (in production)

Condition: good (used), functionality: fully functional, !!!ON-SITE SALE, D-74219 MÖCKMÜHL!!! 2-axis CNC turning machine NAKAMURA SUPERTURN ST-2 with automatic tailstock Iodsy Ucidopfx An Heif Control: Fanuc Machine is fully functional. Videos available.

Condition: as good as new (ex-display), Year of construction: 2024, New and unused, 340mm turning diameter, 570mm turning length, Y axis +/- 41mm, 400mm swing, 65mm bar capacity, spindle speed 4,500rpm, 15 station turret, Iiodpfxeziavhj An Hef 11/15kW spindle motor, milling 6000rpm, C axis 0.001 degrees, FANUC-i control, tailstock, coolant, tool setter, swarf conveyor, parts catcher, 3 jaw chuck, tooling,

Condition: excellent (used), Year of construction: 2008, Nakamura Super Mill WY-250 CNC Lathe Capacity: Max. turning diameter: 215 mm Standard turning diameter: 150 mm Distance between centers: max. 870 mm / min. 250 mm Max. turning length: 580 mm Bar capacity left/right: L: 65 mm R: 51 mm Chuck size: left: 210 mm (8″) right: 165 mm (6″) Axis travel: Slide travel (X1 / X2): 160.5 mm / 160 mm Slide travel (Z1 / Z2): 580 / 580 mm Slide travel (Y1 / Y2): ±50 mm / -50 mm, +20 mm Slide travel (B2 axis): 620 mm Rapid traverse X1 / X2: 18 m/min Rapid traverse Z1 / Z2: 36 m/min Rapid traverse B2 axis: 36 m/min Rapid traverse Y1 / Y2: 10 m/min Main and sub spindle: Spindle speed: 4500 rpm / 5000 rpm Speed range: stepless / stepless Spindle nose: A2-6 / A2-5 Spindle bore: 80 mm / 63 mm Front bearing inner diameter: 110 mm / 90 mm Drawtube diameter: 66 mm / 52 mm C-axes: Minimum input unit: 0.001° Minimum command increment: 0.001° Max. indexing speed: 600 rpm Feed speed: 1–4800 mm/min C-axis lock: disc brake C-axis positioning time: 1.5 s Upper/lower turret: Ijdpfxsy Ipp Ro An Hjif Turret type: 12-position drum turret Number of tool stations: 48 (2 x 24) Square tool size: 25 mm Round shank tool size: 32 mm Driven tools: Drive system: single drive Spindle speed: 6000 rpm / 3600 rpm Speed range: stepless Number of driven tool stations: 12 × 2 Collet size: ER32 Straight toolholder size: 2 mm – 20 mm Cross toolholder size: 2 mm – 20 mm Drive power and torque: Left spindle: 18.5 / 11 kW 225 / 185 Nm Right spindle: 15 / 11 kW 120 / 120 Nm Tool spindles: 7.5 / 3.7 kW 40 / 16 Nm General: Machine height: 2395 mm (without extraction) Footprint: 4436 mm × 2674 mm / 4905 mm × 3331 mm Machine weight: 14,000 kg Scope of supply as shown in photo gallery includes, among others: Nakamura lathe, toolholders (driven and non-driven), collets, complete operating documentation, portal loader and loading robot, Iemca Master 880 Verso bar feeder, peripheral devices (chip conveyor, transformer, oil mist separator, etc.) No guarantee is given for the correctness, completeness or currentness of the information provided.

Condition: repair required (used), Year of construction: 2006, functionality: not functional, machine/vehicle number: M301302, Technical characteristics: Work Area - Maximum turning diameter: 270 mm - Maximum machining diameter: 215 mm - Maximum workpiece length: 780 mm - Distance between spindle noses: min. 250 mm / max. 1100 mm - X1/X2 axis travel: 195 mm / Rapid traverse in X: 30 m/min - Z1/Z2 axis travel: 780 mm / Rapid traverse in Z: 30 m/min - Y-Axis (Upper Turret) travel: ±60 mm / Rapid traverse in Y: 30 m/min - B-axis travel (Right Spindle Stroke): 850 mm / Rapid traverse: 30 m/min Spindles - Spindle standard: DIN 55026, size A26 - Maximum spindle speed (Left/Right): 4500 rpm - Power at 100% duty cycle (Left/Right): 15 kW - Main spindle feature: Optional dual-stage clamping cycle - Bar capacity (both spindles): 80 mm Tool Holder with Driven Tools - Tool holder interface: BMT55 - Number of positions: 12-station turret, all driven positions - Maximum speed: 3600 rpm - Milling motor power: 5.5 kW Electrical Equipment - Operating voltage: 400V 3-phase, 217A GL fuse - Connected load: 71.9 kVA Dimensions - Machine dimensions (L×W×H): 4,059 × 2,314 × 2,225 mm - Weight: 14,000 kg Iisdpfx Aexxvy Usn Hof Main Features and Capabilities: - Horizontal design: Optimized for chip evacuation and easy loading/unloading - CNC control: Fanuc 18i-TB, 2CPU, 2-path control - Enhanced hydraulic unit: Hazabal S.L. GH1018/008 - Chip conveyor - Bar feeder interface - Automation interface available - Documentation: Electronic and printed manuals available Machine status: NOT WORKING - Servo drive failure on lower turret - Lifetool reduction gearbox on lower turret broken – requires replacement

Condition: excellent (used), Year of construction: 2015, Maximum cutting diameter 640mm, maximum cutting length 1100mm, bar capacity 80mm, B axis -120/+105 degrees, C axis 0.001 degrees, Spindle power 18.5Kw, spindle speed 3,500 rpm, milling power 15Kw, milling speed 12,000 rpm, sub spindle speed 3,500 rpm, 40 station ATC, Iijdpfx Aott Nrtsn Hjf Y axis travel -/+ 125mm, Fanuc 31i control, magazine barfeed, swarf conveyor, parts catcher.

Condition: ready for operation (used), Year of construction: 2023, operating hours: 3,841 h, number of axes: 9, This 9-axis NAKAMURA-TOME WY150 was manufactured in 2023, featuring a turn-mill centre with a comprehensive toolholder setup including 6 external, 4 internal, 3 radial rotating, and 12 axial rotating holders, plus a collet chuck and a 3-jaw chuck. Consider the opportunity to buy this NAKAMURA-TOME WY150 turn-mill centre. Contact us for more information. Additional equipment • 6 external toolholders • 4 internal toolholders Iedpsyb Sakefx An Hjif • 3 radial rotating (driven) toolholders • 12 axial rotating (driven) toolholders • 1 collet chuck • 1 three-jaw chuck

Condition: good (used), Year of construction: 2011, functionality: fully functional, number of driven tool stations in tool turret 1: 48, number of driven tool stations in tool turret 2: 12, Available immediately and can be viewed under power. Ijdpfjycl Epex An Hsif Upper X Y Z ballscrews fully refurbished mid 2023 by UK company. Included as shown in pictures -- Live tooling turret NA44A/BMT44 -- Capto C4 milling -- Capto C4 turning holders -- Capto C4 extensions -- 3 x Dual Capto C4 for turret -- Various other turret holders as pictured -- See attached spreadsheet (PDF below), for included holders. -- Renishaw arm -- Part catcher arm + converyor (not used for a long time) -- Old version of CAMplete TurnMill with USB dongle TECHNICAL DETAILS - Number of axes : 9 - Number of spindles : 2 MAIN SPINDLE - Spindle nose : A2-5 - Spindle power : 11 [kW] - Spindle speeds : 4500 [rpm] - Max. bar diameter : 65 [mm] - Max. turning diameter : 200 [mm] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Spindle nose : A2-5 - Spindle power : 11 [kW] - Spindle speeds : 5000 [rpm] - Max. bar diameter : 51 [mm] - Max. turning diameter : 200 [mm] - C axis indexing precision : 0,001 [°] - Travel : 780 [mm] - Spindle / counter-spindle distance : 980 [mm] TURNING-MILLING SPINDLE - X/Z stroke : 570/1297 [mm] - Y stroke : +/- 100 [mm] - B Axis stroke : 190 (+/-95) [°] - Tool type : Capto C4 - Spindle speeds : 12000 [rpm] - Spindle power : 7,5 [kW]

Condition: used, Year of construction: 2008, Technical details: turning diameter: 410 mm turning length: 500 mm control: Fanuc 21i TB standard turning diameter: 275 mm Isdezd Un Iopfx An Hjif travel -x axis: 277 mm travel -y axis: 82 (±41) mm travel -z axis: 500 mm Spindle 1 RPM: 4500 1/min Spindle 1 Power: 18,5/18,5/15 kW Spindle 1 max. bar diameter: 65 mm turret stations / rotary tool stations: 12/12 Power rotary tools: 5,5 kW RPM of rotary tools: 6000 1/min total power requirement: 39,2 kVA weight of the machine ca.: 6,2 t dimensions of the machine ca.: 3,1 x 2,0 x 2,2 m collet chuck: Hainbuch Accerories Chip conveyor Robot interface High precision Turning and Milling Centre with Y-axis and robot loading. Stäubli Robot for shaft loading. *
