Used Siemens Gildemeister 250 Vertical Lathe for sale (24,868)

Condition: good (used), Year of construction: 2001, spindle speed (min.): 2,500 rpm, Model Year: 2001 Chuck Diameter: 10" Number of Axes: 2 Length: 650 mm Swing Diameter: 650 mm Ijdpfox N A Dwox Ab Njat Spindle Speed (RPM): 2500 Machinable Materials: Steel, Aluminum, Titanium, Graphite, Copper, Invar, Composite, Delrin, PEEK

Condition: good (used), Year of construction: 2012, functionality: fully functional, Schiess CNC vertical lathe with C axis, year 1992, retrofitted in 2012 CNC: NUM 1060 FLEXIUM 2 tables, table diameter 2000mm – max turning diameter 2500mm – max table speed 201 rpm – table power 56 KW Load capacity (table included): 16,000kg Movable crossrail with 12 positions, 50mm pitch Available space under spindle nose: min. 795mm, max. 1345mm RAM Z stroke: 1000mm C axis with 360,000 positions – milling spindle max speed 1600 rpm – milling spindle power 22KW – 2 gear ranges Tool magazine: 20 turning tool positions, 35 milling tool positions 1 milling head WIDAFLEX UTS80 1 milling head ISO 50 Renishaw MP60 touch probe (for parts) Tool presetter – Transmit function: G20 / G21 – No rigid tapping Chip conveyor Isdpfx Absxpqm Rs Neat Front door: partial opening M0 / full opening

Condition: excellent (used), Year of construction: 1974, functionality: fully functional, WE OFFER UNIVERSAL LATHE WITH BRAND NEW 3 AXIS DIGITALS COMPLETE TOOLS AND ACCESSORIESS. DESCRIPTION Description Precision lathe, turning machine -Manufacturer: VDF Heidenreich & Harbeck -Machine bed rails: hardened -Turning length: 750 mm -Turning Ø over bed: 500 -Turning Ø over recess: 355 mm -Turning Ø over support: 290 mm -Spindle bore: Ø 56 mm Isdpfovkpkzsx Ab Neat -Spindle speeds: 19 - 2000 rpm -Wedge bar chuck: Forkardt Ø 250 mm -Tailstock mount: MK4 -Drive: 7.5 kW -Accessories: 1x steady rest, 6x Multifix tool holder, -Dimensions: 1180/3050/H1345 mm -Weight: 2000 kg

Condition: good (used), Year of construction: 2004, spindle speed (min.): 3,500 rpm, travel distance Z-axis: 1,000 mm, Model Year: 2004 Chuck Diameter: 12" Number of Axes: 2 Length: 1000 mm Swing Over Bed: 350 mm Spindle Speed (RPM): 3500 Isdpfxex Nvpas Ab Noat Processable Materials: Steel, Aluminum, Titanium, Graphite, Copper, Invar, Composite, Delrin, Peek

Condition: used, CNC Lathe DMG MORI SEIKI - GILDEMEISTER Type CTX 310 ecoline Machine No. 8044001846E Year of manufacture: 2013 CNC Control: SIEMENS Sinumerik 840D sl Swing diameter over bedway cover: 330 mm Swing diameter over cross-slide cover: 260 mm Centre height max.: 190 mm Centre distance max.: 580 mm Turning diameter max.: 200 mm Longitudinal slide travel (Z-axis) max.: 450 mm Cross-slide travel (X-axis) max.: 160 mm Spindle bore through draw tube: 51 mm Spindle bore through front bearing: 100 mm Spindle speed max.: 5,000 rpm Feed rate X and Z: mm/min. Rapid traverse X-axis: 30 m/min. Rapid traverse Z-axis: 30 m/min. Feed force X and Z: 4,500 Nm Tool turret: 12 stations Driven tool stations: 6 stations Tool holder cylindrical VDI 30 mm Spindle drive motor power at 100% duty cycle: max. 11 kW Spindle drive motor power at 40% duty cycle: max. 16.5 kW Power supply: 400 Volt, 50 Hz, 21 kVA - CNC control SIEMENS Sinumerik 840D sl, system software NCU V04.04+SP02+HF02 - Controlled C4-axis chuck position and C1-axis for tool turret - 3-jaw chuck AUTOGRIP Ø 210 mm with 1 set of hard jaws and 15 sets of soft jaws - AUTOGRIP hydraulic hollow clamping device - Clamping force adjustment for regulating clamping pressure Iedsyk Hrgopfx Ab Nsat - Tool turret SAUTER, type 0.5.901.020 with 12 stations (6 driven) - 20 tool holders VDI 30 - Tailstock MK 4 - Indirect measurement system via rotary encoder - Chip conveyor with integrated coolant system - Workpiece residual life display and piece counter as large display on machine enclosure - Control cabinet cooling unit - 9,716 total operating hours (main switch on), of which 3,322 spindle hours as per counter - Operating instructions and manuals Machine footprint with chip conveyor (L x W x H): 4,500 x 2,600 x 2,050 mm Base machine space requirement (L x W x H): 2,900 x 2,150 x 2,050 mm (3,200 kg) Chip conveyor space requirement (L x W x H): 3,350 x 850 x 1,650 mm (500 kg) Weight: approx. 4 tons Very good condition

Condition: ready for operation (used), Year of construction: 2008, operating hours: 61,440 h, functionality: fully functional, machine/vehicle number: 06800003891, rotational speed (max.): 5,000 rpm, controller model: Siemens 840D powerline, Equipment: chip conveyor, documentation/manual, TECHNICAL DETAILS Max. speed: 5,000 rpm MACHINE DETAILS Control: Siemens 840D powerline Electrical Data Apparent power: 50 kVA Rated current: max. 72 A Current: 80 A Mains voltage: 400 V Frequency: 50 Hz Control voltage: 230 V Voltage: 24 V Operating hours: approx. 76,300 h Spindle hours: approx. 61,440 h EQUIPMENT Pallet circulation system Iedpjyzqtksfx Ab Neat Material conveyor belts for machined parts Chip conveyor Documentation/manual Note: The machine is sold without chuck, tools or raw part holders. Additionally, the seller can offer the following accessories: SMW KNCS225 chuck for €1,500 Ewab pallets (base pallets) 10 units for €500 Extension of transport belts for finished parts €2,000 Basic holder set VDI 40 suitable for the machine, 10 units for €1,000

Condition: good (used), Year of construction: 2009, functionality: fully functional, feed length X-axis: 1,100 mm, feed length Z-axis: 300 mm, feed force Y-axis: 100 N, clamping diameter: 250 mm, GILDEMEISTER CTV 250 with Y-axis SIEMENS 840 DSL Chuck diameter: 250 mm X-axis traverse (turning/transfer): 650 mm Z-axis traverse (longitudinal): 300 mm Y-axis traverse (cross): +/- 50 mm Main spindle: Drive power: 25 kW Spindle speed: 20-5,000 rpm C-axis: Speed range: 0-100 rpm Positioning accuracy: 0.02 degrees Feed: Rapid traverse X/Y/Z: 60/40/40 m/min Tool Turret: Number of tool stations / driven: 12/12 Shaft diameter VDI: 40 mm Drive power for driven tools: 11.7 kW Speed: 4,000 rpm Iasdpfx Aew Hdfdeb Not Machine weight: approx. 5,500 kg Equipment: - Loading and unloading device for 40 workpieces - 3-jaw chuck - Fixed tool turret - Coolant system - Hinged belt chip conveyor

Condition: excellent (used), Year of construction: 2006, operating hours: 8,513 h, functionality: fully functional, machine/vehicle number: 8042942323C, We are offering this refurbished Gildemeister CTX 310 V4 CNC SIEMENS 840 D SHOPTURN CNC turning and milling center, year of manufacture 2006. Serviced and prepared for transport Extensive tool accessories included, such as tool cabinets and measuring devices Year of manufacture: 2006 Weight: 3950 kg Maximum spindle speed: 6000 rpm Iodpfjyvfq Sjx Ab Noat Connected load: 26 kVA Max. connection current: 35 A Current: 38 A Mains voltage: 400 V Frequency: 50/60 Hz Control voltage: 230 V Control power consumption: 150 W Internal voltage: 24 V If you have any questions or need more information, please feel free to send us a message or call us.

Condition: good (used), Year of construction: 2003, operating hours: 41,852 h, Workpiece Specifications: Ijdpfx Abovy Ti Hj Noat Max Swing Diameter: ~2500 mm (98.4 inches) Max Turning Height: ~2000 mm (78.7 inches) Max Workpiece Weight: ~10,000 kg (22,046 lbs) (depending on configuration) Spindle Specifications: Spindle Drive Power: ~50 kW (67 hp) (approximate, depending on model) Spindle Speed Range: ~10-500 rpm (variable, depending on model) Spindle Taper: Typically a large taper suitable for heavy-duty turning. Table Specifications: Table Diameter: ~2500 mm (98.4 inches) Table Load Capacity: ~10,000 kg (22,046 lbs) Axis Travel: X-Axis Travel: ~2000 mm (78.7 inches) Z-Axis Travel: ~2000 mm (78.7 inches) Tooling: Tool Holder Type: Typically VDI or similar heavy-duty tool holders. Number of Tools: Depending on the turret configuration, typically 12 or more tools. Accuracy: Positioning Accuracy: ~0.01 mm (0.0004 inches) Repeatability: ~0.005 mm (0.0002 inches) Dimensions and Weight: Machine Weight: ~30,000 kg (66,139 lbs) (approximate) Machine Dimensions: ~5000 x 4000 x 4000 mm (196.9 x 157.5 x 157.5 inches) (approximate) Additional Features: Coolant System: High-pressure coolant system for efficient chip removal and cooling. Automation: Optional automation systems for loading/unloading of workpieces. CNC Control: Advanced CNC control for complex machining tasks.

Condition: not inspected (used), Year of construction: 2008, operating hours: 39,361 h, functionality: unexamined, machine/vehicle number: 07510001241, turning length: 1,185 mm, turning diameter: 640 mm, spindle speed (max.): 12,000 rpm, workpiece weight (max.): 150 kg, controller model: SIEMENS SINUMERIK 840 D, No minimum price – guaranteed sale to the highest bidder! By placing a bid, you are obliged to collect the item within the specified timeframe, either between 11/05/2026 and 13/05/2026 or between 18/05/2026 and 21/05/2026. TECHNICAL DETAILS Swing diameter: 640 mm Maximum turning diameter: 640 mm Maximum turning diameter (sub spindle): 400 mm Spindle distance: 1,500 mm Turning length: 1,185 mm Max. workpiece weight: 150 kg Slide travel X1: 550 mm Slide travel Y1: 180 mm Slide travel Z1: 1,185 mm Slide travel B1: 240° Slide travel X2: 180 mm Slide travel Z2: 1,050 mm Slide travel Z3: 1,150 mm Max. milling spindle speed: 12,000 rpm Max. main spindle speed: 4,000 rpm Max. sub spindle speed: 3,200 rpm Rapid traverse rate, Slide 1 (X/Y/Z): 40 / 24 / 70 m/min Rapid traverse rate, Slide 2 (X/Z): 24 / 36 m/min Rapid traverse rate, Slide 3 (Z): 36 m/min Tool holder: HSK 63 Number of tool positions in chain magazine: 40 MACHINE DETAILS Control: SIEMENS SINUMERIK 840 D Dimensions & Weight Iaedoym A D Ropfx Ab Nst Dimensions (L x W x H): 7,800 x 4,100 x 3,040 mm Machine weight: 16,500 kg Operating hours: 72,899 h Spindle hours: 39,361 h Bar feeder Model: COCCHE GIOVANNI CNC-DB 110 Year of manufacture: 2008 Serial number: CNCDB-08.306 Weight: 1,500 kg Note: The machine has the following defects: - The hydraulic unit is faulty and requires repair. - The Q2 axis (milling spindle tool changer) fails more frequently. - The X2 axis (guideways) moves slightly askew. - The guideways and drives show age-appropriate wear. External Reference: Bilstein – Lot 1

Condition: used, Year of construction: 2005, Technical details: swing diameter: 320 mm control: 840 D SIEMENS turning speeds: 5000 1/min spindle drive: 20 / 27 kW chucking diameter: 250 mm travel -x axis: 650 mm travel -z axis: 300 mm turret head: 12 Pos. tool holder: VDI 40 toolpiece turning speed range: 4000 1/min work piece power: max. 11,7 kW weight of the machine ca.: 8 t CNC vertical lathe, live tools, C-axis, high pressure pump 20 bar, 500l, filter, flush gun, 3-jaw chuc, EWAB loading station right, chipconveyor, approx. 23.500h "machine on", approx. 8.000h "spindle on" (in total) MACHINE WILL GET NEW (OVERHAULED) SPINDLE (0 hours) Iasdpfxsmcibwo Ab Nst *

Year of construction: 2002, condition: ready for operation (used), Travel X/Z: 800mm/300mm, max. turning diameter: 320mm, max. turning length: 300mm, speed: 5000rpm, spindle power: 22kW, tool slots: 12, tool holder: VDI 40, main spindle clearance: 79mm. Machine dimensions X/Y/Z: approx. 5000mm/3900mm/2800mm, weight: approx. 6700kg, control: Siemens Sinumerik 840D, operating hours: 42996h. Documentation available. On-site inspection is possible. Iodpfx Abjubyy No Njat

Condition: excellent (used), Year of construction: 2005, Control Siemens 840 D Powerline Turning length 1185 mm, swing diameter 640 mm Plan route X 1 . 550mm, X 2 . 180mm Longitudinal path Z1 . 1185 mm, Z2. 1050mm Main spindle as integrated spindle motor ISM 65 with 5000 rpm Partial hollow clamping device 68 mm C-axis and spindle brake Cross slide at the top with turning and milling spindle as a motor spindle with triple Hirth gearing with 12,000 rpm 1° Indexing for fluid locking when twisting Y axis +- 90mm B-axis +- 120° interpolating with hydraulic clamping Tool magazine with 46 places Absolute direct path measuring systems in all linear axes Coolant tank 600 l with belt filter system chip conveyor, 12-fold star turret with C-axis tool drive Iaodpslcdcpofx Ab Njt Counter spindle as an integrated spindle motor ISM 76, partial hollow clamping device 67 mm with 5,000 rpm Additional coolant pressure of 20 bar for the turning and milling spindle and the star turret Connection for stick vein magazine Tailstock function for the counter spindle Preparation for turret bezel

Condition: used, Year of construction: 2005, turning diameter 640 mm turning length 1.185 mm control SINUMERIK 840D swing diameter 640 mm distance of spindle heads 1500 mm slide I: X1 / Y1 / Z1 / B slide travel X-axis 550 mm slide travel Z-axis 180 mm Z- Travel 1.185 mm B - axis 240 ° feed x-axis 0 - 40.000 mm/min feed y- axis 1 - 24.000 mm/min Feed z- axis 1 - 70.000 mm/min feed B-axis 1 - 20 1/min rapid traverse X/Y/Z 40 / 24 / 70 m/min feed capacity X/Y/Z S6: 7,00/11,00/7,50 kN tool taper HSK 63 turning speed milling-spindle 10 - 12.000 1/min power capacity at 100 % load 13,20 kW power capacity at 40 % load 22,00 kW torque milling spindle 60 / 100 Nm no. of workpieces in the magazine 46 Stück tool length - max. 350 / 200 mm tool diameter 80 mm wotkpiece diameter with 2 vacant positions 120 mm weight of tools max. 6 / 10 kg slide II: X2 / Z2 slide travel X-axis 180 mm Z- Travel 1.050 mm feed x-axis 1 - 24.000 mm/min Feed z- axis 1 - 36.000 mm/min rapid traverse x + z axis 24 / 36 m/min feeding force S6: 11,00/9,00 kN turret (x-stations) 12 tool taper DIN 69880 Ø40 Driven tools - quantity 12 Driven tool turning speed 1 - 4.000 1/min power capacity at 100 % load 10,70 kW Isdpfoydfllex Ab Noat torque S1: 32 Nm Slide III - longitudial travel Z3 mm Z- Travel 1.150 mm Feed z- axis 1 - 36.000 mm/min rapid traverse Z-axis 36,00 m/min feed capacity Z - axes S6: 13,00 Nm Main spindle ISM90 turning speed main-spindle 10 - 4.000 1/min power capacity at 100 % load 36,00 kW power capacity at 40 % load 45,00 kW max. torque at 40% / 100% load 800 / 630 Nm spindle bore 80 mm turning speed opposed-spindle 10 - 5.000 1/min power capacity at 100 % load 21,00 kW power capacity at 40 % load 28,00 KW max. torque at 40% / 100% load 320 / 240 Nm spindle bore 80 mm total power requirement 70,00 kW weight of the machine ca. 20,00 t dimensions of the machine ca. 8,50 x 4,50 x H3,10 m Machine with SIEMENS SINUMERIK 840D control, main- and counter-spindle, chip conveyor, dust exhauster, DMG-automation WH10top. Main-spindle ISM90: hollow clamping device, C-axis, 3-jaw hydraulic chuck SMW-AUTOBLOK KNCS-NB-315-91 Counter-spindle ISM76: closed center clamping device, C-axis, 3-jaw hydraulic chuck SMW-AUTOBLOK KNCS-NB-315-91 Pick-up device with integrated conveyor belt, automatic protective cover, differential pressure clamps. Incl. pump-frame for coolant - Pump 1: 17 l/min at 80bar - Pump 2: 20 l/min at 8bar - Pump 3: 40 l/min at 20bar Without coolant unit. Was connected to a central coolant-system. Accessories: Hainbuch collet chuck incl. collets Ø30,45,50,55,60,65,72,82,85,90 1 piece workpiece pick-up-gripper for turret

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, turning length: 1,185 mm, turning diameter: 640 mm, spindle speed (max.): 4,000 rpm, turning diameter over bed slide: 640 mm, counter spindle torque (max.): 5,000 Nm, Turning and Milling Center with Main and Counter Spindle and Comprehensive Equipment! TECHNICAL DETAILS Turning diameter: 640 mm Turning length: 1,185 mm Swing diameter: 640 mm Distance between headstocks: 1,500 mm SLIDE I X-Axis travel: 550 mm Y-Axis travel: 180 mm Z-Axis travel: 1,185 mm B-Axis: 240° Feed rate X-axis: 0 – 40,000 mm/min Feed rate Y-axis: 1 – 24,000 mm/min Feed rate Z-axis: 1 – 70,000 mm/min Feed rate B-axis: 1 – 20 rpm Rapid traverse X/Y/Z: 40 / 24 / 70 m/min Feed force X/Y/Z S6: 7.00 / 11.00 / 7.50 kN Tool interface: HSK 63 Milling spindle speed: 10 – 12,000 rpm Drive power 100% duty cycle: 13.20 kW Drive power 40% duty cycle: 22.00 kW Milling spindle torque: 60 / 100 Nm Max. tool length: 350 / 200 mm Tool diameter: 80 mm Tool diameter with 2 free pockets: 120 mm Max. tool weight: 6 / 10 kg SLIDE II X-Axis travel: 180 mm Z-Axis travel: 1,050 mm Feed rate X-axis: 1 – 24,000 mm/min Feed rate Z-axis: 1 – 36,000 mm/min Rapid traverse X + Z axes: 24 / 36 m/min Feed force Z / X S6: 11.00 / 9.00 kN Turret (positions): 12 Tool holder: DIN 69880 Ø40 Driven tool positions: 12 Speed: 1 – 4,000 rpm Drive power 100% duty cycle: 10.70 kW Torque S1: 32 Nm SLIDE III Z-Axis travel: 1,150 mm Feed rate Z-axis: 1 – 36,000 mm/min Rapid traverse Z-axis: 36 m/min Feed force Z-axis S6: 13.00 Nm Iaodpfowyvc Ujx Ab Not MAIN SPINDLE Model: ISM90 Speed: 10 – 4,000 rpm Drive power 100% duty cycle: 36.00 kW Drive power 40% duty cycle: 45.00 kW Torque at 40% / 100% duty cycle: 800 / 630 Nm Spindle bore: 80 mm COUNTER SPINDLE Speed: 10 – 5,000 rpm Drive power 100% duty cycle: 21.00 kW Drive power 40% duty cycle: 28.00 kW Torque at 40% / 100% duty cycle: 320 / 240 Nm Spindle bore: 80 mm MACHINE DETAILS Electrical Data Total power requirement: 70.00 kW Dimensions & Weight Machine weight: approx. 20.00 t Footprint: approx. 8.50 x 4.50 x H3.10 m Control Control manufacturer: Siemens Control model: SINUMERIK 840D EQUIPMENT Chip conveyor Oil mist separator DMG Automation WH10top Main spindle ISM90: Hollow chuck, C-axis, 3-jaw power chuck SMW-AUTOBLOK KNCS-NB-315-91 Counter spindle ISM76: Partial hollow chuck, C-axis, 3-jaw power chuck SMW-AUTOBLOK KNCS-NB-315-91 Pick-off unit with integrated conveyor belt Automatic safety cover Differential pressure clamping With pump stand for coolant: Pump 1: 17 l/min at 80 bar / Pump 2: 20 l/min at 8 bar / Pump 3: 40 l/min at 20 bar Hainbuch collet chuck including collets Ø30, 45, 50, 55, 60, 65, 72, 82, 85, 90 1 workpiece pick-off for turret

Condition: excellent (used), CNC vertical lathe Gildemeister CTV 250 Working area: Chuck diameter: 250mm X-axis: 800mm Iaedpfx Aevuqm Sob Nst Z-axis: 300m Spindle head: 170 h5 Spindle diameter in the front bearing: 120mm Spindle bore: 79mm C-axis Number of work stations: 12 Videos available!!

Condition: ready for operation (used), Siemens 6FX1190-3AA00 MS 250 Module E Stand B used 100% functional Isdpfx Absxagrko Njat

Condition: ready for operation (used), functionality: fully functional, travel distance X-axis: 800 mm, travel distance Z-axis: 300 mm, TECHNICAL DETAILS Chuck diameter: 250 mm X-axis: 800 mm Z-axis: 300 mm Spindle Spindle head: 170 h5 Spindle diameter at front bearing: 120 mm Spindle bore: 79 mm C-Axis Iaodpfx Abowrr T To Net Number of tool stations: 12

Year of construction: 2010, condition: ready for operation (used), Lathe CTV 250 - R Iajdpei Ewq Sefx Ab Njt Manufacturer DMG Gildemeister Serial number 6860000451 Switch-on hours: 46.491 spindle hours 30.748 floor space 4m x 3m optional cooling unit for connection of two CTV 250

Condition: good (used), Year of construction: 2019, machine/vehicle number: 25728, Equipped with: Hydraulic Unit Sinumerik 840D sl CNC Control Slim Line Operator Panel OP012 W/12 TFT-Color Display 19" Machine Control Panel 20 Tool ATC CAPTO C6 Multifunctional Tool Carrier For Turning and Driven Tools One Fixed Tool Unit Assembled To The Compound Slide W/Coolant Thru The Turning And Drilling Tools, Coolant For The Driven Spindle From The Outside Drilling Spindle Additional Drill Spindle For Orientation Chip Conveyor Coolant Equipment -Including piping and shut-off valve and flow control switch -To supply coolant to tools for coolant and flushing through the cutting tools -To supply coolant for flushing the work piece and chuck -To supply coolant for flushing the working area Paper Band Filter Immersion Cooler High Pressure Coolant Pump, 40 Bar Through Tools Flushing Pistol, Hand Held Air Cleaner - Mechanical Separation "Mist Collector" Tool Life Display Remote Diagnostics Iajdpew Iqumofx Ab Not Signal Lamp Automatic Door For Loading W/Shuttle Load and Unload Shuttle Swivel Loader Automation Cell Tuned for Part Pallet Conveyor For 20 Raw And Finished Parts Pallets Pallets Designed for Part 596500 Handling System SPC Station (Maximum O 270 mm, Maximum H 150 mm, Maximum Wt. 12 kg) NIO Station (Closing forward leading gravity) Skiving Software (Hardware: Software and user surfaces for skiving technology) Measuring Probe (For measuring diameters and length of the workpiece in the machine) Measuring Software for Teeth Measuring (MDK and Flank Line, Software and User) Measuring Program (Automatically measuring program for measure the position of the two gears to each other, after using sister tools) SPC (Every X workpieces the MDK needs to be measured) Tool Changer (Precut, measurer and final cut) Skiving Tool Identification (Hardware, software for the identification of the skiving tool after tool change) Hydraulic Diagrams Coolant Diagrams Lubrication Diagrams Electrical Wiring Diagrams Hardcopy of Diagrams CF Certificates Specifications: Workpiece Spindle: -Speed: 0-7000 l/min -Power: 55,2 - 59,7 kW Tool: Capco C6 Tool Spindle: -Speed: 0-6000 l/min -Power: 29 - 41 kW Machine Weight, Floor Space and Voltage Supply: -Operating Voltage: 400V, 3 Phases, 50 Hz -Control Voltage: 24 V -Lighting Voltage: 240 V, 50 Hz -Floor Space: 2,700 x 2,600 mm -Height: 4,000 mm -Total Weight, Approximate: 16,000 kg Longitudinal, Z-Axis: -Stroke: 800 mm -Rapid Rate: 24 m/min -Feed Force: 12 kN Transverse, X-Axis: -Stroke: 900 mm -Rapid Rate: 24 m/min -Feed Force: 12 kN Tool Spindle, B-Axis: -Range: -20 / +90 Degree Y-Axis for Spindle Unit: -Stroke: 200 mm -Rapid Rate: 12 m/min -Feed Force: 6 kN C-Axis Main Spindle: -Positioning Accurace: 9" Multifunctional Tool Carrier: -Power: 29 kW at 100% ED -Power: 41 kW at 44% ED -Torque: 141 Nm at 100% ED -Torque: 212 Nm at 44% ED -Spindle Speed: 0-6000 min-1 -B-Axis for Stepless Motion in a Range Of: -20/+90 Degree Tool Magazine: -Maximum Tool Diameter: 100 mm -Approximate Tool Length: 300 mm -Approximate Tool Weight: 12 kg Swivel Loader: -Maximum Workpiece Diameter: 270 mm -Height: 150 mm -Weight: 16 kg

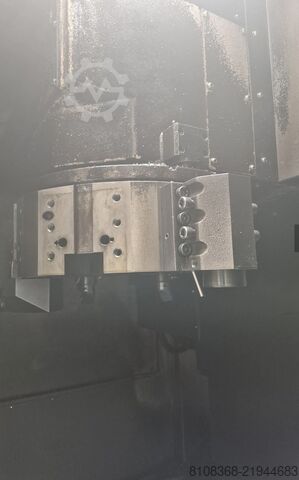

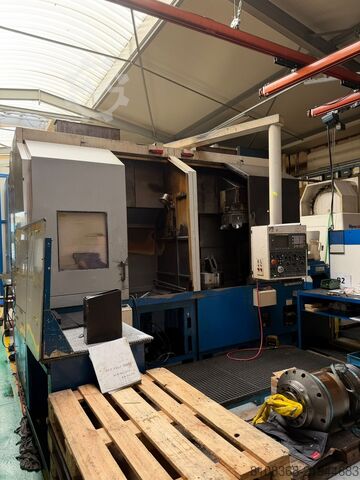

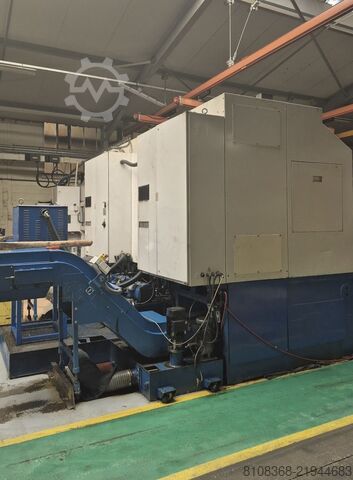

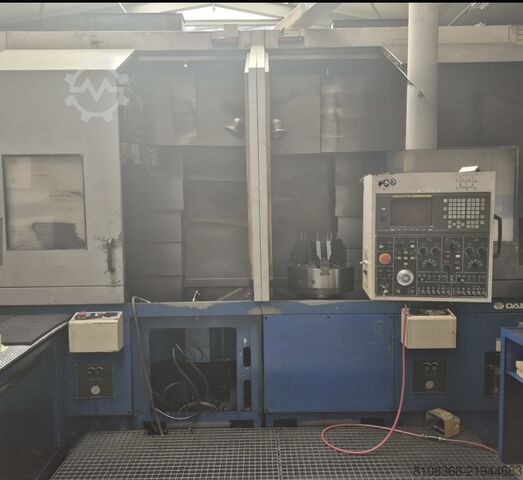

Condition: like new (used), DAEWOO PUMA V550M-2S CNC LATHE Brand: Daewoo Model: Puma V550M-2S Type: Vertical CNC Lathe Numerical Control: FANUC Series 18-T FEATURES: Iajdpfx Aboy S Anne Not – Large chuck – Power supply: 200/220V – 3-phase – 50/60Hz – Installed power: 103.8 kVA – Complete machine

Condition: used, Year of construction: 2009, faceplate diameter 3000 mm Isdpfsyqu Rwjx Ab Njat swing diameter 3500 mm turning height 3200 mm Control Fanuc type Series 320i Model A slide adjustment 1750 mm ram head dimension 300x300 mm x-axis 2700 mm Table load 30000 kg main drive motor 100 kW Tool changer 16 weight of the machine ca. 89 t dimensions of the machine ca. 8,5x6x8 m No. 1104 The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: excellent (used), Toshiba TX 16 Elevating Rail Vertical Borer Manufacturer Toshiba Model TX 16 Year 1981 Condition Used Serial Number 320156 Stock Number 2513 Table 1600mm dia with 4 x Adjustable clamping jaws Swing 2000mm Under Rail 1500mm Vertical Travel distance of C/slide 46″ Vertical Slide travel 1000mm Main Motor 30HP/22Kw Turret 5 Positions, 5 adaptors + 3 extension Bars. Copy Turning Unit. X & Z DRO. Swing Pendant Control & Fixed Station control panels for copy unit. Ijdpfsy N Aqwsx Ab Noat

Condition: used, Year of construction: 2001, faceplate diameter 850 mm swing diameter 1200 mm turning height 1000 mm Control Siemens type 840 D Tool changer 36 Pos. x-travel 870 mm Iaedpfx Abjy Swhio Net z-travel 1020 mm The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: used, faceplate diameter 3100 mm swing diameter 3600 mm turning height 3600 mm control Fagor 8035 table load 35 t turning speeds 0,32 - 40 U/min Iasdpfoyqt Hdex Ab Not max. ram stroke 3000 mm table load 35 t turning speeds 0,32-40 U/min total power requirement 70 kW 2x Ram head 250 x 250 mm Chip conveyor Mist extraction unit Coolant system The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team
